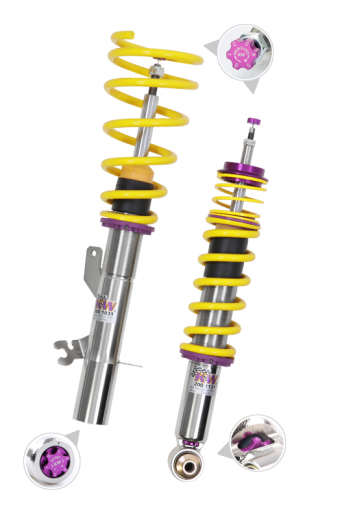

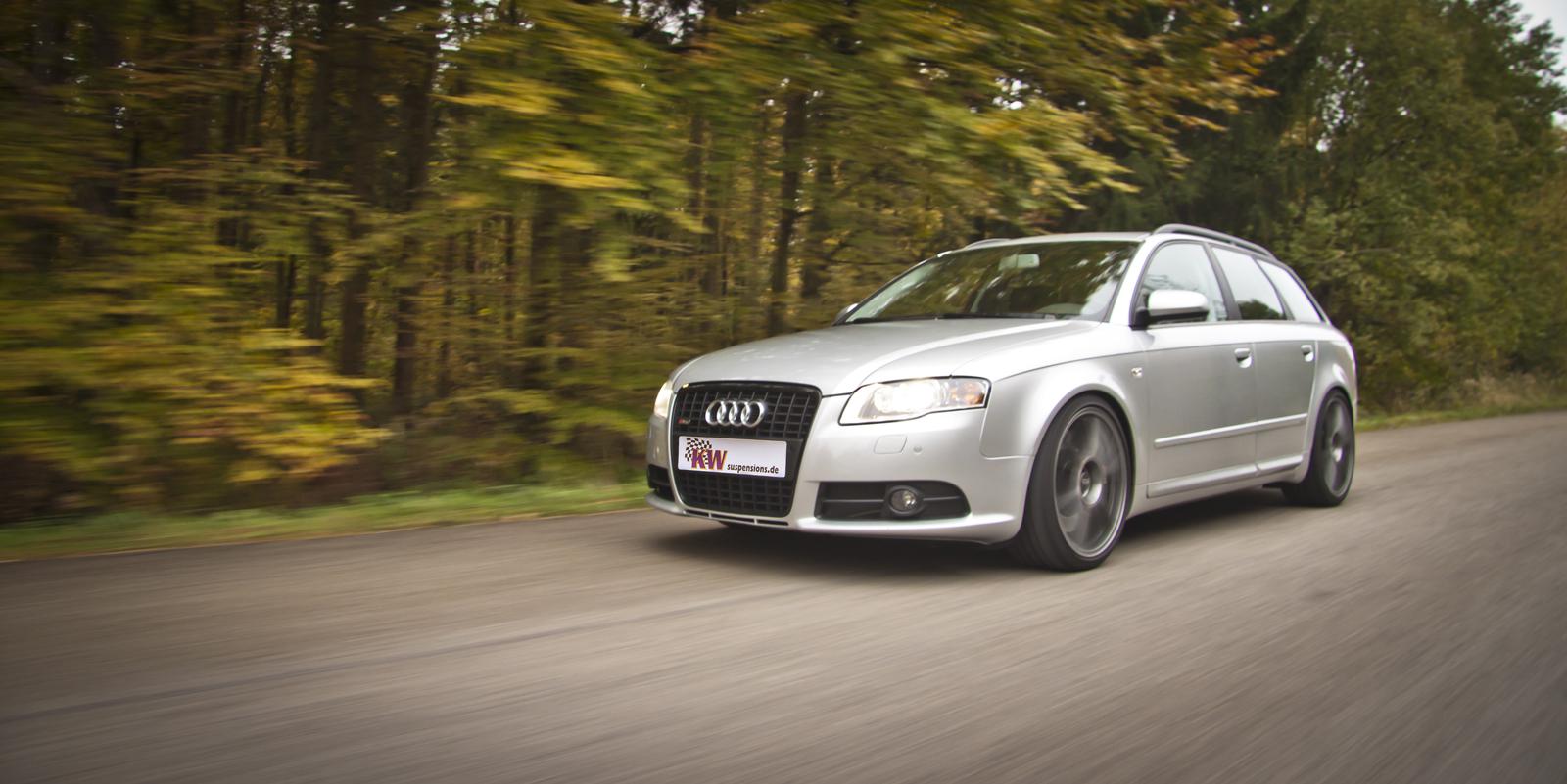

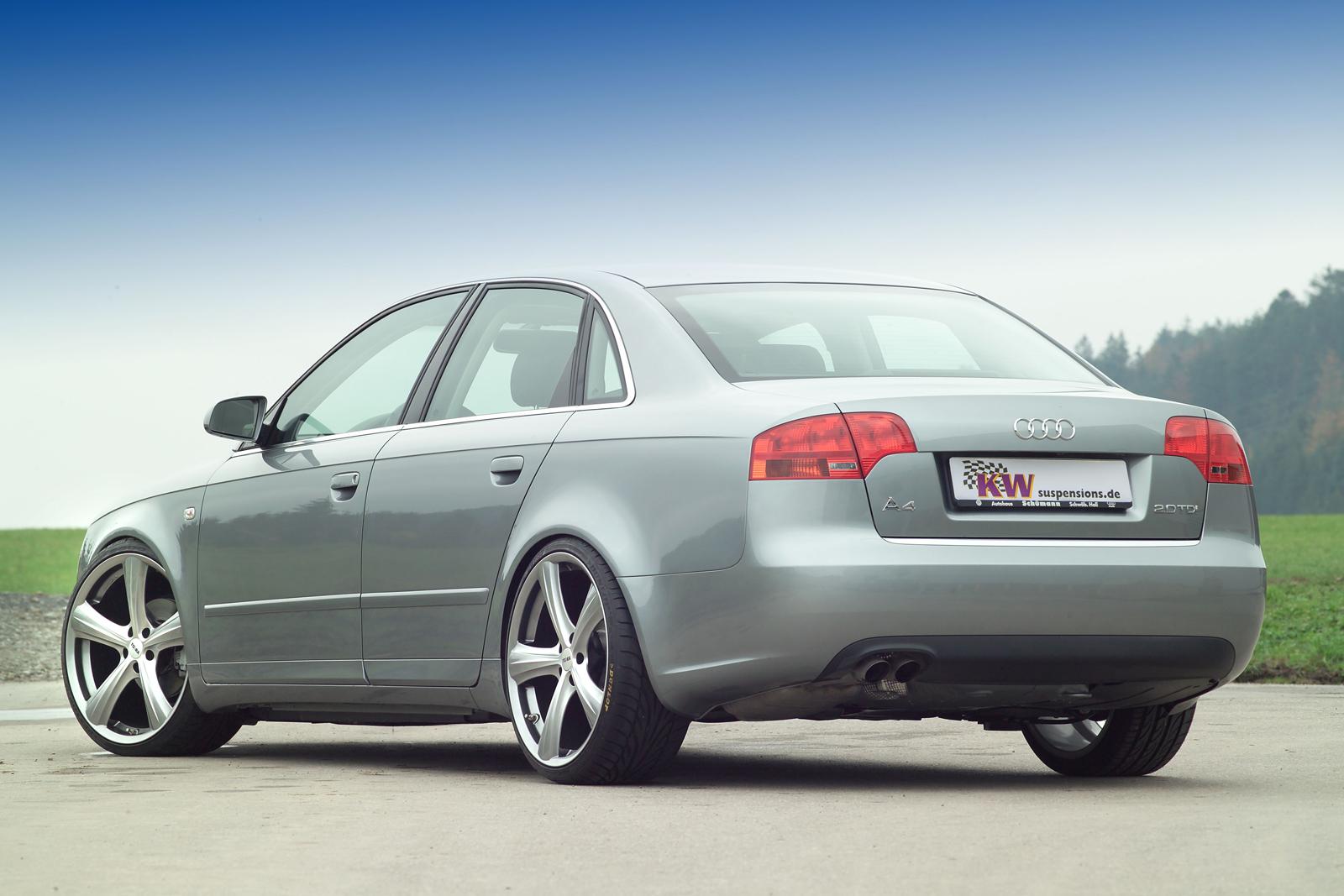

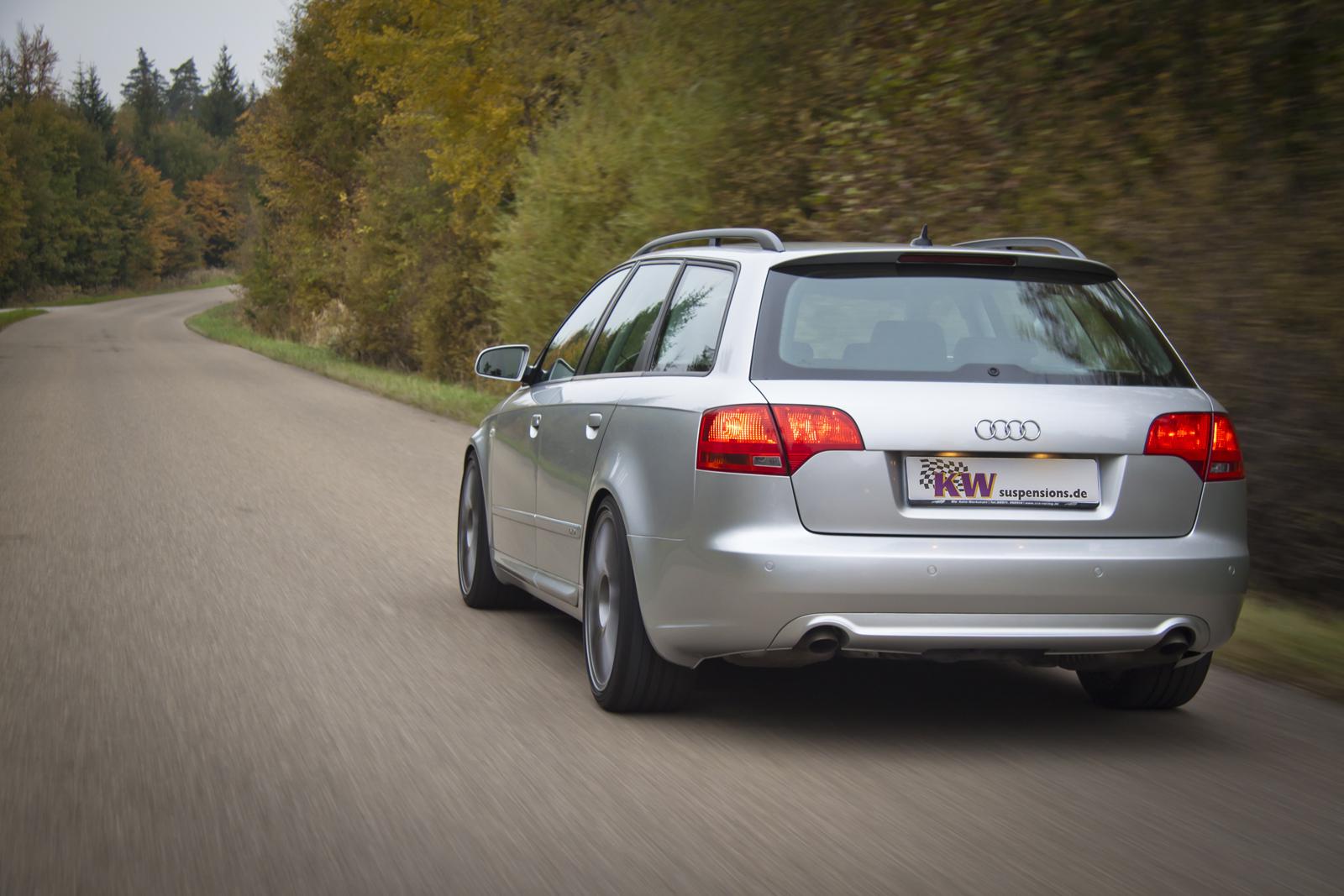

KW Coilover Kit V3 for Audi (B6) A4 / A4 Convertible / (B7) A4 Avant

SKU: 35210029
Sale price$4,521.06 Regular price$4,759.00
Save $237.94

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A4 quattro (B6) / A4 Avant (B7) / A4 Convertible (B6).

Key Features

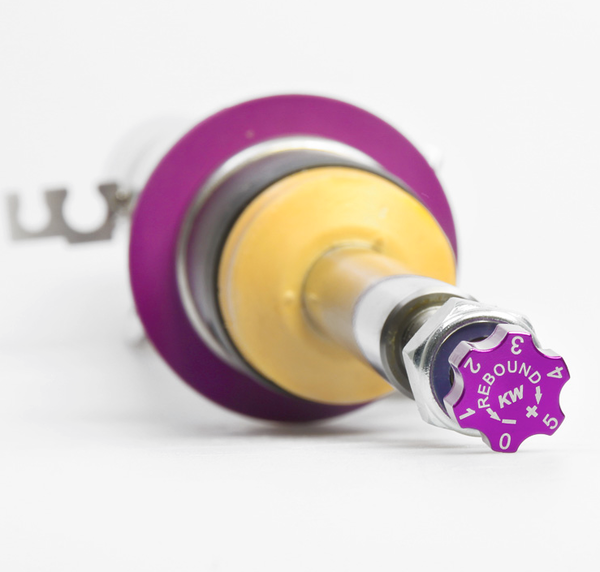

  • Rebound damping adjustable in 16 clicks

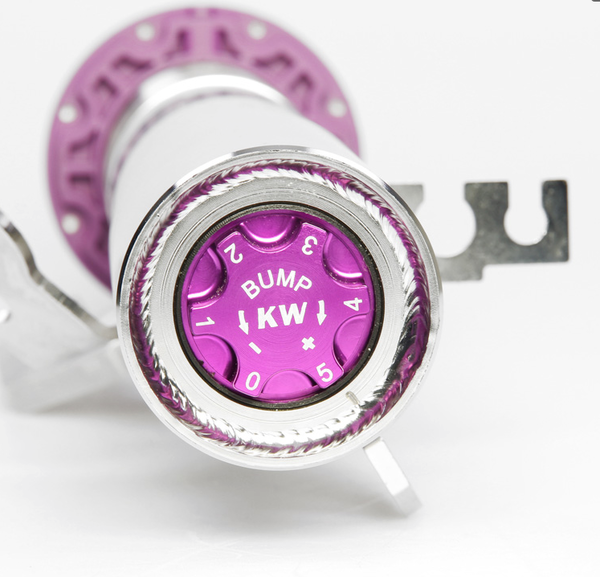

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression

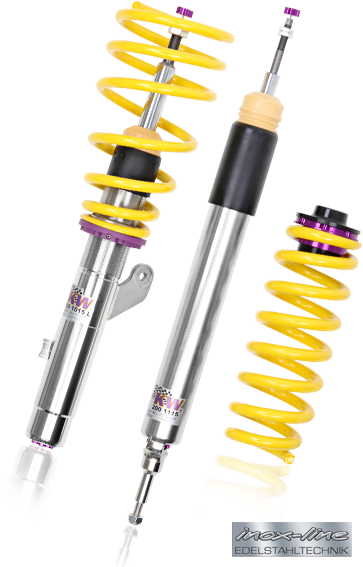

  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–60 mm
  • Front axle load: up to 1,080 kg
  • Rear axle load: up to 1,165 kg

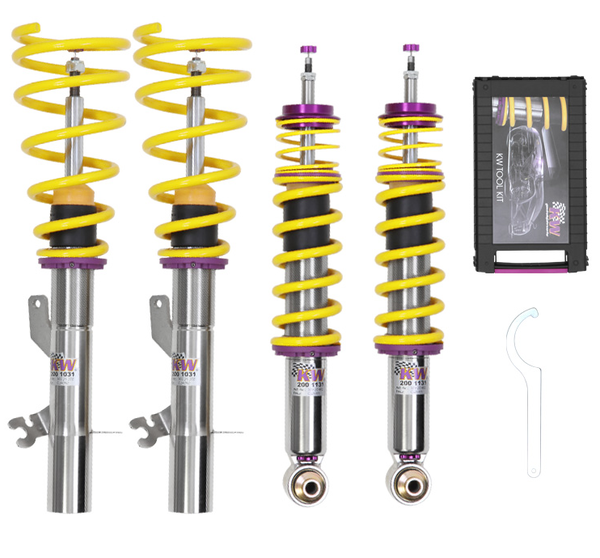

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,080 kg; Rear axle load up to 1,165 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2000–2005AudiA4 (8E) 8E2, B63.0 quattroPetrol · 164 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 (8E) 8E2, B61.8 T quattroPetrol · 110 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B62.0Petrol · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B62.0 FSIPetrol · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 (8E) 8E2, B61.8 T quattroPetrol · 120 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 TPetrol · 120 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B71.8 TPetrol · 120 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.8 TPetrol · 140 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B61.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2000–2005AudiA4 (8E) 8E2, B61.8 T quattroPetrol · 125 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 (8E) 8E2, B63.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2000–2005AudiA4 Avant (8E) 8E5, B63.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 8, 10
2004–2009AudiA4 (8E) 8EC, QB6, B72.0 TFSI quattroPetrol · 147 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2009AudiA4 (8E) 8EC, QB6, B71.8 T quattroPetrol · 120 kW · 1.8L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B71.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0Petrol · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B71.8 TPetrol · 120 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TFSIPetrol · 147 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B71.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B72.0Petrol · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2004–2009AudiA4 (8E) 8EC, QB6, B72.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B72.0 TFSIPetrol · 125 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 10
2004–2009AudiA4 (8E) 8EC, QB6, B73.0 quattroPetrol · 160 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10
2004–2008AudiA4 Avant (8E) 8ED, QB6, B73.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B71.8 TPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 10
2002–2009AudiA4 Convertible (8H) QB6, 8H7, B6, 8HE, B73.0Petrol · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 8, 10
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
