KW Coilover Kit V3 for Audi (B9) A4 / A4 Avant / A5

SKU: 352100AP
Sale price$4,863.05 Regular price$5,119.00
Save $255.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A4 quattro / A4 Avant / A5 quattro (B9).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 35–60 mm
  • Front axle load: up to 1,135 kg
  • Rear axle load: up to 1,215 kg
  • Front strut diameter (vehicle): 50 mm

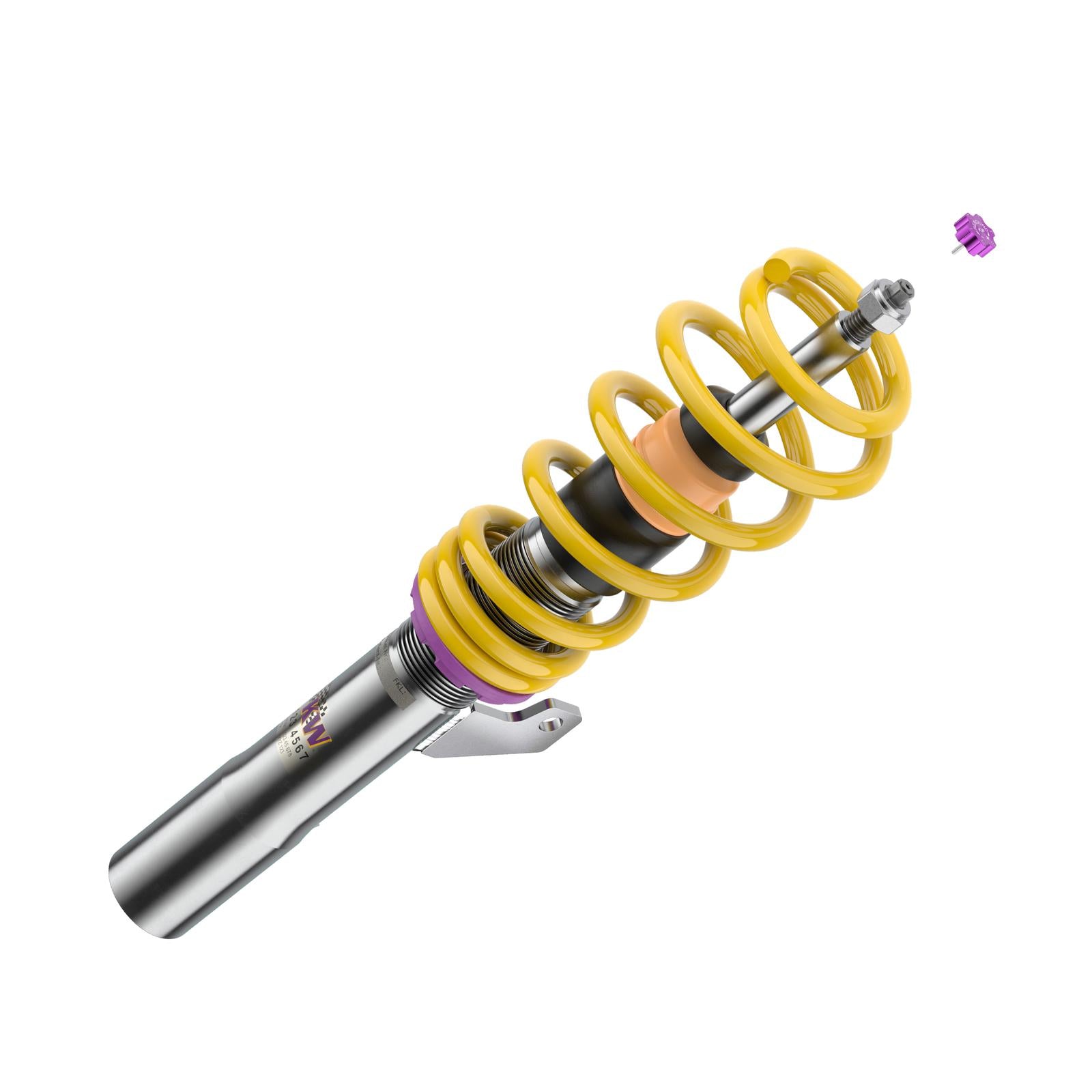

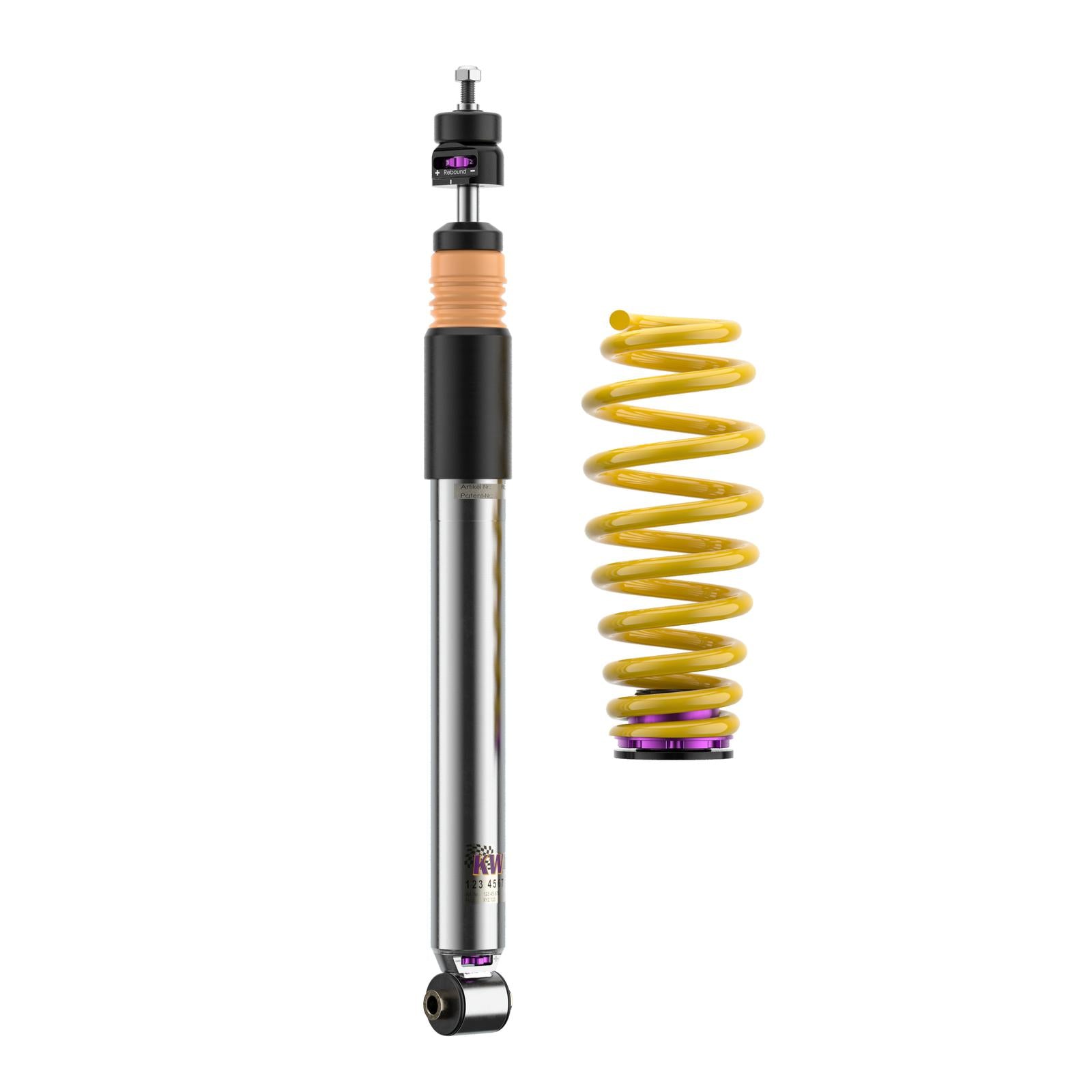

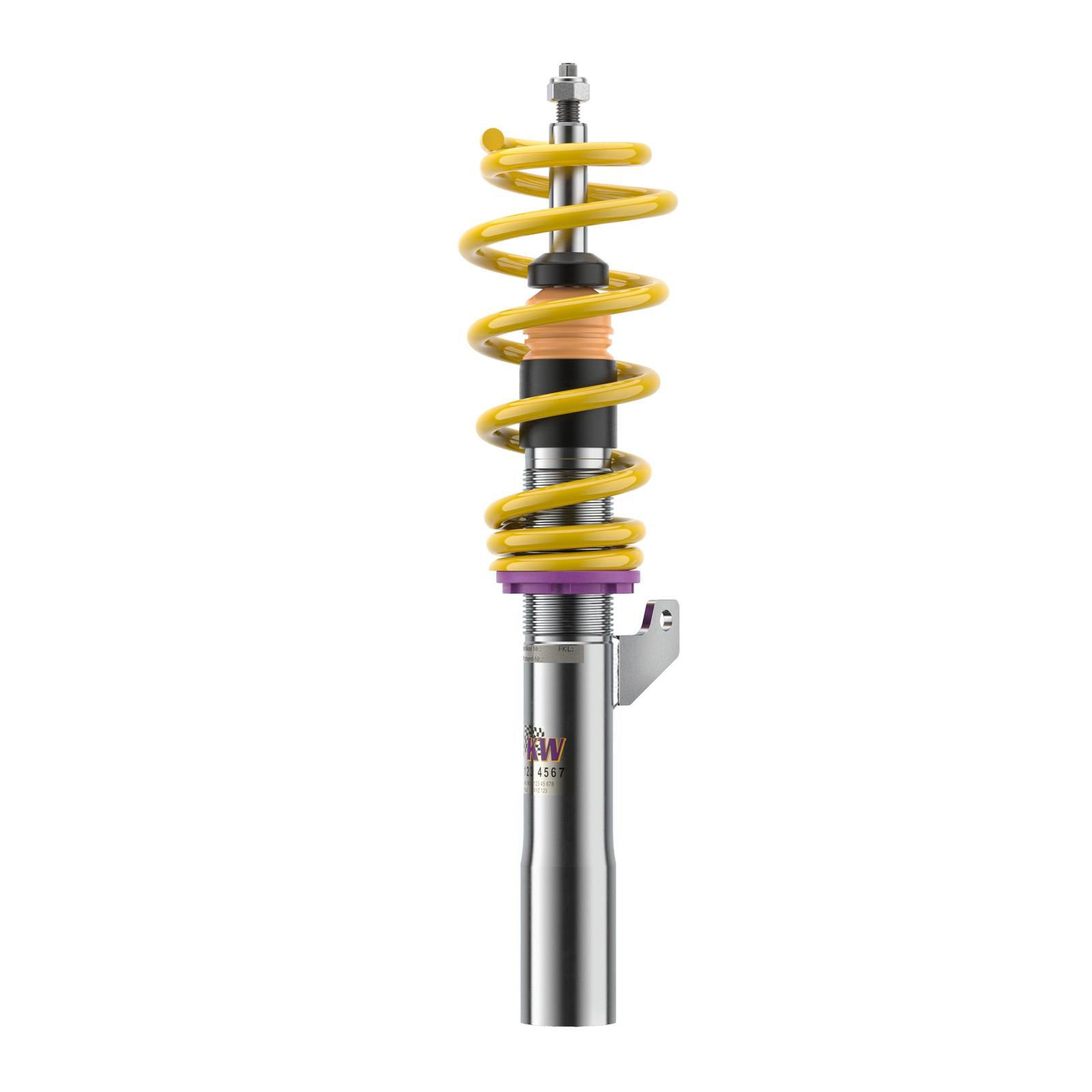

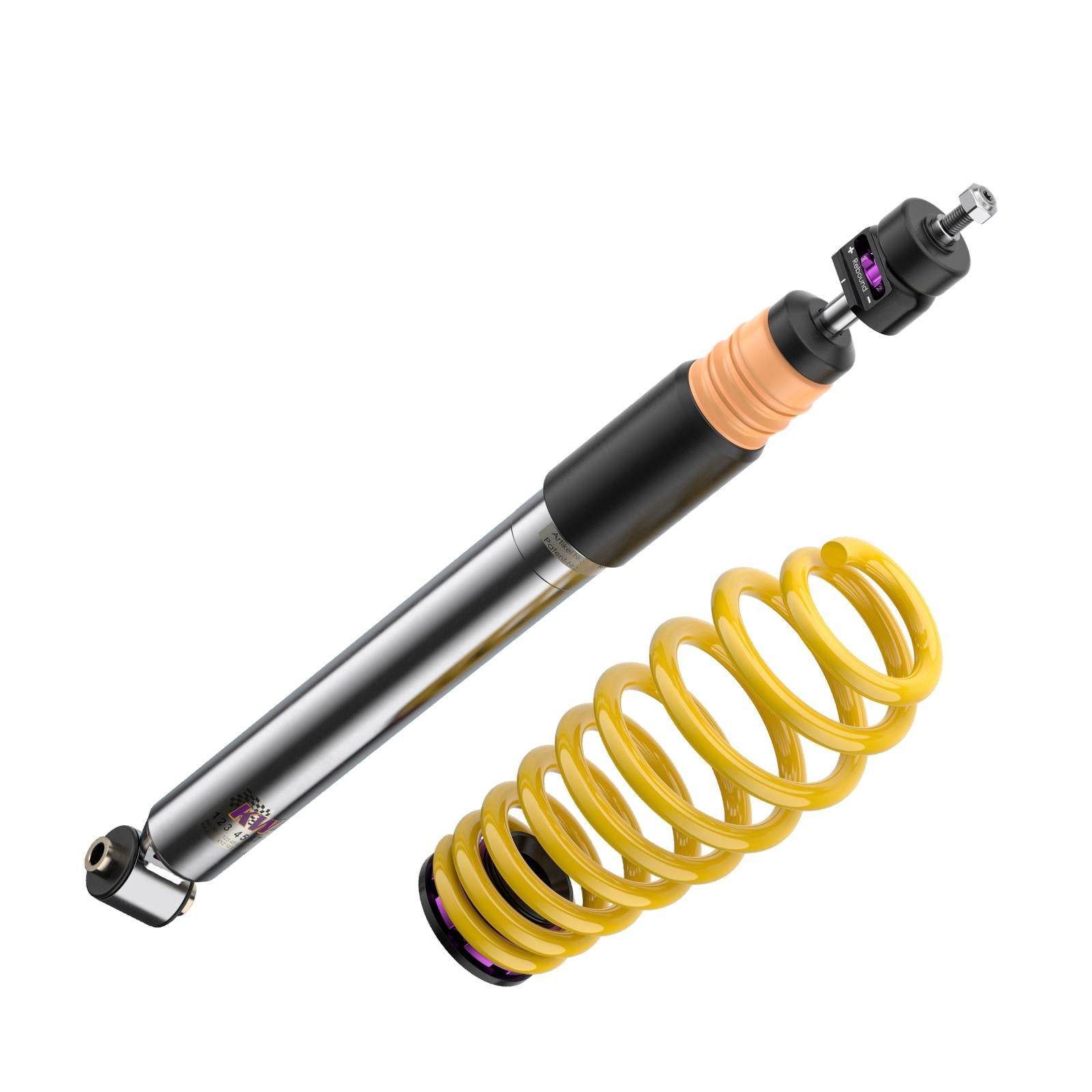

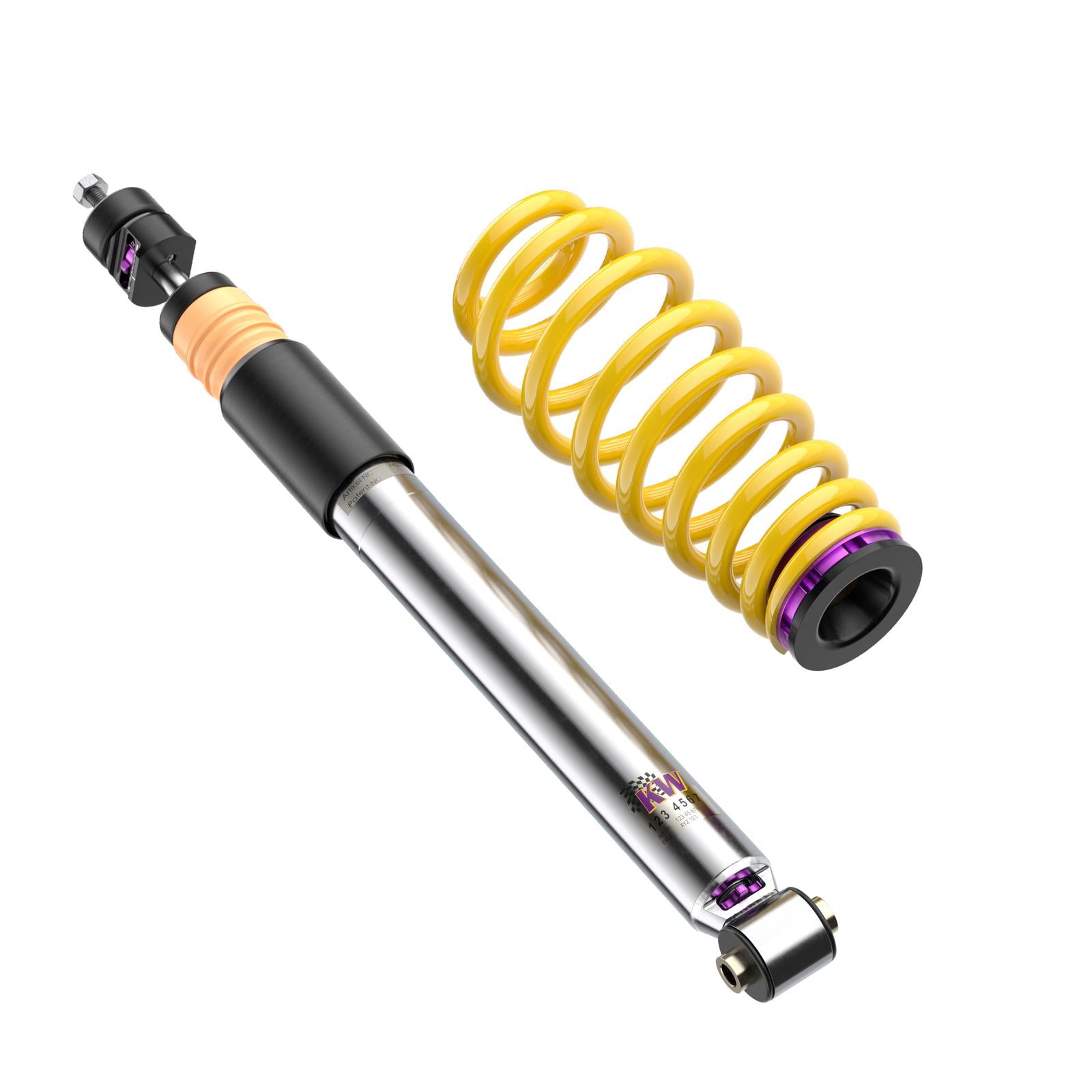

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,135 kg; Rear axle load up to 1,215 kg.

For vehicles without electronic damper control.

References 2, 37, 67, 405. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2015+AudiA4 (B9) 8W2, B82.0 TDI quattroDiesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B82.0 TDI quattroDiesel · 120 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B82.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B82.0 TFSI Mild Hybrid quattroPetrol/Electric · 185 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B82.0 TFSI quattroPetrol · 183 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B82.0 TFSI quattroPetrol · 185 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B840 TDI Mild Hybrid quattroDiesel/Electric · 150 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B840 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B840 TFSI Mild Hybrid quattroPetrol/Electric · 150 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B845 TFSI Mild Hybrid quattroPetrol/Electric · 180 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B845 TFSI Mild Hybrid quattroPetrol/Electric · 183 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 (B9) 8W2, B845 TFSI Mild Hybrid quattroPetrol/Electric · 195 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W51.4 TFSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TFSIPetrol · 183 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TFSIPetrol · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W52.0 TFSI Mild HybridPetrol/Electric · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W53.0 TDIDiesel · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W530 TDIDiesel · 90 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W530 TDI Mild HybridDiesel/Electric · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W535 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W535 TDI Mild HybridDiesel/Electric · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W535 TFSI Mild HybridPetrol/Electric · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W540 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W540 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W540 TFSIPetrol · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W540 TFSI Mild HybridPetrol/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W540 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2015+AudiA4 Avant (B9) B8, 8W545 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F532.0 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F532.0 TFSI Mild Hybrid quattroPetrol/Electric · 185 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F532.0 TFSI quattroPetrol · 183 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F532.0 TFSI quattroPetrol · 185 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F5340 TDI Mild Hybrid quattroDiesel/Electric · 150 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F5340 TDI quattroDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F5340 TFSI Mild Hybrid quattroPetrol/Electric · 150 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F5345 TFSI Mild Hybrid quattroPetrol/Electric · 180 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 (B9) F5345 TFSI Mild Hybrid quattroPetrol/Electric · 195 kW · 2.0L · 4-cylAll-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A1.4 TFSIPetrol · 110 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TFSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TFSIPetrol · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A2.0 TFSI Mild HybridPetrol/Electric · 185 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A3.0 TDIDiesel · 160 kW · 3.0L · 6-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A30 TDI Mild HybridDiesel/Electric · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A35 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A35 TFSI Mild HybridPetrol/Electric · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A40 TDIDiesel · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A40 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A40 TFSIPetrol · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A40 TFSI Mild HybridPetrol/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A40 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
2016+AudiA5 Sportback (B9) F5A45 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67, 405
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 405: Only for cars with damper diameter 50mm (not 48,5mm) / clamp diameter 53mm on the front axle.
