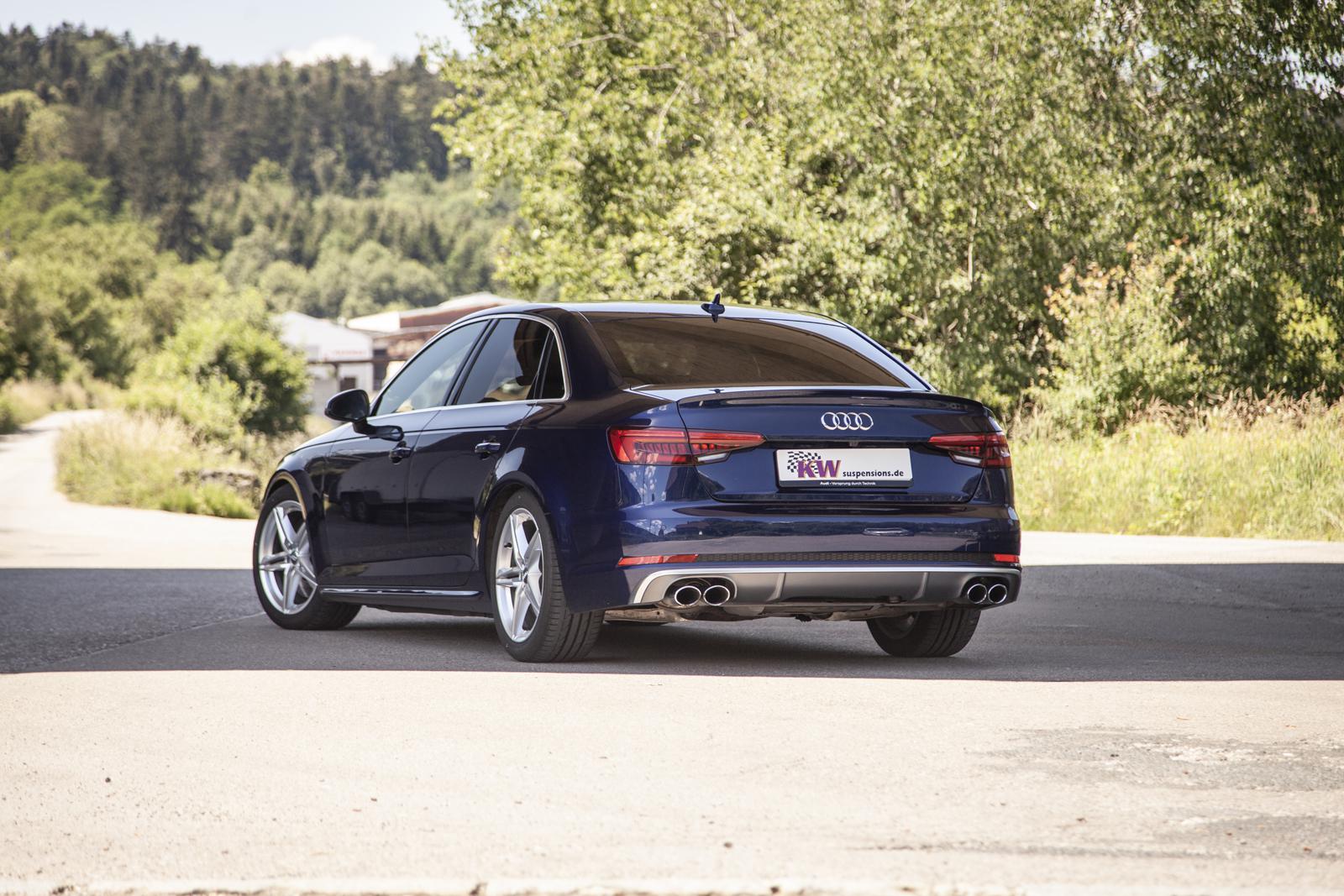

KW Coilover Kit V3 for Audi (B9) S4 / A4 3.0L TDI / A5 3.0L TDI - 50mm Front Strut
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Audi (B9) S4 / A4 3.0L TDI / A5 3.0L TDI - 50mm Front Strut
Sale price$4,863.05
Regular price$5,119.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi S4 / A4 3.0 TDI / A5 3.0 TDI (B9).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 30–55 mm
- Rear lowering: 35–60 mm
- Front axle load: 1,136–1,215 kg
- Rear axle load: up to 1,215 kg
- Front strut diameter (vehicle): 50 mm

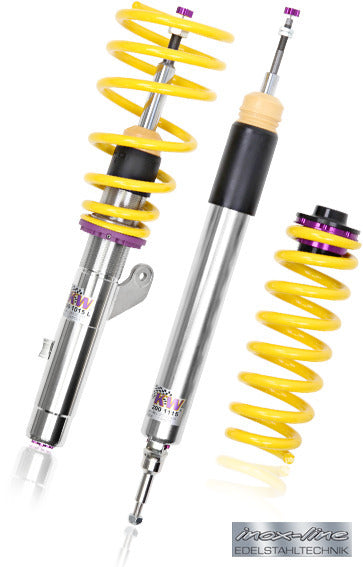

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,136–1,215 kg; Rear axle load up to 1,215 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2015+ | Audi | A4 (B9) 8W2, B8 | 3.0 TDI quattro | Diesel · 160 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2015+ | Audi | A4 (B9) 8W2, B8 | 3.0 TDI quattro | Diesel · 200 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2015+ | Audi | A4 (B9) 8W2, B8 | 45 TDI quattro | Diesel · 170 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2015+ | Audi | A4 (B9) 8W2, B8 | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2015+ | Audi | A4 (B9) 8W2, B8 | 50 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2015+ | Audi | A4 (B9) 8W2, B8 | S4 TFSi quattro | Petrol · 260 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 3.0 TDI quattro | Diesel · 160 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 3.0 TDI quattro | Diesel · 200 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 3.0 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 45 TDI quattro | Diesel · 170 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 50 TDI Mild Hybrid quattro | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
| 2016+ | Audi | A5 (B9) F53 | 50 TDI quattro | Diesel · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67, 405 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 405: Only for cars with damper diameter 50mm (not 48,5mm) / clamp diameter 53mm on the front axle.
