KW Coilover Kit V3 for Audi (C6) A6 V6 TDI / A6 4.2L

SKU: 35210059
Sale price$4,692.05 Regular price$4,939.00
Save $246.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

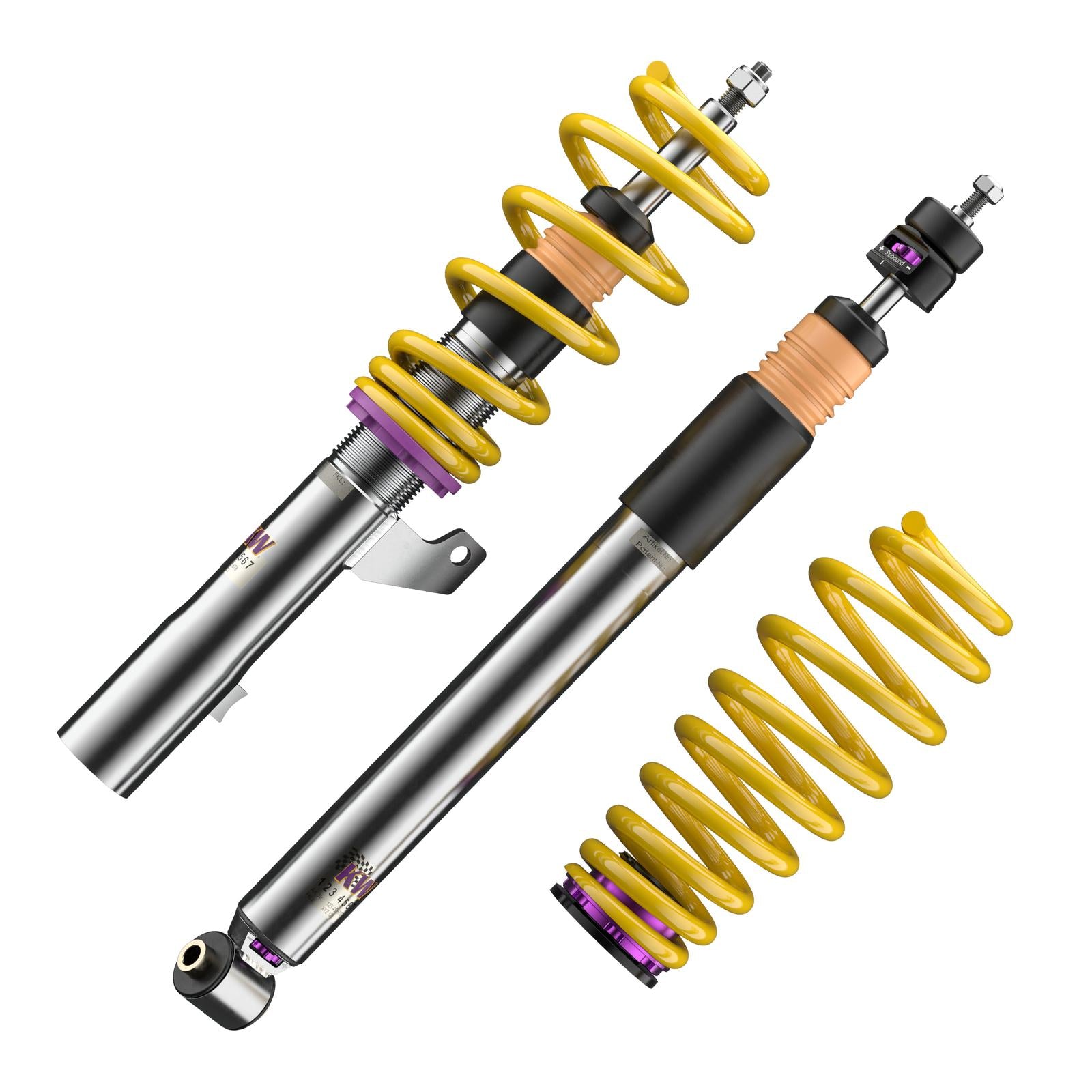

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A6 V6 TDI quattro / A6 4.2 quattro (C6).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: 1,241–1,305 kg
  • Rear axle load: up to 1,205 kg

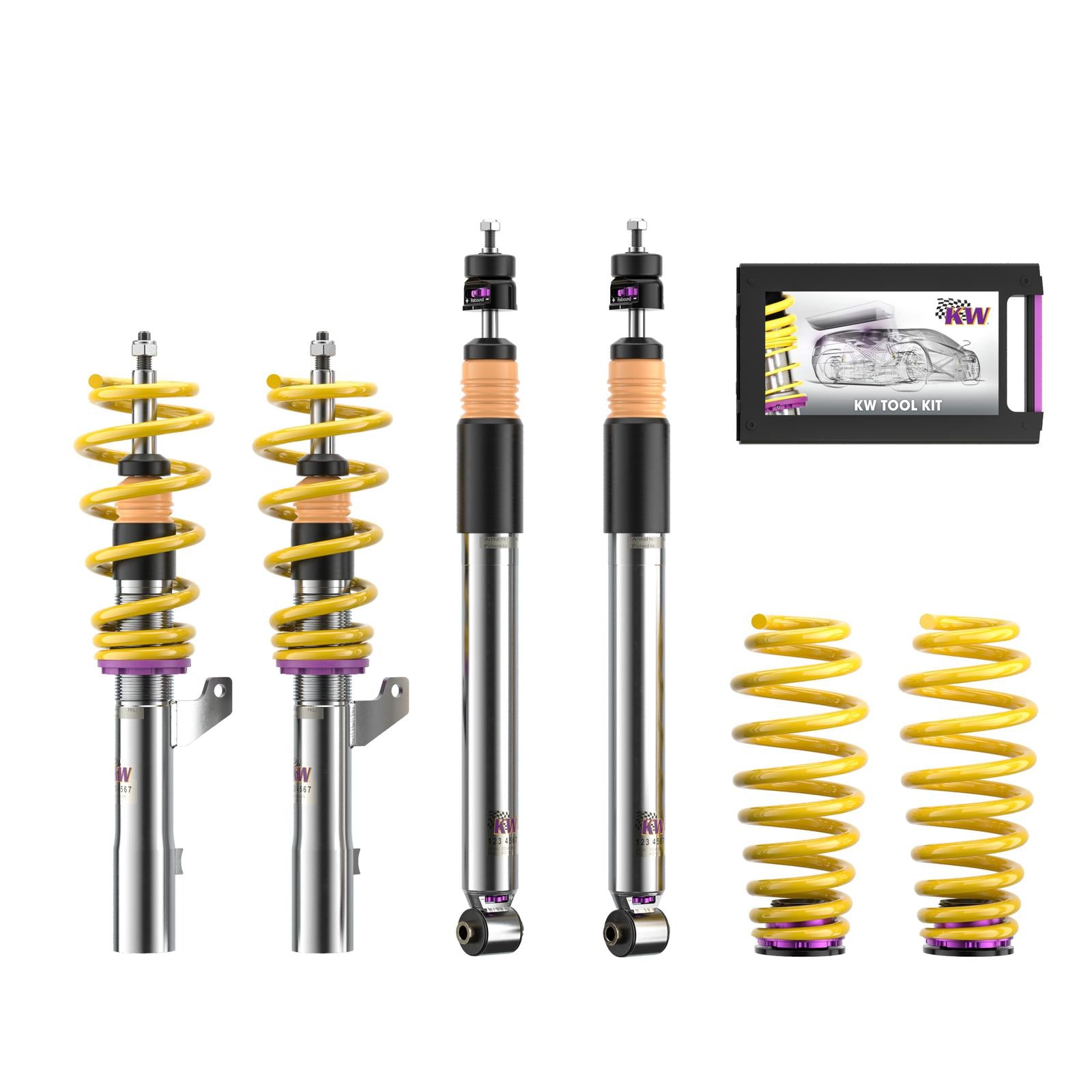

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,241–1,305 kg; Rear axle load up to 1,205 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2004–2011AudiA6 (4F) 4F2, C62.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDIDiesel · 132 kW · 2.7L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDIDiesel · 140 kW · 2.7L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDI quattroDiesel · 120 kW · 2.7L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDI quattroDiesel · 132 kW · 2.7L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C62.7 TDI quattroDiesel · 140 kW · 2.7L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TDI quattroDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TDI quattroDiesel · 165 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TDI quattroDiesel · 171 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TDI quattroDiesel · 176 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TFSI quattroPetrol · 213 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.0 TFSI quattroPetrol · 220 kW · 3.0L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSIPetrol · 195 kW · 3.2L · 6-cylFront-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C63.2 FSI quattroPetrol · 183 kW · 3.1L · 6-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C64.2 FSI quattroPetrol · 257 kW · 4.2L · 8-cylAll-Wheel Drive2, 8, 10, 62
2004–2011AudiA6 (4F) 4F2, C64.2 quattroPetrol · 246 kW · 4.2L · 8-cylAll-Wheel Drive2, 8, 10, 62
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
  • Note 62: Not for cars with electronic damping.
