KW Coilover Kit V3 for Audi (C6) A6 Avant
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Audi (C6) A6 Avant
Sale price$4,692.05
Regular price$4,939.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi A6 Avant (C6).
Key Features

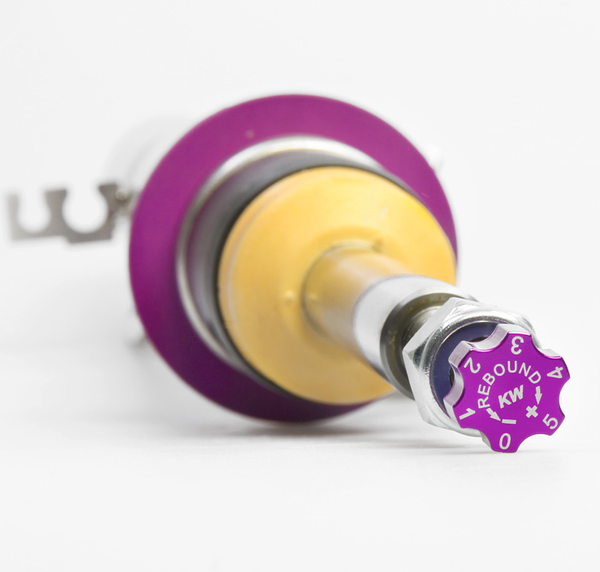

- Rebound damping adjustable in 16 clicks

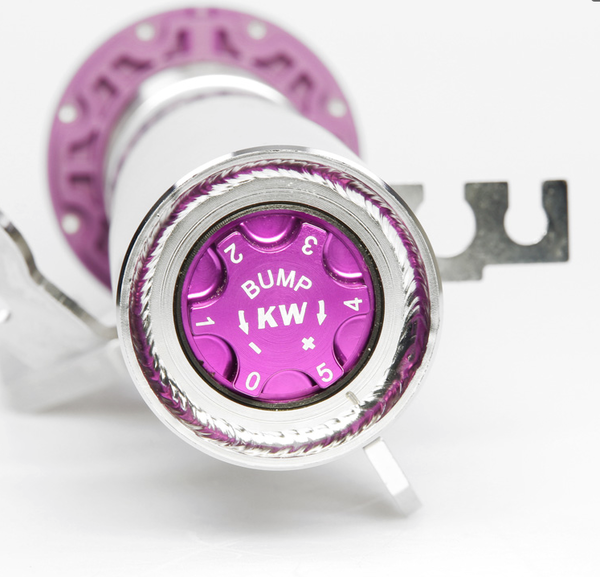

- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 35–65 mm
- Rear lowering: 35–65 mm
- Front axle load: up to 1,240 kg
- Rear axle load: up to 1,300 kg

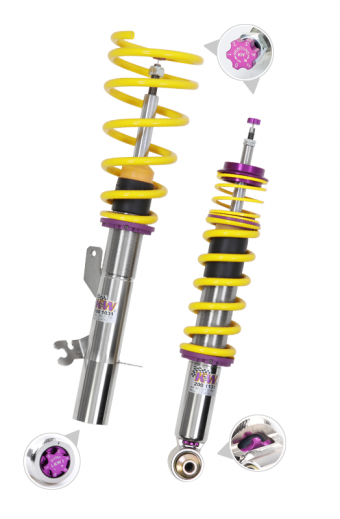

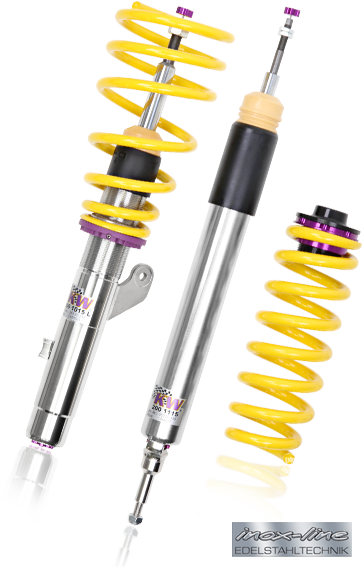

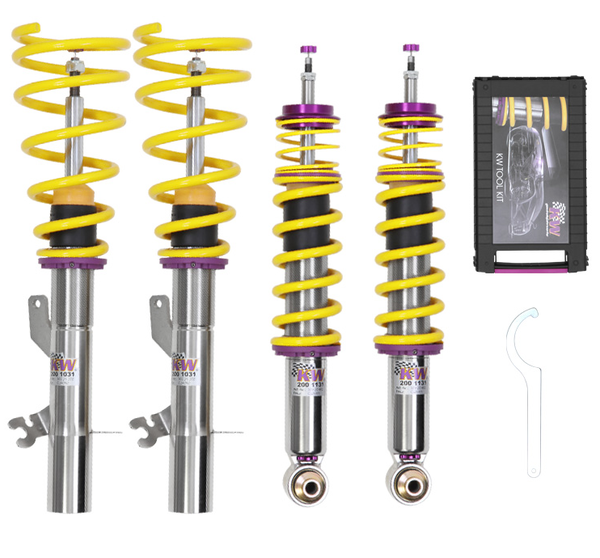

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,240 kg; Rear axle load up to 1,300 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TDI | Diesel · 89 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TDI | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TDI | Diesel · 103 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TDI | Diesel · 120 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TDI | Diesel · 125 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.0 TFSI | Petrol · 125 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.4 | Petrol · 130 kW · 2.4L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.4 quattro | Petrol · 130 kW · 2.4L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.7 TDI | Diesel · 120 kW · 2.7L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.7 TDI | Diesel · 132 kW · 2.7L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI | Petrol · 140 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI | Petrol · 154 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI | Petrol · 162 kW · 2.8L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI quattro | Petrol · 140 kW · 2.8L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI quattro | Petrol · 154 kW · 2.8L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 2.8 FSI quattro | Petrol · 162 kW · 2.8L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 3.0 | Petrol · 160 kW · 3.0L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 3.0 TFSI quattro | Petrol · 220 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 3.0 quattro | Petrol · 160 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 3.2 FSI | Petrol · 188 kW · 3.1L · 6-cyl | Front-Wheel Drive | 2, 8, 10, 62 |
| 2004–2011 | Audi | A6 Avant (4F) 4F5, C6 | 3.2 FSI quattro | Petrol · 188 kW · 3.1L · 6-cyl | All-Wheel Drive | 2, 8, 10, 62 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 8: Not for vehicles with automatic self levelling control / air suspension.
- Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
- Note 62: Not for cars with electronic damping.
