KW Coilover Kit V3 for Audi (8R) Q5 2.0L
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Audi (8R) Q5 2.0L
Sale price$4,834.56
Regular price$5,089.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Audi Q5 (8R) 2.0.
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 40–80 mm
- Rear lowering: 45–85 mm
- Front axle load: up to 1,220 kg
- Rear axle load: up to 1,360 kg

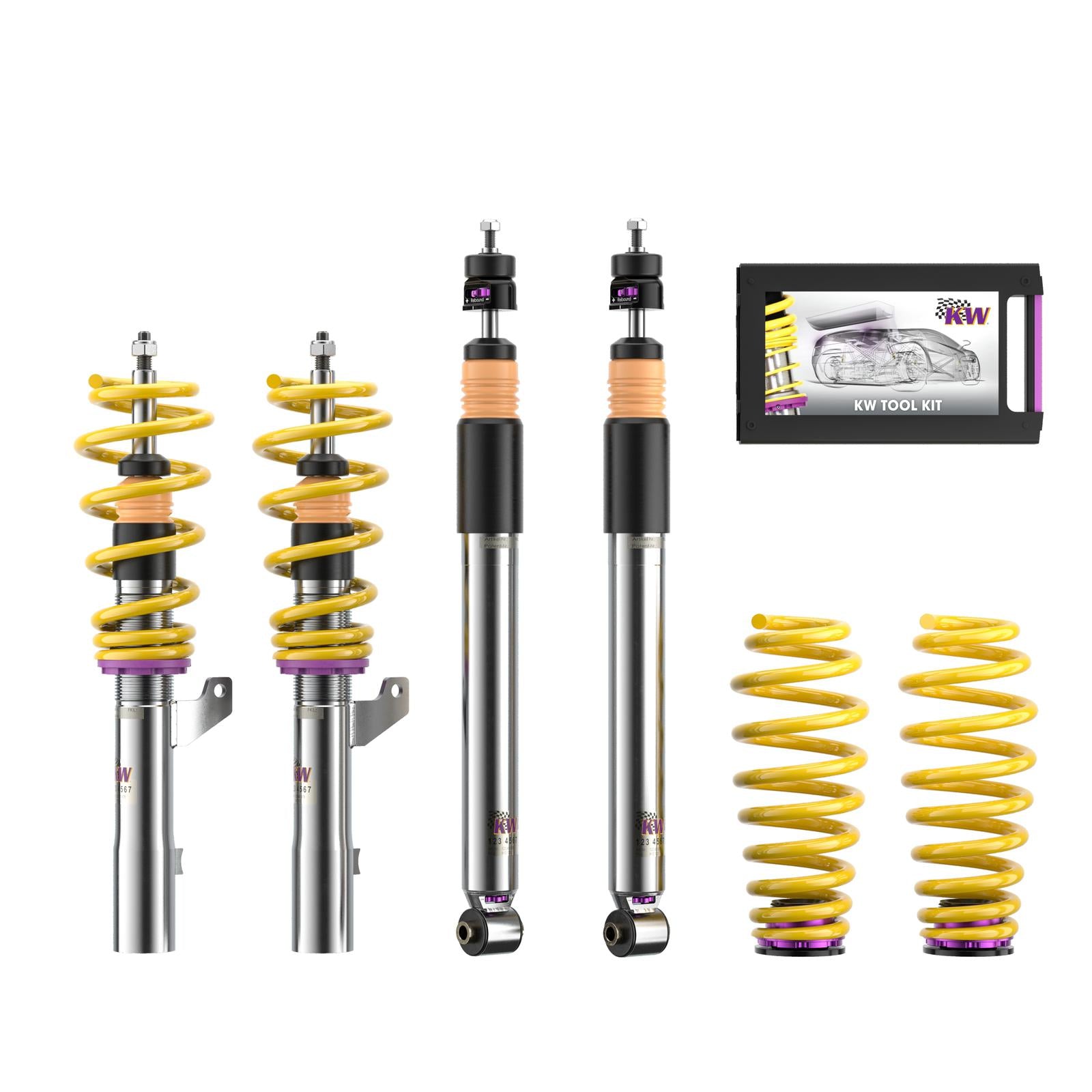

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without electronic damping.
Front axle load up to 1,220 kg; Rear axle load up to 1,360 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI | Diesel · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI | Diesel · 105 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI | Diesel · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 100 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 105 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 110 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 125 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 130 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TDI quattro | Diesel · 140 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 132 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 155 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 162 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 165 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
| 2008–2019 | Audi | Q5 (8R) 8R1, 8R2, 8RB | 2.0 TFSI quattro | Petrol · 169 kW · 2.0L · 4-cyl | All-Wheel Drive | For cars without electronic damping | 2, 10, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 10: In Variant 2, hardness adjustment for front axle only in not installed condition possible.
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
