KW Coilover Kit V3 for BMW (E46) 330xi

SKU: 35220024
Sale price$4,359.55 Regular price$4,589.00
Save $229.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

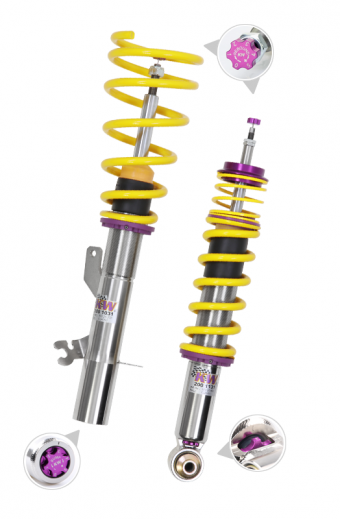

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW 330xi (E46).

Key Features

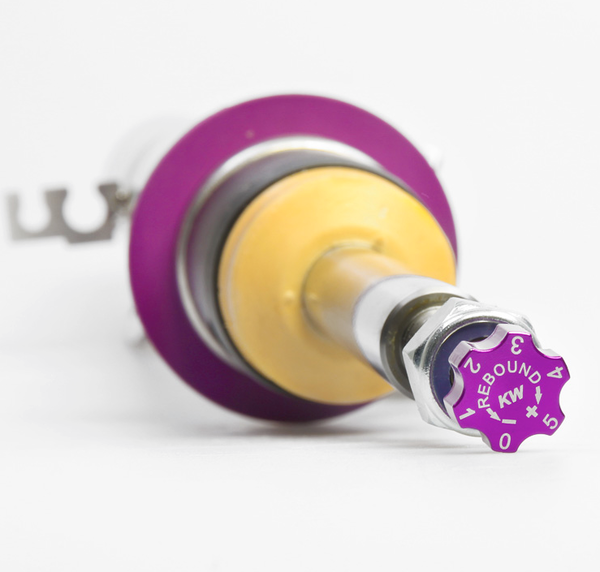

  • Rebound damping adjustable in 16 clicks

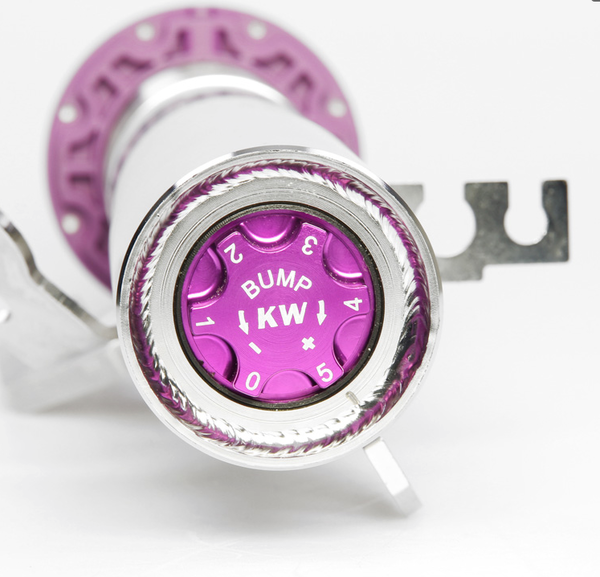

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: up to 1,090 kg
  • Rear axle load: up to 1,180 kg

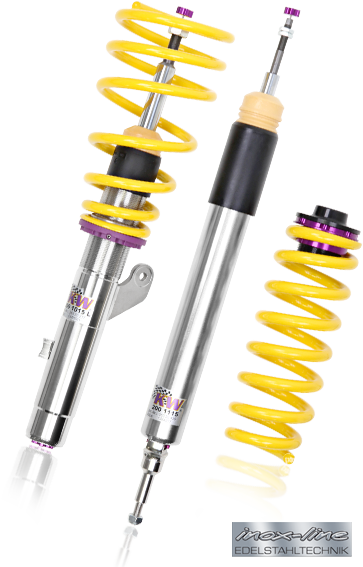

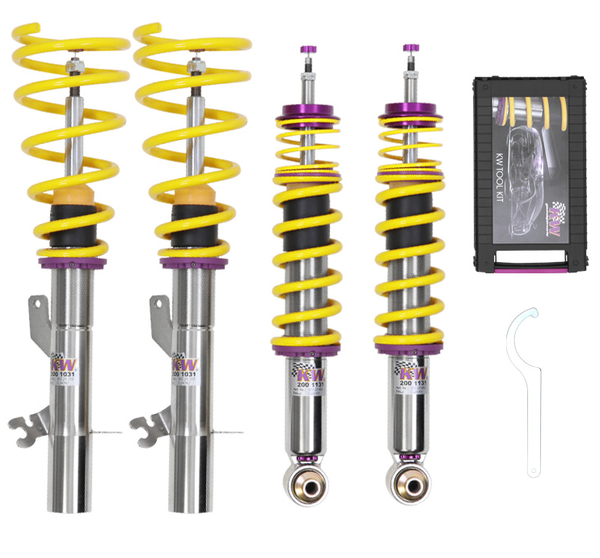

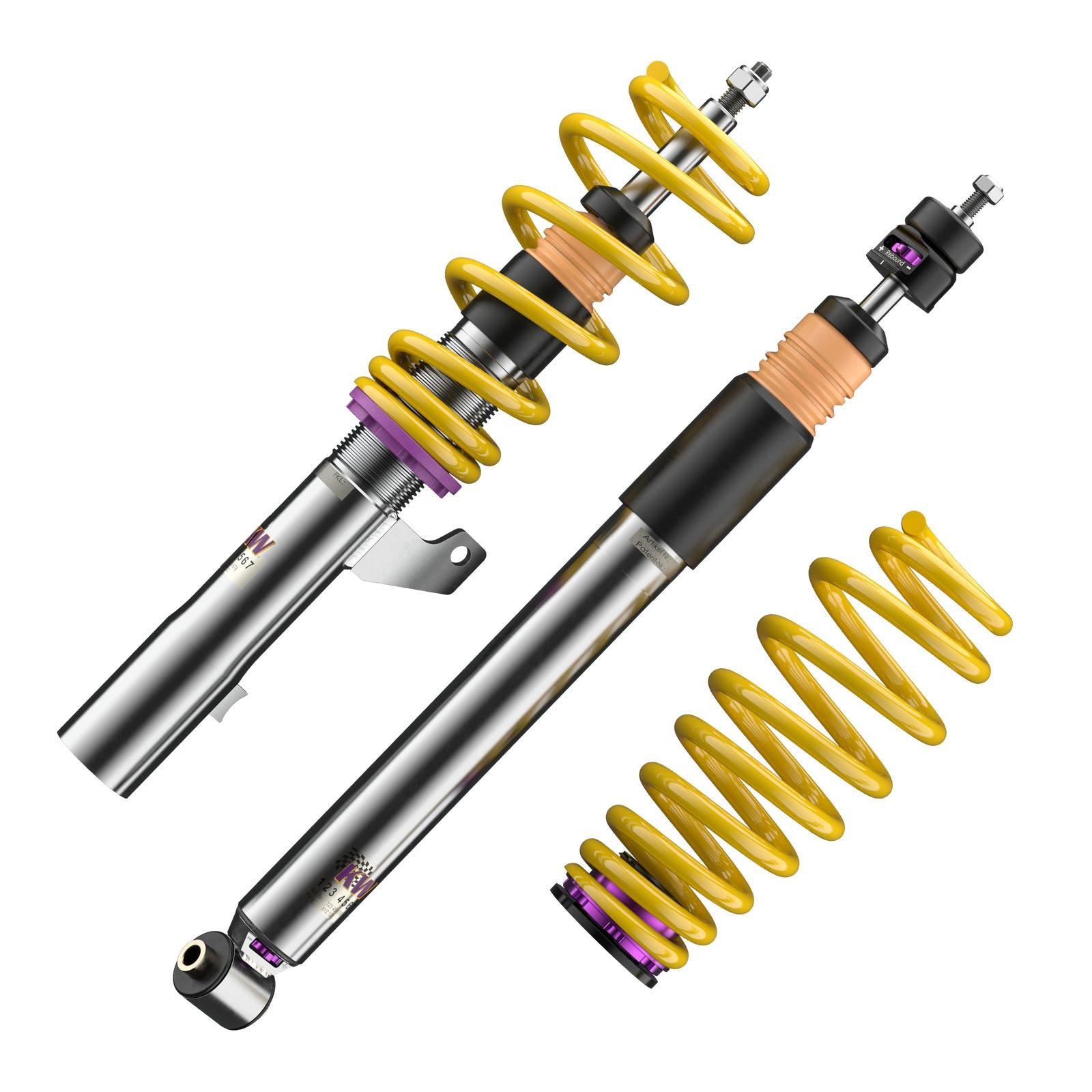

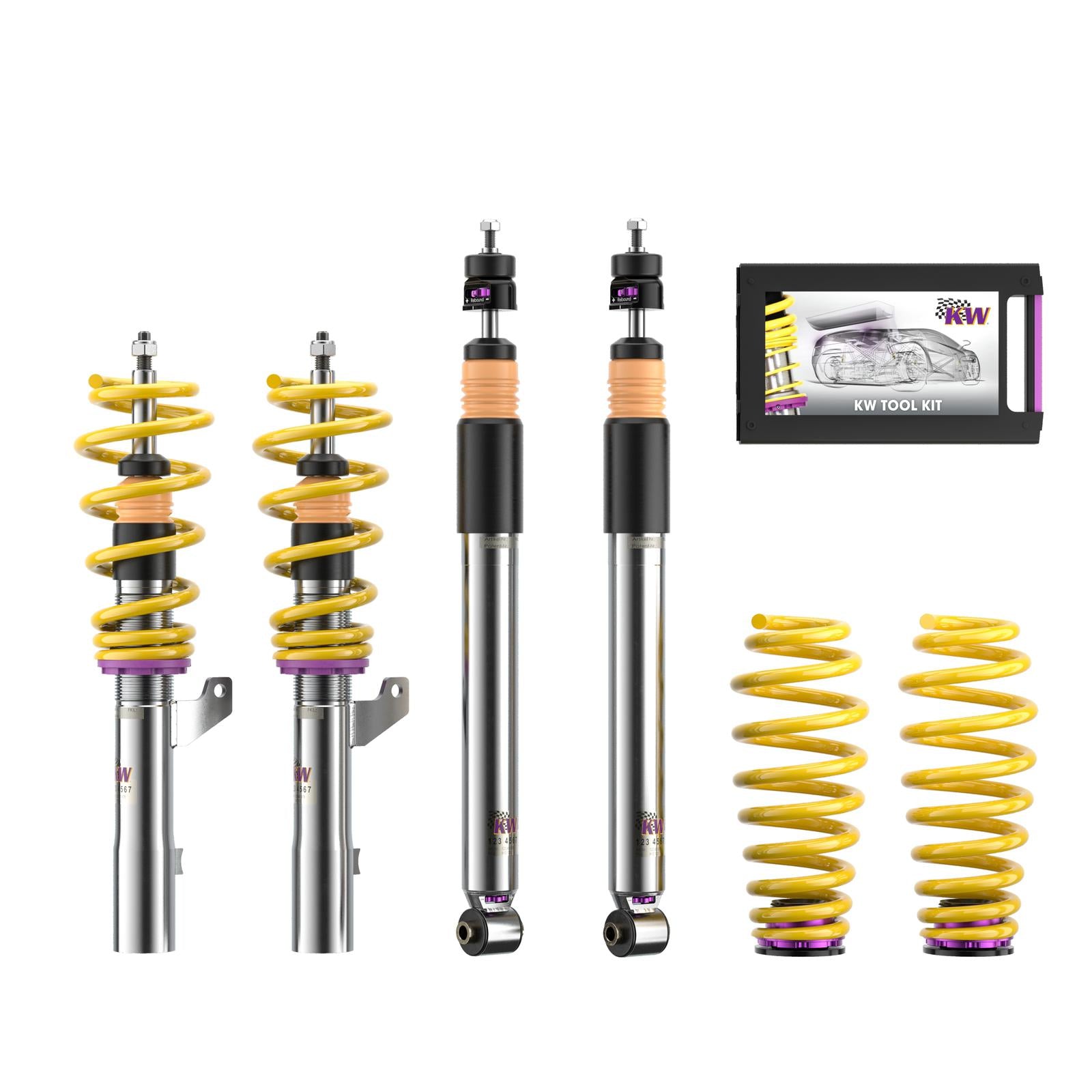

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,090 kg; Rear axle load up to 1,180 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1999–2005BMW3 Touring (E46) 346L, 346X330 xdDiesel · 135 kW · 2.9L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X330 xdDiesel · 135 kW · 2.9L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X330 xiPetrol · 170 kW · 3.0L · 6-cylAll-Wheel Drive2, 6, 82, 94
1999–2005BMW3 Touring (E46) 346L, 346X330 xiPetrol · 170 kW · 3.0L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X325 xiPetrol · 141 kW · 2.5L · 6-cylAll-Wheel Drive2, 6, 82, 94
1999–2005BMW3 Touring (E46) 346L, 346X325 xiPetrol · 141 kW · 2.5L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X330 xdDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 6, 82, 94
1999–2005BMW3 Touring (E46) 346L, 346X330 xdDiesel · 150 kW · 3.0L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X325 xiPetrol · 137 kW · 2.5L · 6-cylAll-Wheel Drive2, 6, 82, 94
1999–2005BMW3 Touring (E46) 346L, 346X325 xiPetrol · 137 kW · 2.5L · 6-cylAll-Wheel Drive2, 6, 82, 94
1997–2005BMW3 (E46) 346L, 346X330 xiPetrol · 168 kW · 3.0L · 6-cylAll-Wheel Drive2, 6, 82, 94
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
  • Note 82: Production on demand. Please ask for delivery time.
  • Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com.
