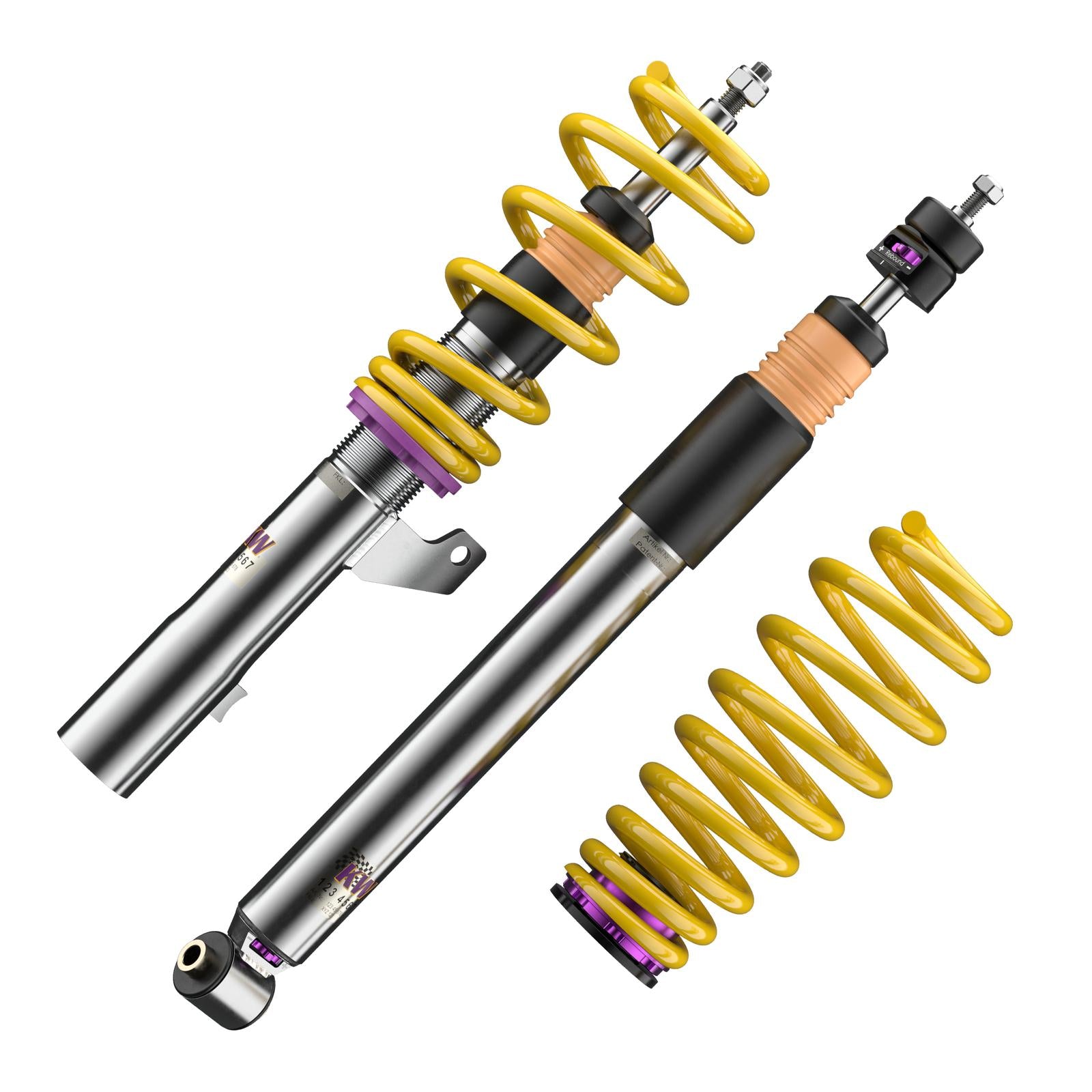

KW Coilover Kit V3 for BMW (G05) X5 M60i / (G06) X6 M60i

SKU: 352200CQ
Sale price$5,176.55 Regular price$5,449.00
Save $272.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW X5 M60i (G05) / X6 M60i (G06) xDrive.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 15–45 mm
  • Rear lowering: 5–35 mm
  • Front axle load: up to 1,440 kg
  • Rear axle load: up to 1,910 kg

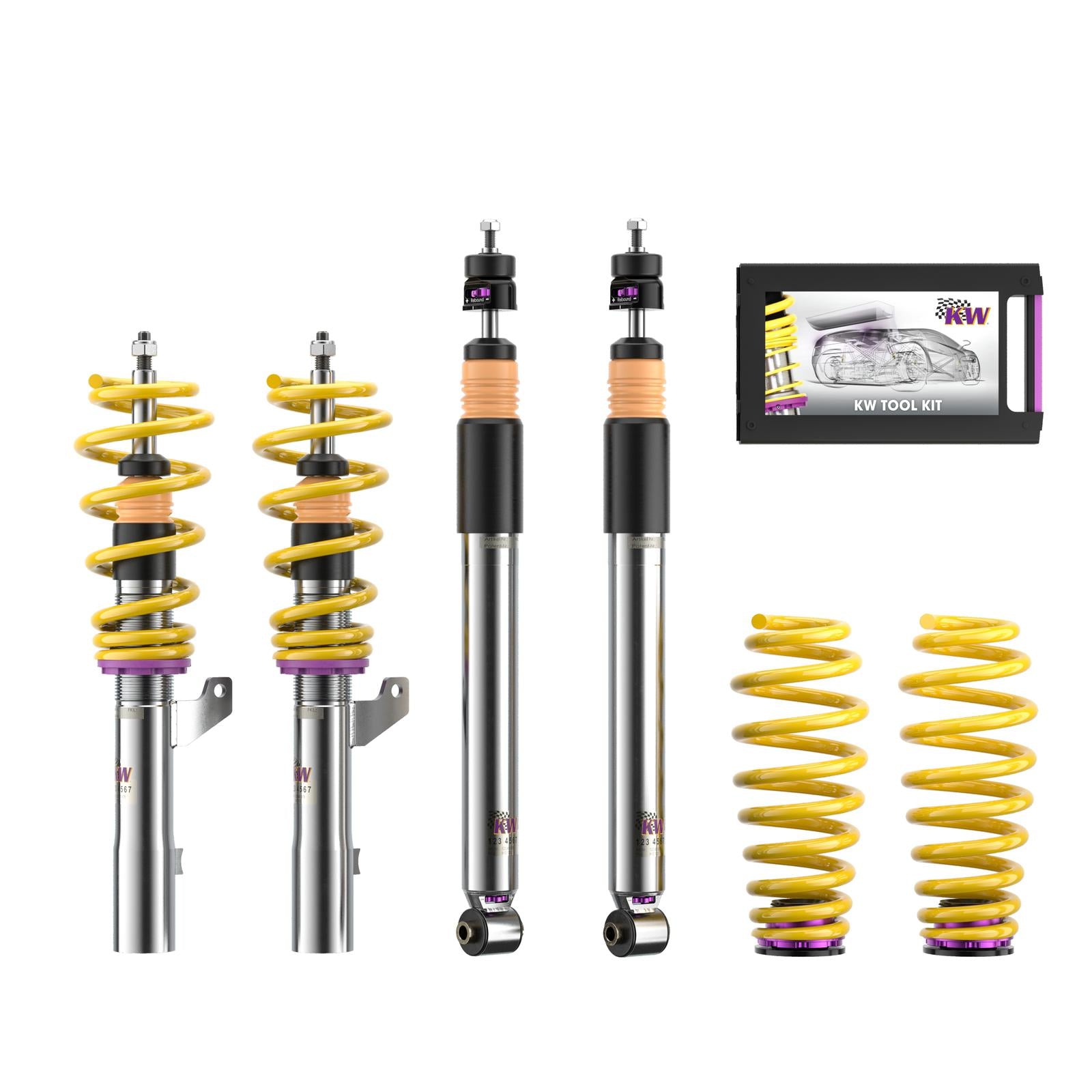

  • Supplied as: Front axle + rear axle coilover struts

Front axle load up to 1,440 kg; Rear axle load up to 1,910 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2018+BMWX5 (G05, F95) G5XxDrive 25 dDiesel · 155 kW · 2.0L · 4-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 25 dDiesel · 170 kW · 2.0L · 4-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 dDiesel · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 dDiesel · 195 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 d Mild-HybridDiesel/Electric · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 d Mild-HybridDiesel/Electric · 210 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 d Mild-HybridDiesel/Electric · 219 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 30 iPetrol · 195 kW · 2.0L · 4-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 40 d Mild-HybridDiesel/Electric · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 40 d Mild-HybridDiesel/Electric · 259 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 40 iPetrol · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 40 i Mild-HybridPetrol/Electric · 245 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 40 i Mild-HybridPetrol/Electric · 280 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive 50 iPetrol · 340 kW · 4.4L · 8-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive M 50 dDiesel · 294 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive M50 iPetrol · 390 kW · 4.4L · 8-cylAll-Wheel Drive1, 8, 37, 67
2018+BMWX5 (G05, F95) G5XxDrive M60 i Mild-HybridPetrol/Electric · 390 kW · 4.4L · 8-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 dDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 dDiesel · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 dDiesel · 195 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 d Mild-HybridDiesel/Electric · 155 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 d Mild-HybridDiesel/Electric · 164 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 d Mild-HybridDiesel/Electric · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 d Mild-HybridDiesel/Electric · 210 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 d Mild-HybridDiesel/Electric · 219 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 iPetrol · 195 kW · 2.0L · 4-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 30 i Mild HybridPetrol/Electric · 190 kW · 2.0L · 4-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 d Mild-HybridDiesel/Electric · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 d Mild-HybridDiesel/Electric · 259 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 iPetrol · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 i Mild HybridPetrol/Electric · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 i Mild HybridPetrol/Electric · 280 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive 40 i Mild-HybridPetrol/Electric · 245 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive M 50 dDiesel · 294 kW · 3.0L · 6-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive M 60 i Mild-HybridPetrol/Electric · 390 kW · 4.4L · 8-cylAll-Wheel Drive1, 8, 37, 67
2019+BMWX6 (G06, F96) G6XxDrive M50 iPetrol · 390 kW · 4.4L · 8-cylAll-Wheel Drive1, 8, 37, 67
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
