KW Coilover Kit V3 for BMW (G29) Z4 M40i / Toyota (A90) Supra

SKU: 352200CG
Sale price$4,796.55 Regular price$5,049.00
Save $252.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

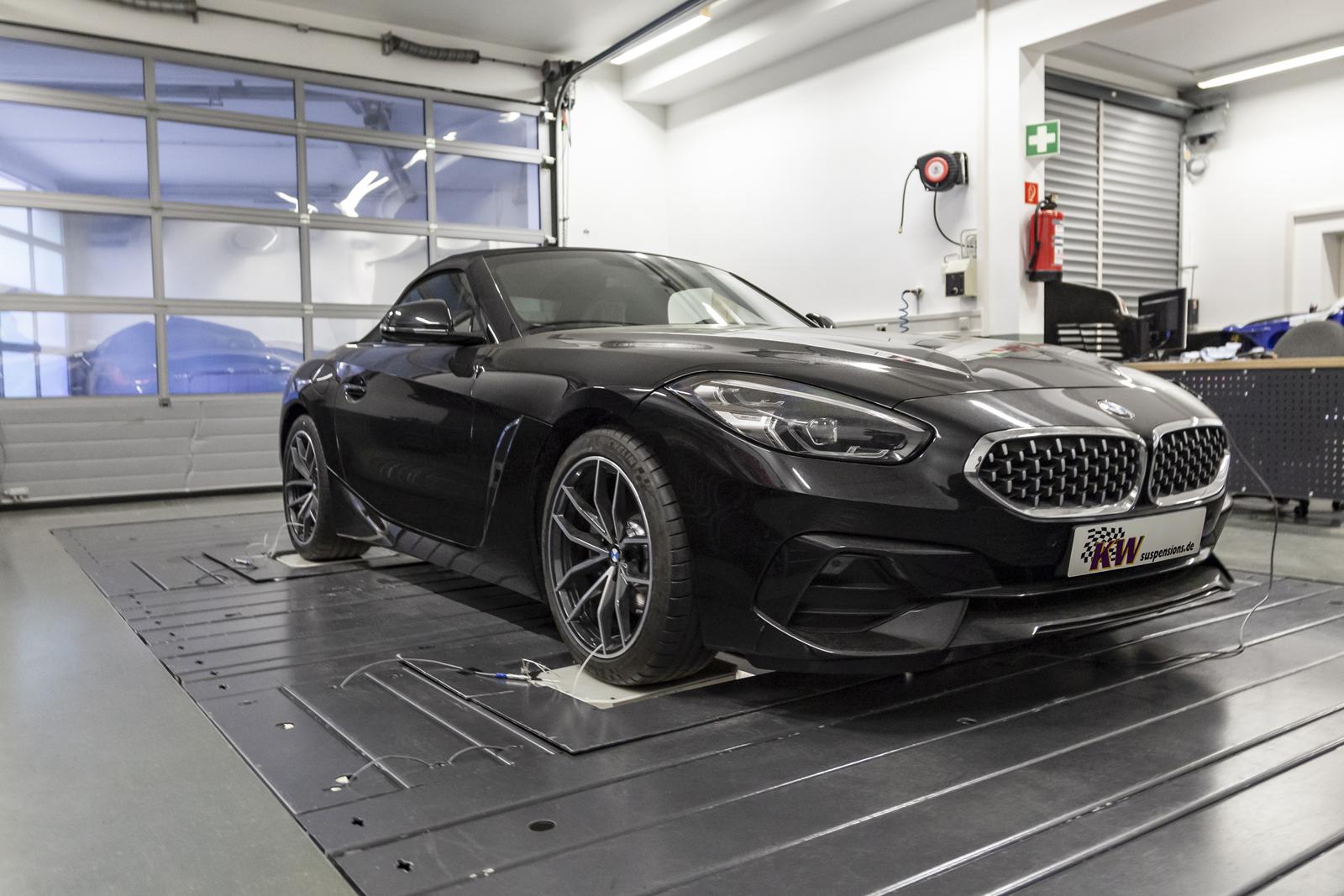

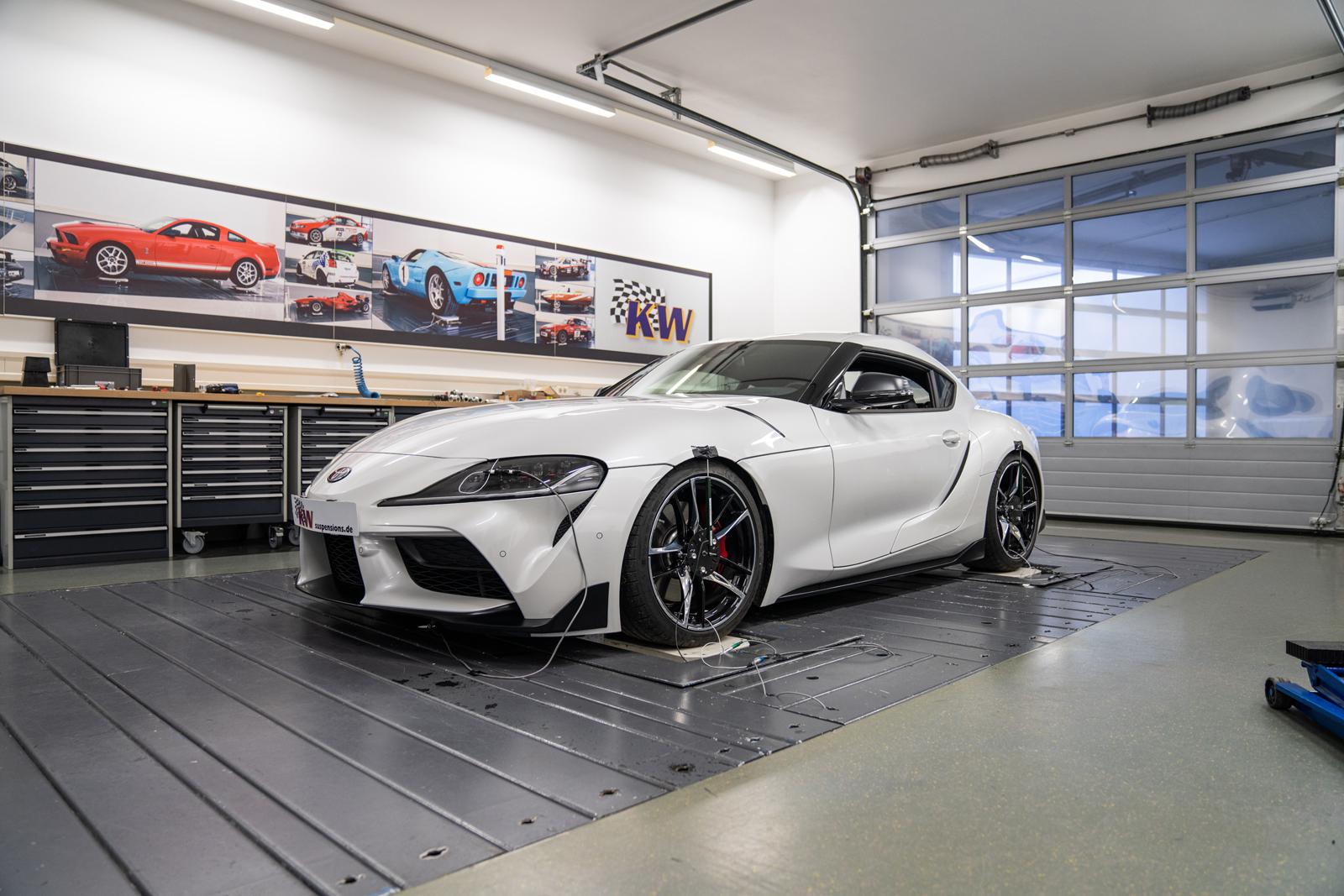

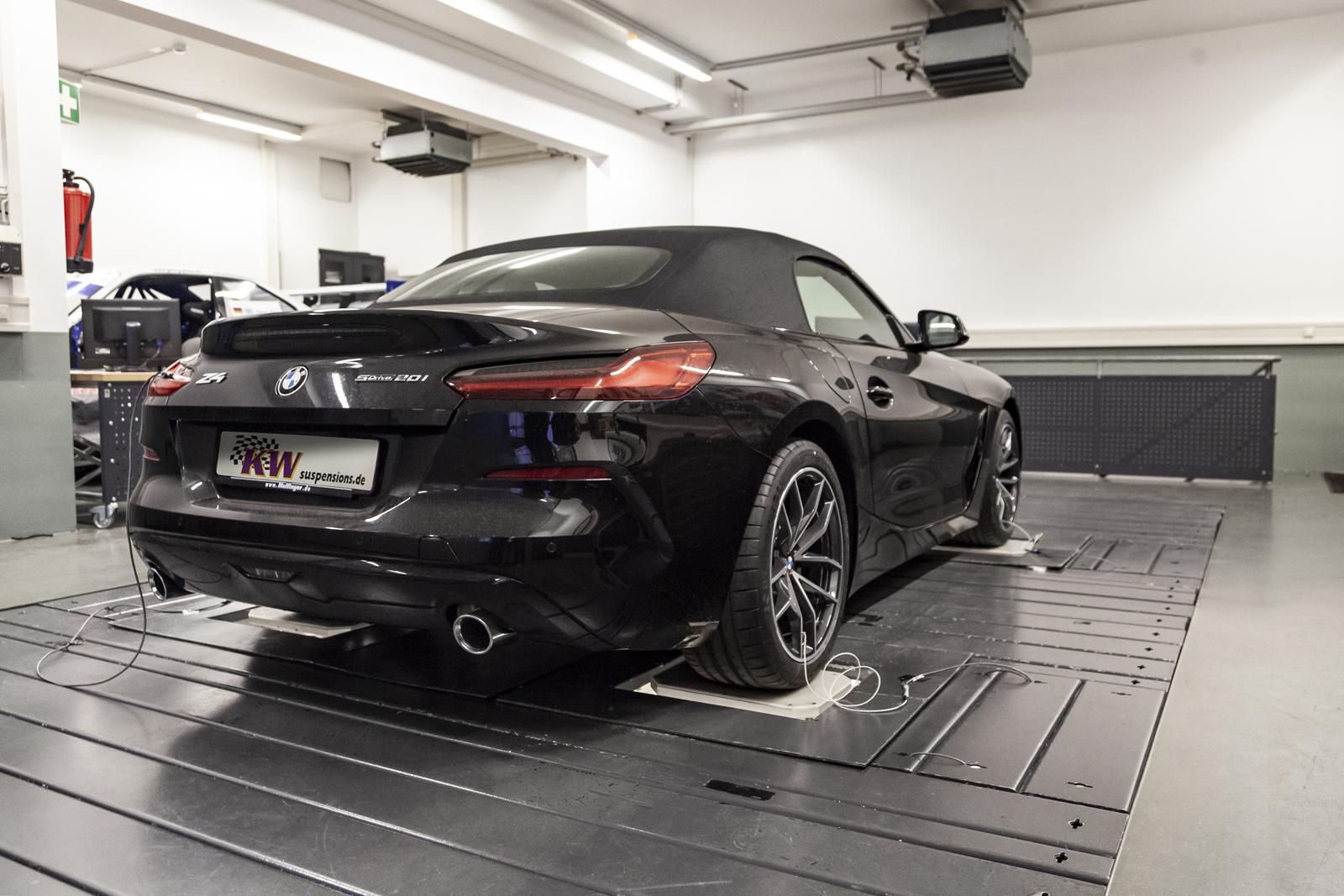

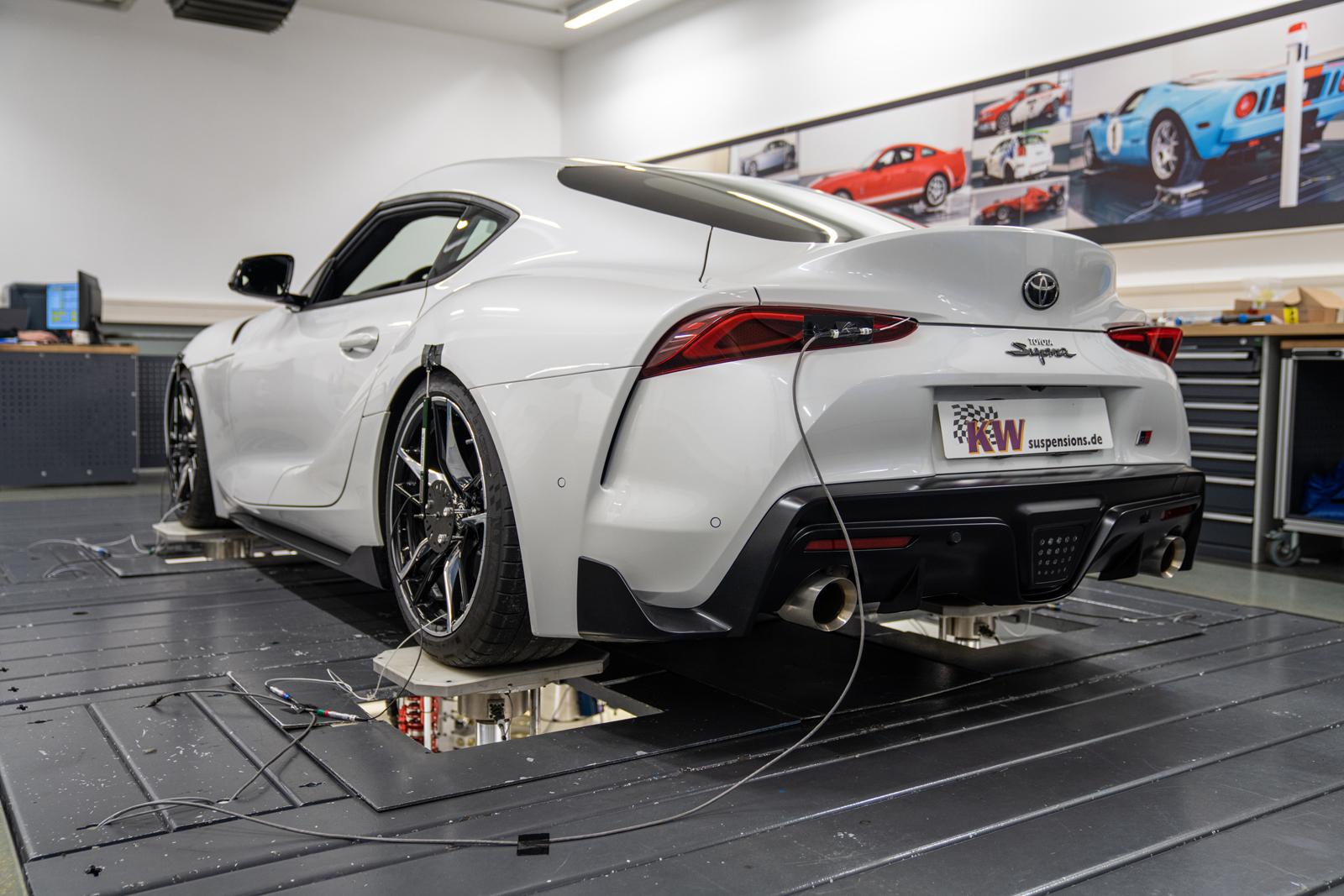

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the BMW Z4 M40i (G29) / Toyota Supra (A90).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks

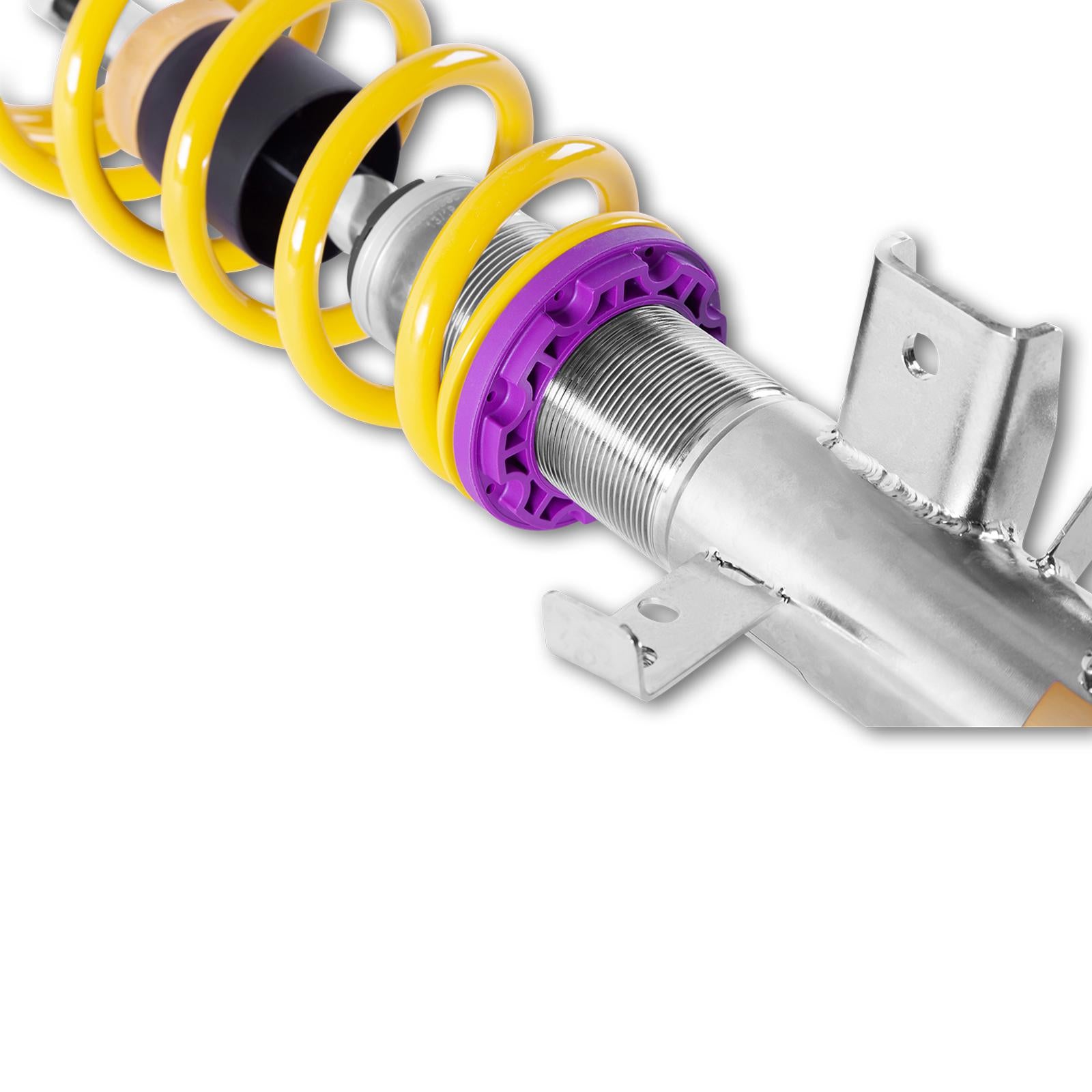

  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–50 mm
  • Rear lowering: 30–50 mm
  • Front axle load: up to 880 kg
  • Rear axle load: up to 995 kg

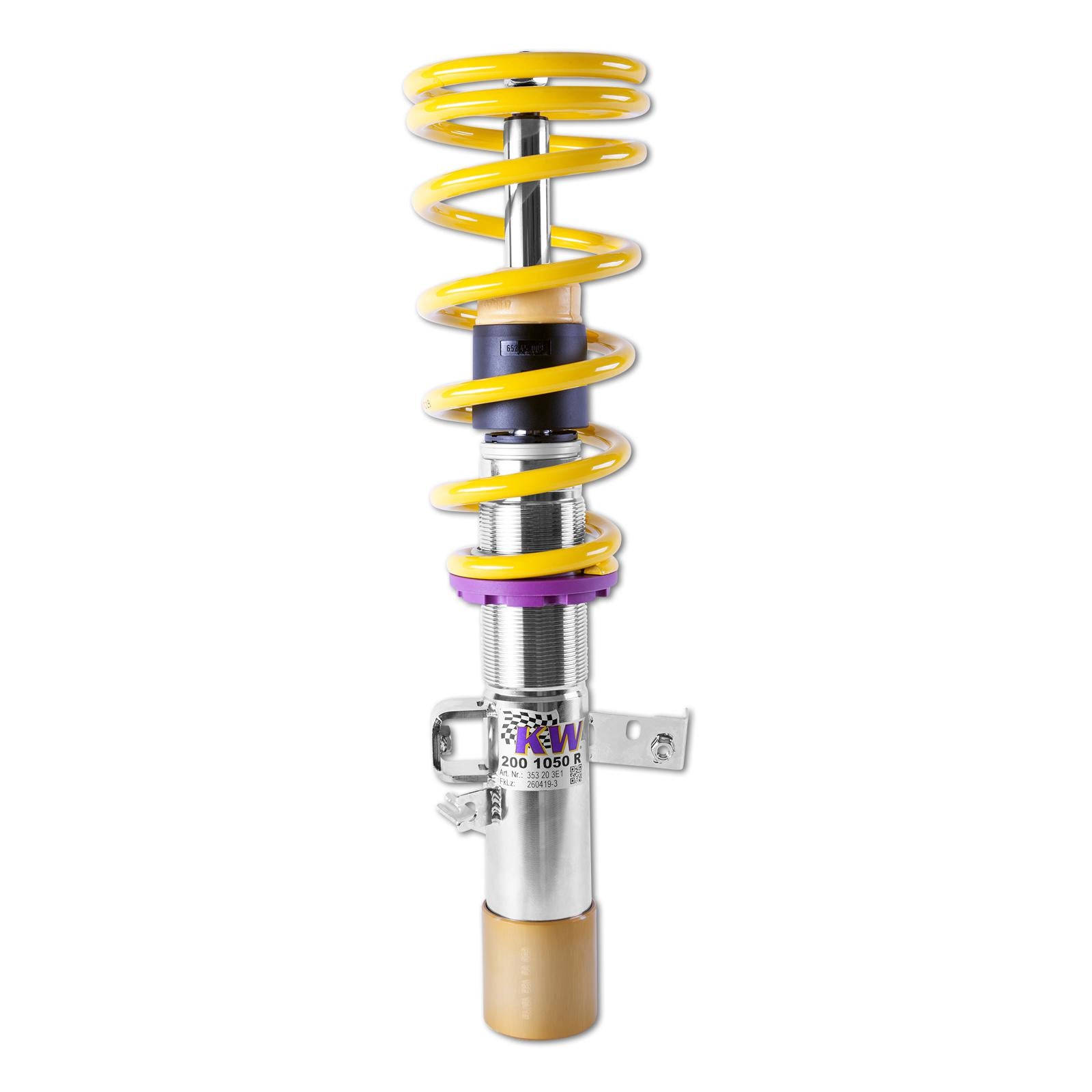

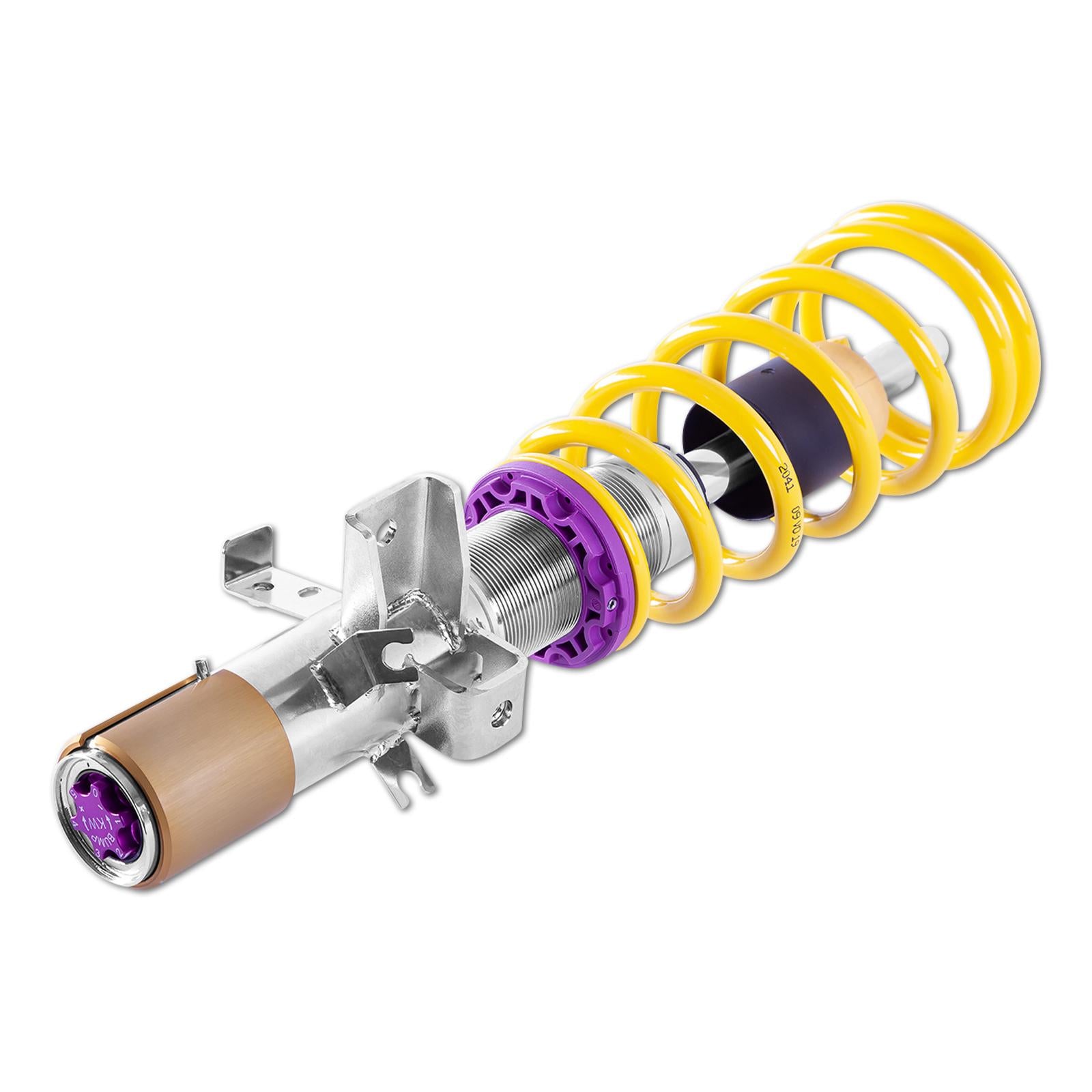

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 880 kg; Rear axle load up to 995 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2018+BMWZ4 Roadster (G29) G4ZsDrive 20 iPetrol · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67
2018+BMWZ4 Roadster (G29) G4ZsDrive 30 iPetrol · 190 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67
2018+BMWZ4 Roadster (G29) G4ZM40 iPetrol · 250 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
2018+BMWZ4 Roadster (G29) G4ZsDrive 20 iPetrol · 120 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67
2019+ToyotaSupra (DB_, JBSC, JTSC)3.0 GR (DB41, DB42, DB43, DB45, DB46)Petrol · 250 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
2019+ToyotaSupra (DB_, JBSC, JTSC)2.0 (DB21, DB22, DB23, DB26)Petrol · 190 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67
2019+ToyotaSupra (DB_, JBSC, JTSC)2.0 (DB82, DB81, DB86)Petrol · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 37, 67
2019+ToyotaSupra (DB_, JBSC, JTSC)3.0 GR (DB01, DB02, DB03, DB06, DB92)Petrol · 285 kW · 3.0L · 6-cylRear-Wheel Drive2, 37, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.

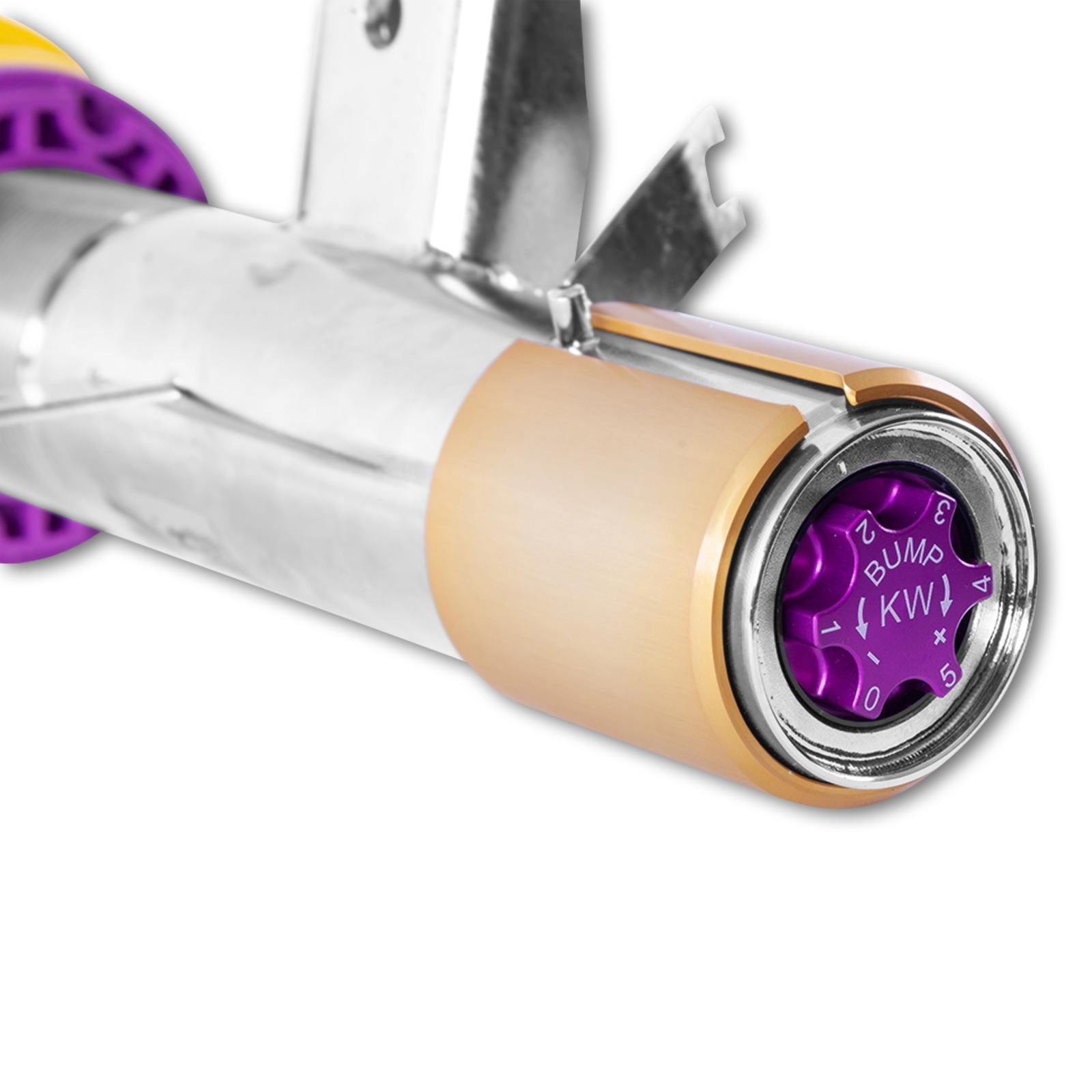

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
