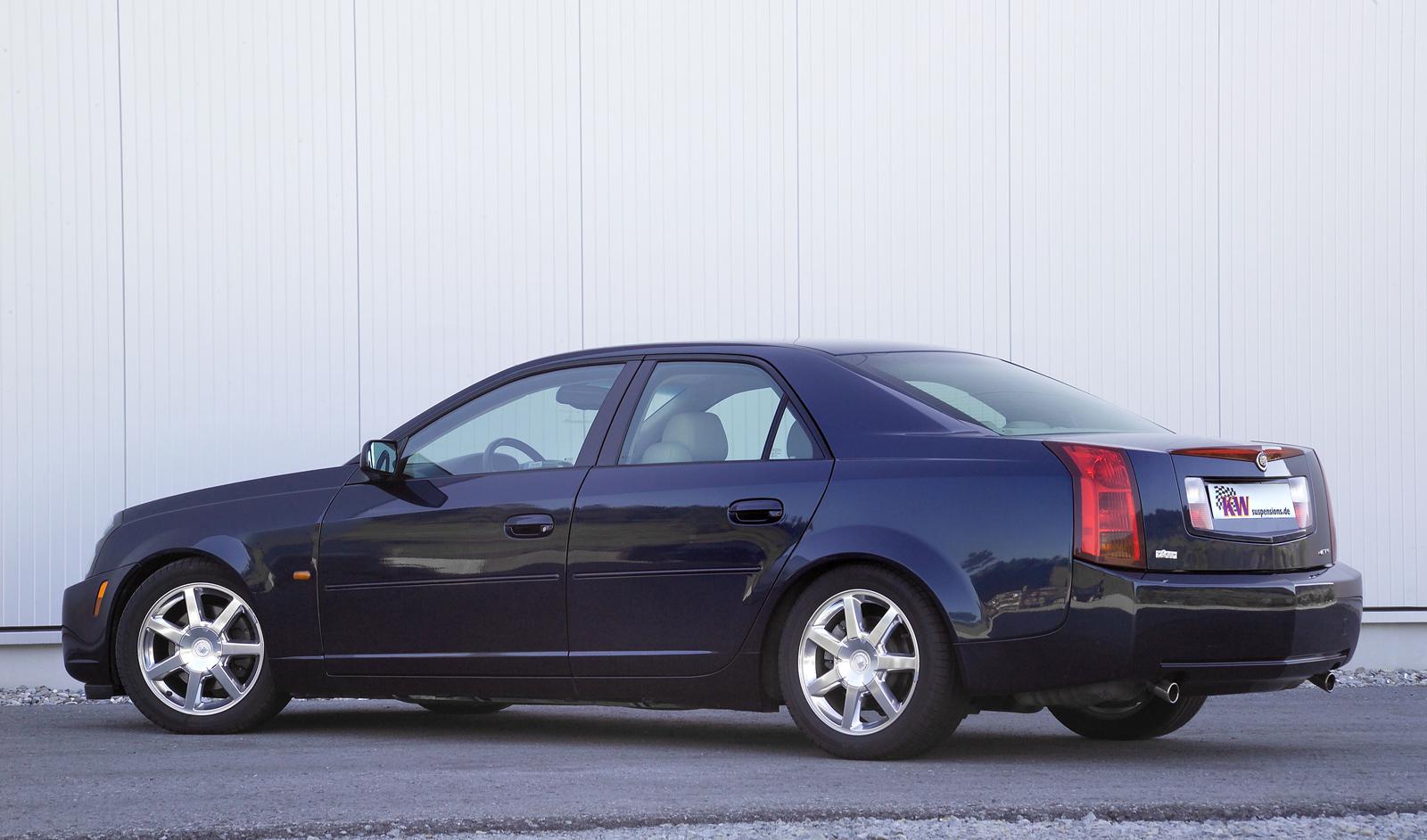

KW Coilover Kit V3 for Cadillac (GMX320) CTS-V / CTS
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Cadillac (GMX320) CTS-V / CTS
Sale price$4,834.56
Regular price$5,089.00 (/)

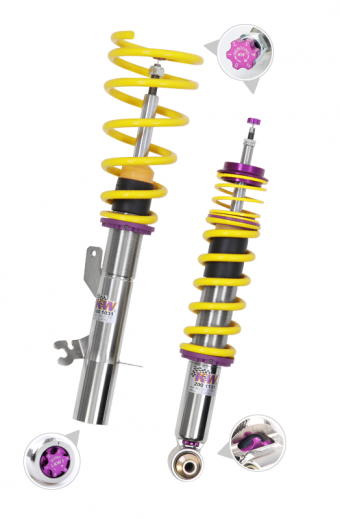

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Cadillac CTS-V / CTS (GMX320).
Key Features

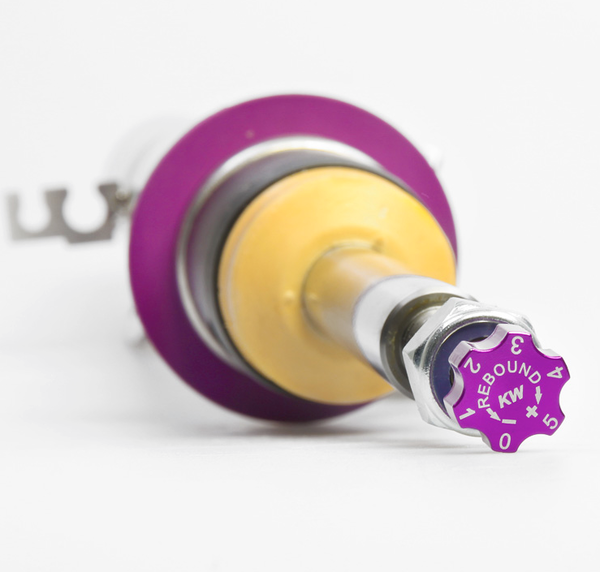

- Rebound damping adjustable in 16 clicks

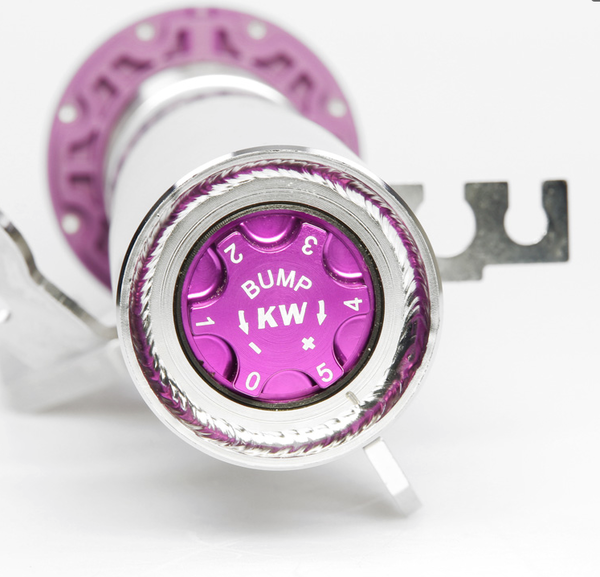

- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression

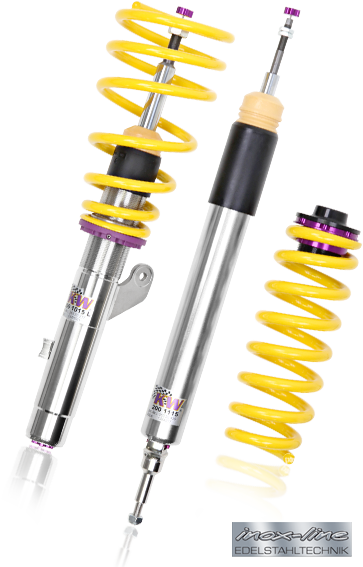

- Material: Stainless steel
- Front lowering: 15–45 mm
- Rear lowering: 25–55 mm
- Front axle load: up to 1,340 kg
- Rear axle load: up to 1,340 kg

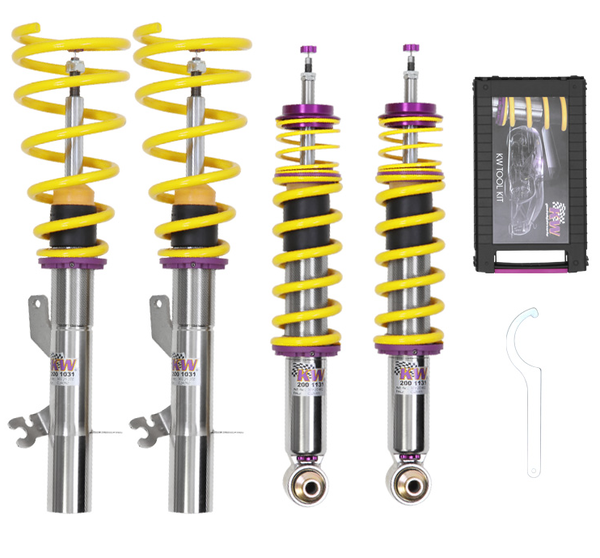

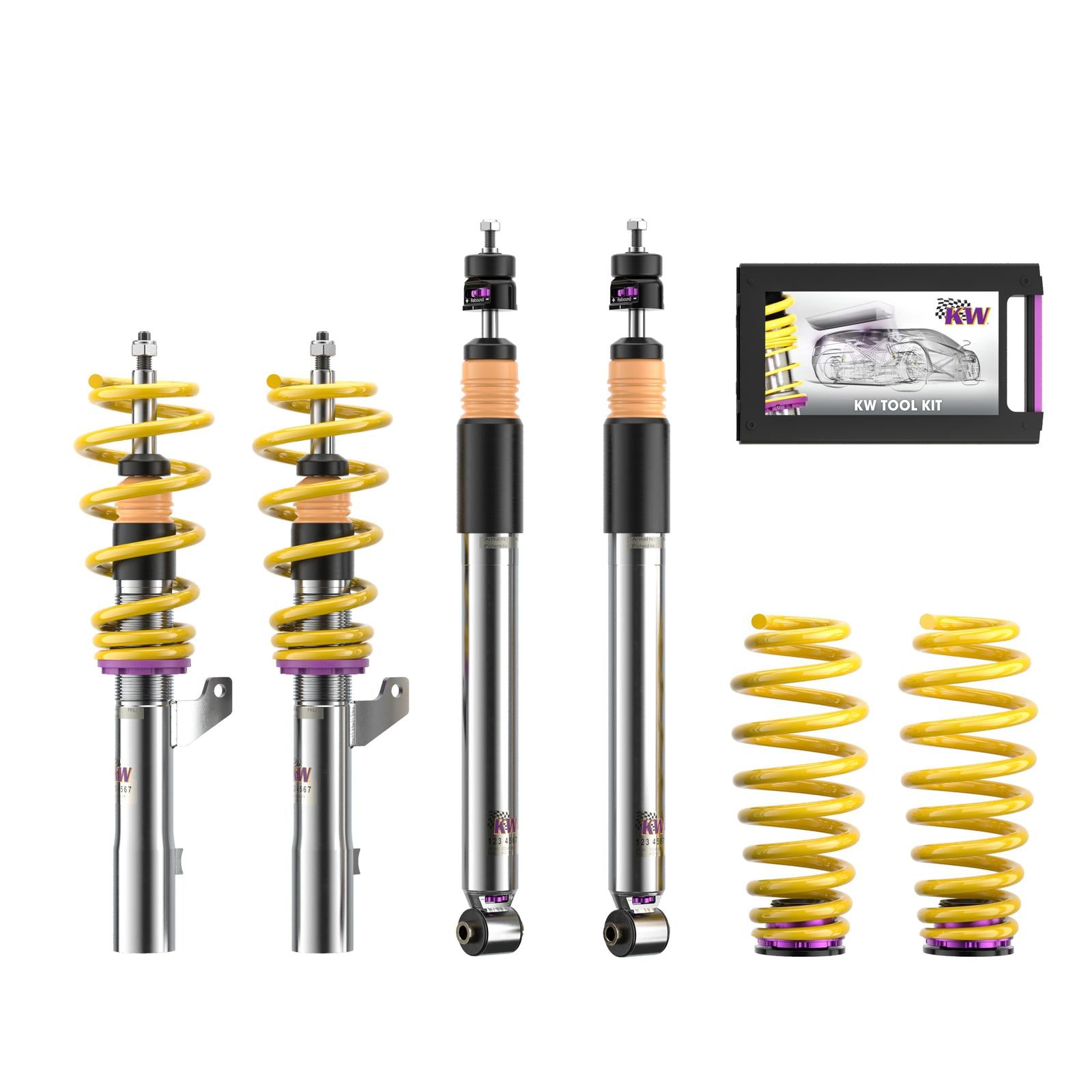

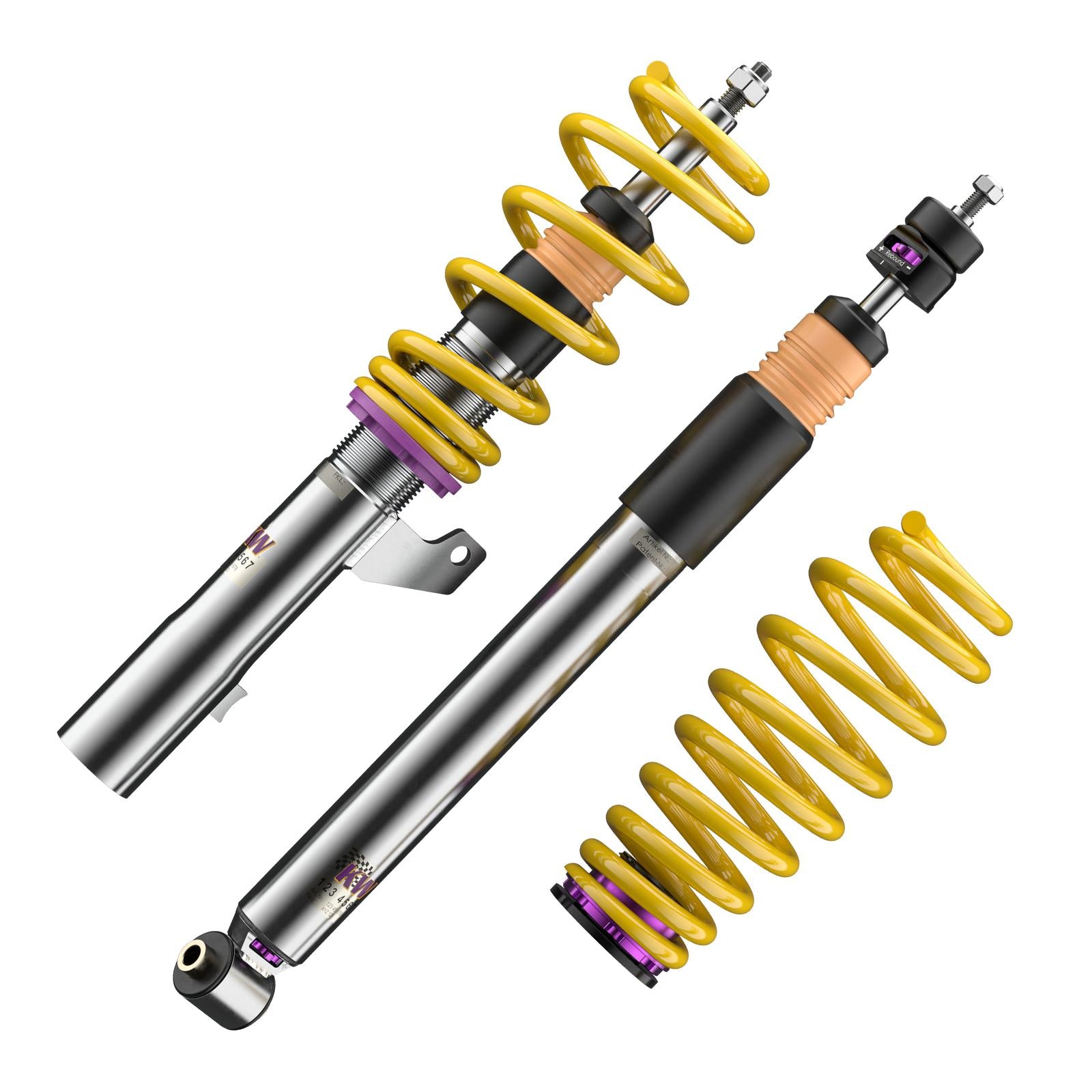

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,340 kg; Rear axle load up to 1,340 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2002–2007 | Cadillac | CTS (GMX 320) | 5.7 V | Petrol · 298 kW · 5.7L · 8-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 2.6 | Petrol · 136 kW · 2.6L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 3.2 | Petrol · 160 kW · 3.2L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 2.6 | Petrol · 133 kW · 2.6L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 2.8 | Petrol · 158 kW · 2.8L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 3.6 | Petrol · 189 kW · 3.6L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 5.7 V8 | Petrol · 294 kW · 5.7L · 8-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 3.2 | Petrol · 164 kW · 3.2L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 3.6 | Petrol · 190 kW · 3.6L · 6-cyl | Rear-Wheel Drive | 2 |
| 2002–2007 | Cadillac | CTS (GMX 320) | 6.0 | Petrol · 298 kW · 6.0L · 8-cyl | Rear-Wheel Drive | 2 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
