KW Coilover Kit V3 for Chevrolet (C6) Corvette Z06
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Chevrolet (C6) Corvette Z06
Sale price$6,164.55
Regular price$6,489.00 (/)

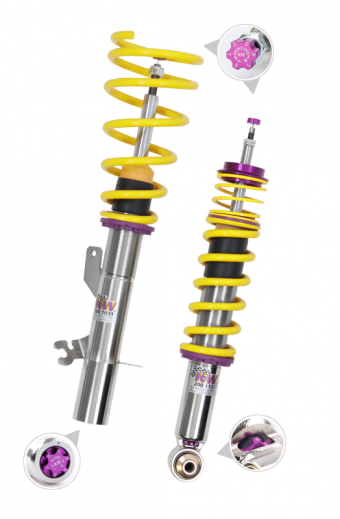

KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Chevrolet Corvette Z06 (C6).
Key Features

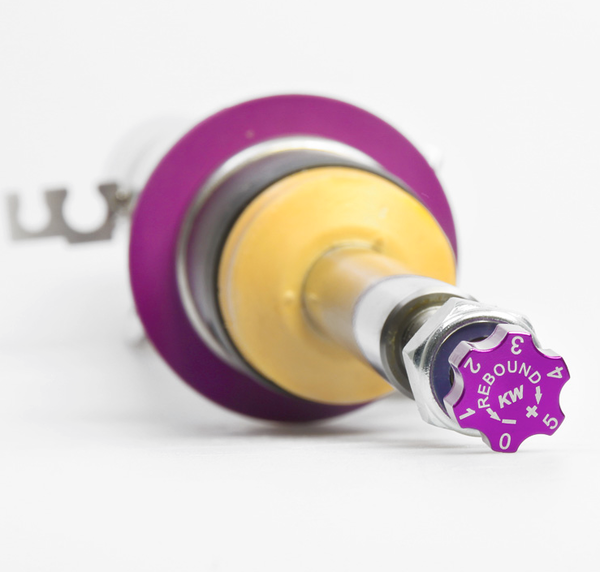

- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression

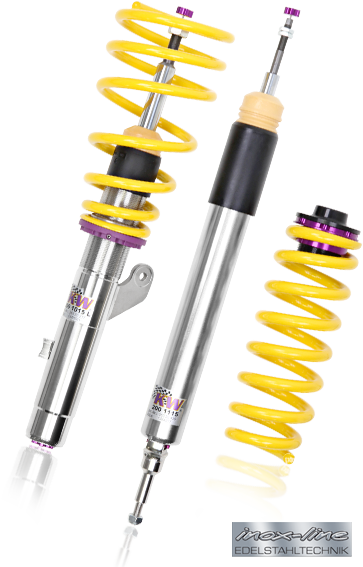

- Material: Stainless steel
- Front lowering: 0–30 mm
- Rear lowering: 0–30 mm
- Front axle load: up to 800 kg
- Rear axle load: up to 900 kg

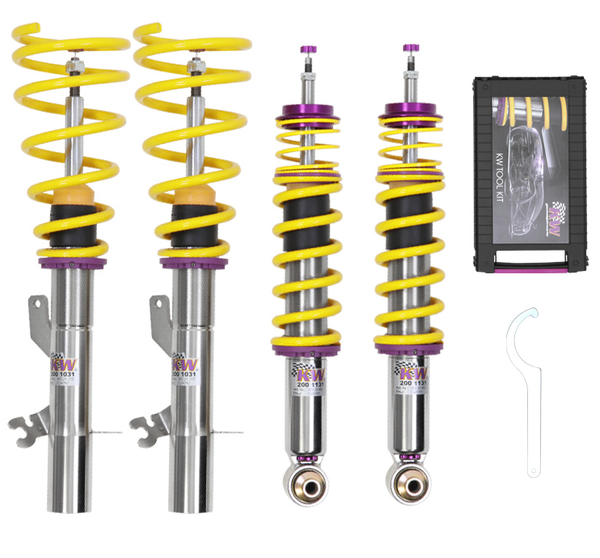

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 800 kg; Rear axle load up to 900 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2004–2013 | Chevrolet | Corvette (C6) GMX-245, GMX245A, GMX245S | Z06 7.0 | Petrol · 377 kW · 7.0L · 8-cyl | Rear-Wheel Drive | 1, 37, 83 |
| 2004–2013 | Chevrolet | Corvette (C6) GMX-245, GMX245A, GMX245S | Z06 7.0 | Petrol · 371 kW · 7.0L · 8-cyl | Rear-Wheel Drive | 1, 37, 83 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 83: Standard leaf spring has to be dismantled!
