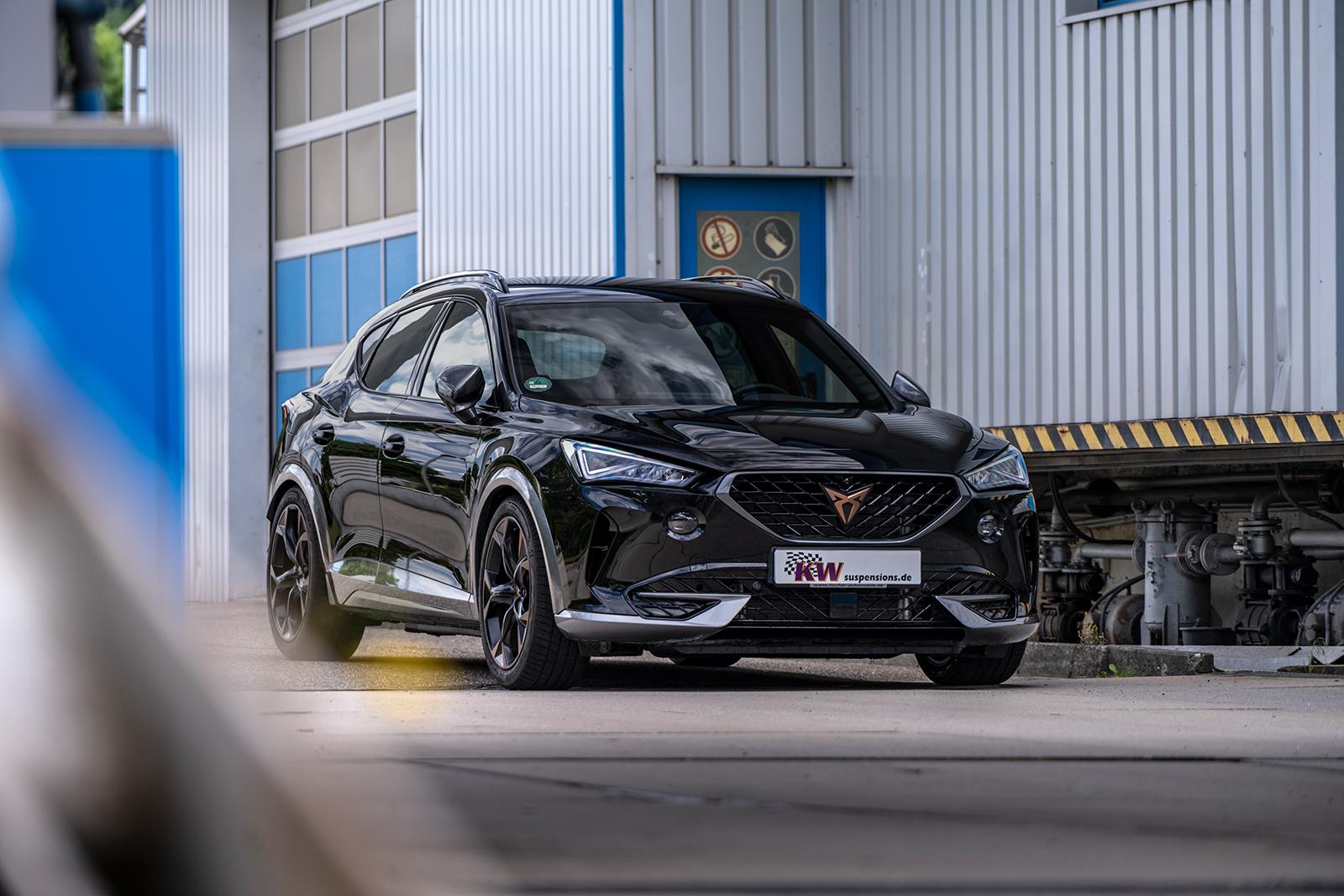

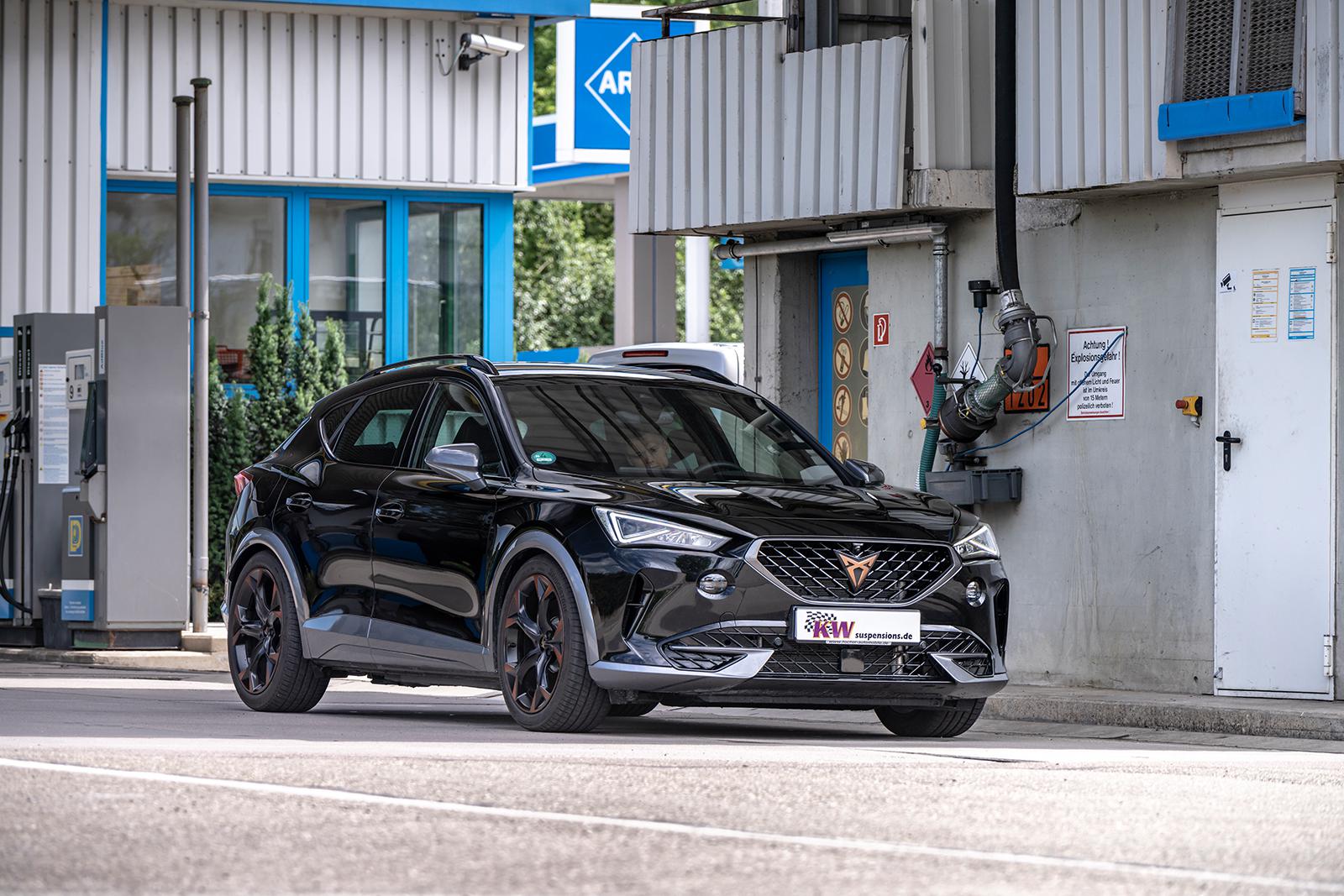

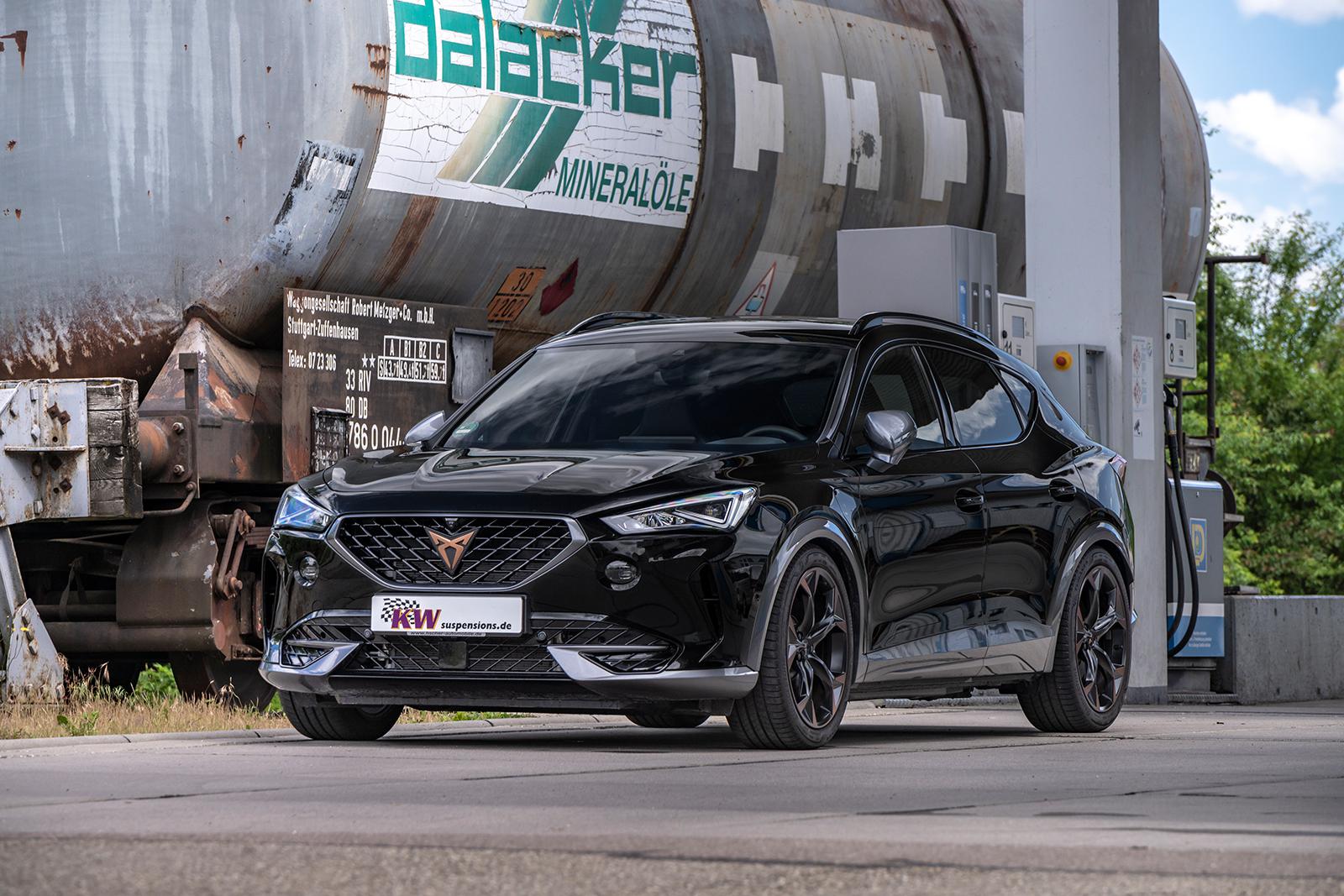

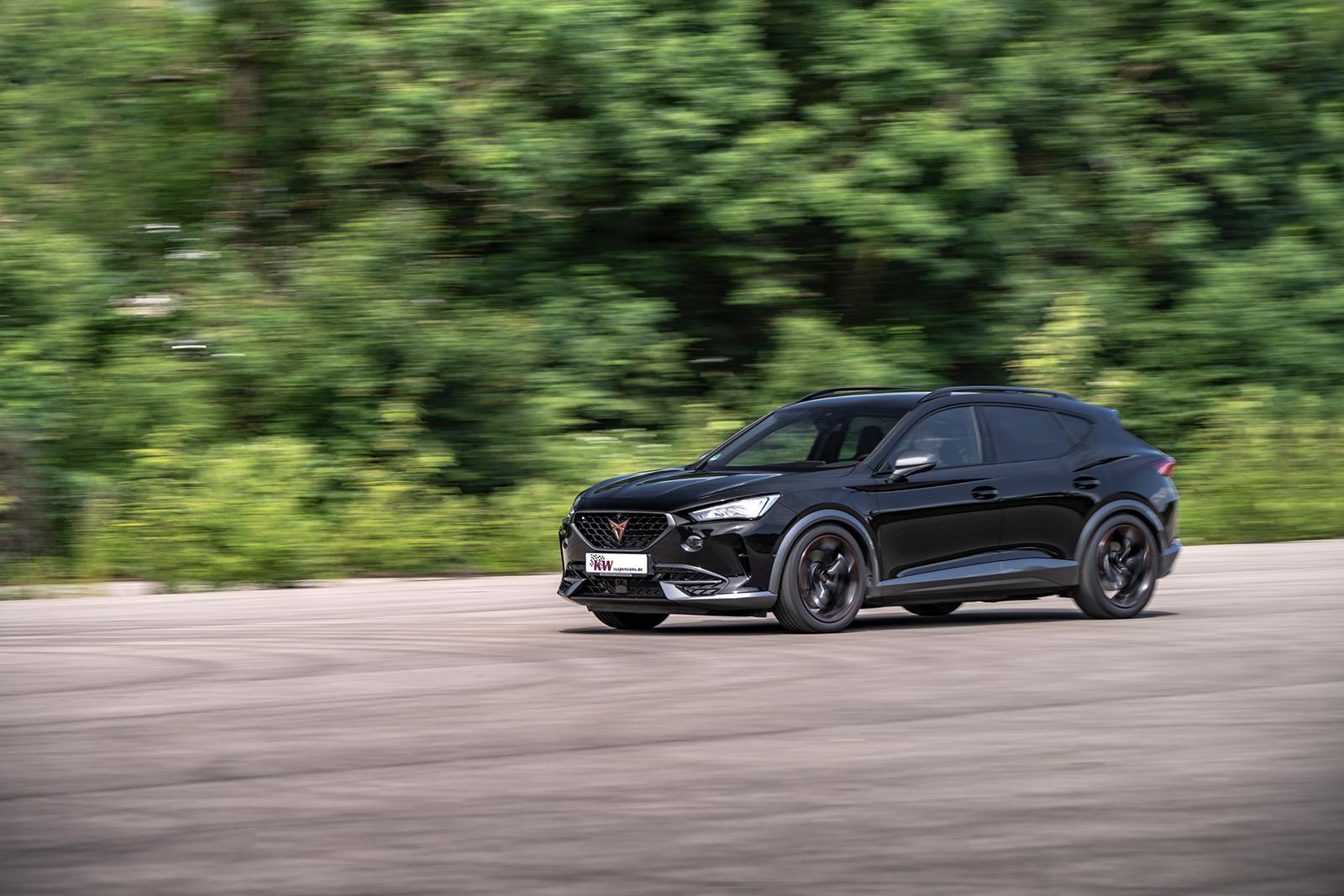

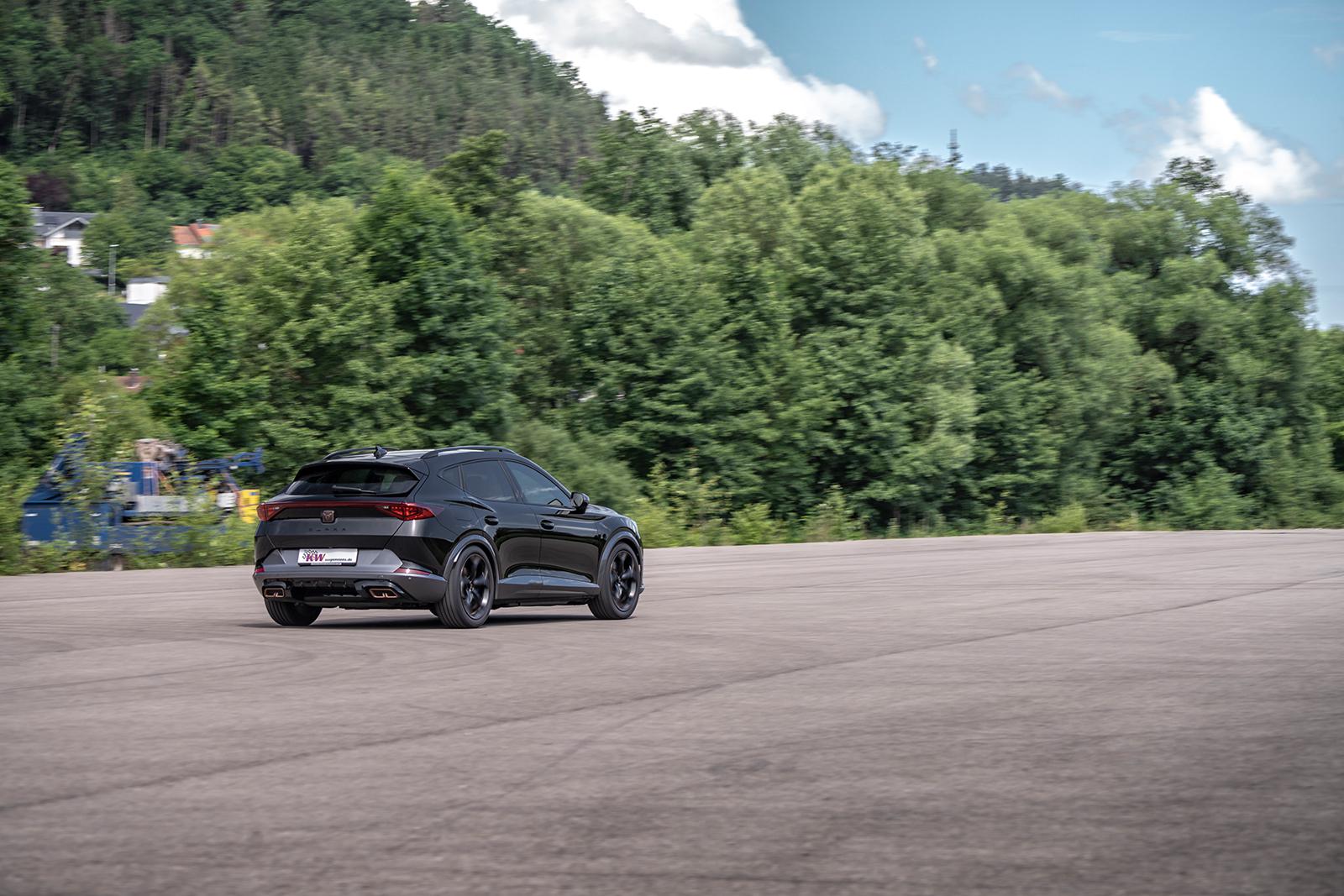

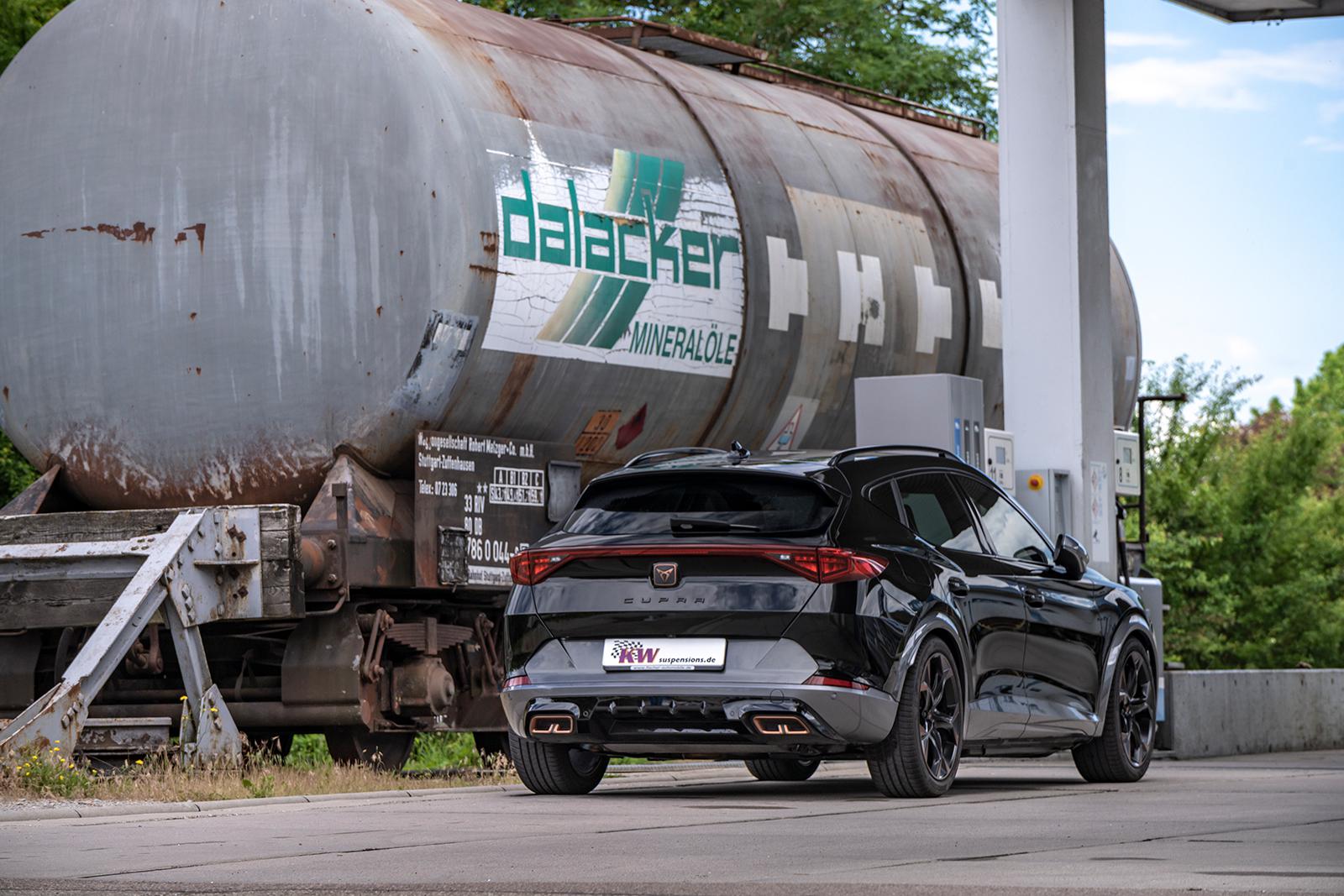

KW Coilover Kit V3 for Cupra (KM7) Formentor VZ 4Drive
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Cupra (KM7) Formentor VZ 4Drive
Sale price$4,340.55
Regular price$4,569.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Cupra Formentor VZ (KM7) 4Drive.
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 40–60 mm
- Rear lowering: 40–65 mm
- Front axle load: up to 1,130 kg
- Rear axle load: up to 1,090 kg
- Supplied as: Set - coilover struts for front axle, rear axle coming with springs / height adjustment, dampers separately, no cancellation kit for electronic damping
Front axle load up to 1,130 kg; Rear axle load up to 1,090 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2020+ | Cupra | Formentor (KM7, KMP) | 2.0 TDI 4Drive | Diesel · 110 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2020+ | Cupra | Formentor (KM7, KMP) | 2.0 TSI 4Drive | Petrol · 140 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2020+ | Cupra | Formentor (KM7, KMP) | 2.0 TSI 4Drive | Petrol · 150 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2020+ | Cupra | Formentor (KM7, KMP) | 2.0 TSI 4Drive | Petrol · 228 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2020+ | Cupra | Formentor (KM7, KMP) | 2.0 VZ 4Drive | Petrol · 245 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
