KW Coilover Kit V3 for Ford (MK1/MK2) Kuga
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Ford (MK1/MK2) Kuga
Sale price$3,723.05
Regular price$3,919.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Ford Kuga 4x4 (MK1) / Kuga 4x4 (MK2).
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 30–55 mm
- Rear lowering: 55–80 mm
- Front axle load: up to 1,155 kg
- Rear axle load: up to 1,115 kg

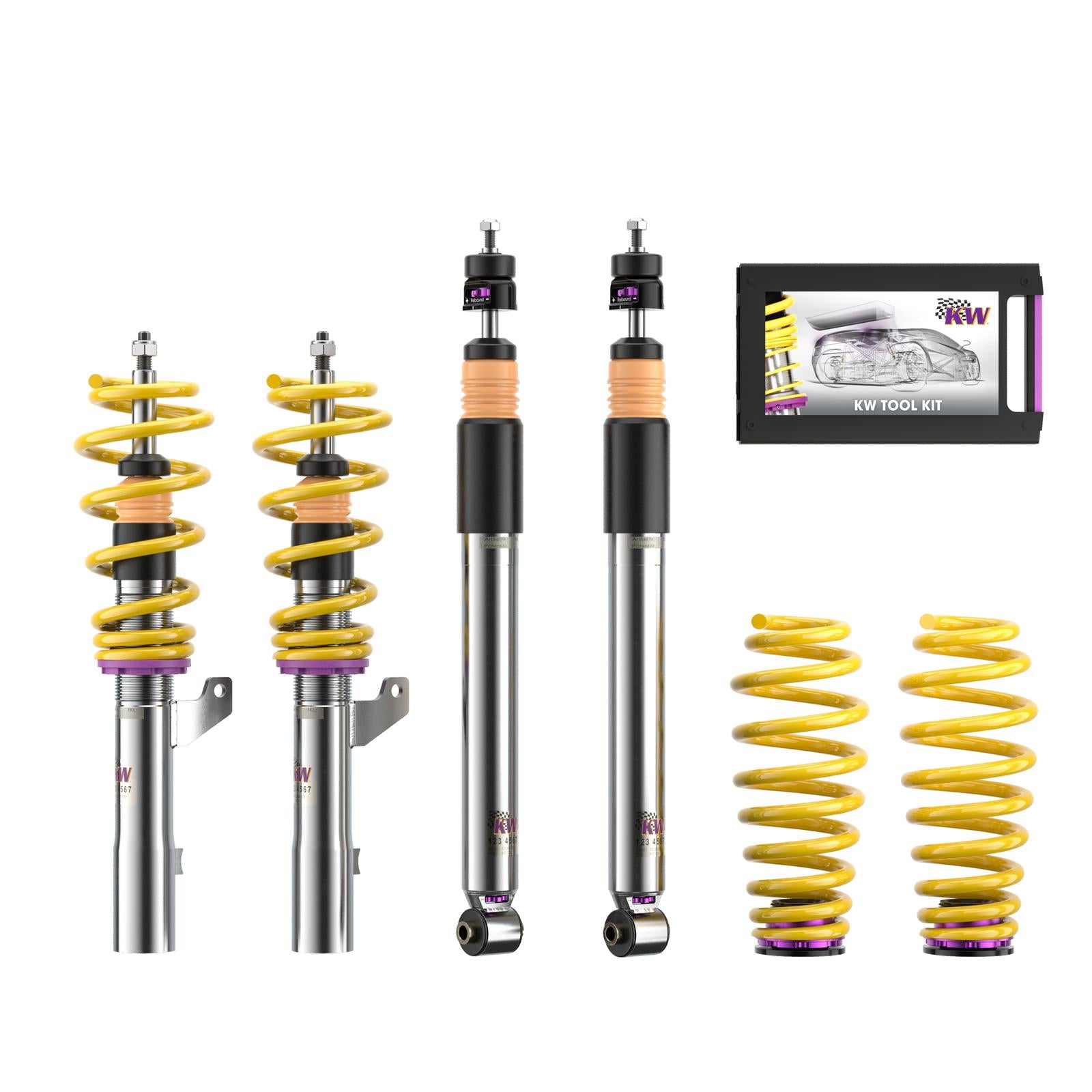

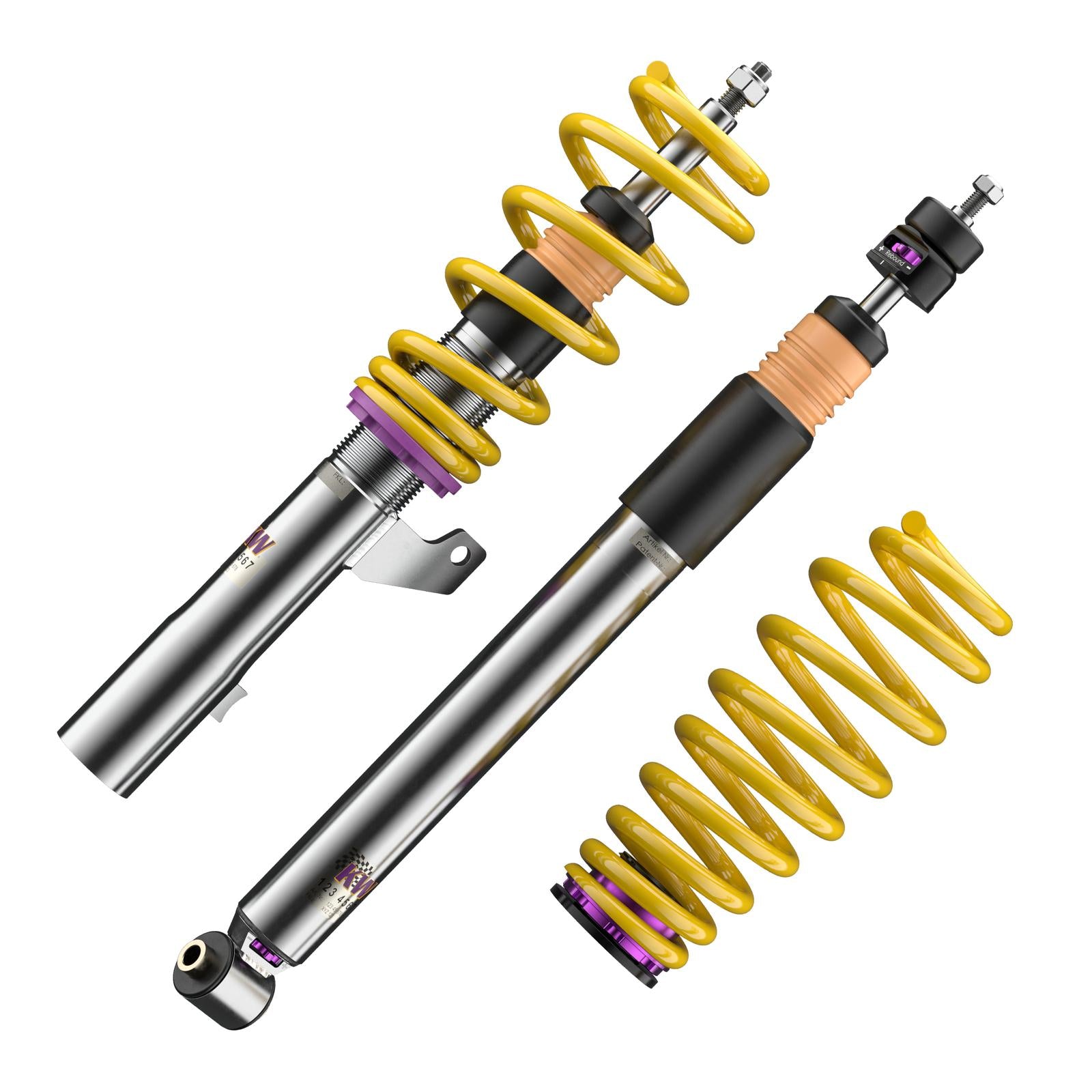

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,155 kg; Rear axle load up to 1,115 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2012+ | Ford | Kuga II (DM2) | 1.6 4x4 | Petrol · 133 kW · 1.6L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 2.0 TDCi 4x4 | Diesel · 100 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 1.6 EcoBoost 4x4 | Petrol · 110 kW · 1.6L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 1.6 EcoBoost 4x4 | Petrol · 132 kW · 1.6L · 4-cyl | All-Wheel Drive | 2 |
| 2008–2012 | Ford | Kuga I (DM2) | 2.0 TDCi 4x4 | Diesel · 100 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 2008–2012 | Ford | Kuga I (DM2) | 2.5 4x4 | Petrol · 147 kW · 2.5L · 5-cyl | All-Wheel Drive | 2 |
| 2008–2012 | Ford | Kuga I (DM2) | 2.0 TDCi 4x4 | Diesel · 103 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 2008–2012 | Ford | Kuga I (DM2) | 2.0 TDCi 4x4 | Diesel · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 1.6 EcoBoost 4x4 | Petrol · 134 kW · 1.6L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 2.0 TDCi 4x4 | Diesel · 103 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
| 2012+ | Ford | Kuga II (DM2) | 2.0 TDCi 4x4 | Diesel · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | 2 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
