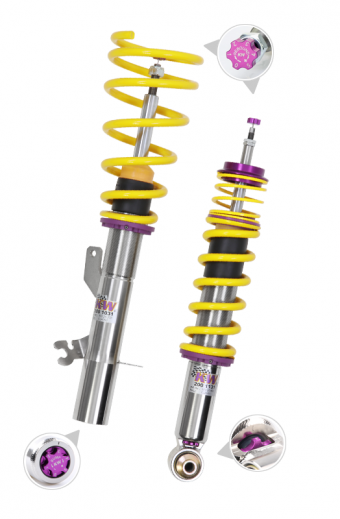

KW Coilover Kit V3 for Ford (MK4) Mondeo Wagon

SKU: 35230050
Sale price$4,834.56 Regular price$5,089.00
Save $254.44

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Ford Mondeo Wagon (MK4).

Key Features

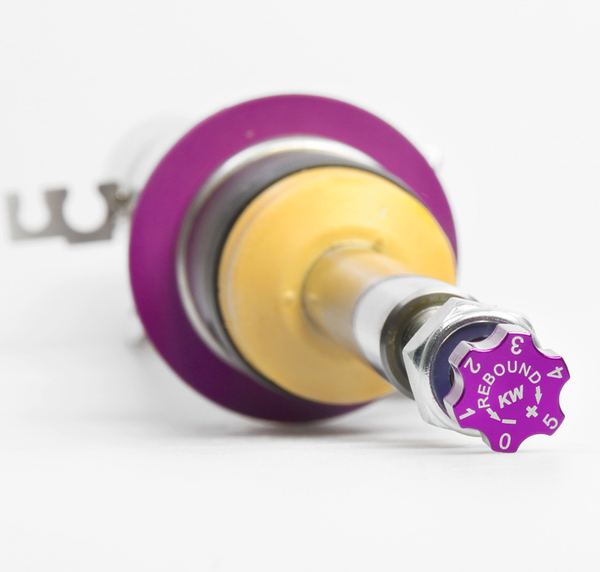

  • Rebound damping adjustable in 16 clicks

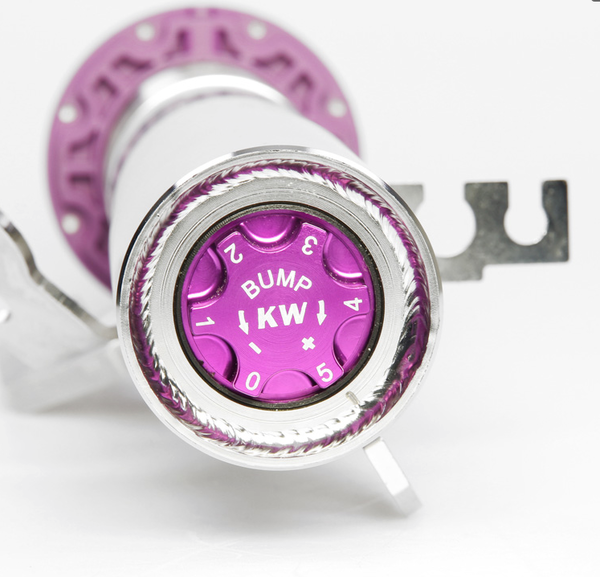

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 15–45 mm
  • Rear lowering: 10–40 mm
  • Front axle load: up to 1,215 kg
  • Rear axle load: up to 1,220 kg

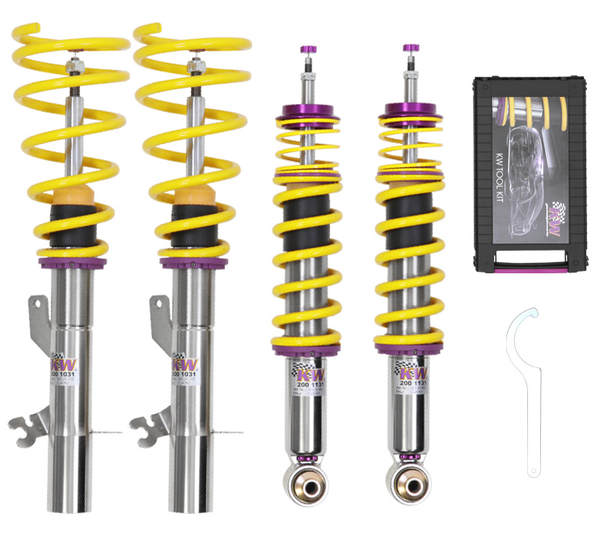

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,215 kg; Rear axle load up to 1,220 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2007–2015FordMondeo IV Turnier (BA7)1.6 TiPetrol · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.6 TiPetrol · 92 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0Petrol · 107 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.5Petrol · 162 kW · 2.5L · 5-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.8 TDCiDiesel · 74 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 TDCiDiesel · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 TDCiDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.2 TDCiDiesel · 129 kW · 2.2L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.3Petrol · 118 kW · 2.3L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 TDCiDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.8 TDCiDiesel · 92 kW · 1.8L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 TDCiDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 SCTiPetrol · 149 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 TDCiDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.6 TiPetrol · 88 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.6 EcoBoostPetrol · 118 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.0 EcoBoostPetrol · 176 kW · 2.0L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)1.6 TDCiDiesel · 85 kW · 1.6L · 4-cylFront-Wheel Drive2, 8, 62
2007–2015FordMondeo IV Turnier (BA7)2.2 TDCiDiesel · 147 kW · 2.2L · 4-cylFront-Wheel Drive2, 8, 62
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 8: Not for vehicles with automatic self levelling control / air suspension.
  • Note 62: Not for cars with electronic damping.
