KW Coilover Kit V3 for Cupra (KH7) Ateca 2.0L 4Drive w/ Deactivation for Electronic Dampers

SKU: 35281055
Sale price$4,692.05 Regular price$4,939.00
Save $246.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Cupra Ateca (KH7) 2.0 4Drive.

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–55 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 1,120 kg
  • Rear axle load: up to 1,110 kg
  • Front strut diameter (vehicle): 55 mm
  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control

Front axle load up to 1,120 kg; Rear axle load up to 1,110 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2018+CupraAteca (KH7) 5FP2.0 TSI 4DrivePetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive2, 57, 67, 88
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.

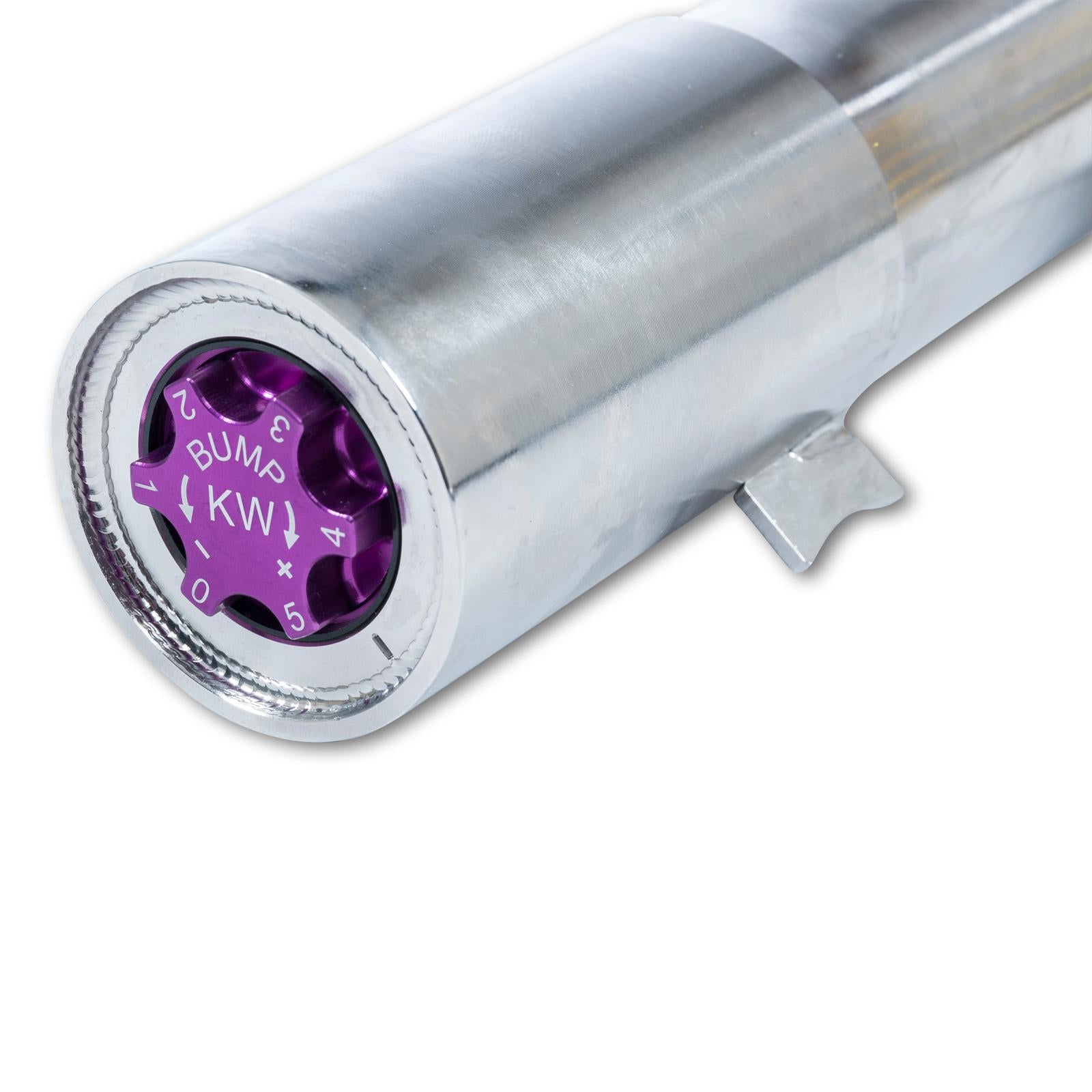

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
