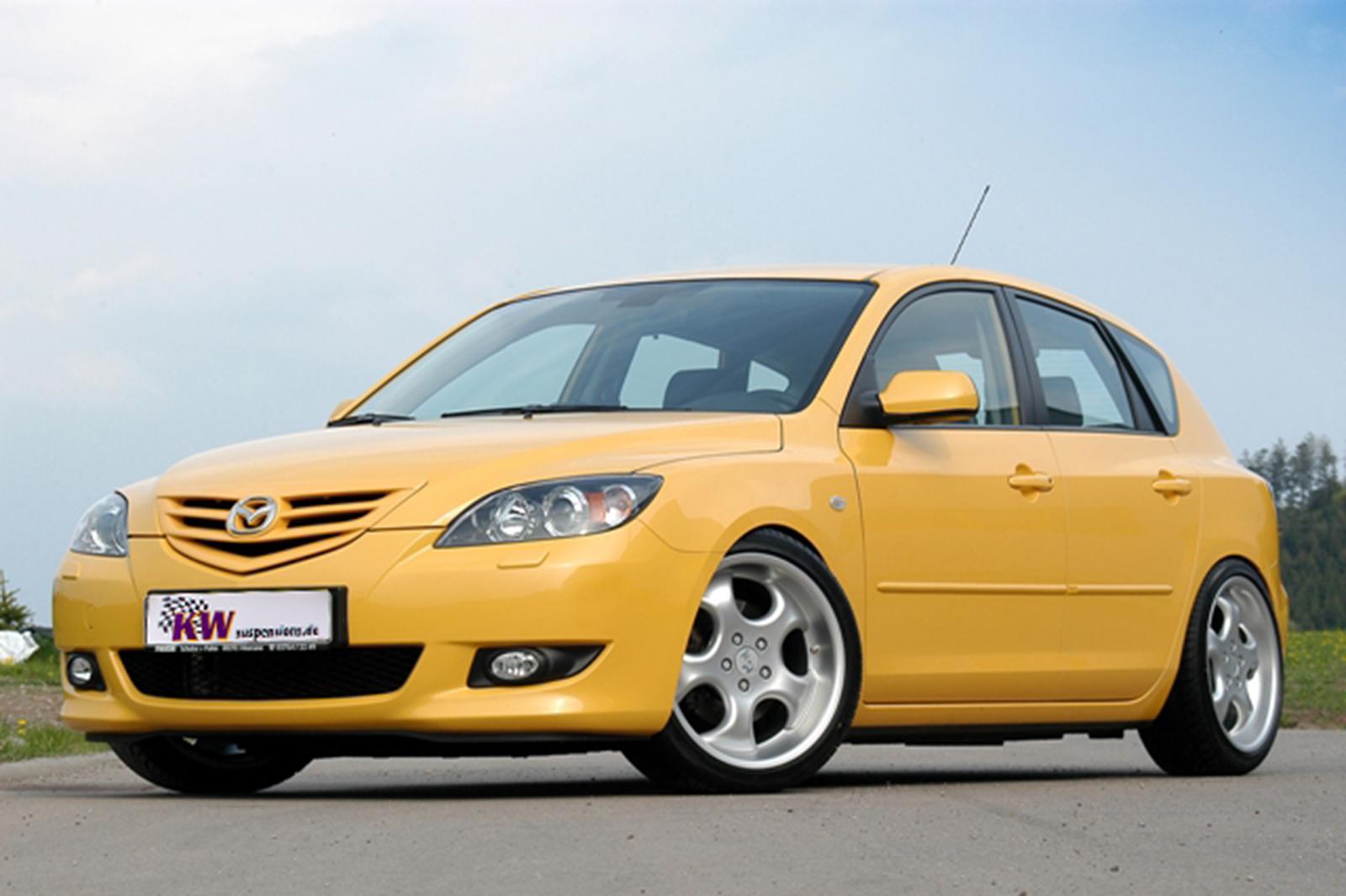

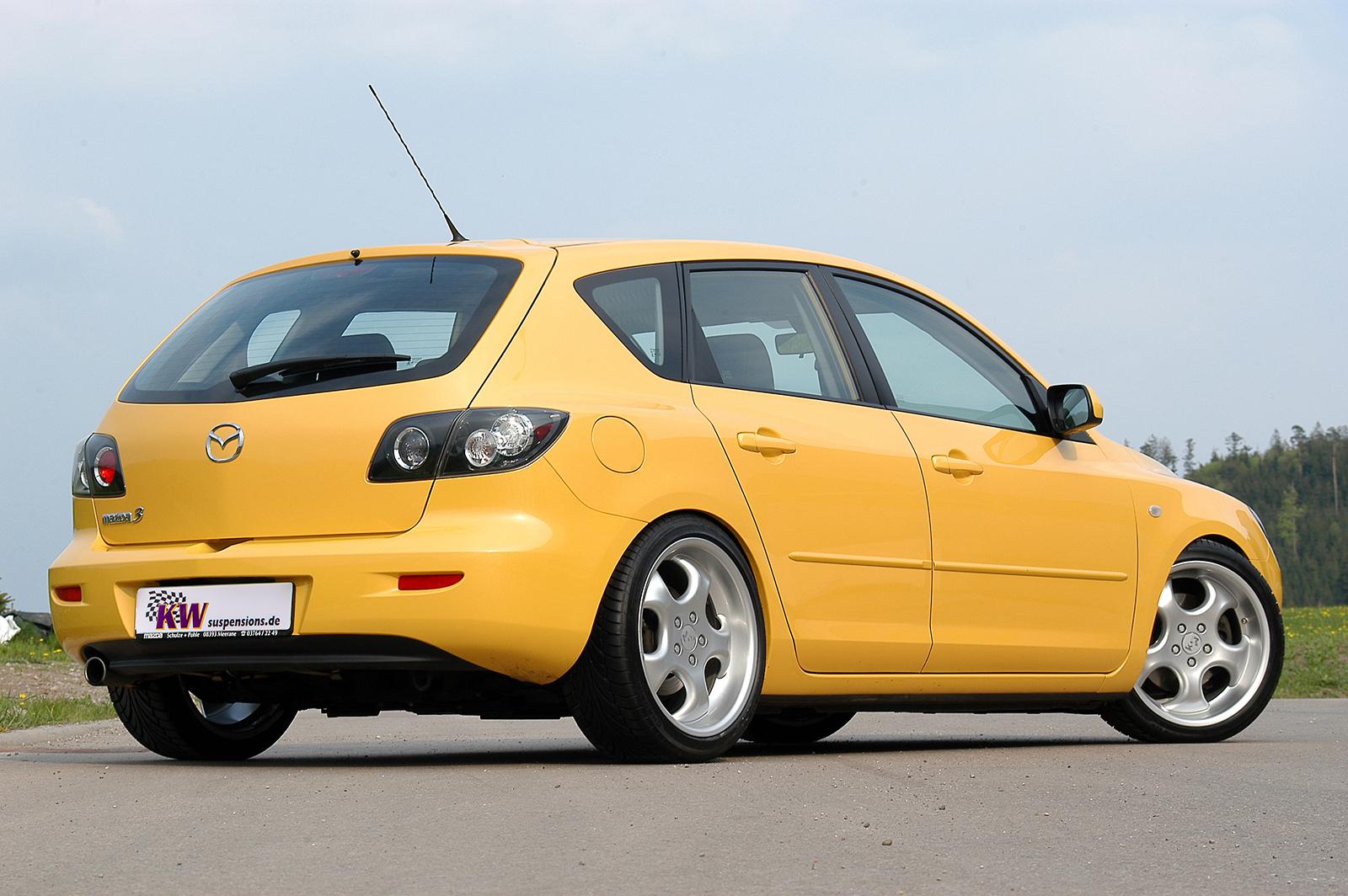

KW Coilover Kit V3 for Mazda (BK) 3 1.6L / 2.0L
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Mazda (BK) 3 1.6L / 2.0L
Sale price$4,074.55
Regular price$4,289.00 (/)
KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Mazda 3 (BK) 1.6 / 2.0.
Key Features
- Rebound damping adjustable in 16 clicks
- Compression damping adjustable in 12 clicks
- Continuous ride height adjustment within the tested range
Specifications
- Version: V3
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 30–60 mm
- Rear lowering: 30–60 mm
- Front axle load: up to 970 kg
- Rear axle load: up to 910 kg
- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 970 kg; Rear axle load up to 910 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2003–2009 | Mazda | 3 (BK) | 1.6 MZ-CD | Diesel · 66 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.8 | Petrol · 91 kW · 1.8L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 1.5 (BK5P) | Petrol · 84 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 AWD (BKEP) | Petrol · 105 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 1.6 | Petrol · 79 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.5 (BK5P) | Petrol · 84 kW · 1.5L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 1.6 (BK14) | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 (BKEP) | Petrol · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.6 (BK12) | Petrol · 77 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.0 (BKEP) | Petrol · 110 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 1.6 DI Turbo (BK12Y) | Diesel · 80 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 1.6 DI Turbo | Diesel · 80 kW · 1.6L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 1.3 (BK14) | Petrol · 62 kW · 1.3L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 2003–2009 | Mazda | 3 (BK) | 2.0 (BK10F, BKEP) | Petrol · 104 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 94 |
| 1999–2009 | Mazda | 3 Saloon (BK) | 2.0 (BK10F, BKEP) | Petrol · 104 kW · 2.0L · 4-cyl | Front-Wheel Drive | 2, 94 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 94: Specific damping variants only available while stocks last. For further information please send an email to sales@scuderia-autoart.com.
