KW Coilover Kit V3 for Opel (P10) Astra J OPC GTC

SKU: 35260074
Sale price$4,644.55 Regular price$4,889.00
Save $244.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Opel Astra J OPC GTC (P10).

Key Features

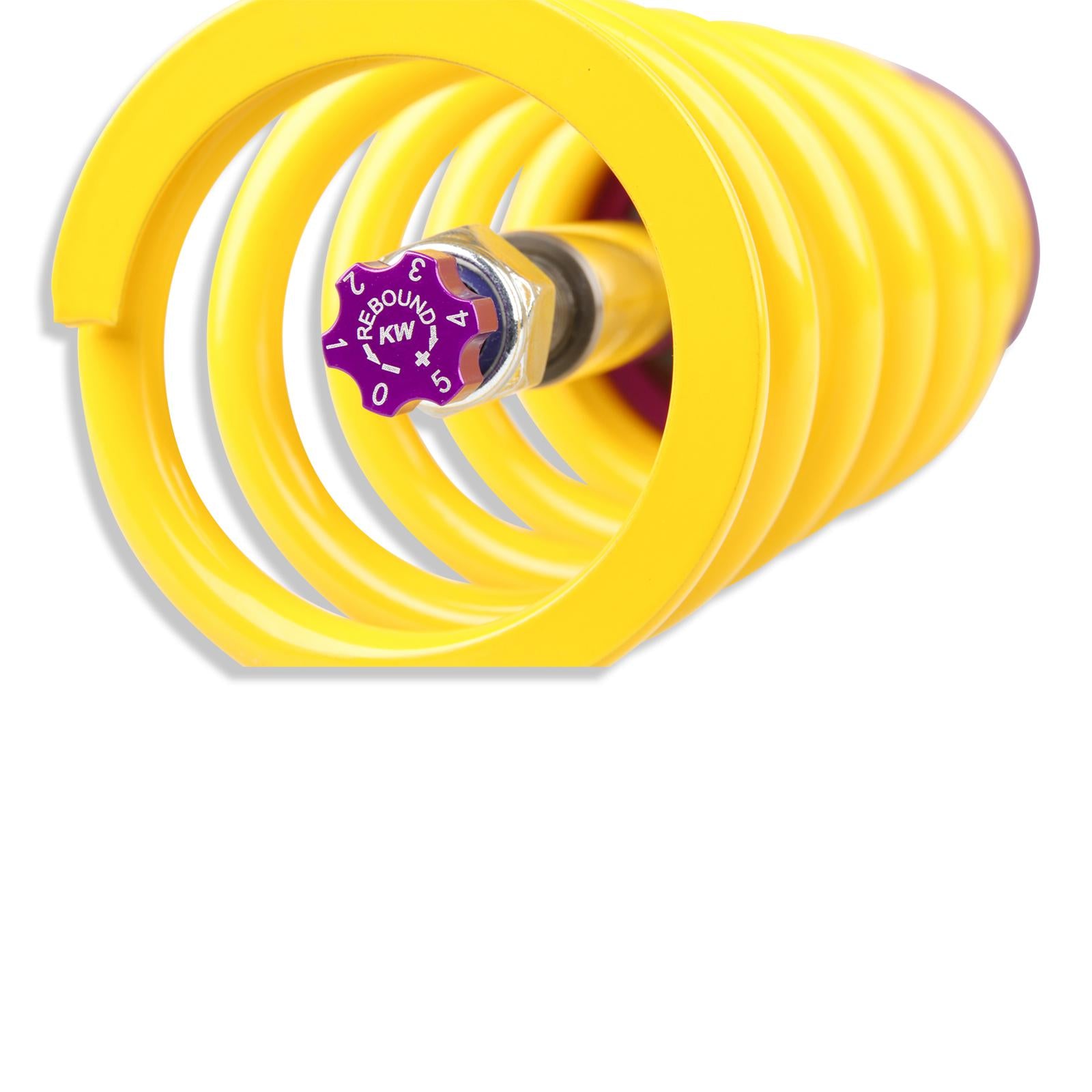

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 20–50 mm
  • Rear lowering: 25–55 mm
  • Front axle load: up to 1,180 kg
  • Rear axle load: up to 930 kg

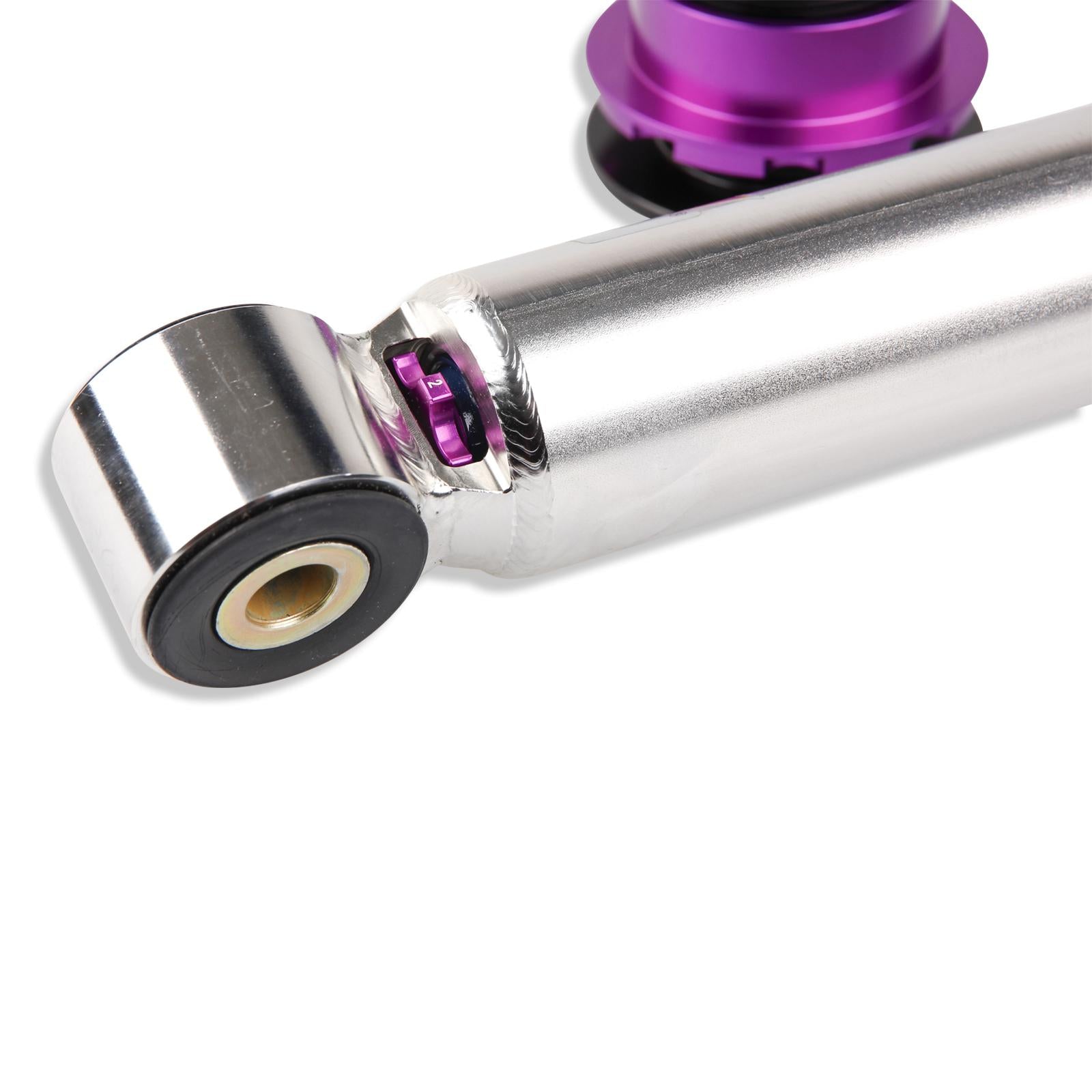

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,180 kg; Rear axle load up to 930 kg.

For vehicles without electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2011–2018OpelAstra J GTC (P_)1.4 (08)Petrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.4 (08)Petrol · 88 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.4 Turbo (08)Petrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.6 CDTI (08)Diesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.6 CDTI (08)Diesel · 100 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.6 SIDI (08)Petrol · 125 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.6 SIDI (08)Petrol · 147 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.6 Turbo (08)Petrol · 132 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.7 CDTI (08)Diesel · 81 kW · 1.7L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.7 CDTI (08)Diesel · 96 kW · 1.7L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)1.8 (08)Petrol · 103 kW · 1.8L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)2.0 BiTurbo CDTI (08)Diesel · 143 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)2.0 CDTI (08)Diesel · 96 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)2.0 CDTI (08)Diesel · 121 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018OpelAstra J GTC (P_)2.0 OPC Turbo (08)Petrol · 206 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.4Petrol · 74 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.4Petrol · 88 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.4Petrol · 103 kW · 1.4L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.6Petrol · 132 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.6 CDTiDiesel · 81 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.6 CDTiDiesel · 100 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.6 SIDIPetrol · 125 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.6 SIDIPetrol · 147 kW · 1.6L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.7 CDTiDiesel · 81 kW · 1.7L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)1.7 CDTiDiesel · 96 kW · 1.7L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)2.0 BiTurbo CDTIDiesel · 143 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)2.0 CDTiDiesel · 121 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
2011–2018VauxhallAstra Mk VI (J) GTC (P10)2.0 VXRPetrol · 206 kW · 2.0L · 4-cylFront-Wheel Drive2, 37, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.

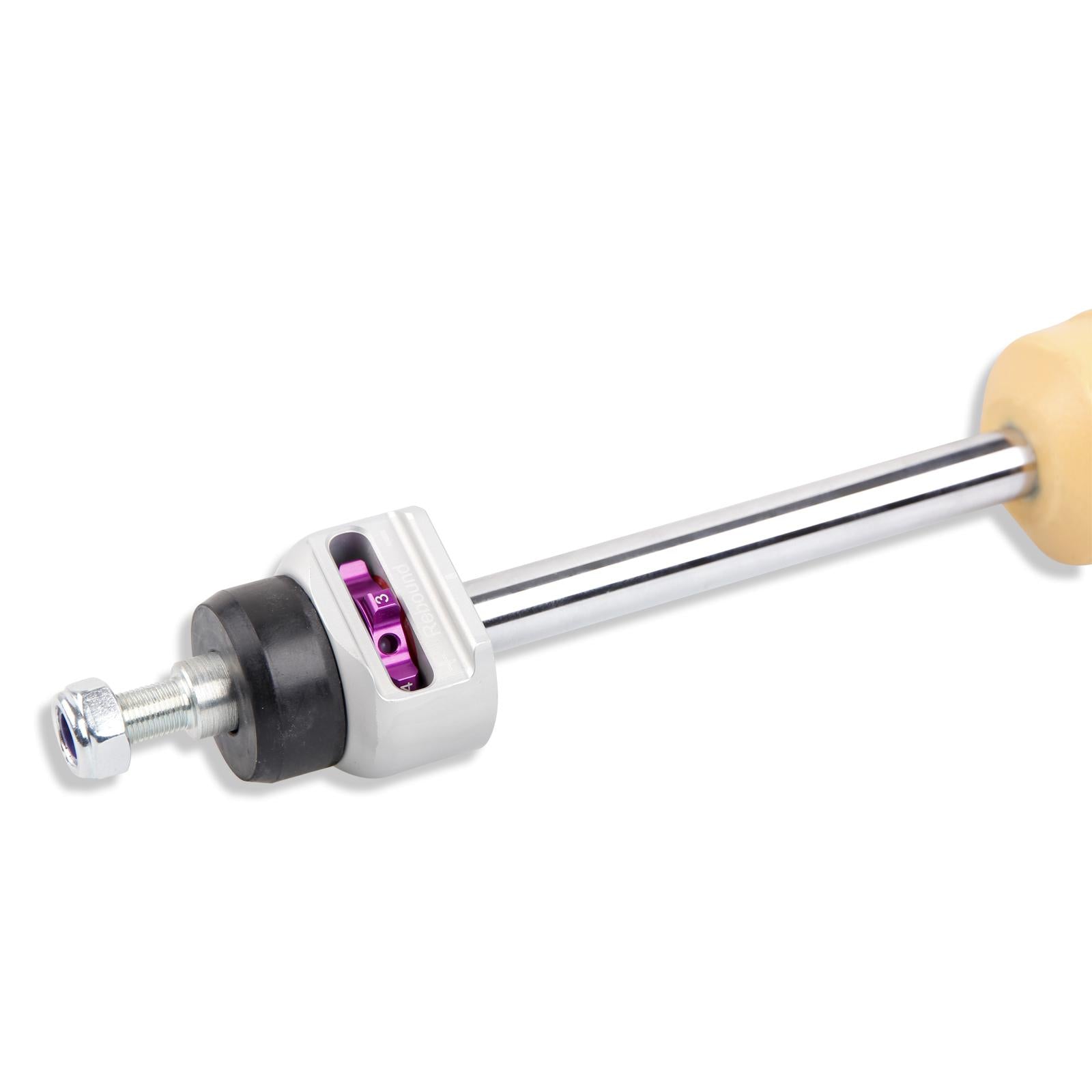

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
