KW Coilover Kit V3 for VW (5C) Beetle 2.0L TDI / Beetle Convertible - Twist-Beam Rear Axle - 55mm Front Strut

SKU: 3528000E
Sale price$4,359.55 Regular price$4,589.00
Save $229.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the VW Beetle 2.0 TDI / Beetle Convertible (5C).

Key Features

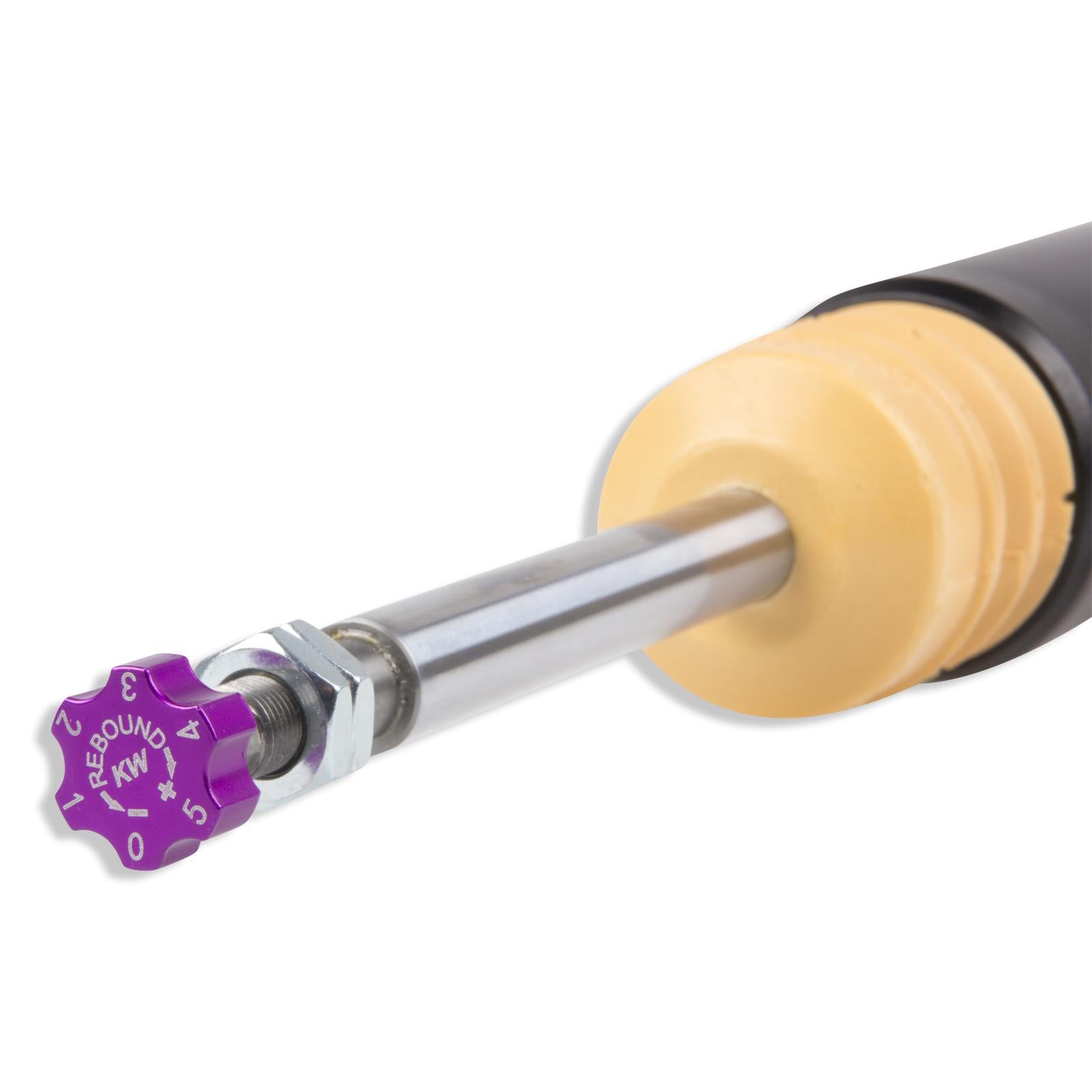

  • Rebound damping adjustable in 16 clicks

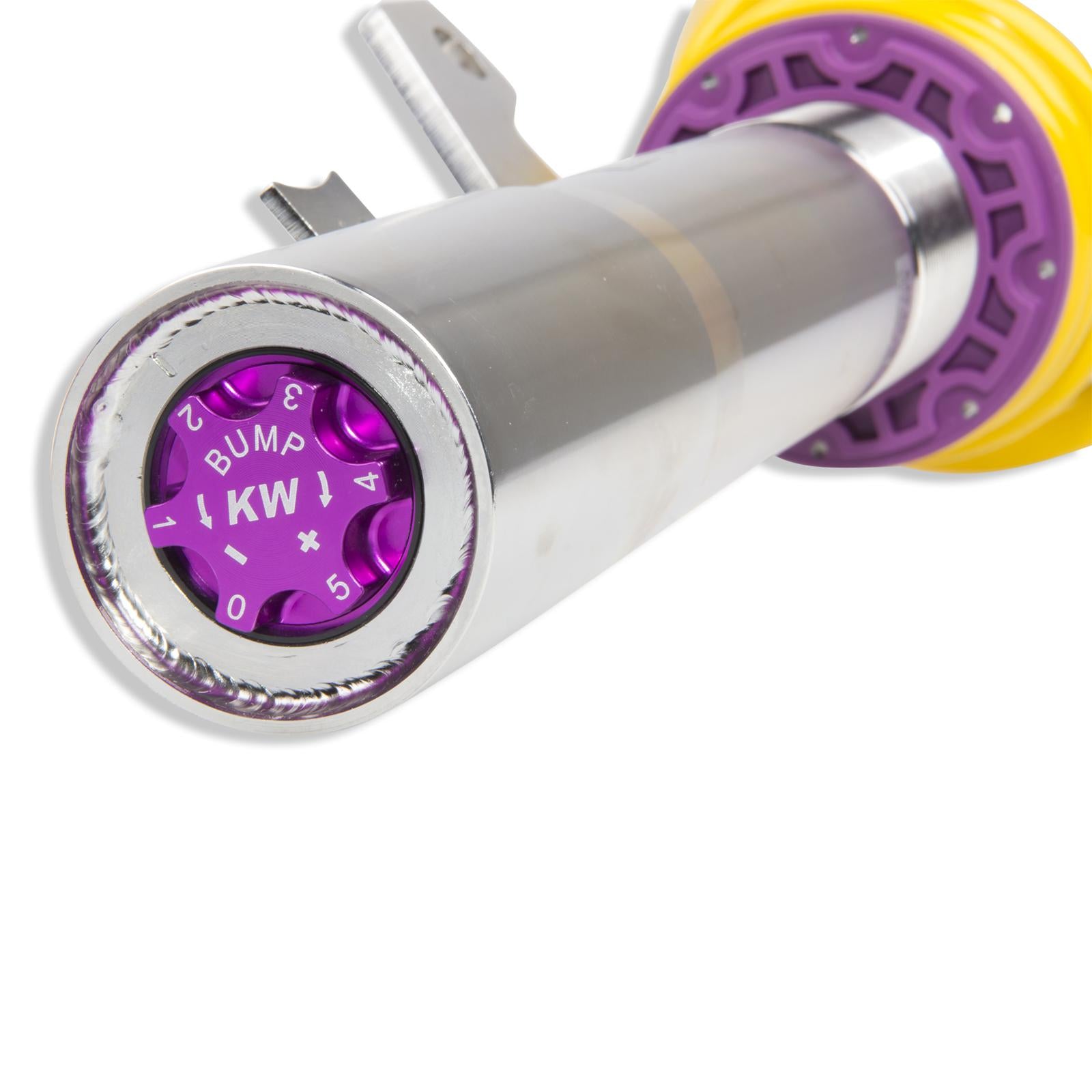

  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 35–65 mm
  • Rear lowering: 50–70 mm
  • Front axle load: 1,016–1,090 kg
  • Rear axle load: up to 880 kg
  • Front strut diameter (vehicle): 55 mm

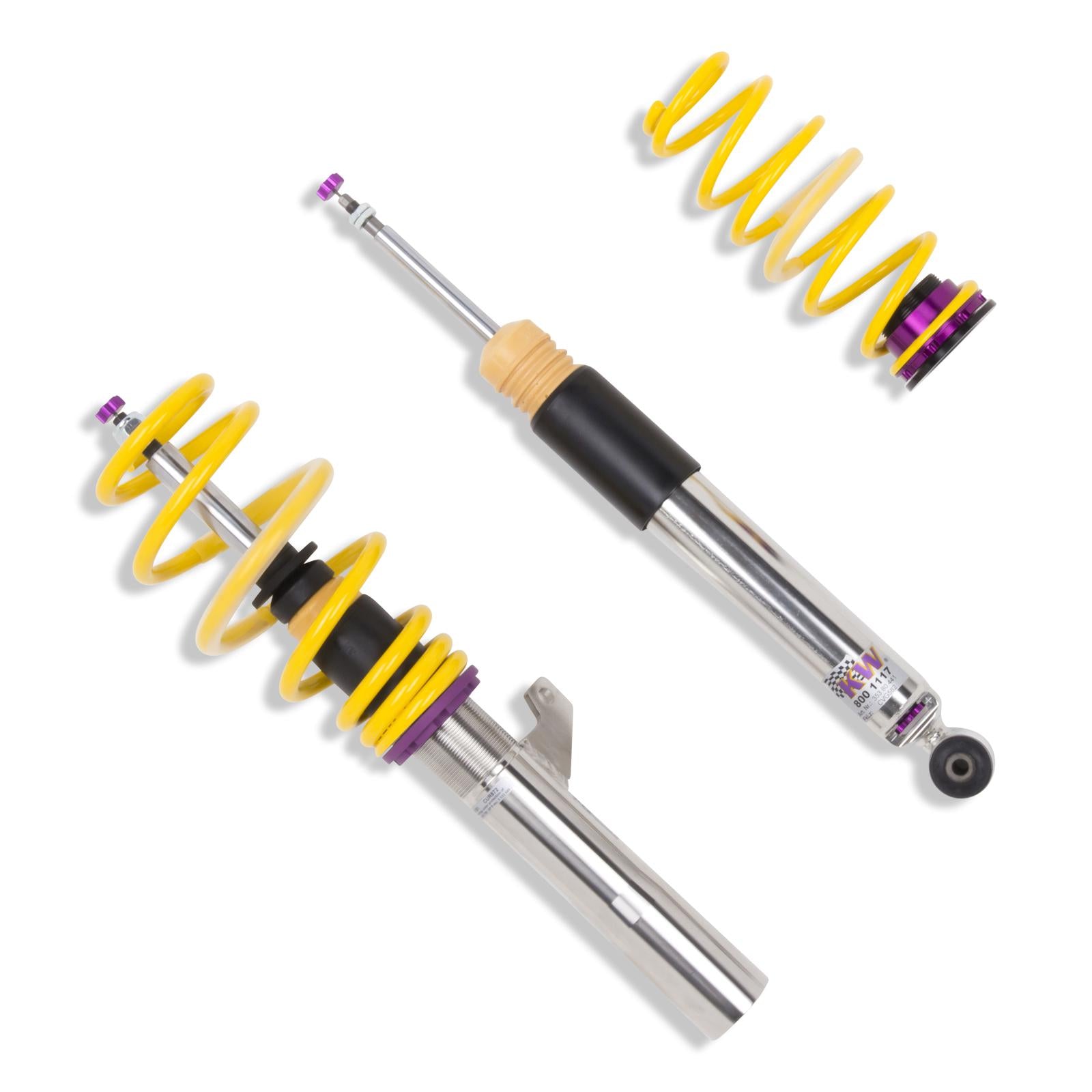

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,016–1,090 kg; Rear axle load up to 880 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2011–2019VWBeetle (16, 5C1, 5C2)1.8 TSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)1.8 TSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TFSIPetrol · 147 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.5Petrol · 125 kW · 2.5L · 5-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TSIPetrol · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TSIPetrol · 130 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TFSIPetrol · 157 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)1.4 TSIPetrol · 118 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)1.4 TSIPetrol · 118 kW · 1.4L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TFSIPetrol · 147 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.5Petrol · 125 kW · 2.5L · 5-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle (16, 5C1, 5C2)2.0 TSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
2011–2019VWBeetle Convertible (16, 5C7, 5C8)2.0 TSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive2, 57, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 57: Only for cars with a clamp diameter of 55mm on the front axle.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
