KW Coilover Kit V3 for Cupra (K1) Born / VW (E11) ID.3

SKU: 352800DH
Sale price$4,340.55 Regular price$4,569.00
Save $228.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V3 offers independent adjustment of rebound damping (16 clicks) and compression damping (12 clicks), technology carried over from KW's motorsport programme. KW develops a vehicle-specific base setup on its 7-post rig and in road and track testing, from which the damping can be tuned for comfort or sharper handling. Ride height is continuously adjustable within the tested range. This kit is developed for the Cupra Born (K1) / VW ID.3 (E11).

Key Features

  • Rebound damping adjustable in 16 clicks
  • Compression damping adjustable in 12 clicks
  • Continuous ride height adjustment within the tested range

Specifications

  • Version: V3
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 30–55 mm
  • Front axle load: up to 1,110 kg
  • Rear axle load: up to 1,260 kg

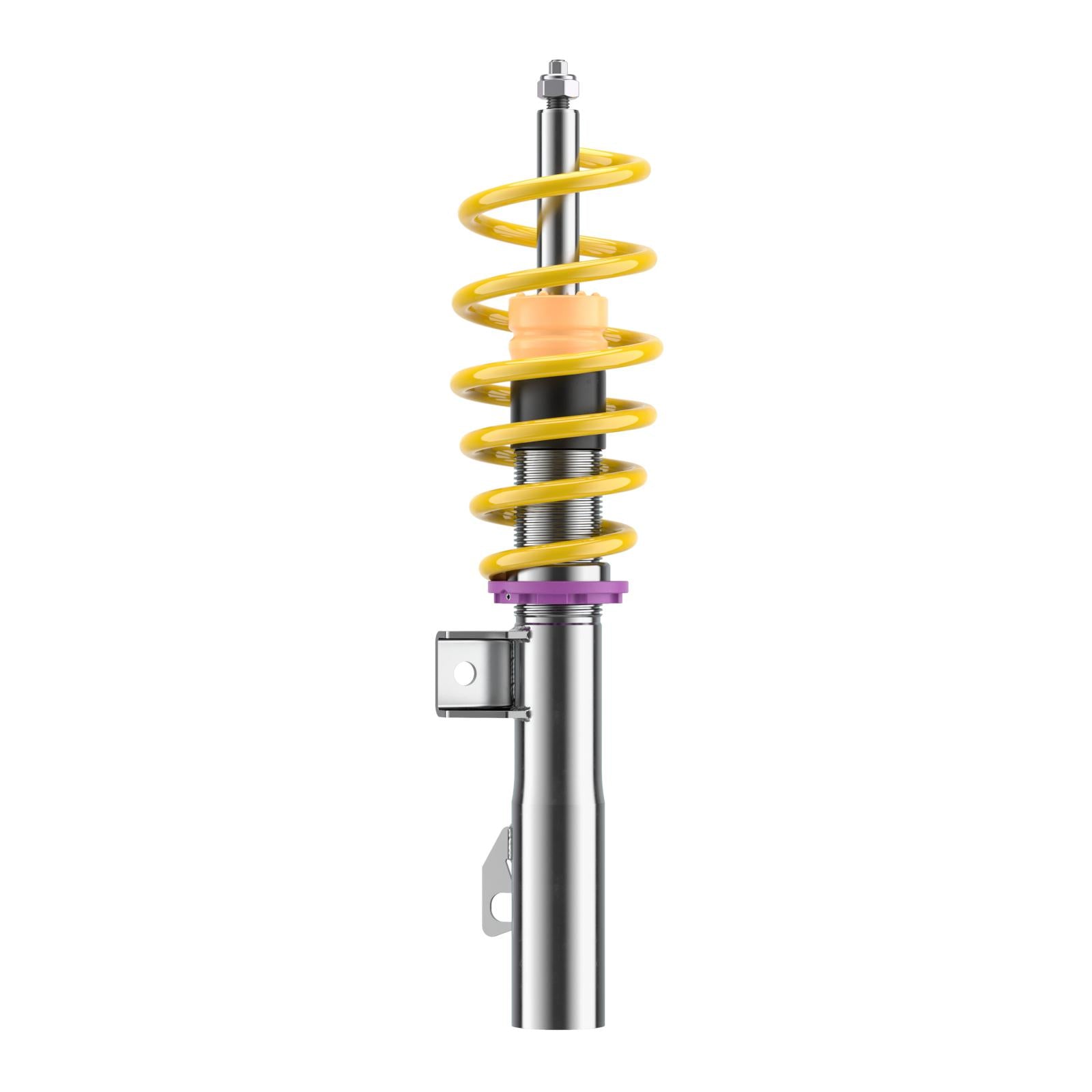

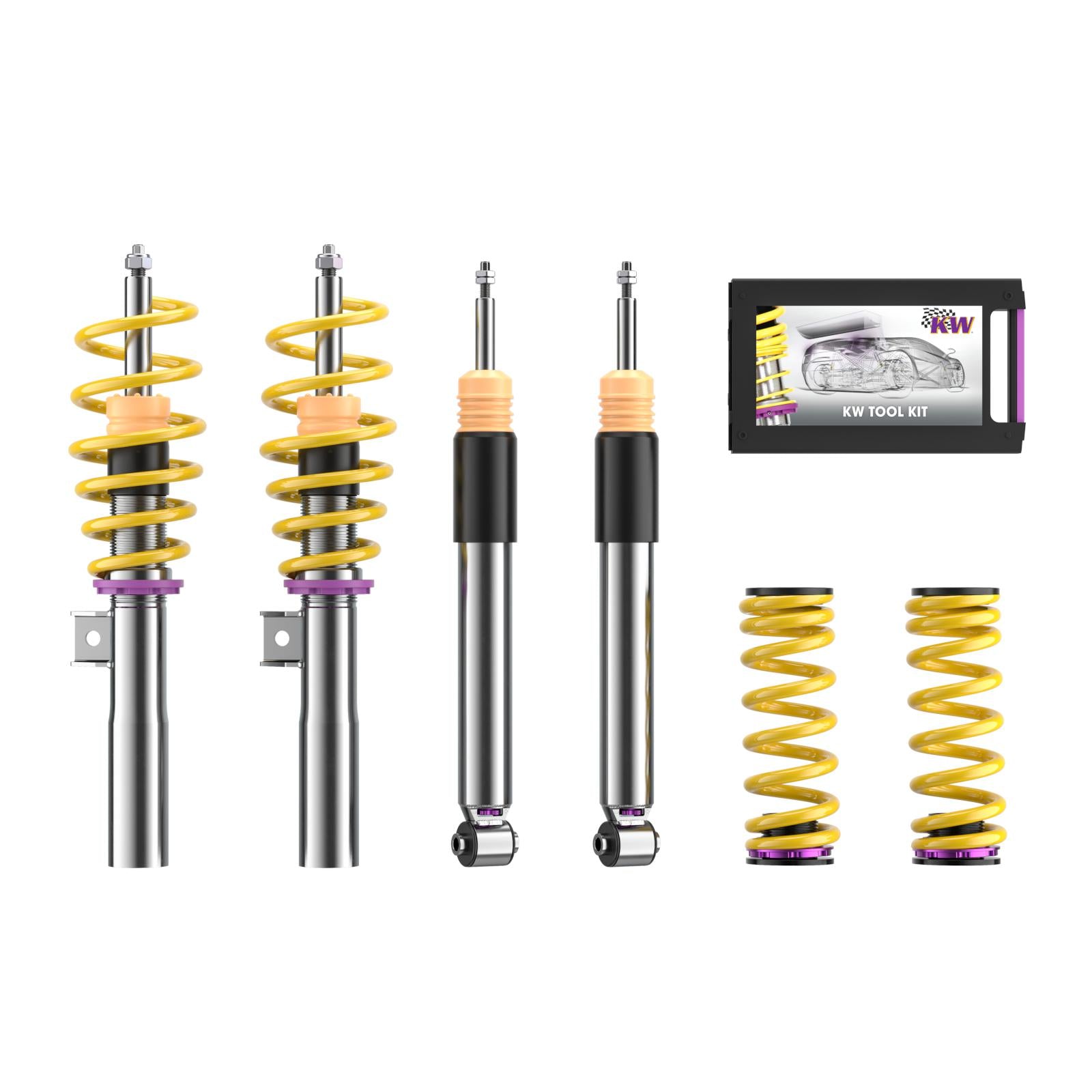

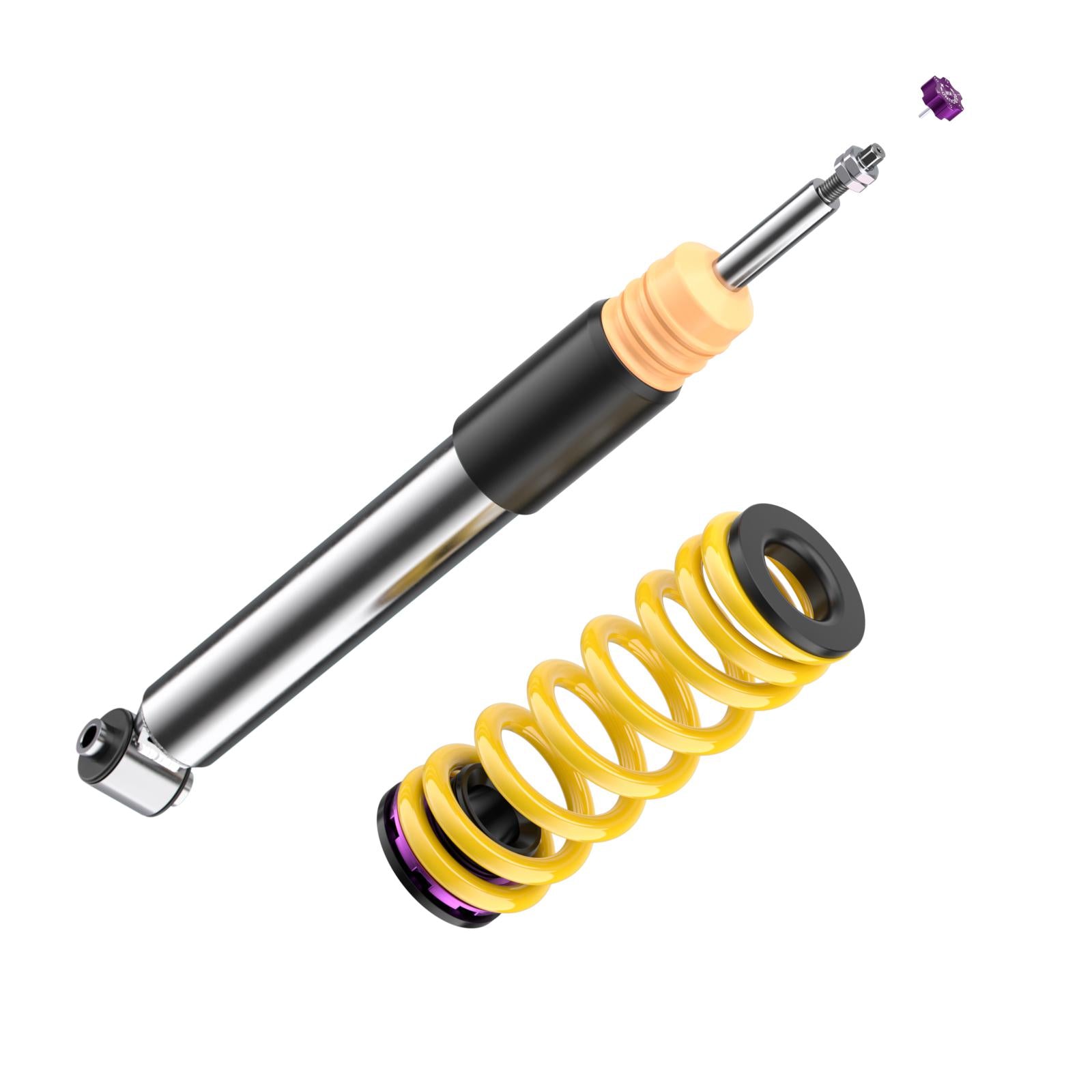

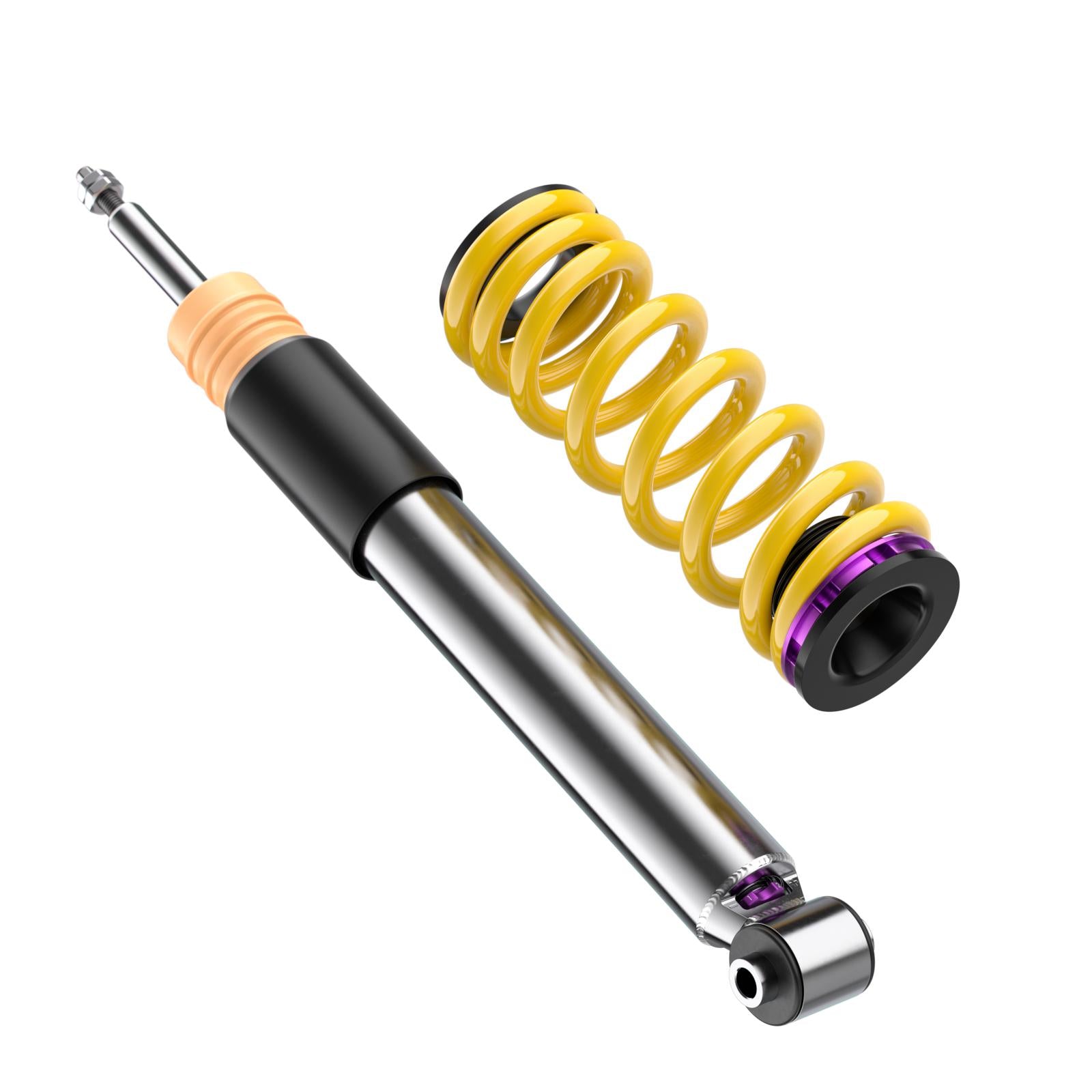

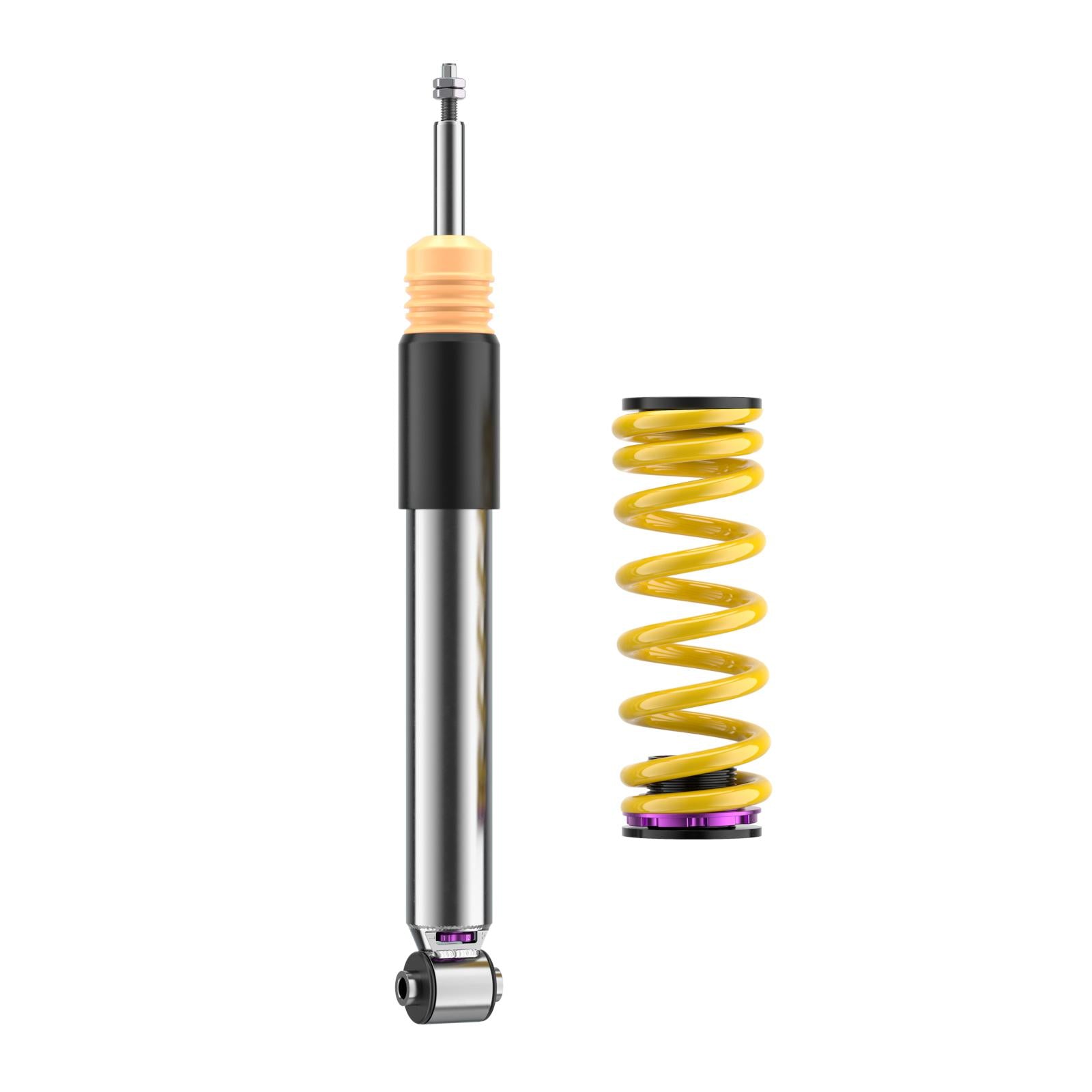

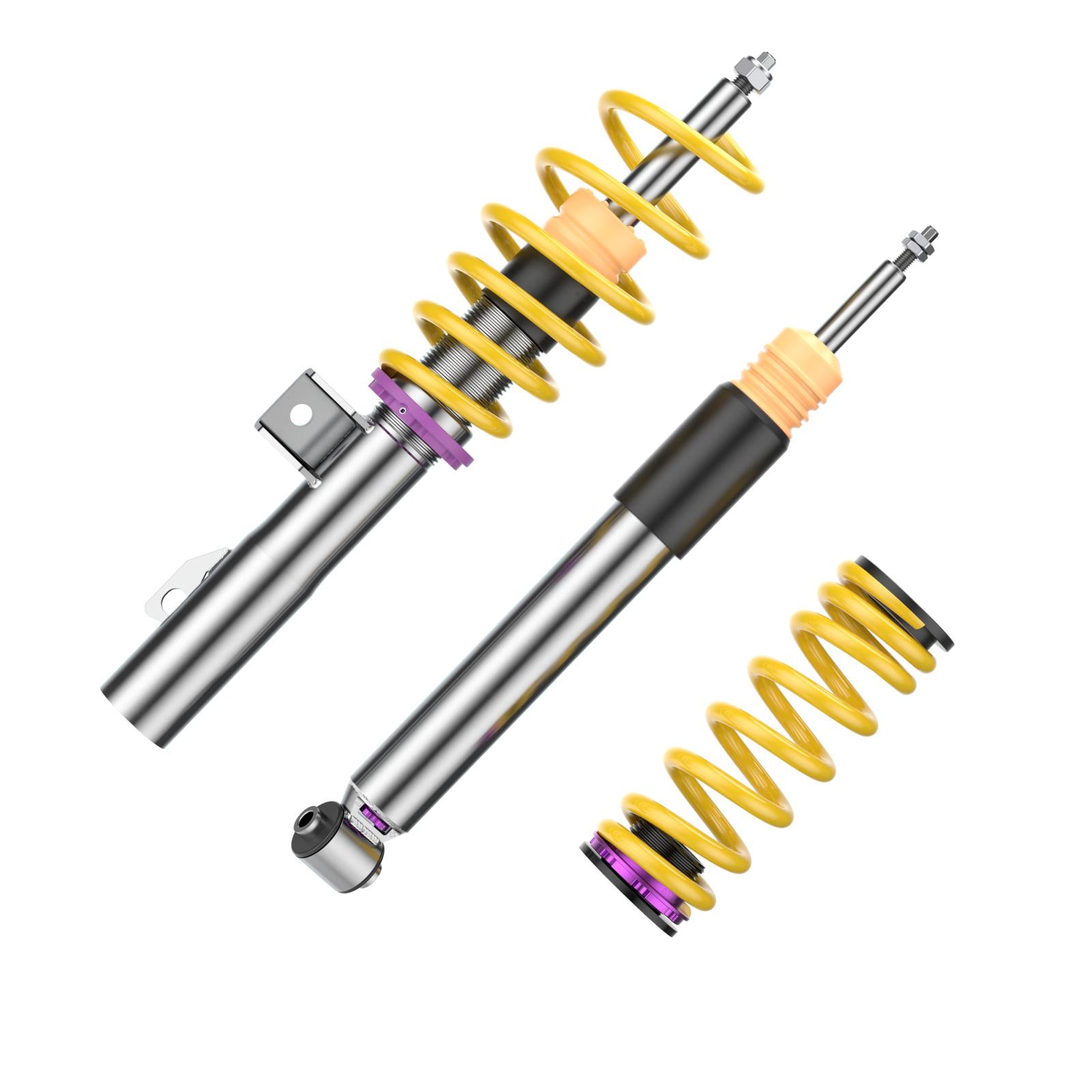

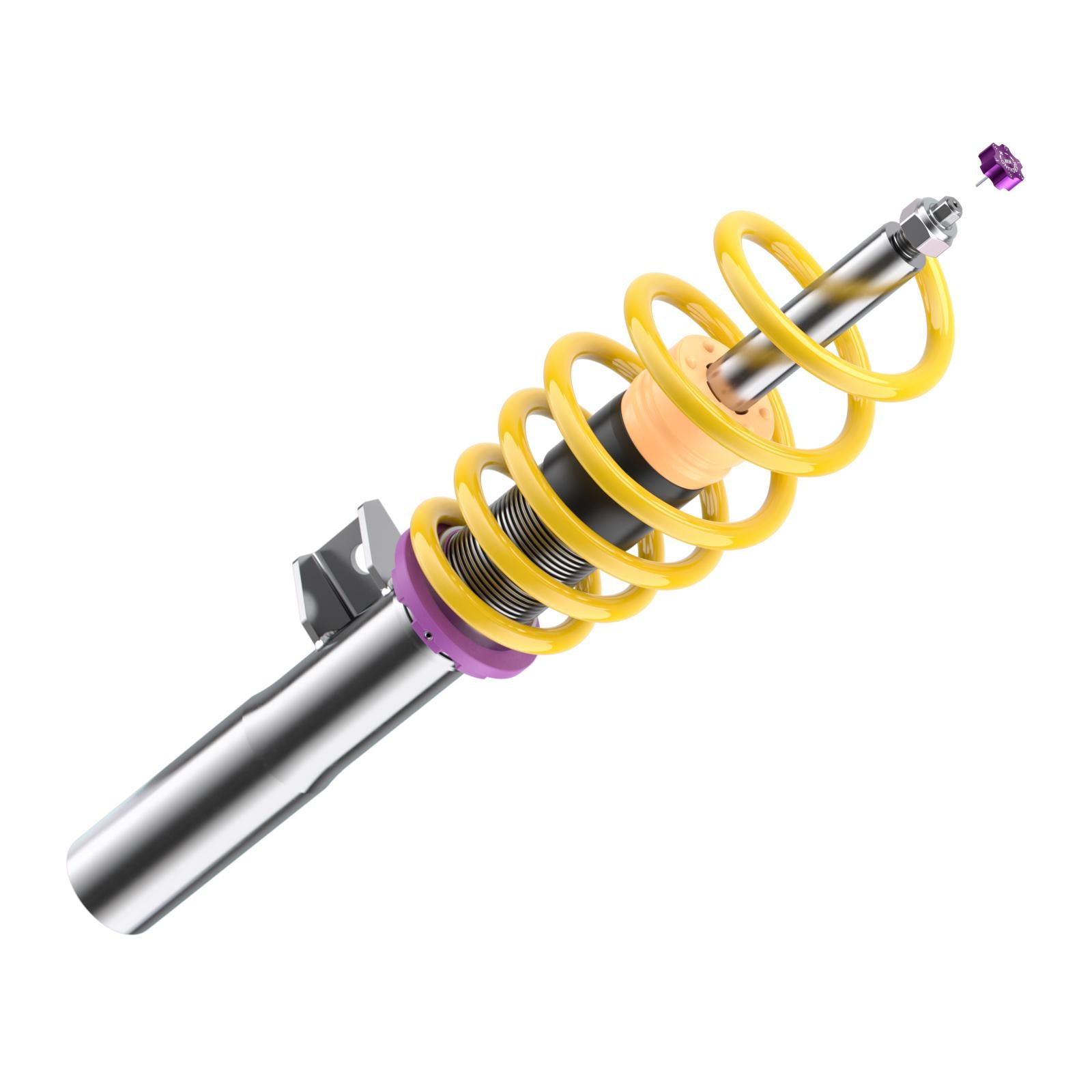

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars without DCC.

Front axle load up to 1,110 kg; Rear axle load up to 1,260 kg.

For vehicles without electronic damper control.

For cars without DCC.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2021+CupraBorn (K1)45Electric · 110 kWRear-Wheel Drive2, 37, 67, 422
2021+CupraBorn (K1)58Electric · 150 kWRear-Wheel Drive2, 37, 67, 422
2021+CupraBorn (K1)58 e-boostElectric · 170 kWRear-Wheel Drive2, 37, 67, 422
2021+CupraBorn (K1)63Electric · 170 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.31stElectric · 150 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.3ProElectric · 107 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.3ProElectric · 150 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.3PureElectric · 93 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.3PureElectric · 110 kWRear-Wheel Drive2, 37, 67, 422
2019+VWID.3PureElectric · 125 kWRear-Wheel Drive2, 37, 67, 422
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 422: At a driving speed between 70 – 110km/h with a lowered car of +30mm, slight vibrations can be recognized eventually, due to kinematic of axle construction. Solution in such cases = to reduce lowering, if perception of vibrations are on a disturbing level.
