KW Coilover Kit V4 for Audi (B9) RS4 Avant - w/ DRC
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V4 for Audi (B9) RS4 Avant - w/ DRC
Sale price$10,363.55
Regular price$10,909.00 (/)

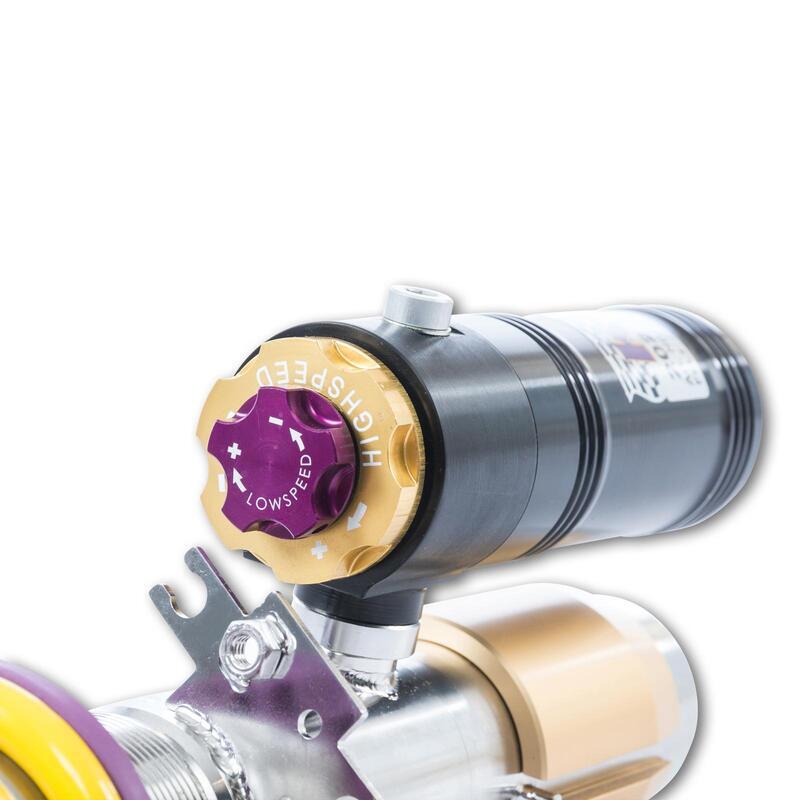

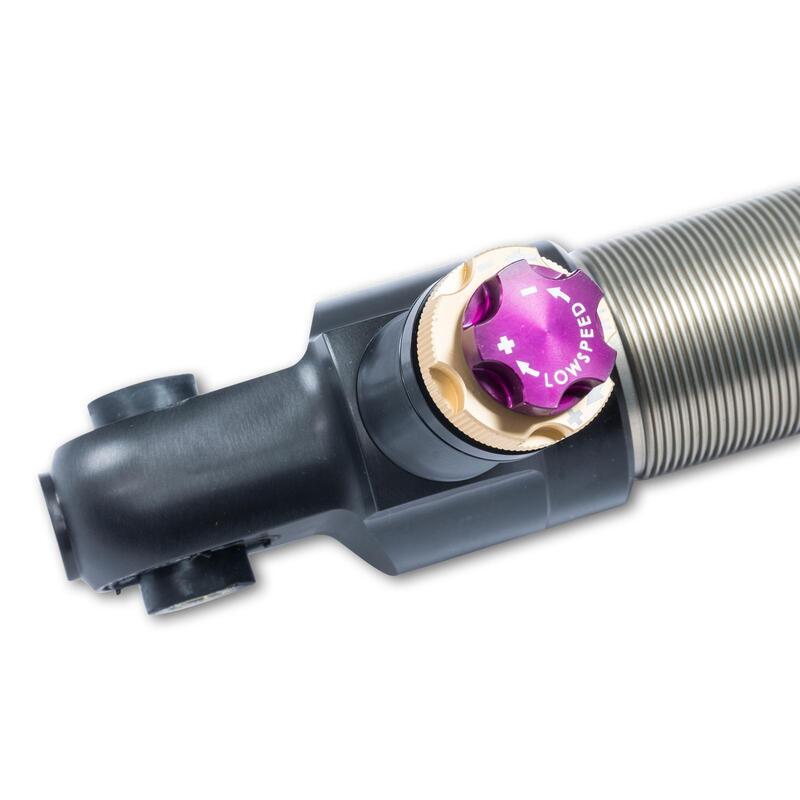

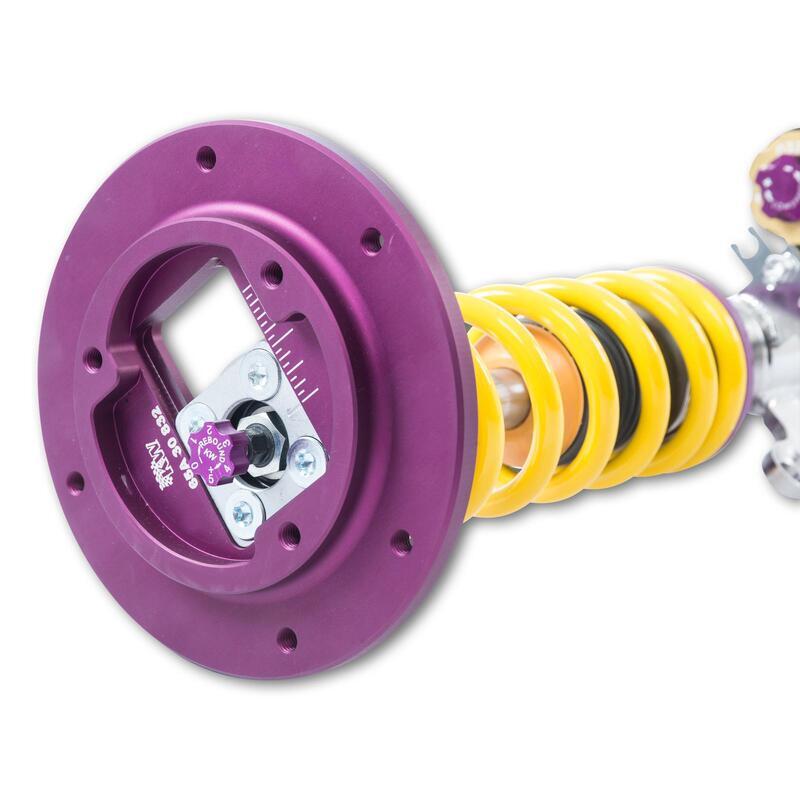

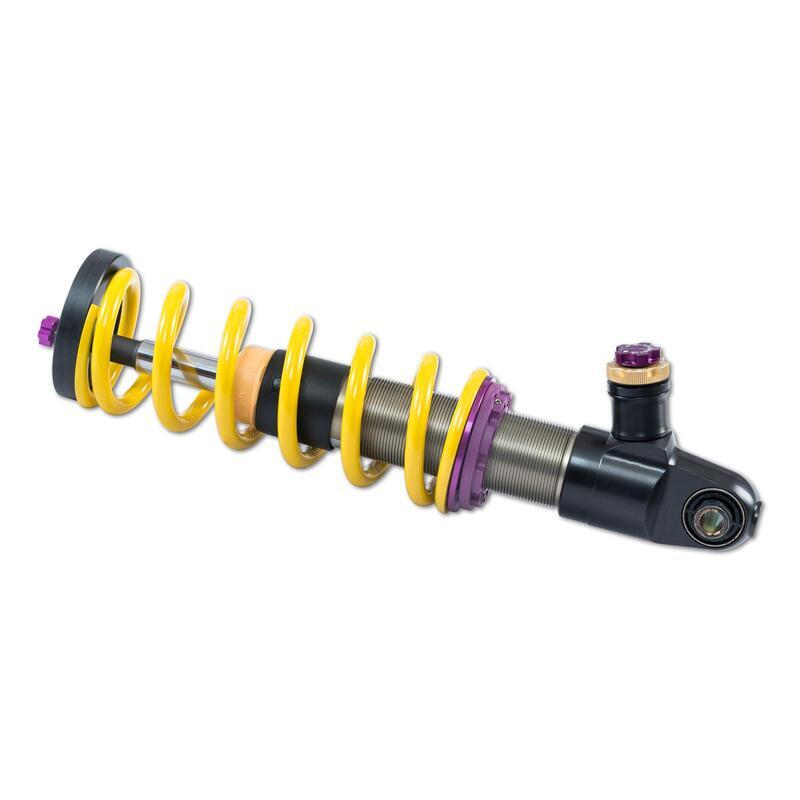

KW's V4 is a three-way adjustable coilover for high-performance vehicles, with independent adjustment of rebound (16 clicks), low-speed compression (6 clicks) and high-speed compression (14 clicks). The dampers are based on KW's racing technology, and depending on the vehicle, aluminium top mounts are included. This kit is developed for the Audi RS4 Avant (B9).
Key Features
- Three-way adjustable dampers
- Rebound 16 clicks, low-speed compression 6 clicks, high-speed compression 14 clicks
Specifications
- Version: V4
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 15–35 mm
- Rear lowering: 20–40 mm
- Front axle load: up to 1,260 kg
- Rear axle load: up to 1,250 kg

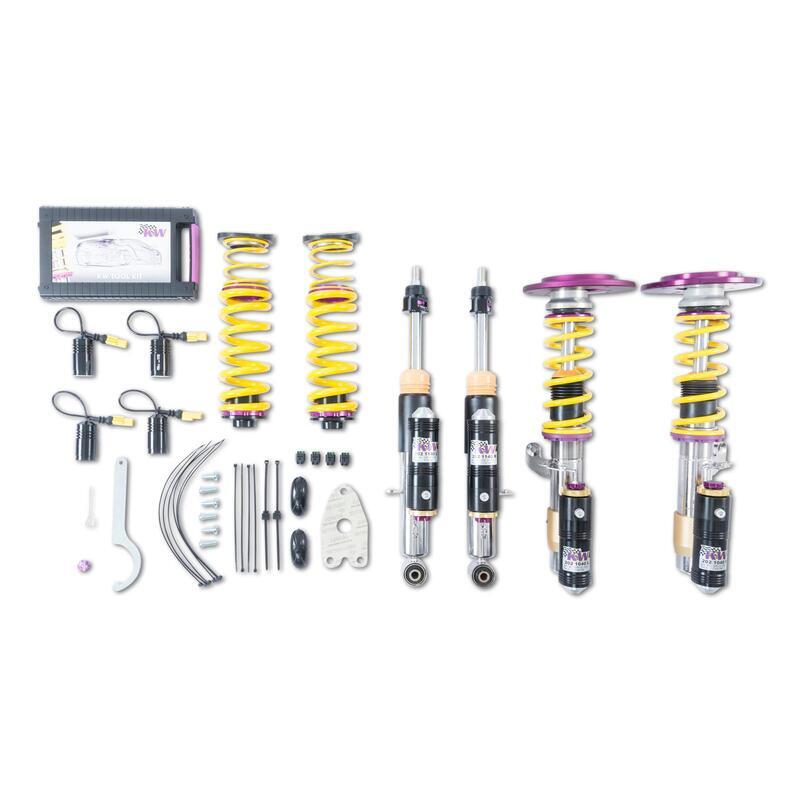

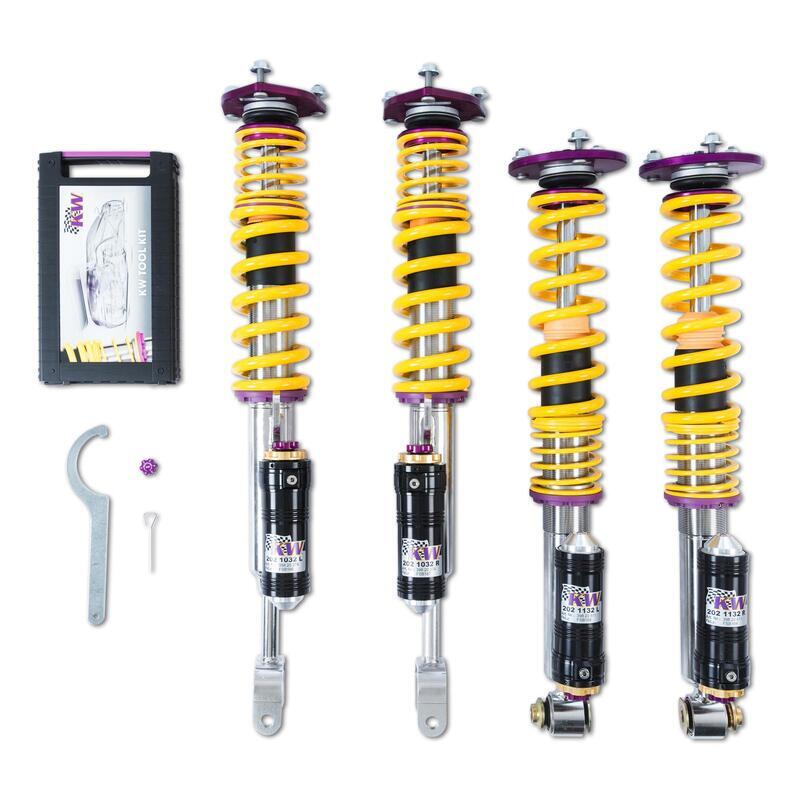

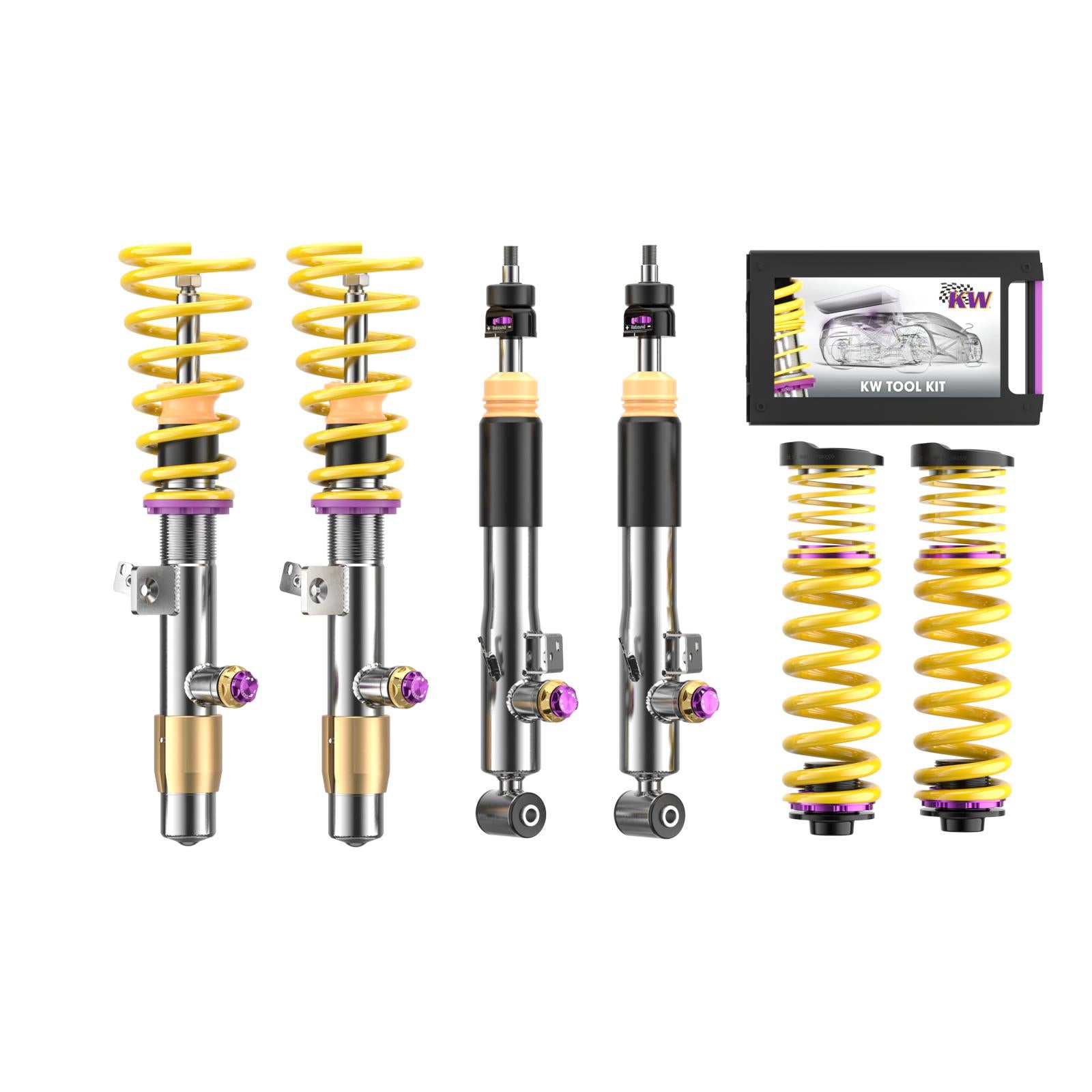

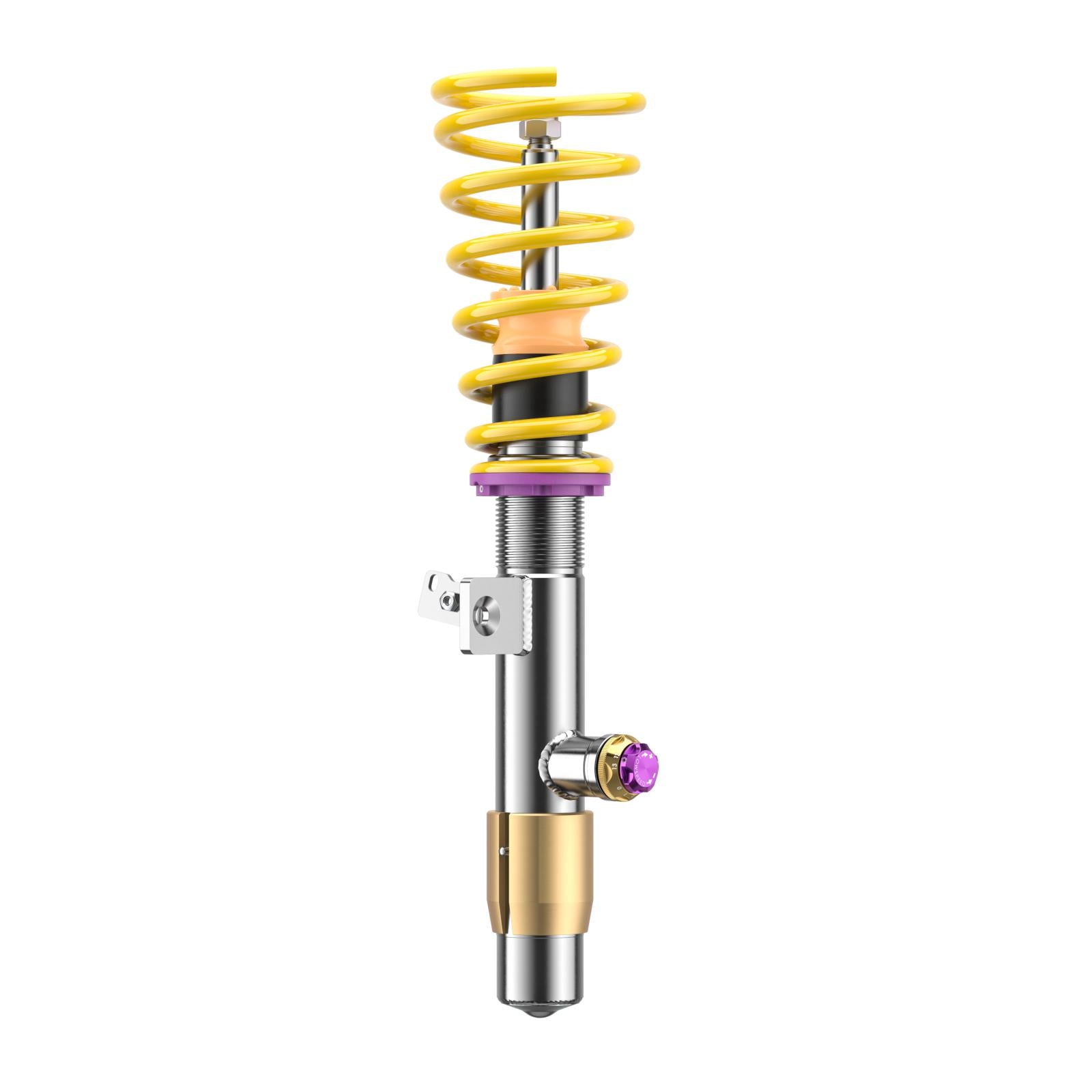

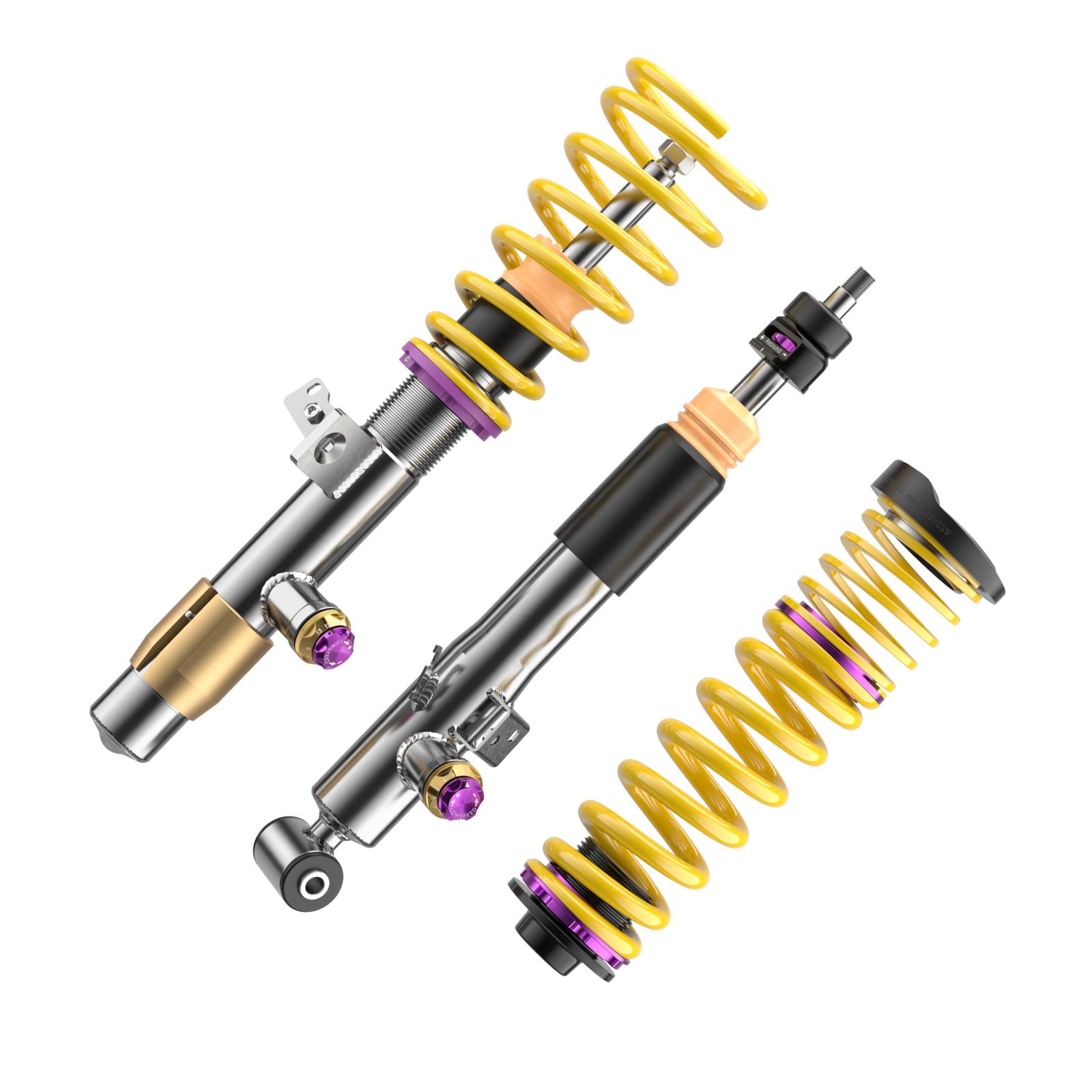

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars with DRC gear box.
Front axle load up to 1,260 kg; Rear axle load up to 1,250 kg.
For vehicles with electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2015+ | Audi | A4 Avant (B9) B8, 8W5 | RS4 quattro | Petrol · 331 kW · 2.9L · 6-cyl | All-Wheel Drive | For cars with DRC gear box | 2, 37, 67, 409, 411 |
| 2015+ | Audi | A4 Avant (B9) B8, 8W5 | RS4 TFSI quattro | Petrol · 346 kW · 2.9L · 6-cyl | All-Wheel Drive | For cars with DRC gear box | 2, 37, 67, 409, 411 |

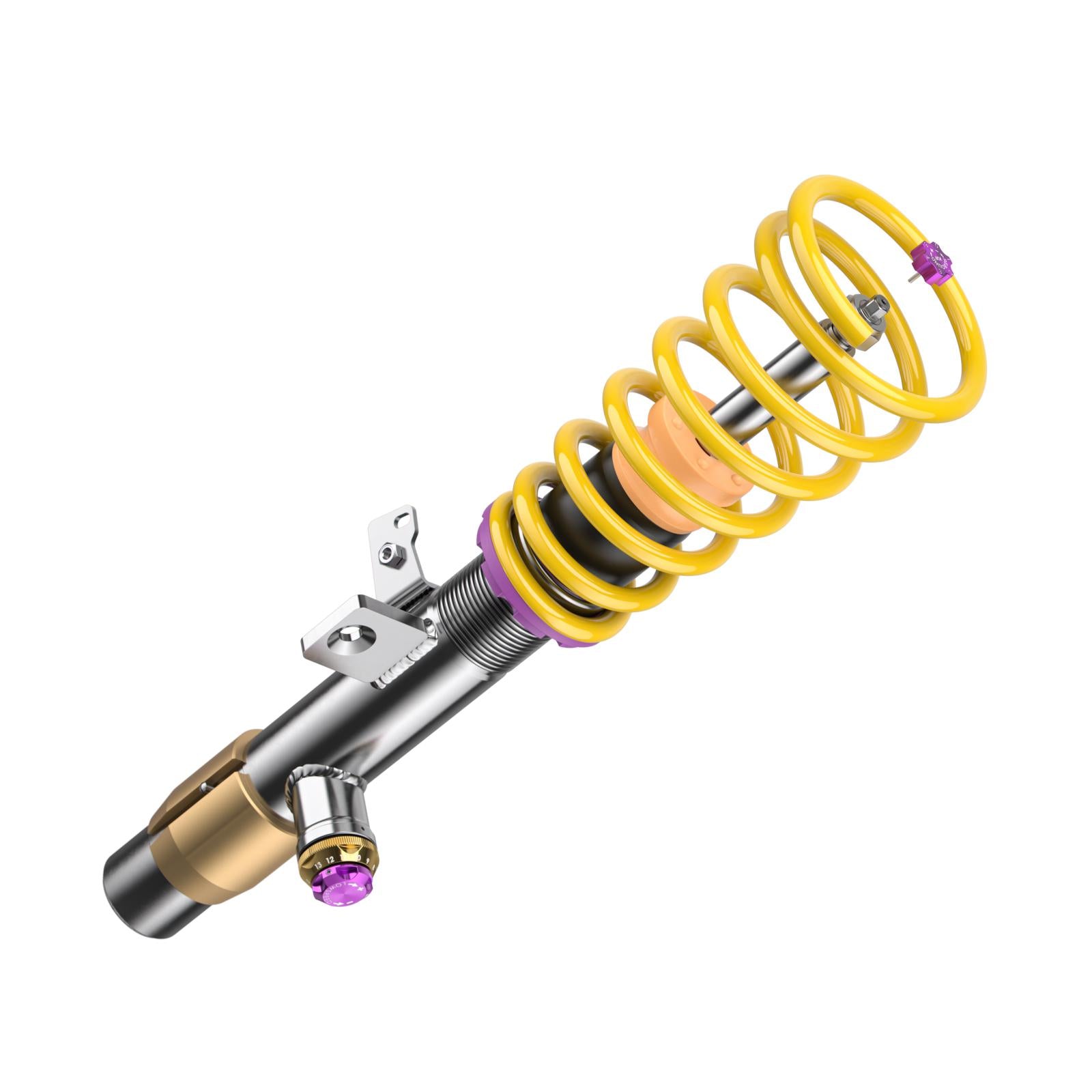

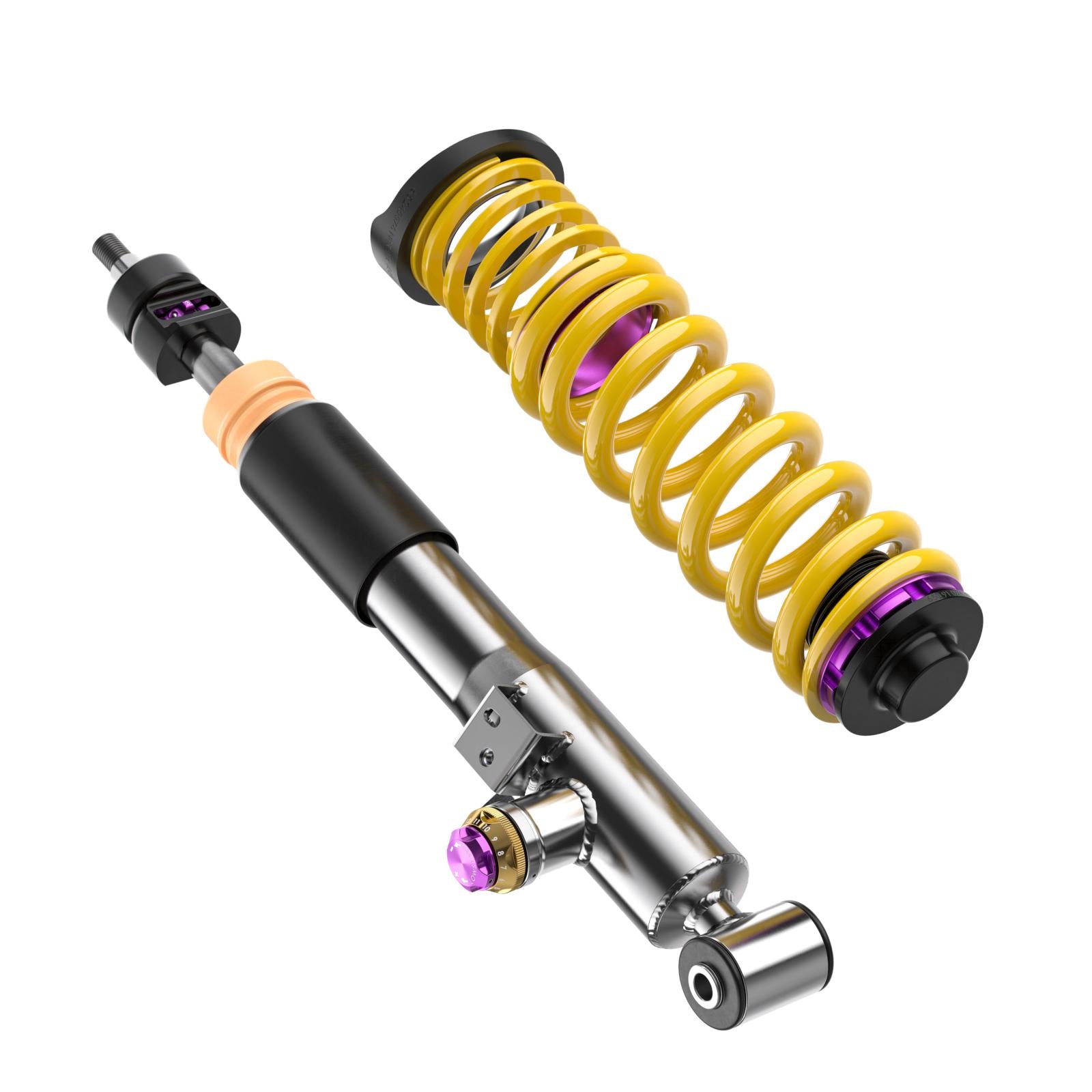

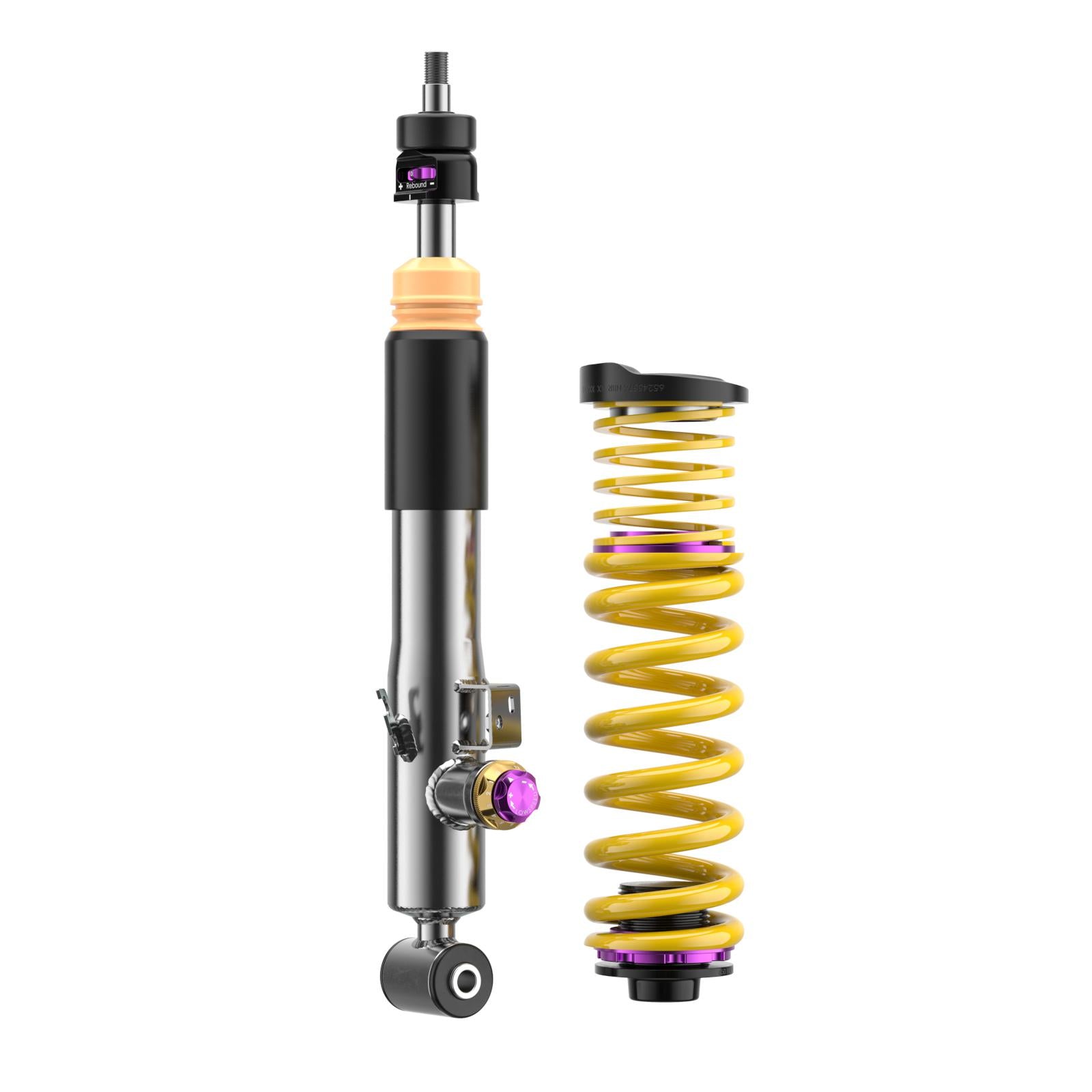

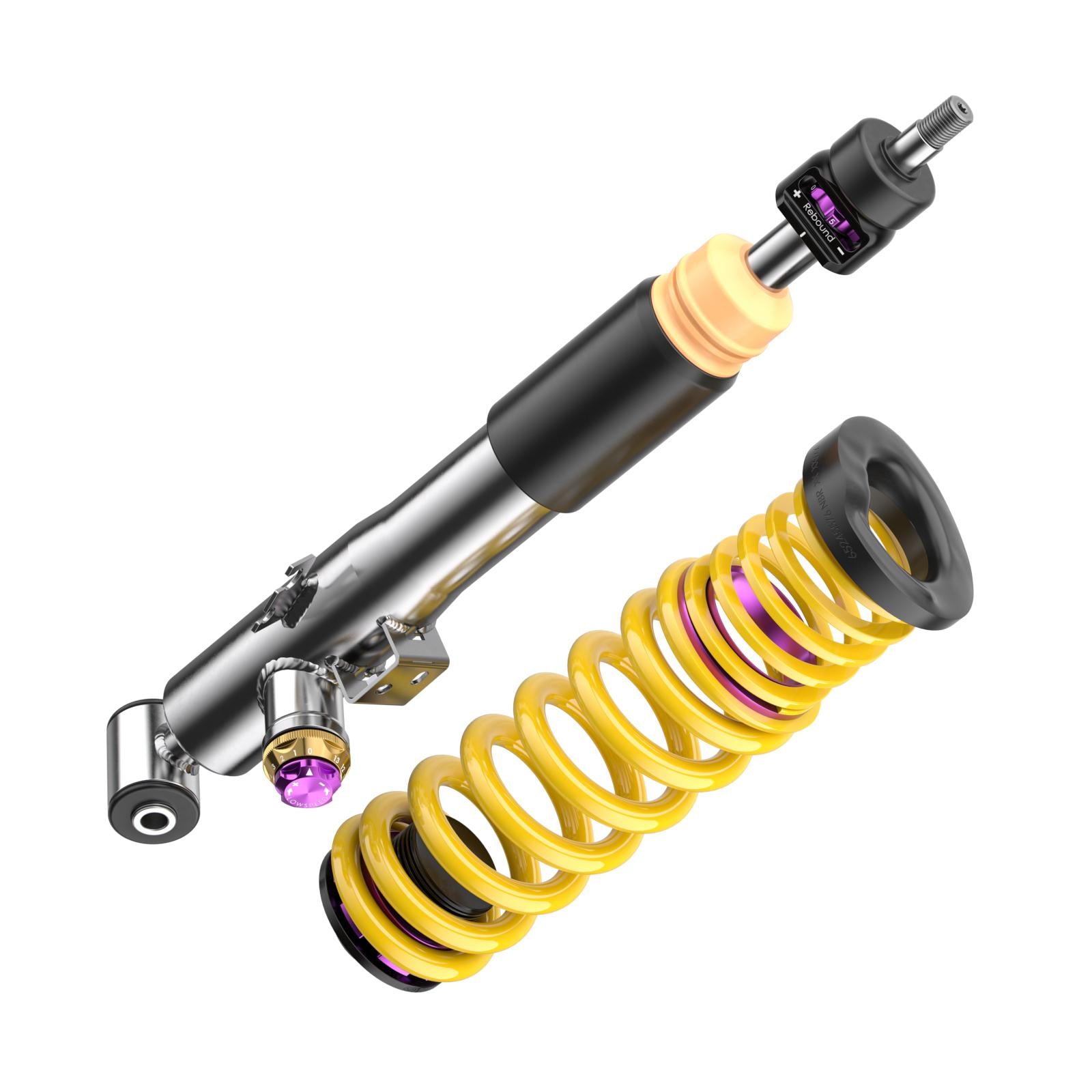

- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 409: Only for cars with damper diameter 48,5mm (not 50mm) on the front axle.
- Note 411: Variant 4 / Variant 5 struts / shock absorbers made of aluminium or axle-wise combined of aluminium and stainless steel.
