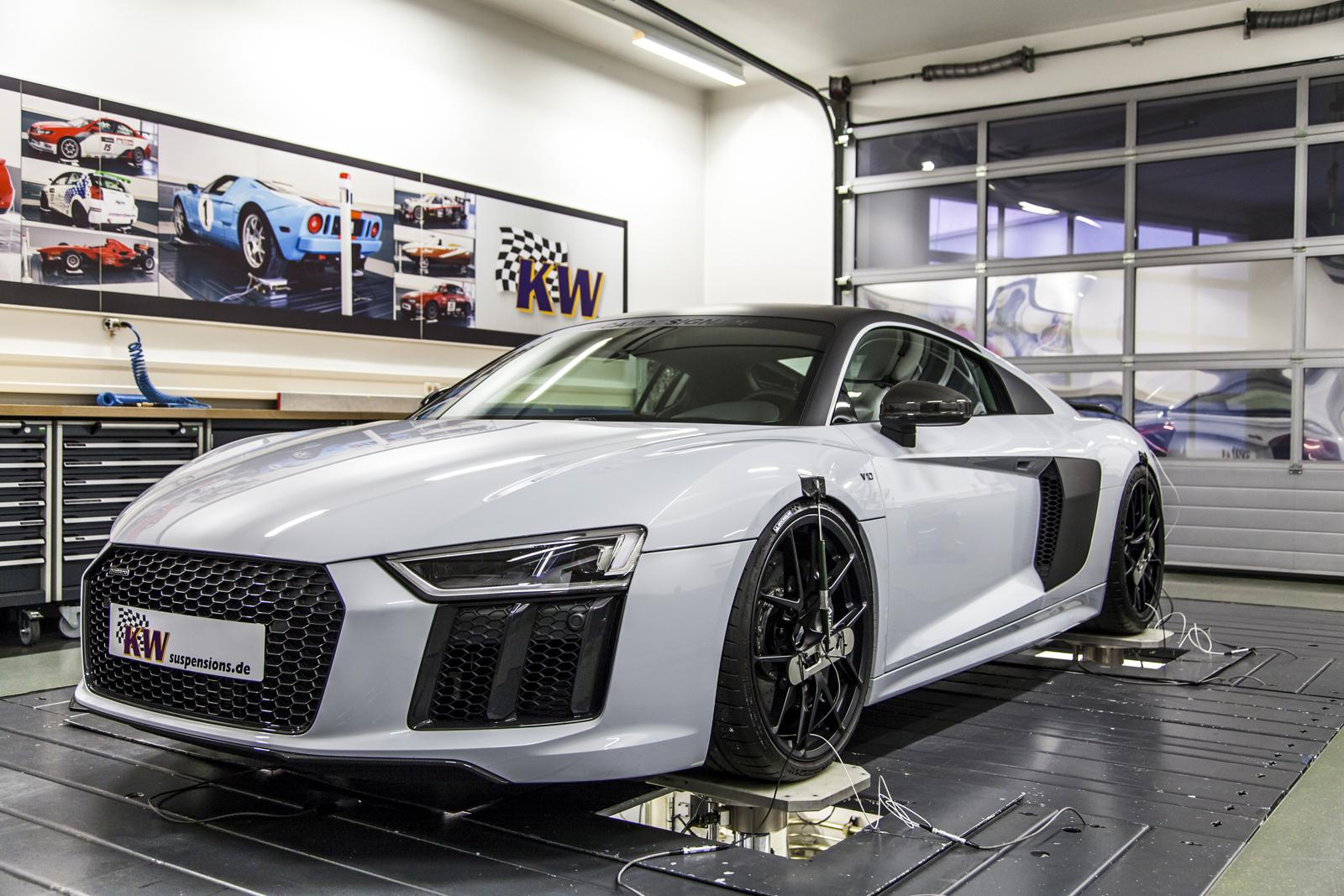

KW Coilover Kit V4 for Audi (4S) R8 GT / R8 / R8 Spyder

SKU: 3A7100AM
Sale price$12,529.55 Regular price$13,189.00
Save $659.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

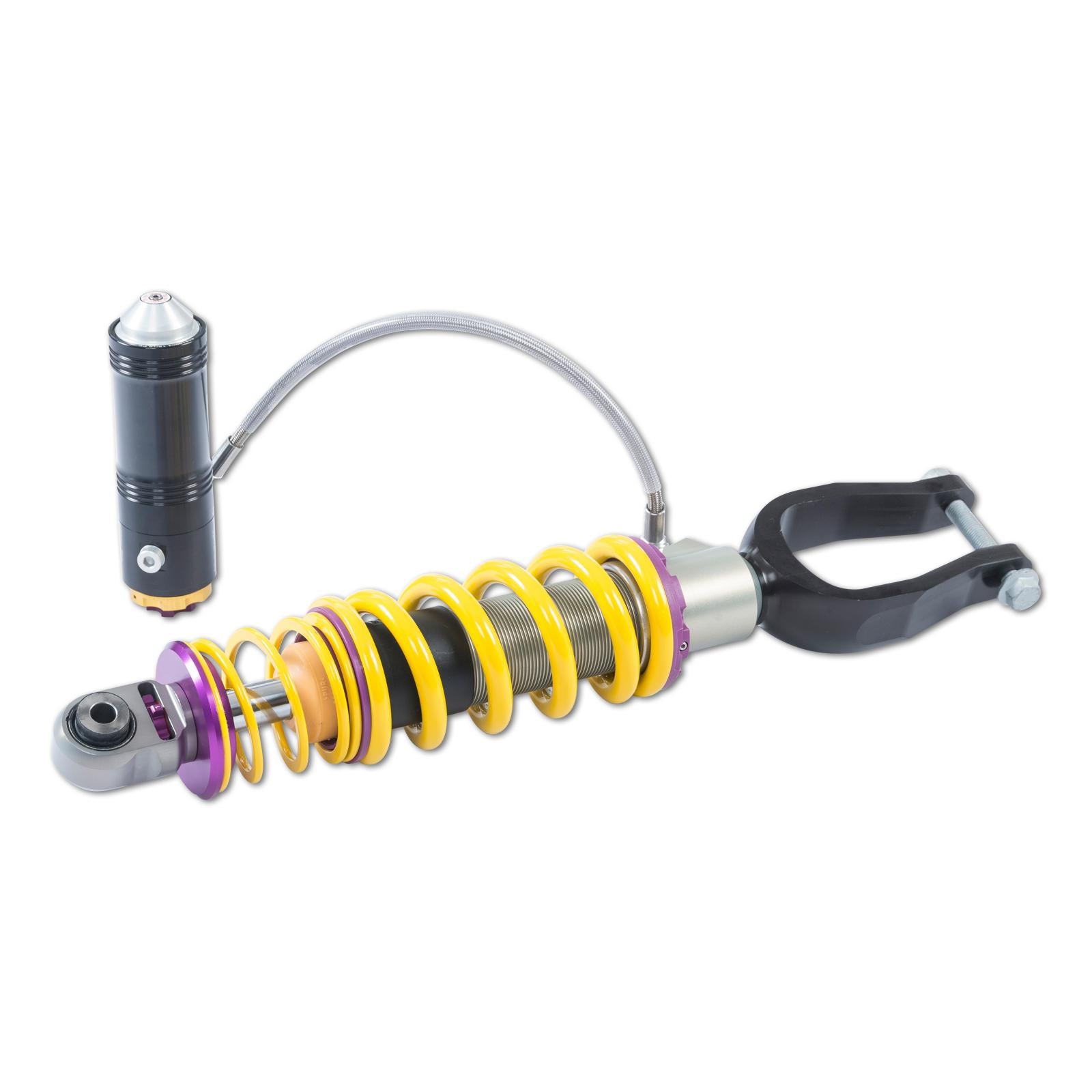

KW's V4 is a three-way adjustable coilover for high-performance vehicles, with independent adjustment of rebound (16 clicks), low-speed compression (6 clicks) and high-speed compression (14 clicks). The dampers are based on KW's racing technology, and depending on the vehicle, aluminium top mounts are included. This kit is developed for the Audi R8 GT / R8 RWD / R8 Spyder (4S).

Key Features

  • Three-way adjustable dampers

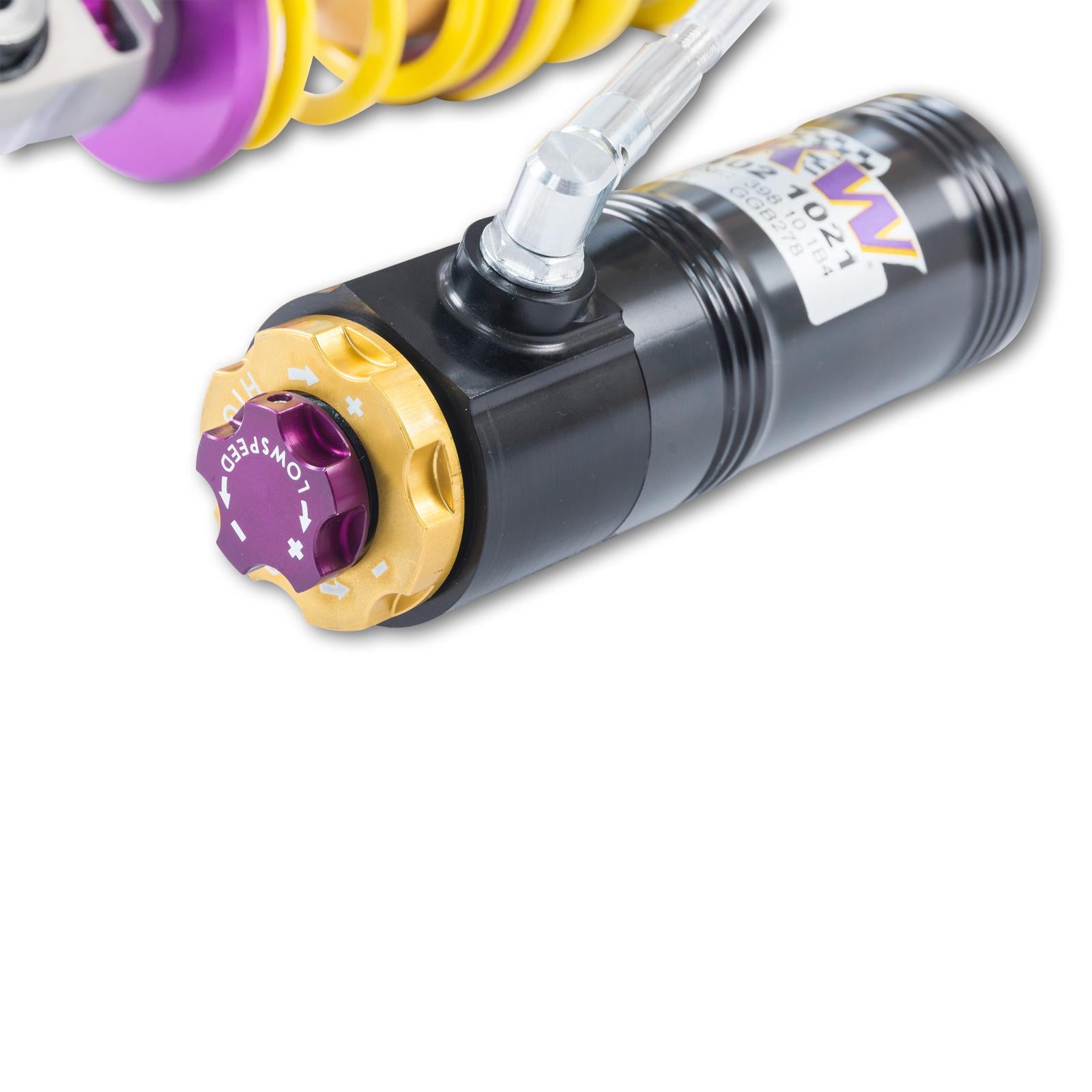

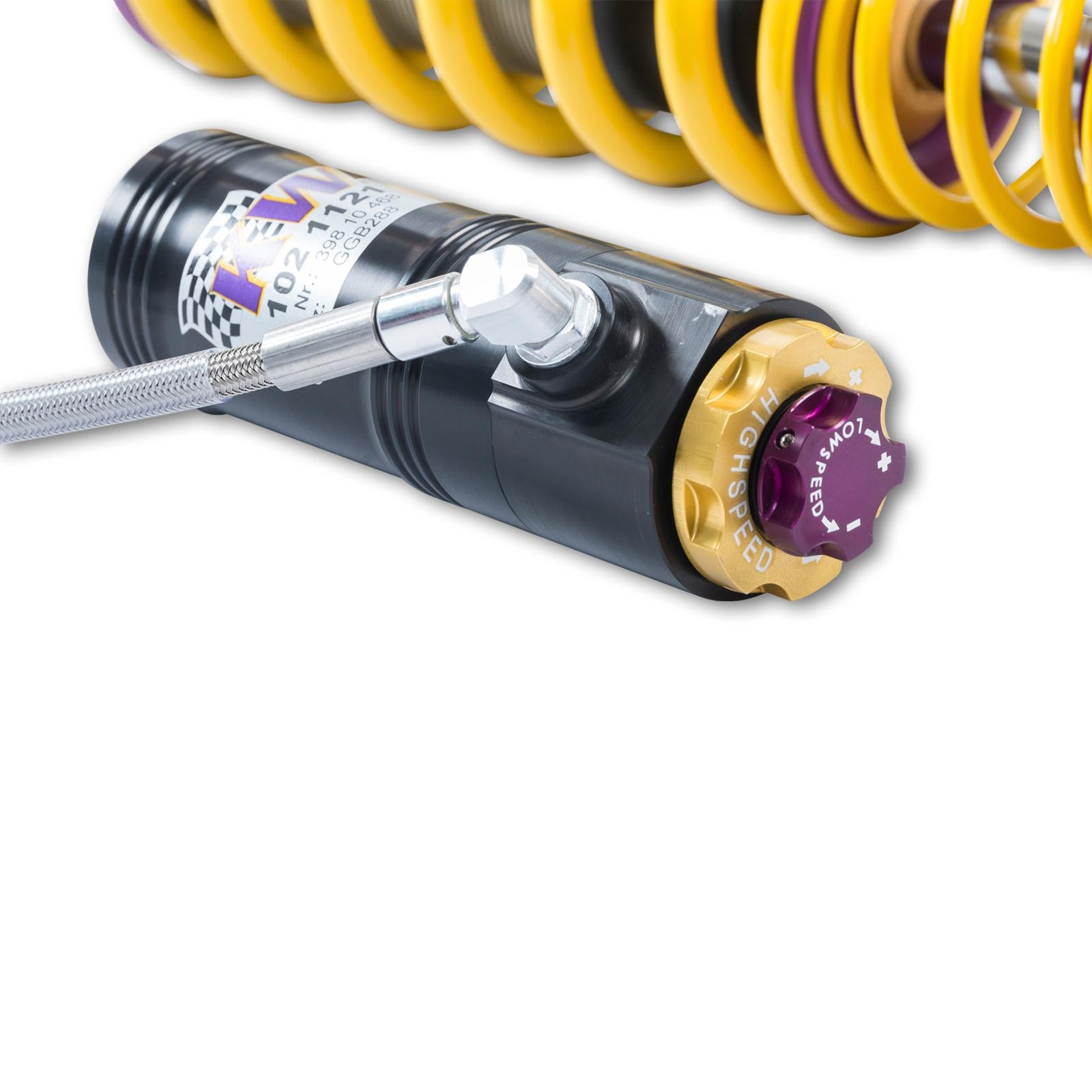

  • Rebound 16 clicks, low-speed compression 6 clicks, high-speed compression 14 clicks

Specifications

  • Version: V4
  • Damping: Adjustable rebound and compression
  • Material: Aluminium
  • Front lowering: 5–25 mm
  • Rear lowering: 15–35 mm
  • Front axle load: up to 960 kg
  • Rear axle load: up to 1,195 kg

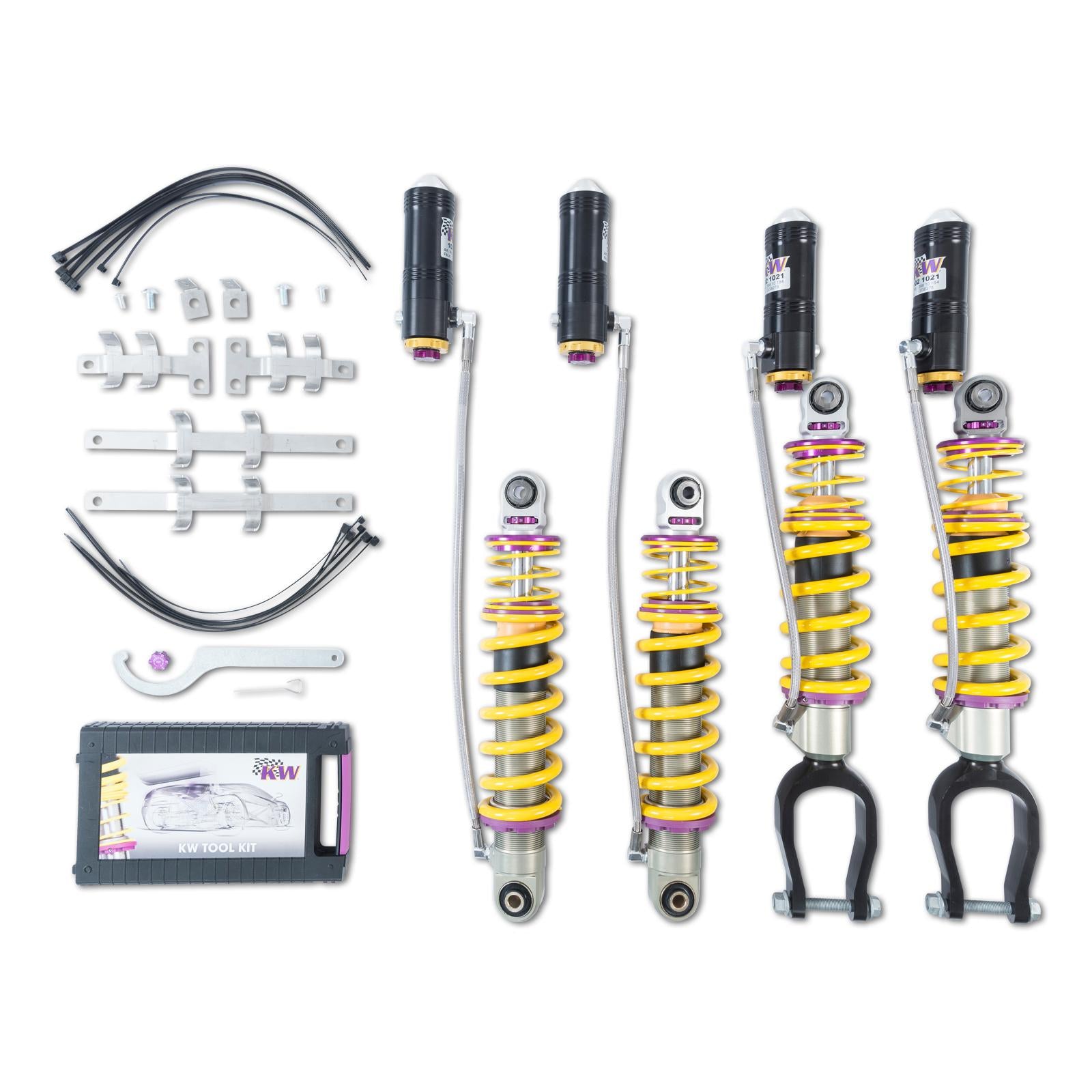

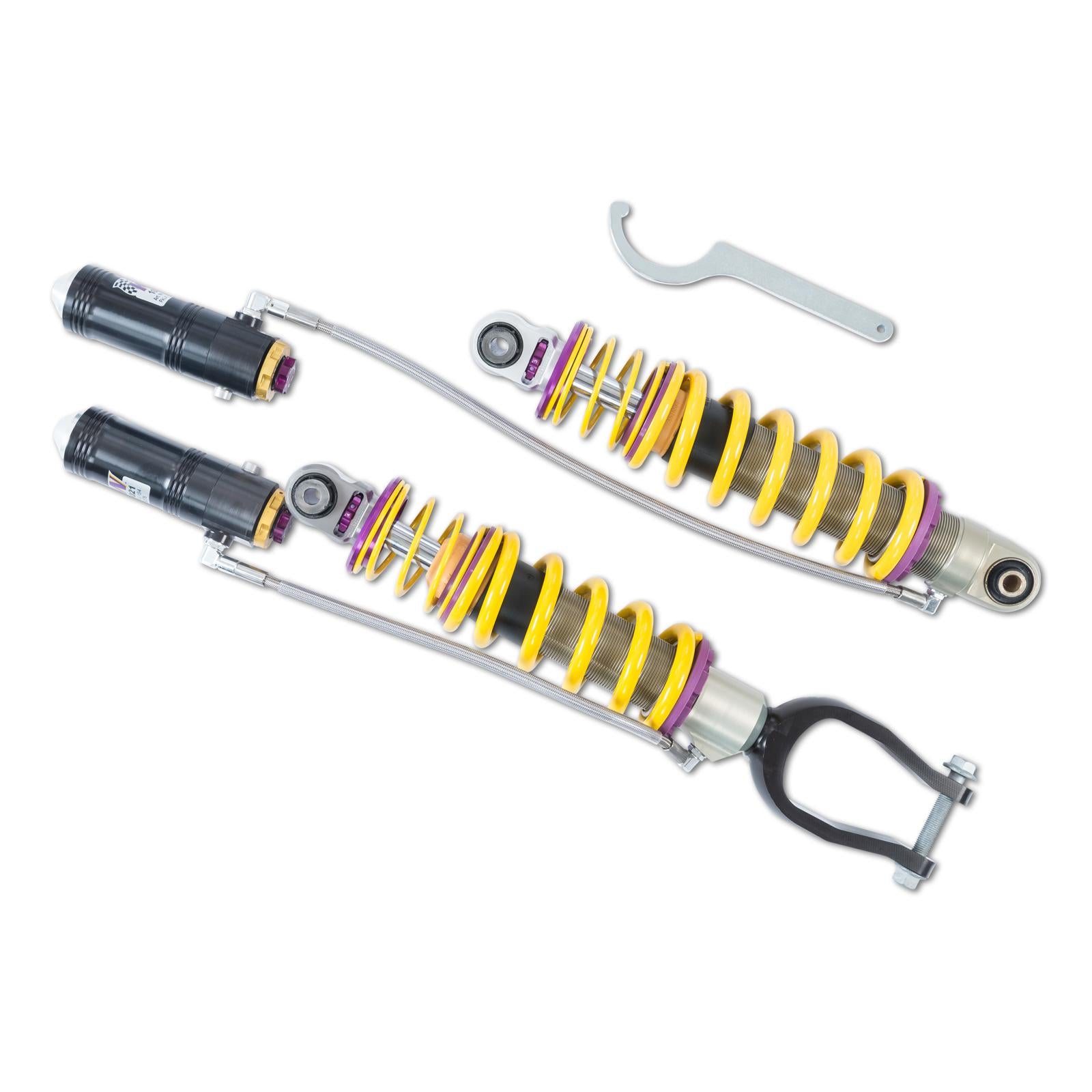

  • Supplied as: Front axle + rear axle coilover struts
Note For cars without magnetic ride control.

Front axle load up to 960 kg; Rear axle load up to 1,195 kg.

For vehicles without electronic damper control.

For cars without magnetic ride control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2015+AudiR8 (4S) 4S3, 425.2 FSIPetrol · 419 kW · 5.2L · 10-cylRear-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 FSI Plus quattroPetrol · 449 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 FSI RWSPetrol · 397 kW · 5.2L · 10-cylRear-Wheel Drive1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 FSI quattroPetrol · 397 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 FSI quattroPetrol · 419 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 FSI quattroPetrol · 456 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2015+AudiR8 (4S) 4S3, 425.2 GTPetrol · 456 kW · 5.2L · 10-cylRear-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSIPetrol · 419 kW · 5.2L · 10-cylRear-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSI RWSPetrol · 397 kW · 5.2L · 10-cylRear-Wheel Drive1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSI quattroPetrol · 397 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSI quattroPetrol · 419 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSI quattroPetrol · 449 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
2016+AudiR8 (4S) Spyder 4S9, 425.2 FSI quattroPetrol · 456 kW · 5.2L · 10-cylAll-Wheel DriveFor cars without magnetic ride control1, 37, 67, 90
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.

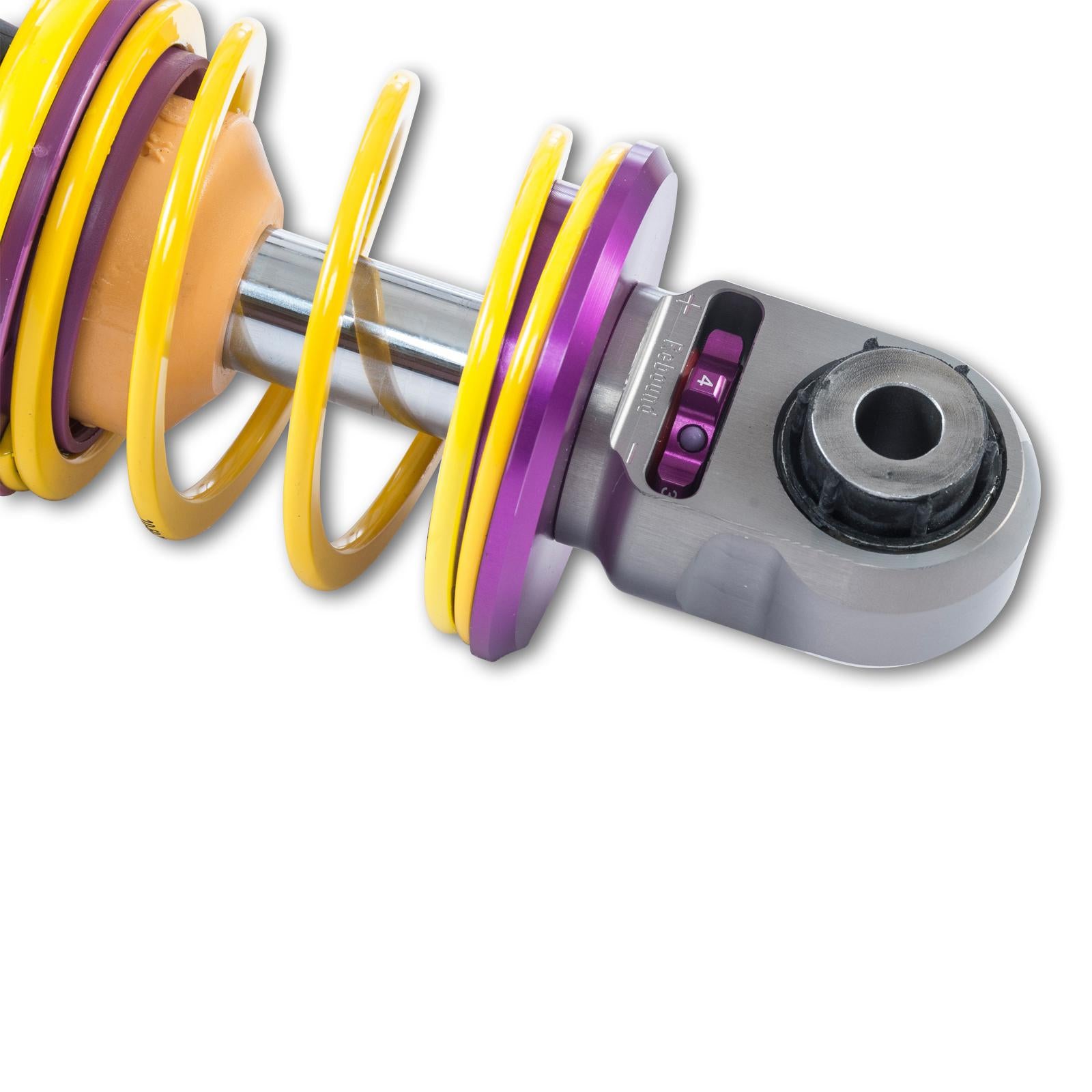

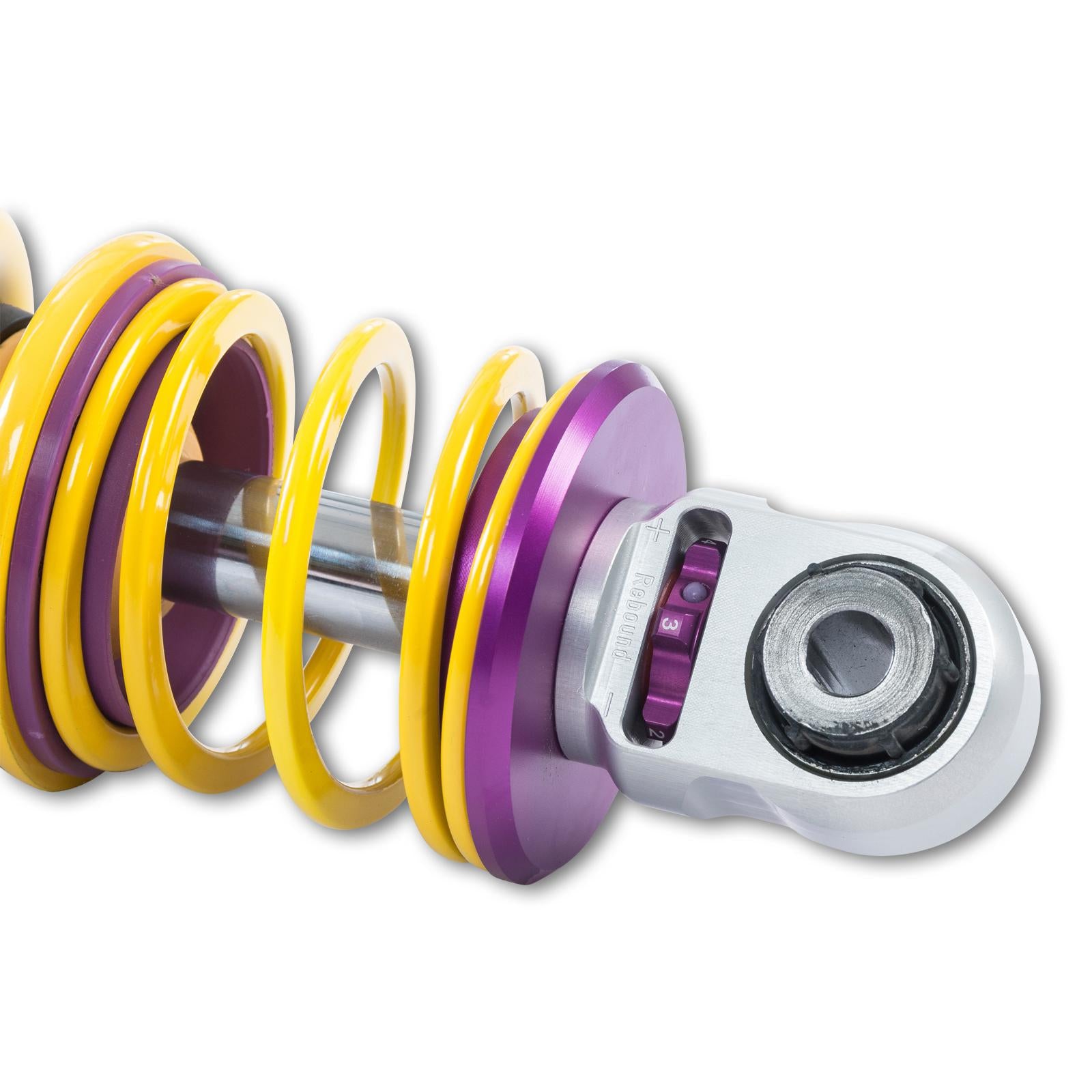

  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 90: Aluminium suspensions struts.
