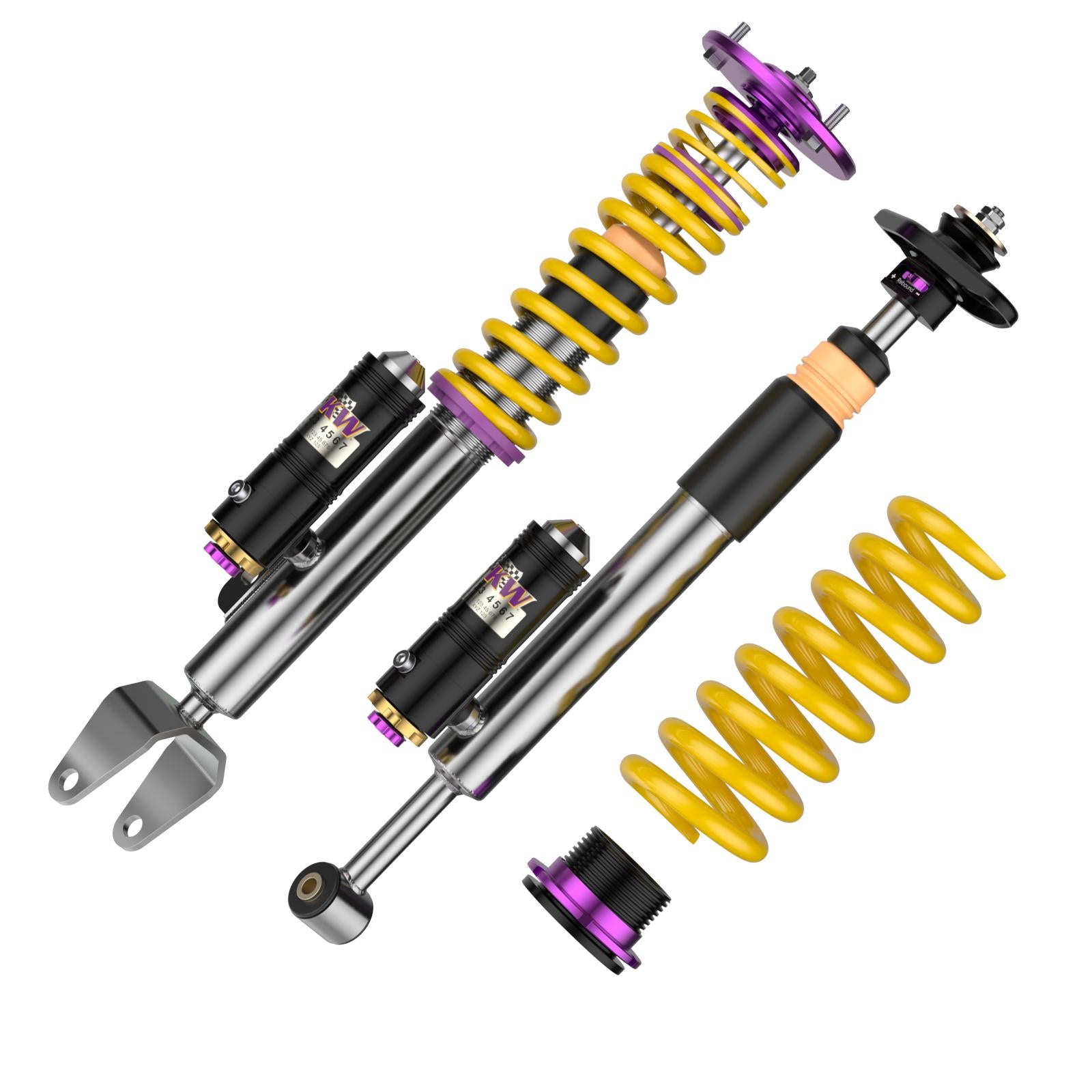

KW Coilover Kit V4 for Dodge Challenger SRT Hellcat / Charger SRT Hellcat w/ Top Mounts

SKU: 3A728003
Sale price$9,841.05 Regular price$10,359.00
Save $517.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V4 is a three-way adjustable coilover for high-performance vehicles, with independent adjustment of rebound (16 clicks), low-speed compression (6 clicks) and high-speed compression (14 clicks). The dampers are based on KW's racing technology, and depending on the vehicle, aluminium top mounts are included. This kit is developed for the Dodge Challenger SRT Hellcat / Charger SRT Hellcat.

Key Features

  • Three-way adjustable dampers
  • Rebound 16 clicks, low-speed compression 6 clicks, high-speed compression 14 clicks

Specifications

  • Version: V4
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 5–30 mm
  • Rear lowering: 10–30 mm
  • Front axle load: up to 1,293 kg
  • Rear axle load: up to 1,275 kg

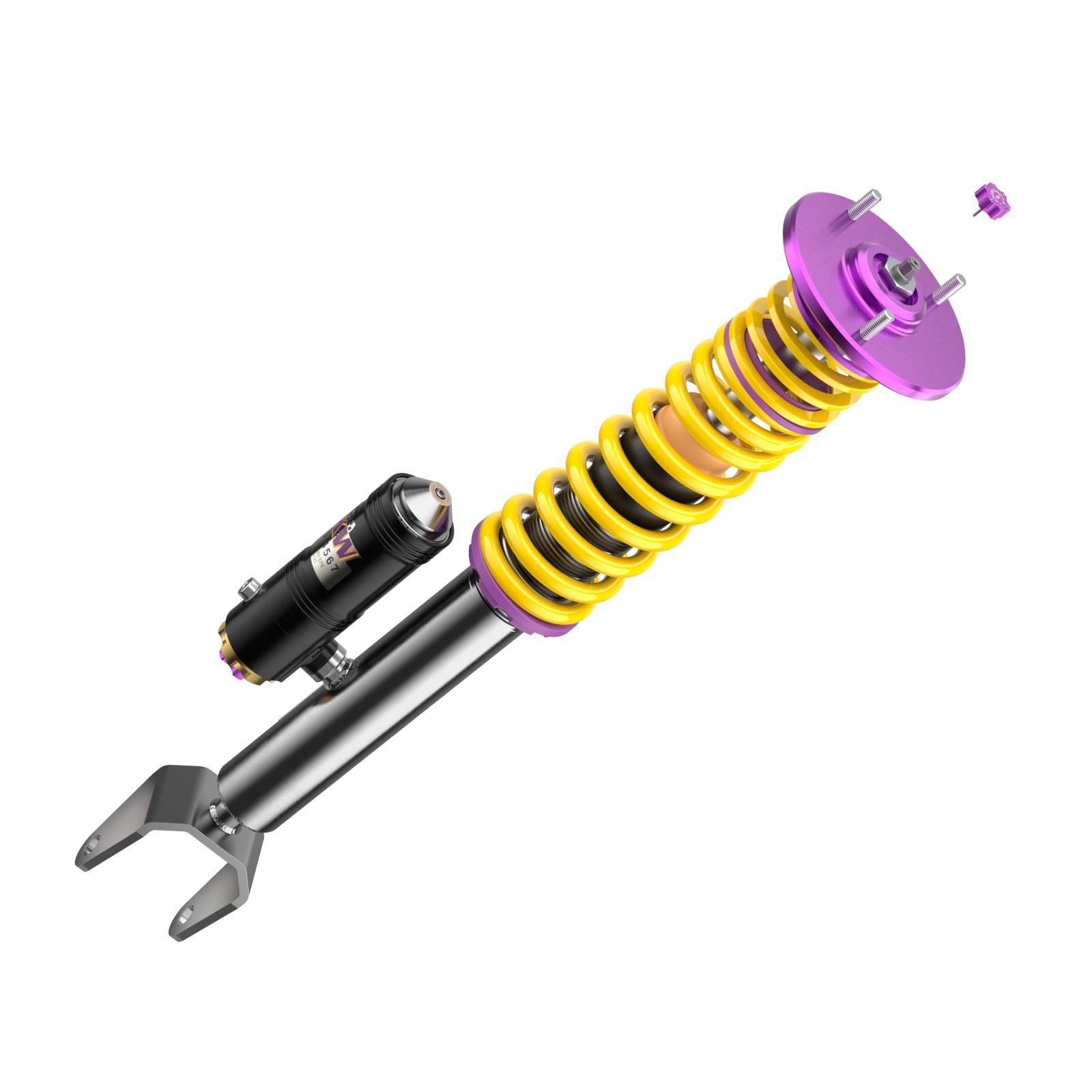

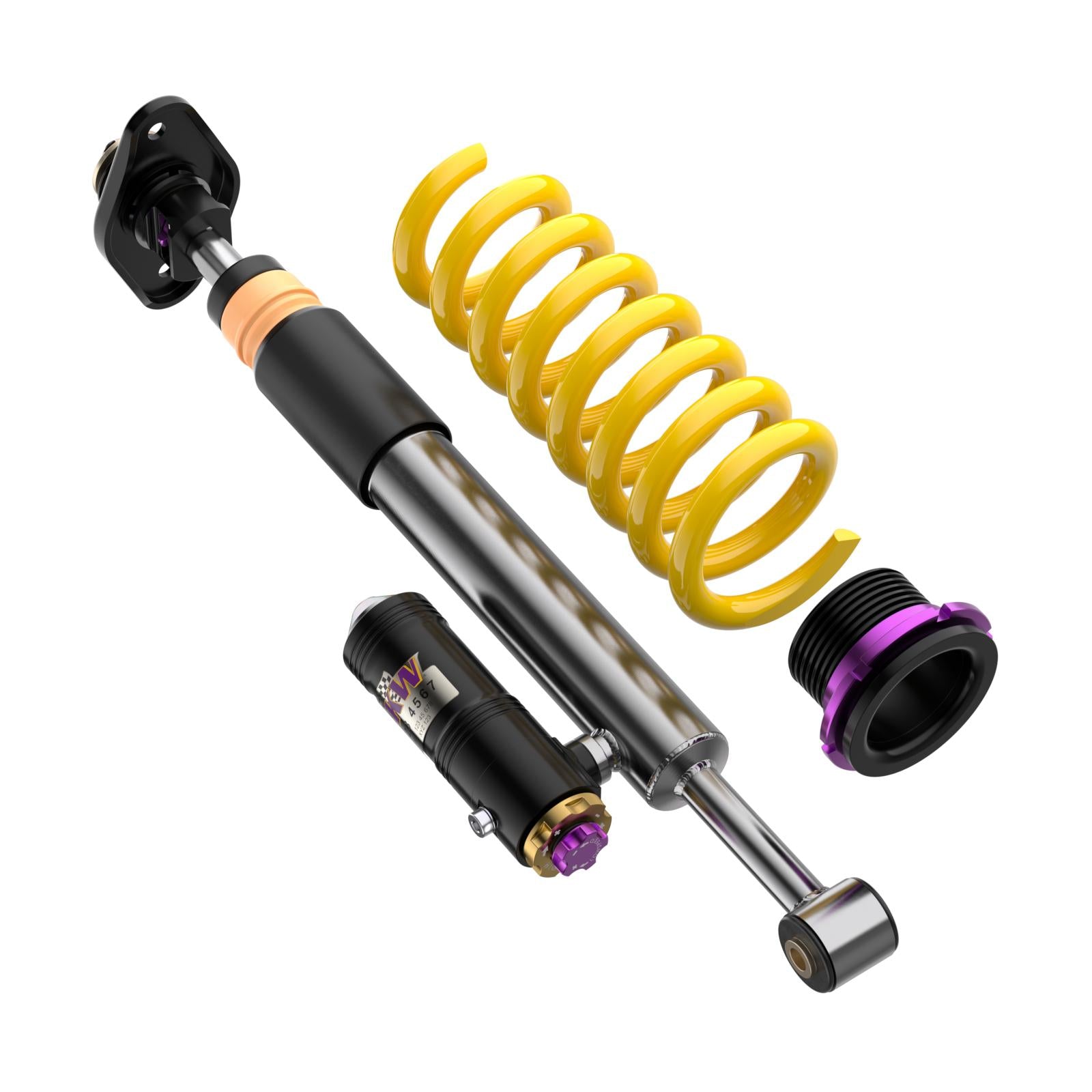

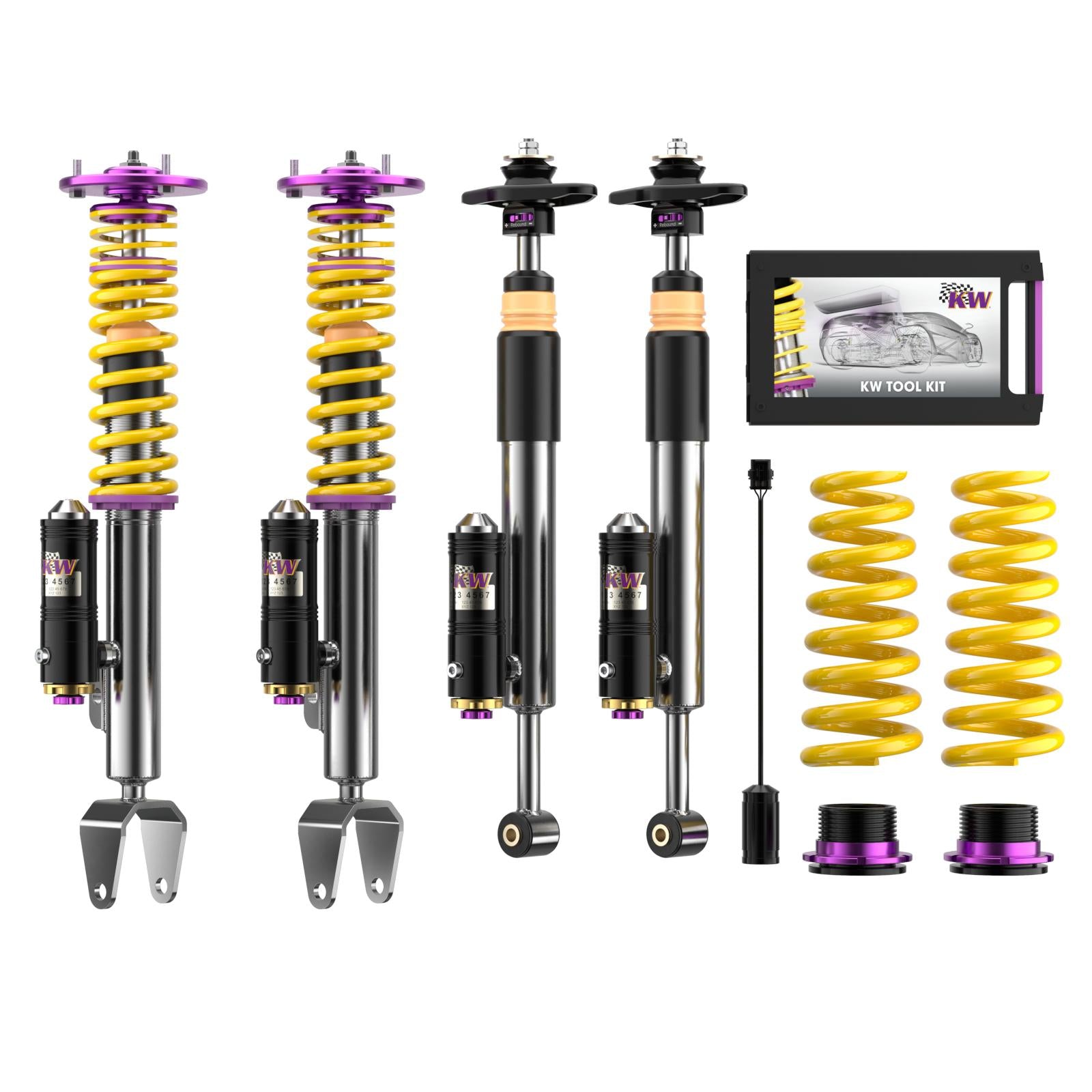

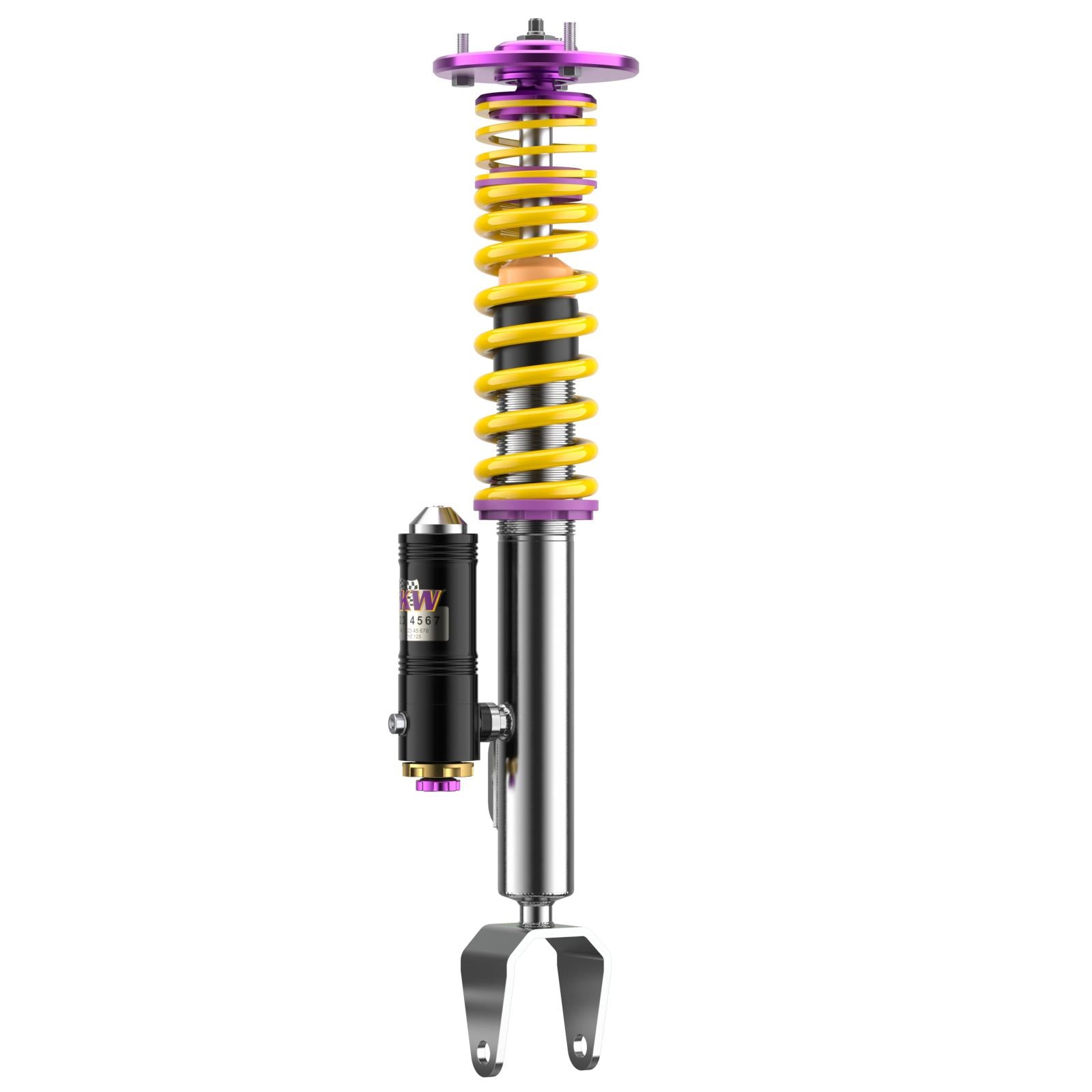

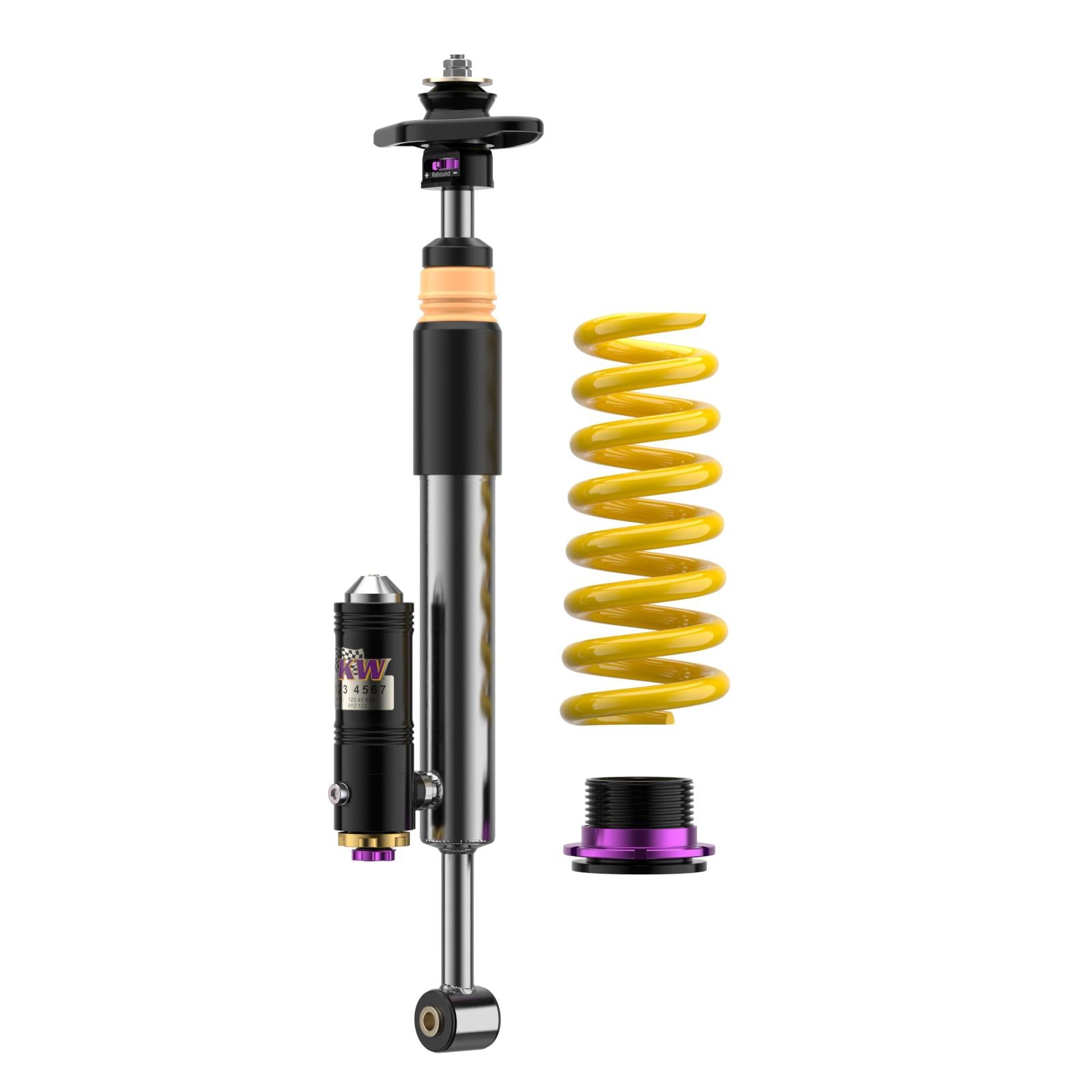

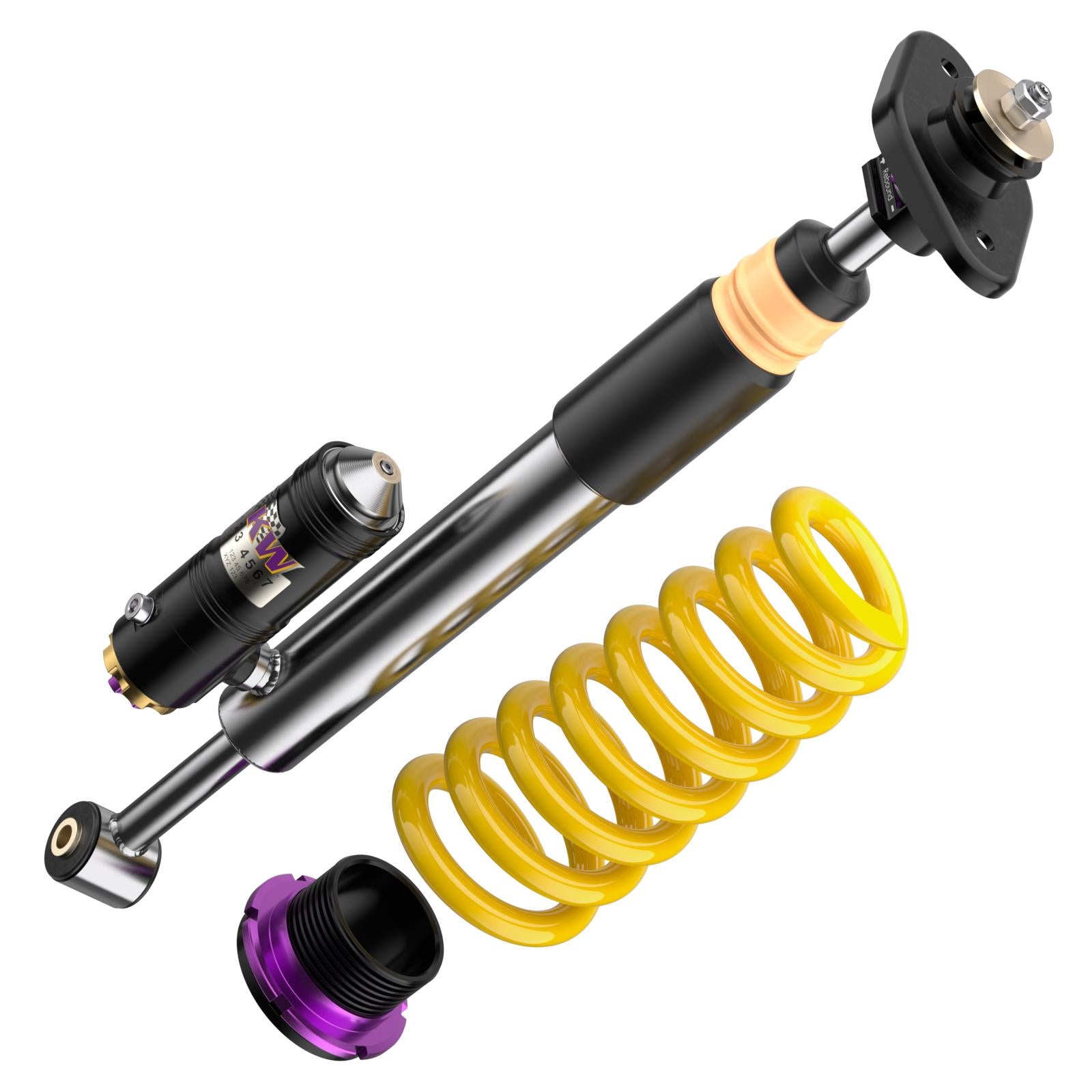

  • Supplied as: Front axle coilover struts including top mounts, rear axle springs with height adjustment + dampers including top mounts
Note Except Demon, Redeye and vehicles with widebody kit.

Front axle load up to 1,293 kg; Rear axle load up to 1,275 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2007+DodgeChallenger Coupe6.2 SRT HellcatPetrol · 527 kW · 6.2L · 8-cylRear-Wheel DriveExcept Demon, Redeye and vehicles with widebody kit2, 67, 88
2010+DodgeCharger6.2 SRT HellcatPetrol · 527 kW · 6.2L · 8-cylRear-Wheel DriveExcept Demon, Redeye and vehicles with widebody kit2, 67, 88
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
