KW Coilover Kit V5 for Chevrolet (C8) Corvette - w/ OEM Lift

SKU: 30961033
Sale price$14,942.55 Regular price$15,729.00
Save $786.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

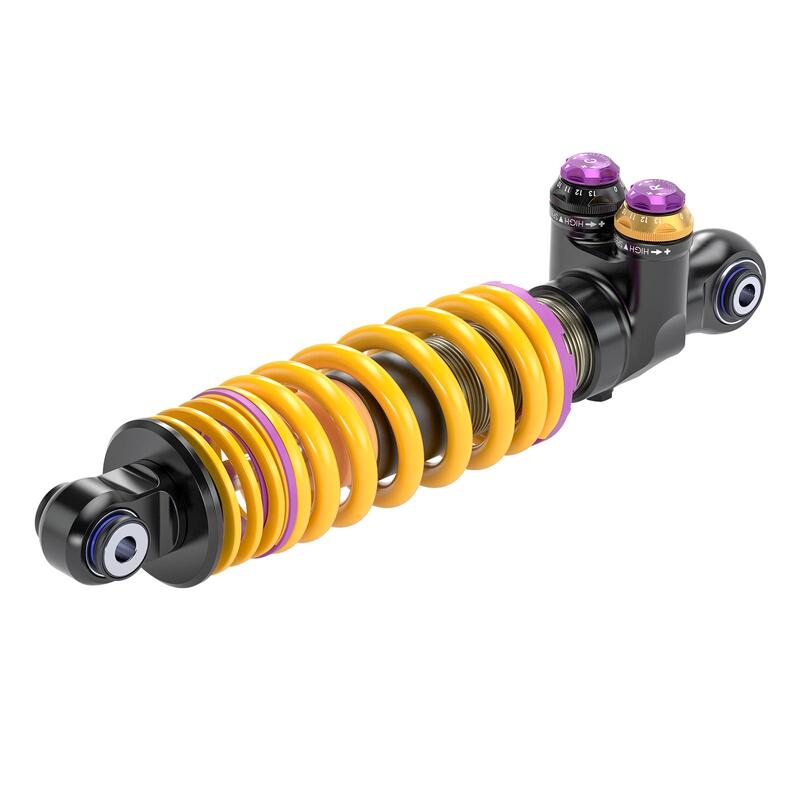

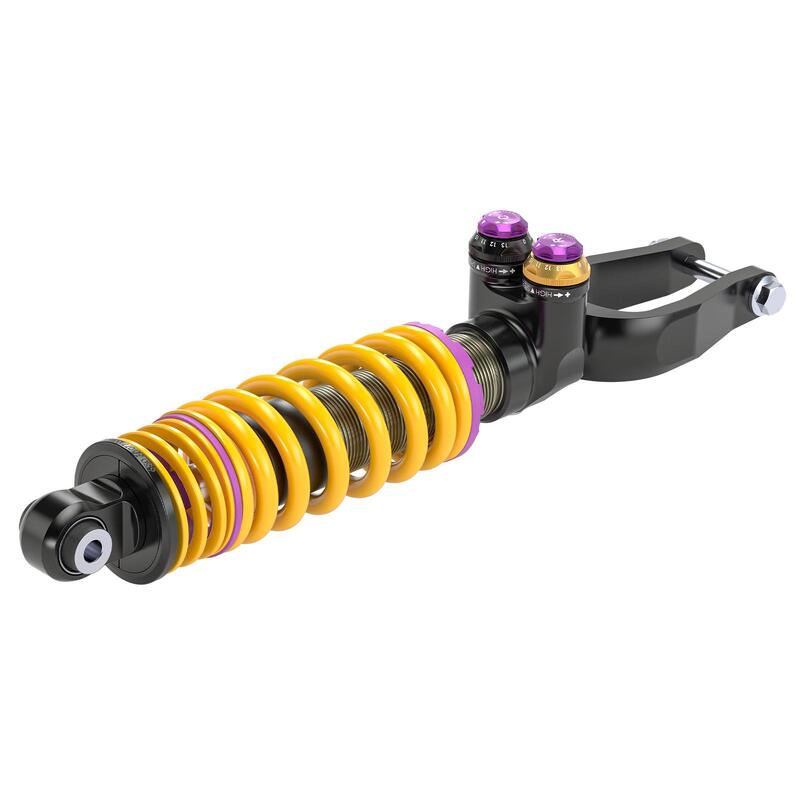

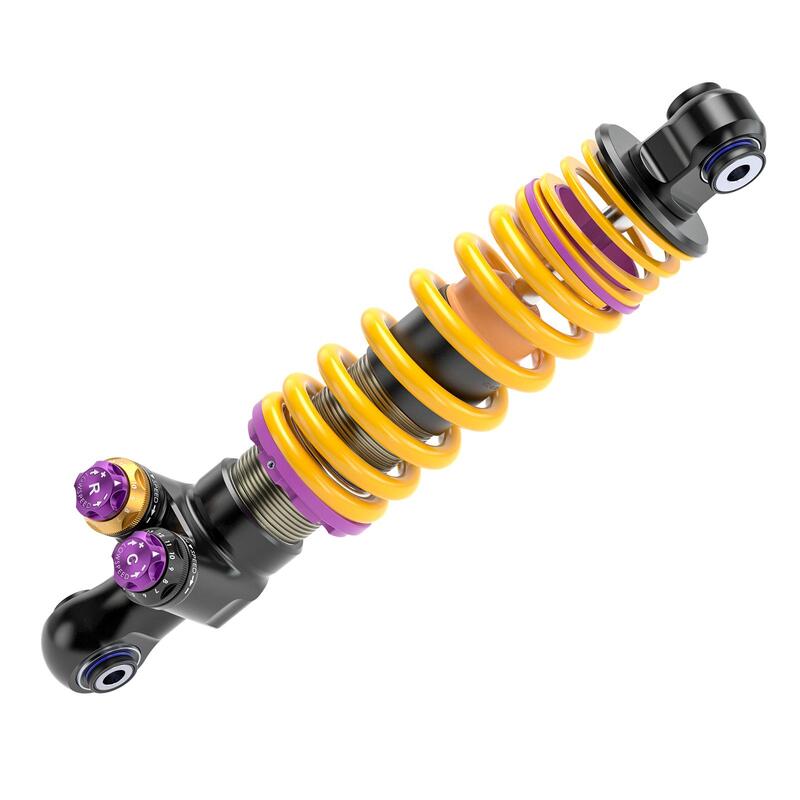

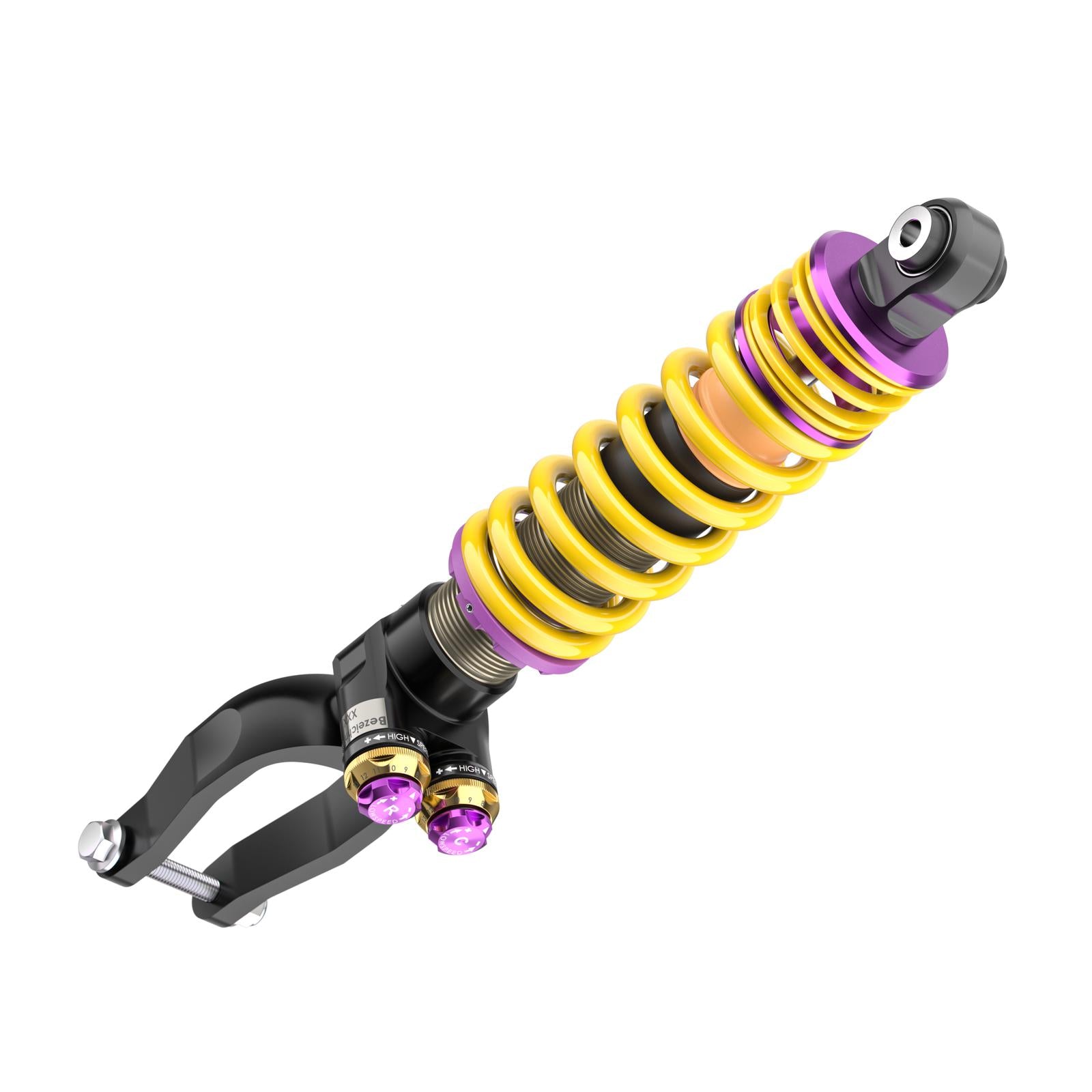

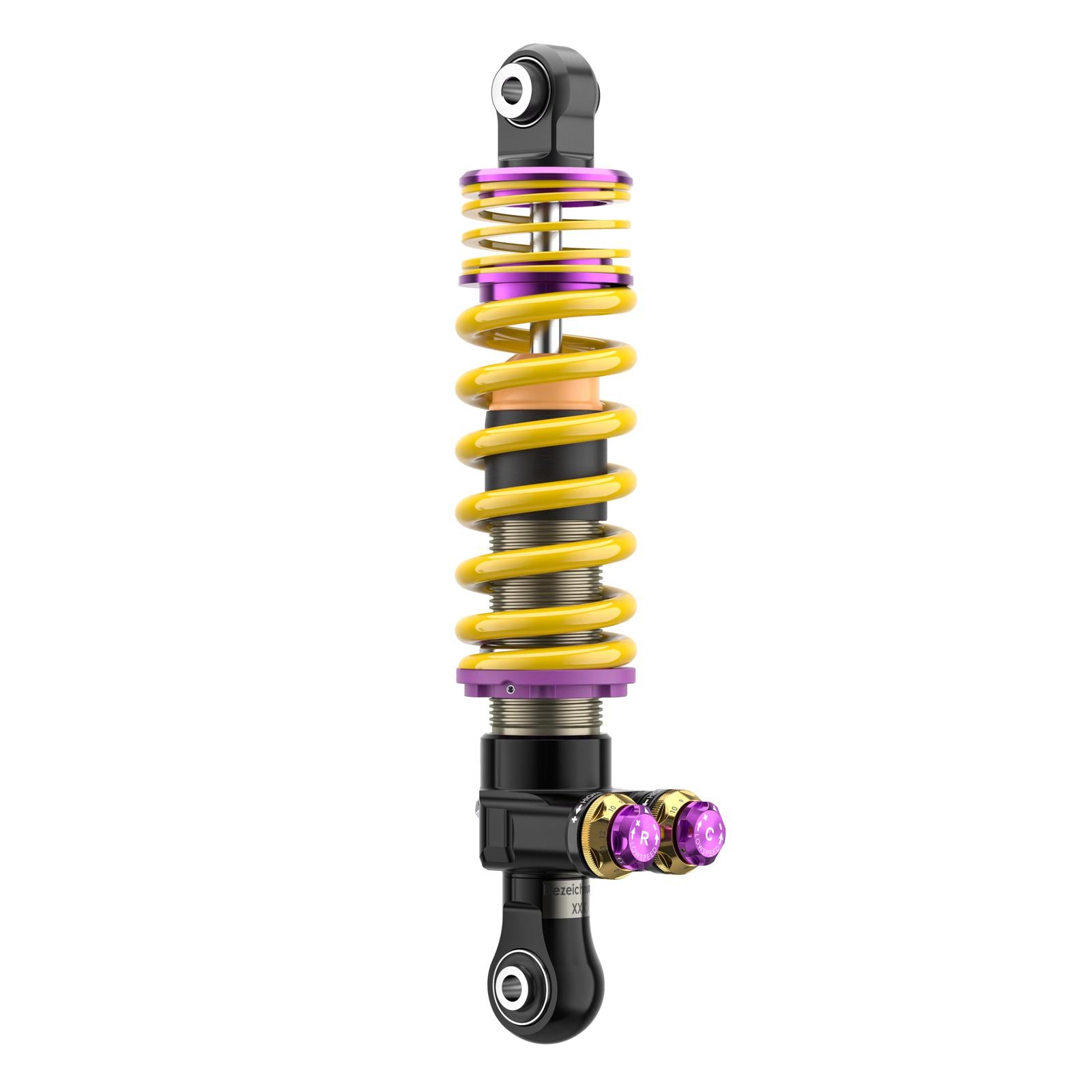

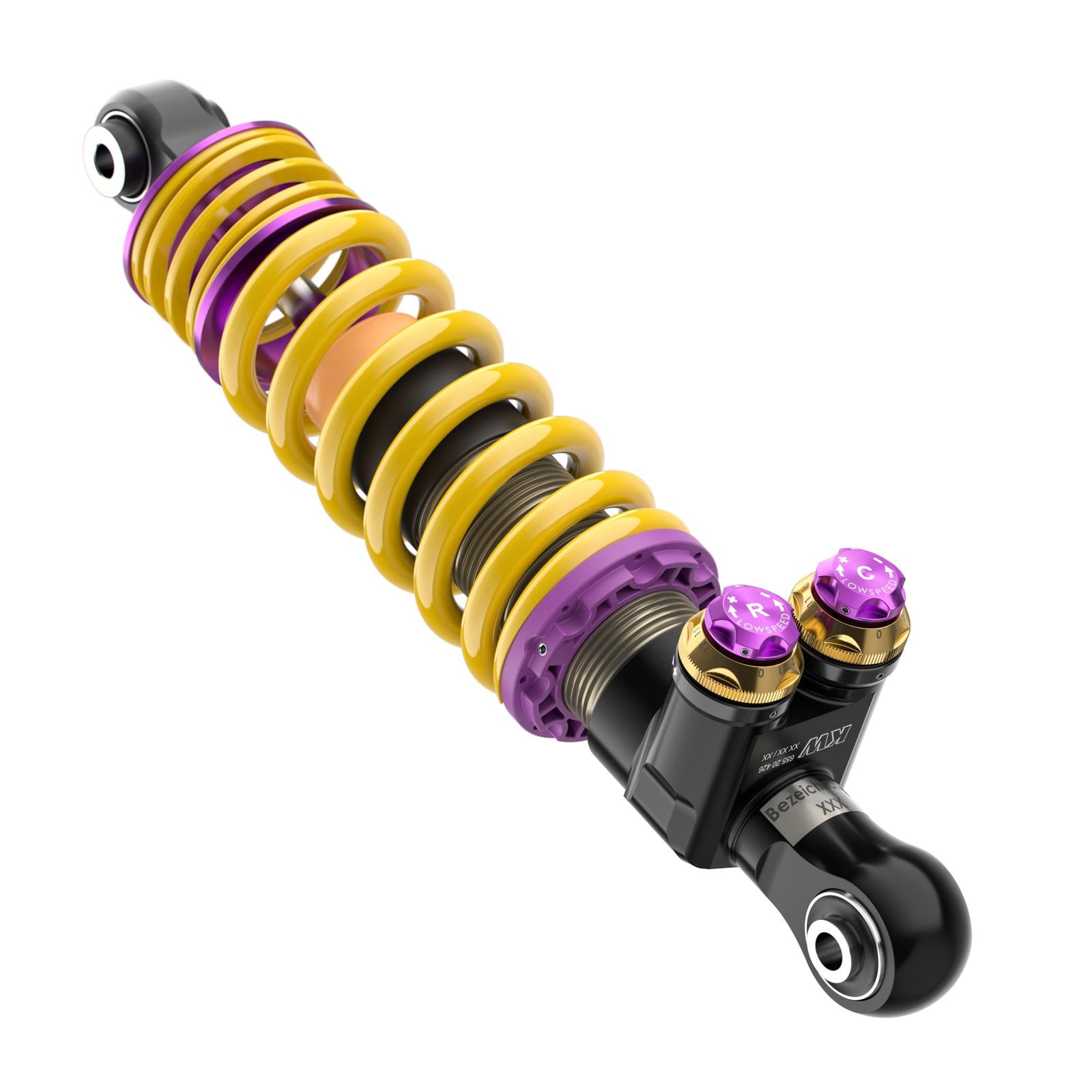

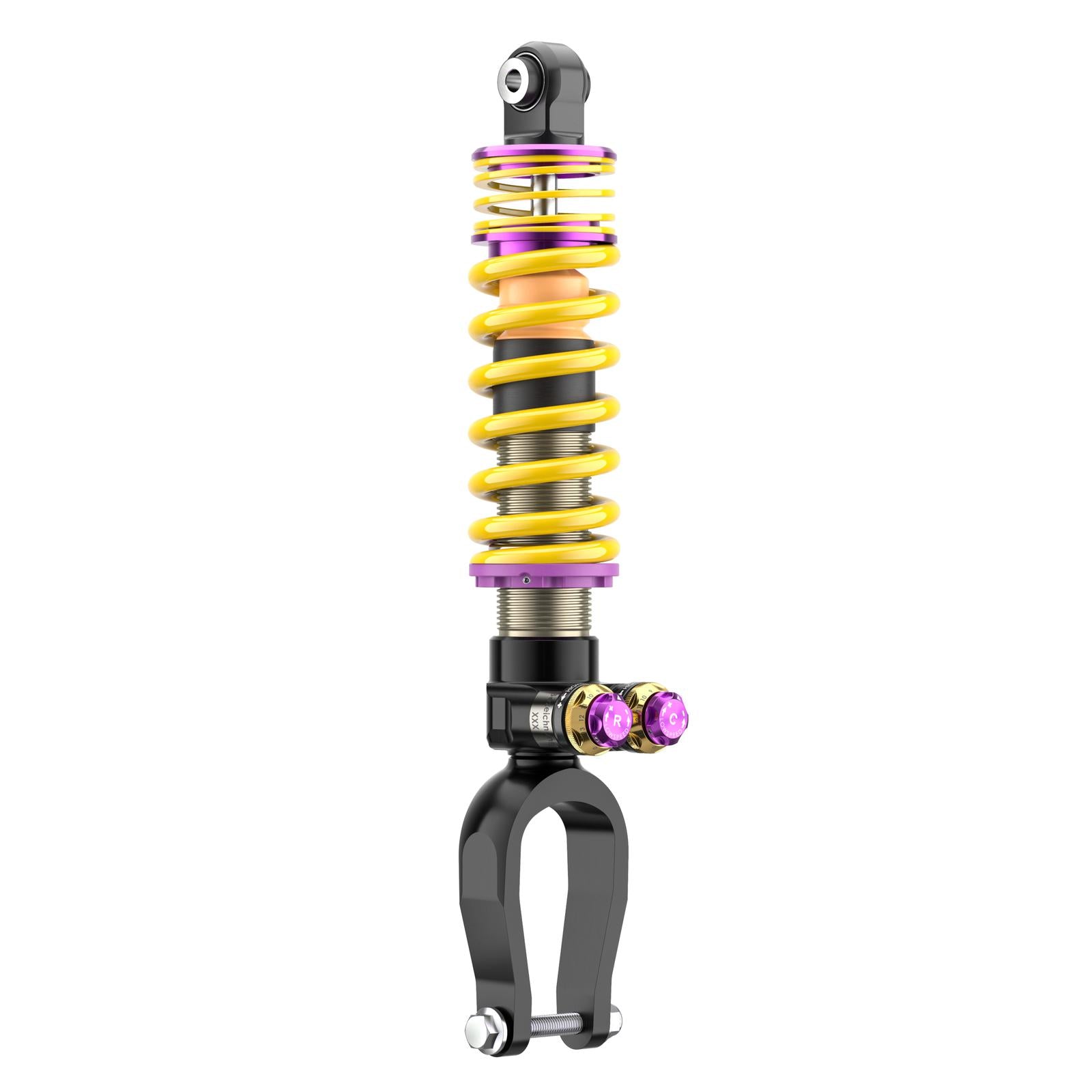

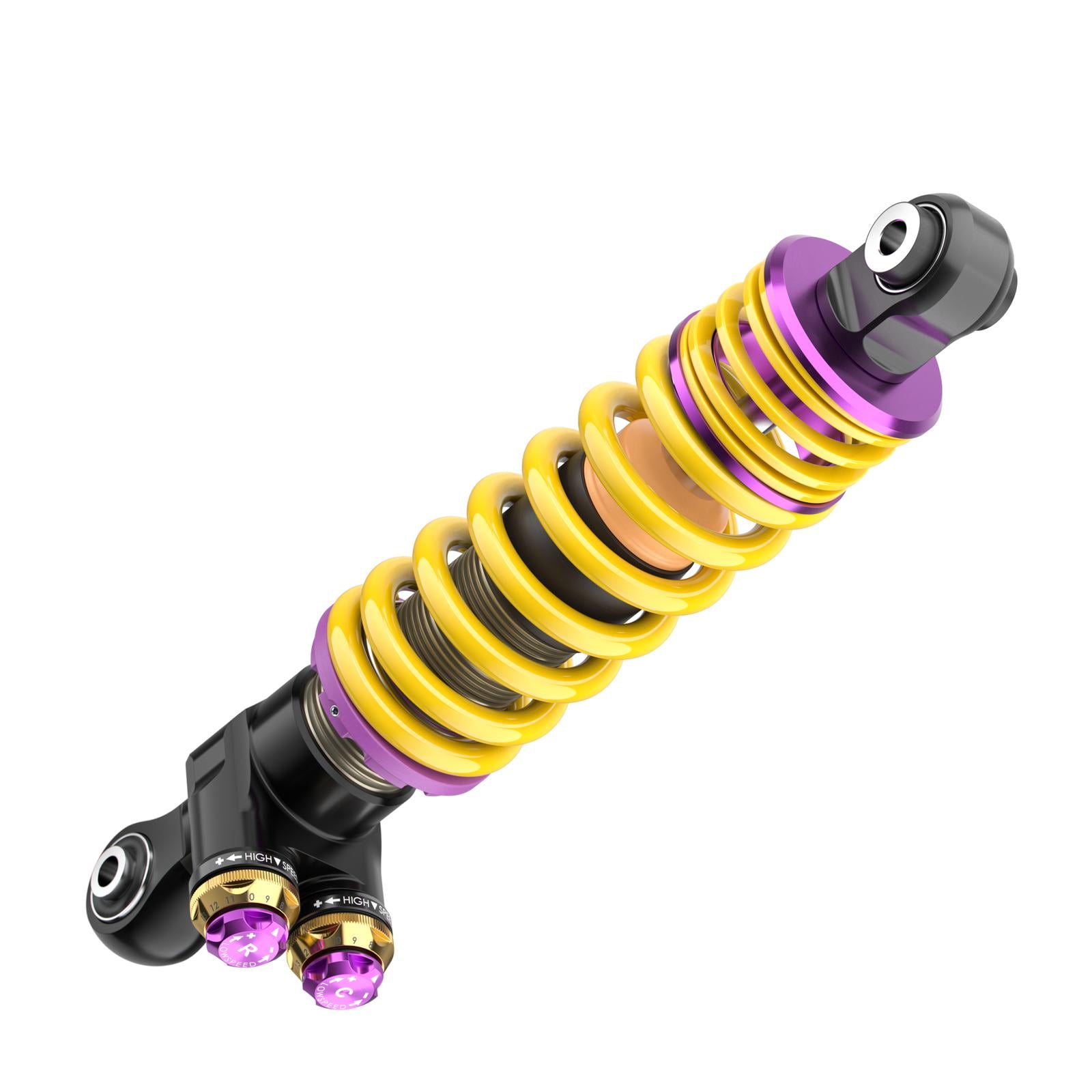

KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Chevrolet Corvette (C8).

Key Features

  • Four-way adjustable dampers
  • KW Solid Piston technology
  • 14 clicks each for low- and high-speed compression and rebound

Specifications

  • Version: V5
  • Damping: Adjustable rebound and compression
  • Material: Aluminium
  • Front lowering: 20–40 mm
  • Rear lowering: 20–40 mm
  • Front axle load: up to 820 kg
  • Rear axle load: up to 1,225 kg

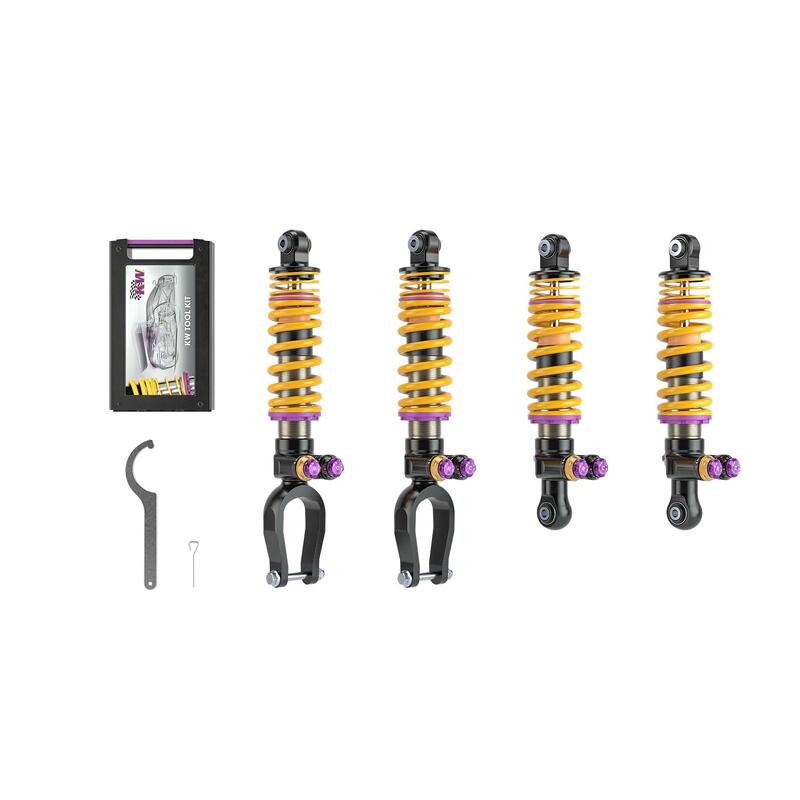

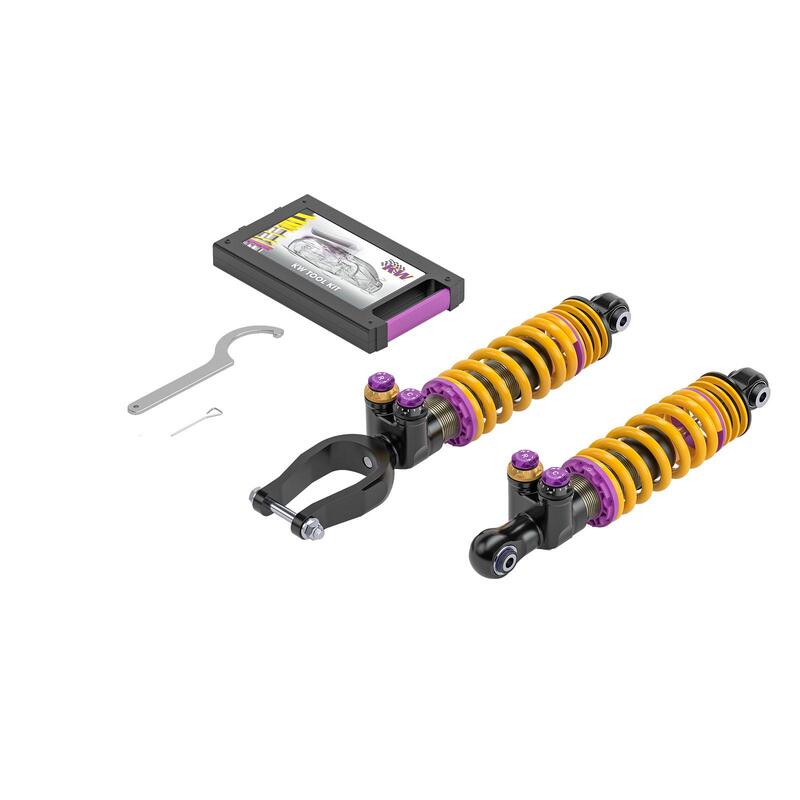

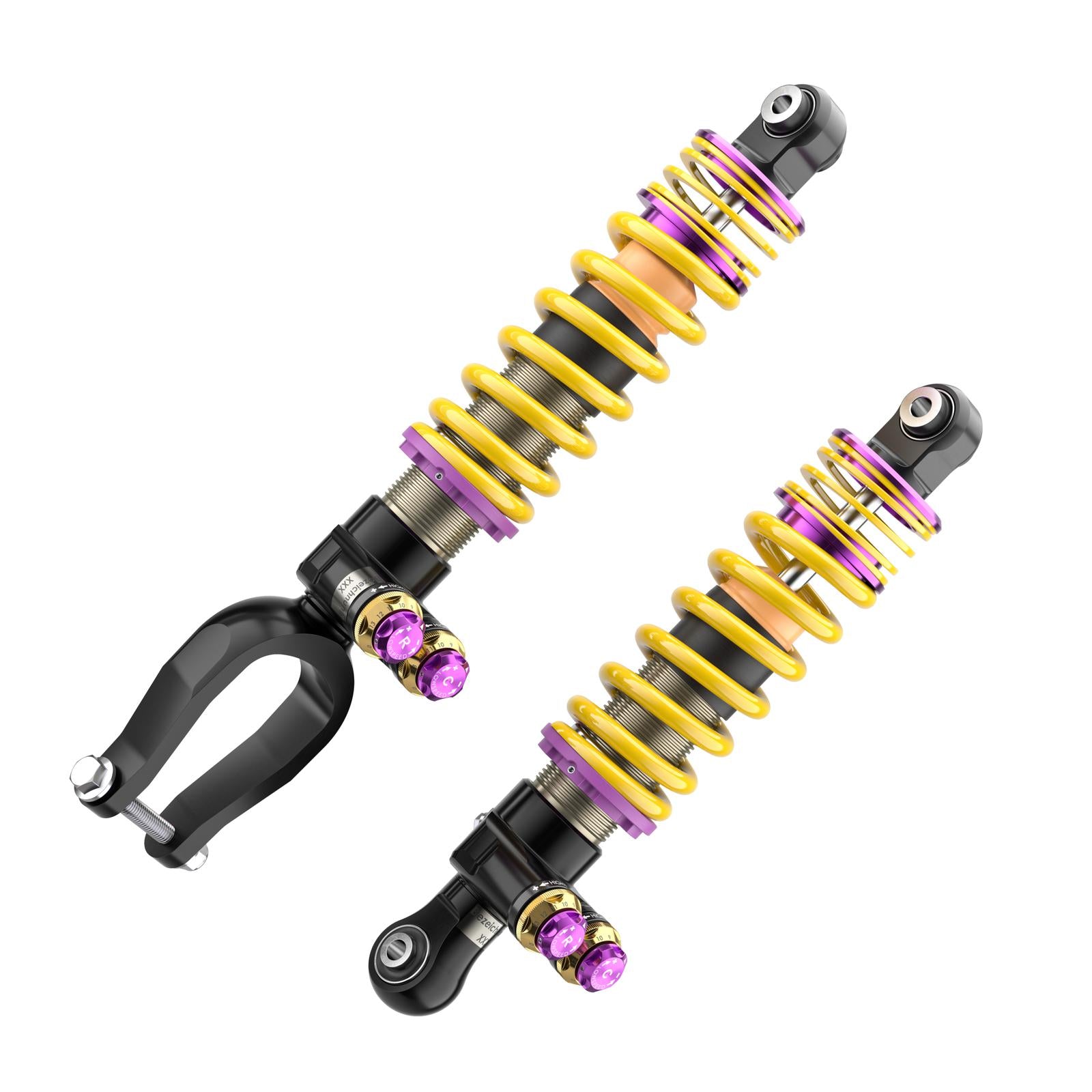

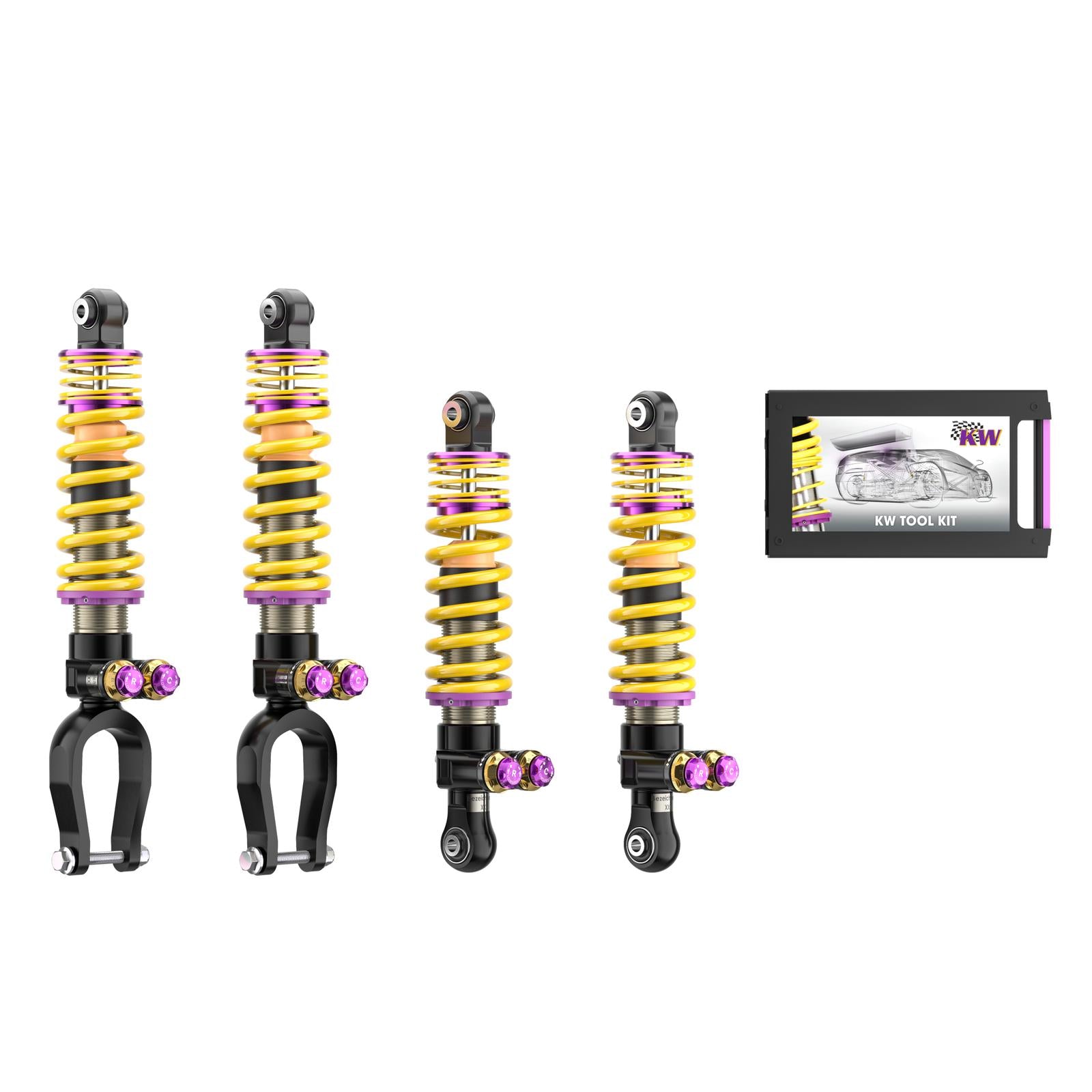

  • Supplied as: Front axle + rear axle coilover struts
Note For cars with original lift system.

Front axle load up to 820 kg; Rear axle load up to 1,225 kg.

For vehicles without electronic damper control.

For cars with original lift system.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2019+ChevroletCorvette (C8)6.2Petrol · 369 kW · 6.2L · 8-cylRear-Wheel DriveEU Model1, 37, 67, 90
2019+ChevroletCorvette (C8)6.2Petrol · 365 kW · 6.2L · 8-cylRear-Wheel DriveEU Model1, 37, 67, 90
2019+ChevroletCorvette (C8)6.2Petrol · 354 kW · 6.2L · 8-cylRear-Wheel DriveEU Model1, 37, 67, 90
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 90: Aluminium suspensions struts.
