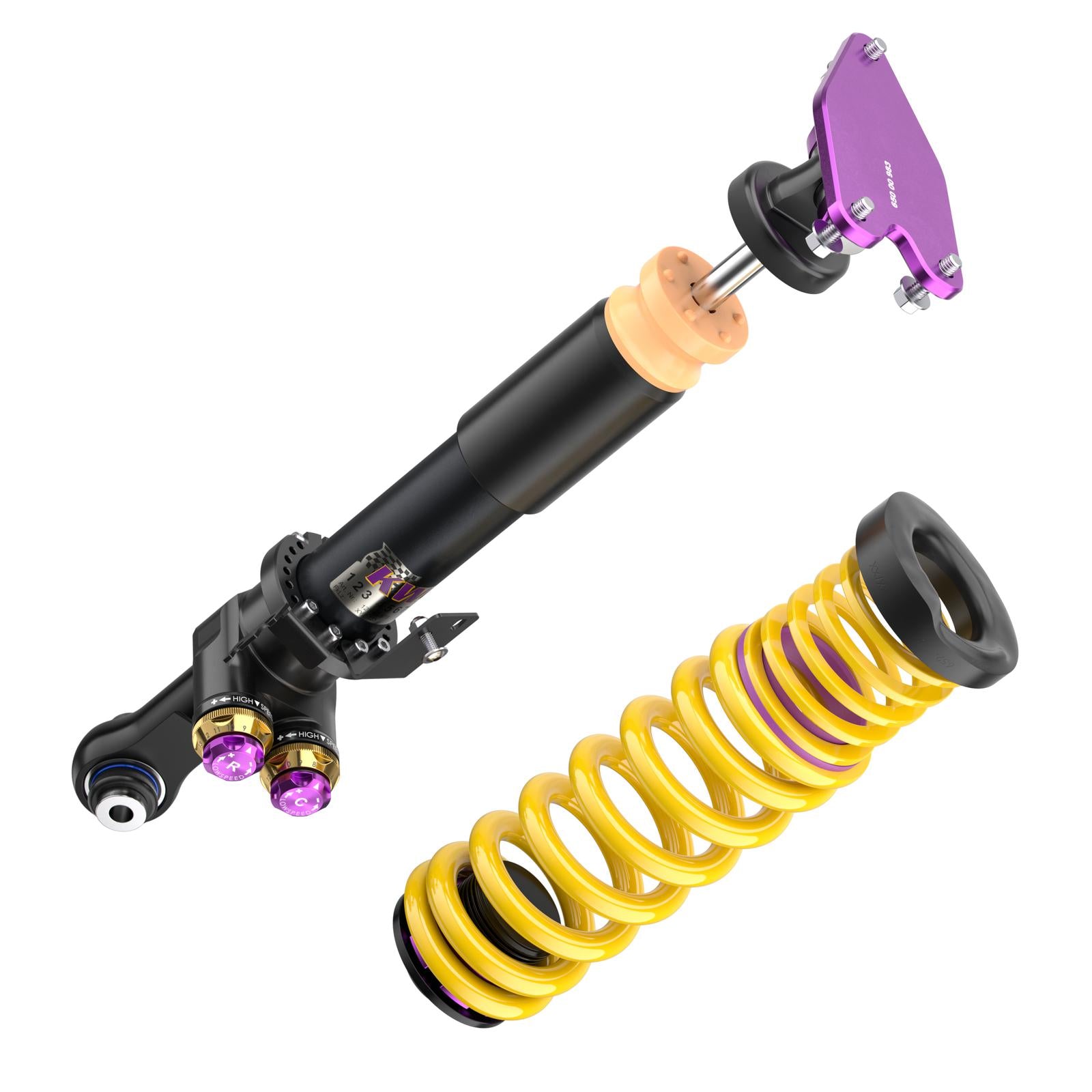

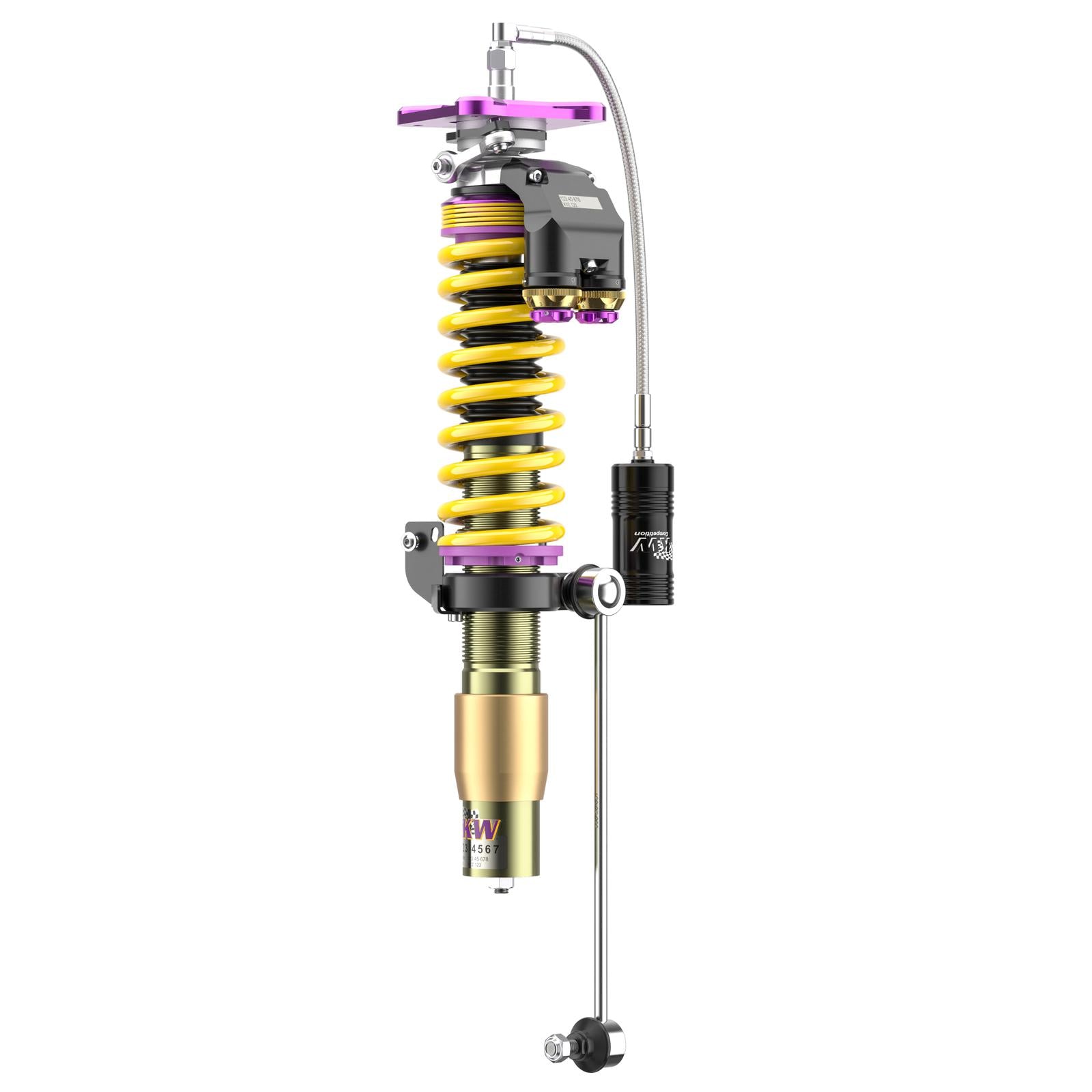

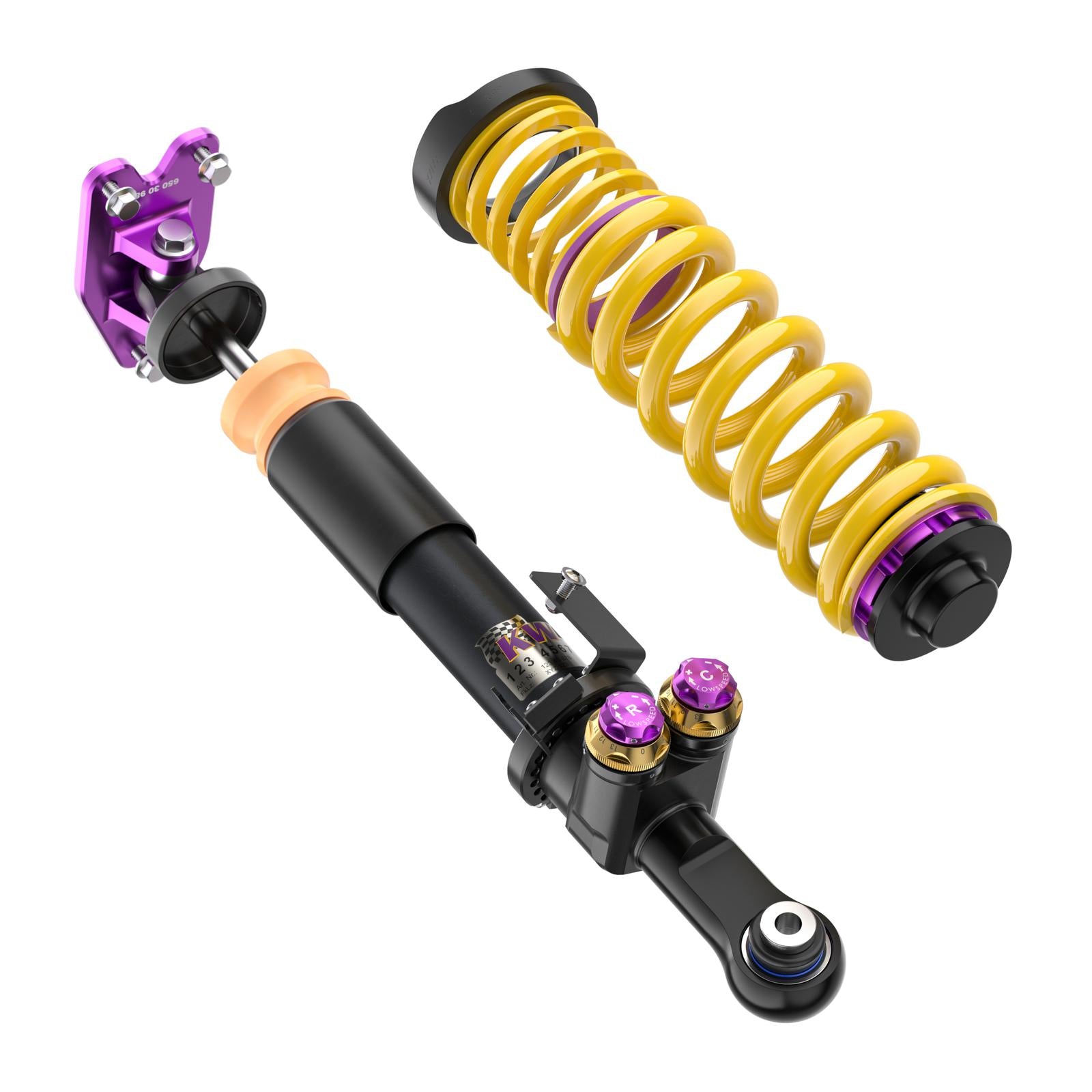

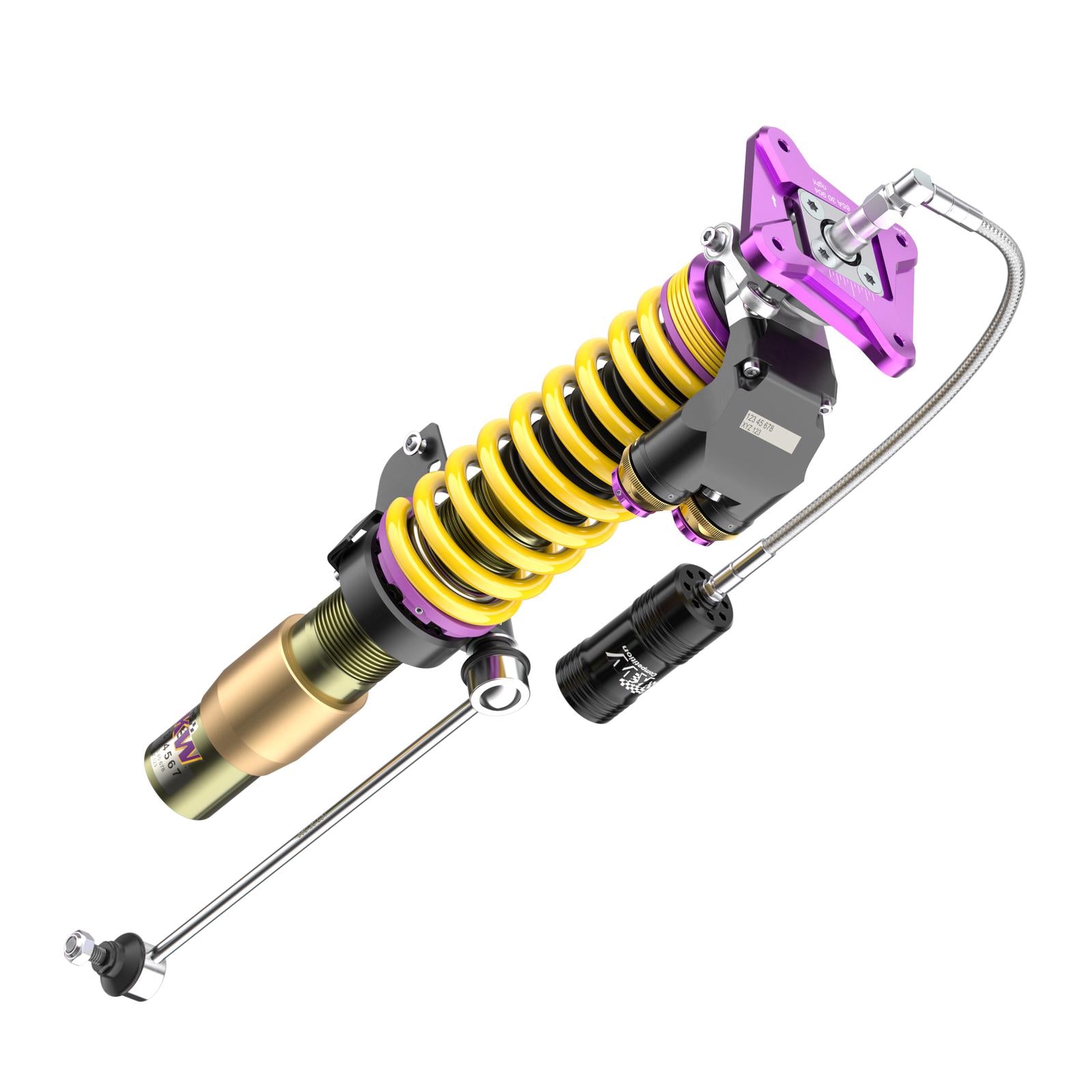

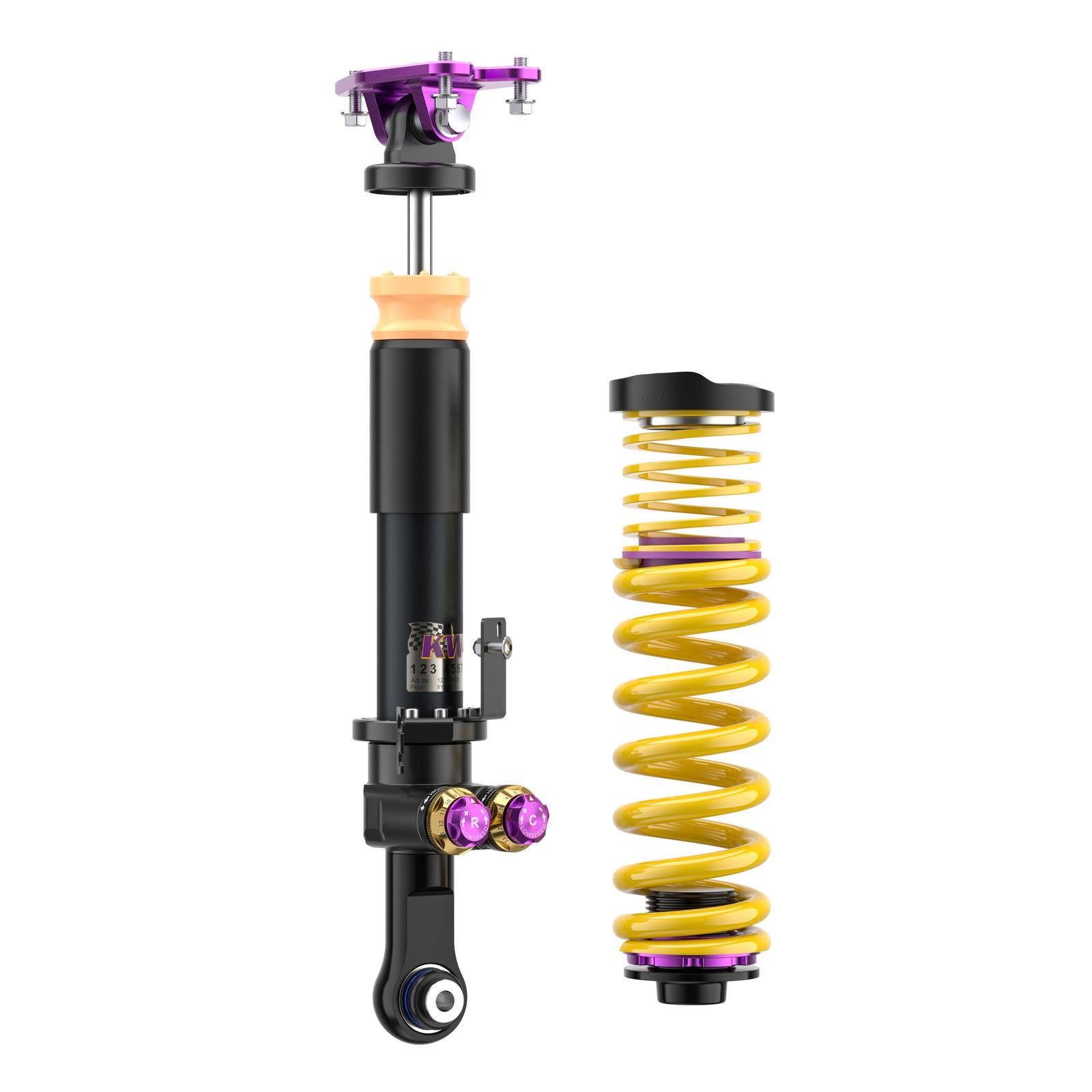

KW Coilover Kit V5 Clubsport for BMW (G82) M4 CSL w/ Deactivation for Electronic Dampers
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V5 Clubsport for BMW (G82) M4 CSL w/ Deactivation for Electronic Dampers
Sale price$18,134.55
Regular price$19,089.00 (/)
KW Clubsport coilovers bring KW's racing damper technology to track-day and road use. The base setup is developed on the Nürburgring Nordschleife to cope with crests, kerbs and abrupt elevation changes, and the separately adjustable dampers allow the car to be set up for different circuits and road surfaces. Depending on the application, KW Clubsport aluminium top mounts with camber adjustment are included. This kit is developed for the BMW M4 CSL (G82).
Key Features
- Damping adjustment derived from KW motorsport dampers
- Developed on the Nürburgring Nordschleife
- Height adjustable within the tested range
Specifications
- Version: V5 Clubsport
- Damping: Adjustable rebound and compression
- Material: Front: galvanised steel; rear: aluminium
- Front lowering: 15–30 mm
- Rear lowering: 10–25 mm
- Front axle load: up to 1,080 kg
- Rear axle load: up to 1,180 kg
- Supplied as: Front axle coilover struts including top mounts, rear axle springs with height adjustment + dampers including cancellation kit for electronic damper control
Front axle load up to 1,080 kg; Rear axle load up to 1,180 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2020+ | BMW | 4 Coupe (G22, G82) | M4 CSL | Petrol · 405 kW · 3.0L · 6-cyl | Rear-Wheel Drive | 2, 6, 67, 88, 97, 423 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 6: When using original tyres, wheel offset spacers may be required.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- Note 97: Clubsport coilover with top mount: only with front axle top mount available.
- Note 423: V4 / V5 suspension struts / dampers made of aluminium or combined axle-wise from galvanised steel (FA) and aluminium (RA).
