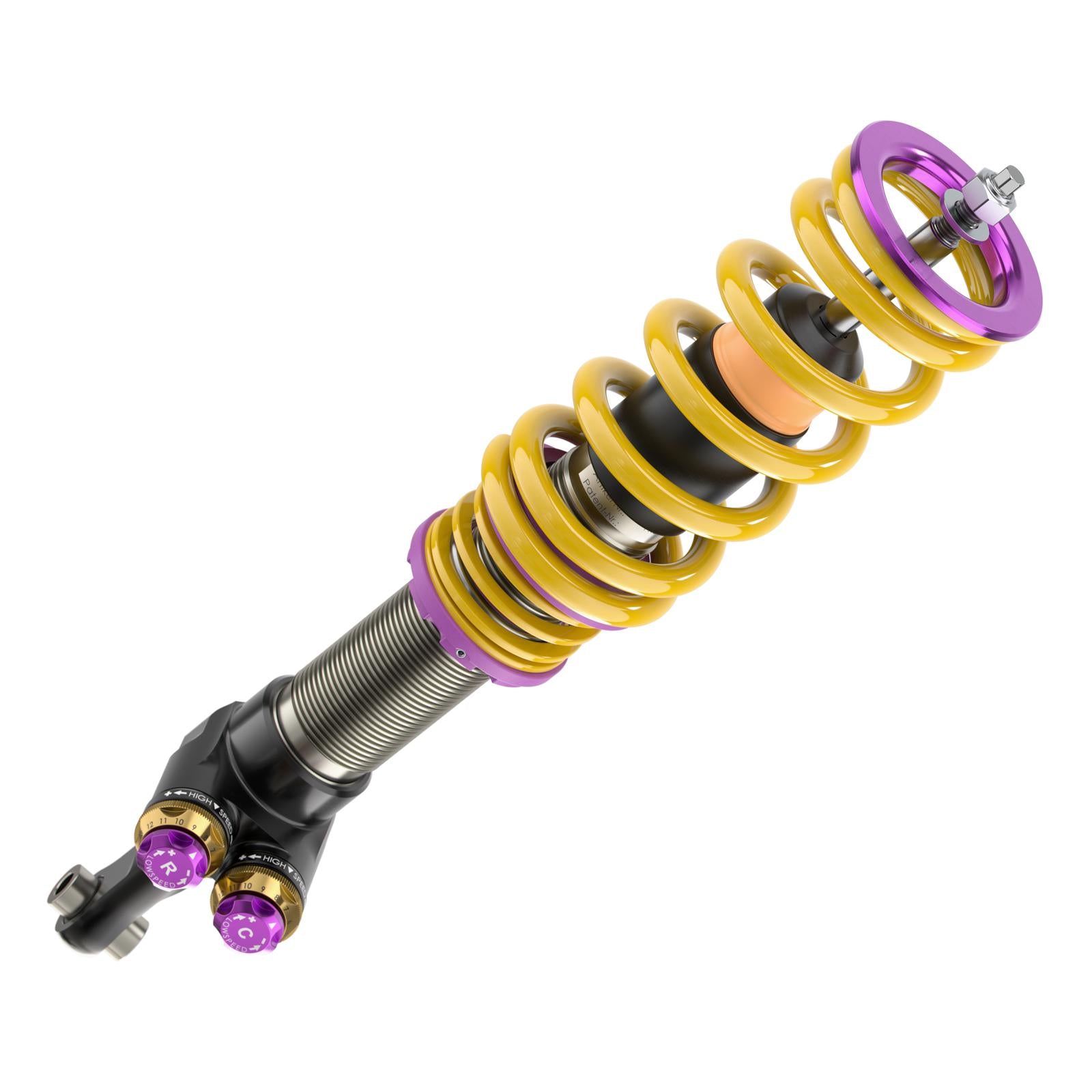

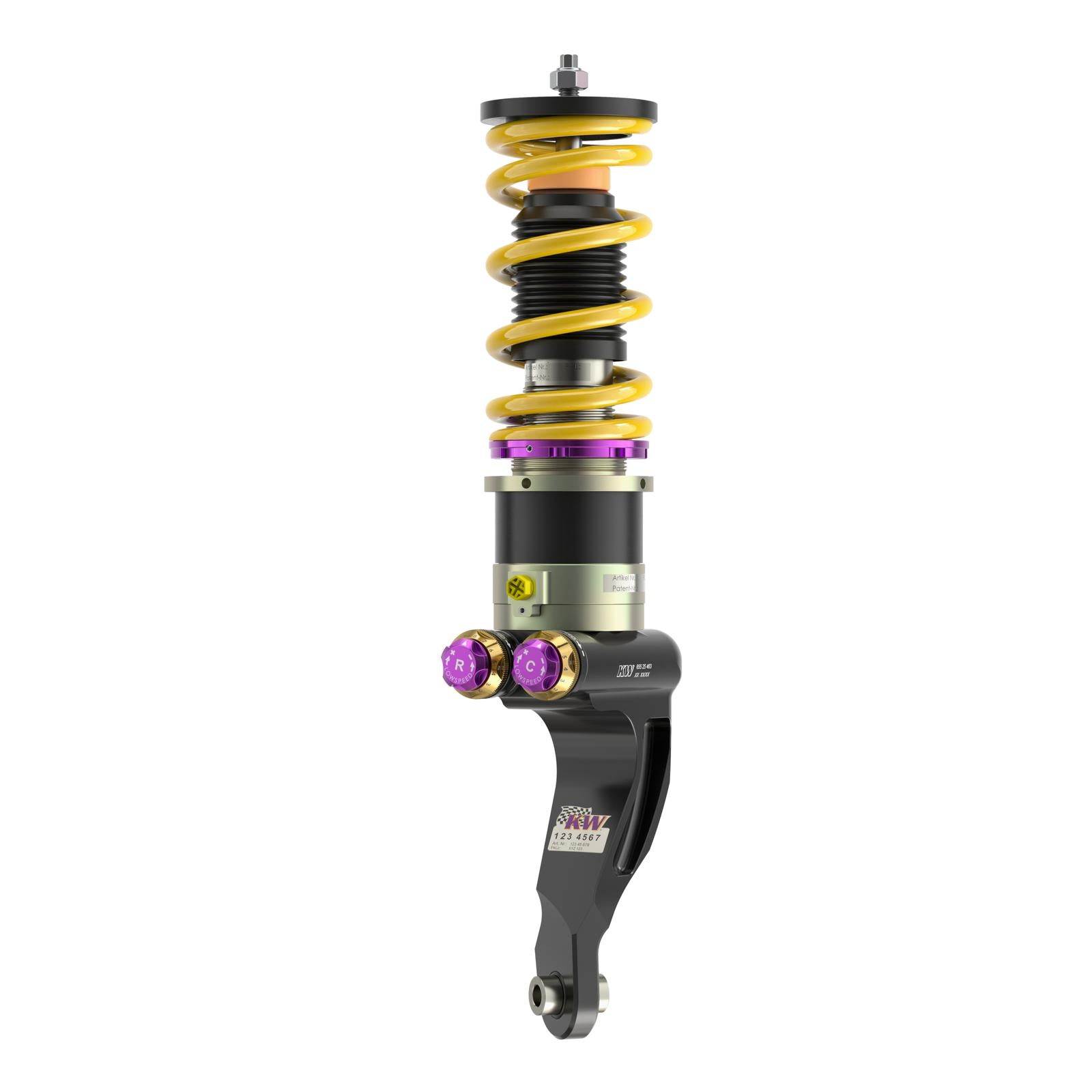

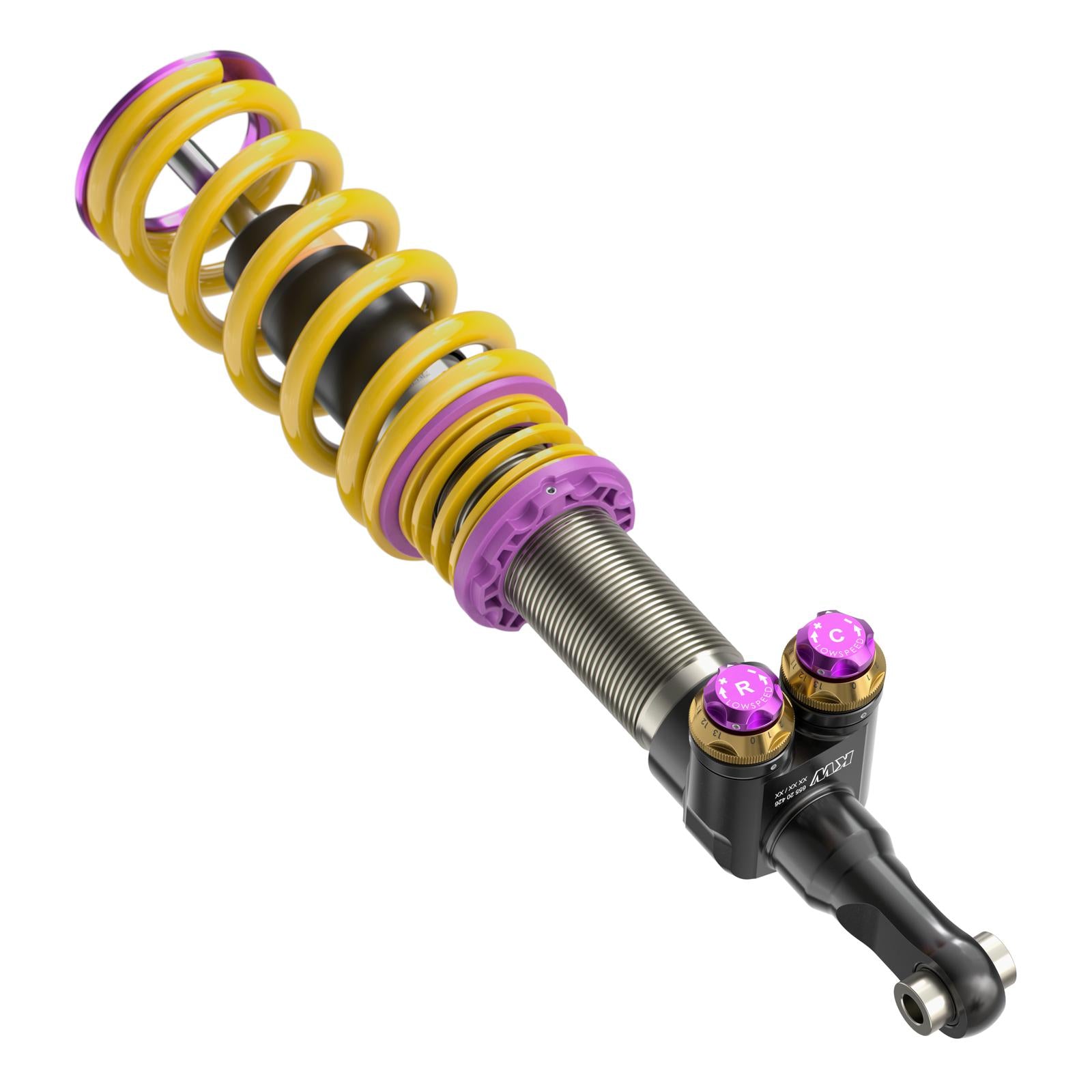

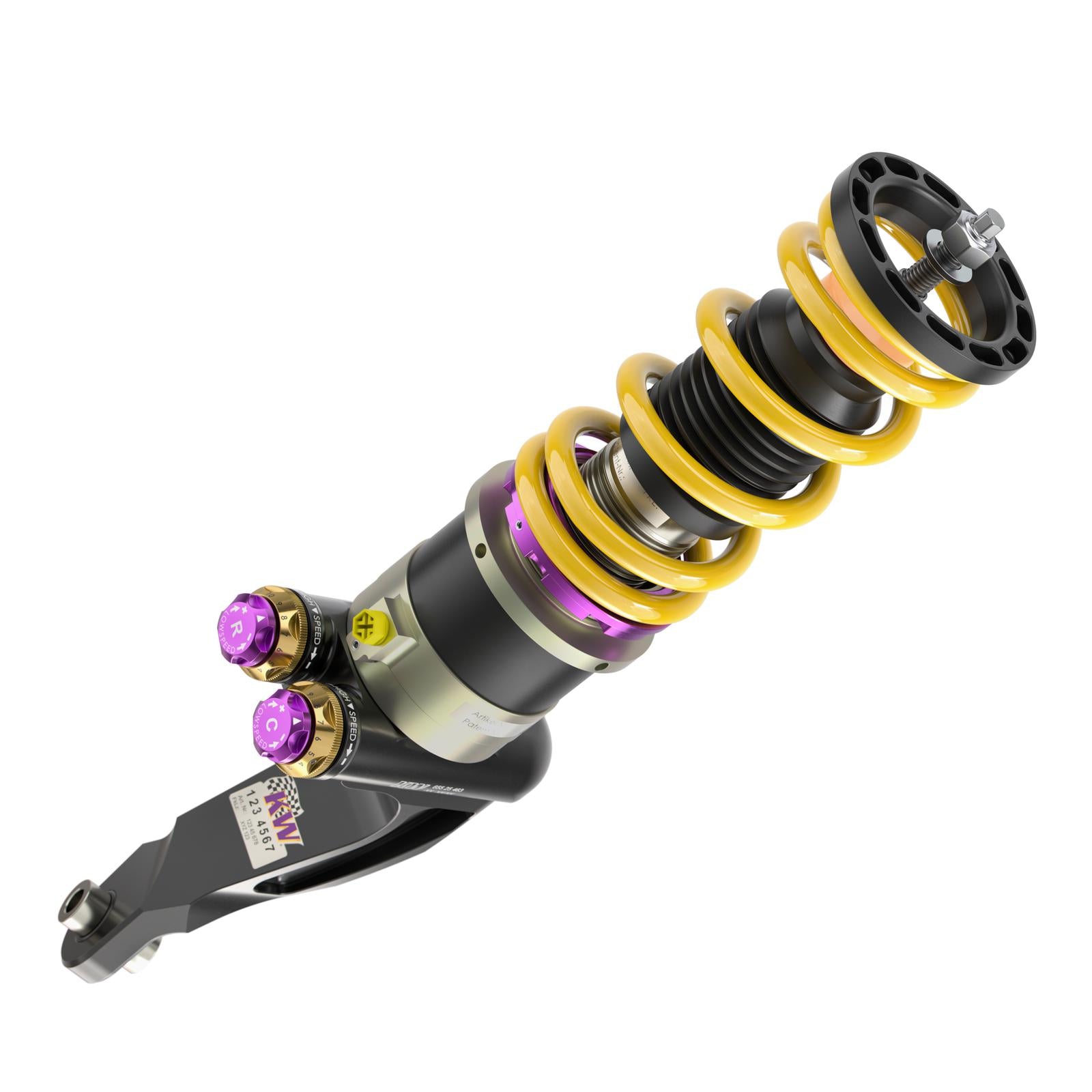

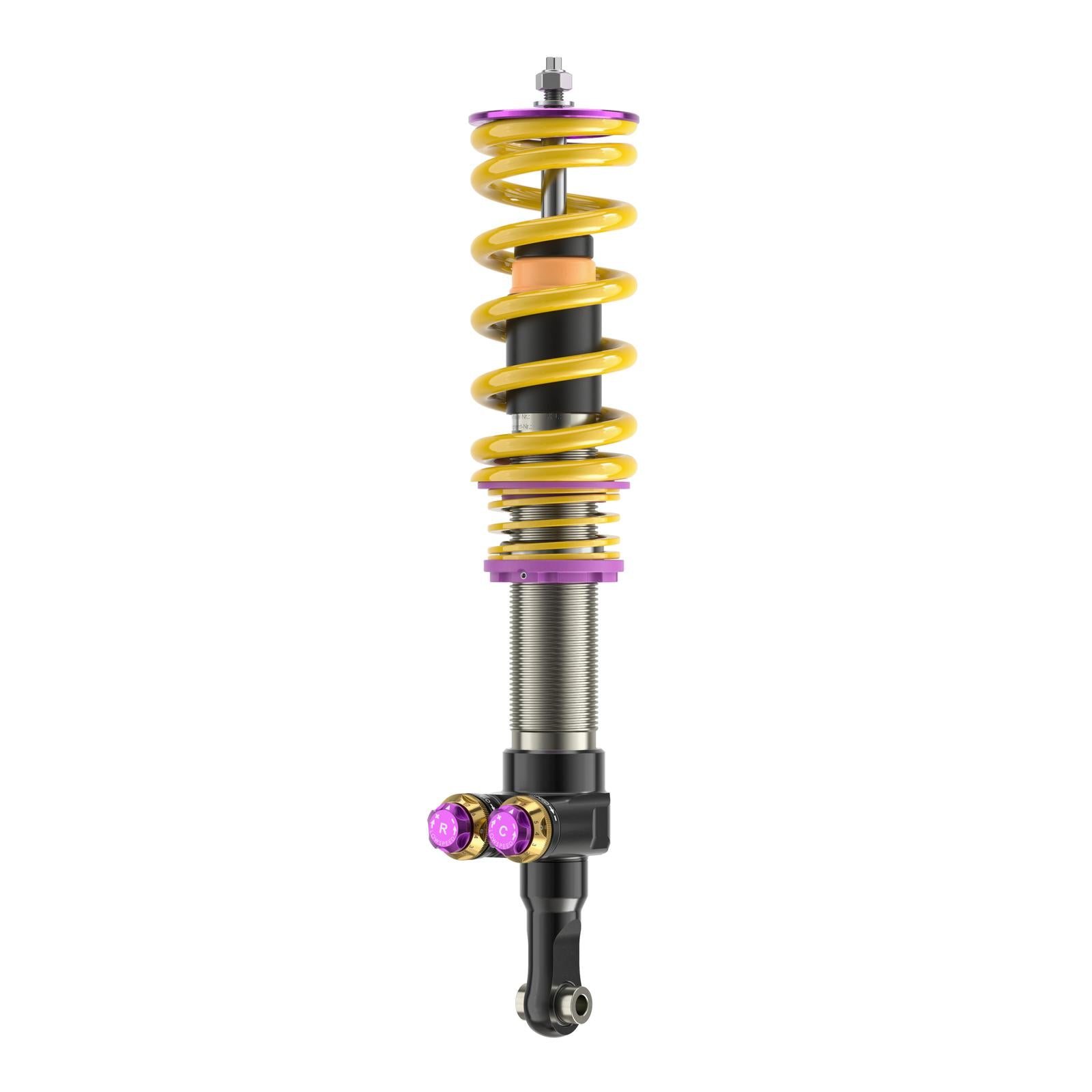

KW Coilover Kit V5 for Ferrari SF90 Stradale / SF90 Spider w/ Deactivation for Electronic Dampers - w/ OEM Lift

SKU: 30942030
Sale price$22,884.55 Regular price$24,089.00
Save $1,204.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Ferrari SF90 Stradale / SF90 Spider.

Key Features

  • Four-way adjustable dampers
  • KW Solid Piston technology
  • 14 clicks each for low- and high-speed compression and rebound

Specifications

  • Version: V5
  • Damping: Adjustable rebound and compression
  • Material: Aluminium
  • Front lowering: 15–30 mm
  • Rear lowering: 15–30 mm
  • Front axle load: up to 975 kg
  • Rear axle load: up to 1,160 kg
  • Supplied as: Front axle + rear axle coilover struts including cancellation kit for electronic damper control
Note For vehicles with electronic damper control. For vehicles with original lift system. Not XX Stradale.

Front axle load up to 975 kg; Rear axle load up to 1,160 kg.

For vehicles with electronic damper control.

For cars with original lift system.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveNotesRefs
2019+FerrariSF90Stradale PHEV 4WDPetrol/Electric · 735 kW · 4.0L · 8-cylAll-Wheel DriveNot XX Stradale1, 67, 88, 90
2019+FerrariSF90Stradale PHEV 4WDPetrol/Electric · 574 kW · 4.0L · 8-cylAll-Wheel DriveNot XX Stradale1, 67, 88, 90
2018+FerrariSF90 Spider ConvertibleSpider PHEV 4WDPetrol/Electric · 735 kW · 4.0L · 8-cylAll-Wheel DriveNot XX Stradale1, 67, 88, 90
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
  • Note 90: Aluminium suspensions struts.
