KW Coilover Kit V5 for Lamborghini Huracan Performante / Huracan / Huracan Spyder
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

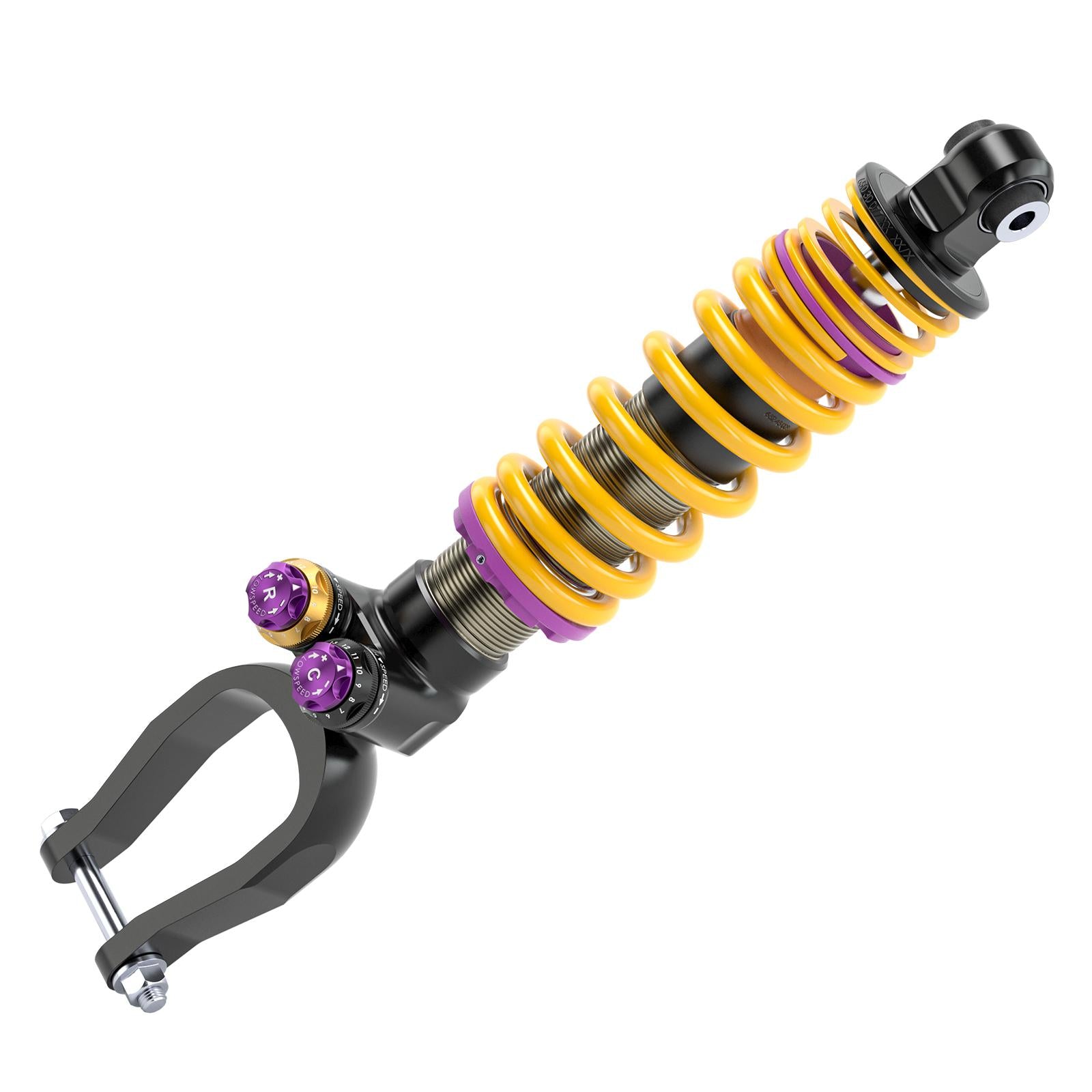

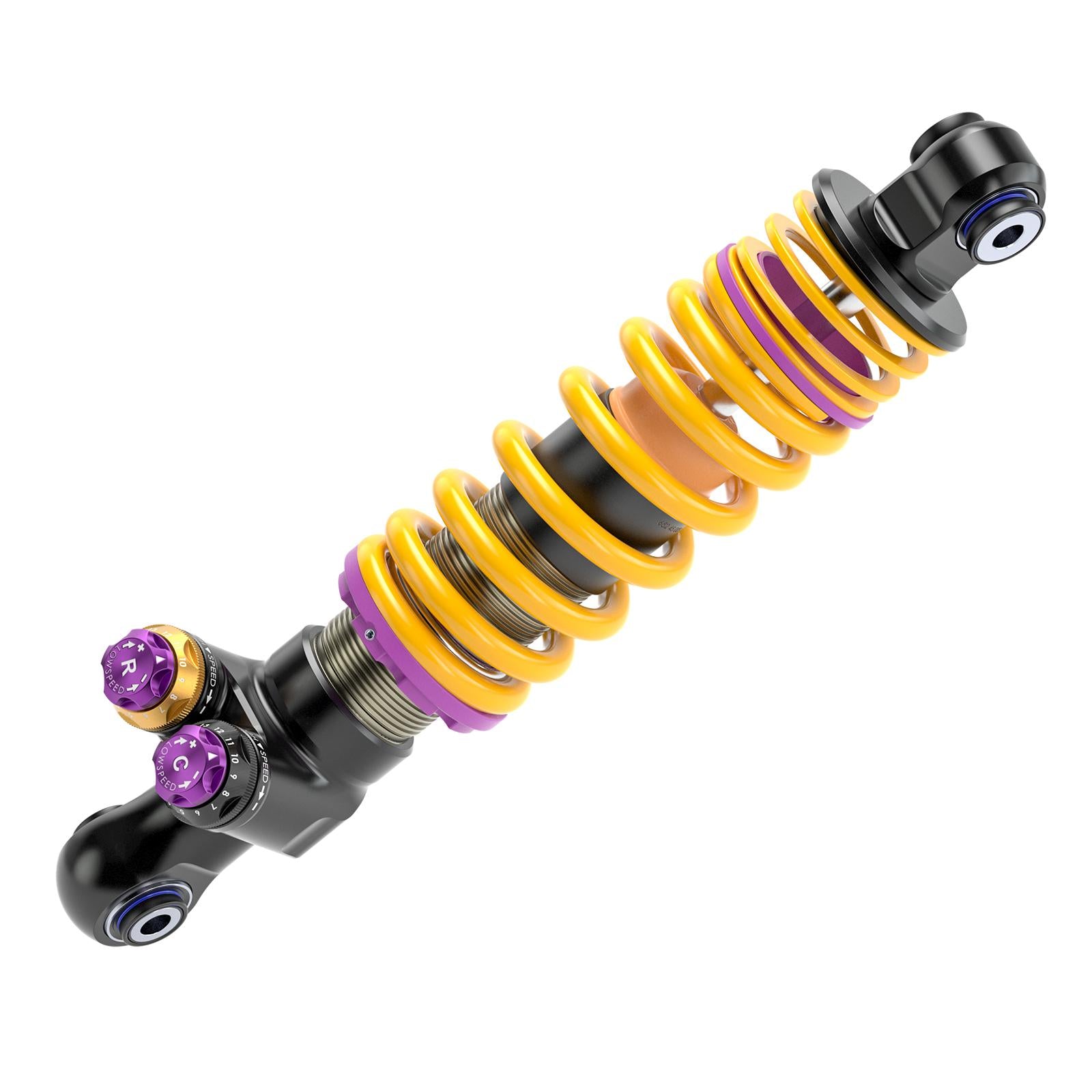

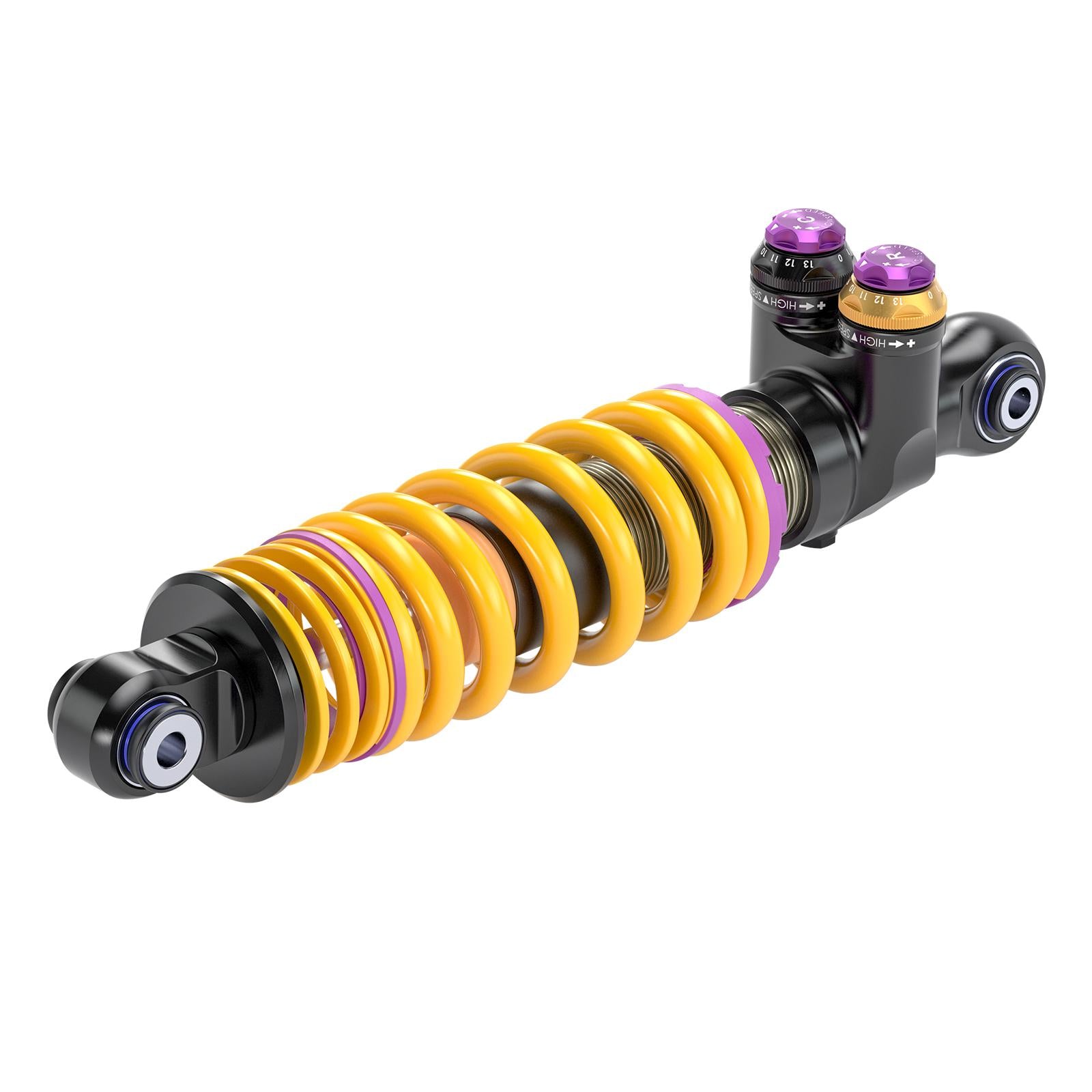

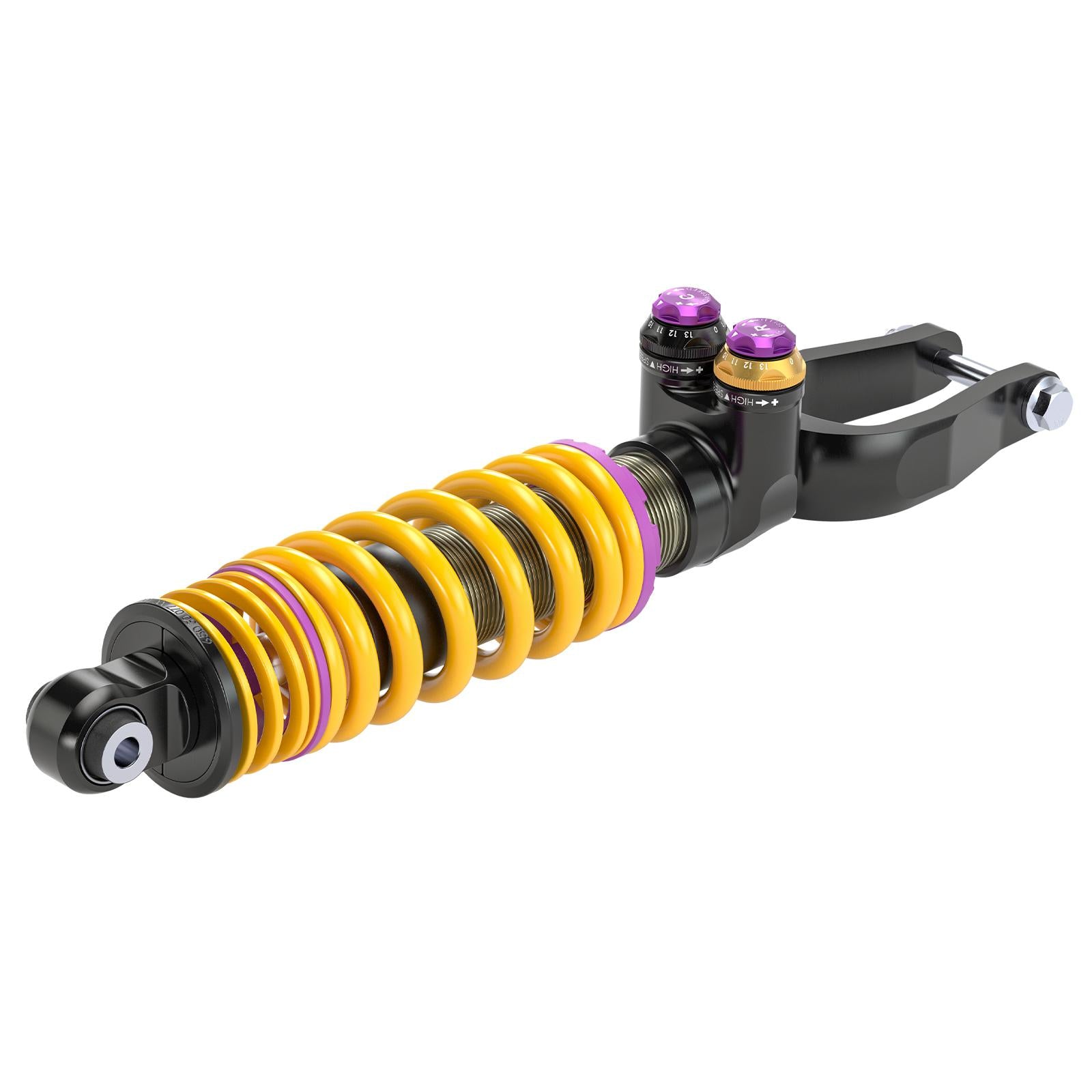

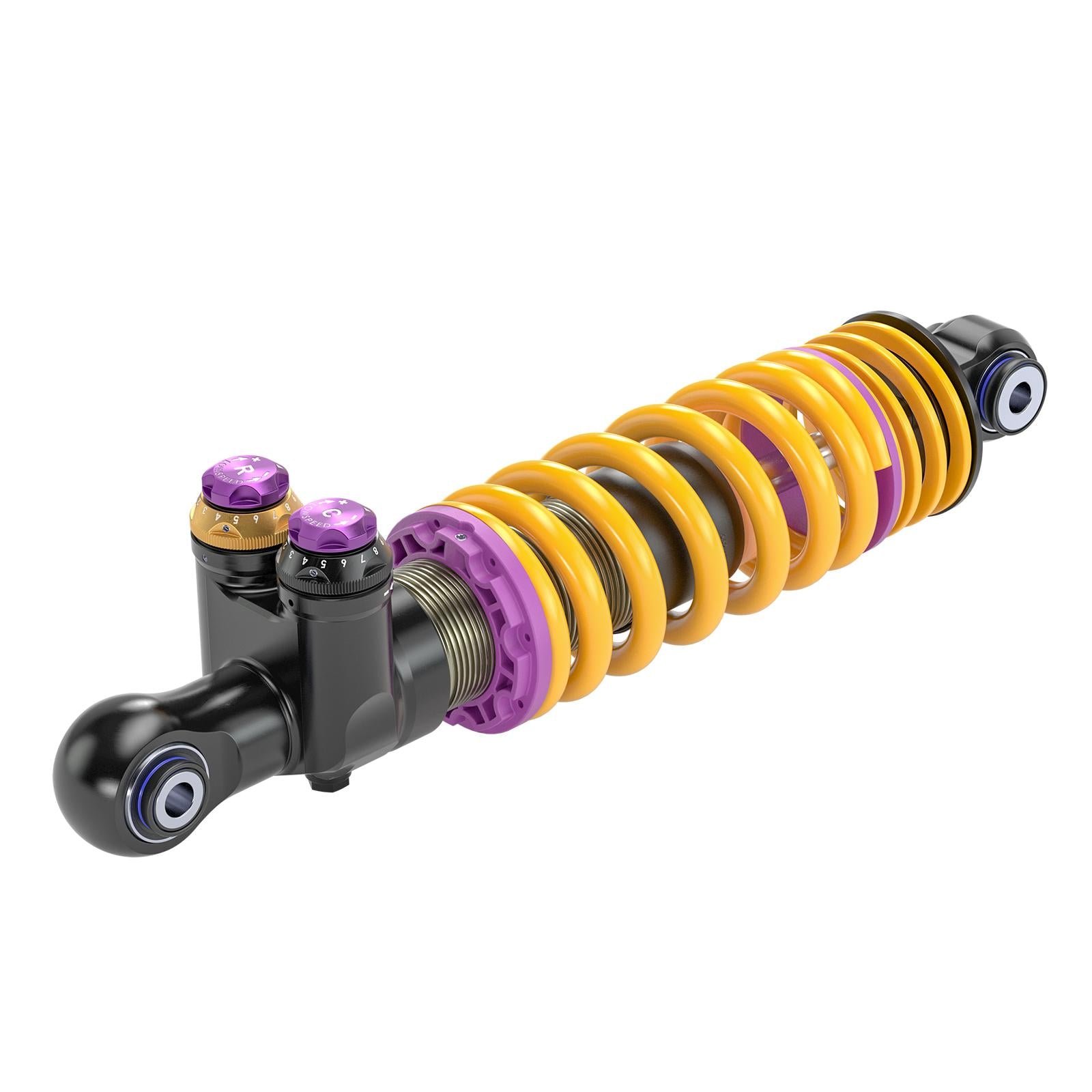

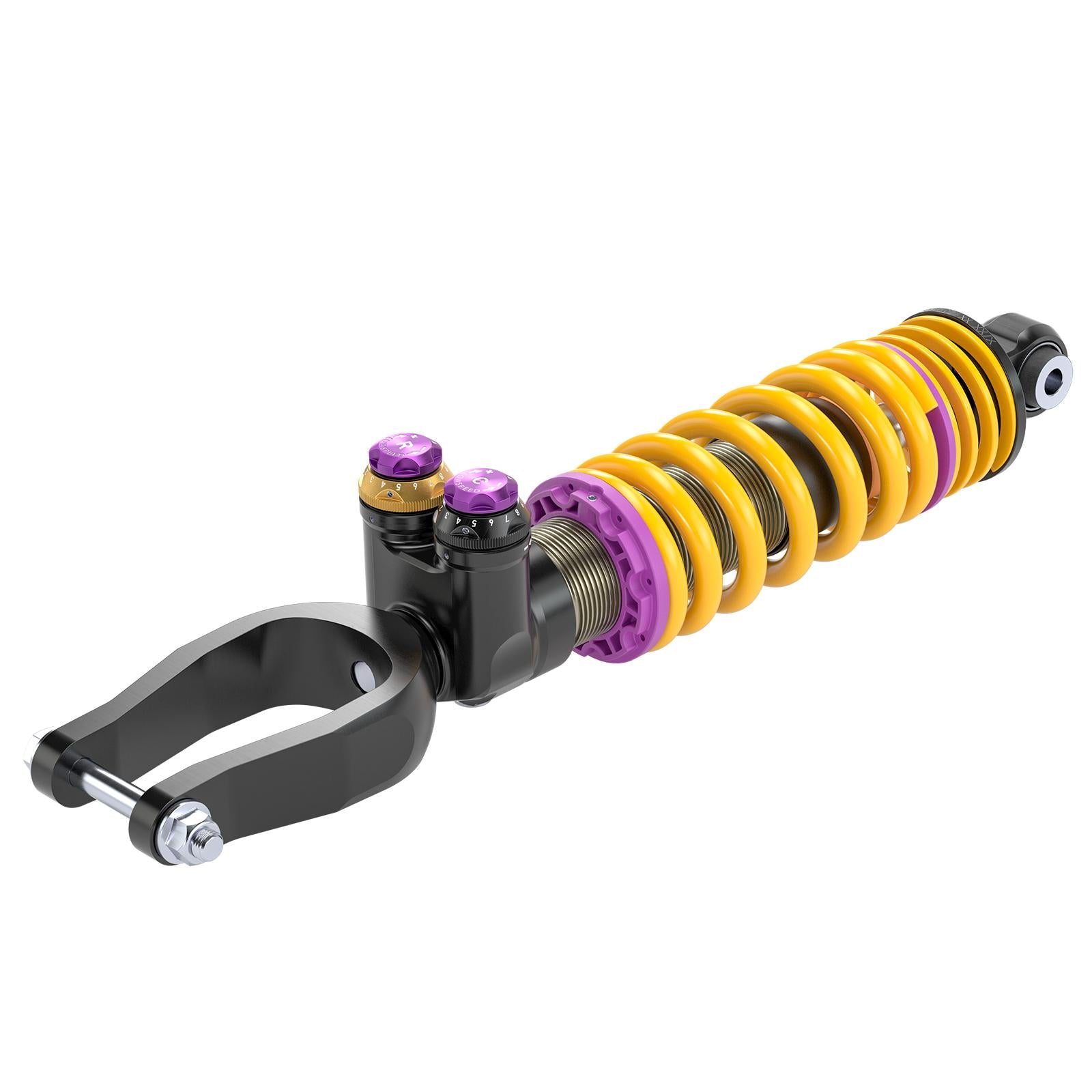

KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Lamborghini Huracan Performante / Huracan / Huracan Spyder.
Key Features
- Four-way adjustable dampers
- KW Solid Piston technology
- 14 clicks each for low- and high-speed compression and rebound
Specifications
- Version: V5
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 10–25 mm
- Rear lowering: 15–35 mm
- Front axle load: up to 950 kg
- Rear axle load: up to 1,100 kg

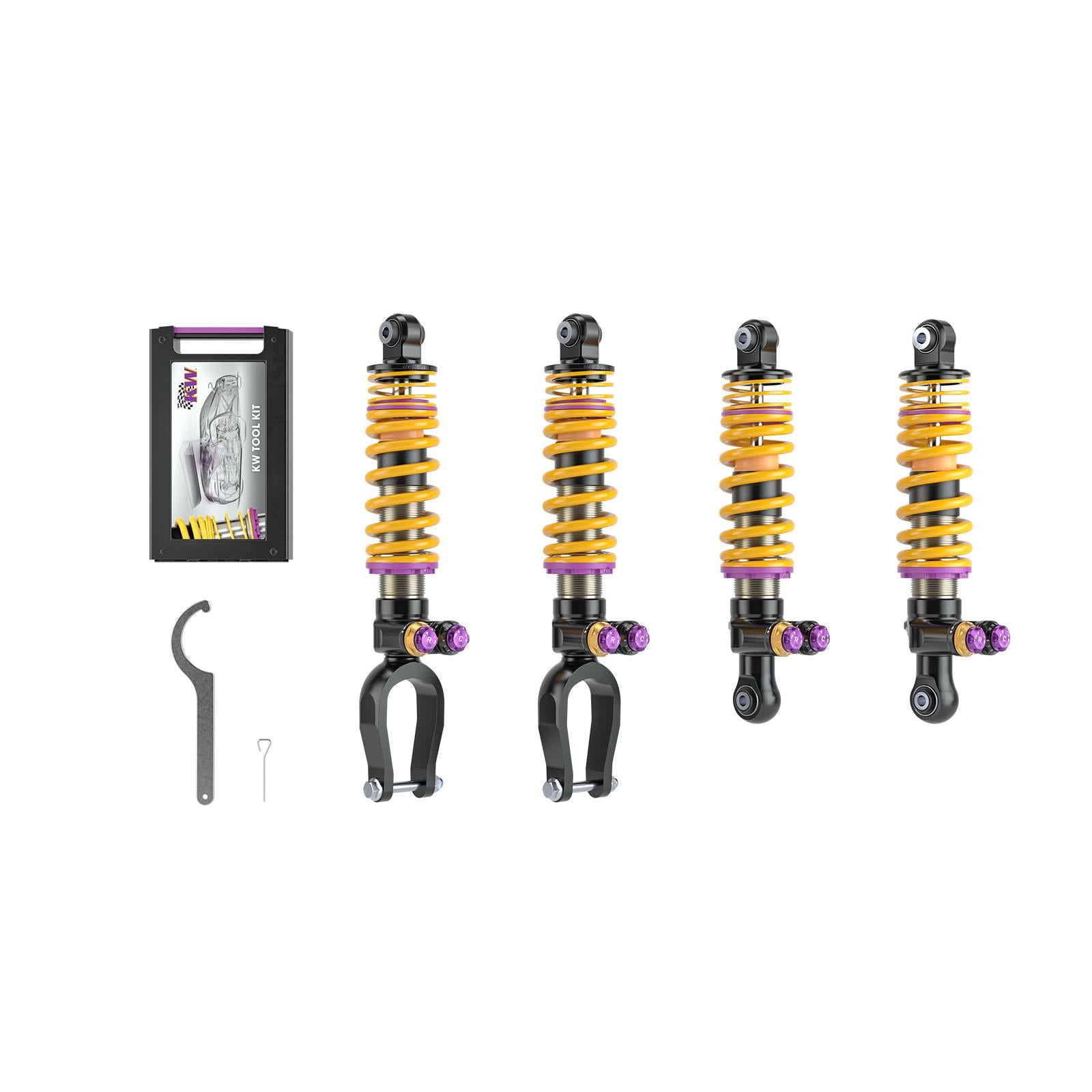

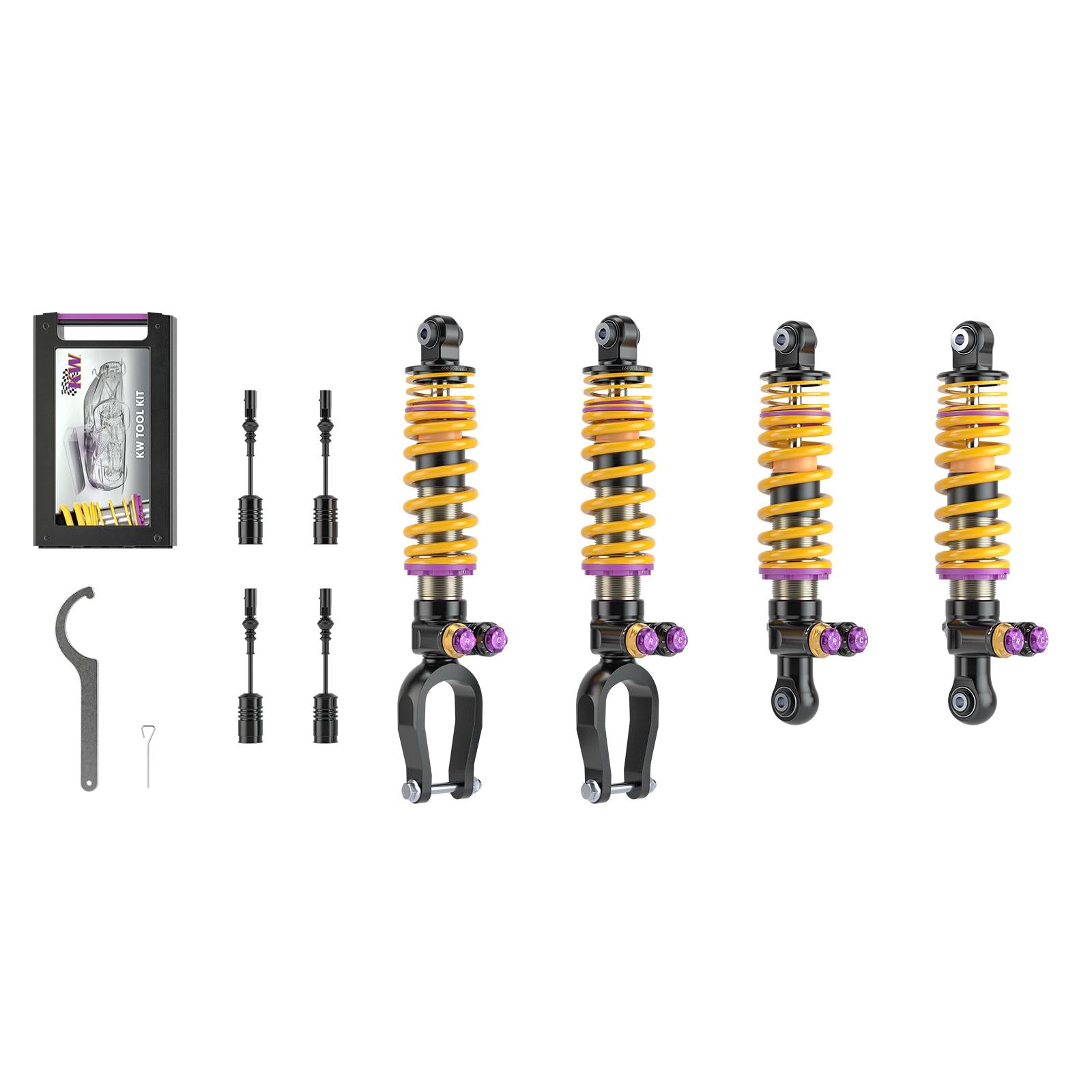

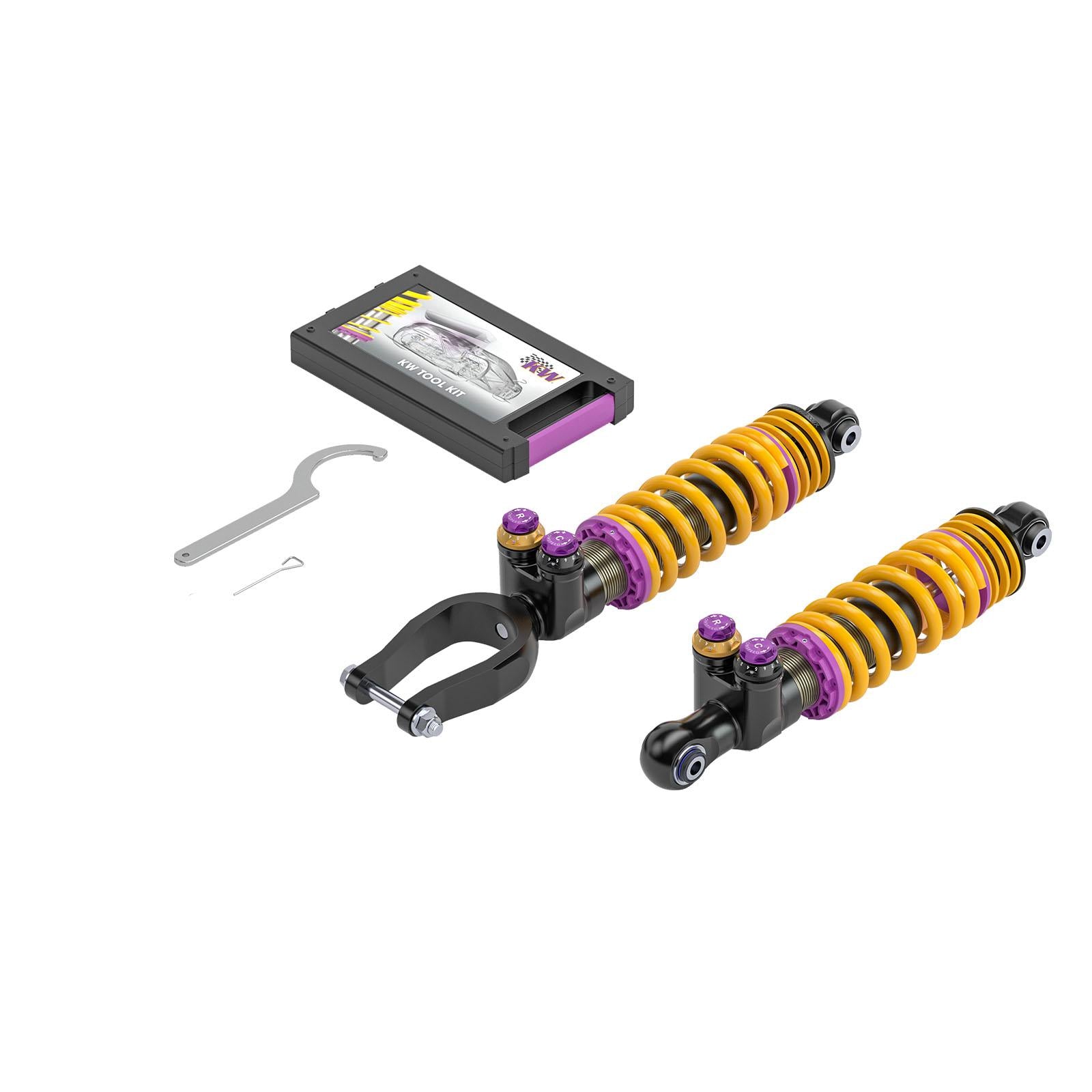

- Supplied as: Front axle + rear axle coilover struts
Front axle load up to 950 kg; Rear axle load up to 1,100 kg.
For vehicles without electronic damper control.
For cars with original lift system.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Notes | Refs |
|---|---|---|---|---|---|---|---|
| 2014+ | Lamborghini | Huracán | 5.2 LP 580-2 | Petrol · 426 kW · 5.2L · 10-cyl | Rear-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2014+ | Lamborghini | Huracán | 5.2 LP 600-4 | Petrol · 441 kW · 5.2L · 10-cyl | All-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2014+ | Lamborghini | Huracán | 5.2 LP 610-2 | Petrol · 449 kW · 5.2L · 10-cyl | Rear-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2014+ | Lamborghini | Huracán | 5.2 LP 610-4 | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2014+ | Lamborghini | Huracán | 5.2 Performante | Petrol · 470 kW · 5.2L · 10-cyl | All-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2014+ | Lamborghini | Huracán | LP 640-2 | Petrol · 470 kW · 5.2L · 10-cyl | Rear-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2015+ | Lamborghini | Huracán Spyder | 5.2 LP 580-2 | Petrol · 426 kW · 5.2L · 10-cyl | Rear-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2015+ | Lamborghini | Huracán Spyder | 5.2 LP 610-2 | Petrol · 449 kW · 5.2L · 10-cyl | Rear-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2015+ | Lamborghini | Huracán Spyder | 5.2 LP 610-4 | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
| 2015+ | Lamborghini | Huracán Spyder | 5.2 Performante | Petrol · 470 kW · 5.2L · 10-cyl | All-Wheel Drive | Except EVO and STO | 1, 37, 67, 90 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.

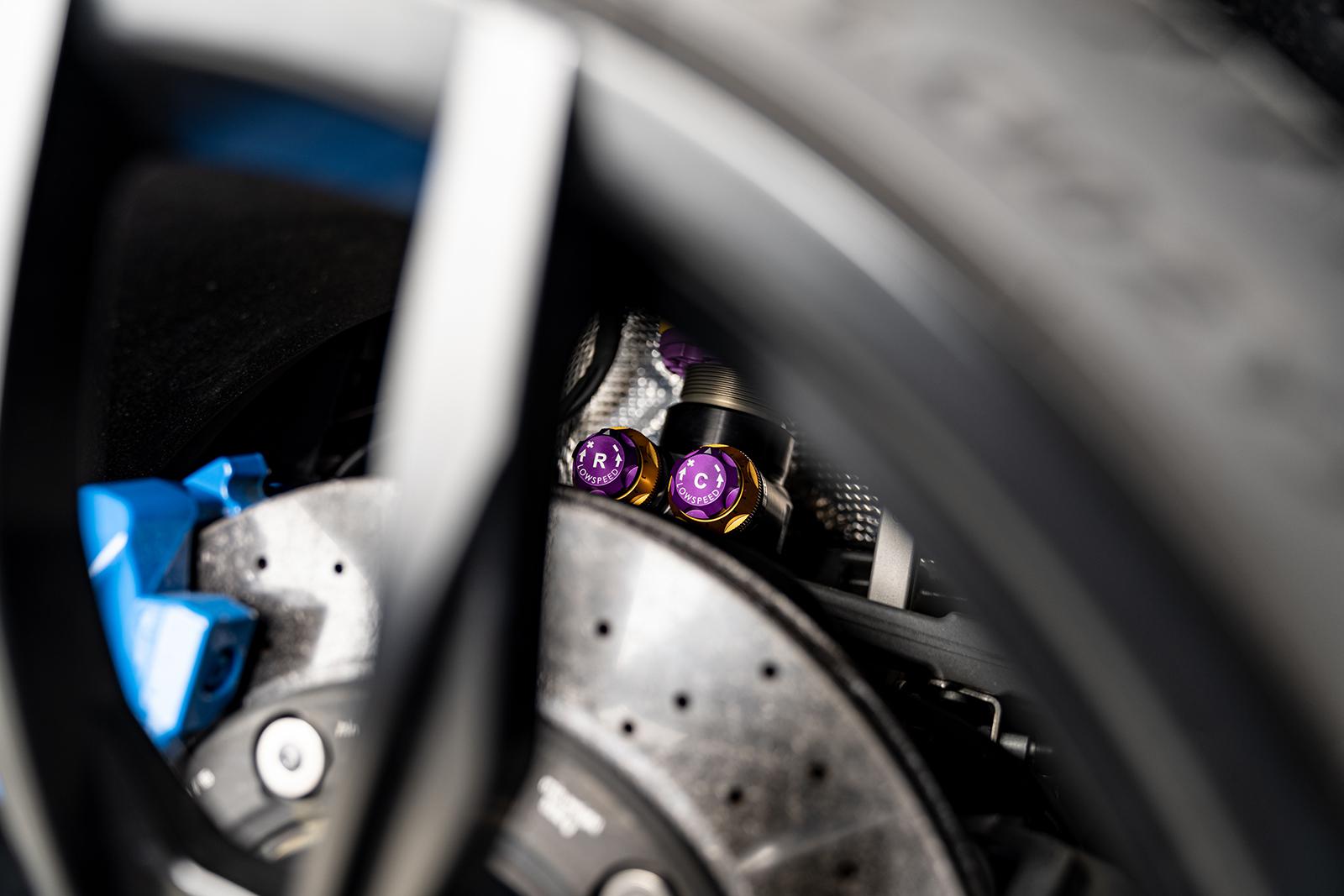

- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 90: Aluminium suspensions struts.
