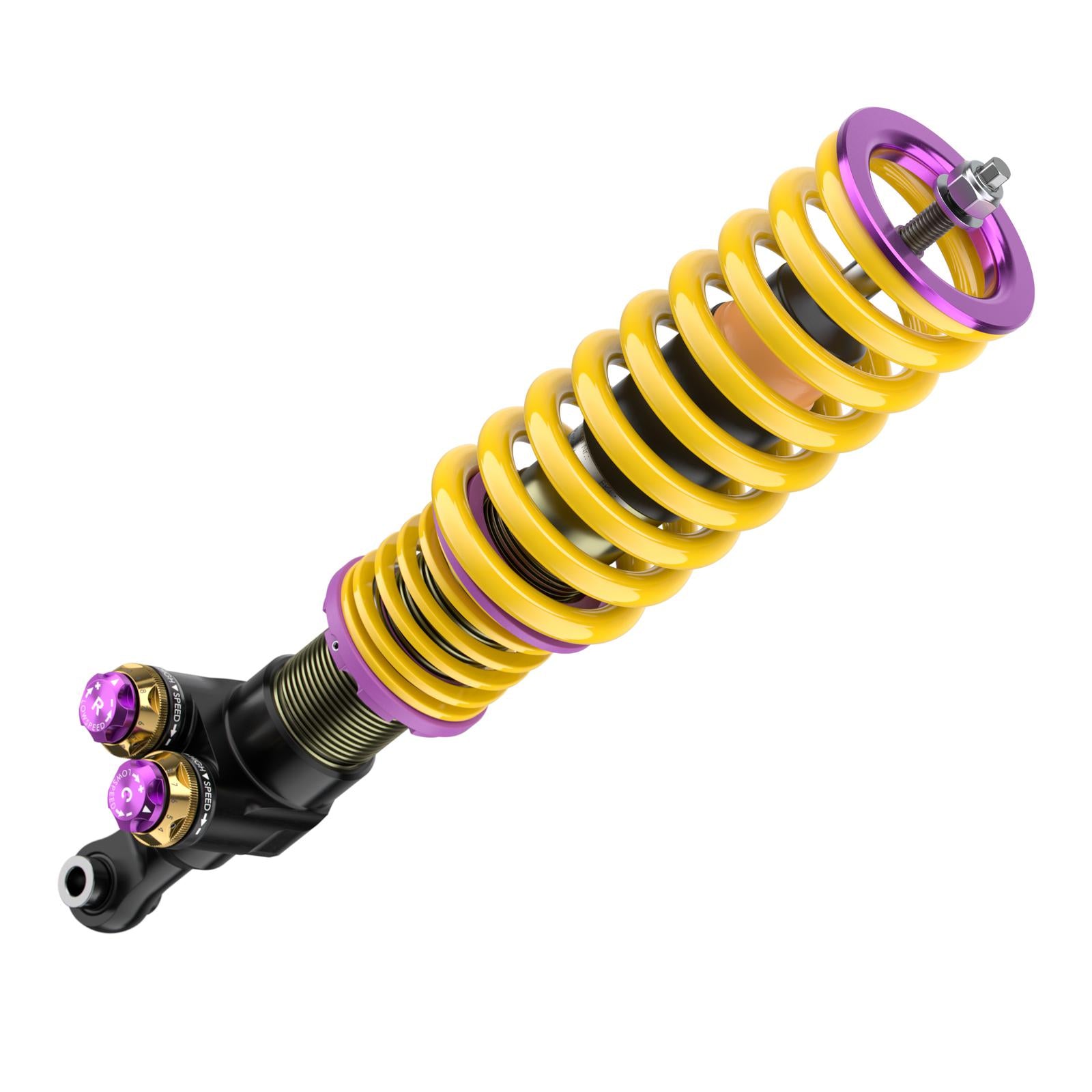

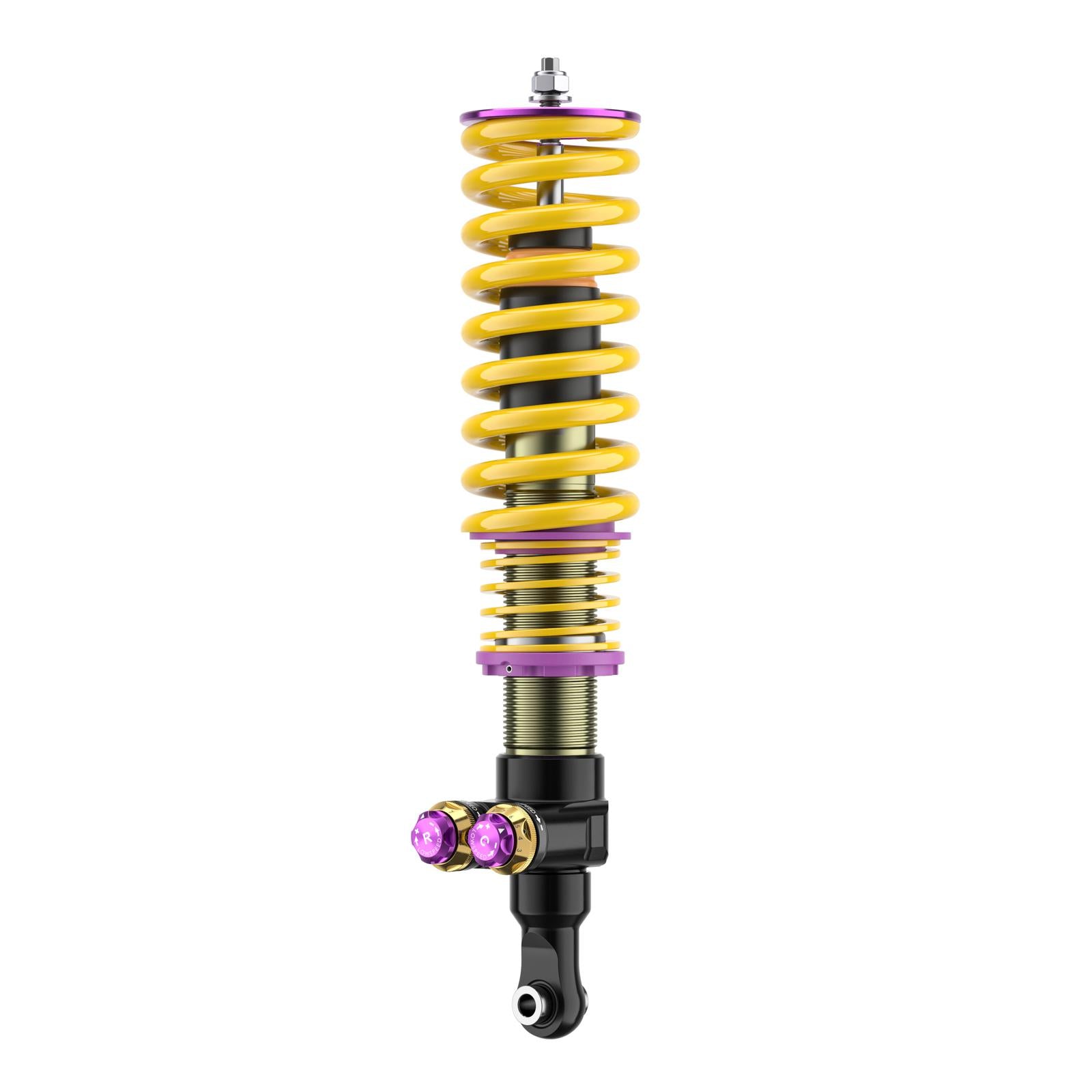

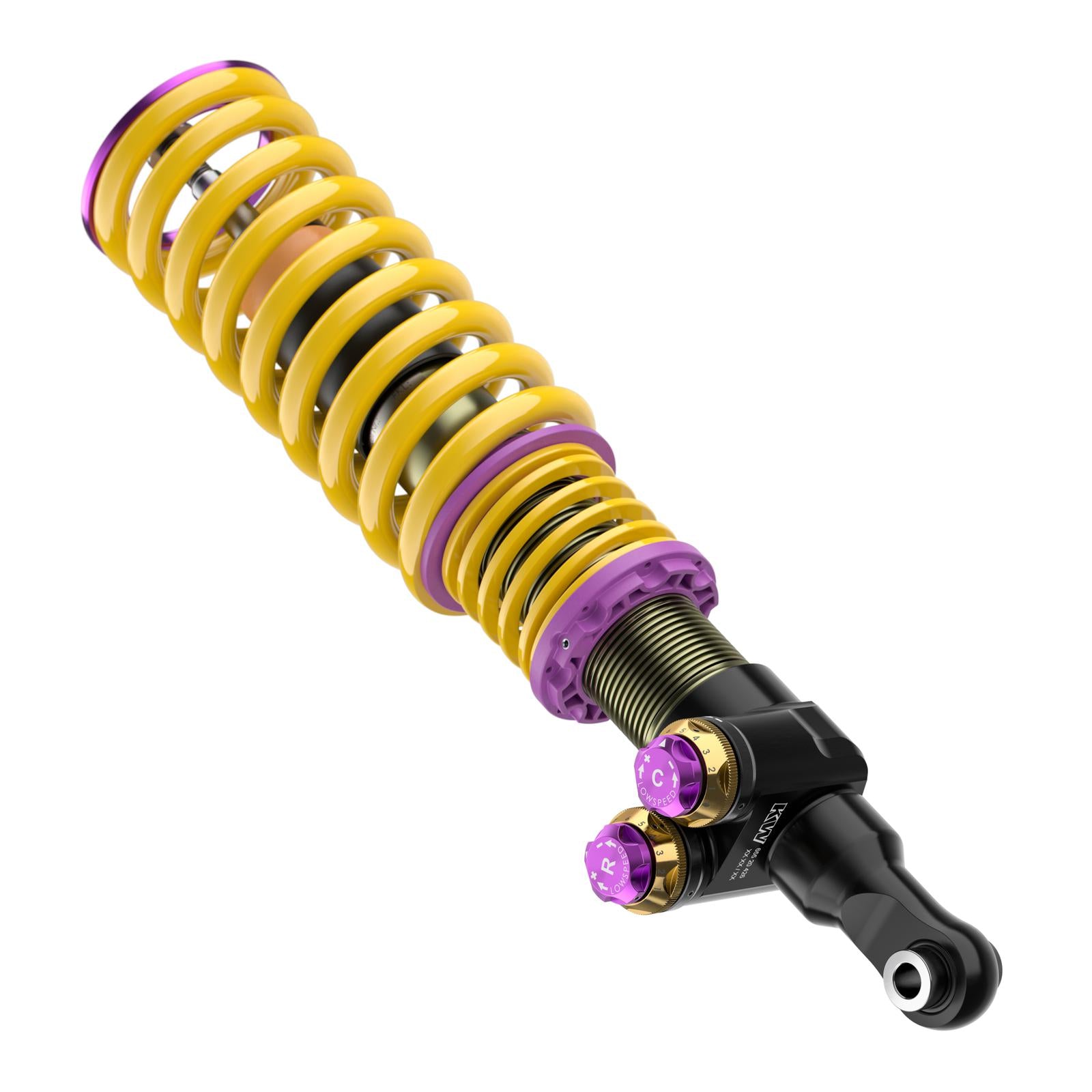

KW Coilover Kit V5 for Ferrari F12 Berlinetta w/ Deactivation for Electronic Dampers
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V5 for Ferrari F12 Berlinetta w/ Deactivation for Electronic Dampers
Sale price$18,239.05
Regular price$19,199.00 (/)

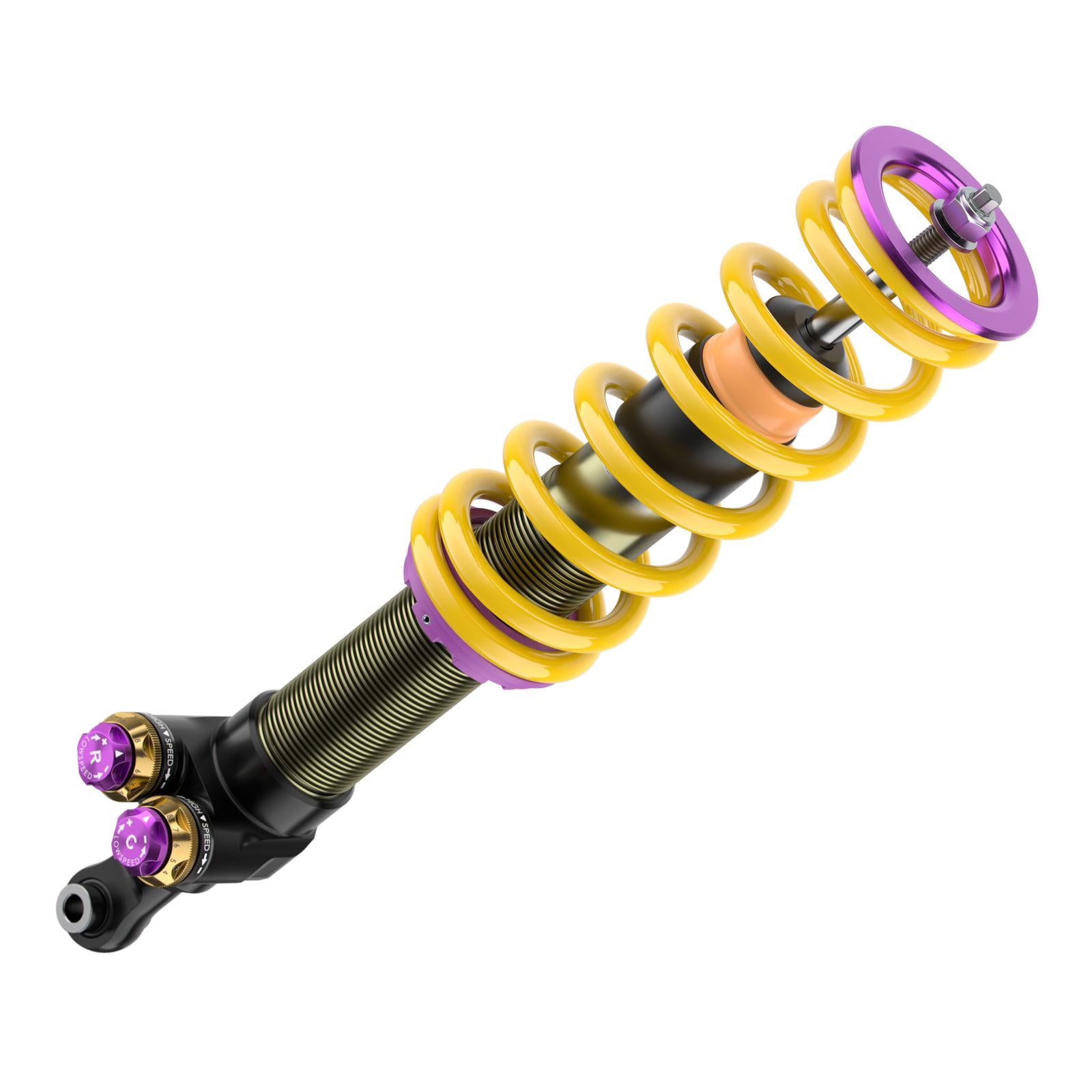

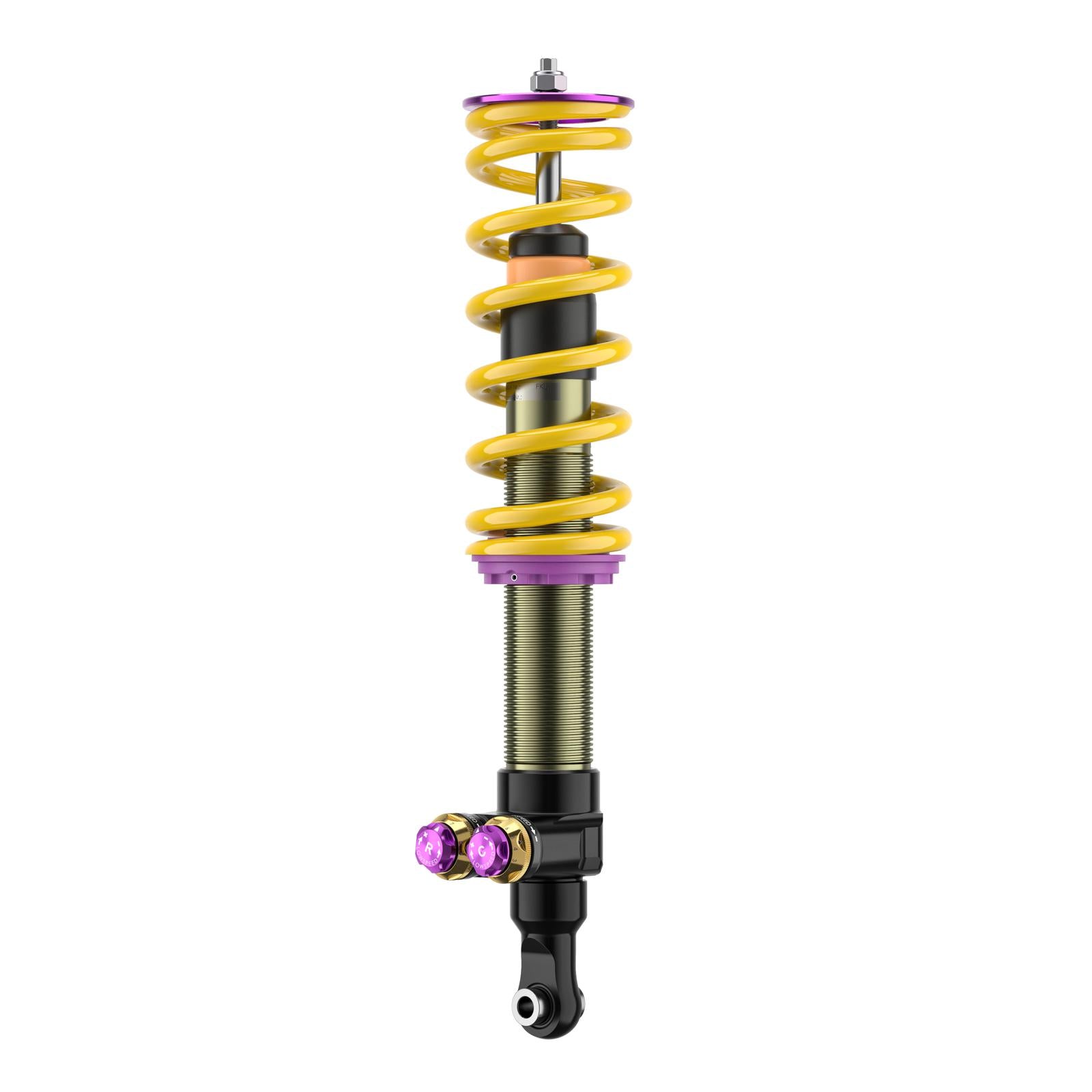

KW's V5 uses KW Solid Piston technology, with low- and high-speed valve units connected in series and mounted separately from the damper inner tube and piston rod. Compression and rebound are each adjustable in 14 clicks in both the low- and high-speed range, and the dampers respond without delay to small inputs, giving more platform support than a conventional damper. This kit is developed for the Ferrari F12 Berlinetta.
Key Features
- Four-way adjustable dampers
- KW Solid Piston technology
- 14 clicks each for low- and high-speed compression and rebound
Specifications
- Version: V5
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 15–35 mm
- Rear lowering: 15–35 mm
- Front axle load: up to 900 kg
- Rear axle load: up to 1,100 kg

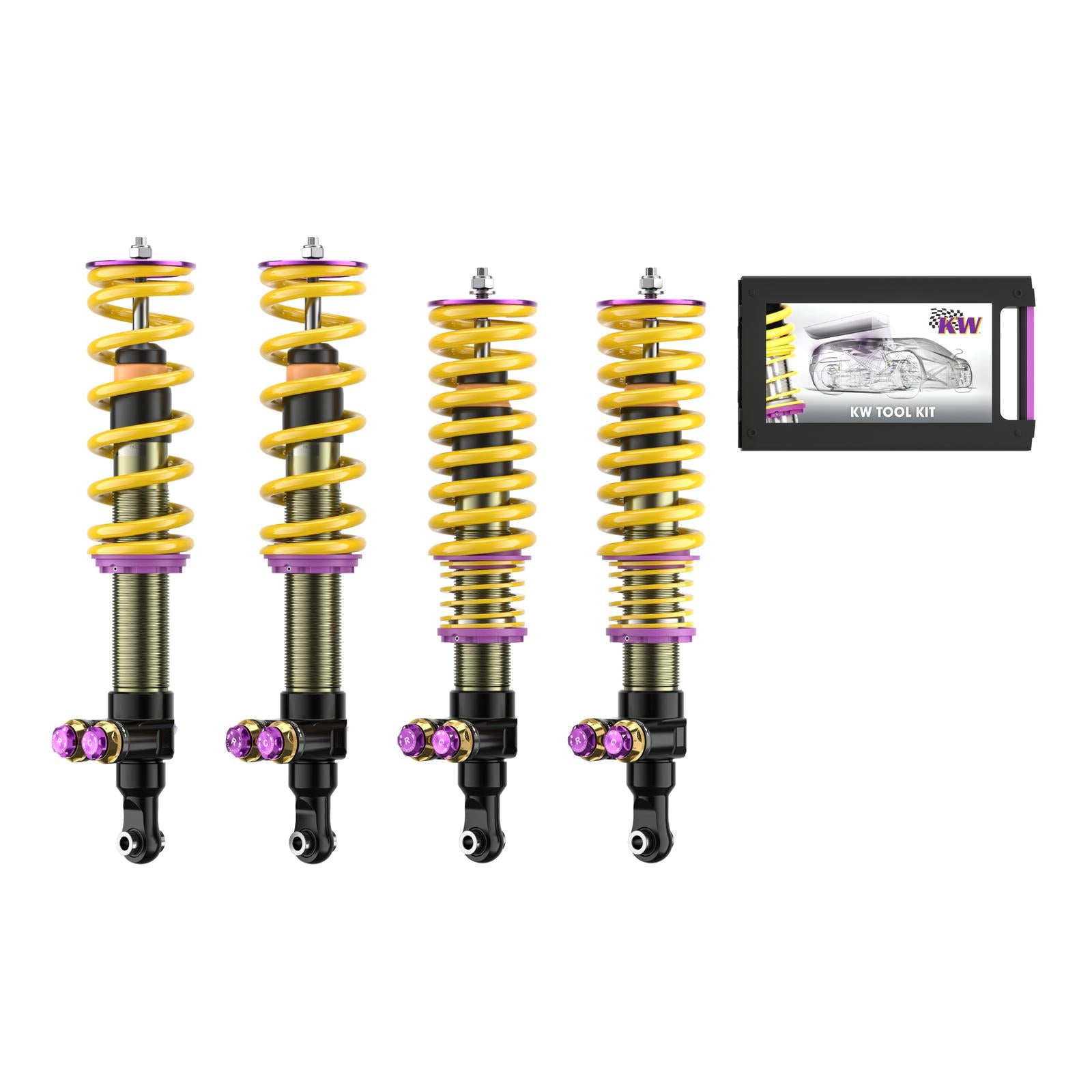

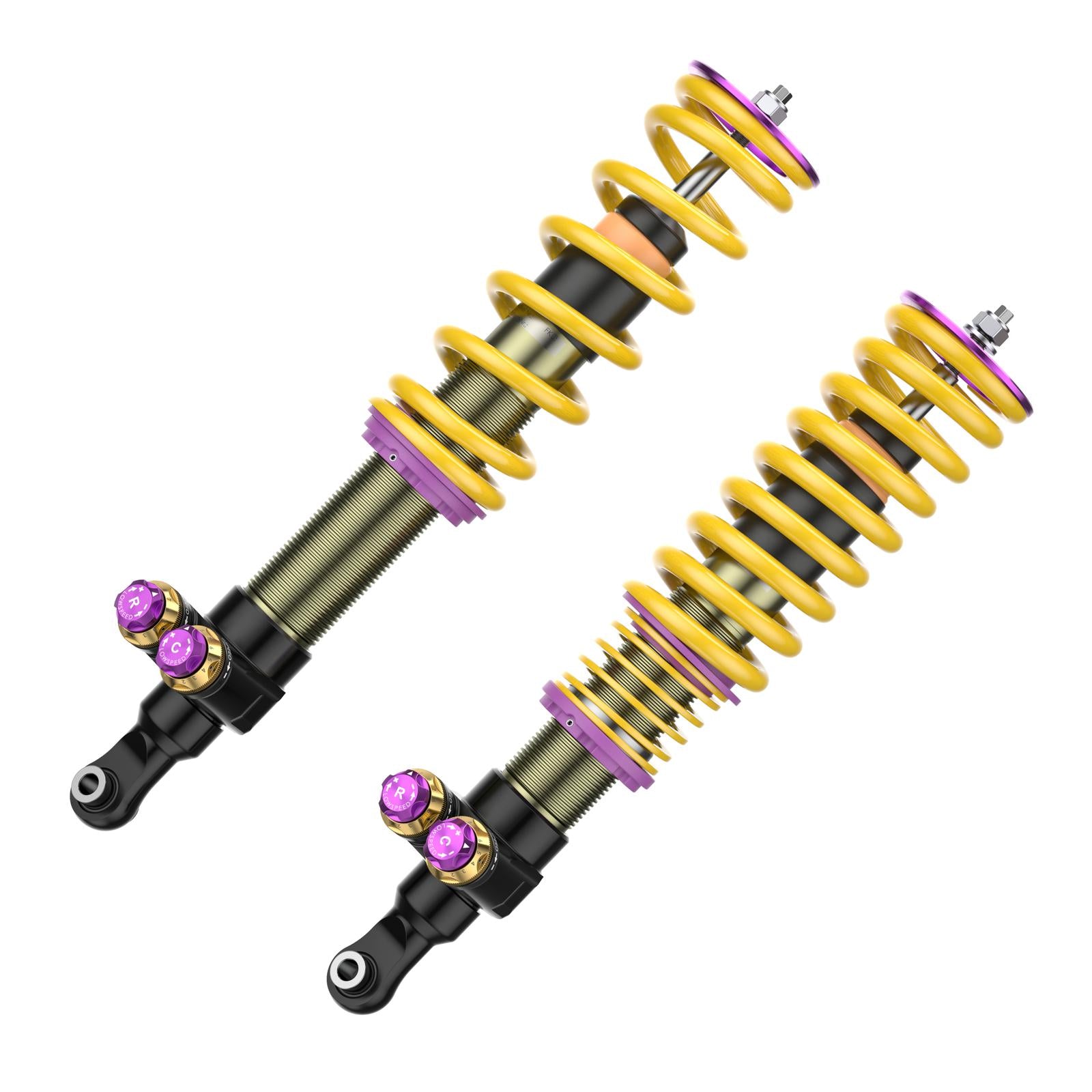

- Supplied as: Front axle + rear axle coilover struts including cancellation kit for electronic damper control
Note For vehicles without standard lift system.
Front axle load up to 900 kg; Rear axle load up to 1,100 kg.
For vehicles without standard lift system.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2012+ | Ferrari | F12 Berlinetta (F152) | 6.3 | Petrol · 544 kW · 6.3L · 12-cyl | Rear-Wheel Drive | 1, 67, 88, 90, 403 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
- Note 90: Aluminium suspensions struts.
- Note 403: Not for cars with original lift system.
