KW Coilover Kit DDC - ECU for BMW (E82) 135i / 1 Series

SKU: 39020002
Sale price$6,468.55 Regular price$6,809.00
Save $340.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

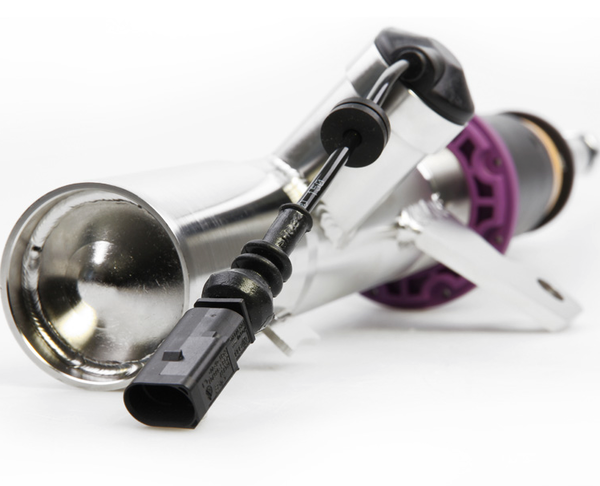

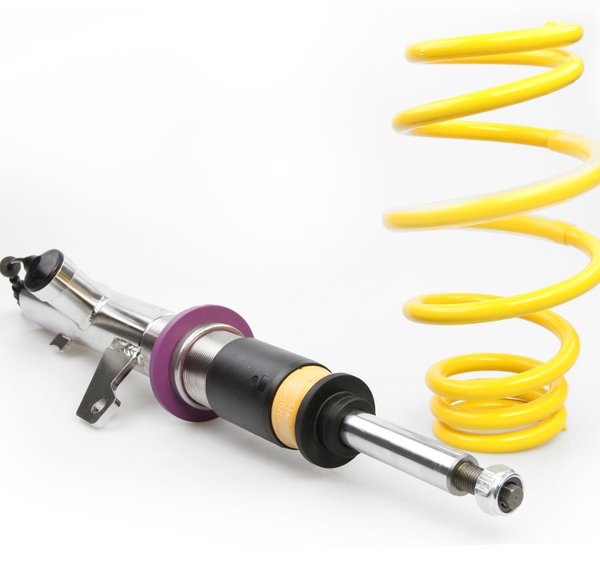

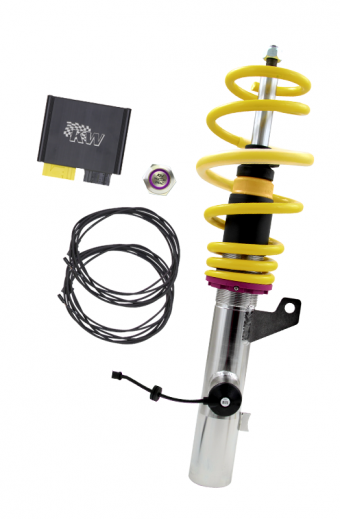

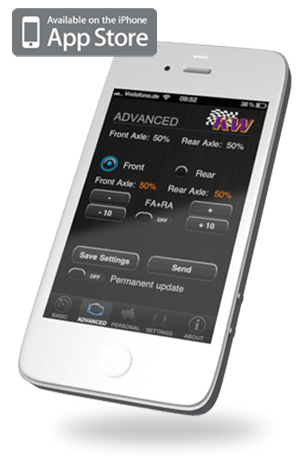

KW DDC ECU coilovers are part of KW's iSuspension range, combining electronically adjustable damping with a vehicle-specific height-adjustable coilover. Damping modes are selected at the push of a button, while ride height is set within the tested range via the trapezoidal thread and composite spring collar. This kit is developed for the BMW 135i / 1 Series Coupe (E82).

Key Features

  • Electronic damper adjustment
  • Height adjustable within the tested range

Specifications

  • Version: DDC ECU
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 25–50 mm
  • Front axle load: up to 945 kg
  • Rear axle load: up to 1,070 kg

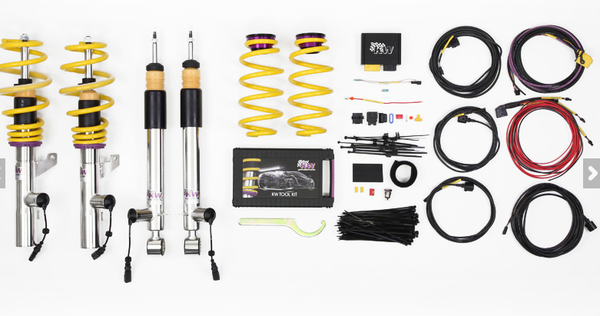

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers + control unit

Front axle load up to 945 kg; Rear axle load up to 1,070 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2006–2013BMW1 Coupe (E82) 182, 1C, M-V120 dDiesel · 145 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V118 dDiesel · 100 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V135 iPetrol · 240 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V135 iPetrol · 225 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V120 dDiesel · 130 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V123 dDiesel · 150 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V125 iPetrol · 160 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V120 dDiesel · 120 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V120 iPetrol · 125 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V118 dDiesel · 105 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V128 iPetrol · 172 kW · 3.0L · 6-cylRear-Wheel Drive2, 6
2006–2013BMW1 Coupe (E82) 182, 1C, M-V120 iPetrol · 115 kW · 2.0L · 4-cylRear-Wheel Drive2, 6
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 6: When using original tyres, wheel offset spacers may be required.
