KW Coilover Kit DDC - ECU for Land Rover (L538) Range Rover Evoque

SKU: 39055001
Sale price$7,827.05 Regular price$8,239.00
Save $411.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW DDC ECU coilovers are part of KW's iSuspension range, combining electronically adjustable damping with a vehicle-specific height-adjustable coilover. Damping modes are selected at the push of a button, while ride height is set within the tested range via the trapezoidal thread and composite spring collar. This kit is developed for the Land Rover Range Rover Evoque (L538) 4x4.

Key Features

  • Electronic damper adjustment
  • Height adjustable within the tested range

Specifications

  • Version: DDC ECU
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–55 mm
  • Rear lowering: 25–65 mm
  • Front axle load: up to 1,370 kg
  • Rear axle load: up to 1,190 kg

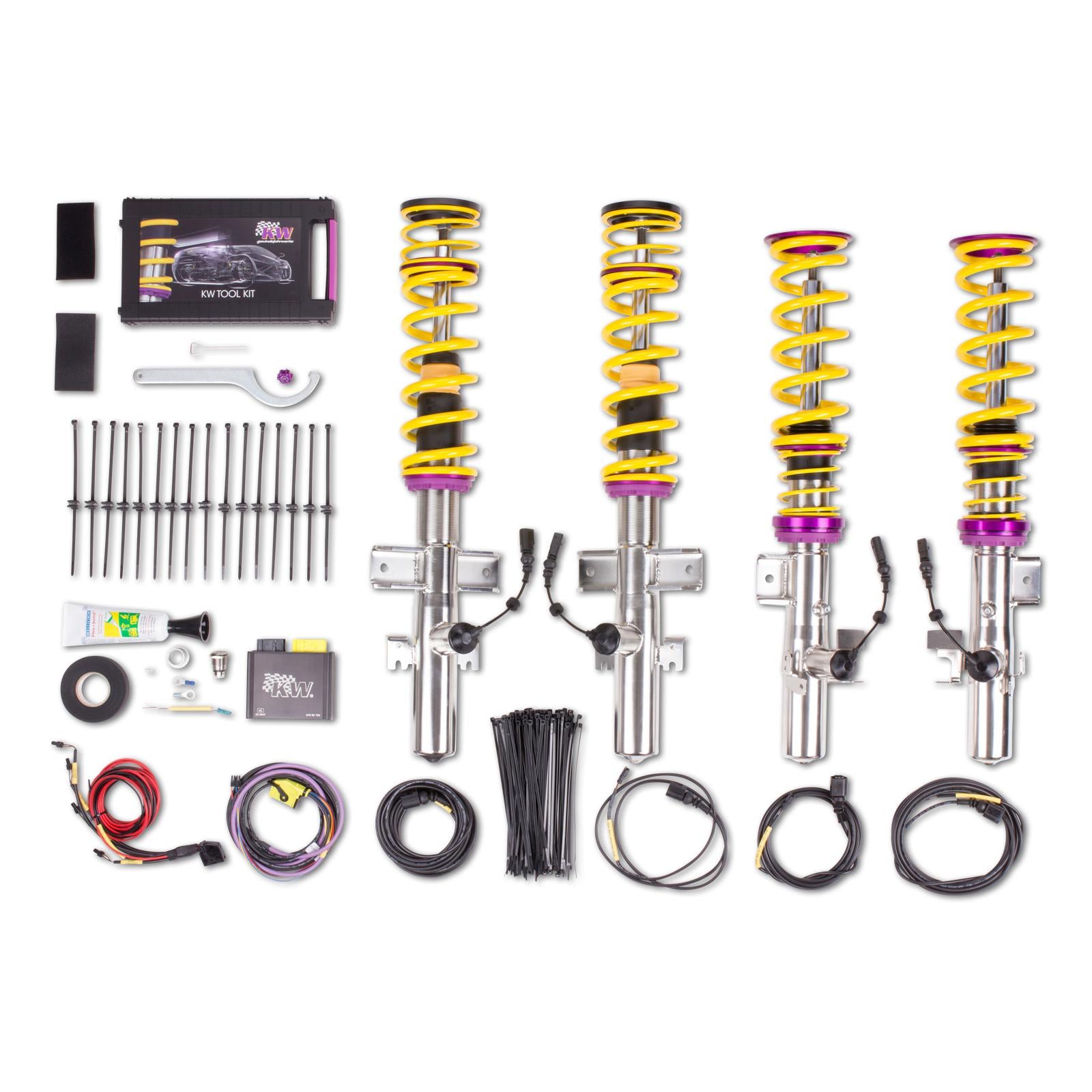

  • Supplied as: Front axle + rear axle coilover struts + control unit

Front axle load up to 1,370 kg; Rear axle load up to 1,190 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 4x4Petrol · 176 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 4x4Petrol · 177 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 4x4Petrol · 179 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 4x4Petrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 D 4x4Diesel · 110 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 D 4x4Diesel · 132 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.0 D 4x4Diesel · 177 kW · 2.0L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.2 D 4x4Diesel · 110 kW · 2.2L · 4-cylAll-Wheel Drive1, 37
2011–2019Land RoverRange Rover Evoque (L538, LV)2.2 D 4x4Diesel · 140 kW · 2.2L · 4-cylAll-Wheel Drive1, 37
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
