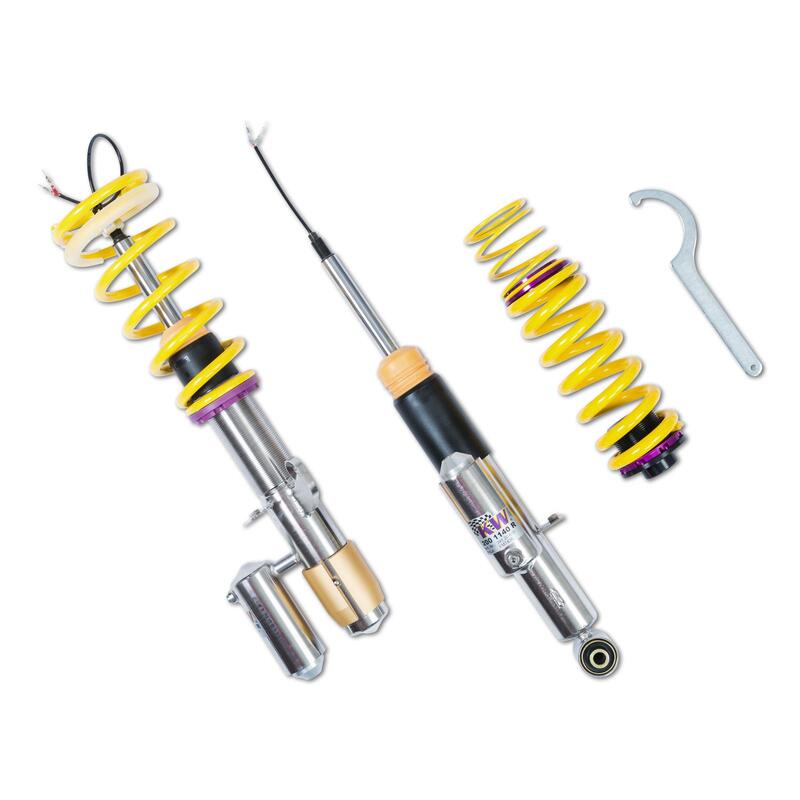

KW Coilover Kit DDC Plug & Play for Cupra (KM7) Formentor VZ e-Hybrid

SKU: 39081017
Sale price$6,278.55 Regular price$6,609.00
Save $330.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW DDC Plug & Play coilovers replace a factory adaptive suspension and connect directly to the original plugs, with no wiring modifications. The vehicle's own interior controls select the damping modes, and all displays and controls remain functional. Ride height is adjustable within the tested range. This kit is developed for the Cupra Formentor VZ e-Hybrid (KM7).

Key Features

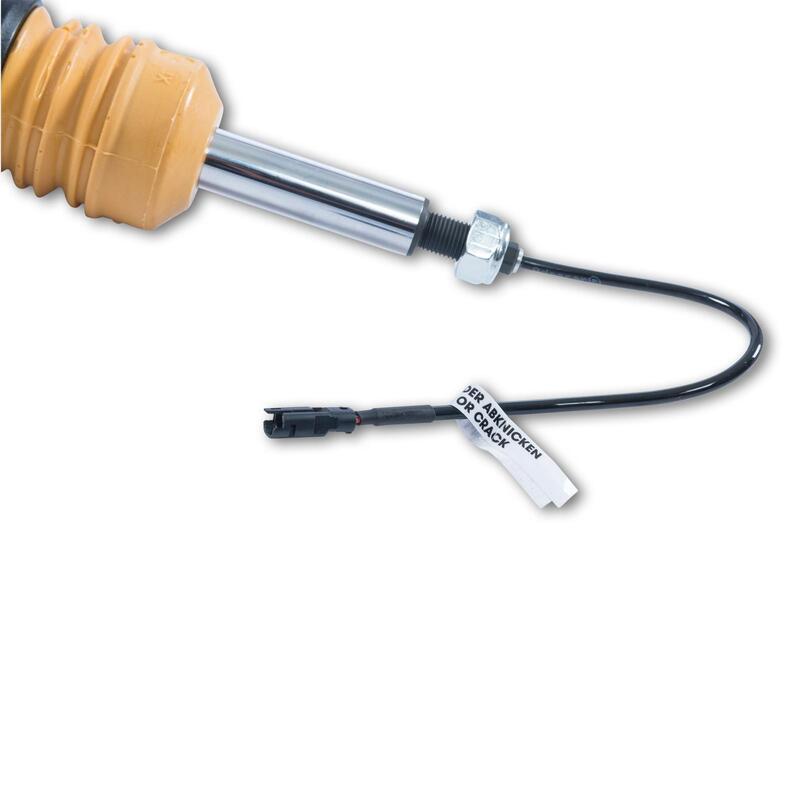

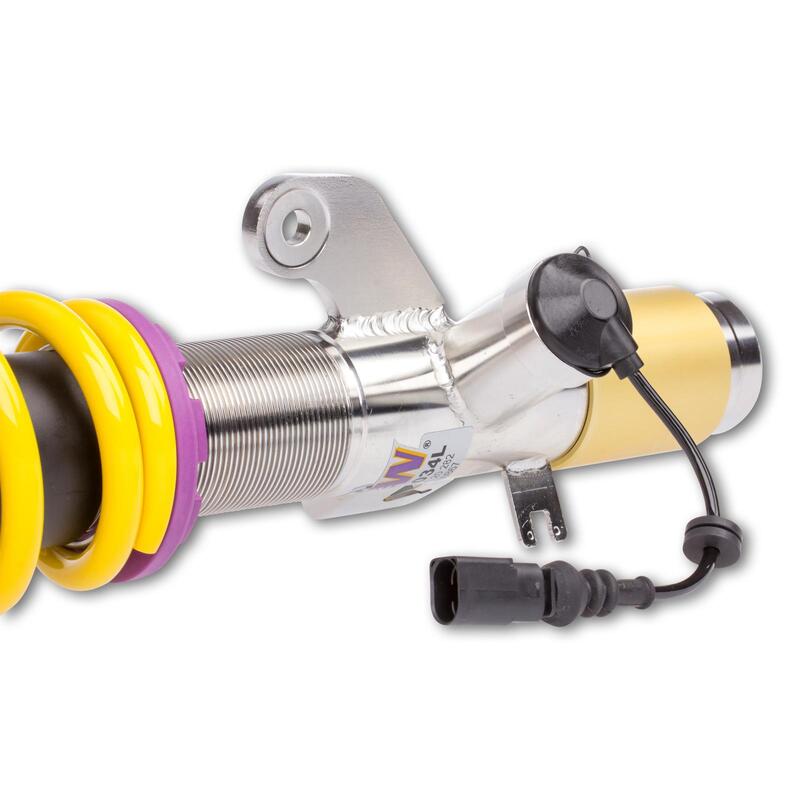

  • Plugs into the factory adaptive damper wiring
  • Factory drive-mode controls retained
  • Height adjustable within the tested range

Specifications

  • Version: DDC Plug & Play
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 40–60 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,100 kg
  • Rear axle load: up to 1,090 kg

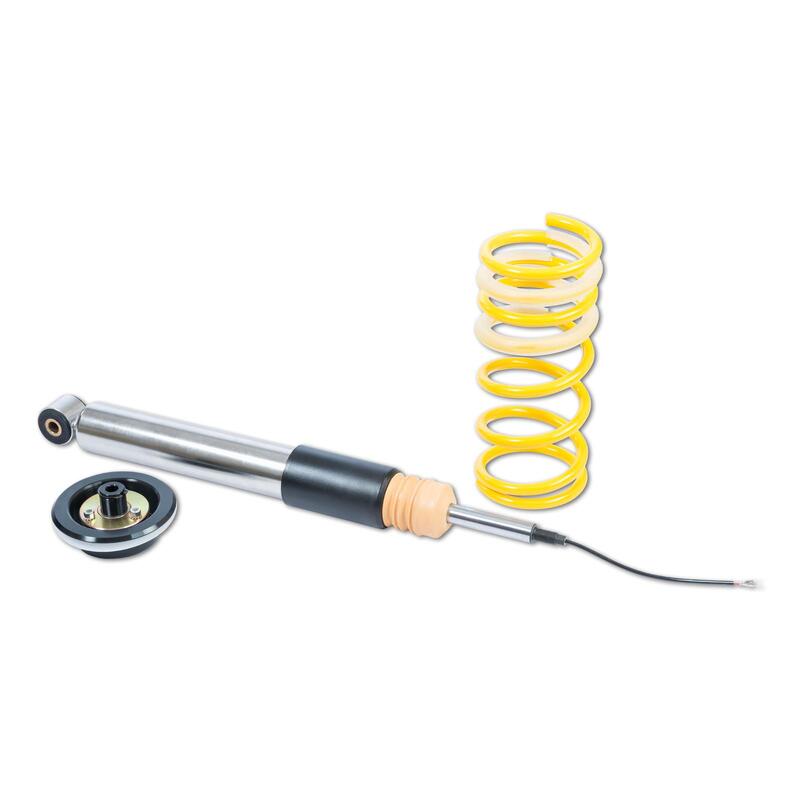

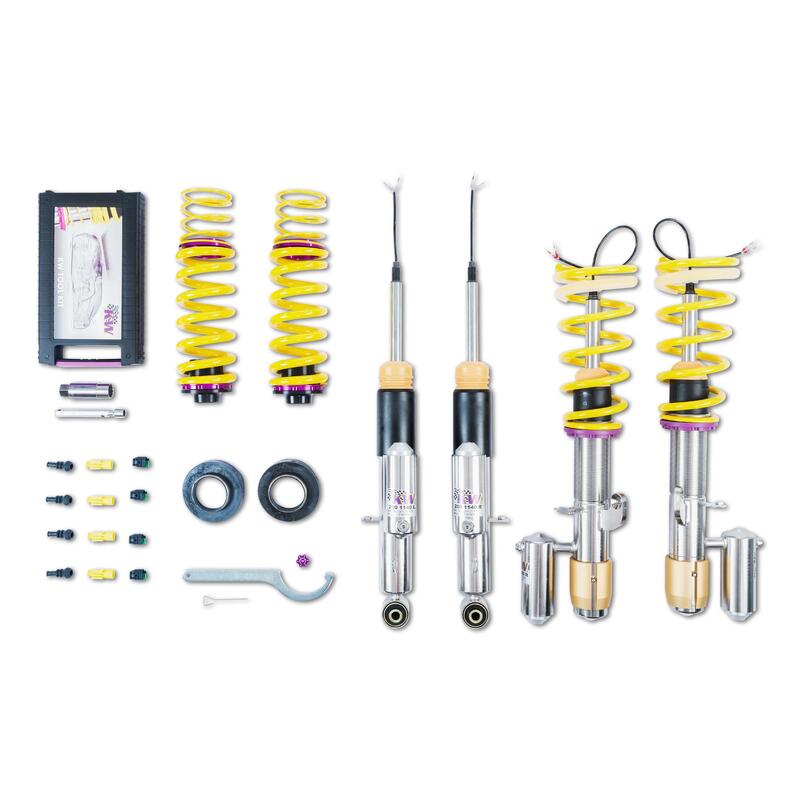

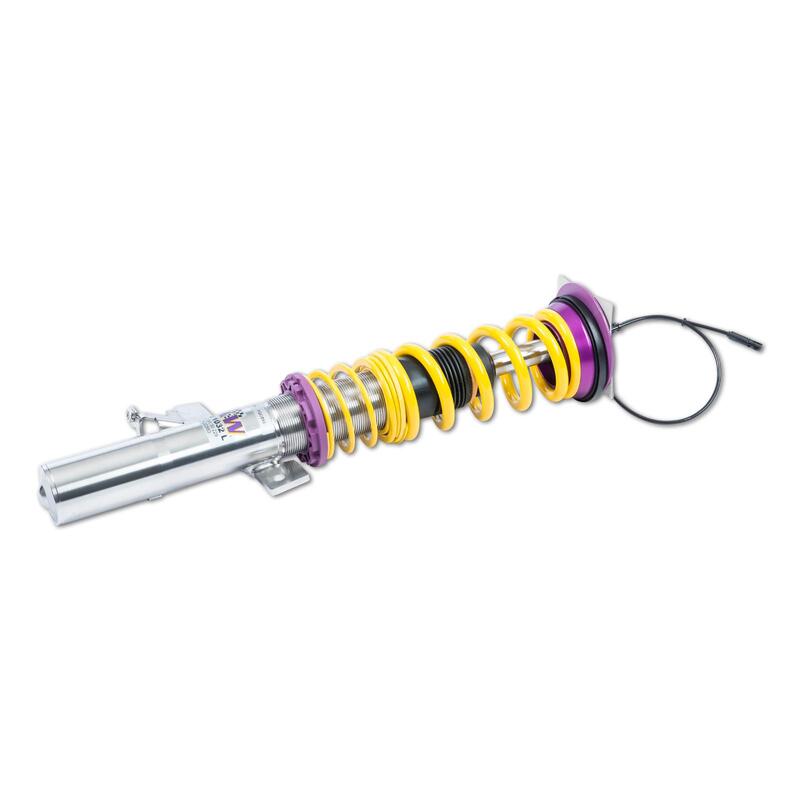

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars with electronic damping.

Front axle load up to 1,100 kg; Rear axle load up to 1,090 kg.

For cars with electronic damping.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2020+CupraFormentor (KM7, KMP)1.4 e-HybridPetrol/Electric · 150 kW · 1.4L · 4-cylFront-Wheel Drive2, 55
2020+CupraFormentor (KM7, KMP)1.4 e-Hybrid VZPetrol/Electric · 180 kW · 1.4L · 4-cylFront-Wheel Drive2, 55
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 55: Only for vehicles which have electronic dampers.
