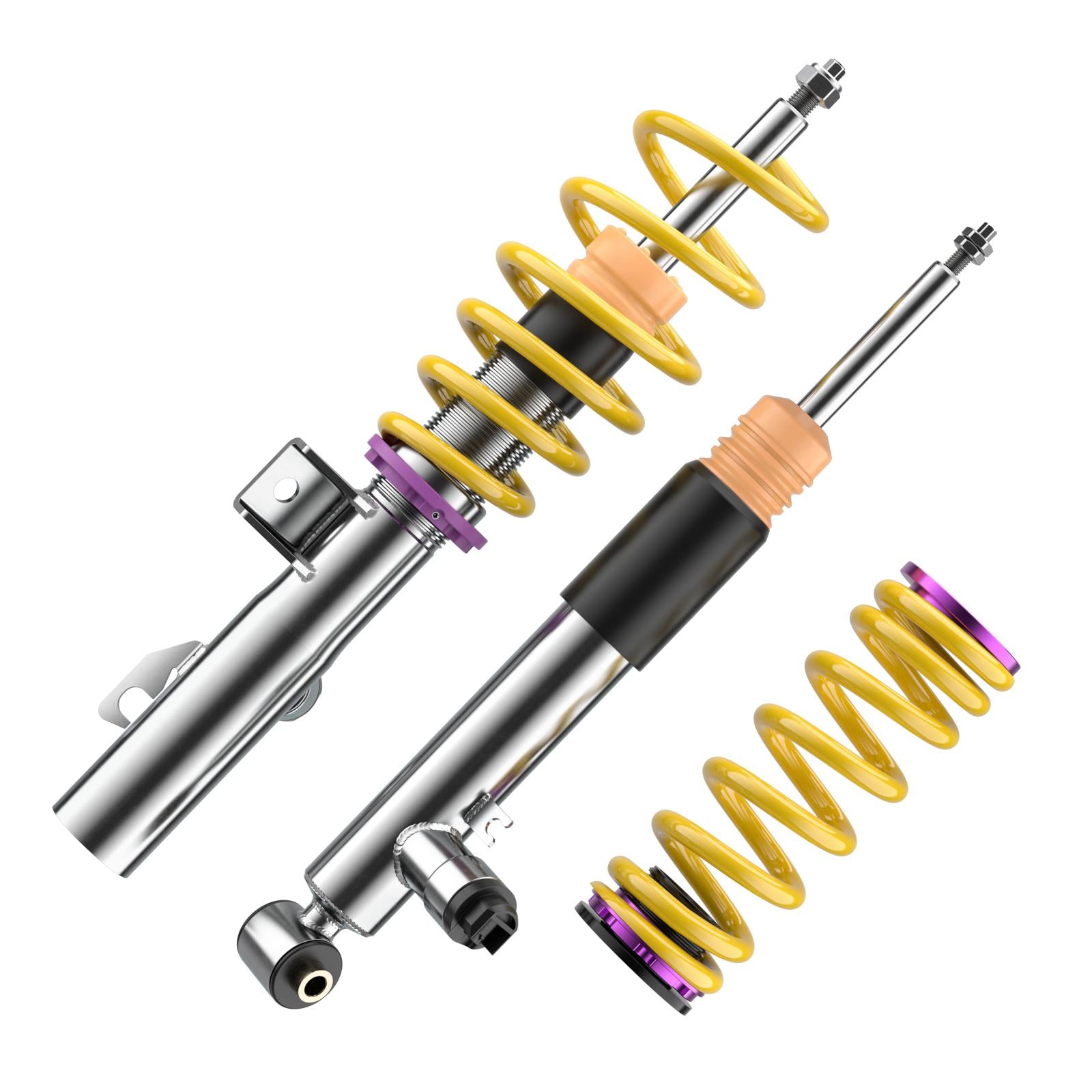

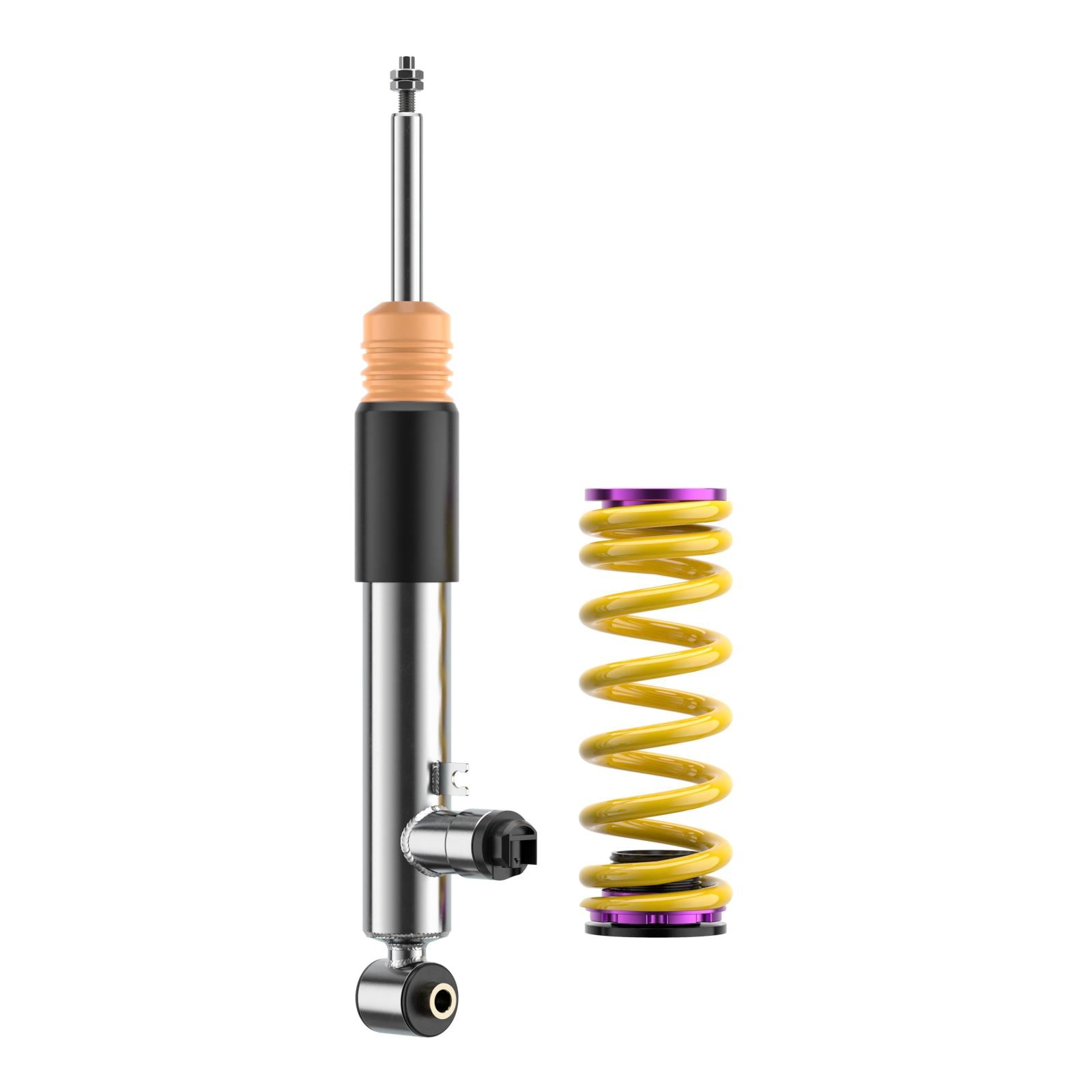

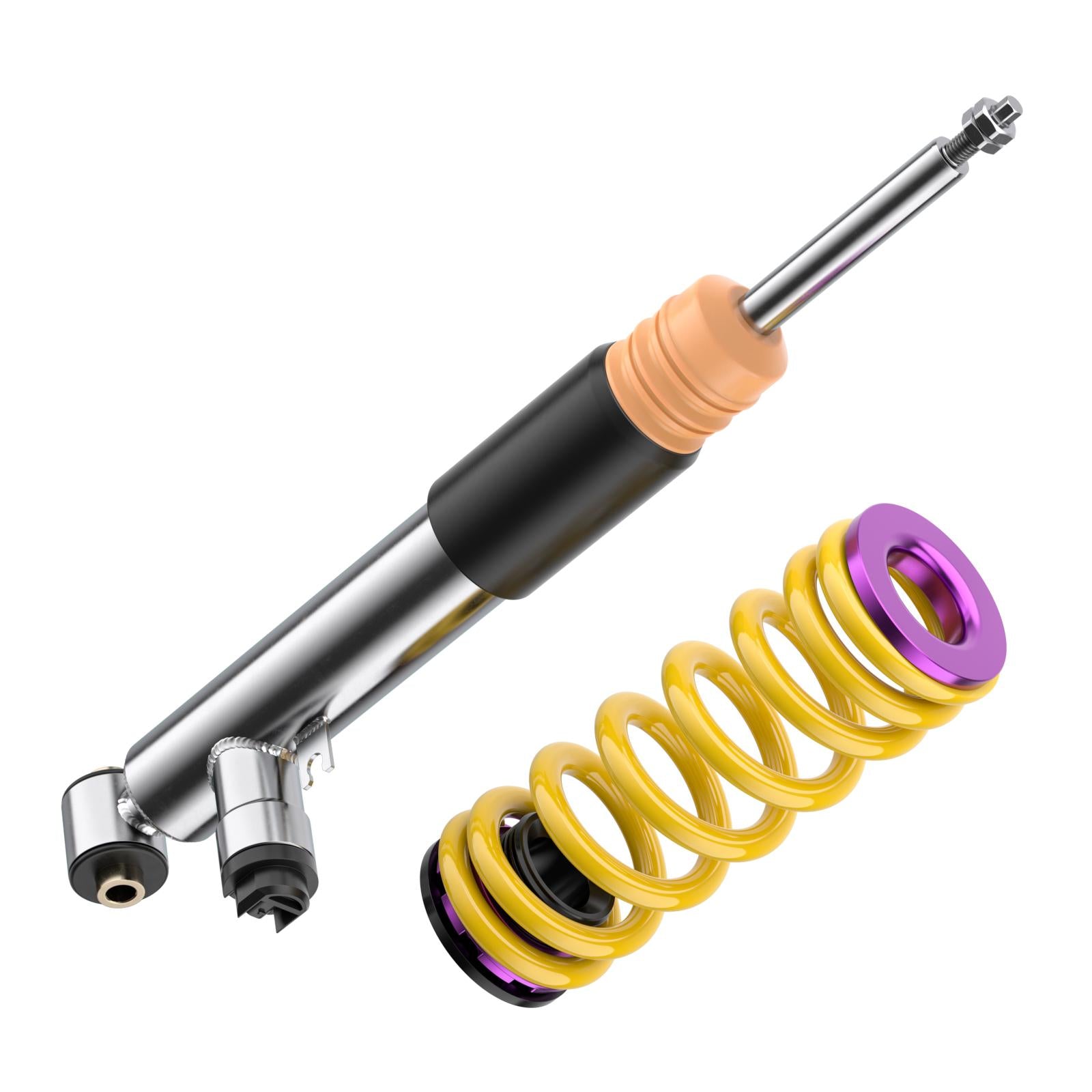

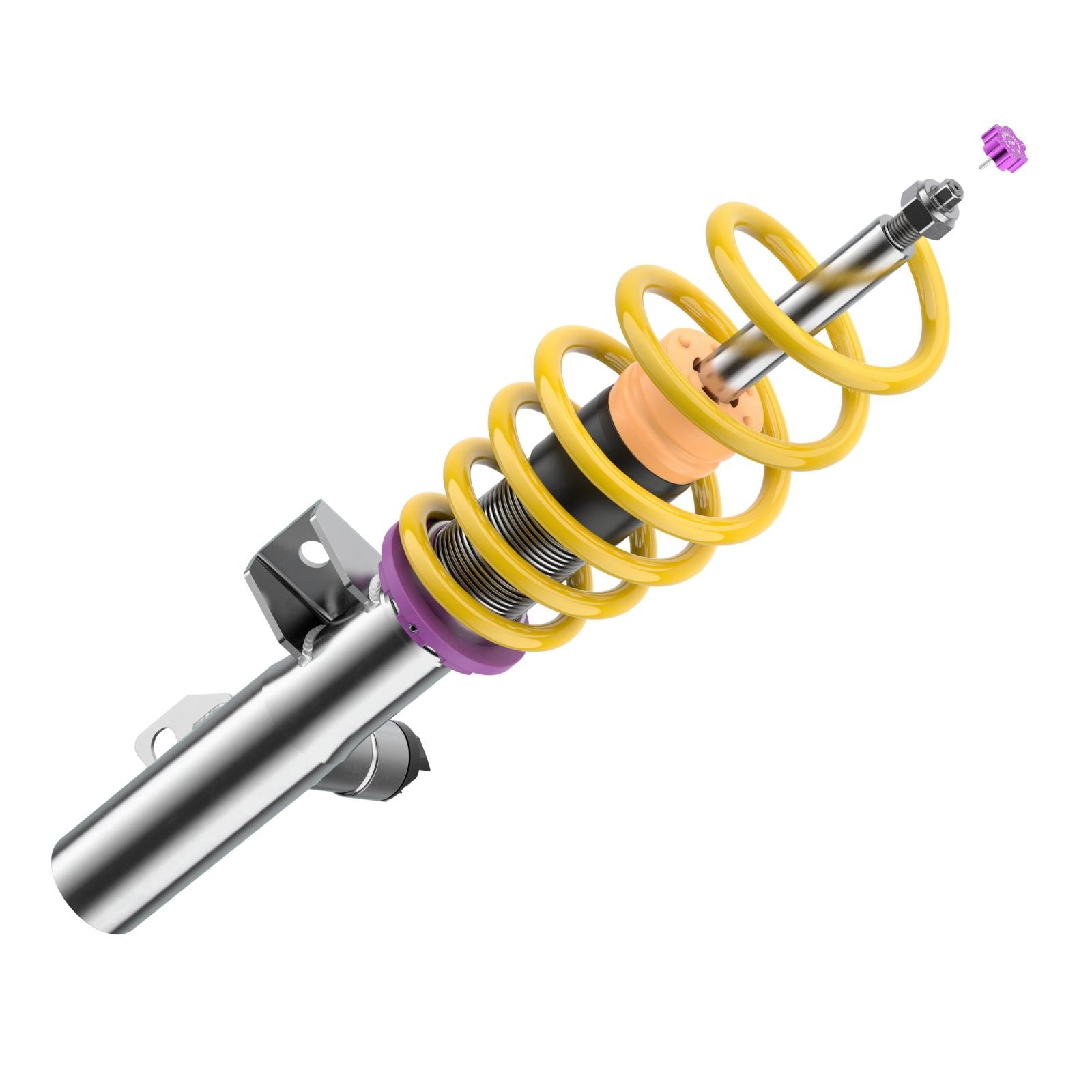

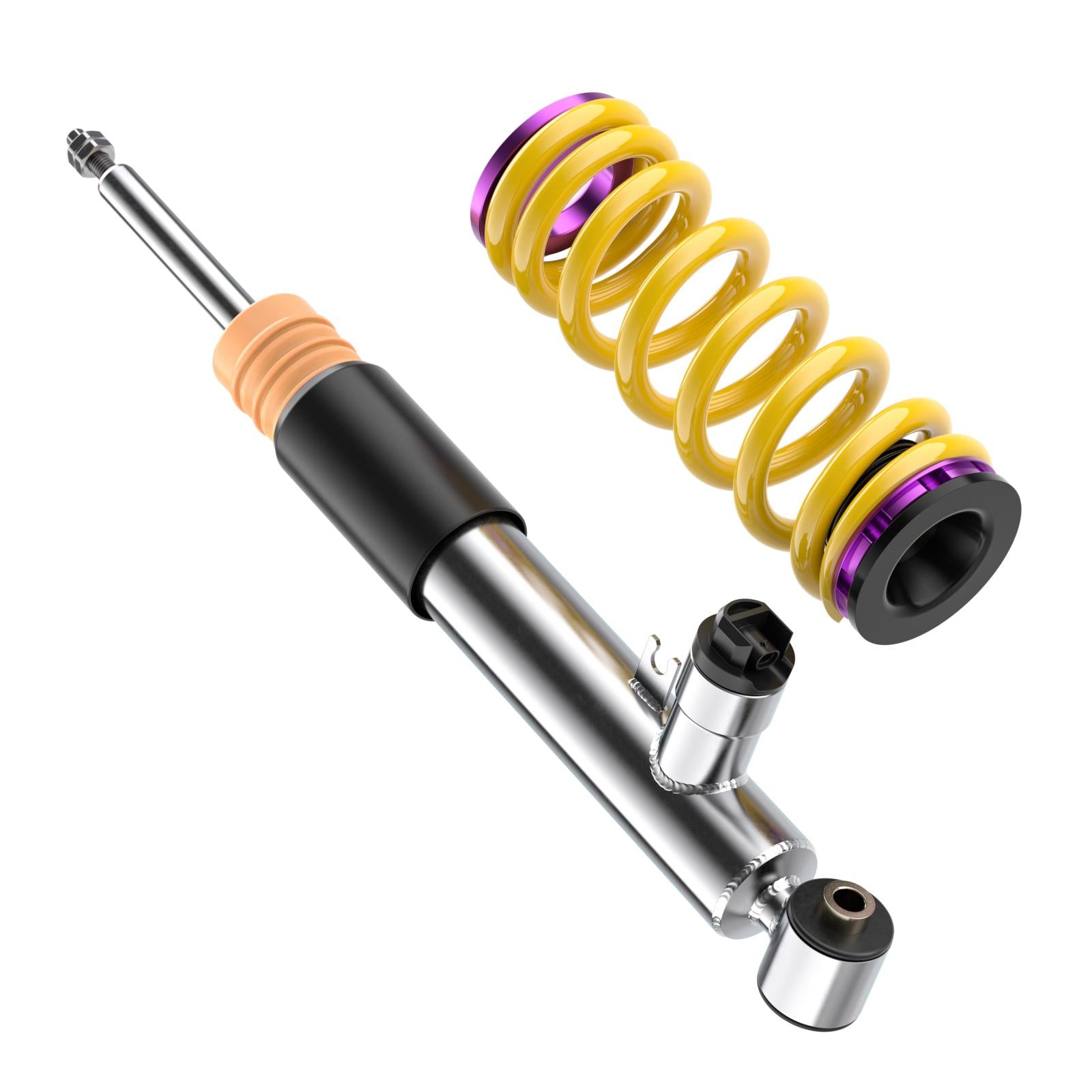

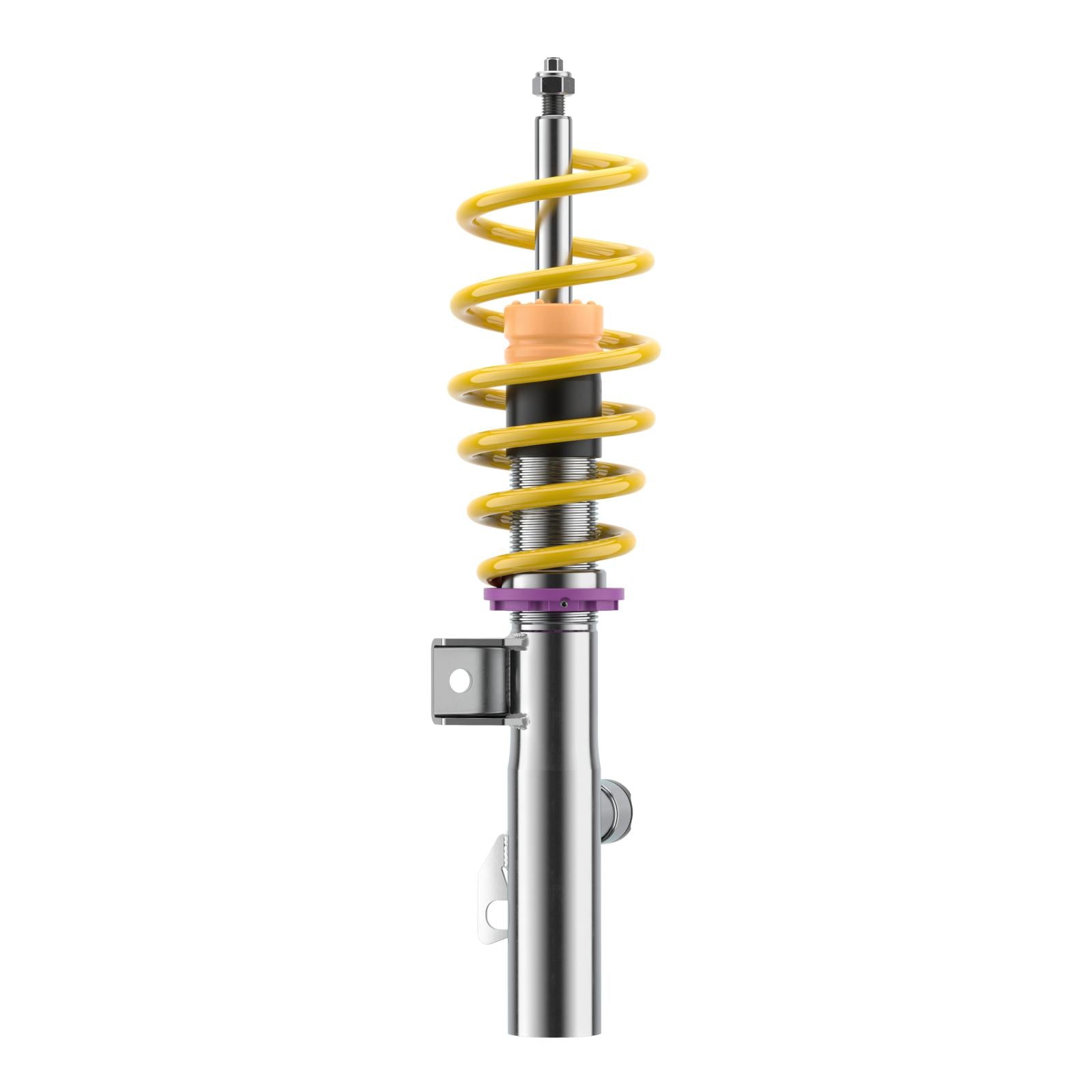

KW Coilover Kit DDC Plug & Play for Cupra (K1) Born / VW (E11) ID.3

SKU: 39080061
Sale price$5,366.55 Regular price$5,649.00
Save $282.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW DDC Plug & Play coilovers replace a factory adaptive suspension and connect directly to the original plugs, with no wiring modifications. The vehicle's own interior controls select the damping modes, and all displays and controls remain functional. Ride height is adjustable within the tested range. This kit is developed for the Cupra Born (K1) / VW ID.3 (E11).

Key Features

  • Plugs into the factory adaptive damper wiring
  • Factory drive-mode controls retained
  • Height adjustable within the tested range

Specifications

  • Version: DDC Plug & Play
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 30–55 mm
  • Rear lowering: 30–55 mm
  • Front axle load: up to 1,110 kg
  • Rear axle load: up to 1,260 kg

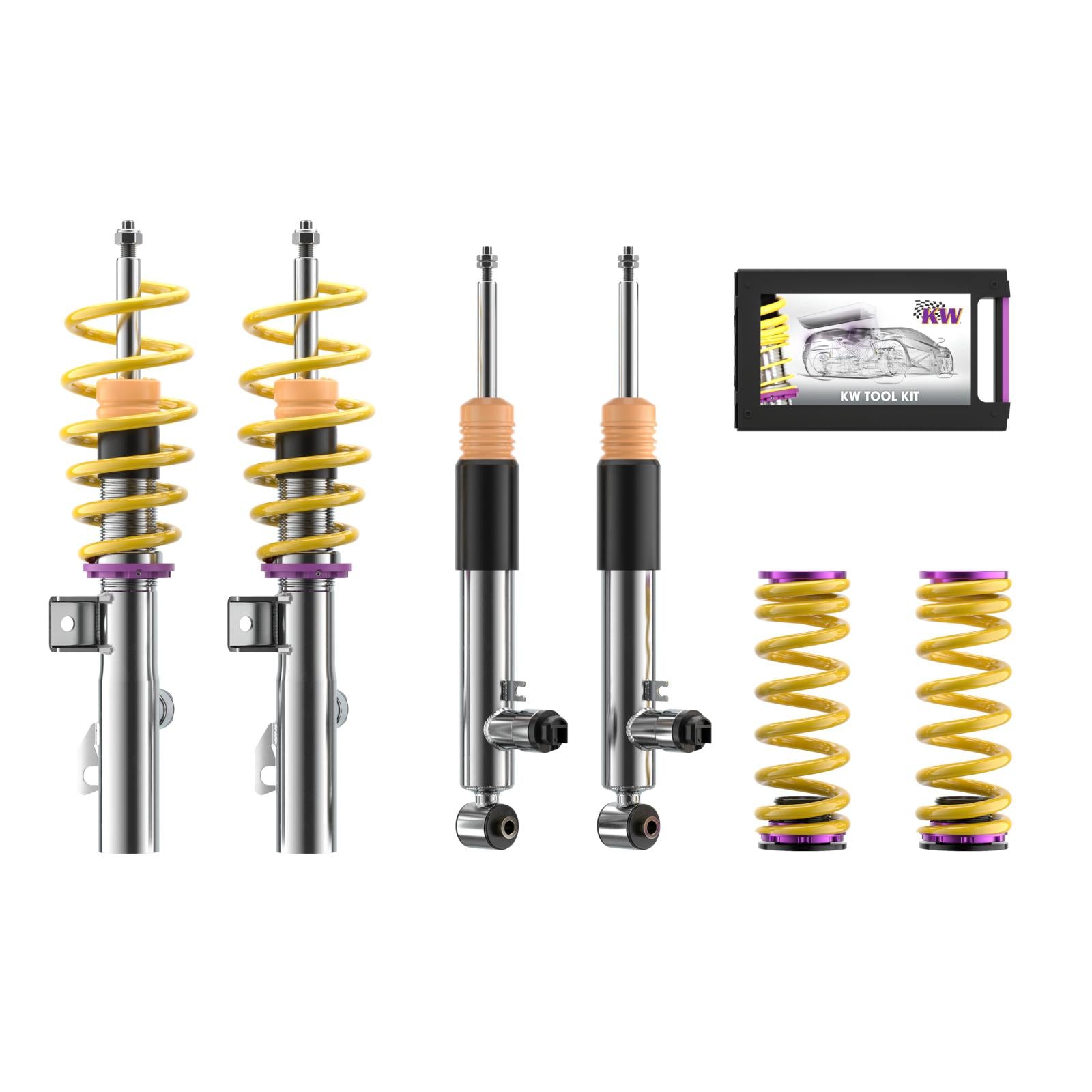

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars with electronic damping.

Front axle load up to 1,110 kg; Rear axle load up to 1,260 kg.

For cars with electronic damping.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2021+CupraBorn (K1)45Electric · 110 kWRear-Wheel Drive2, 55, 422
2021+CupraBorn (K1)58Electric · 150 kWRear-Wheel Drive2, 55, 422
2021+CupraBorn (K1)58 e-boostElectric · 170 kWRear-Wheel Drive2, 55, 422
2021+CupraBorn (K1)63Electric · 170 kWRear-Wheel Drive2, 55, 422
2019+VWID.31stElectric · 150 kWRear-Wheel Drive2, 55, 422
2019+VWID.3ProElectric · 107 kWRear-Wheel Drive2, 55, 422
2019+VWID.3ProElectric · 150 kWRear-Wheel Drive2, 55, 422
2019+VWID.3PureElectric · 93 kWRear-Wheel Drive2, 55, 422
2019+VWID.3PureElectric · 110 kWRear-Wheel Drive2, 55, 422
2019+VWID.3PureElectric · 125 kWRear-Wheel Drive2, 55, 422
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 55: Only for vehicles which have electronic dampers.
  • Note 422: At a driving speed between 70 – 110km/h with a lowered car of +30mm, slight vibrations can be recognized eventually, due to kinematic of axle construction. Solution in such cases = to reduce lowering, if perception of vibrations are on a disturbing level.
