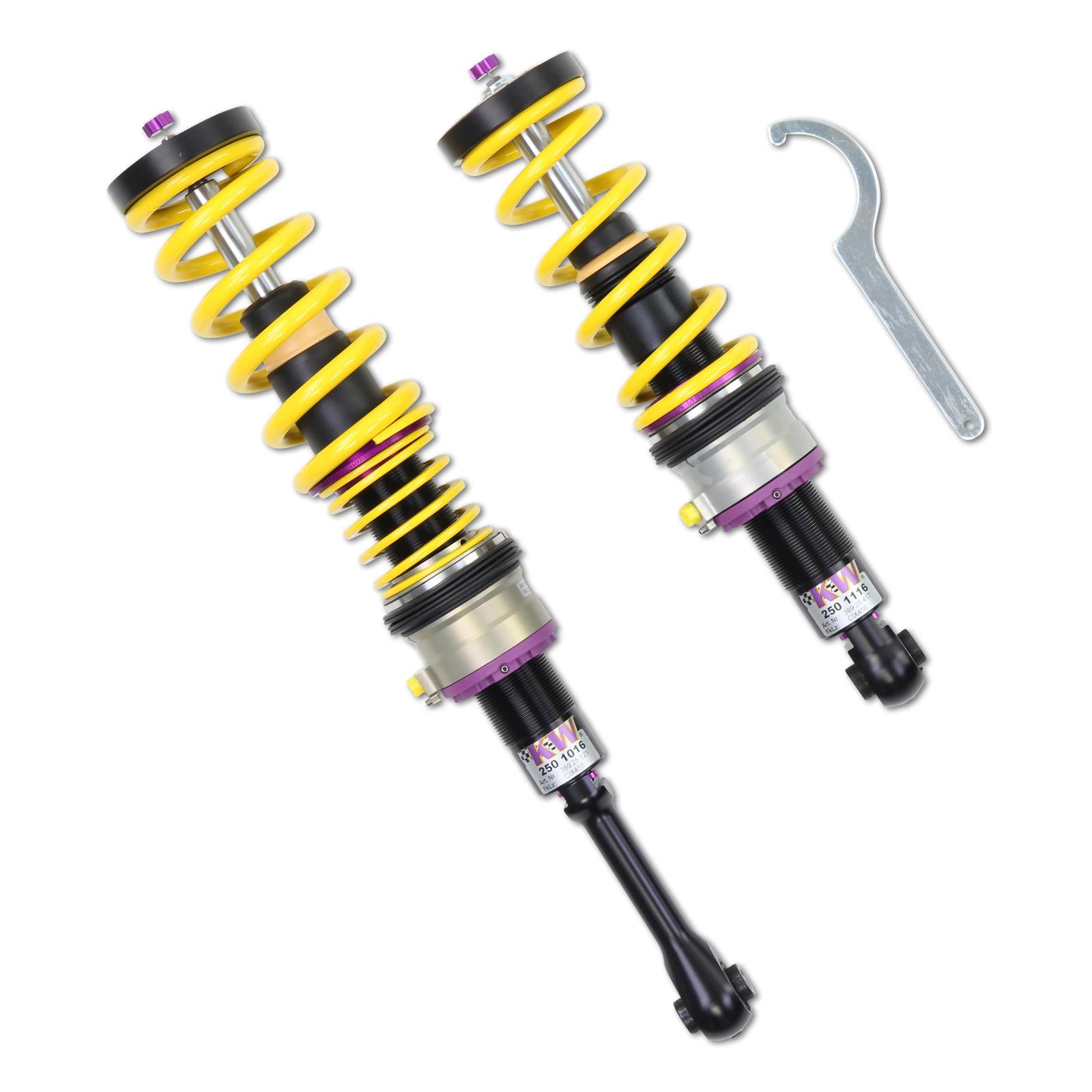

KW Coilover Kit V4 for Audi (4S) R8 GT / R8 / R8 Spyder w/ HLS 2 Hydraulic Lift System
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

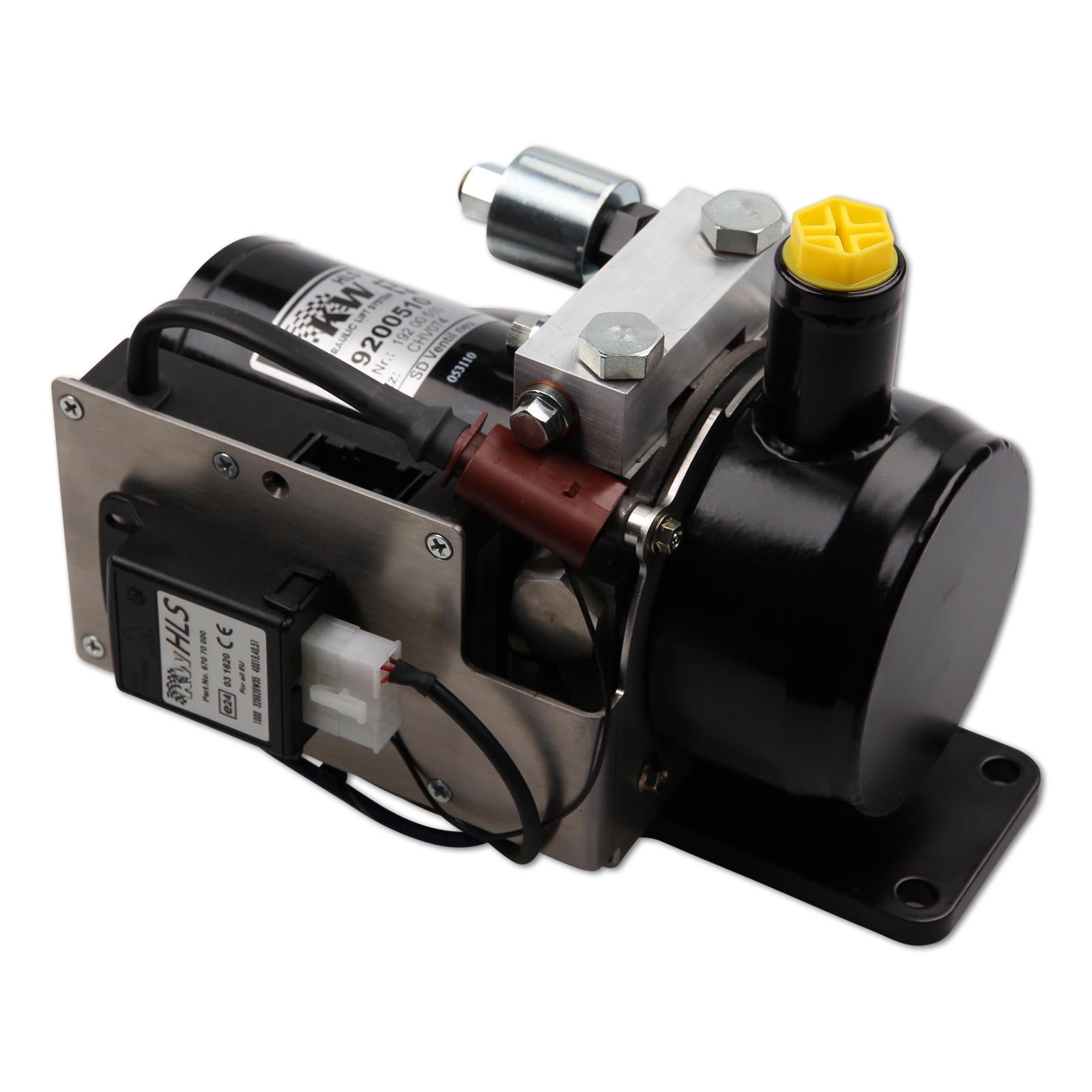

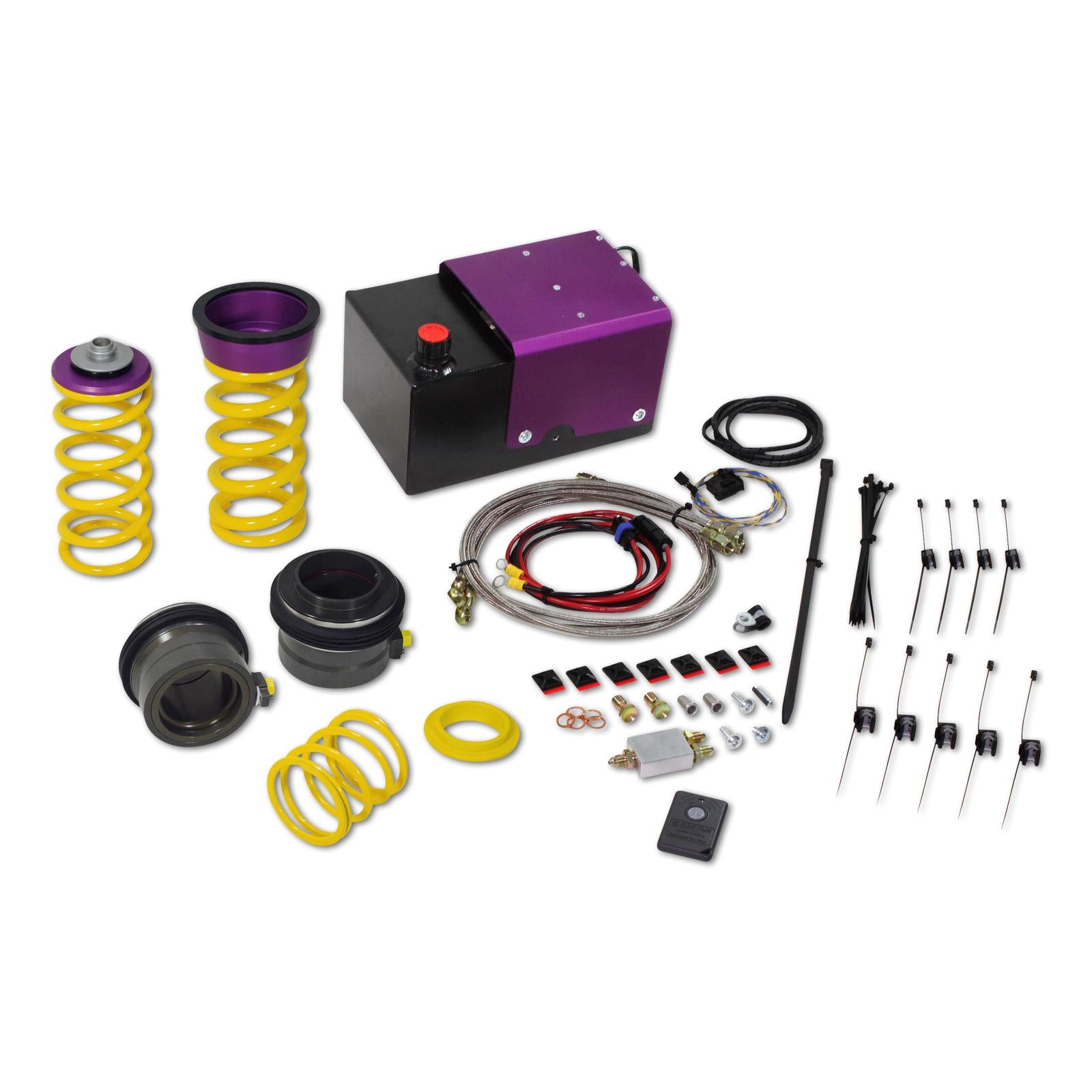

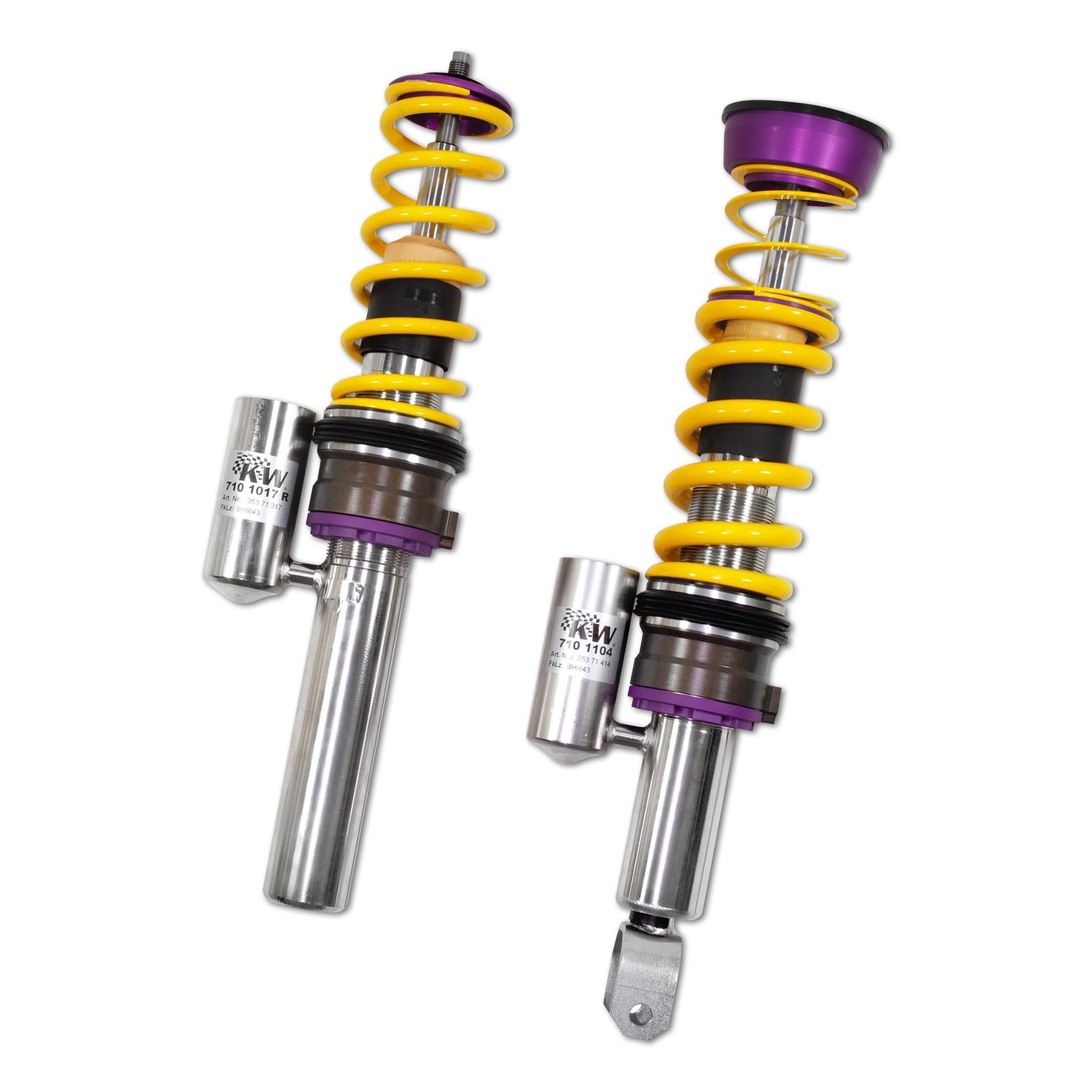

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, so the car can safely negotiate obstacles such as speedbumps, railroad crossings, road works, garages and underground car parks, without damage to aerodynamic components, underbody protection or the oil sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Audi R8 GT / R8 RWD / R8 Spyder (4S).
Key Features
- Hydraulic lift at the push of a button
- Vehicle-specific hydraulic lines and pump
Specifications
- Version: HLS 2
- Lift axle(s): Front axle
- Damping: Adjustable rebound and compression
- Material: Aluminium
- Front lowering: 10–25 mm
- Rear lowering: 15–35 mm
- Front axle load: up to 945 kg
- Rear axle load: up to 1,185 kg

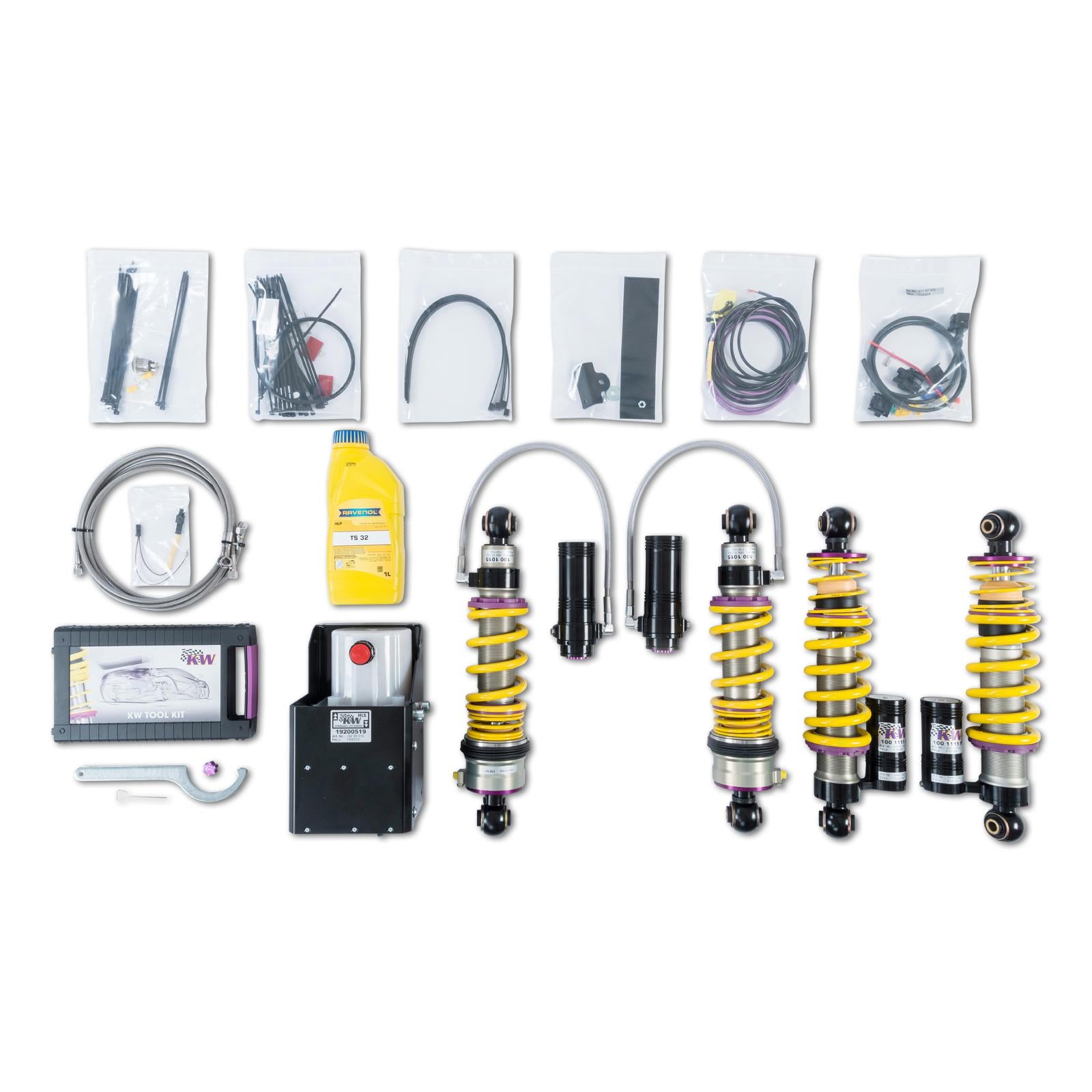

- Supplied as: Set (front + rear axle) with HLS 2
Front axle load up to 945 kg; Rear axle load up to 1,185 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI | Petrol · 419 kW · 5.2L · 10-cyl | Rear-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI Plus quattro | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI RWS | Petrol · 397 kW · 5.2L · 10-cyl | Rear-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 397 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 FSI quattro | Petrol · 456 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2015+ | Audi | R8 (4S) 4S3, 42 | 5.2 GT | Petrol · 456 kW · 5.2L · 10-cyl | Rear-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI | Petrol · 419 kW · 5.2L · 10-cyl | Rear-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI RWS | Petrol · 397 kW · 5.2L · 10-cyl | Rear-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 397 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 449 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
| 2016+ | Audi | R8 (4S) Spyder 4S9, 42 | 5.2 FSI quattro | Petrol · 456 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 67, 90 |
- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.

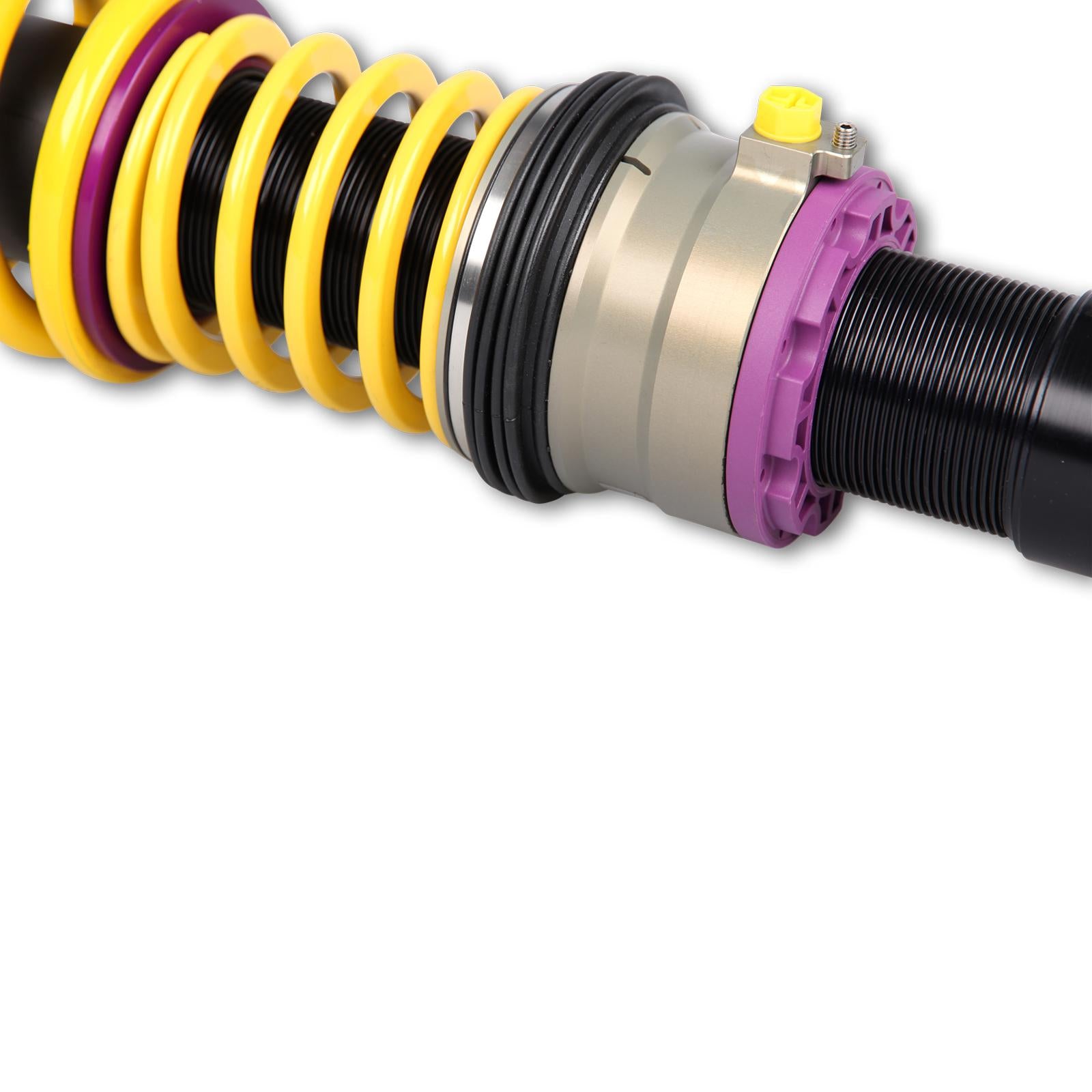

- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
- Note 90: Aluminium suspensions struts.
