KW Coilover Kit V3 Leveling for BMW (G21) M340i
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 Leveling for BMW (G21) M340i
Sale price$4,692.05
Regular price$4,939.00 (/)
KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the BMW M340i Touring (G21) xDrive.
Key Features
- Near-factory ride height
- Separately adjustable rebound and compression damping
- Progressive comfort springs
Specifications
- Version: V3 Leveling
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front height change: -30 to -10 mm
- Rear height change: -30 to -10 mm
- Front axle load: 1,071–1,170 kg
- Rear axle load: up to 1,360 kg

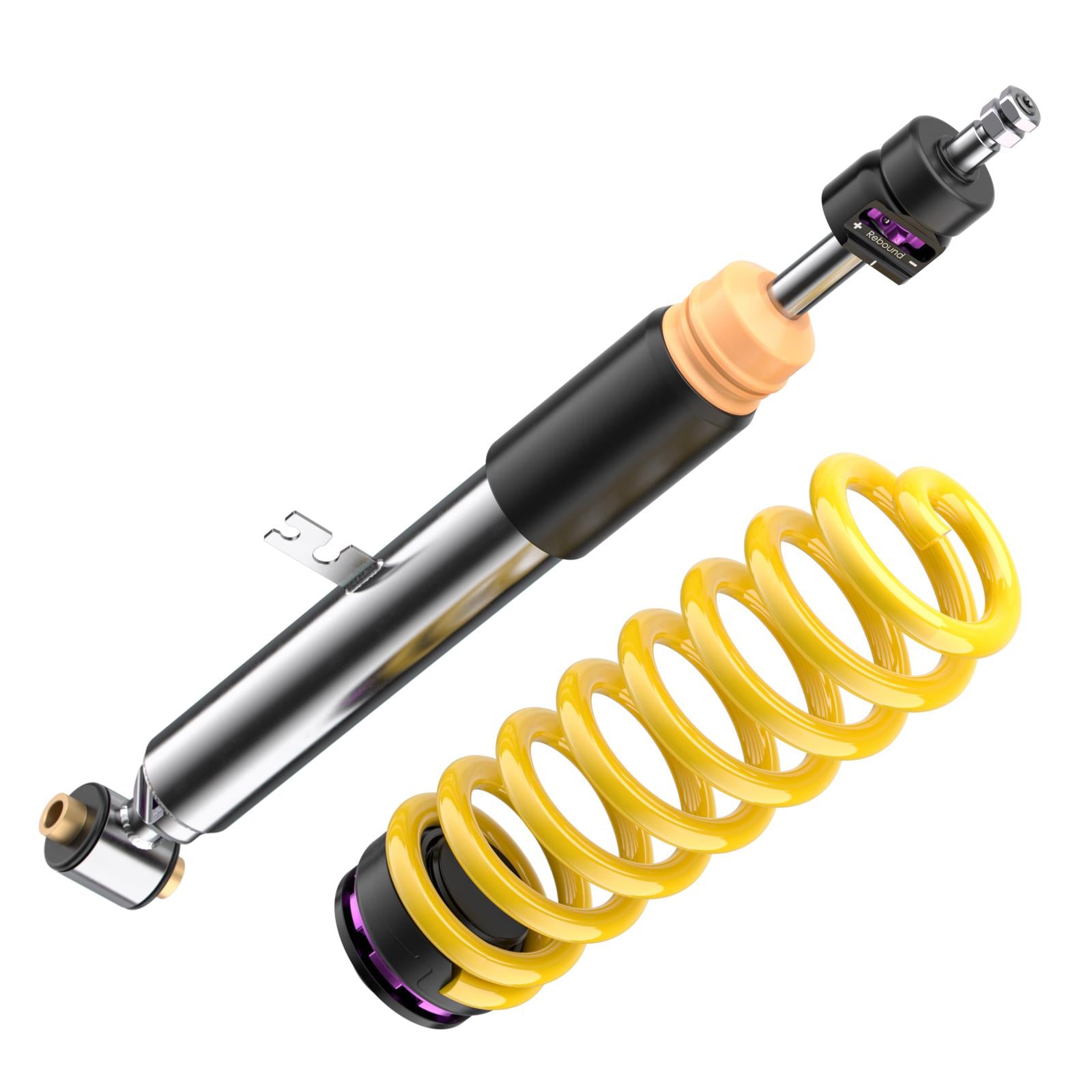

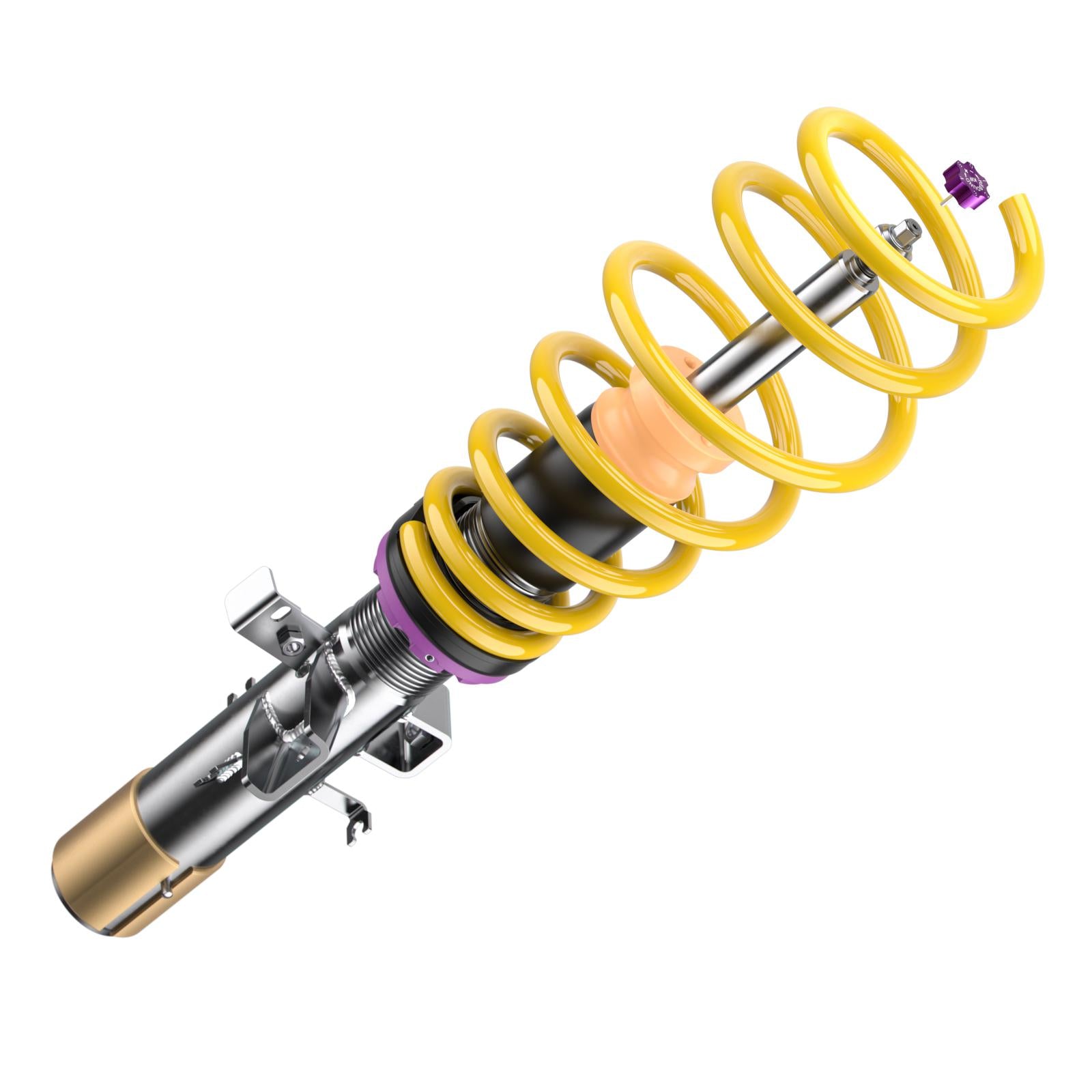

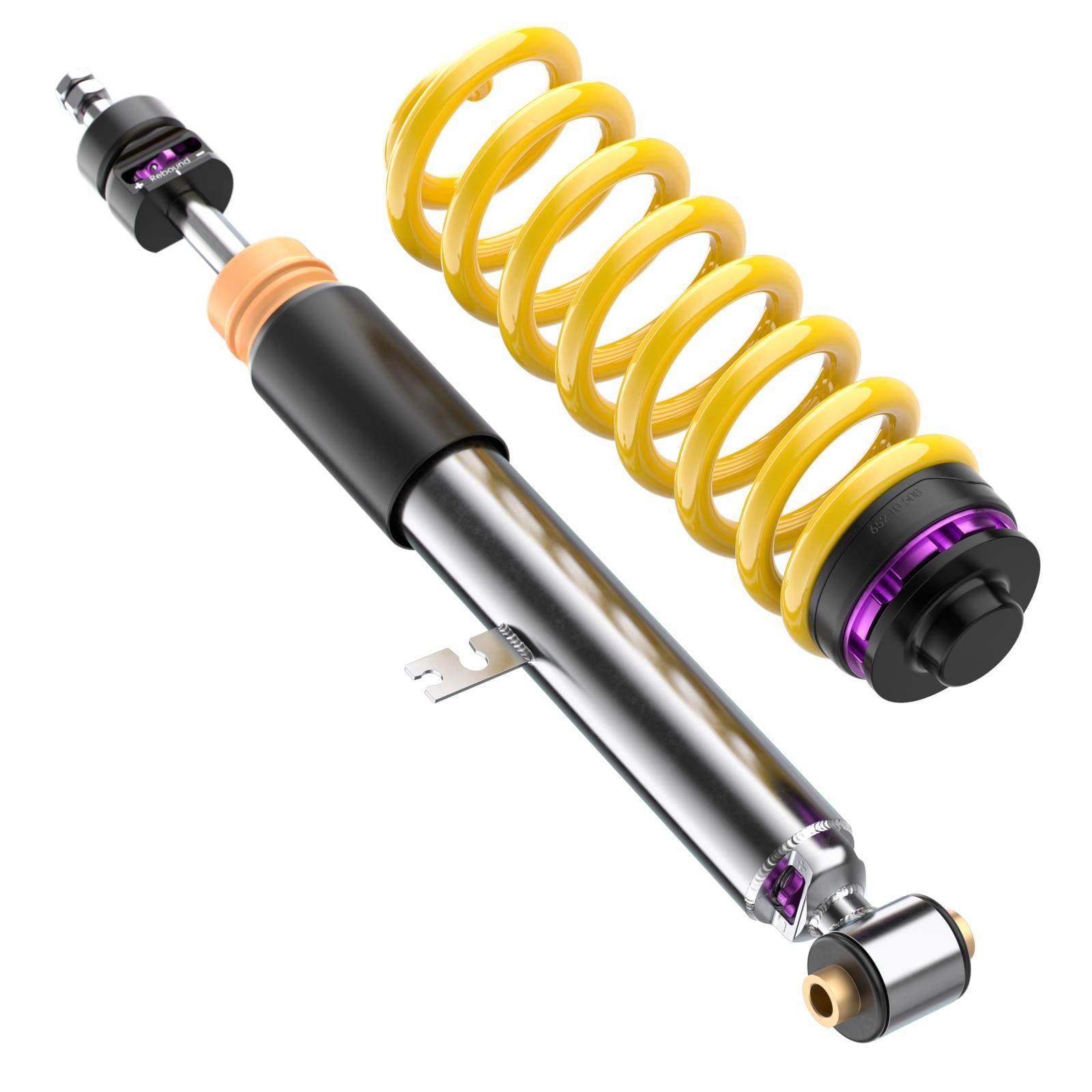

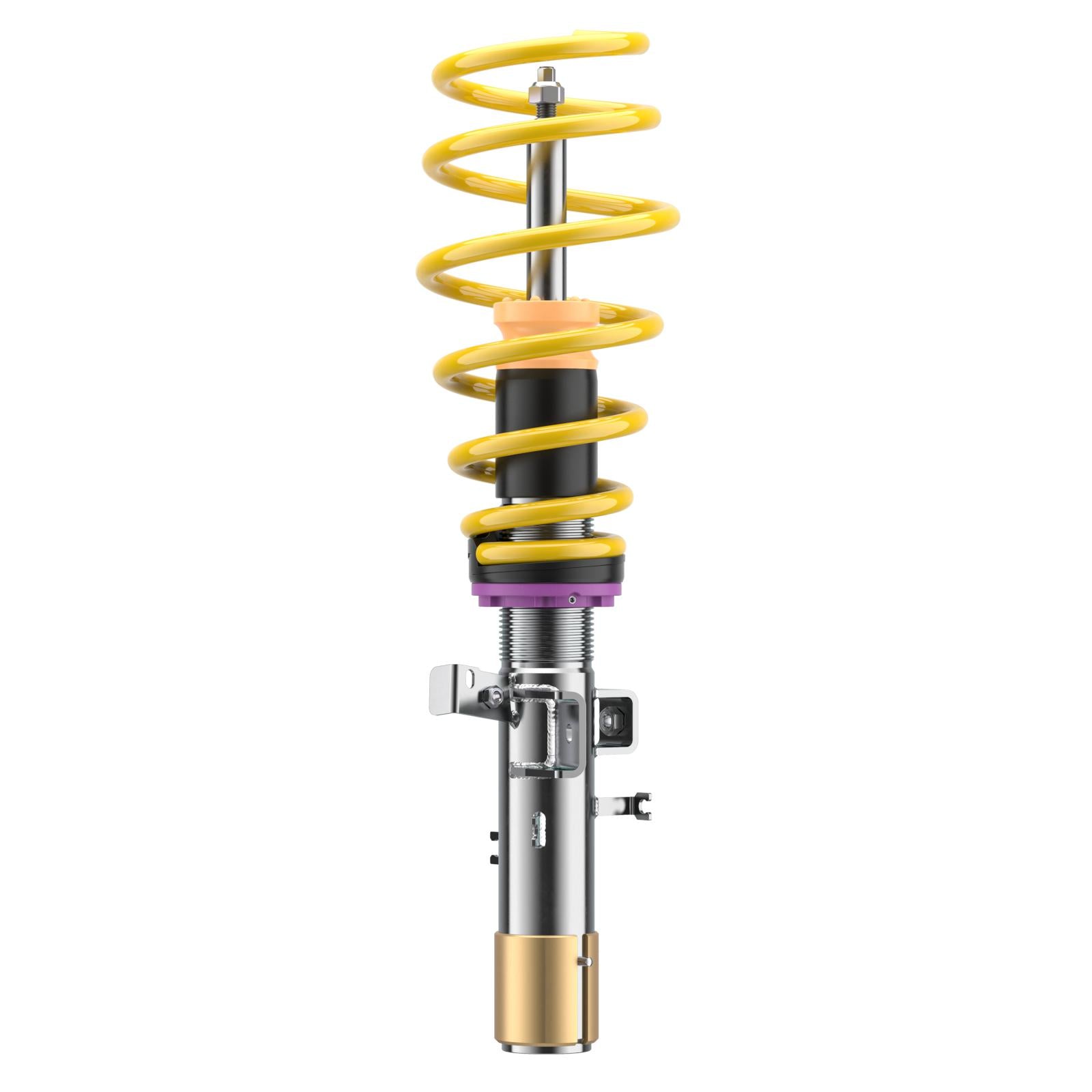

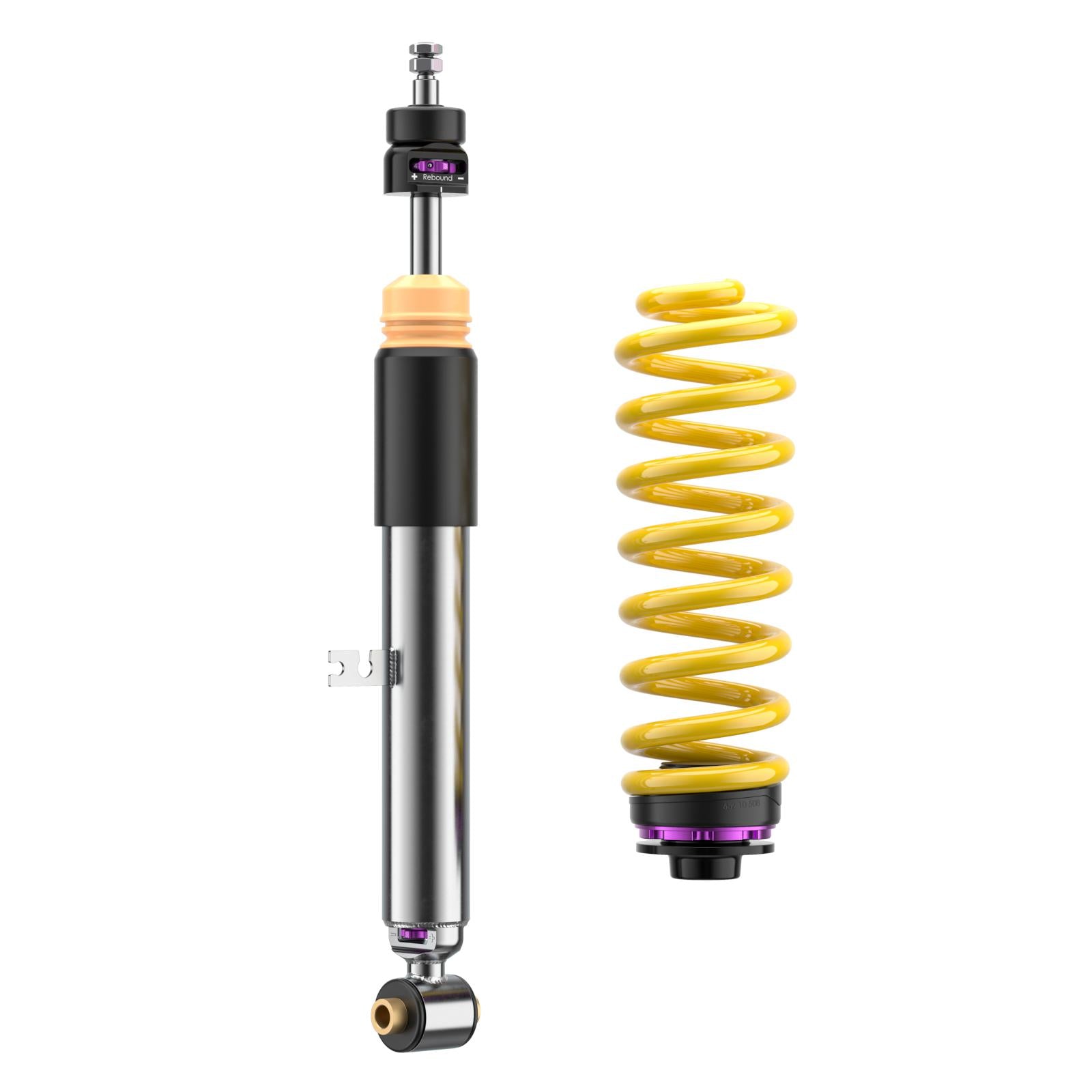

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load 1,071–1,170 kg; Rear axle load up to 1,360 kg.
For vehicles without electronic damper control.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 320 d Mild-Hybrid xDrive | Diesel/Electric · 120 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 320 d Mild-Hybrid xDrive | Diesel/Electric · 140 kW · 2.0L · 4-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 330 d Mild-Hybrid xDrive | Diesel/Electric · 210 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | 330 d xDrive | Diesel · 195 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | M 340 d Mild-Hybrid xDrive | Diesel/Electric · 250 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | M 340 i Mild-Hybrid xDrive | Petrol/Electric · 275 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | M 340 i xDrive | Petrol · 275 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | M 340 i xDrive | Petrol · 285 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
| 2019+ | BMW | 3 Touring (G21, G81) G3K | M 340 i xDrive | Petrol/Electric · 288 kW · 3.0L · 6-cyl | All-Wheel Drive | 2, 37, 67 |
- Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
