KW Coilover Kit V3 Leveling for VW (T5) Transporter / Multivan / (T6) Transporter

SKU: 3520880040
Sale price$4,587.55 Regular price$4,829.00
Save $241.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the VW Transporter (T5) / Transporter (T6) / Multivan (T5).

Key Features

  • Near-factory ride height
  • Separately adjustable rebound and compression damping
  • Progressive comfort springs

Specifications

  • Version: V3 Leveling
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front height change: -30 to -10 mm
  • Rear height change: -30 to -10 mm
  • Front axle load: up to 1,710 kg
  • Rear axle load: up to 1,720 kg

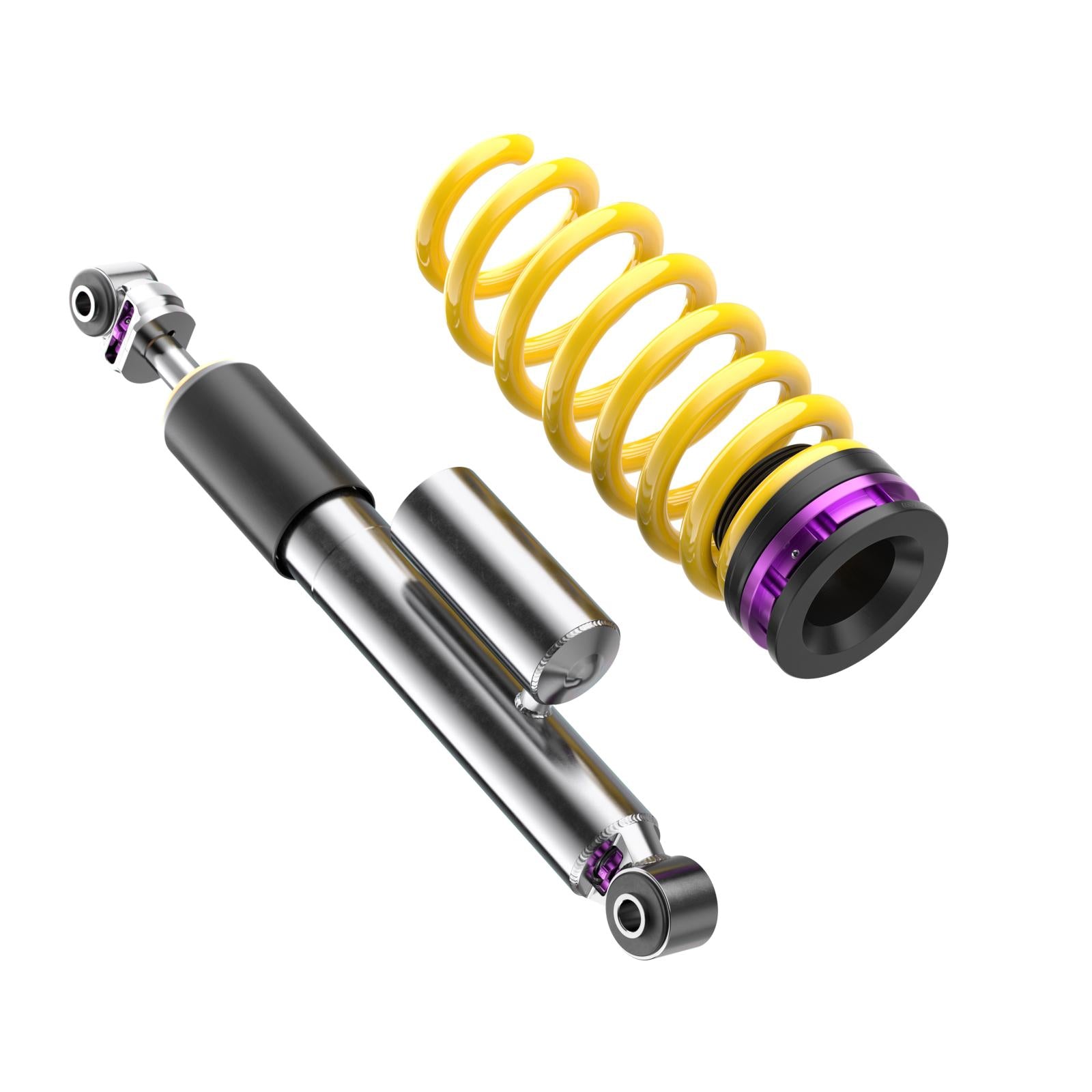

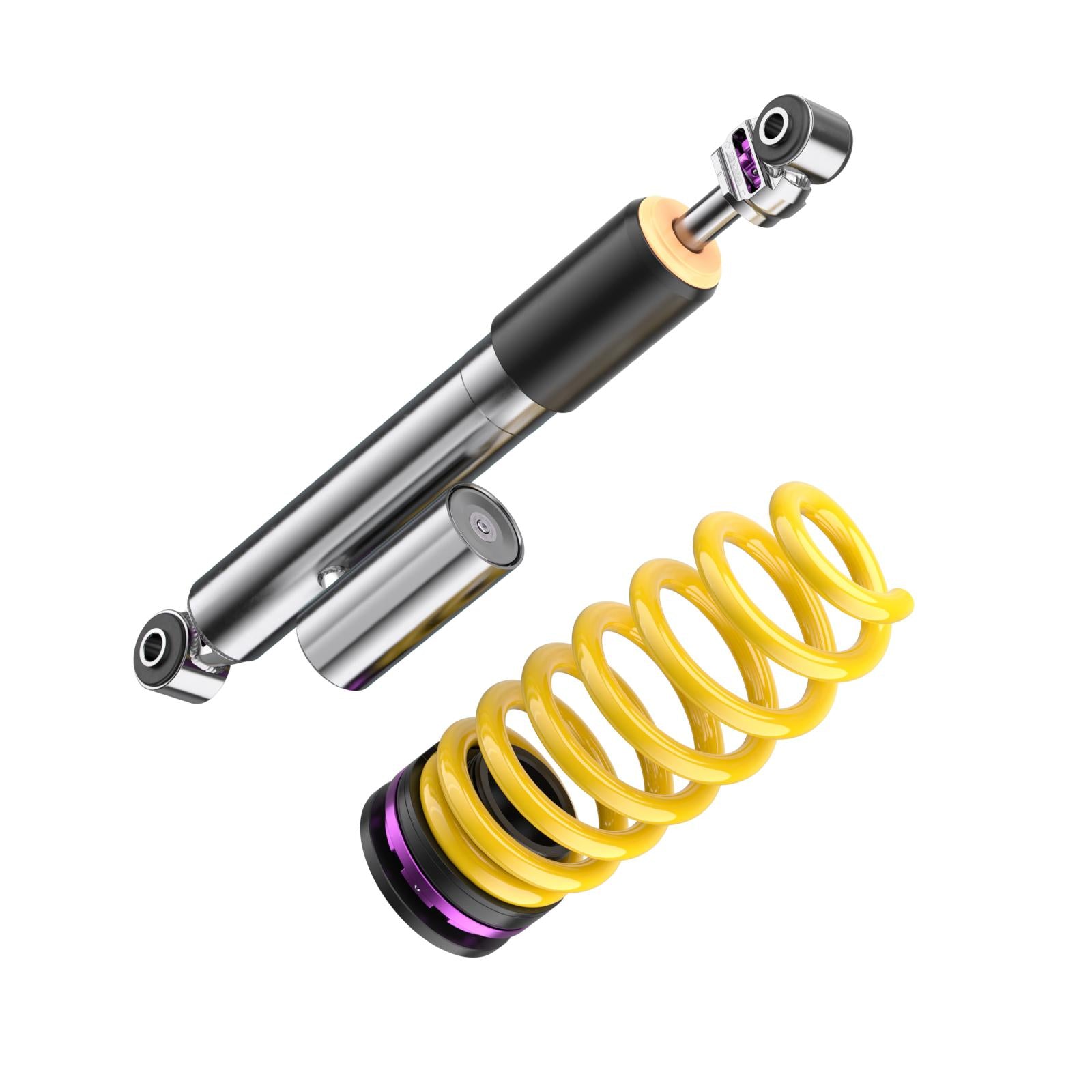

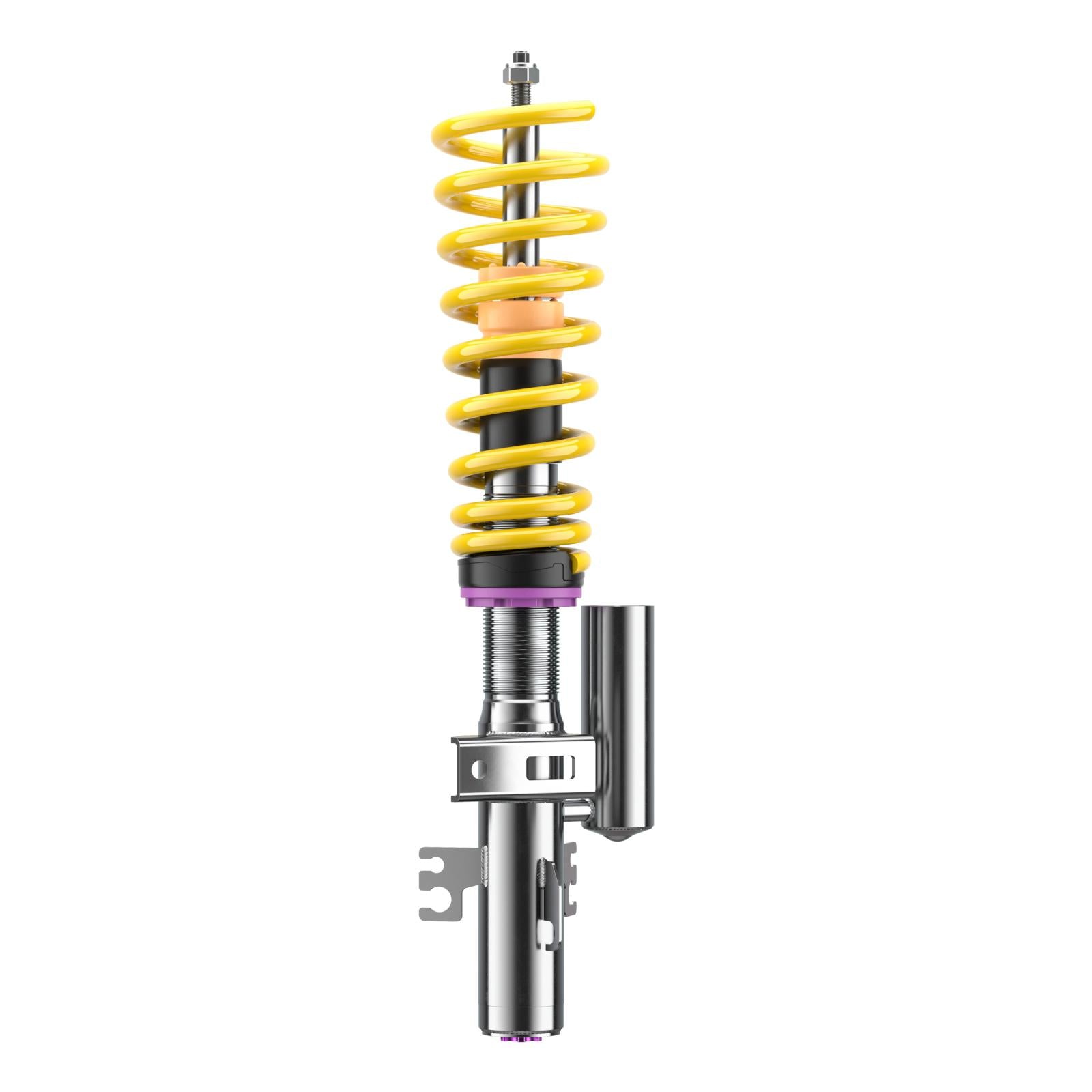

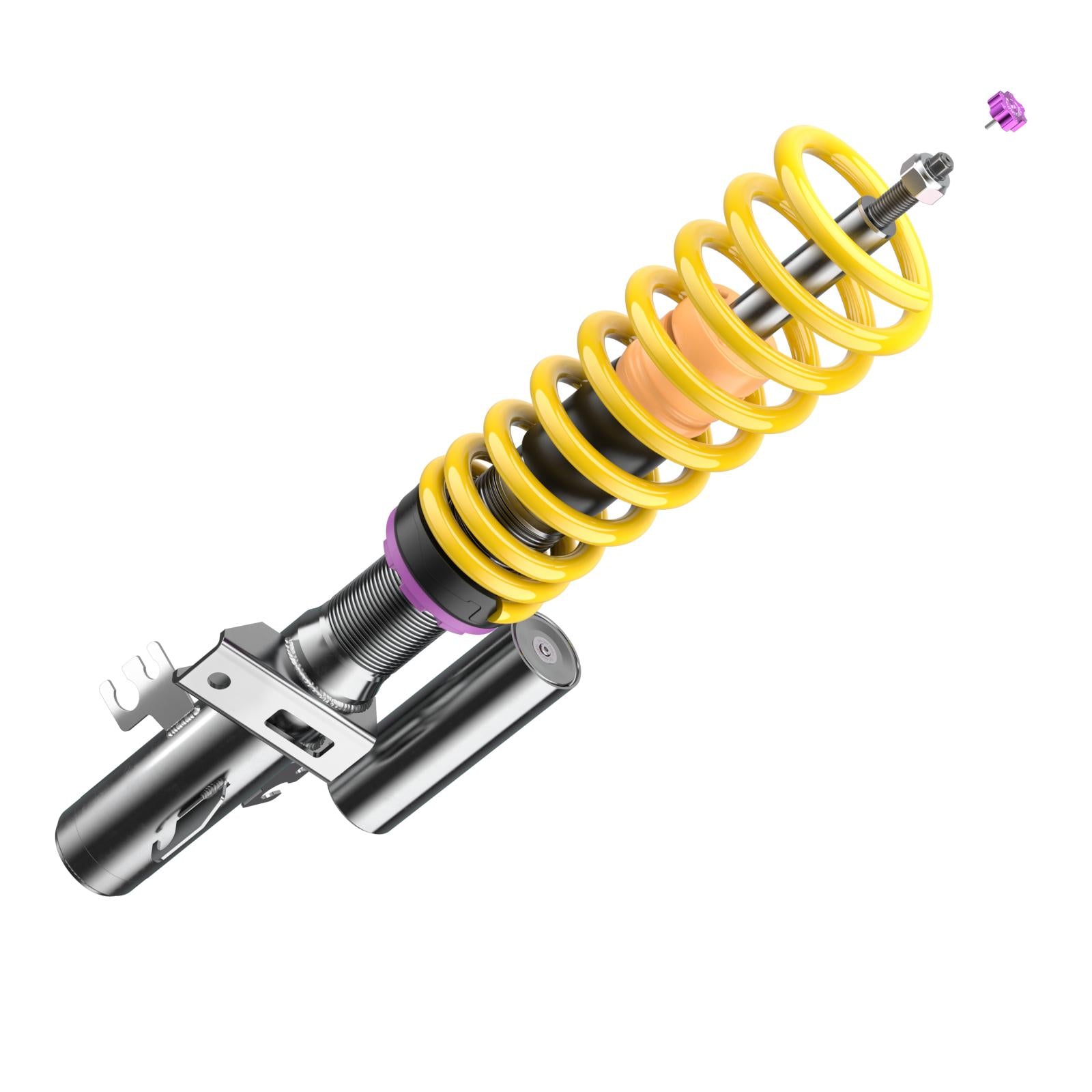

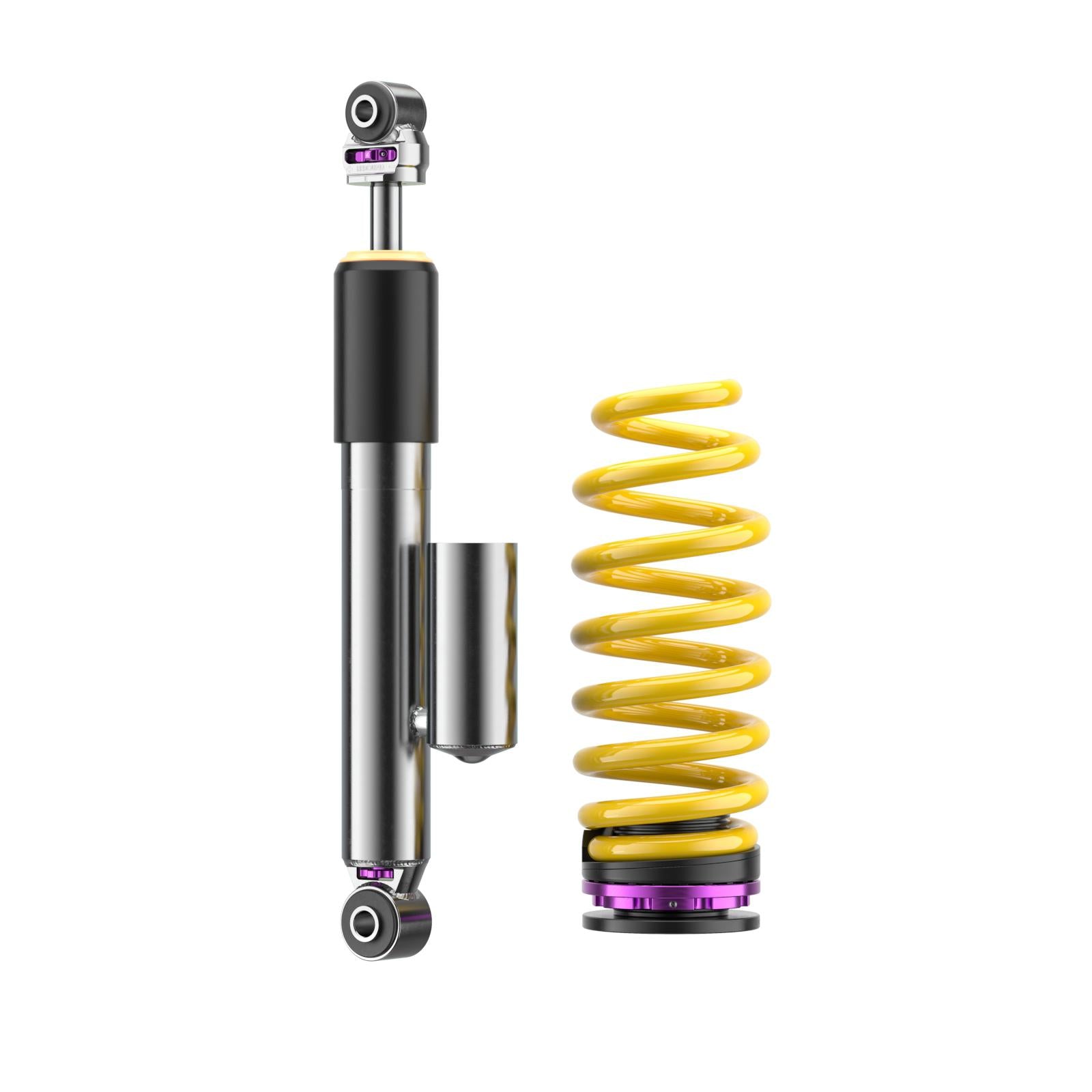

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars with a front axle strut clamping.

Front axle load up to 1,710 kg; Rear axle load up to 1,720 kg.

For vehicles without electronic damper control.

For cars with a front axle strut clamping.

References 2, 37, 67. See the Disclaimer tab for reference notes.

YearMakeModelDriveVariantsRefs
2003–2016VWCalifornia T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)Front-Wheel Drive1.9 TDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 2.5 TDi2, 67
2003–2016VWCalifornia T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion2, 67
2015–2024VWCalifornia T6 Camper (SGC, SGG, SHC)Front-Wheel Drive2.0 TDI, 2.0 TSI2, 37, 67
2015–2024VWCalifornia T6 Camper (SGC, SGG, SHC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion2, 37, 67
2015+VWCaravelle Mk VI (SG_, 7HC)Front-Wheel Drive2.0 TDI, 2.0 TSI2, 37, 67
2015+VWCaravelle Mk VI (SG_, 7HC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion2, 37, 67
2003–2016VWMultivan Mk V (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 3.2 V6, VR6 3.22, 67
2003–2016VWMultivan Mk V (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, VR6 3.2 4motion2, 67
2003–2016VWTransporter Caravelle Mk V Bus (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 2.5 TDi, 3.2 V6, VR6 3.22, 67, 37
2003–2016VWTransporter Caravelle Mk V Bus (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, 3.2 V6 4motion2, 67, 37
2015–2024VWTransporter Caravelle Mk VI Bus (SG_, 7H_)Front-Wheel Drive2.0 TDI, 2.0 TSI2, 37, 67
2015–2024VWTransporter Caravelle Mk VI Bus (SG_, 7H_)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion2, 37, 67
2003+VWTransporter Mk V Box (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 3.2 V6, VR6 3.22, 37, 67
2003+VWTransporter Mk V Box (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, VR6 3.2 4motion2, 37, 67
2015–2024VWTransporter Mk VI Box (SG_)Front-Wheel Drive2.0 TDI, 2.0 TSI2, 37, 67
2015–2024VWTransporter Mk VI Box (SG_)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion2, 37, 67
  • Note 2: Height adjustable front and rear axles (front axle threaded strut housings, rear axle adjustable springs + dampers).
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
