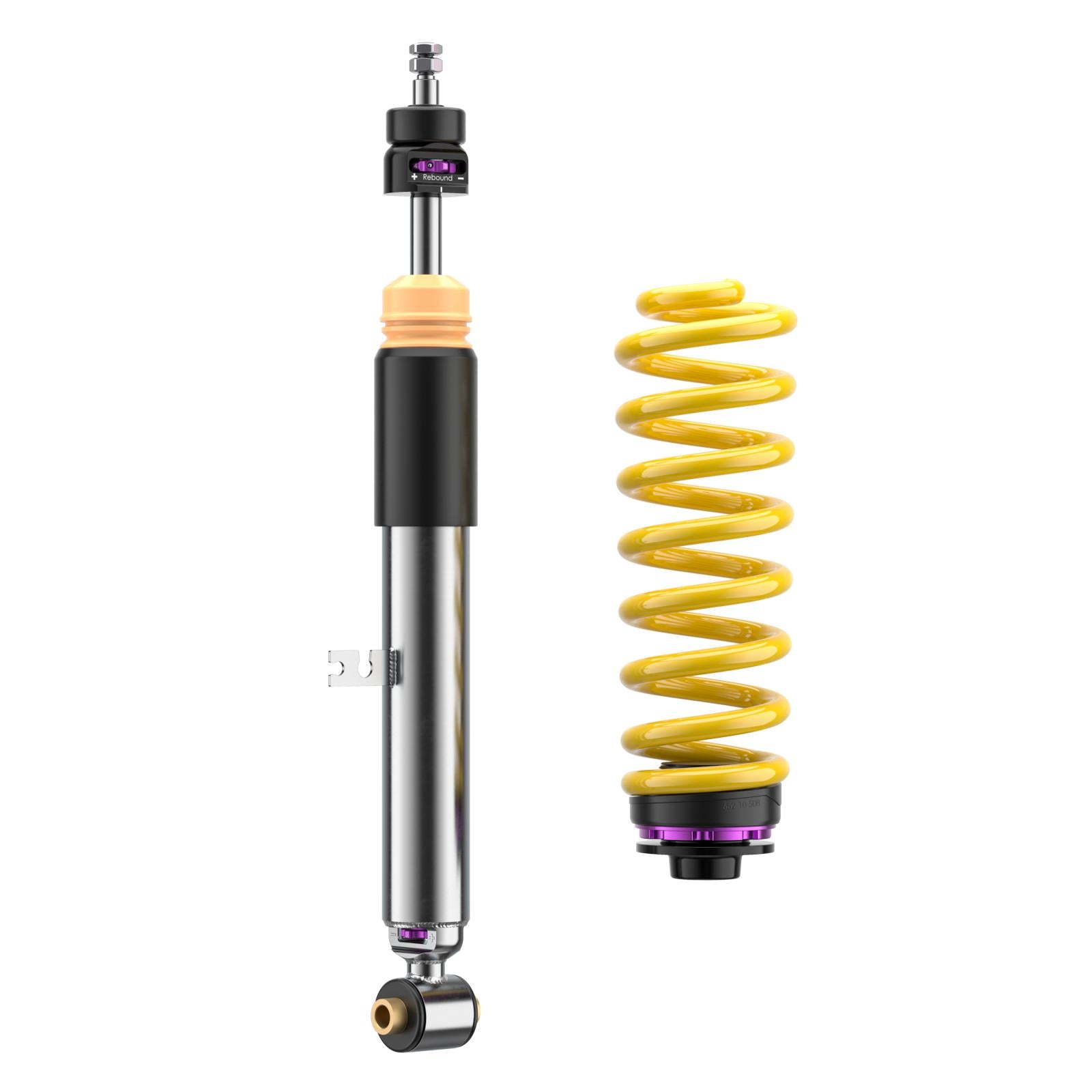

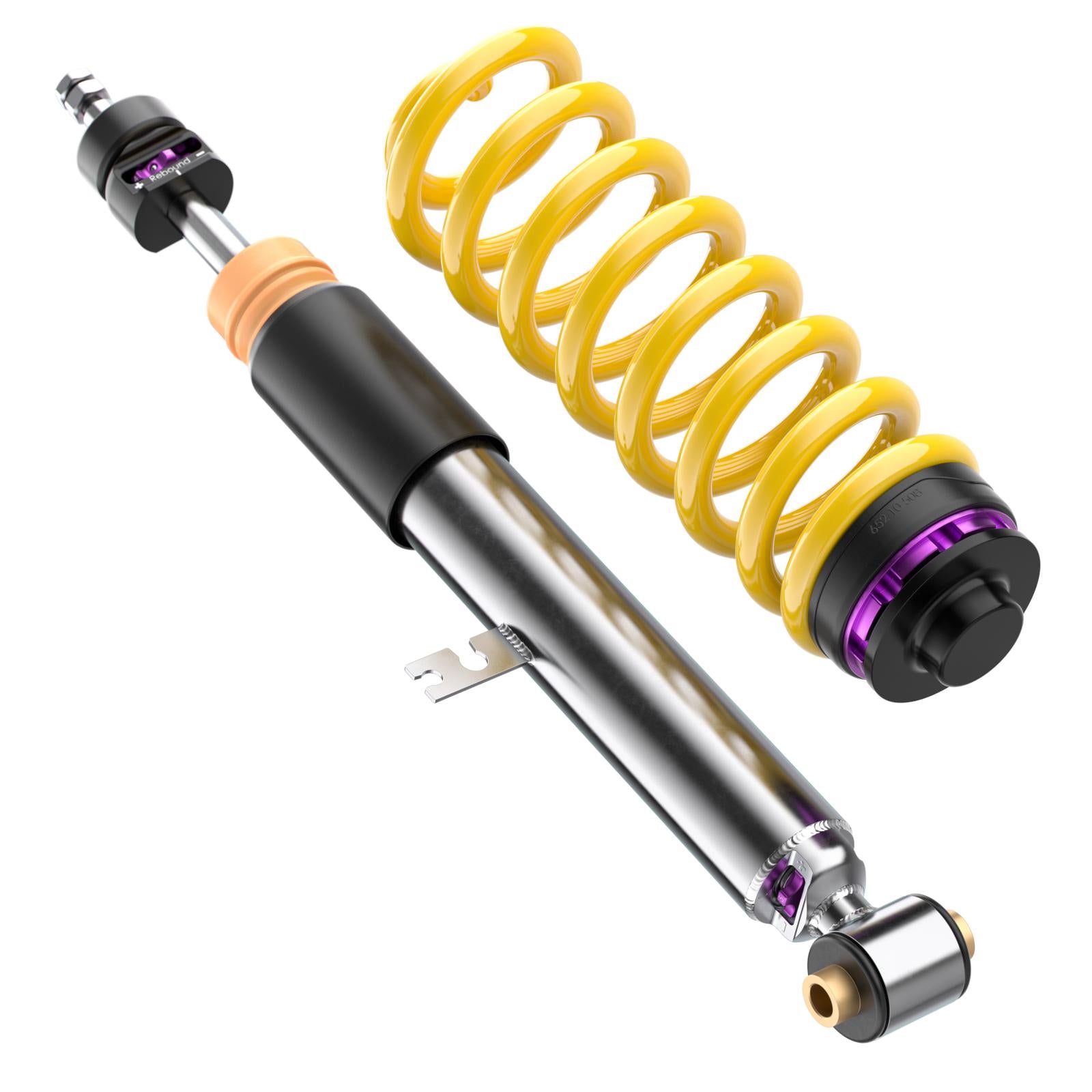

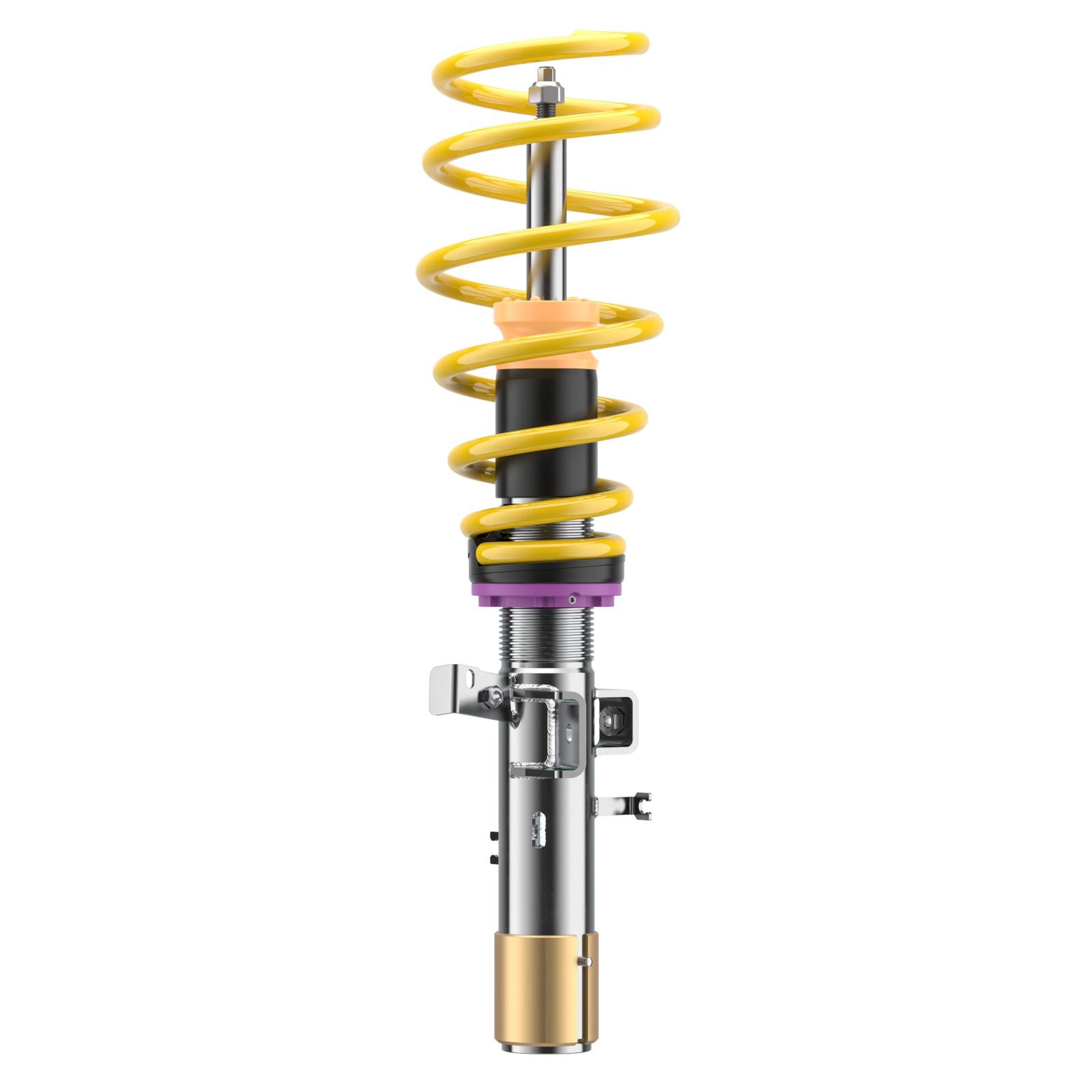

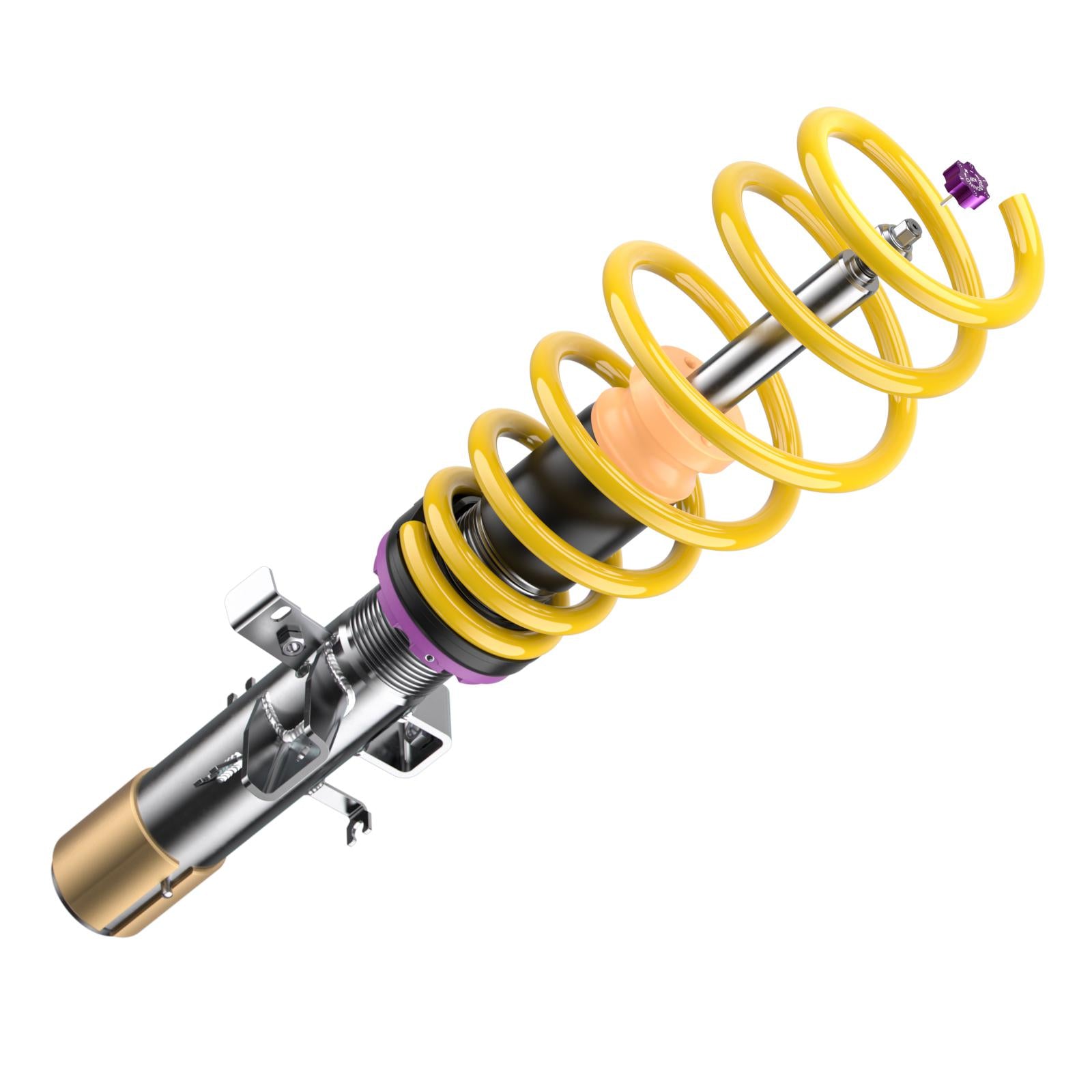

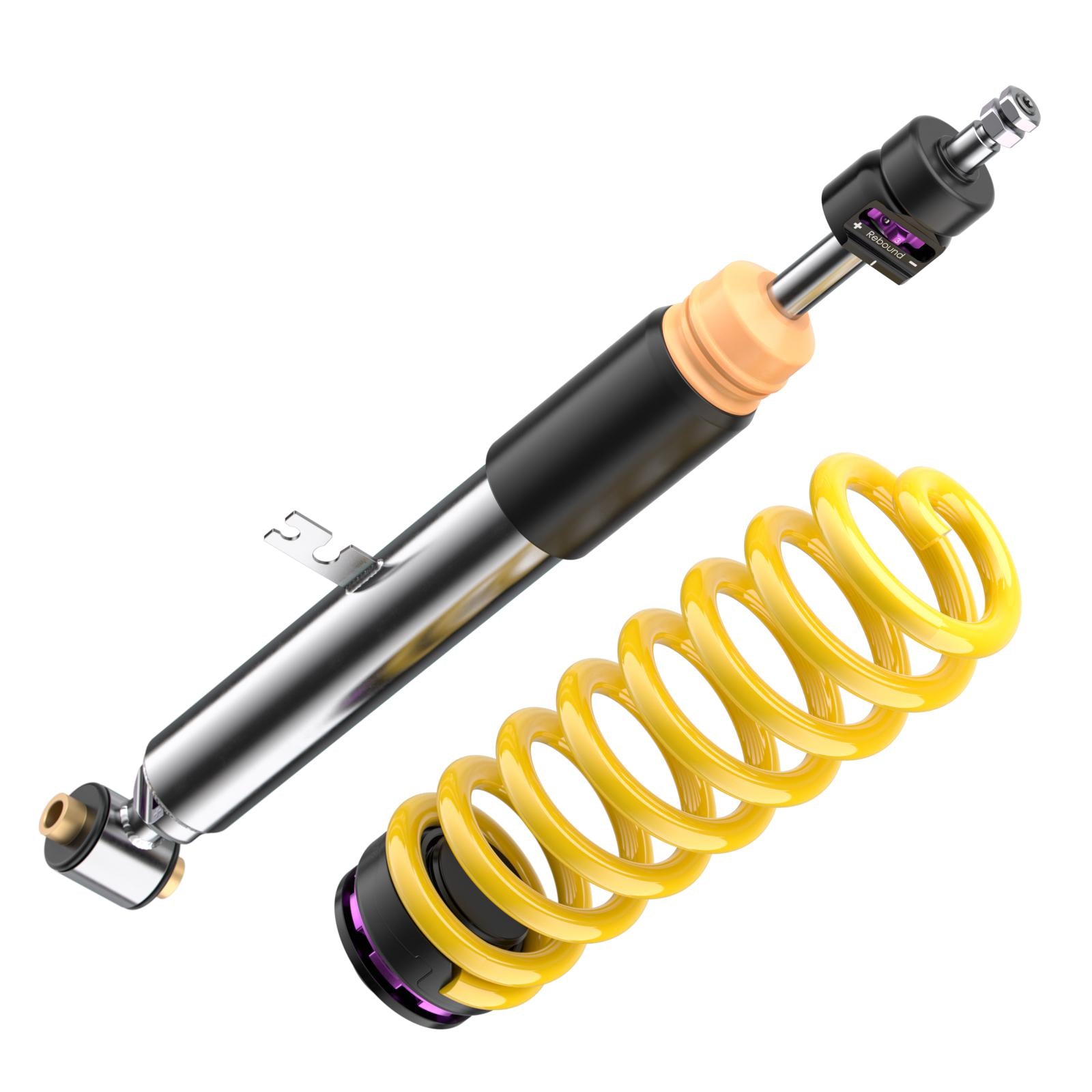

KW Coilover Kit V3 Leveling for BMW (G30) M550i / 540i w/ Deactivation for Electronic Dampers

SKU: 35208200BZ
Sale price$5,300.05 Regular price$5,579.00
Save $278.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


KW Leveling suspension is aimed at drivers who want the handling and comfort of a KW coilover while keeping close to factory ground clearance. Progressive springs and a comfort-oriented base damper setting suit poor roads and urban speed humps, and the ride height can be set slightly below or above standard. The V3 dampers adjust separately in rebound and compression. This kit is developed for the BMW M550i xDrive / 540i xDrive (G30).

Key Features

  • Near-factory ride height
  • Separately adjustable rebound and compression damping
  • Progressive comfort springs

Specifications

  • Version: V3 Leveling
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front height change: -20 to 0 mm
  • Rear height change: -20 to 0 mm
  • Front axle load: up to 1,270 kg
  • Rear axle load: up to 1,455 kg
  • Supplied as: Front axle + rear axle coilover struts including cancellation kit for electronic damper control

Front axle load up to 1,270 kg; Rear axle load up to 1,455 kg.

For vehicles with electronic damper control.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2016+BMW5 (G30, F90) F5LM, G5L520 d Mild-Hybrid xDriveDiesel/Electric · 140 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L520 d xDriveDiesel · 120 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L520 d xDriveDiesel · 140 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 d Mild-Hybrid xDriveDiesel/Electric · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 d Mild-Hybrid xDriveDiesel/Electric · 210 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 d xDriveDiesel · 183 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 d xDriveDiesel · 195 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 120 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 135 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 170 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 185 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 200 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 e Plug-in-Hybrid xDrivePetrol/Electric · 215 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 i Mild-Hybrid xDrivePetrol/Electric · 180 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 i Mild-Hybrid xDrivePetrol/Electric · 185 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 i xDrivePetrol · 180 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 i xDrivePetrol · 183 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L530 i xDrivePetrol · 185 kW · 2.0L · 4-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L540 d Mild-Hybrid xDriveDiesel/Electric · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L540 d xDriveDiesel · 235 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L540 i Mild-Hybrid xDrivePetrol/Electric · 245 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L540 i xDrivePetrol · 250 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L540 i xDrivePetrol · 265 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L545 e Plug-in-Hybrid xDrivePetrol/Electric · 210 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5L545 e Plug-in-Hybrid xDrivePetrol/Electric · 290 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5LM 550 d xDriveDiesel · 294 kW · 3.0L · 6-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5LM 550 i xDrivePetrol · 340 kW · 4.4L · 8-cylAll-Wheel Drive1, 67, 88
2016+BMW5 (G30, F90) F5LM, G5LM 550 i xDrivePetrol · 390 kW · 4.4L · 8-cylAll-Wheel Drive1, 67, 88
  • Note 1: Height adjustable on the front and rear axles (threaded strut housings).
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 88: Electronic damping control has to be deactivated. Deactivation kit is included in the delivery.
