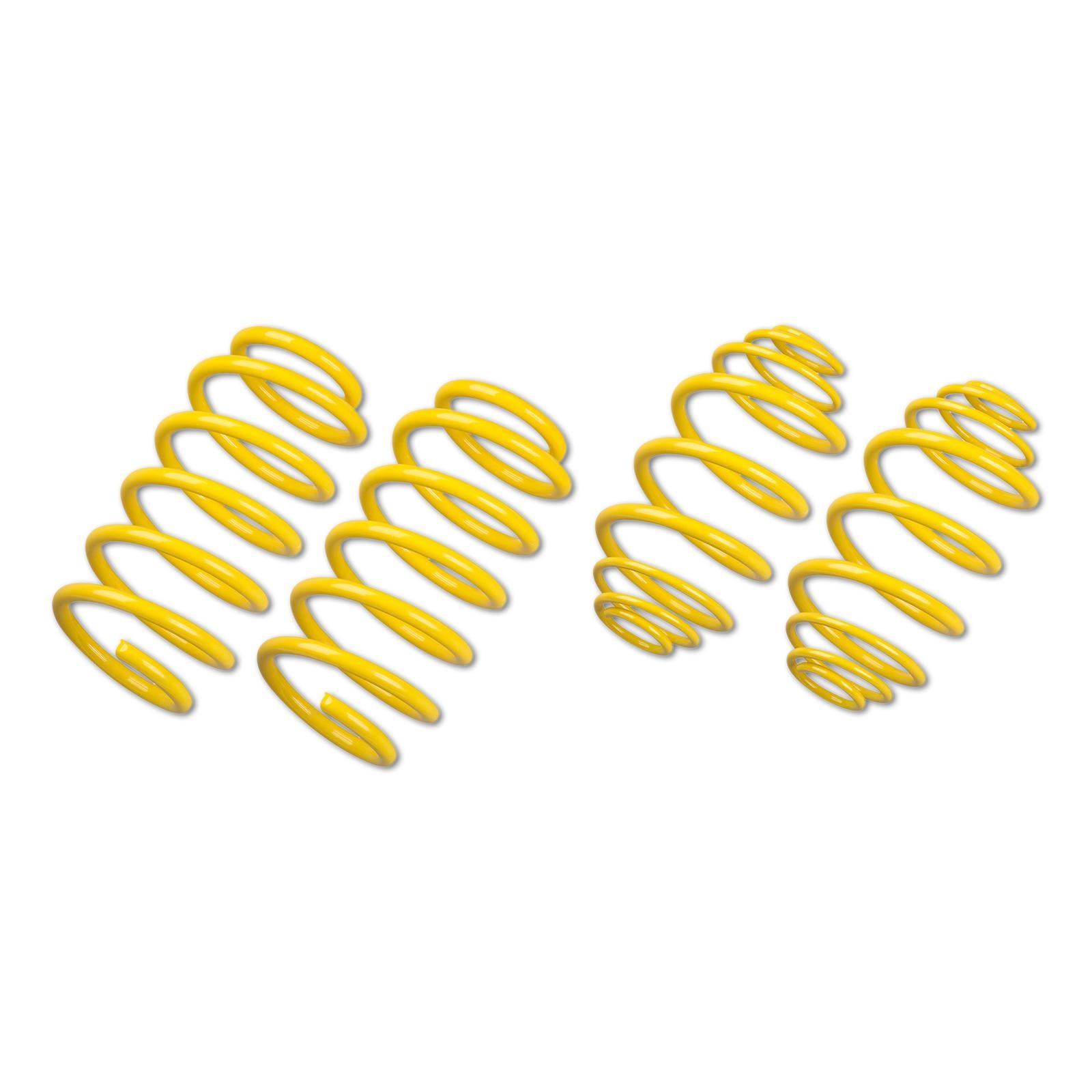

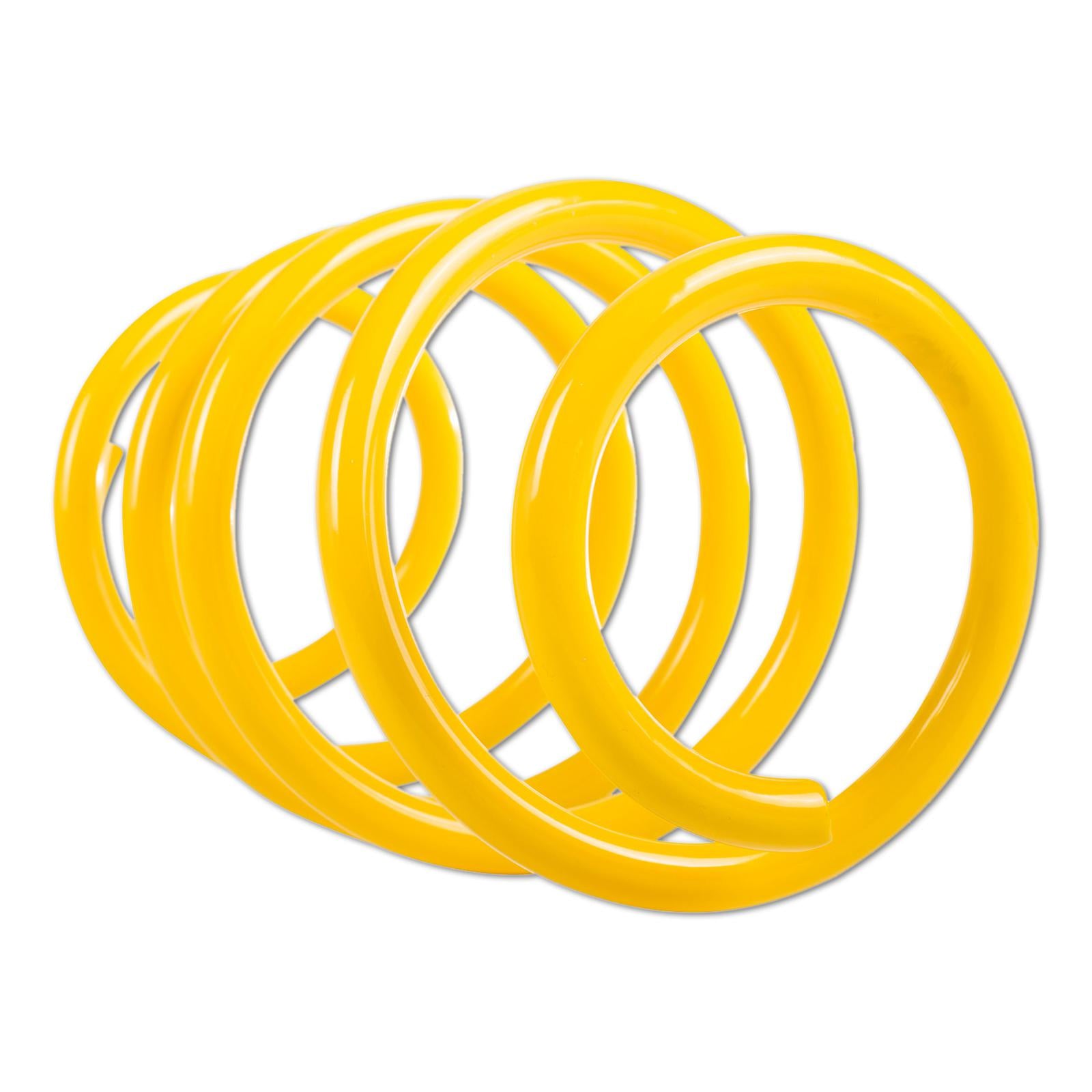

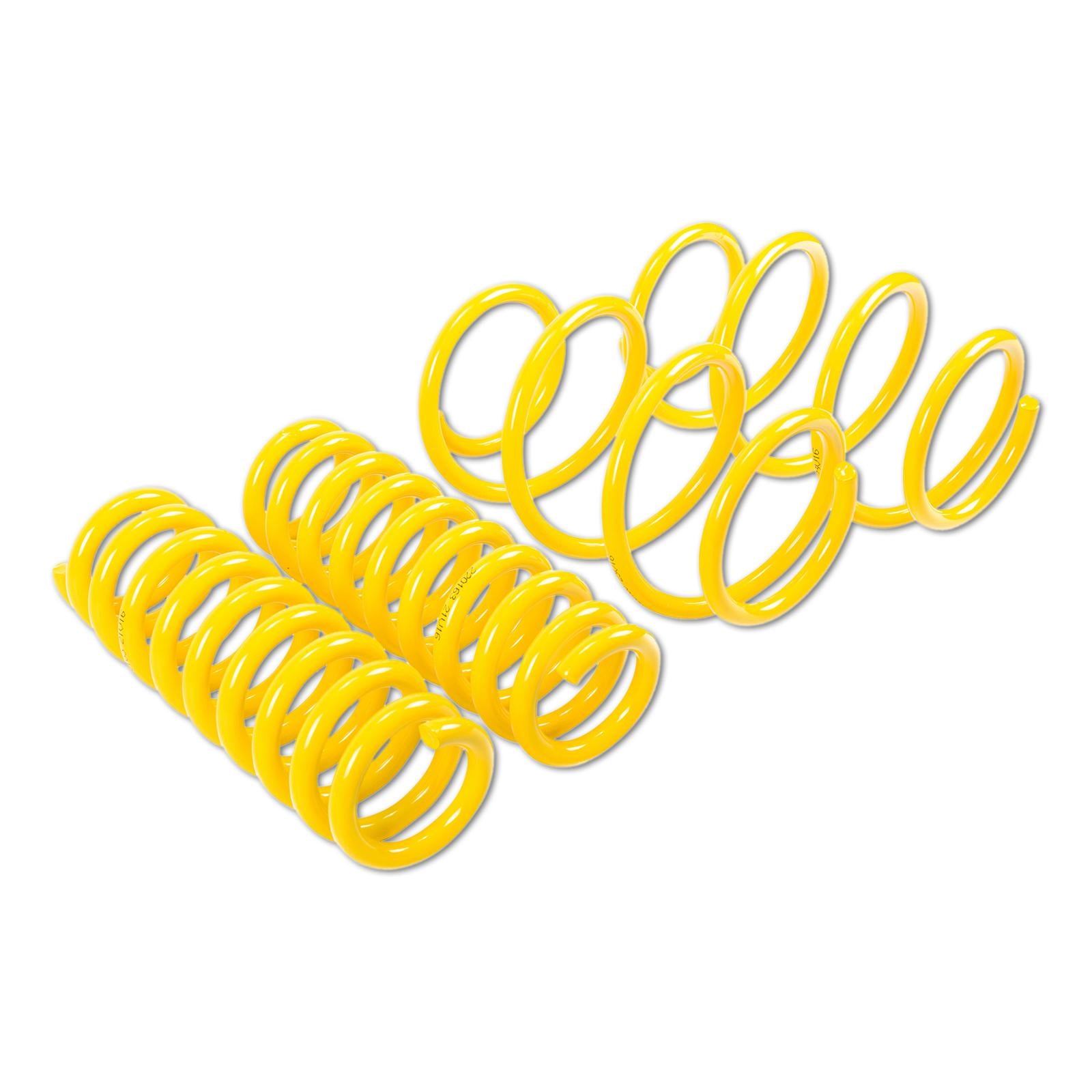

ST Lowering Springs for BMW (E60) 545i / 535d / 530d

SKU: 28220083
Sale price$636.30 Regular price$909.00
Save $272.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST sport springs are cold-wound from chrome-silicon steel and multi-coated, with a final epoxy coating for year-round durability. Designed to work with the standard dampers, they lower the centre of gravity and reduce body roll for more agile handling, with spring rates matched to vehicle weight, wheel loads and lowering. These springs are developed for the BMW 545i / 535d / 530d (E60).

Key Features

  • Chrome-silicon steel, cold-wound
  • Epoxy coated
  • Designed for use with standard dampers

Specifications

  • Front lowering: 30 mm
  • Rear lowering: 30 mm
  • Front axle load: up to 1,070 kg
  • Rear axle load: up to 1,245 kg
  • Colour: Yellow
  • Supplied as: Front + rear axle (4 pcs)

Front axle load up to 1,070 kg; Rear axle load up to 1,245 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560540 iPetrol · 220 kW · 4.0L · 8-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560530 dDiesel · 160 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560545 iPetrol · 245 kW · 4.4L · 8-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560525 dDiesel · 130 kW · 2.5L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560535 dDiesel · 200 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560540 iPetrol · 225 kW · 4.0L · 8-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560530 dDiesel · 170 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560525 dDiesel · 120 kW · 2.5L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560535 dDiesel · 210 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560525 dDiesel · 145 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560530 dDiesel · 173 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560545 iPetrol · 242 kW · 4.4L · 8-cylRear-Wheel Drive11, 65
2001–2010BMW5 (E60) 560L, 560X, M5/M6, M560530 dDiesel · 155 kW · 3.0L · 6-cylRear-Wheel Drive11, 65
  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted.
  • Note 65: Excluding models with pneumatic suspension.
  • Note 99: Please note that the lowering rate quoted in this catalogue will be reduced for models with original sports suspension.
