ST Coilover X Kit for VW (CD1) Golf VIII / Audi (8Y) A3 - 50mm Front Strut

SKU: 132800CJ
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

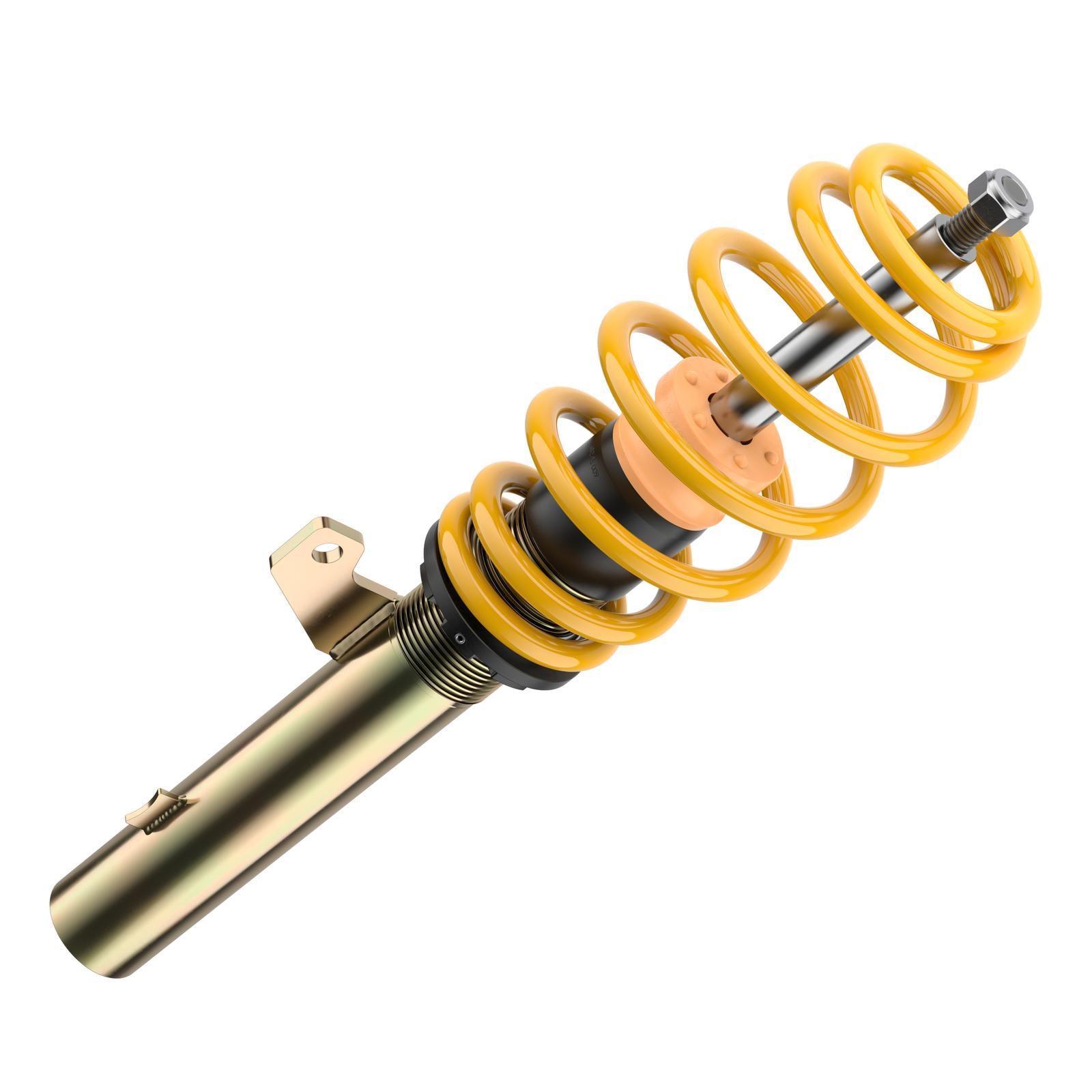

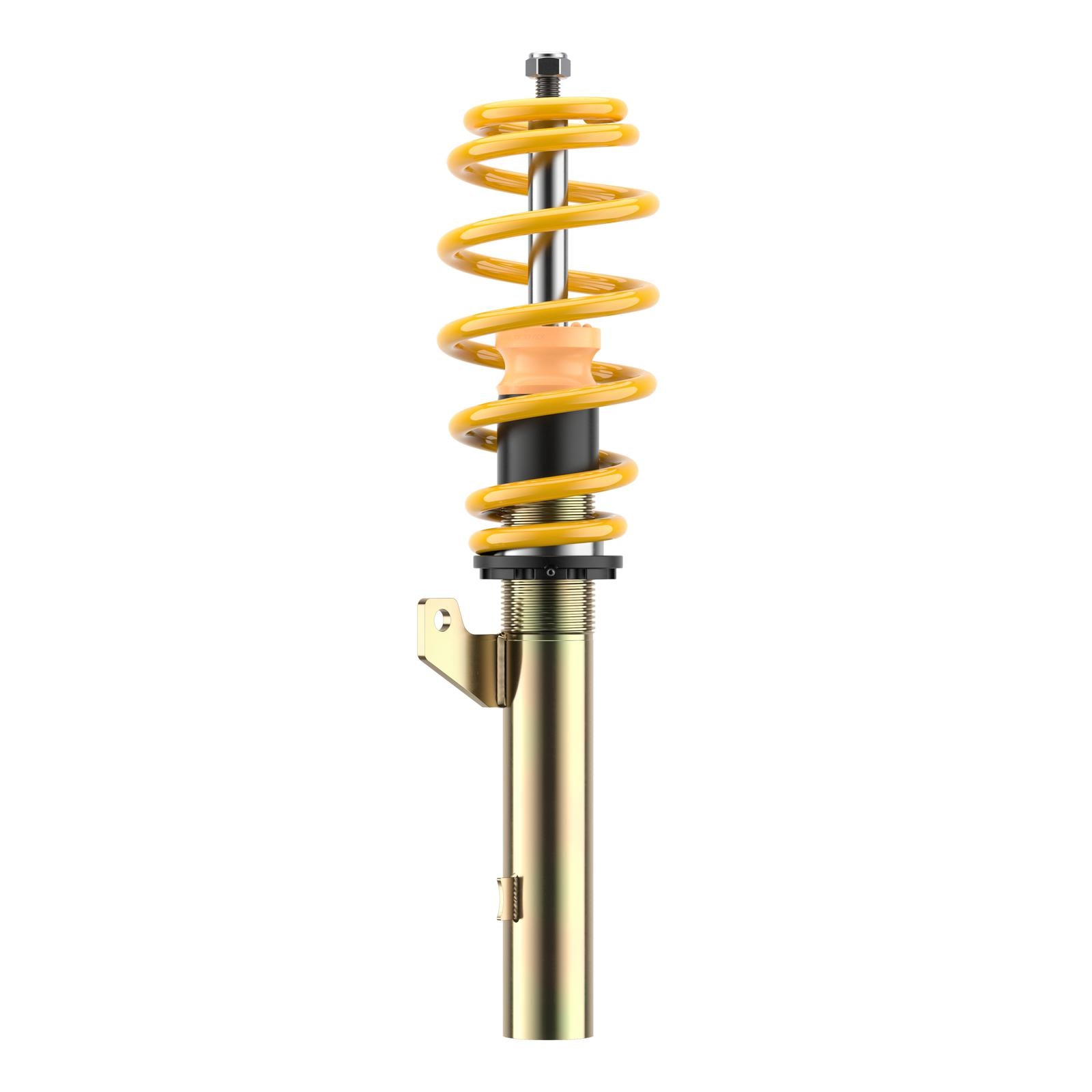

ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the VW Golf VIII (CD1) / Audi A3 (8Y).

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 35–60 mm
  • Rear lowering: 35–60 mm
  • Front axle load: 1,036–1,100 kg
  • Rear axle load: up to 965 kg
  • Front strut diameter (vehicle): 50 mm

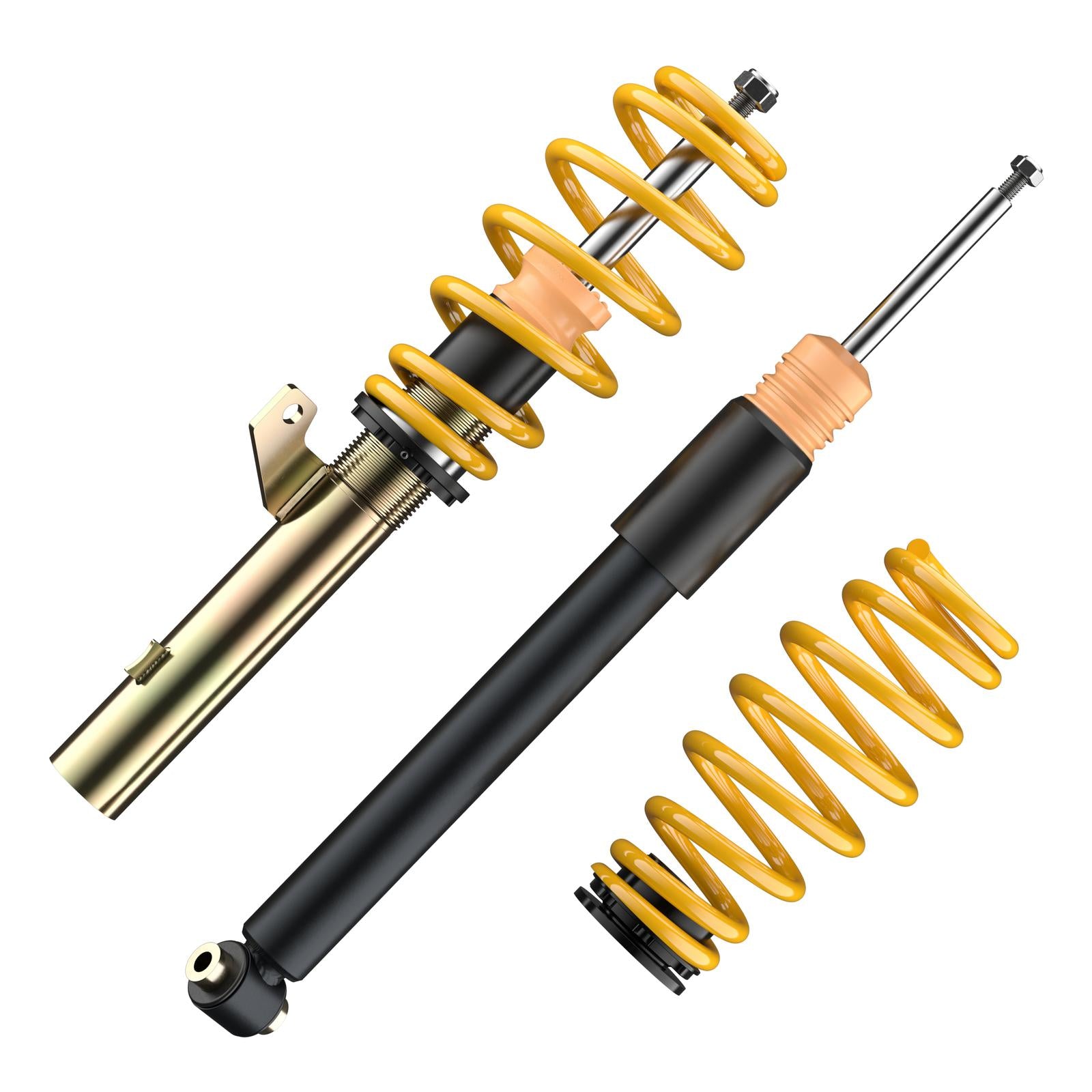

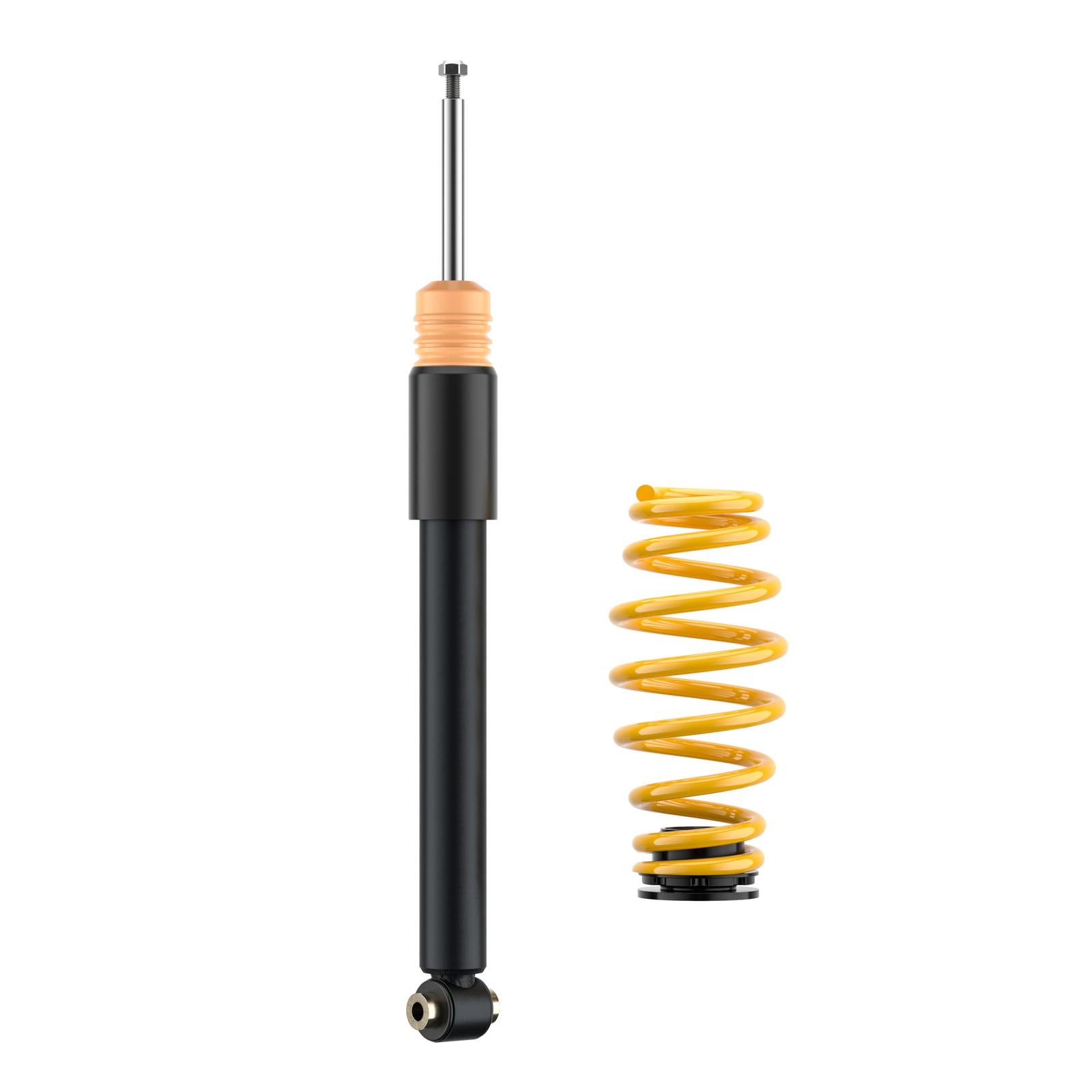

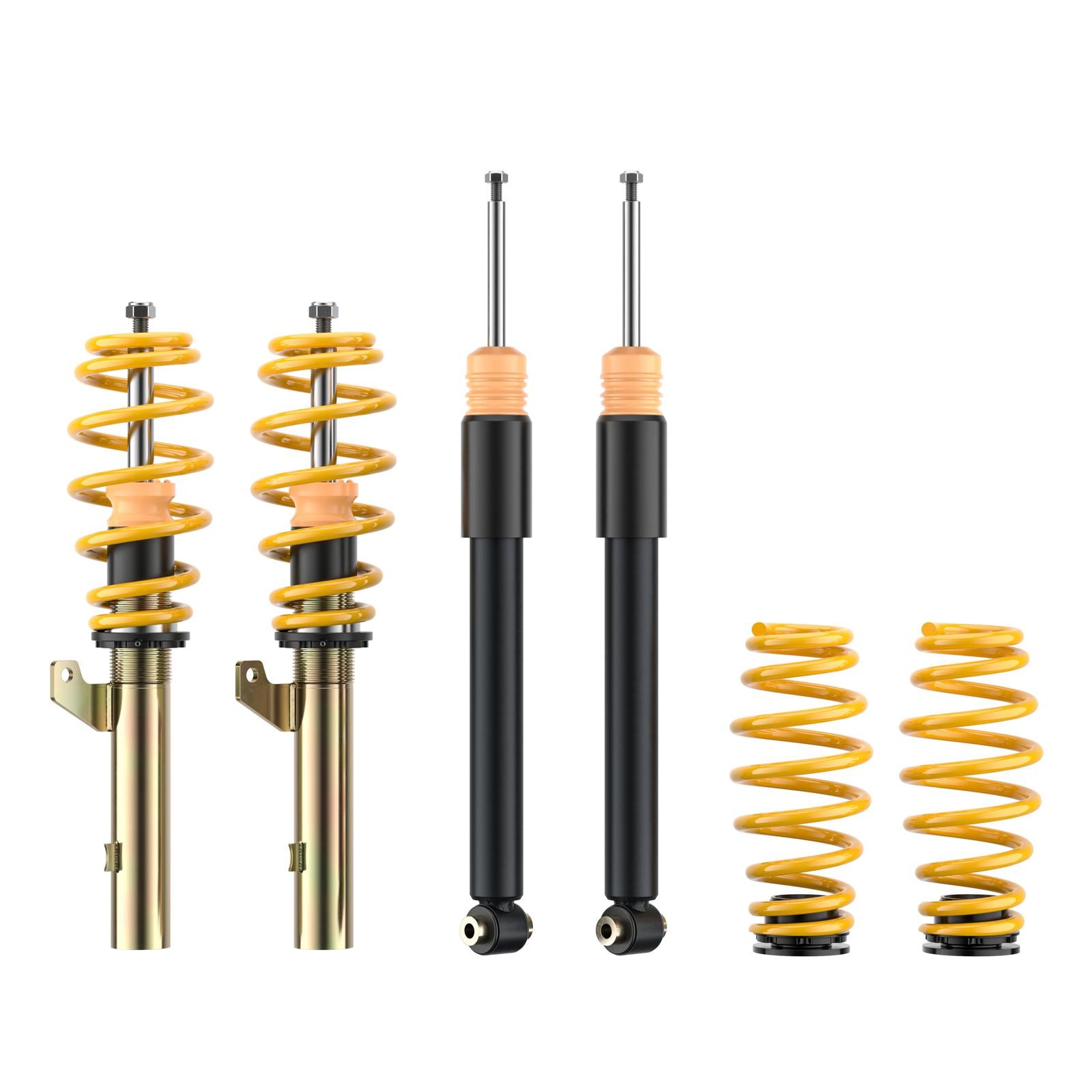

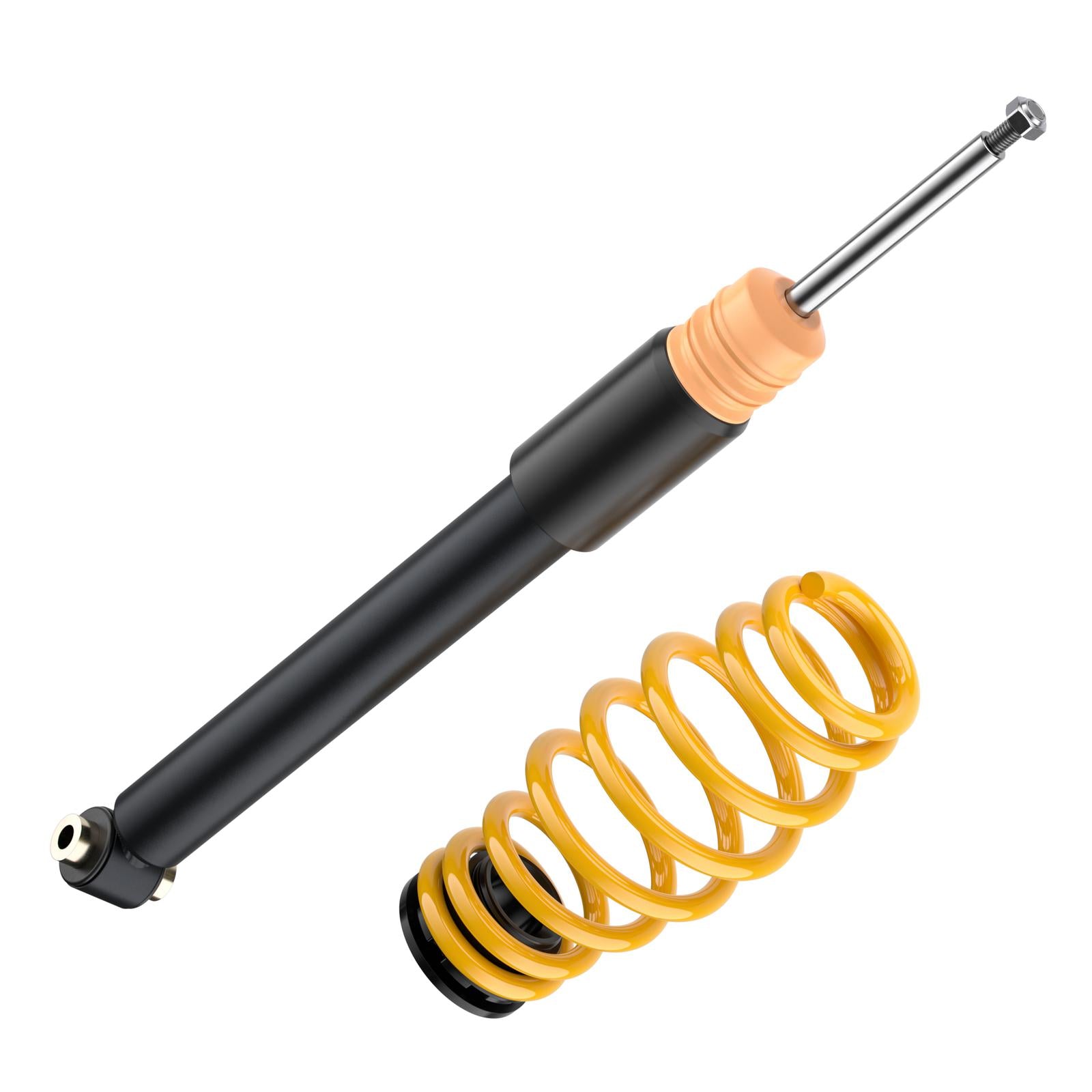

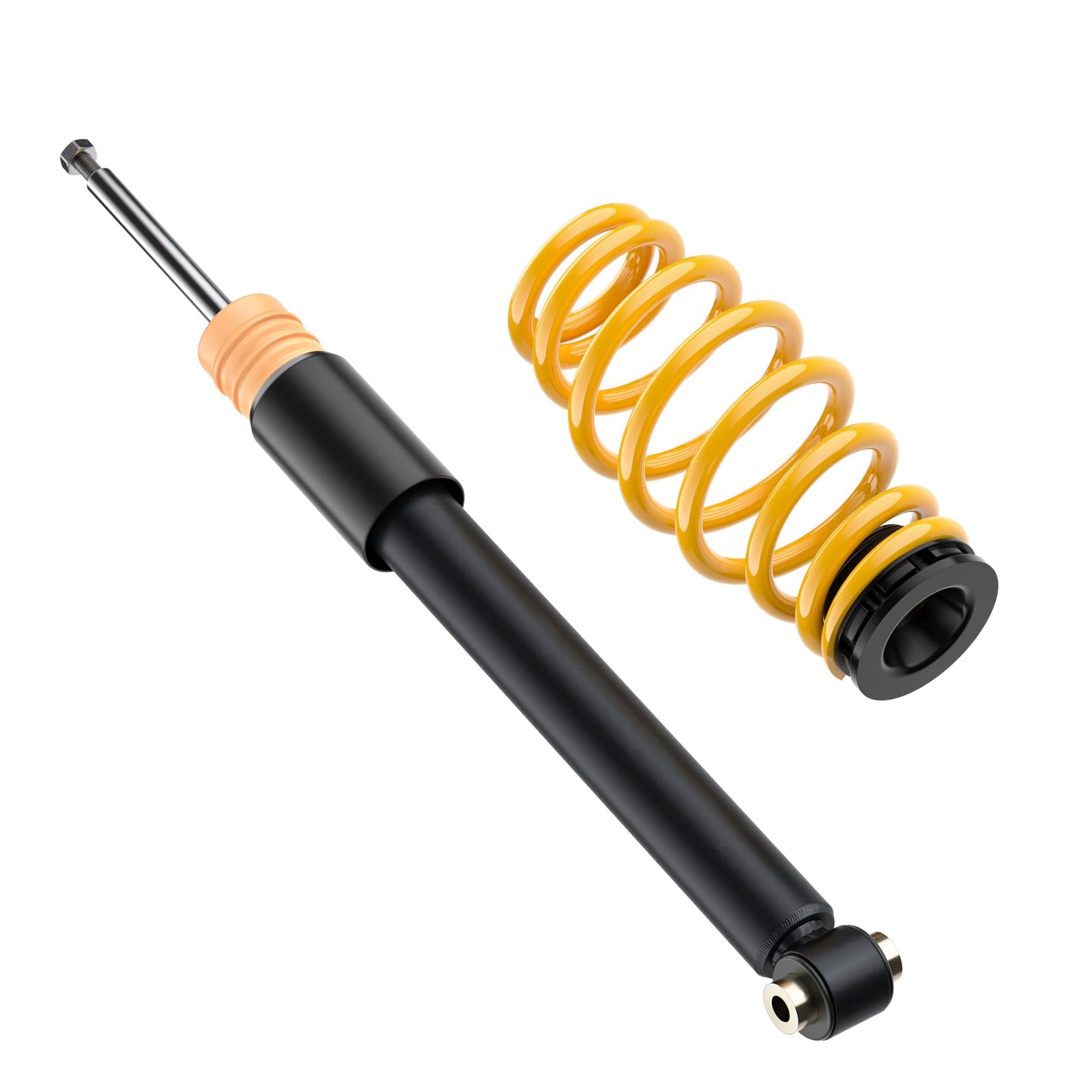

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,036–1,100 kg; Rear axle load up to 965 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2019+VWGolf VIII (CD1, DA1)2.0 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2019+VWGolf VIII (CD1, DA1)2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2019+AudiA3 Sportback (GY) 8YA30 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2019+AudiA3 Sportback (GY) 8YA35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2020+AudiA3 Saloon (GY) 8YS30 TDIDiesel · 85 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2020+AudiA3 Saloon (GY) 8YS35 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2019+VWGolf VIII (CD1, DA1)2.0 TDI GTDDiesel · 147 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
2019+VWGolf VIII (CD1, DA1)2.0 TSIPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive6, 72
  • Note 6: Not for vehicles with electronic damper control.
  • Note 72: Only for cars with a clamp diameter of 50 mm on the front axle.
