ST Coilover X Kit for VW (T5/T6) Transporter / (T5) Multivan - Front Strut Bracket Mount

SKU: 132800AV
Sale price$1,917.30 Regular price$2,739.00
Save $821.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

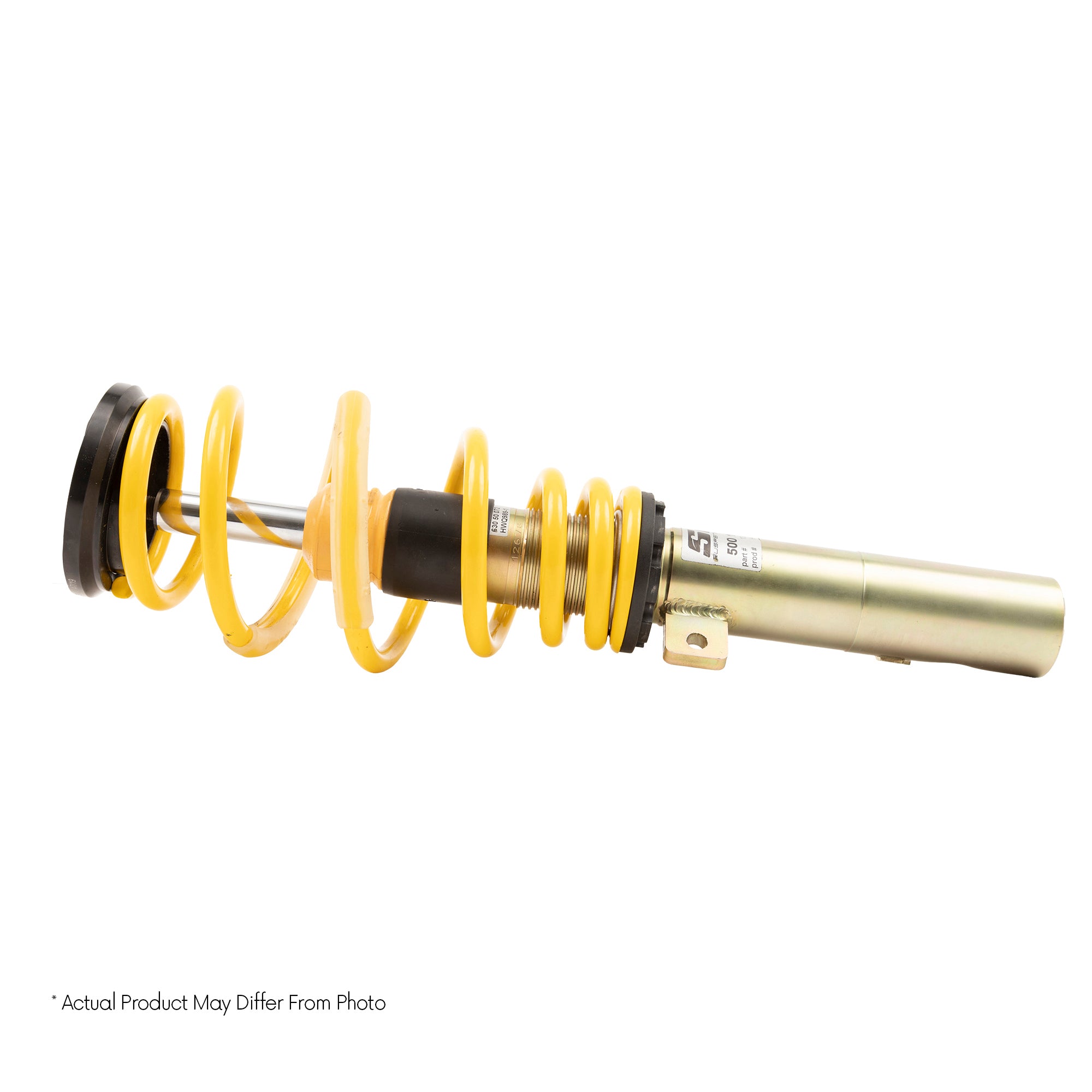

ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather.

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 35–65 mm
  • Rear lowering: 30–65 mm
  • Front axle load: up to 1,710 kg
  • Rear axle load: up to 1,720 kg

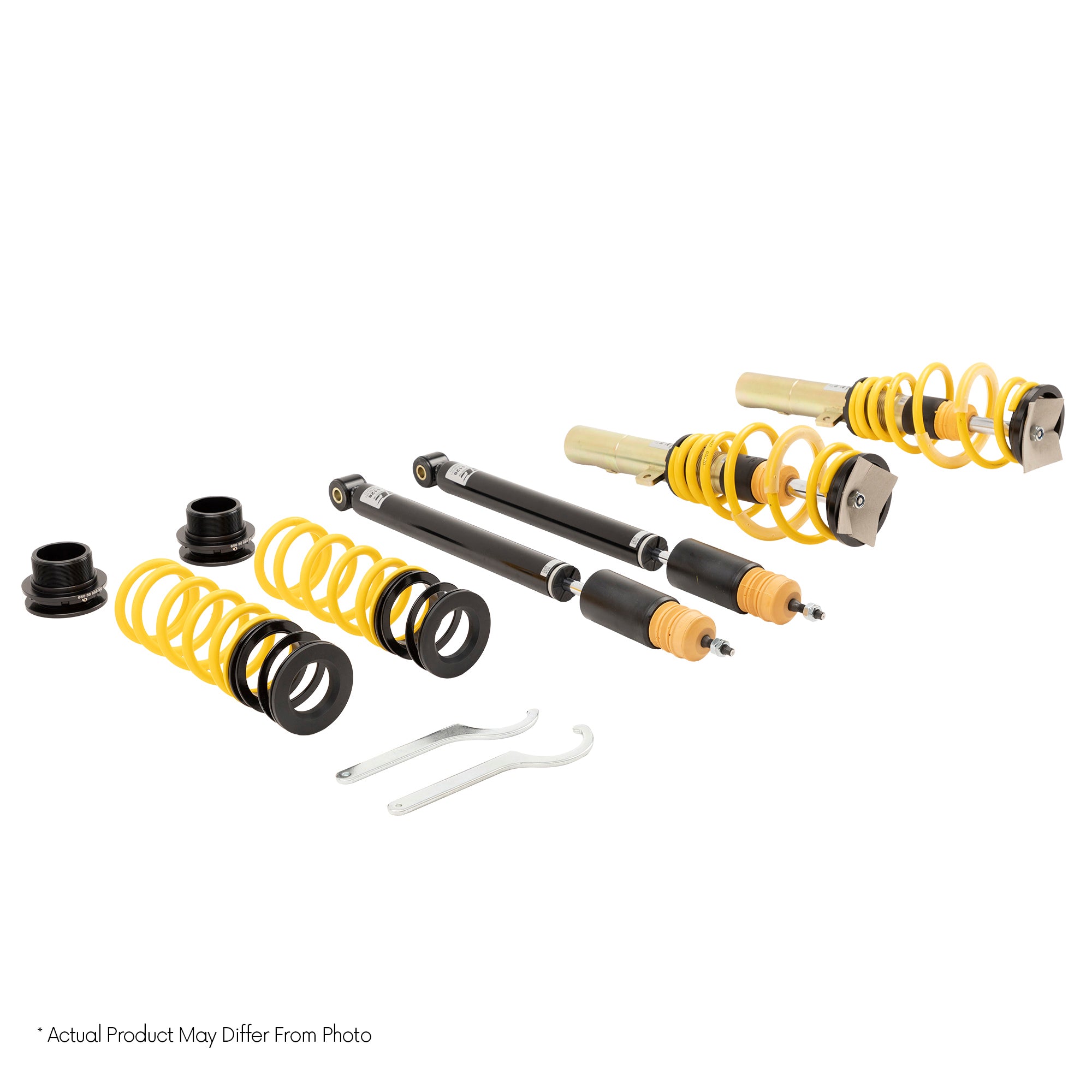

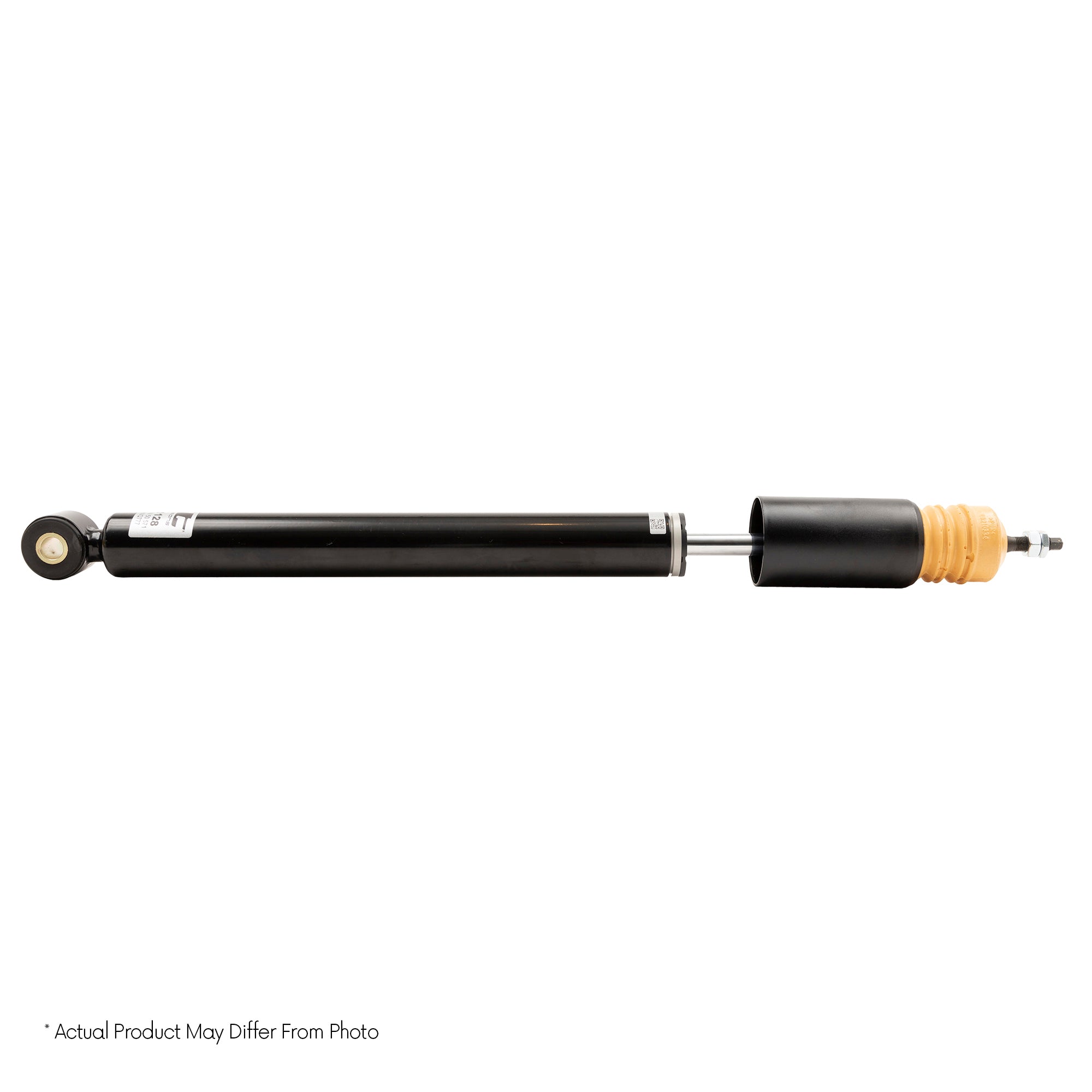

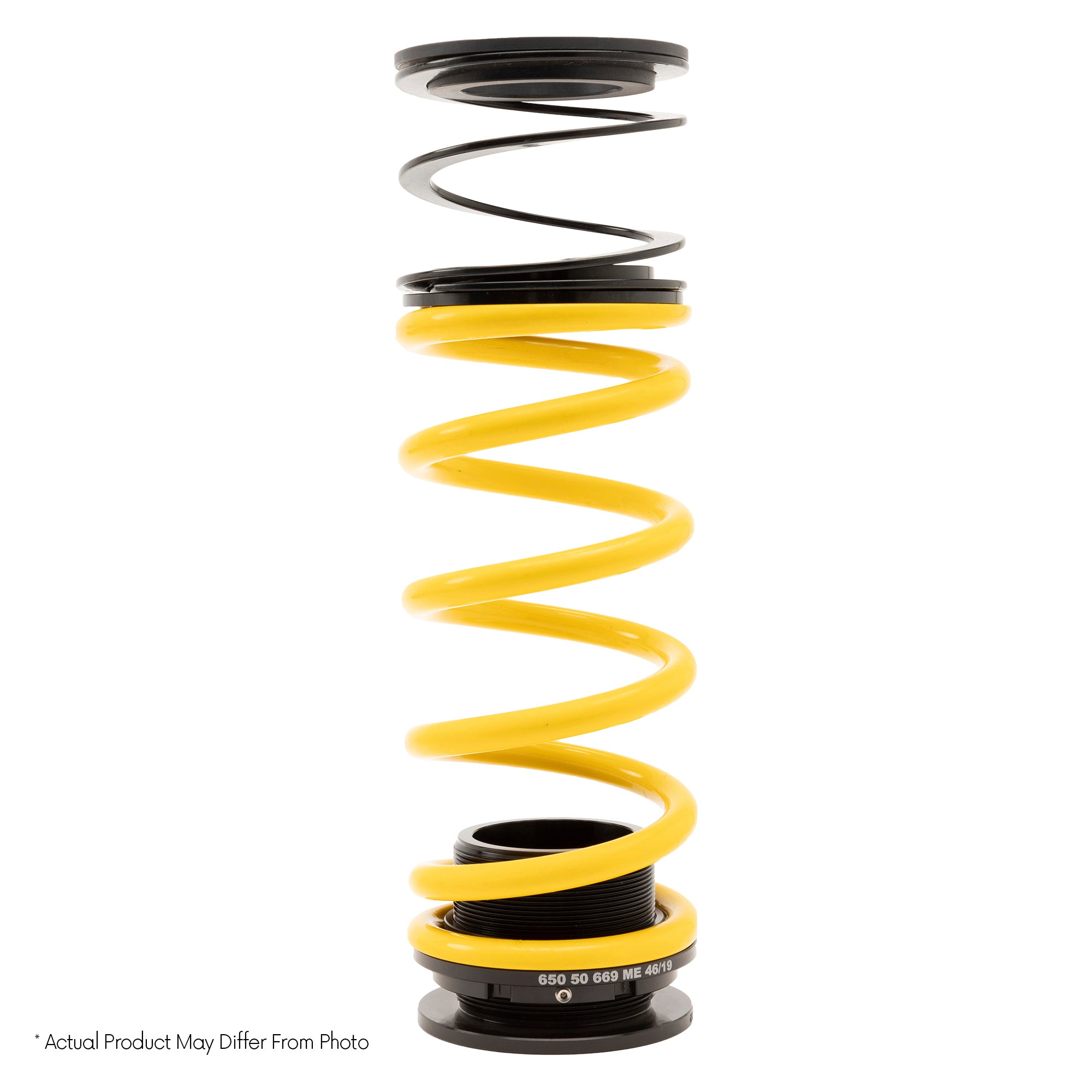

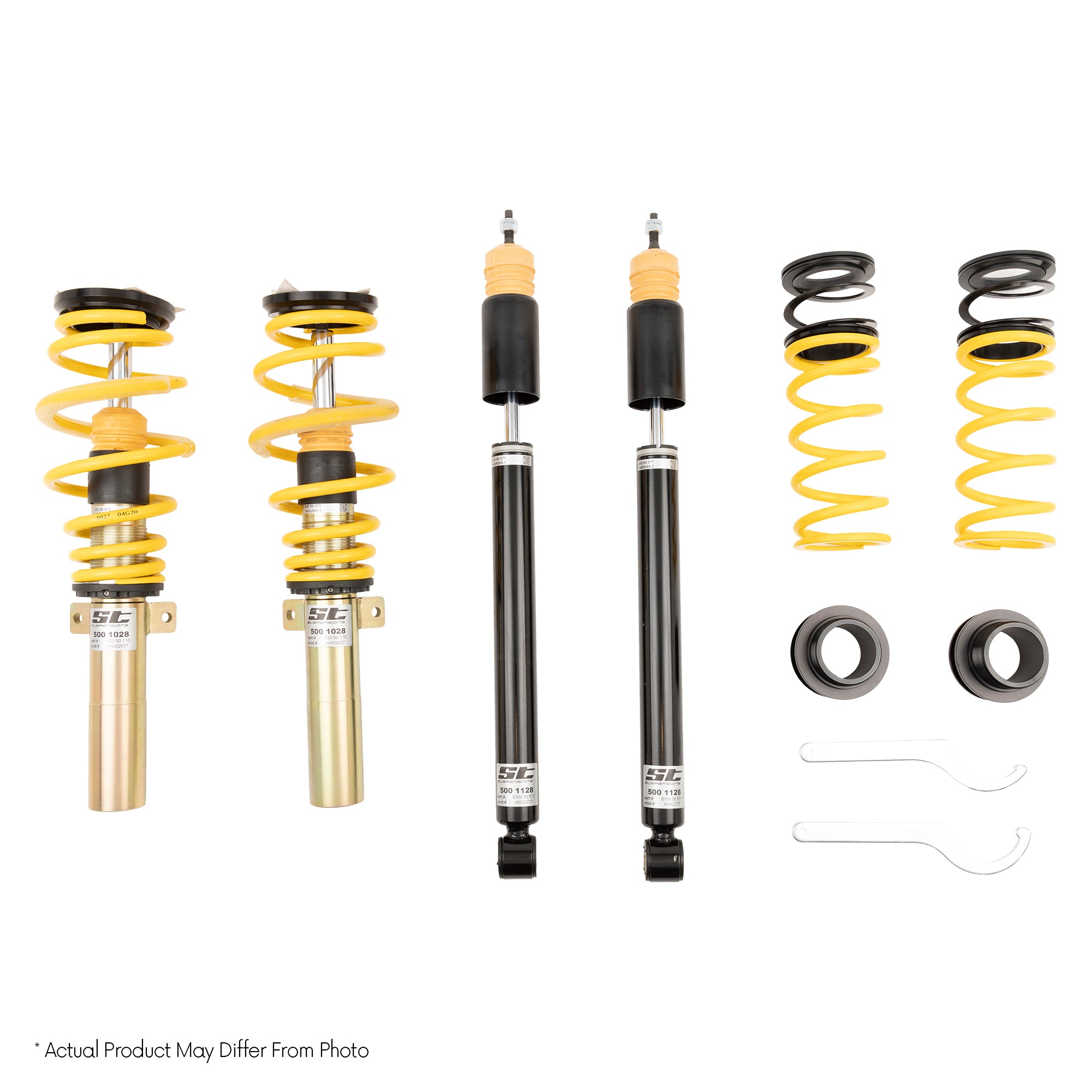

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Note For cars with a front axle bracket fitting.

Front axle load up to 1,710 kg; Rear axle load up to 1,720 kg.

For cars with a front axle bracket fitting.

References 6. See the Disclaimer tab for reference notes.

YearMakeModelDriveVariantsRefs
2003–2016VWCalifornia T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)Front-Wheel Drive1.9 TDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 2.5 TDi
2003–2016VWCalifornia T5 Camper (7EC, 7EF, 7EG, 7HF, 7HC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion
2015–2024VWCalifornia T6 Camper (SGC, SGG, SHC)Front-Wheel Drive2.0 TDI, 2.0 TSI6
2015–2024VWCalifornia T6 Camper (SGC, SGG, SHC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion6
2015+VWCaravelle Mk VI (SG_, 7HC)Front-Wheel Drive2.0 TDI, 2.0 TSI6
2015+VWCaravelle Mk VI (SG_, 7HC)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion6
2003–2016VWMultivan Mk V (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 3.2 V6, VR6 3.2
2003–2016VWMultivan Mk V (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, VR6 3.2 4motion
2003–2016VWTransporter Caravelle Mk V Bus (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 2.5 TDi, 3.2 V6, VR6 3.26
2003–2016VWTransporter Caravelle Mk V Bus (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, 3.2 V6 4motion6
2015–2024VWTransporter Caravelle Mk VI Bus (SG_, 7H_)Front-Wheel Drive2.0 TDI, 2.0 TSI6
2015–2024VWTransporter Caravelle Mk VI Bus (SG_, 7H_)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion6
2003+VWTransporter Mk V Box (7H_, 7E_)Front-Wheel Drive1.9 TDI, 2.0, 2.0 BiTDI, 2.0 TDI, 2.0 TSI, 2.5 TDI, 3.2 V6, VR6 3.26
2003+VWTransporter Mk V Box (7H_, 7E_)All-Wheel Drive2.0 BiTDI 4motion, 2.0 TDI 4motion, 2.0 TSI 4motion, 2.5 TDI 4motion, VR6 3.2 4motion6
2015–2024VWTransporter Mk VI Box (SG_)Front-Wheel Drive2.0 TDI, 2.0 TSI6
2015–2024VWTransporter Mk VI Box (SG_)All-Wheel Drive2.0 TDI 4motion, 2.0 TSI 4motion6
  • Note 6: Not for vehicles with electronic damper control.
