ST Coilover X Kit for Skoda (1U) Octavia RS / VW (1J) Bora / Seat (1M) Toledo

SKU: 13282002
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the Skoda Octavia RS (1U) / VW Bora (1J) / Seat Toledo (1M).

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 35–65 mm
  • Rear lowering: 35–65 mm
  • Front axle load: up to 1,020 kg
  • Rear axle load: up to 1,080 kg

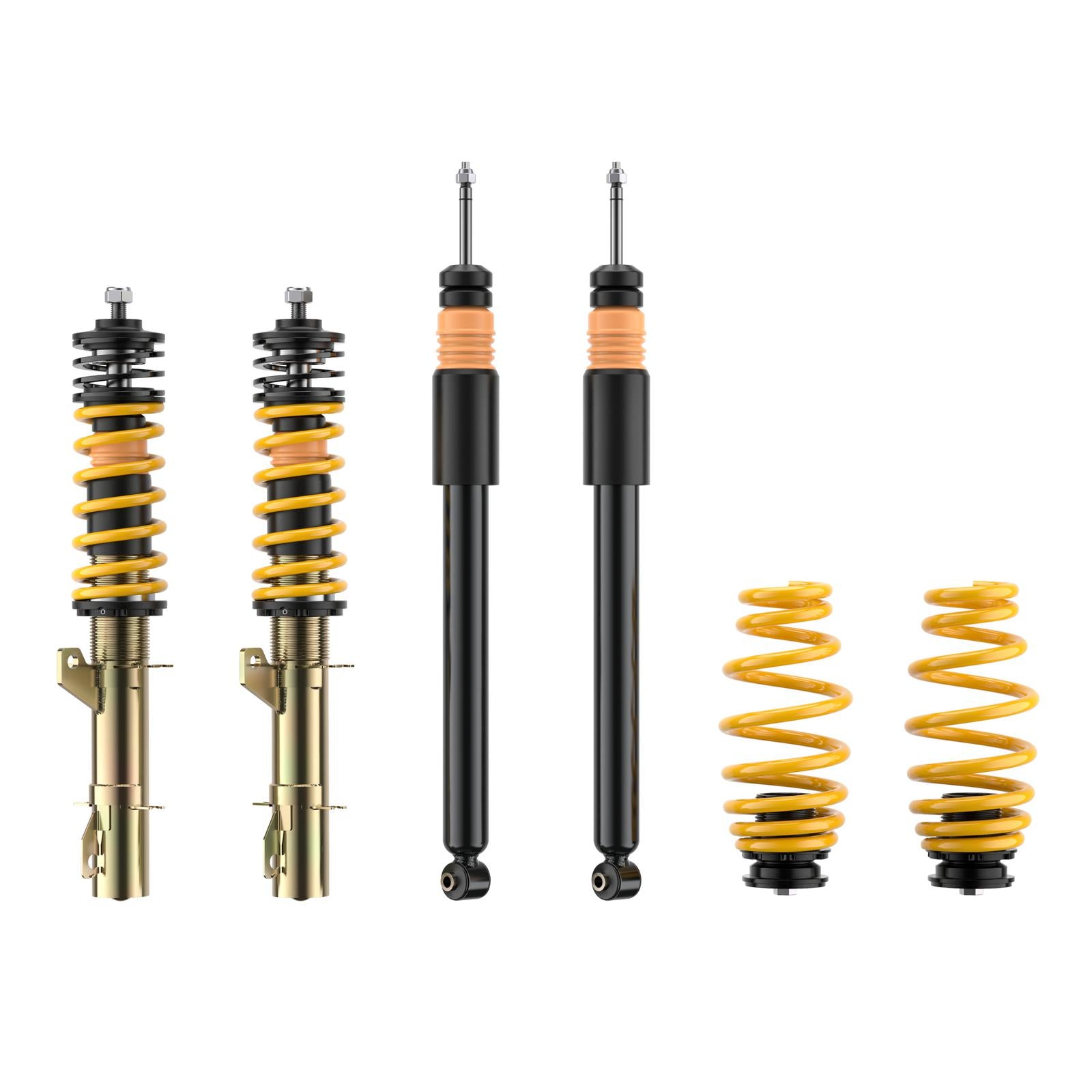

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,020 kg; Rear axle load up to 1,080 kg.

References 4, 42, 91, 121. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1998–2013VWBora (1J, 1J2)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)2.3 V5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.8 20VPetrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive42, 91, 121
1998–2006SeatToledo Mk II (1M2)2.3 V5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive42, 91, 121
1998–2013VWBora (1J, 1J2)1.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.8 TPetrol · 127 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)2.8 V6Petrol · 130 kW · 2.8L · 6-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.6Petrol · 55 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)2.3 V5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)2.0Petrol · 85 kW · 2.0L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 85 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)2.3 V5Petrol · 110 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.6 16VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.6 16VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.6 16VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.4Petrol · 44 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)RS 1.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.6 16VPetrol · 77 kW · 1.6L · 4-cylFront-Wheel Drive42, 91, 121
1996–2010SkodaOctavia I (1U2)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.6Petrol · 75 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)2.3 V5 20VPetrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.6 FSIPetrol · 81 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.6 FSIPetrol · 81 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.6 FSIPetrol · 81 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)1.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)RS 1.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.8 TPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.8 TPetrol · 110 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1999–2006VWGolf IV Estate (1J_)2.3 V5Petrol · 125 kW · 2.3L · 5-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.9 TDIDiesel · 96 kW · 1.9L · 4-cylFront-Wheel Drive42, 91, 121
1999–2005VWBora Estate (1J, 1J6)1.4 16VPetrol · 55 kW · 1.4L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.8 20VTPetrol · 132 kW · 1.8L · 4-cylFront-Wheel Drive42, 91, 121
1999–2006VWGolf IV Estate (1J_)1.9 TDIDiesel · 110 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)2.8 VR6Petrol · 130 kW · 2.8L · 6-cylFront-Wheel Drive4, 42, 91, 121
1998–2013VWBora (1J, 1J2)2.8 VR6Petrol · 147 kW · 2.8L · 6-cylFront-Wheel Drive4, 42, 91, 121
1998–2006SeatToledo Mk II (1M2)1.9 TDIDiesel · 74 kW · 1.9L · 4-cylFront-Wheel Drive42, 91, 121
1996–2010SkodaOctavia I (1U2)1.6Petrol · 55 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.8Petrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1996–2010SkodaOctavia I (1U2)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.6Petrol · 74 kW · 1.6L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.8 20VPetrol · 92 kW · 1.8L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.9 SDIDiesel · 50 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.9 TDIDiesel · 66 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
1998–2010SkodaOctavia I Combi (1U5)1.9 TDIDiesel · 81 kW · 1.9L · 4-cylFront-Wheel Drive4, 42, 91, 121
  • Note 4: Excluding four wheel drive models.
  • Note 42: In combination with original wheels and tyres, wheelspacers might be necessary.
  • Note 91: We recommend a special anti roll bar kit (part no. 680 50 008) for models with a drive shaft diameter of min. 50mm. This is for improving the clearance of the right hand side drive shaft. Because of car specific differences a clearance is not always given.
  • Note 121: Please replace the anti-sway bar kit on max. tested lowering. This is for enough clearance of the right drive shaft. Anti-sway bar kit for cars without Xenon headlights: part no. 685 50 000 / Anti-sway bar kit for cars with Xenon headlights: part no. 685 50 005.
