ST Coilover X Kit for Seat (1P) Leon Cupra R / VW (MK6) Golf GTI

SKU: 13281031
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

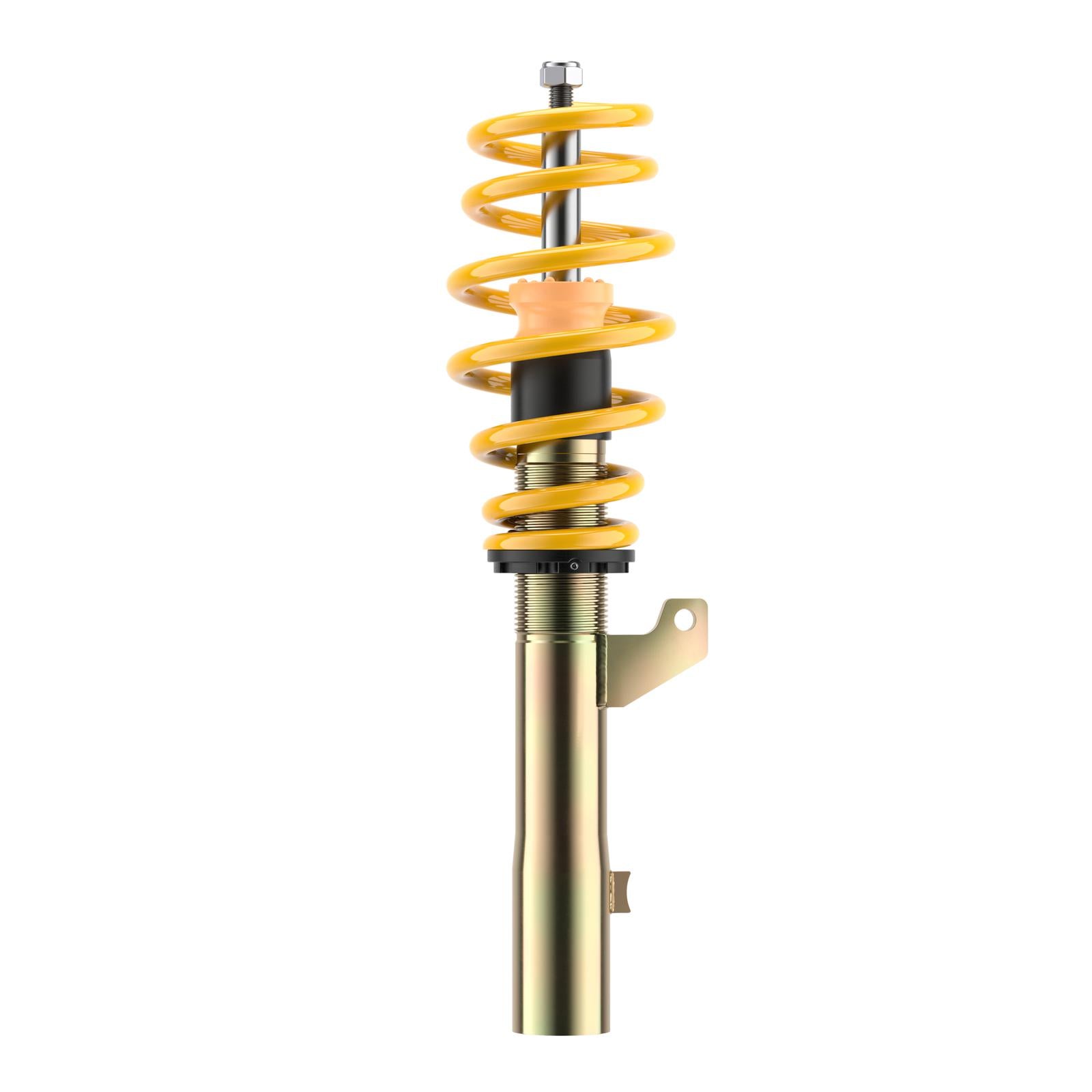

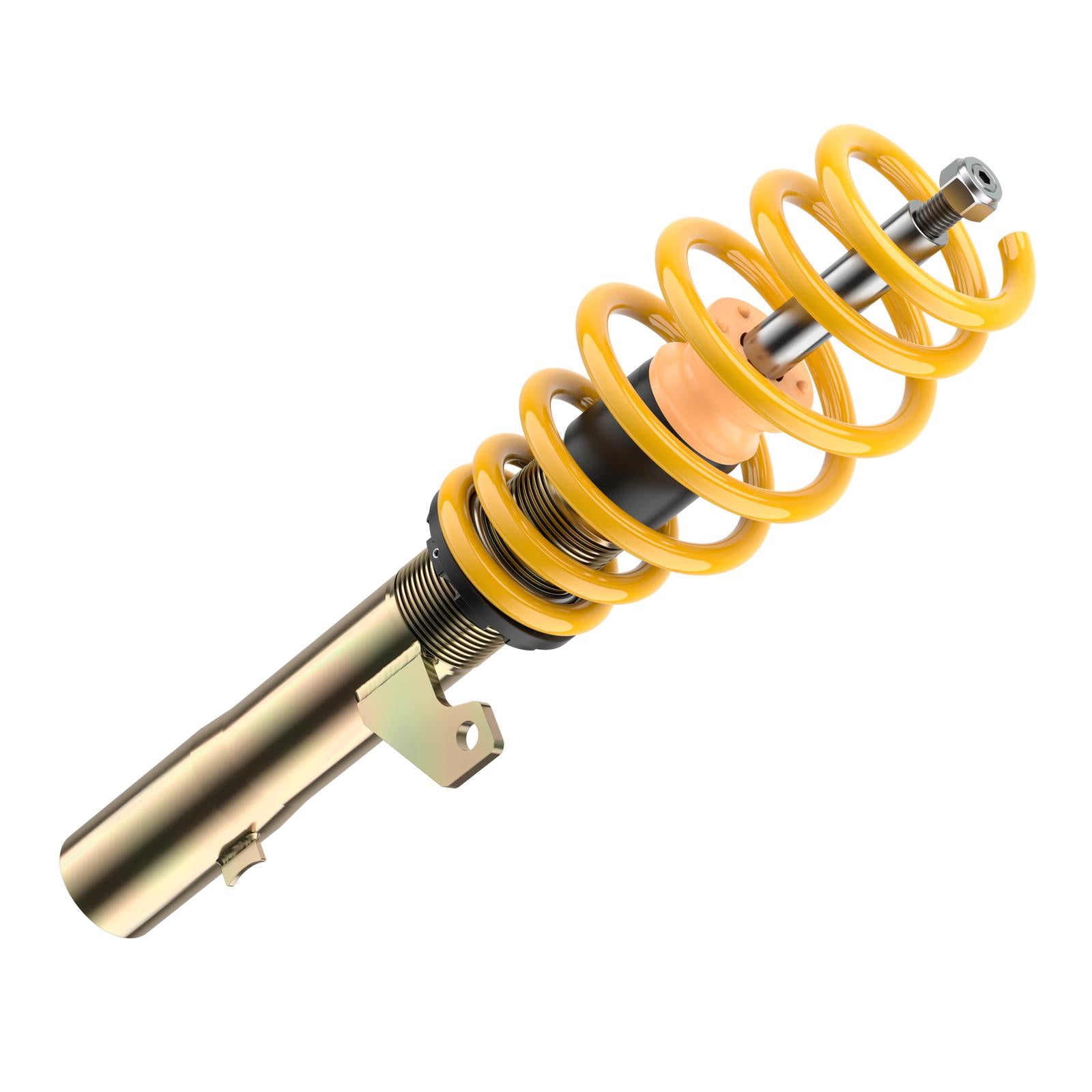

ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the Seat Leon Cupra R (1P) / VW Golf GTI (MK6).

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 10–40 mm
  • Rear lowering: 15–40 mm
  • Front axle load: 1,036–1,105 kg
  • Rear axle load: up to 1,000 kg
  • Front strut diameter (vehicle): 55 mm

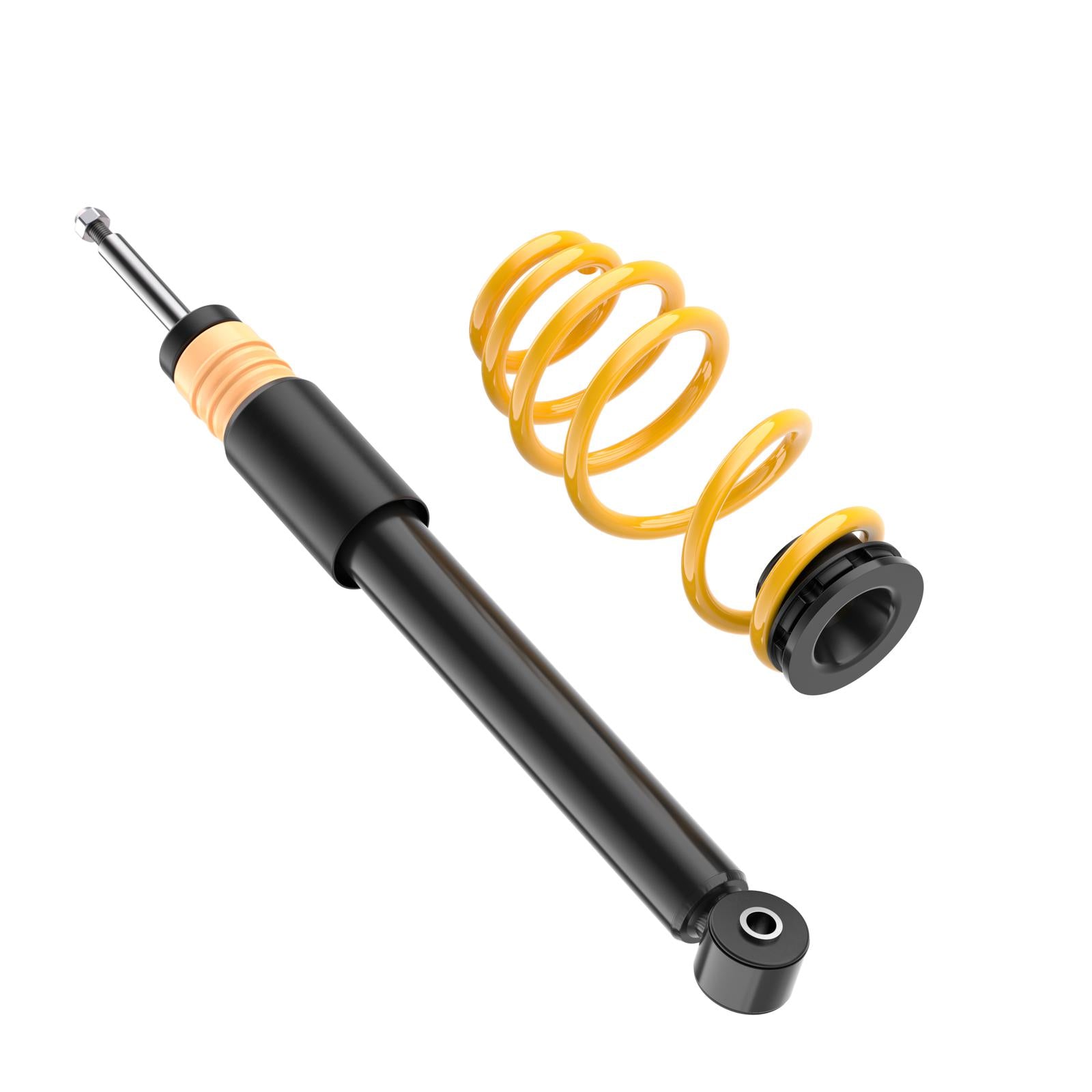

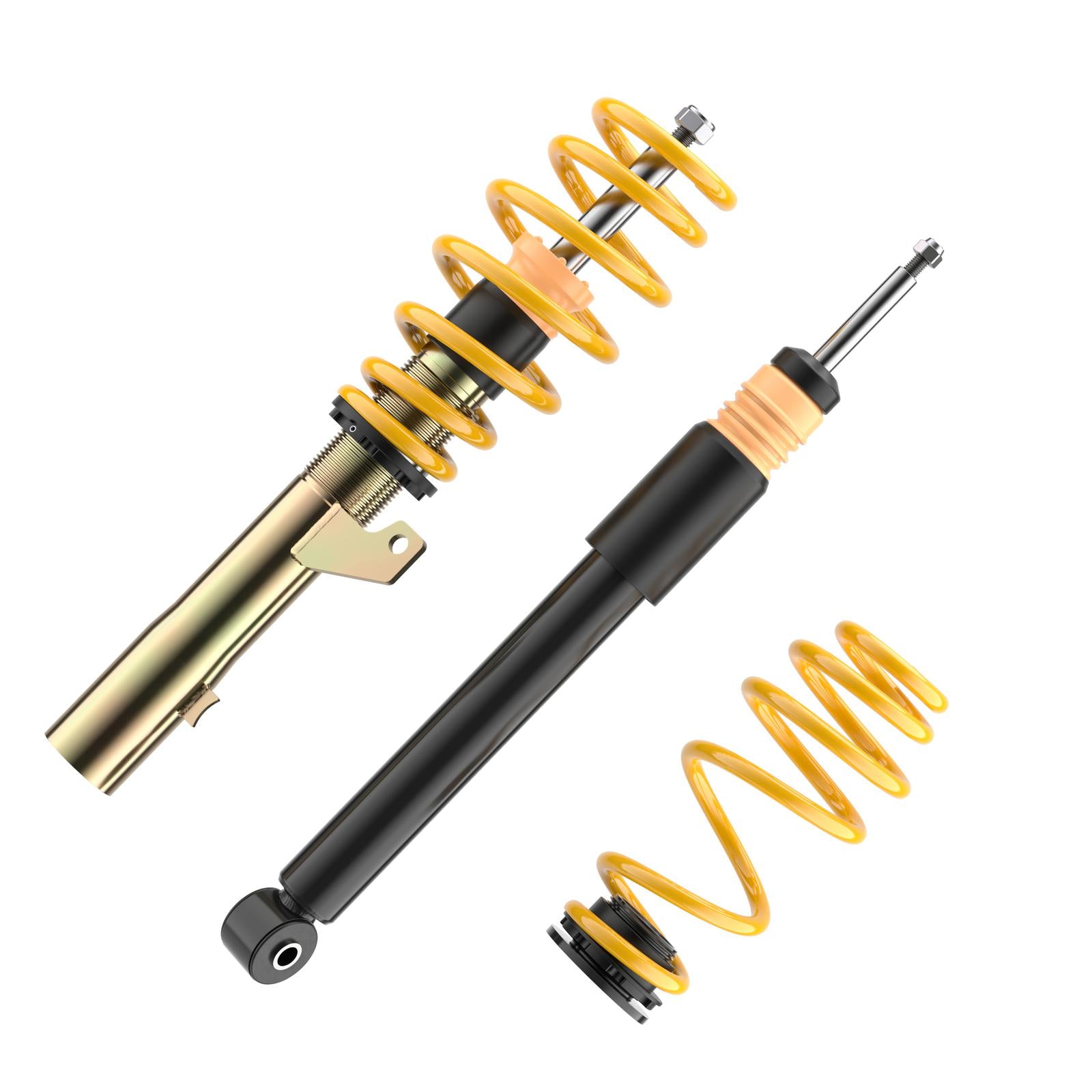

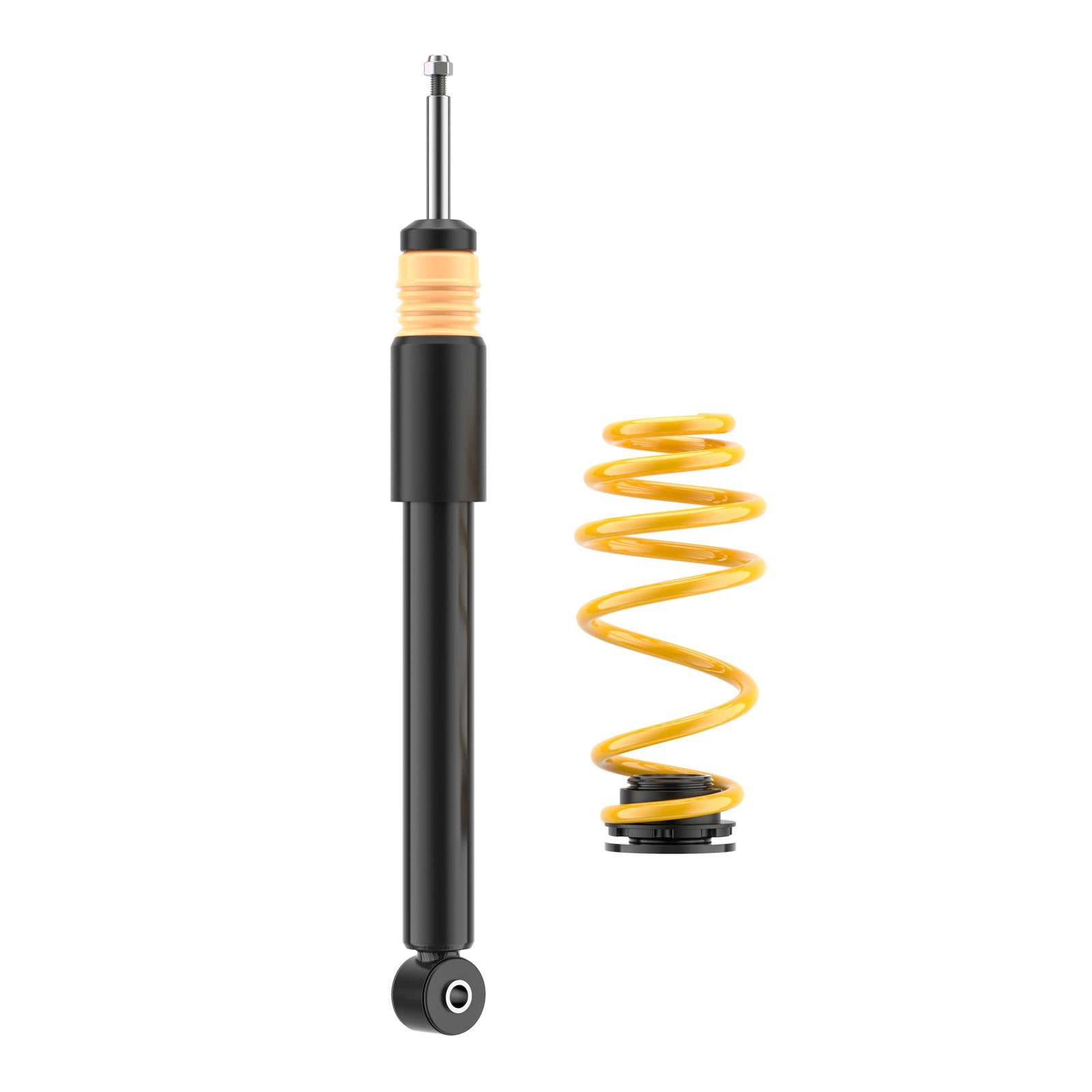

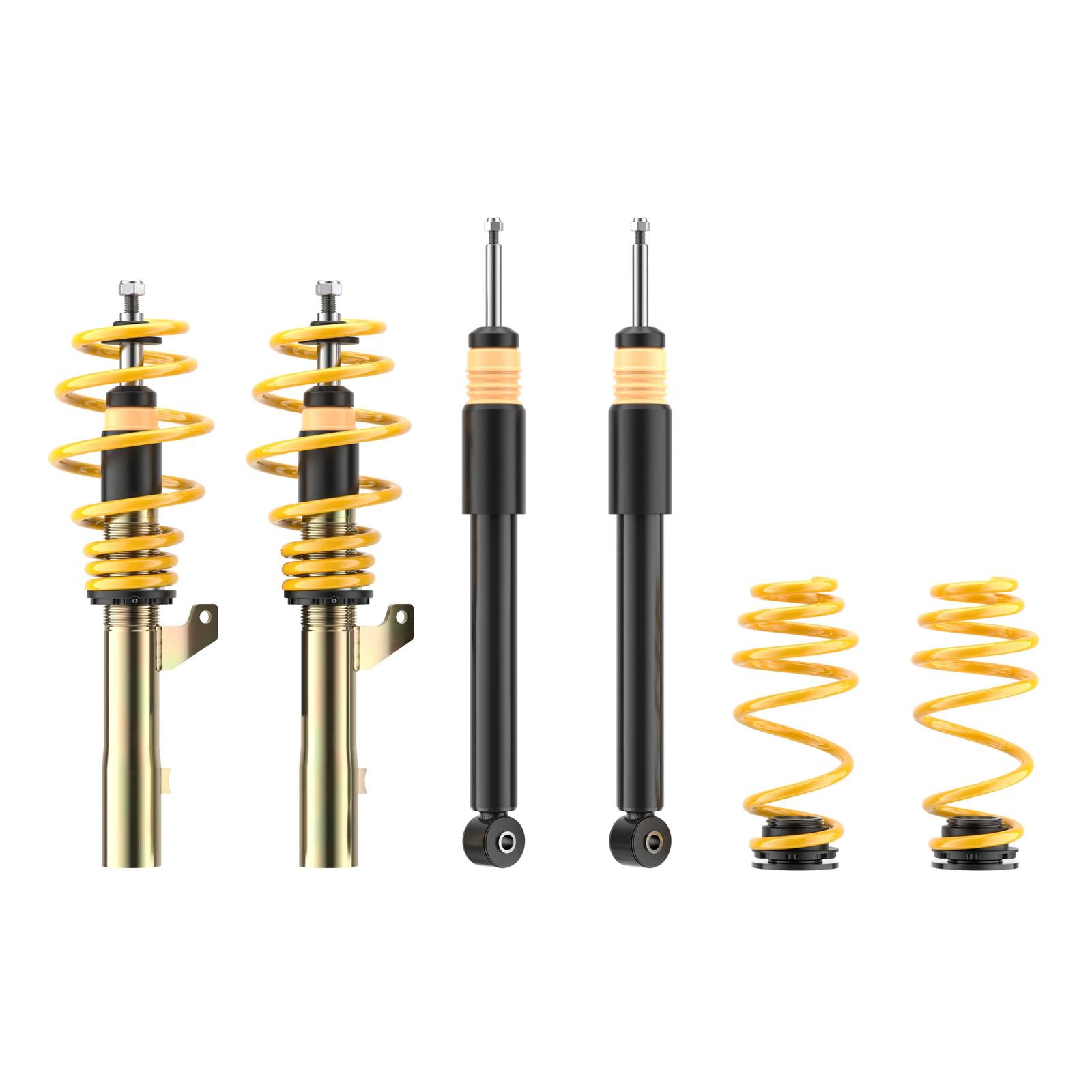

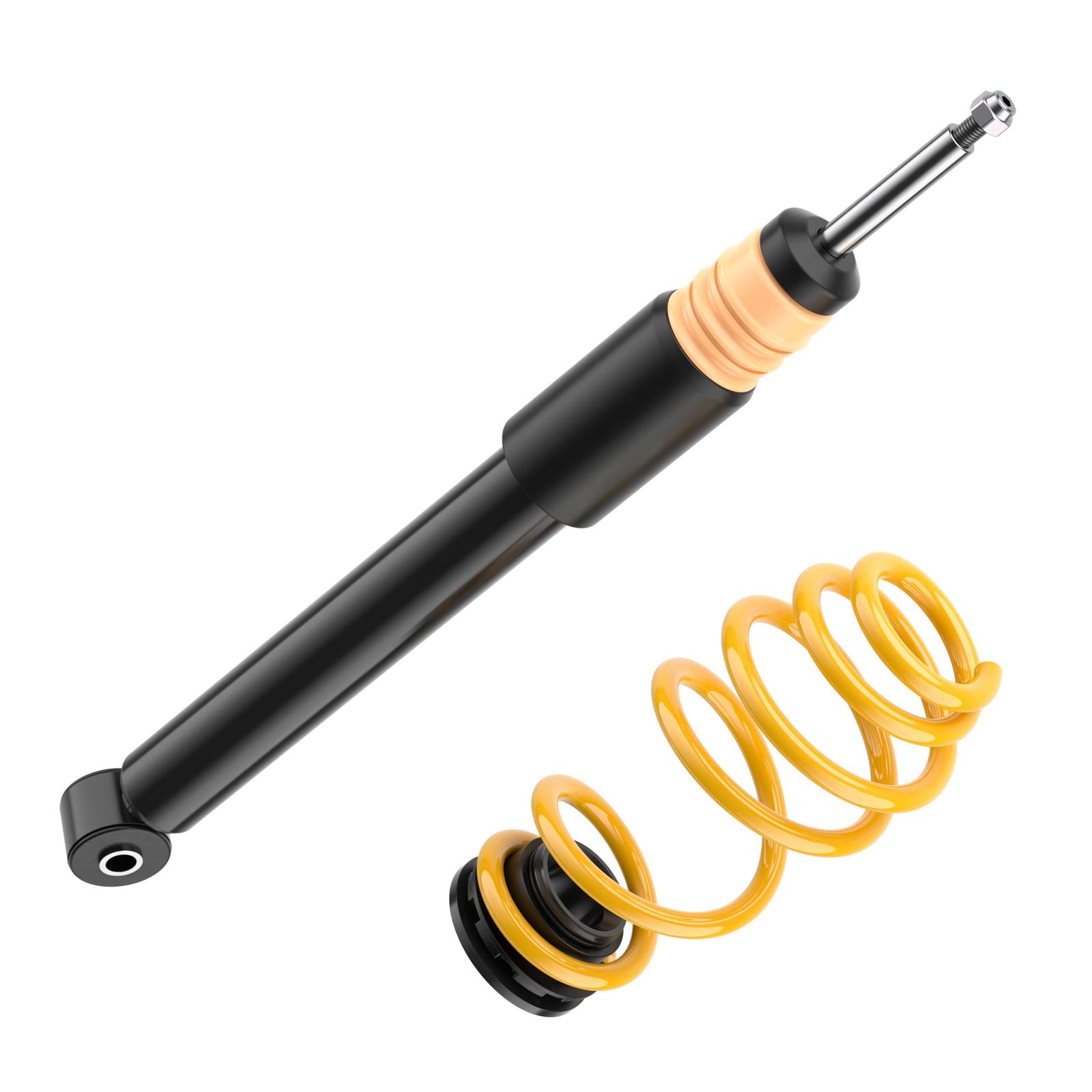

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load 1,036–1,105 kg; Rear axle load up to 1,000 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2005–2013SeatLeon (1P1)1.9 TDIDiesel · 77 kW · 1.9L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 Cupra RPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TDI 16VDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TFSIPetrol · 136 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TFSIPetrol · 147 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2005–2013SeatLeon (1P1)2.0 TFSIPetrol · 177 kW · 2.0L · 4-cylFront-Wheel Drive4, 71
2008–2014VWGolf VI (5K1, 1K_)1.6 TDIDiesel · 77 kW · 1.6L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)1.8 TSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0Petrol · 86 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 GTIPetrol · 149 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 GTiPetrol · 147 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 GTiPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 GTiPetrol · 173 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 TDIDiesel · 81 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 TDIDiesel · 103 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive4, 6, 71, 187
2008–2014VWGolf VI (5K1, 1K_)2.5Petrol · 125 kW · 2.5L · 5-cylFront-Wheel Drive4, 6, 71, 187
  • Note 4: Excluding four wheel drive models.
  • Note 6: Not for vehicles with electronic damper control.
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 187: At vehicles equipped with electronic damping DCC, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510141.
