ST Coilover X Kit for VW (MK7) Golf R

SKU: 132800CB
Sale price$1,630.30 Regular price$2,329.00
Save $698.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST X coilovers give continuous ride height adjustment on galvanised, multi-sealed struts via a polyamide adjuster ring. Manufactured by KW Automotive, they use twin-tube dampers with a fixed, vehicle-specific setting, a low-friction pressure-resistant housing, chrome-plated piston rod and a monobloc guide with ST seal package to keep dirt out in all weather. This kit is developed for the VW Golf R (MK7) 4motion.

Key Features

  • Galvanised coilover struts
  • Fixed, vehicle-specific damping
  • Manufactured by KW Automotive

Specifications

  • Version: X
  • Damping: Fixed, vehicle-specific setting
  • Material: Galvanised steel
  • Front lowering: 10–40 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,080 kg
  • Rear axle load: up to 1,010 kg
  • Front strut diameter (vehicle): 55 mm

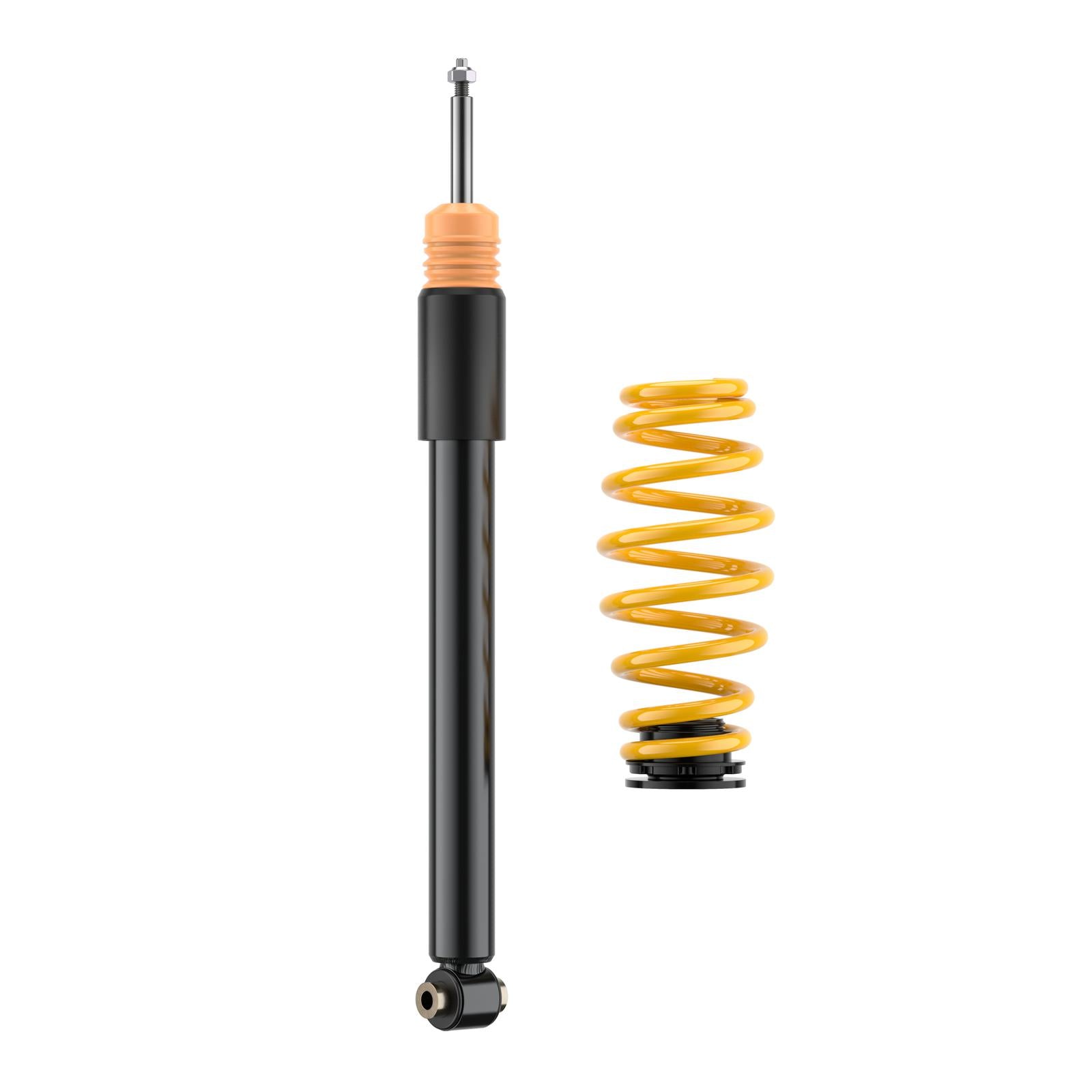

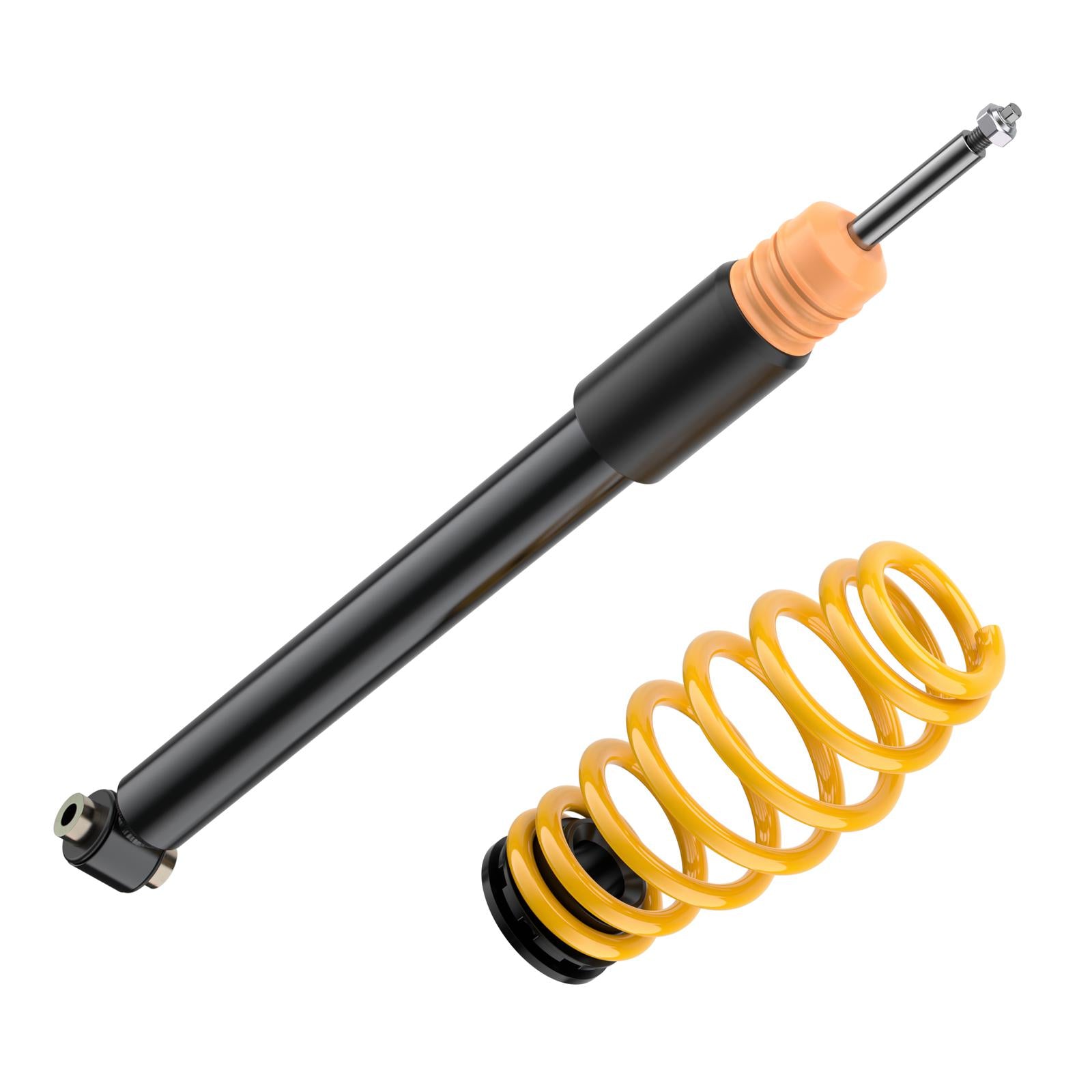

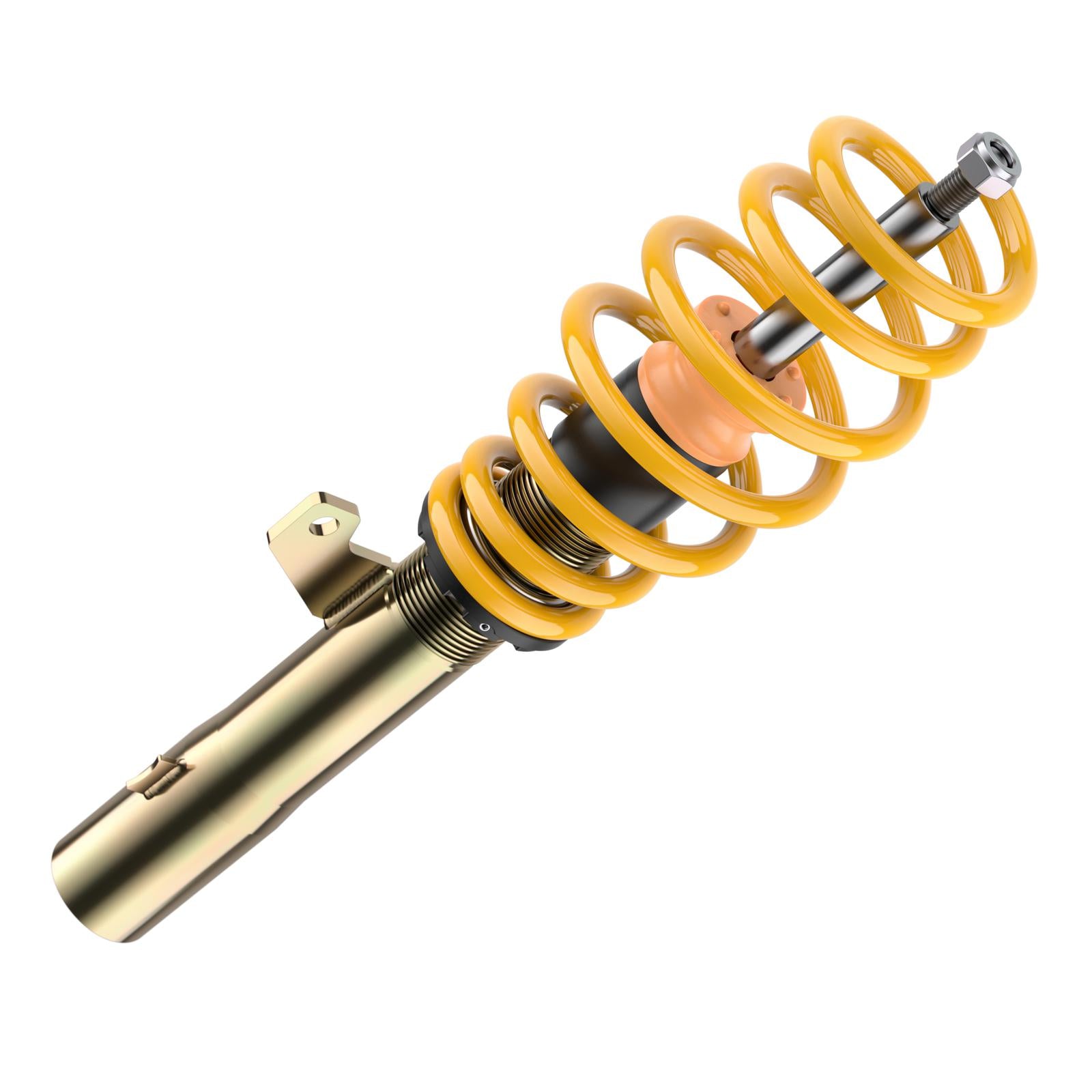

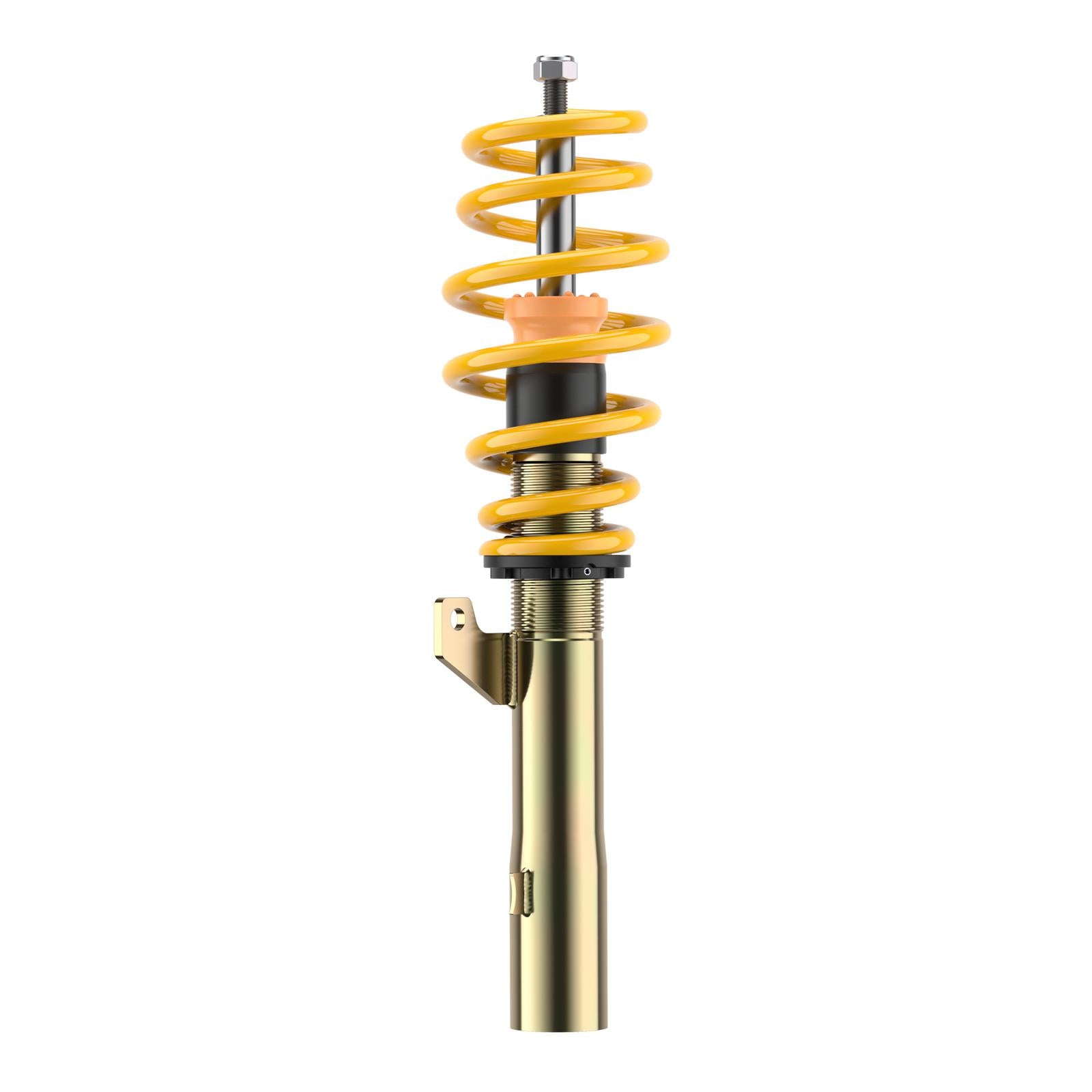

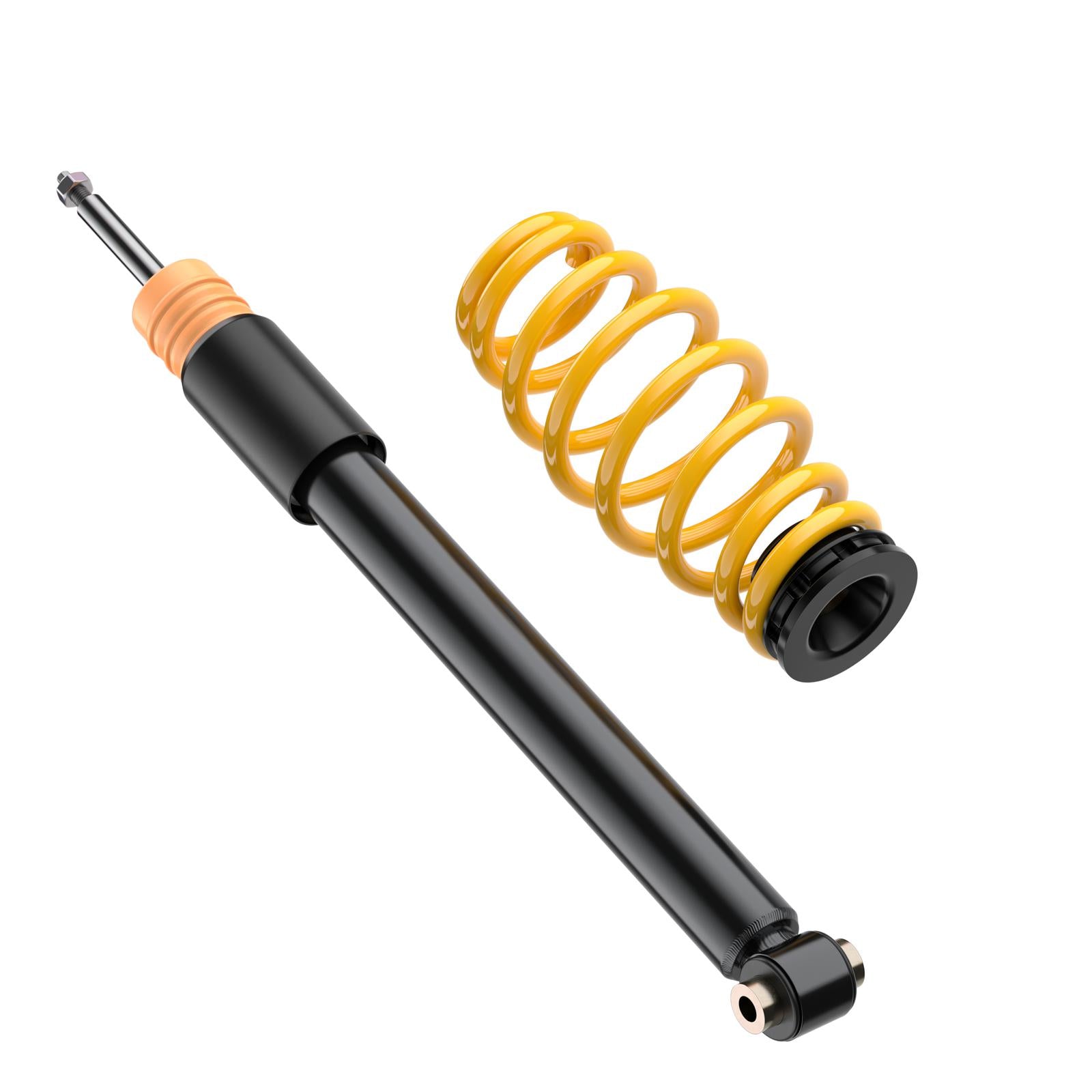

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,080 kg; Rear axle load up to 1,010 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 4motionPetrol · 206 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 4motionPetrol · 221 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 4motionPetrol · 215 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 360S 4motionPetrol · 265 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 4motionPetrol · 228 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
2012–2021VWGolf VII (5G1, BQ1, BE1, BE2, AU)2.0 R 4motionPetrol · 213 kW · 2.0L · 4-cylAll-Wheel Drive6, 71, 209
  • Note 6: Not for vehicles with electronic damper control.
  • Note 71: Only for cars with a clamp diameter of 55 mm on the front axle.
  • Note 209: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510342.
