ST Coilover XA Kit for Audi (C8) A6 Avant / A7 Sportback - 48.6mm Front Strut - FWD

SKU: 182100DF
Sale price$2,036.30 Regular price$2,909.00
Save $872.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

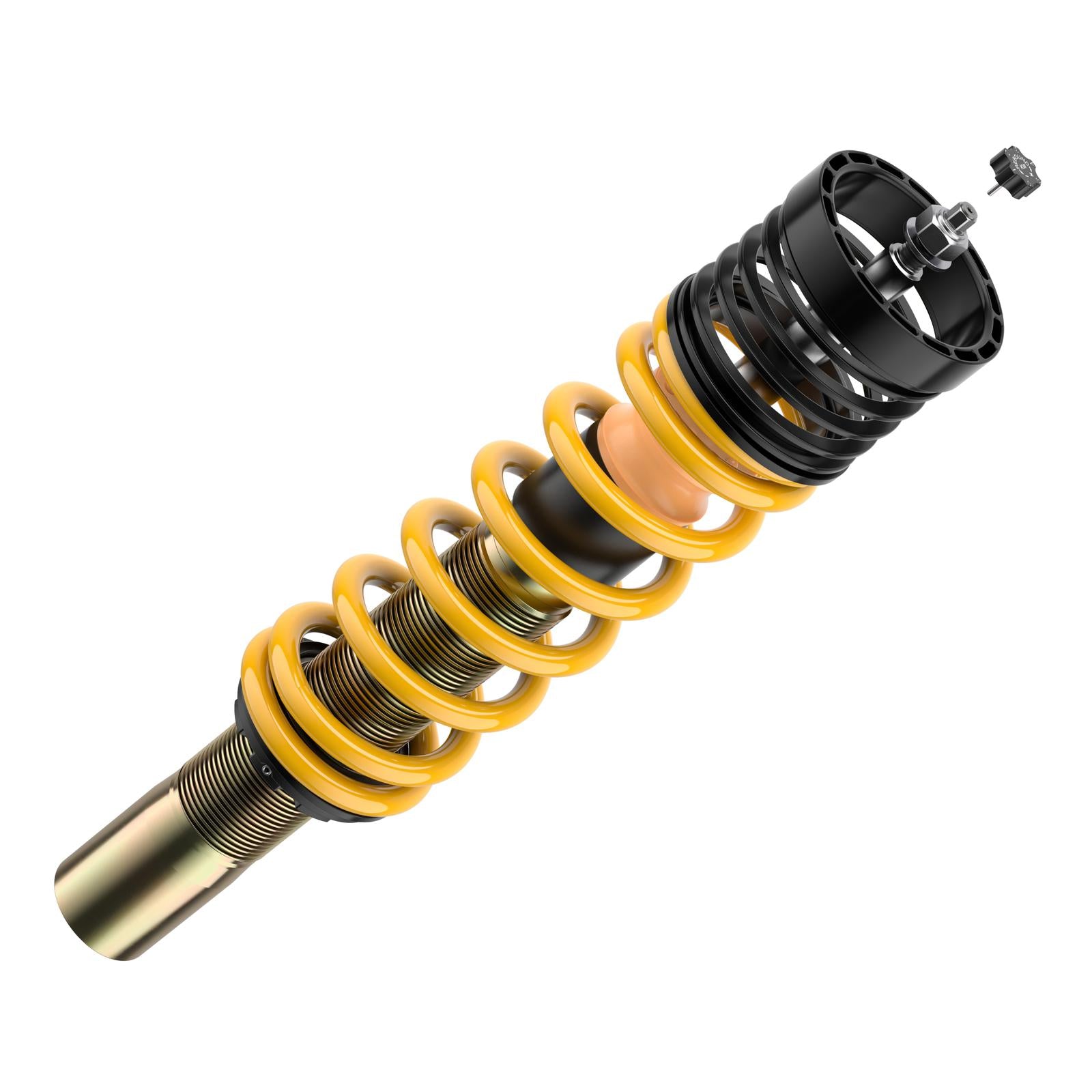

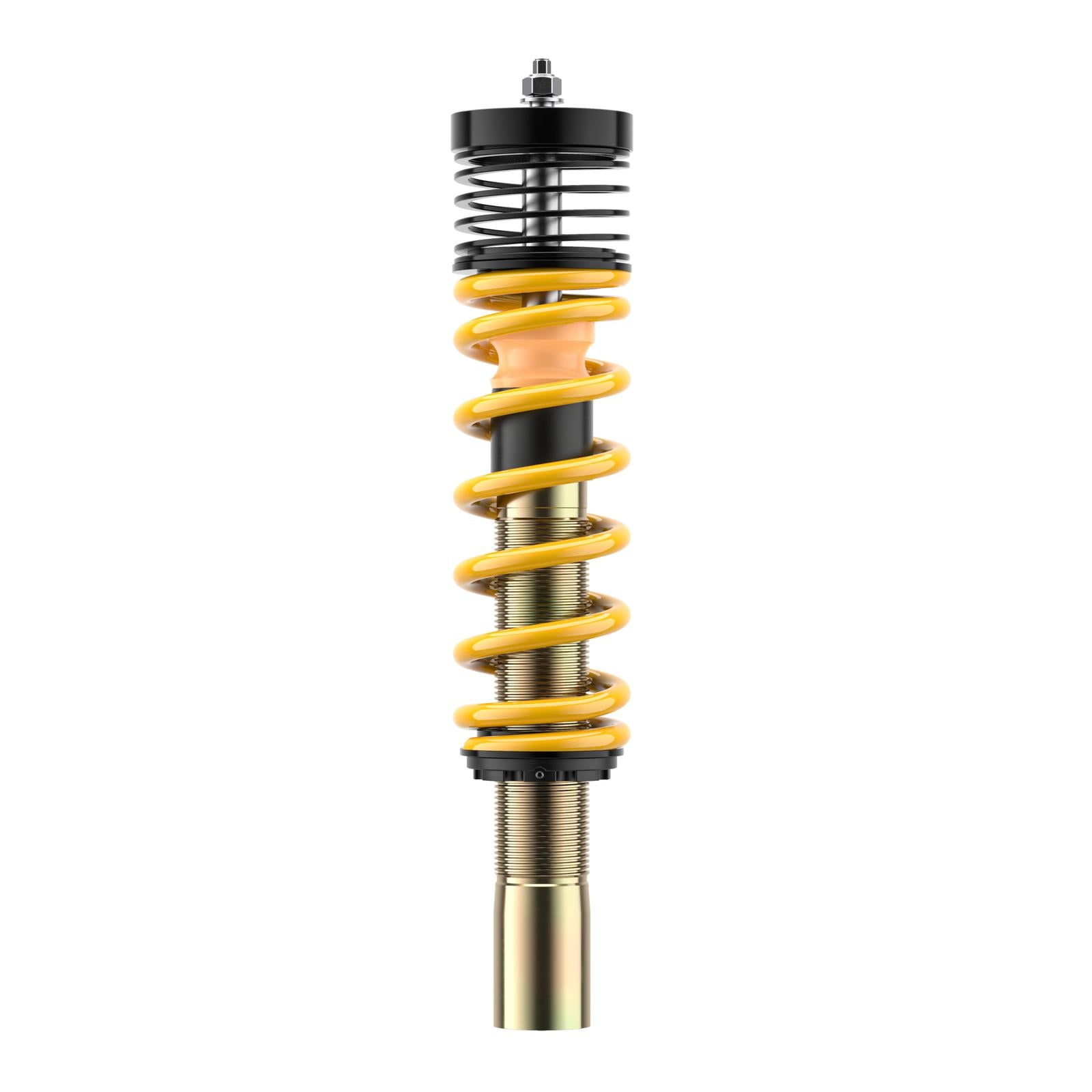

ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the Audi A6 Avant / A7 Sportback (C8).

Key Features

  • Rebound damping adjustable in up to 16 clicks
  • Continuous thread height adjustment
  • Galvanised coilover struts

Specifications

  • Version: XA
  • Damping: Adjustable rebound
  • Material: Galvanised steel
  • Front lowering: 40–65 mm
  • Rear lowering: 40–65 mm
  • Front axle load: up to 1,175 kg
  • Rear axle load: up to 1,280 kg
  • Front strut diameter (vehicle): 48.6 mm

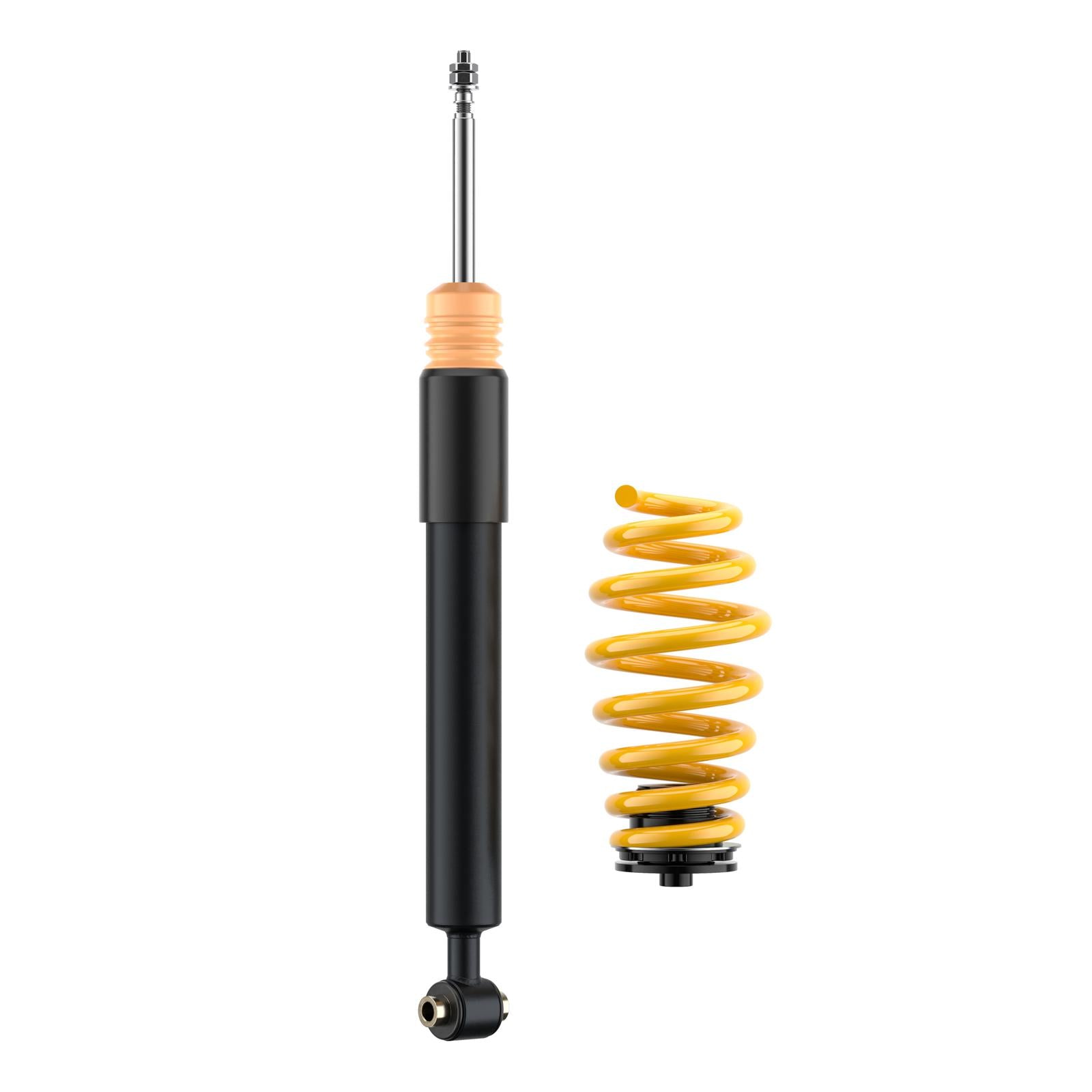

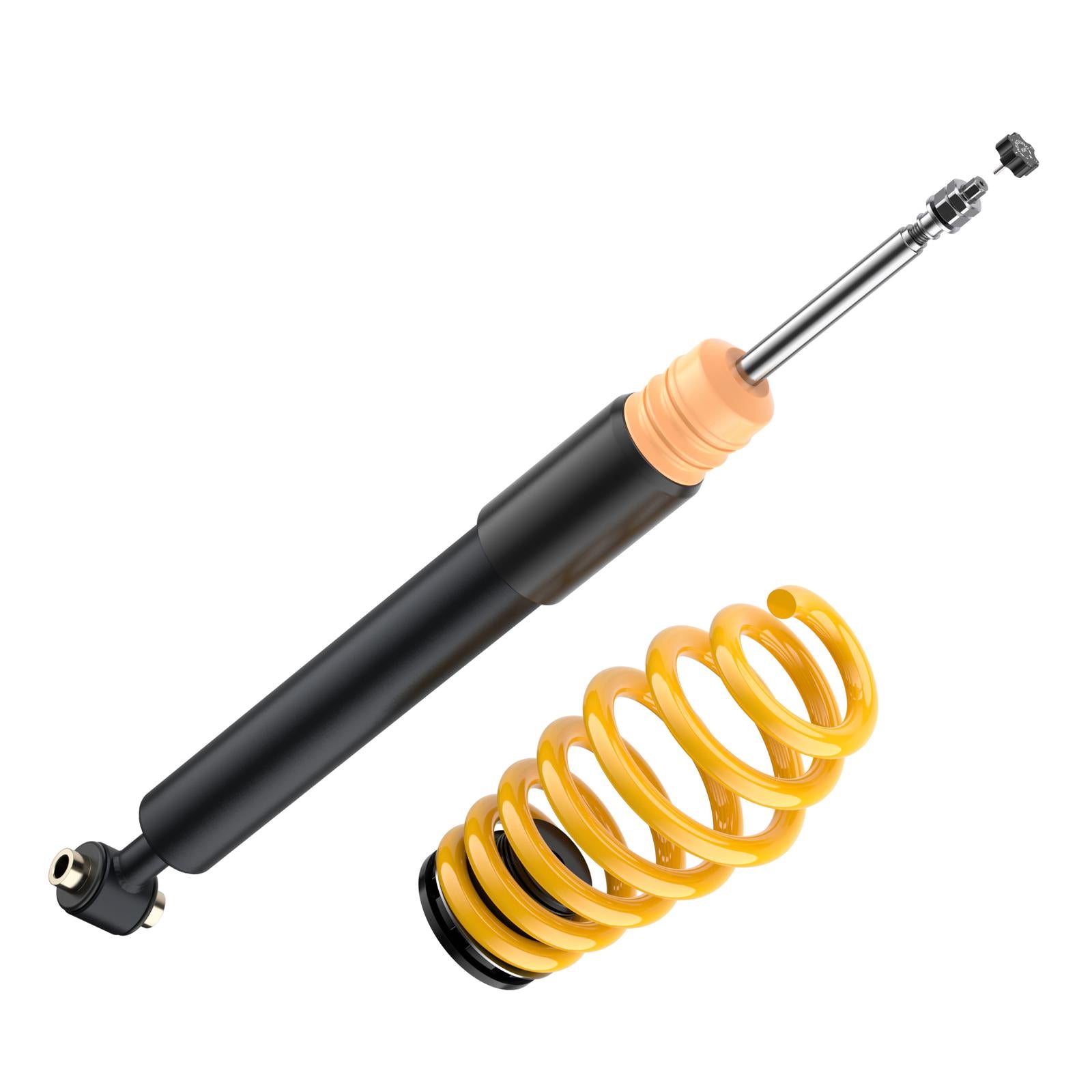

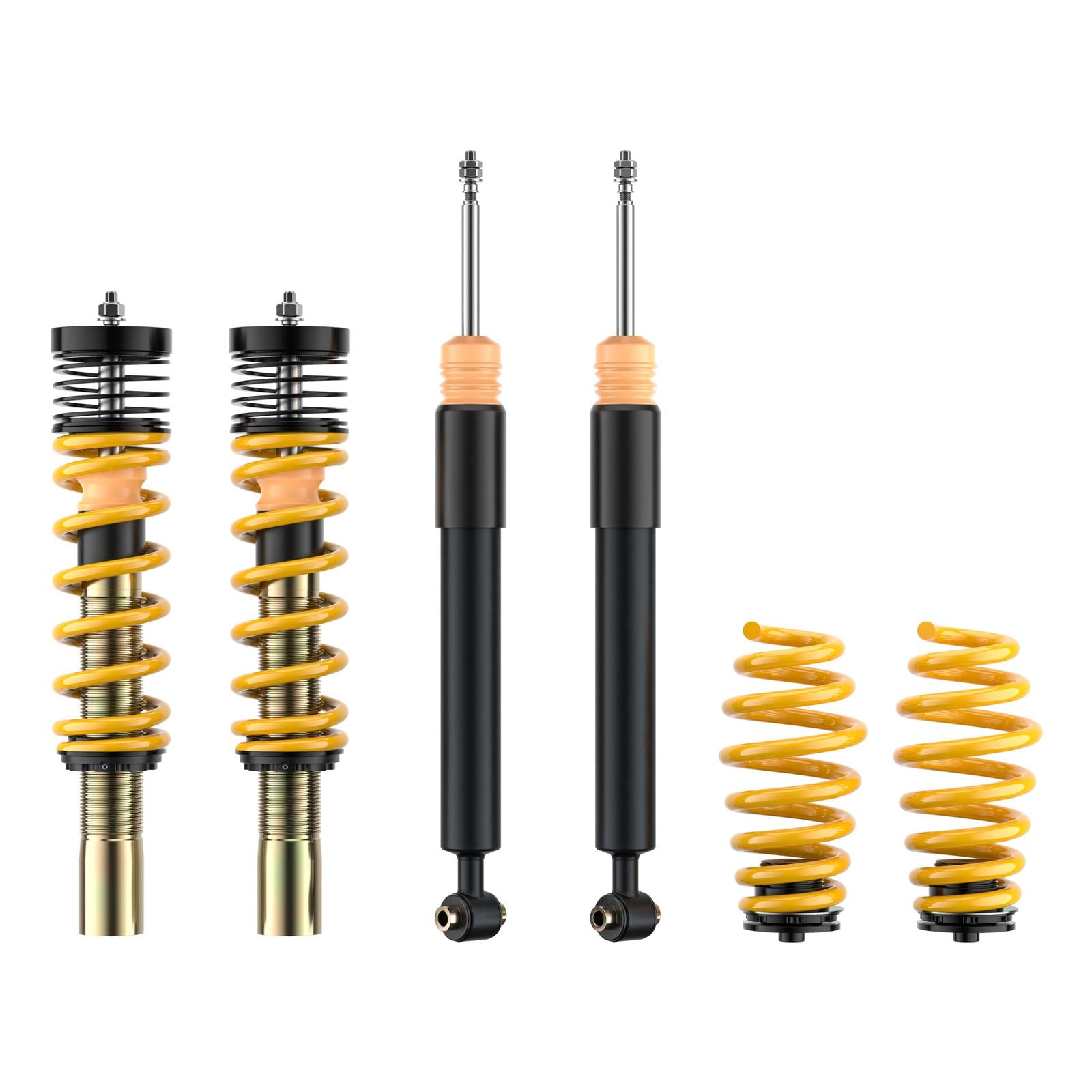

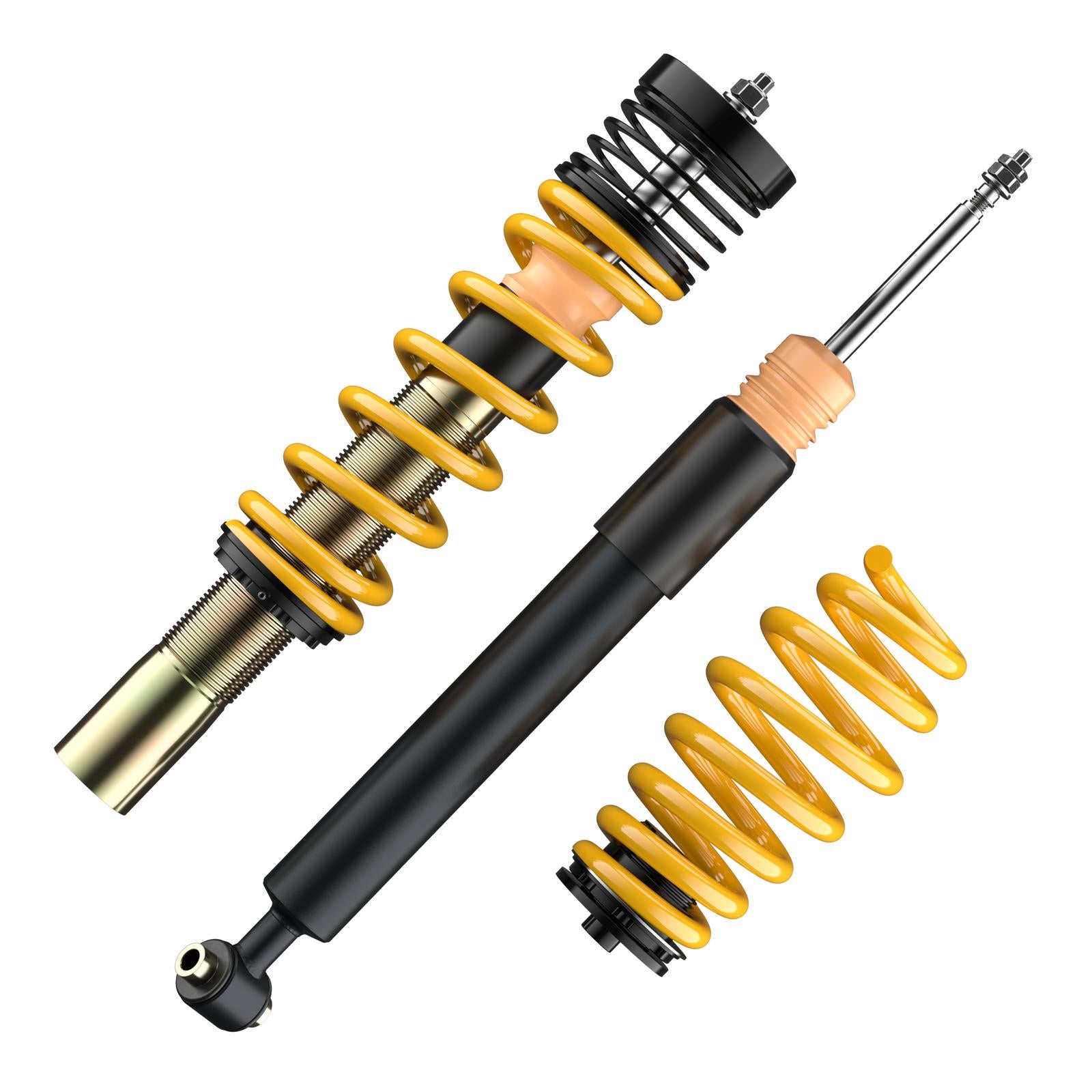

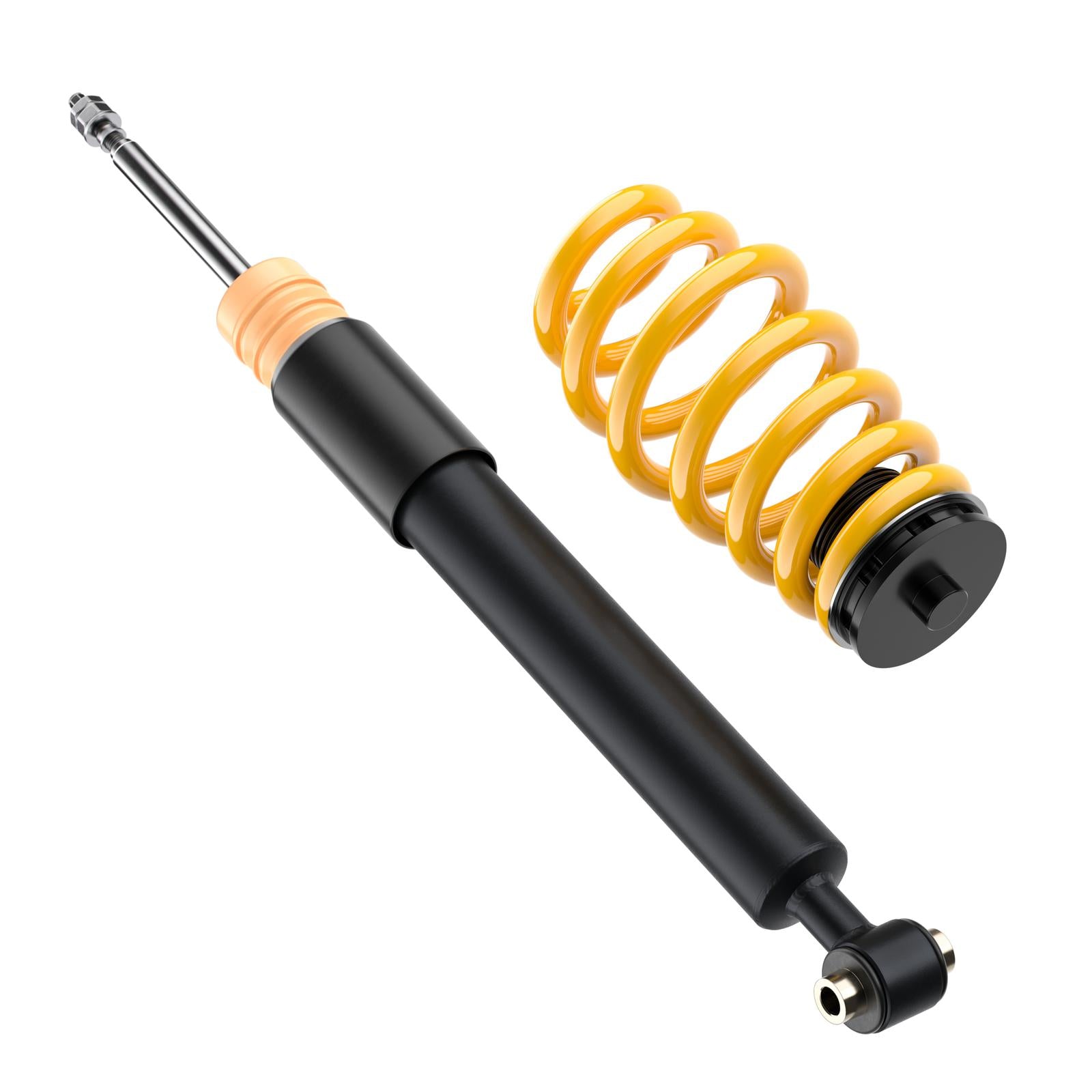

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 1,175 kg; Rear axle load up to 1,280 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2018+AudiA6 Avant (F2) C8, 4A530 TDI Mild HybridDiesel/Electric · 100 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A535 TDI Mild HybridDiesel/Electric · 120 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A540 TDI Mild HybridDiesel/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A540 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A540 TFSIPetrol · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A540 TFSI 12VPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A540 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A545 TFSIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A545 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2018+AudiA6 Avant (F2) C8, 4A545 TFSI Mild HybridPetrol/Electric · 195 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA35 TDI Mild HybridDiesel/Electric · 120 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA40 TDI Mild HybridDiesel/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA40 TFSIPetrol · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA40 TFSI 12VPetrol · 140 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA40 TFSI Mild HybridPetrol/Electric · 140 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA40 TFSI Mild HybridPetrol/Electric · 150 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA45 TFSIPetrol · 180 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA45 TFSIPetrol · 195 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA45 TFSI Mild HybridPetrol/Electric · 180 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
2017+AudiA7 Sportback (F2) 4KA45 TFSI Mild HybridPetrol/Electric · 195 kW · 2.0L · 4-cylFront-Wheel Drive6, 11, 248
  • Note 6: Not for vehicles with electronic damper control.
  • Note 11: Excluding models with automatic level control, or automatic level system can be adjusted.
  • Note 248: Only for cars with a clamp diameter of 48,6mm on the front axle.
