ST Coilover XA Kit for Audi (C8) A6 Avant / A7 Sportback - 53mm Front Strut - FWD
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Coilover XA Kit for Audi (C8) A6 Avant / A7 Sportback - 53mm Front Strut - FWD
Sale price$2,036.30
Regular price$2,909.00 (/)

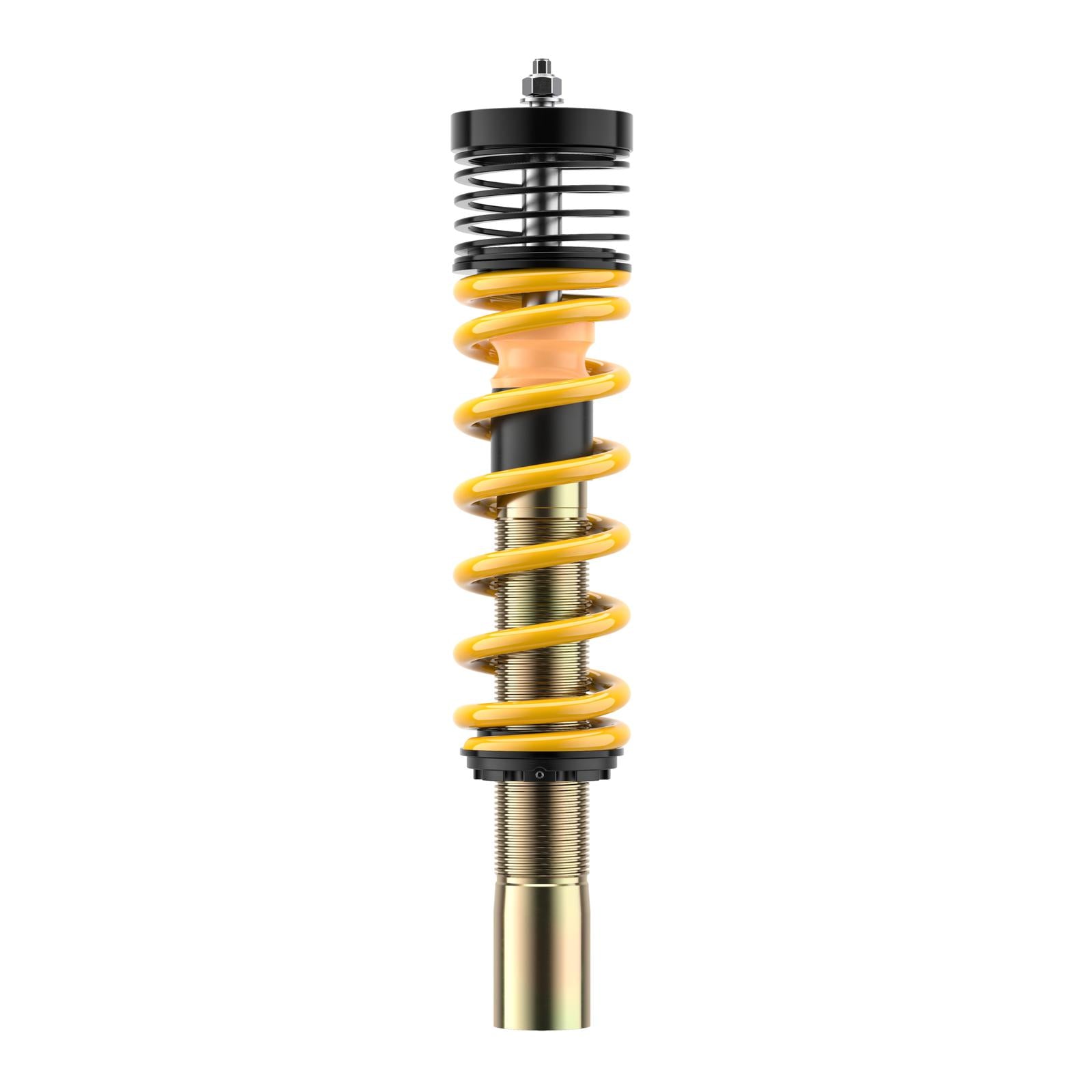

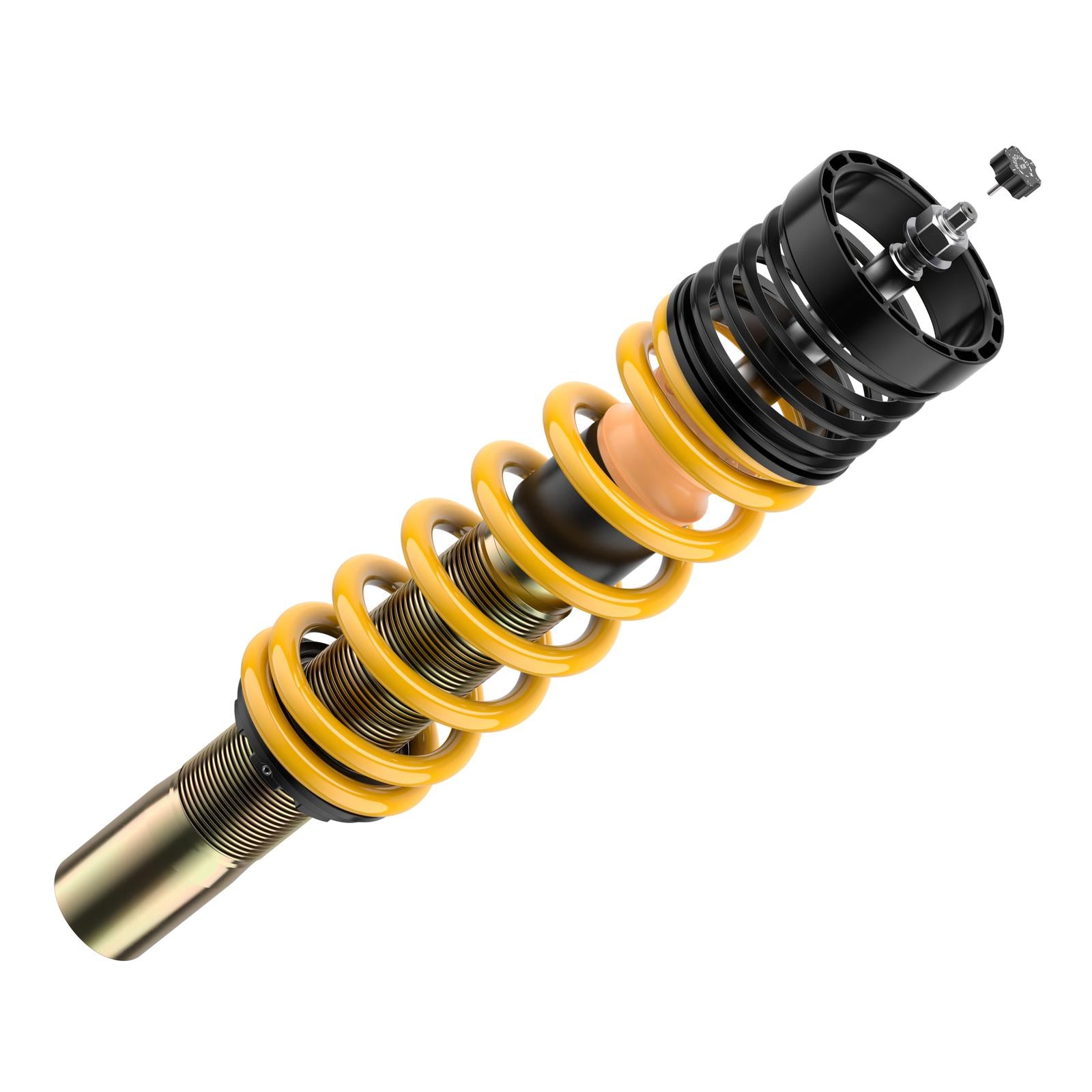

ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the Audi A6 Avant / A7 Sportback (C8).
Key Features
- Rebound damping adjustable in up to 16 clicks
- Continuous thread height adjustment
- Galvanised coilover struts
Specifications
- Version: XA
- Damping: Adjustable rebound
- Material: Galvanised steel
- Front lowering: 40–65 mm
- Rear lowering: 40–65 mm
- Front axle load: up to 1,175 kg
- Rear axle load: up to 1,280 kg
- Front strut diameter (vehicle): 53 mm

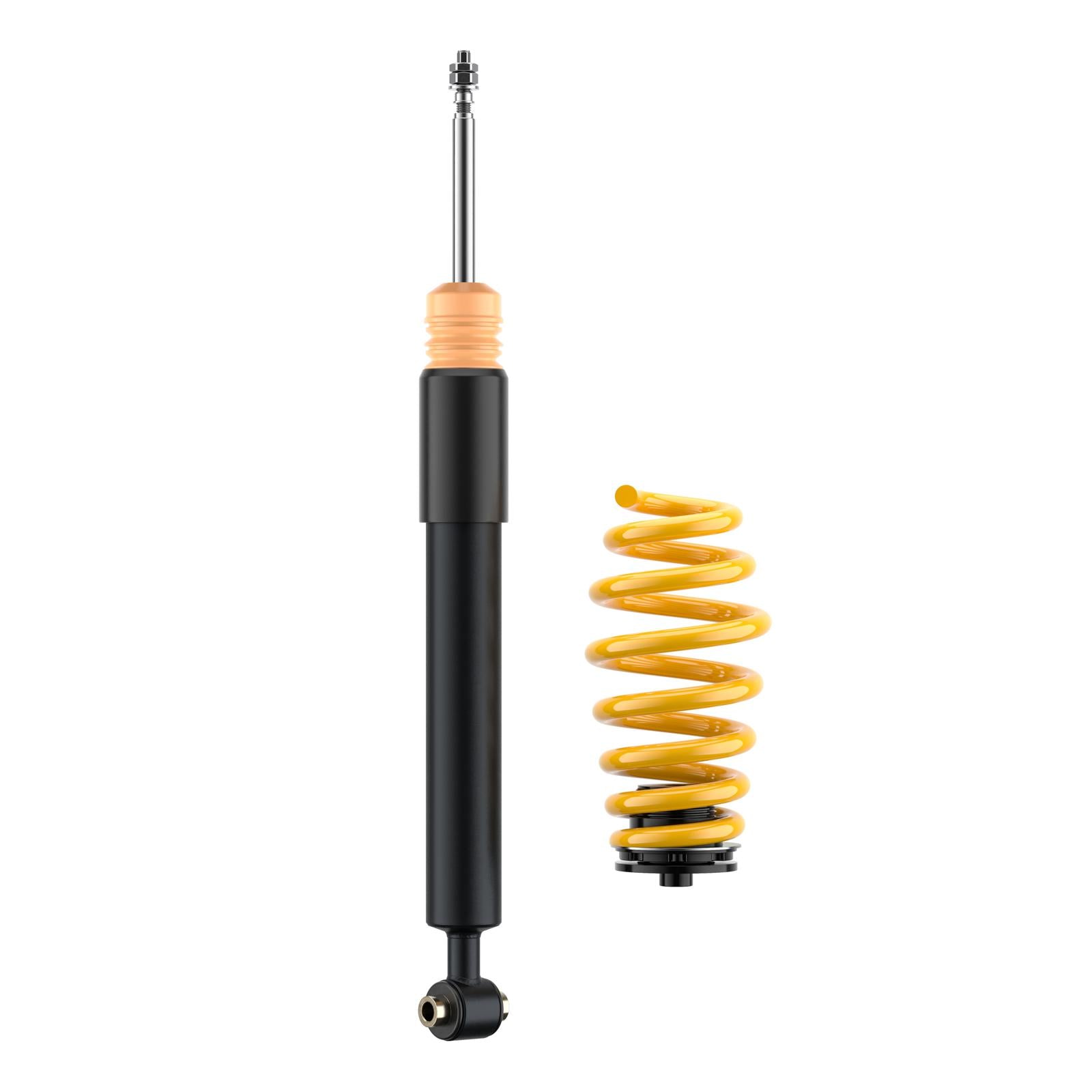

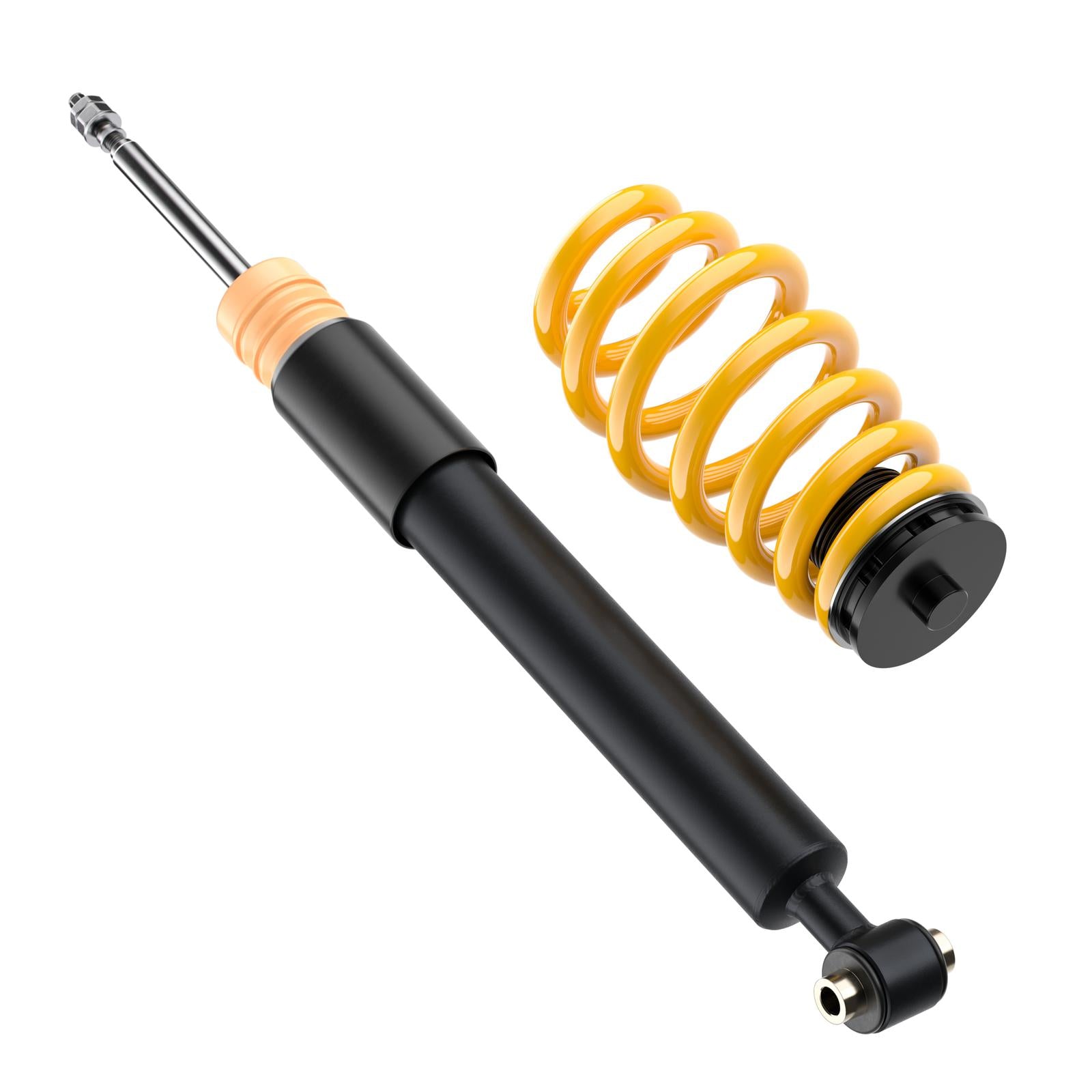

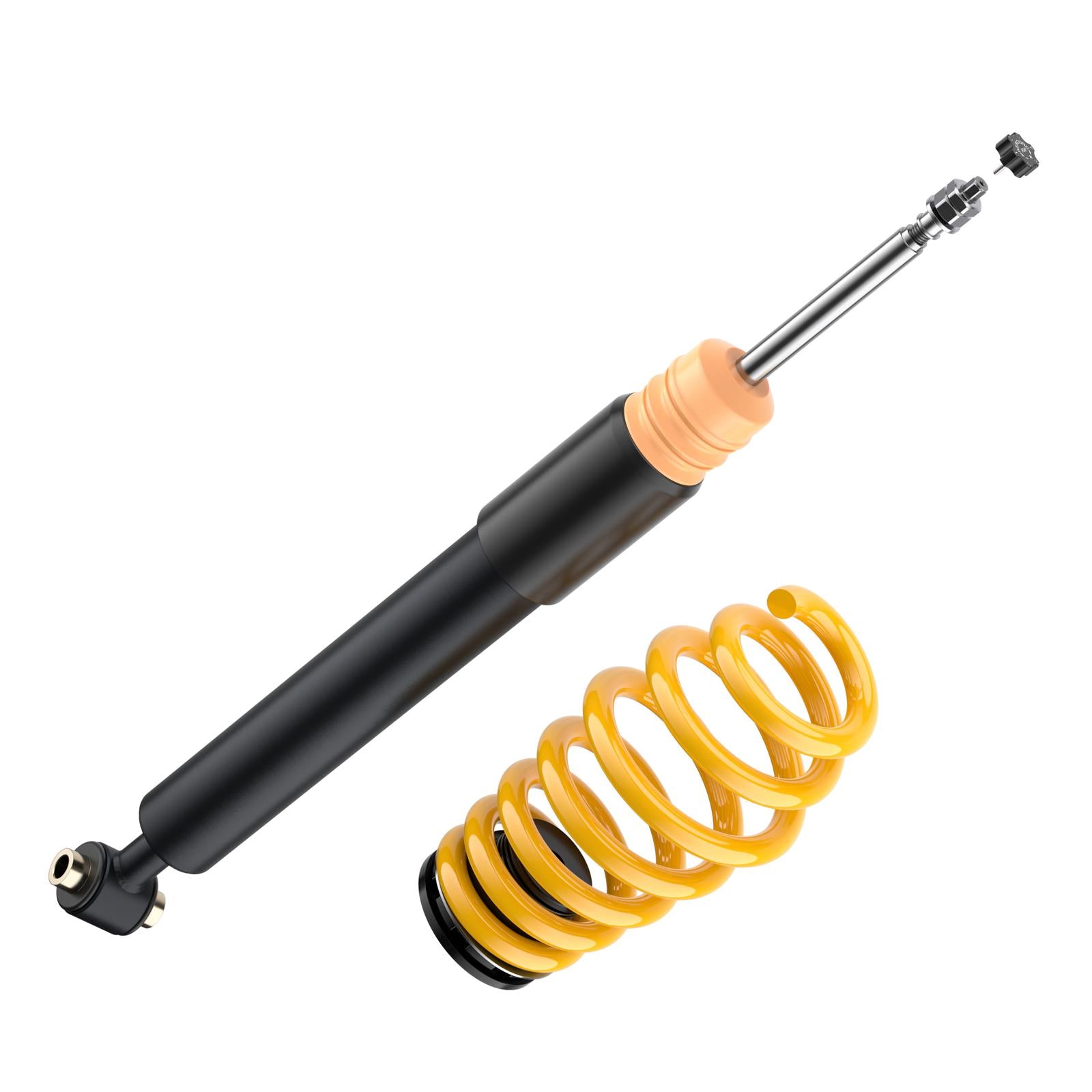

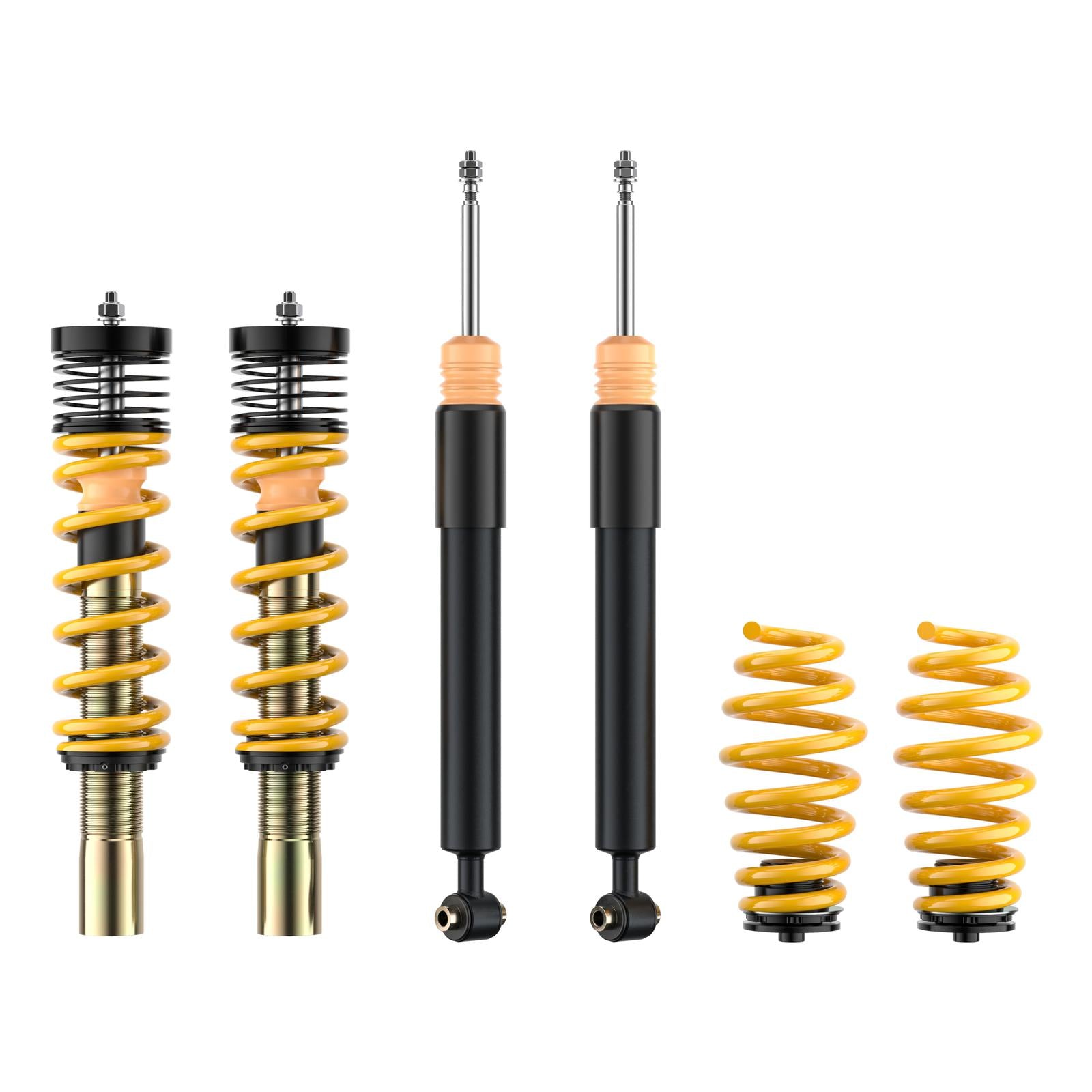

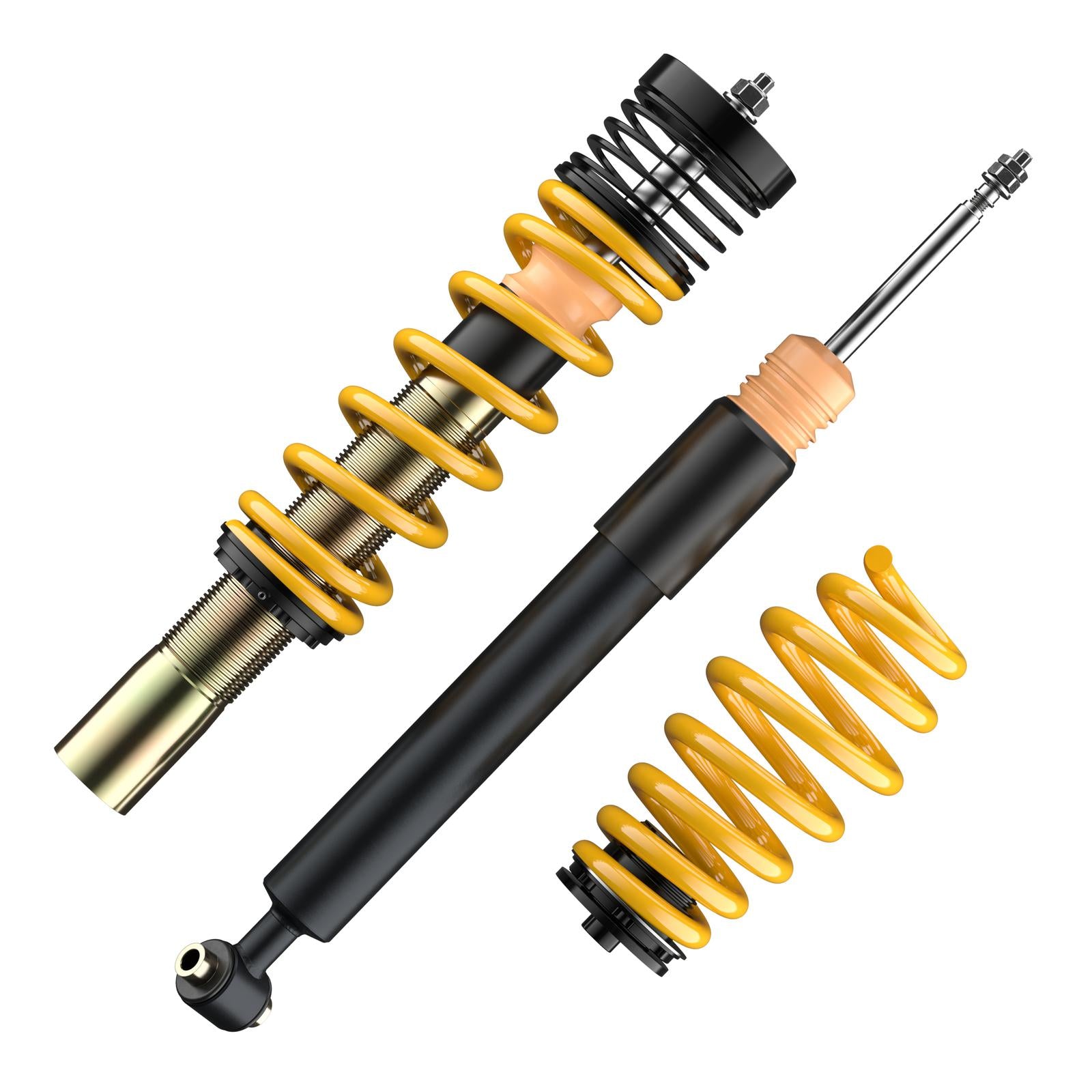

- Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers
Front axle load up to 1,175 kg; Rear axle load up to 1,280 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 30 TDI Mild Hybrid | Diesel/Electric · 100 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 35 TDI Mild Hybrid | Diesel/Electric · 120 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TDI Mild Hybrid | Diesel/Electric · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TDI Mild Hybrid | Diesel/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI | Petrol · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI 12V | Petrol · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 40 TFSI Mild Hybrid | Petrol/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI | Petrol · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid | Petrol/Electric · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2018+ | Audi | A6 Avant (F2) C8, 4A5 | 45 TFSI Mild Hybrid | Petrol/Electric · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 35 TDI Mild Hybrid | Diesel/Electric · 120 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 40 TDI Mild Hybrid | Diesel/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 40 TFSI | Petrol · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 40 TFSI 12V | Petrol · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 40 TFSI Mild Hybrid | Petrol/Electric · 140 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 40 TFSI Mild Hybrid | Petrol/Electric · 150 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 45 TFSI | Petrol · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 45 TFSI | Petrol · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 45 TFSI Mild Hybrid | Petrol/Electric · 180 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
| 2017+ | Audi | A7 Sportback (F2) 4KA | 45 TFSI Mild Hybrid | Petrol/Electric · 195 kW · 2.0L · 4-cyl | Front-Wheel Drive | 11, 230, 249 |
- Note 11: Excluding models with automatic level control, or automatic level system can be adjusted.
- Note 230: At vehicles equipped with electronic damping, the electronic damping control needs to be deactivated. Deactivation kit KW Part-no. 68510476.
- Note 249: Only for cars with a clamp diameter of 53mm on the front axle.
