ST Coilover XA Kit for BMW (E46) 325ti Compact

SKU: 18220002
Sale price$2,036.30 Regular price$2,909.00
Save $872.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the BMW 325ti Compact (E46).

Key Features

  • Rebound damping adjustable in up to 16 clicks
  • Continuous thread height adjustment
  • Galvanised coilover struts

Specifications

  • Version: XA
  • Damping: Adjustable rebound
  • Material: Galvanised steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–50 mm
  • Front axle load: up to 935 kg
  • Rear axle load: up to 1,050 kg

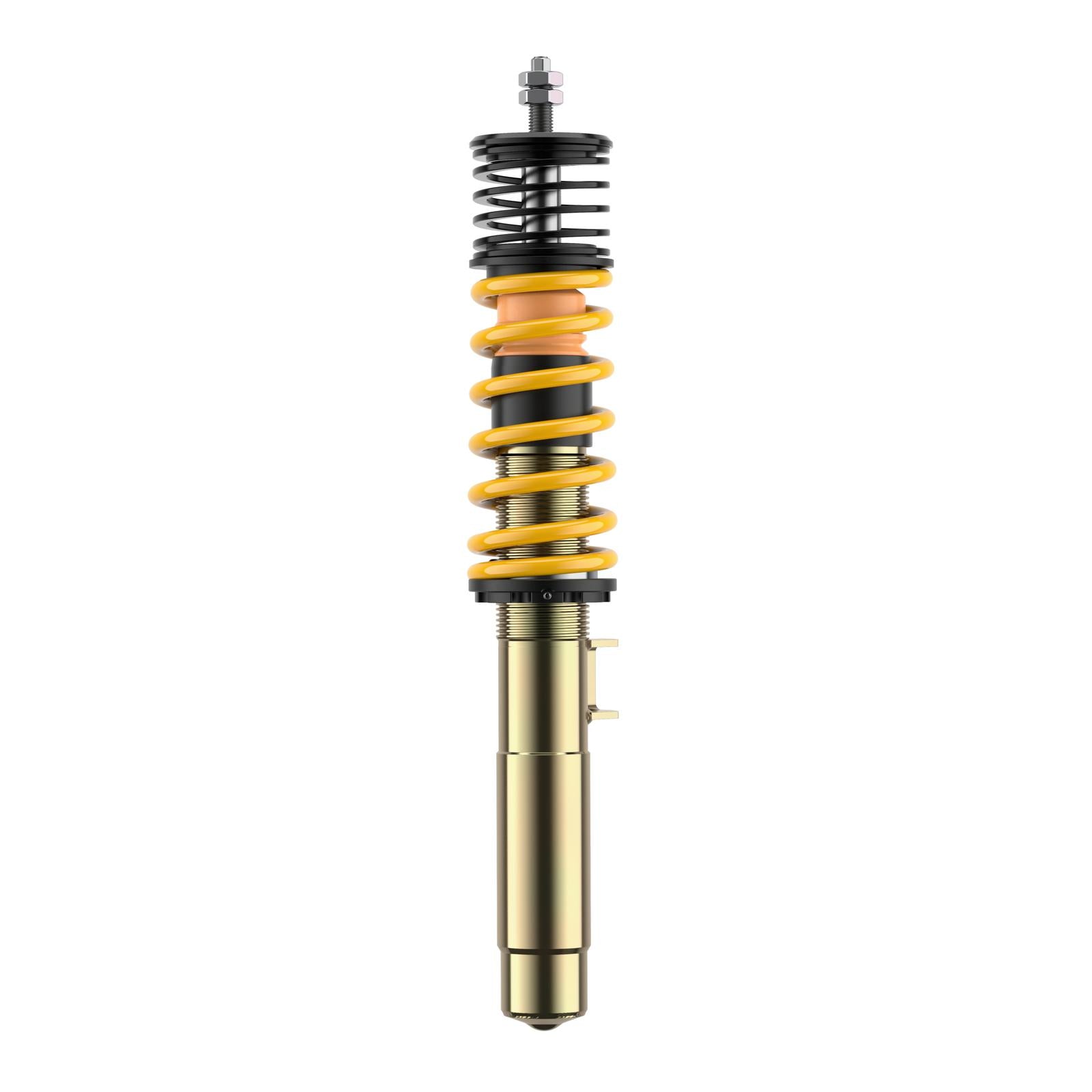

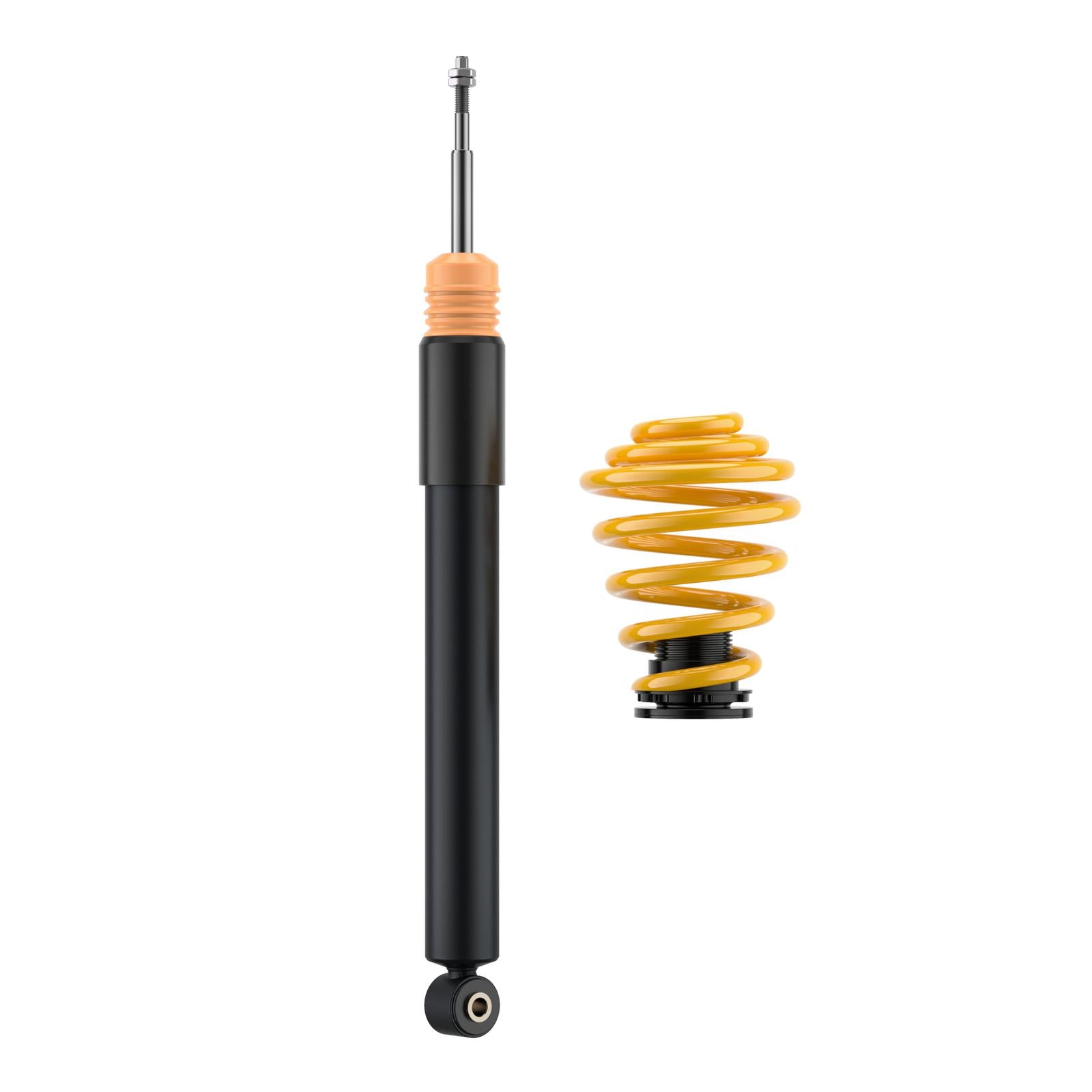

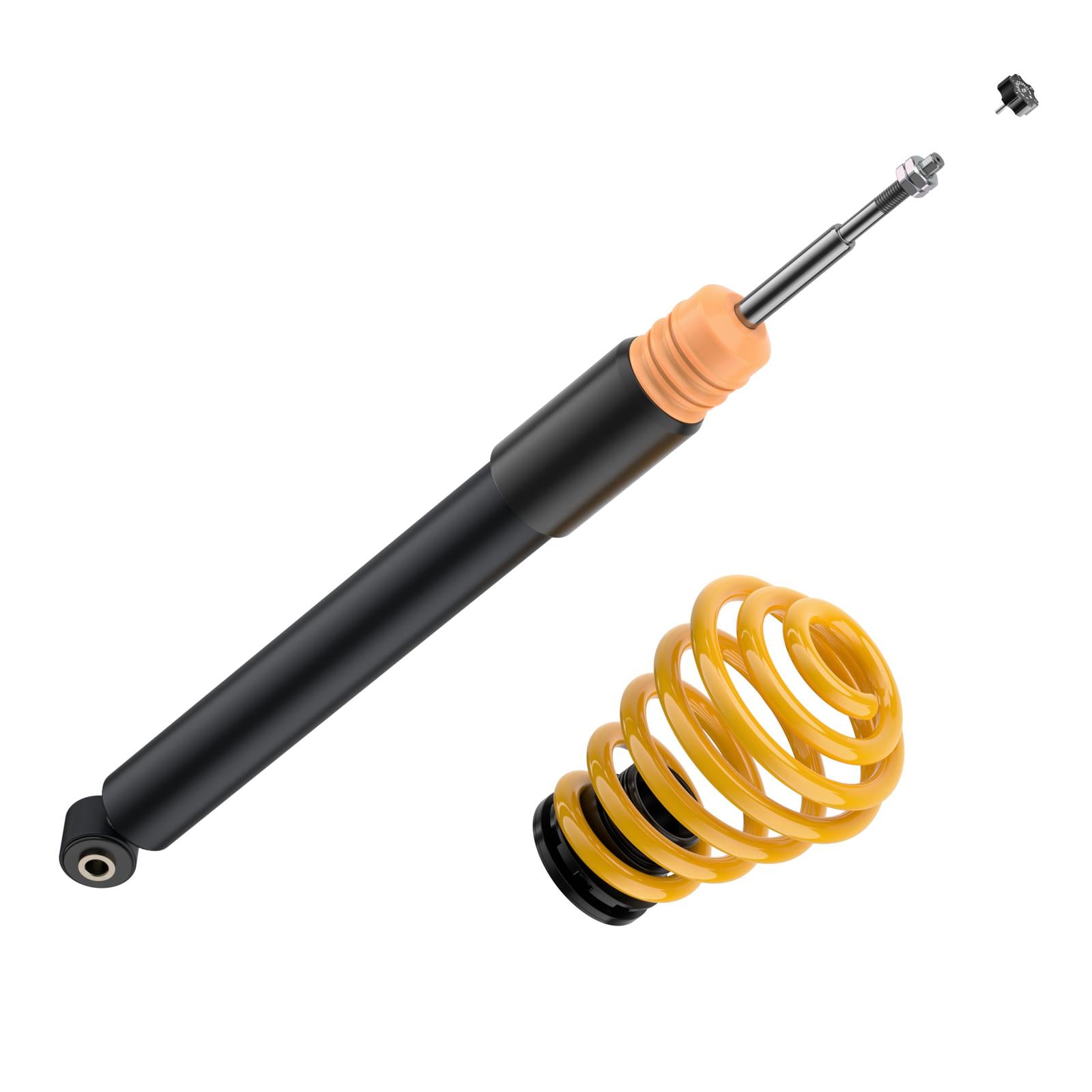

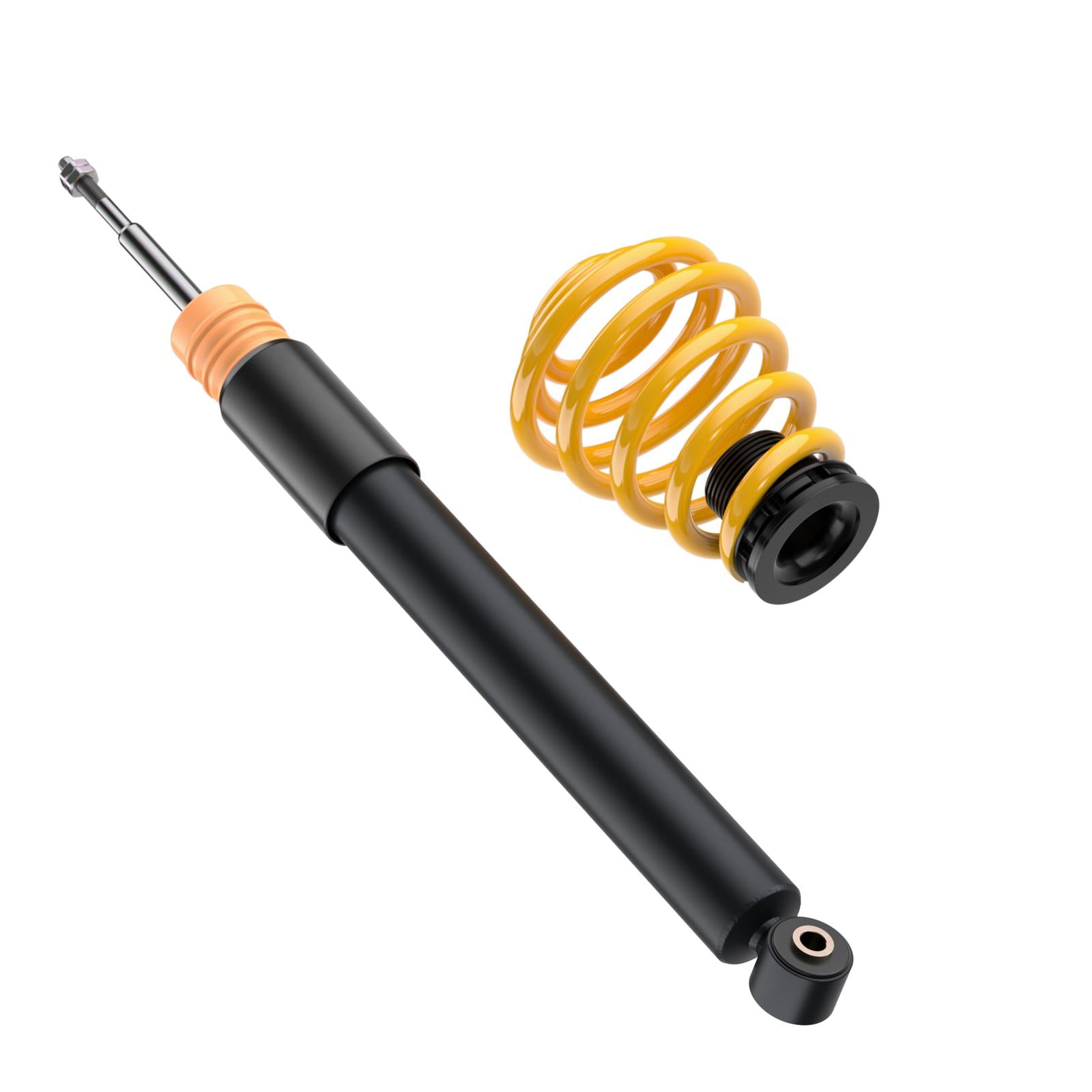

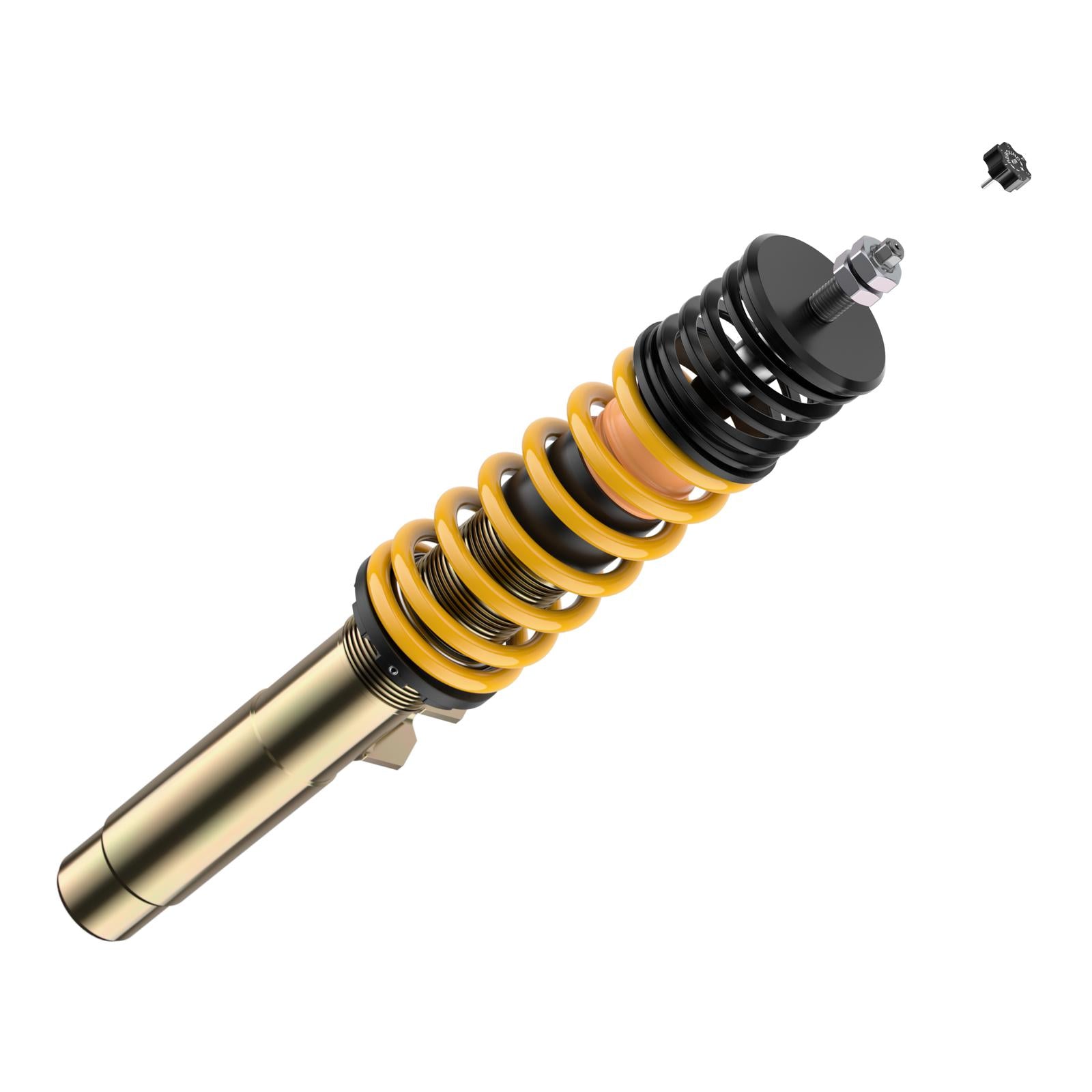

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 935 kg; Rear axle load up to 1,050 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 77 kW · 1.6L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 85 kW · 1.6L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K316 tiPetrol · 85 kW · 1.8L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K318 tdDiesel · 85 kW · 2.0L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K318 tiPetrol · 100 kW · 2.0L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K318 tiPetrol · 105 kW · 2.0L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K320 tdDiesel · 100 kW · 2.0L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K320 tdDiesel · 110 kW · 2.0L · 4-cylRear-Wheel Drive42
2001–2005BMW3 Compact (E46) 346K325 tiPetrol · 141 kW · 2.5L · 6-cylRear-Wheel Drive42
  • Note 42: In combination with original wheels and tyres, wheelspacers might be necessary.
