ST Coilover XA Kit for BMW (E36) M3

SKU: 18220012
Sale price$2,036.30 Regular price$2,909.00
Save $872.70

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST XA coilovers add adjustable rebound damping to height-adjustable ST struts, with up to 16 clicks adjusted at the top of the chrome-plated piston rod. More rebound force gives more stability and less body roll; less gives a more comfortable ride. Height is set on a continuous thread on the galvanised strut, and the twin-tube dampers are manufactured by KW Automotive. This kit is developed for the BMW M3 (E36).

Key Features

  • Rebound damping adjustable in up to 16 clicks
  • Continuous thread height adjustment
  • Galvanised coilover struts

Specifications

  • Version: XA
  • Damping: Adjustable rebound
  • Material: Galvanised steel
  • Front lowering: 30–60 mm
  • Rear lowering: 30–60 mm
  • Front axle load: up to 920 kg
  • Rear axle load: up to 1,130 kg

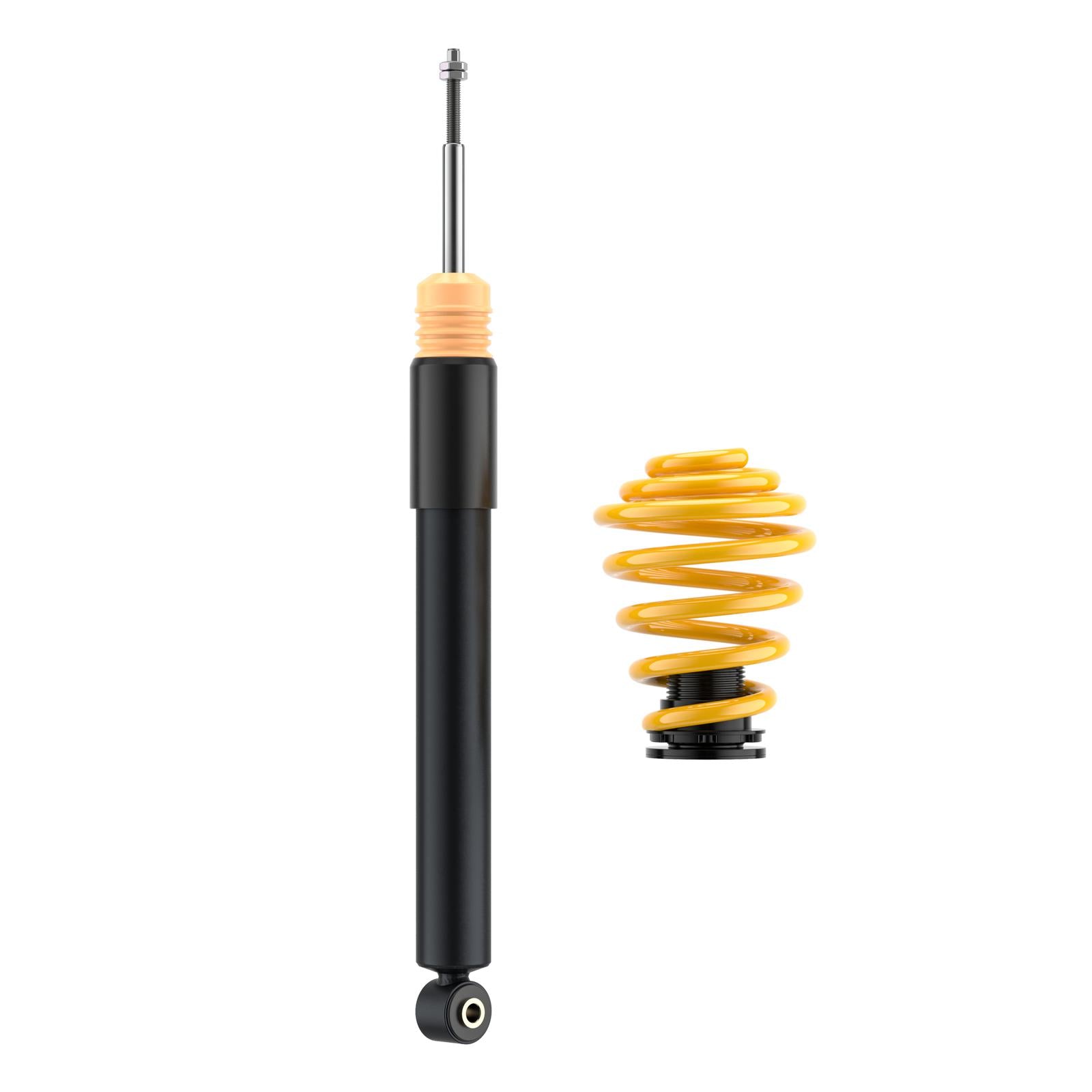

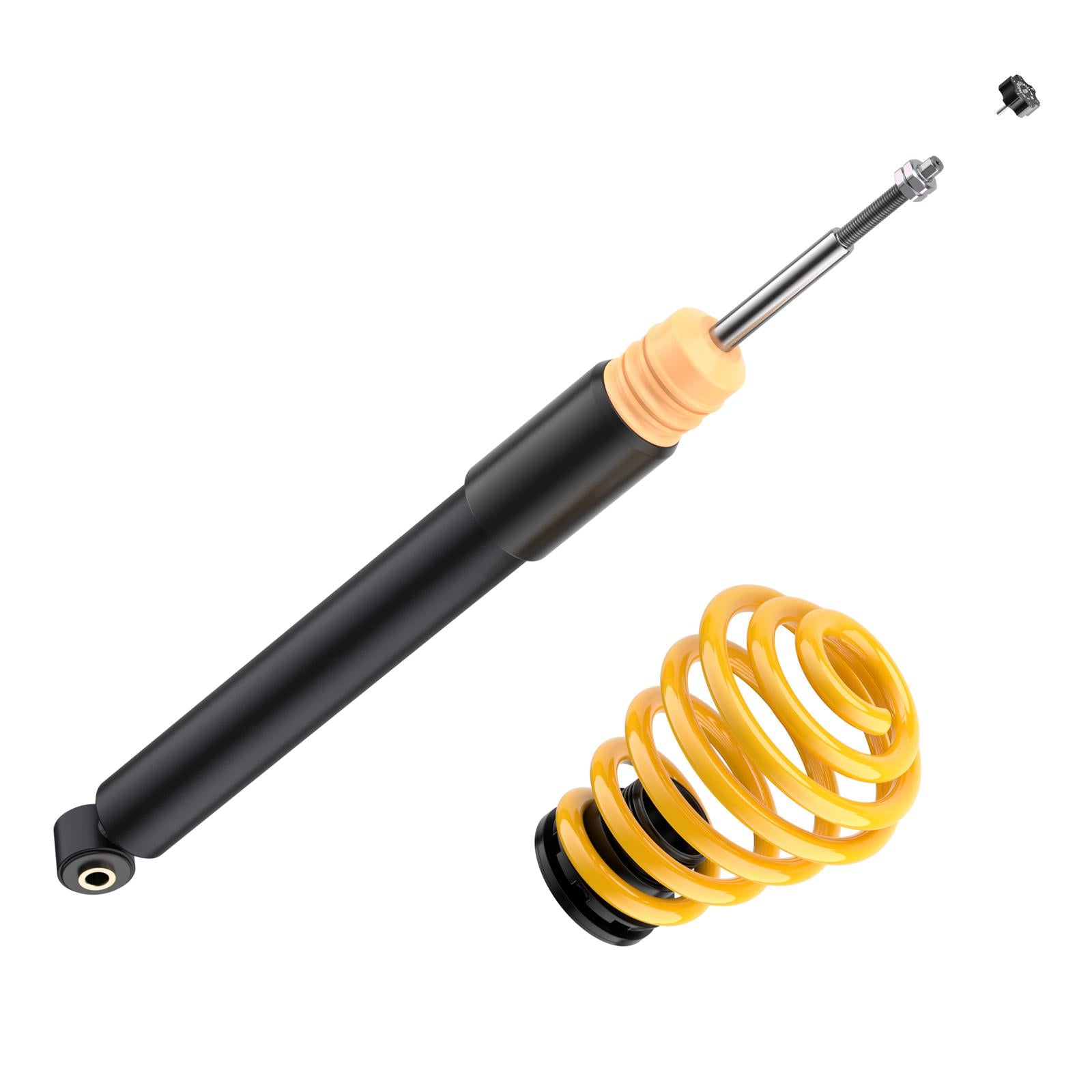

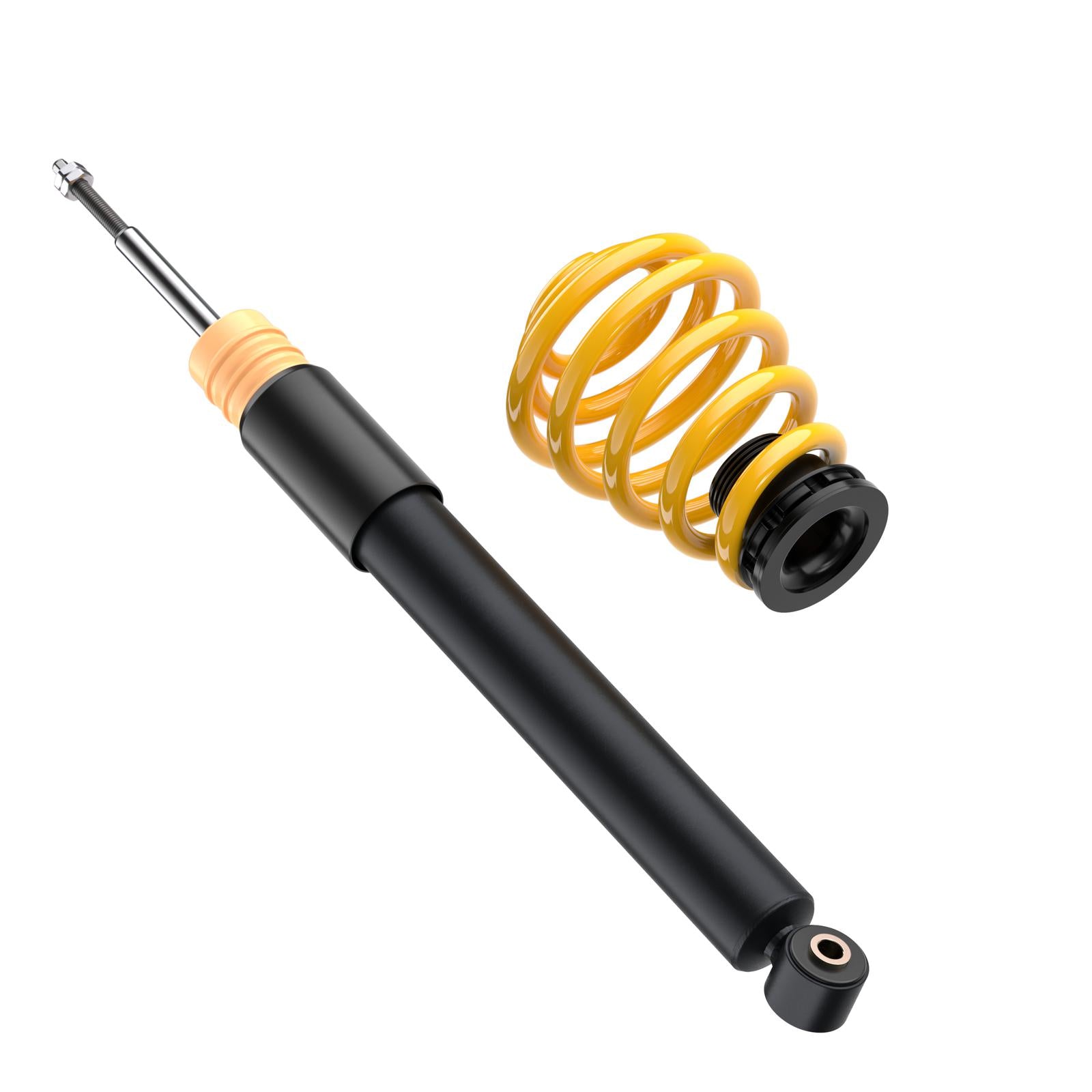

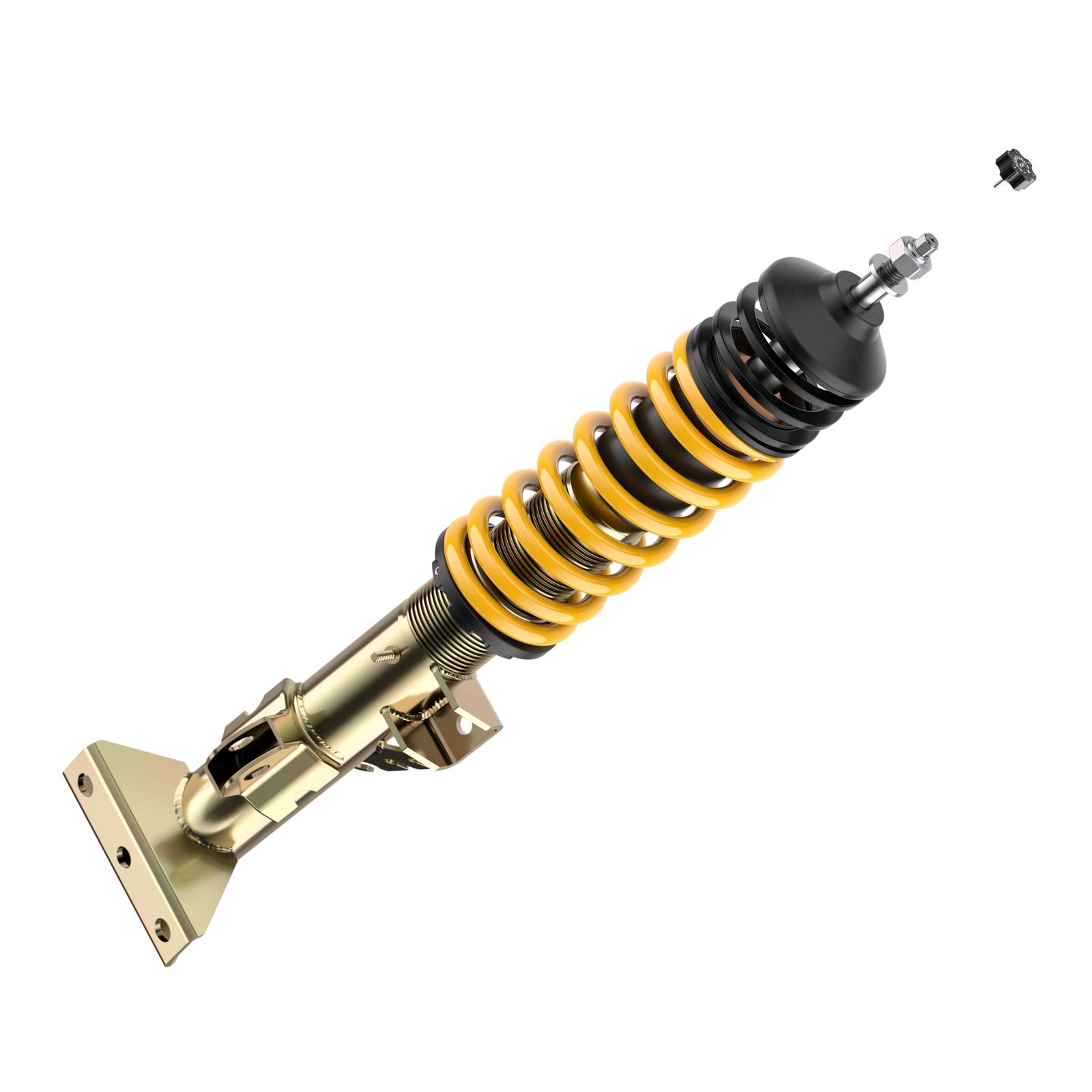

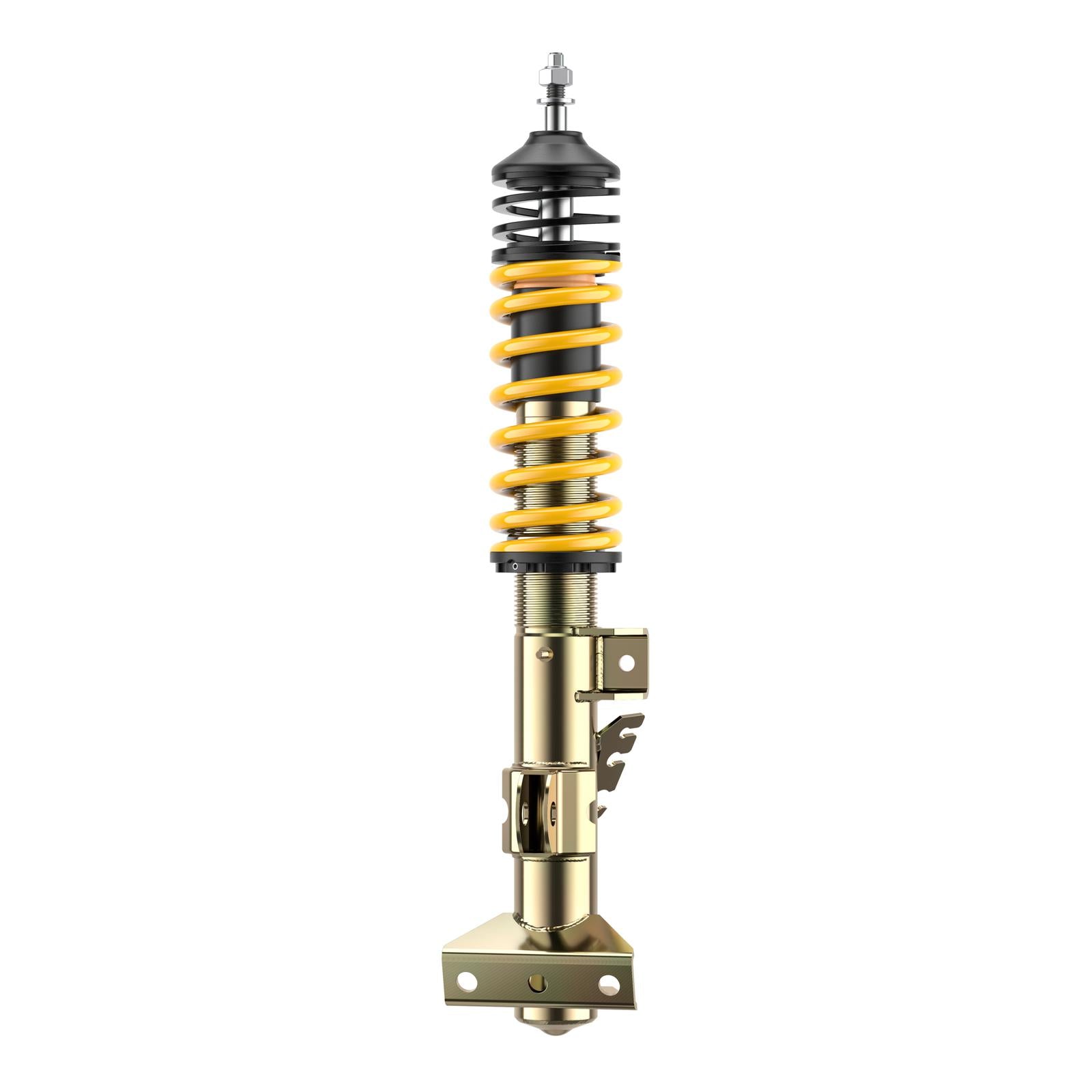

  • Supplied as: Front axle coilover struts, rear axle springs with height adjustment + dampers

Front axle load up to 920 kg; Rear axle load up to 1,130 kg.

See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
1990–1998BMW3 (E36) 3C, 3/C, M3/BM3 3.0Petrol · 210 kW · 3.0L · 6-cylRear-Wheel Drive42
1993–1999BMW3 Convertible (E36) 3B, 3/B, 3/R, M3 B, M3/BM3 3.2Petrol · 179 kW · 3.2L · 6-cylRear-Wheel Drive42
1991–1999BMW3 Coupe (E36) 3B, 3/B, M3B, M3/BM3 3.0Petrol · 176 kW · 3.0L · 6-cylRear-Wheel Drive42
1991–1999BMW3 Coupe (E36) 3B, 3/B, M3B, M3/BM3 3.2Petrol · 179 kW · 3.2L · 6-cylRear-Wheel Drive42
1990–1998BMW3 (E36) 3C, 3/C, M3/BM3 3.2Petrol · 179 kW · 3.2L · 6-cylRear-Wheel Drive42
1991–1999BMW3 Coupe (E36) 3B, 3/B, M3B, M3/BM3 3.0Petrol · 210 kW · 3.0L · 6-cylRear-Wheel Drive42
1993–1999BMW3 Convertible (E36) 3B, 3/B, 3/R, M3 B, M3/BM3 3.0Petrol · 210 kW · 3.0L · 6-cylRear-Wheel Drive42
1991–1999BMW3 Coupe (E36) 3B, 3/B, M3B, M3/BM3 3.0Petrol · 217 kW · 3.0L · 6-cylRear-Wheel Drive42
1990–1998BMW3 (E36) 3C, 3/C, M3/BM3 3.2Petrol · 236 kW · 3.2L · 6-cylRear-Wheel Drive42
1991–1999BMW3 Coupe (E36) 3B, 3/B, M3B, M3/BM3 3.2Petrol · 236 kW · 3.2L · 6-cylRear-Wheel Drive42
1993–1999BMW3 Convertible (E36) 3B, 3/B, 3/R, M3 B, M3/BM3 3.2Petrol · 236 kW · 3.2L · 6-cylRear-Wheel Drive42
  • Note 42: In combination with original wheels and tyres, wheelspacers might be necessary.
