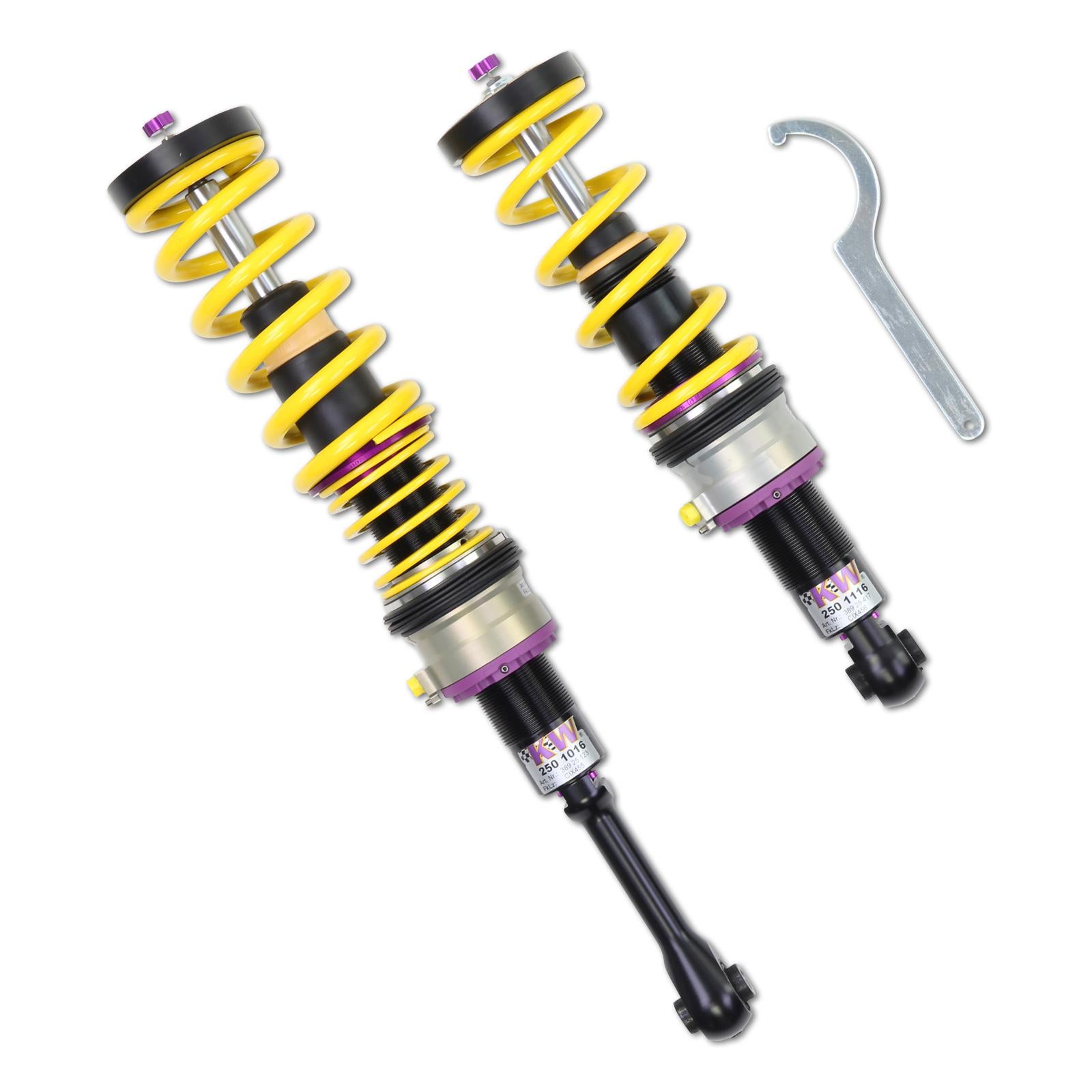

KW Coilover Kit V3 for Audi (B8) A5 w/ HLS 4 Hydraulic Lift System

SKU: 35210472
Sale price$11,779.05 Regular price$12,399.00
Save $619.95

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

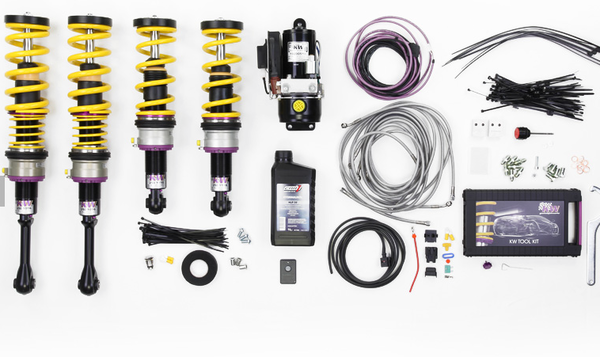

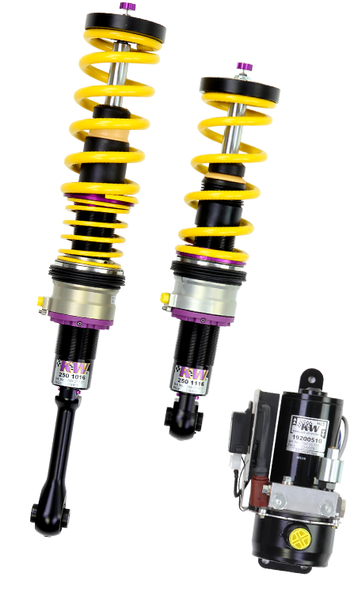

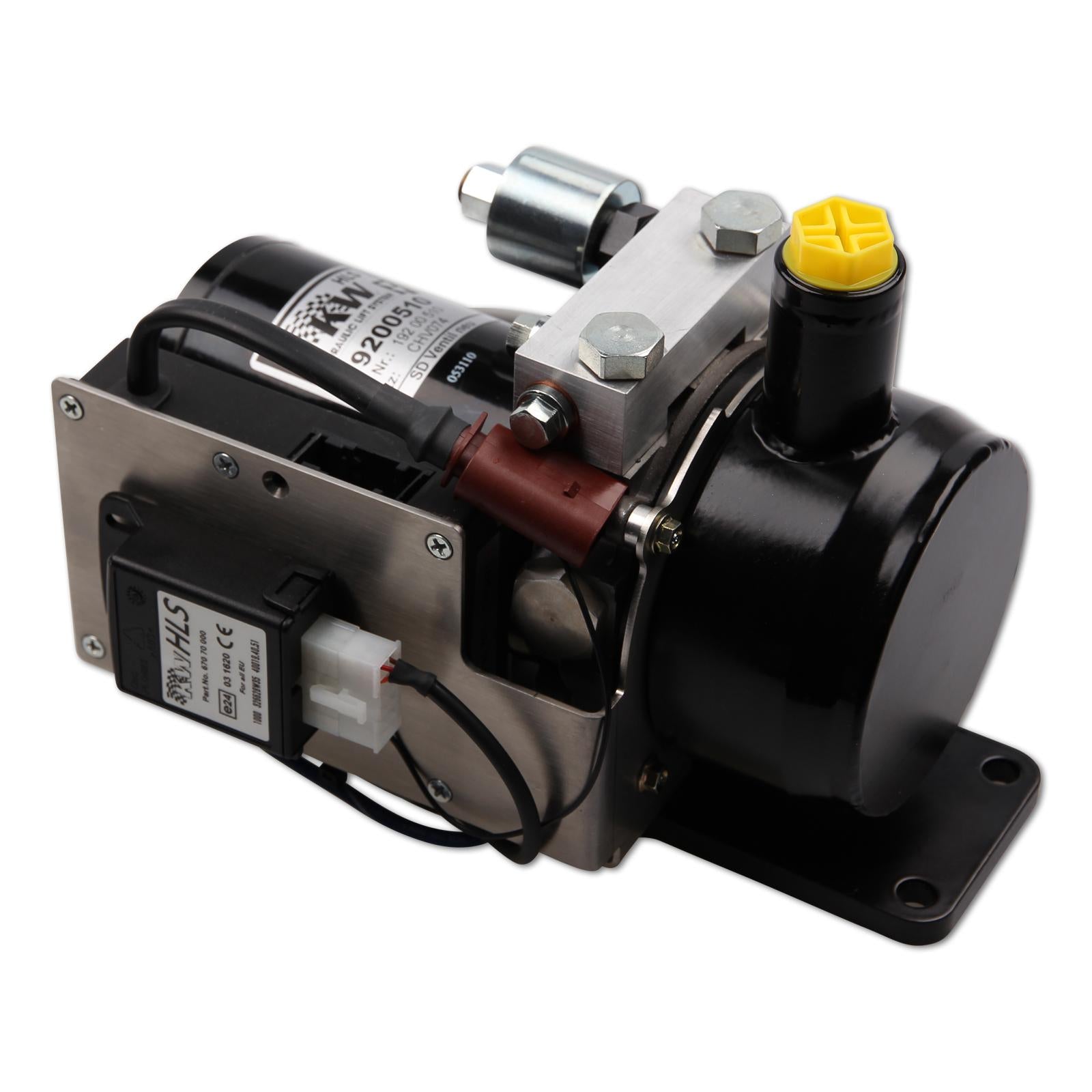

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Audi A5 (B8).

Key Features

  • Hydraulic lift at the push of a button

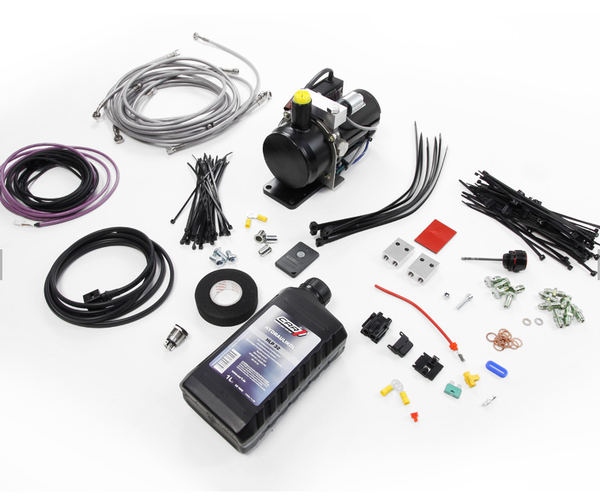

  • Vehicle-specific hydraulic lines and pump

Specifications

  • Version: HLS 4
  • Lift axle(s): Front and rear axles
  • Damping: Adjustable rebound and compression
  • Material: Stainless steel
  • Front lowering: 25–50 mm
  • Rear lowering: 20–45 mm
  • Front axle load: up to 1,080 kg
  • Rear axle load: up to 1,090 kg

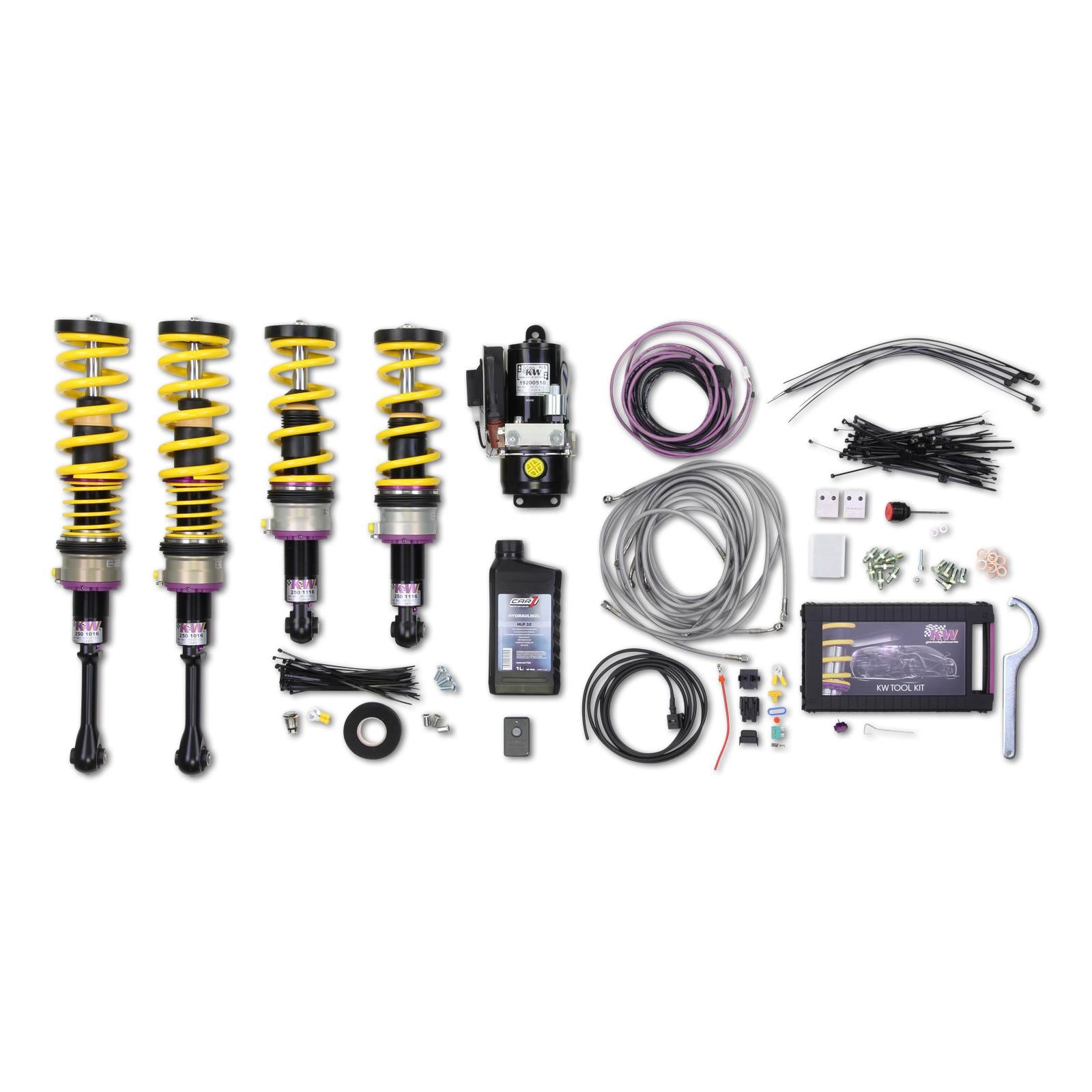

  • Supplied as: Set (front + rear axle) with HLS 4

Front axle load up to 1,080 kg; Rear axle load up to 1,090 kg.

References 37, 67, 68. See the Disclaimer tab for reference notes.

YearMakeModelVariantEngineDriveRefs
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T31.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 120 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 125 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TDIDiesel · 130 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TDI quattroDiesel · 125 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TDI quattroDiesel · 130 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.0 TFSI quattroPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T32.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T33.0 TDI quattroDiesel · 155 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T33.0 TDI quattroDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T33.0 TFSI quattroPetrol · 200 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 (B8) 8T33.2 FSI quattroPetrol · 195 kW · 3.2L · 6-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F71.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 162 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.0 TFSI quattroPetrol · 162 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F72.7 TDIDiesel · 140 kW · 2.7L · 6-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.0 TDIDiesel · 150 kW · 3.0L · 6-cylFront-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.0 TDI quattroDiesel · 160 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.0 TDI quattroDiesel · 176 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.0 TDI quattroDiesel · 180 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.0 TFSI quattroPetrol · 200 kW · 3.0L · 6-cylAll-Wheel Drive37, 67, 68
2009–2017AudiA5 Convertible (B8) 8F73.2 FSI quattroPetrol · 195 kW · 3.2L · 6-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 106 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 118 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 125 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA1.8 TFSIPetrol · 130 kW · 1.8L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 100 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 105 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TDIDiesel · 110 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 132 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 155 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 165 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSIPetrol · 169 kW · 2.0L · 4-cylFront-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 155 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 165 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.0 TFSI quattroPetrol · 169 kW · 2.0L · 4-cylAll-Wheel Drive37, 67, 68
2007–2017AudiA5 Sportback (B8) 8TA2.7 TDIDiesel · 120 kW · 2.7L · 6-cylFront-Wheel Drive37, 67, 68
  • Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
  • Note 67: Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
  • Note 68: When installing the pump unit components, additional mounting parts from the car manufacturer might be necessary. For that please note the vehicle specific installation instructions.
