KW Coilover Kit V3 for Audi (42) R8 V10 / R8 Spyder V10 w/ HLS 4 Hydraulic Lift System
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

KW Coilover Kit V3 for Audi (42) R8 V10 / R8 Spyder V10 w/ HLS 4 Hydraulic Lift System
Sale price$16,253.55
Regular price$17,109.00 (/)

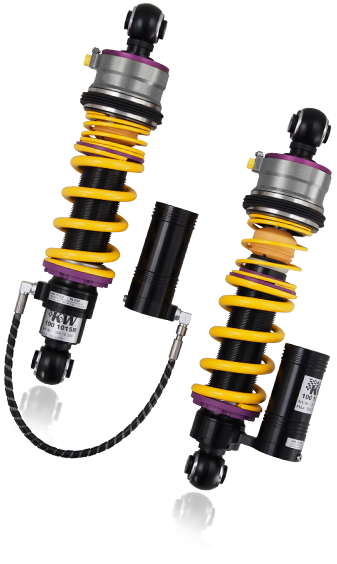

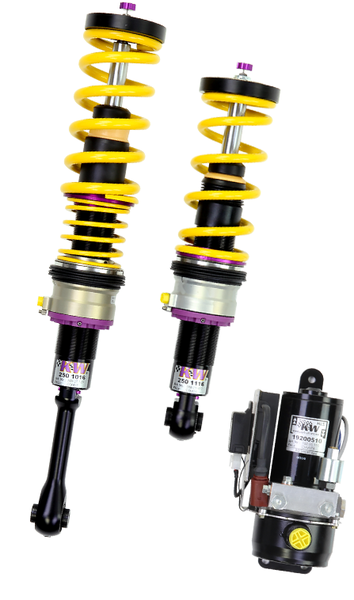

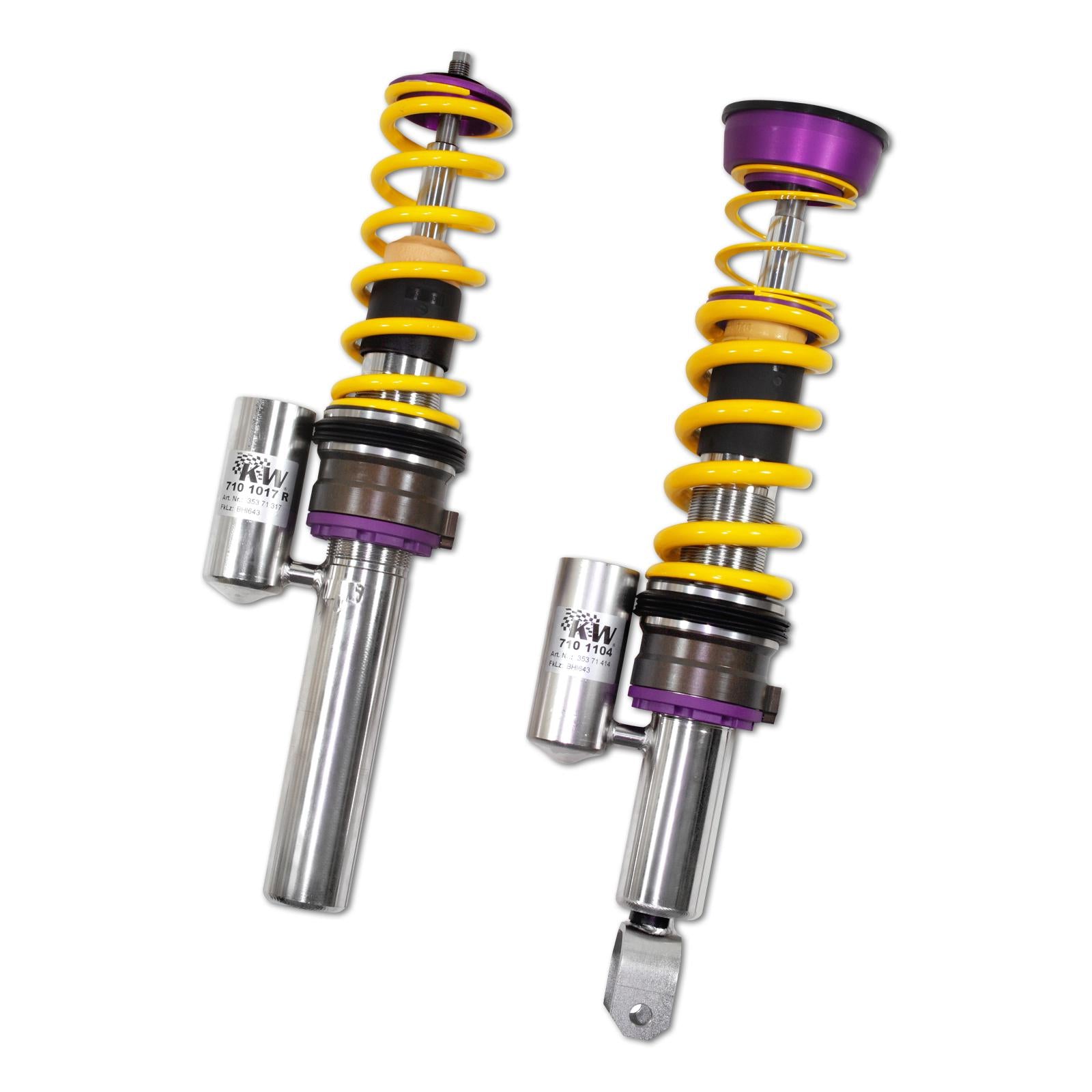

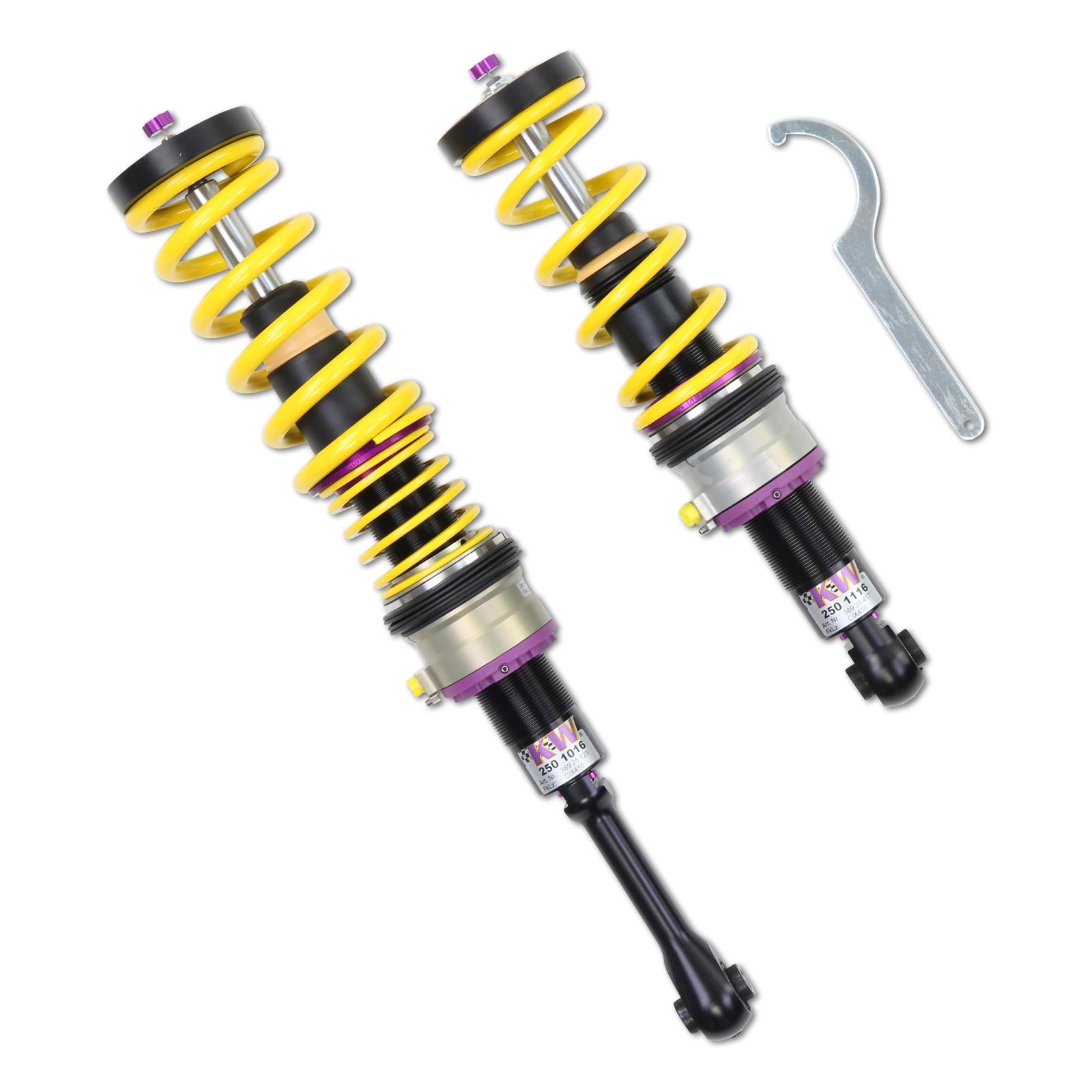

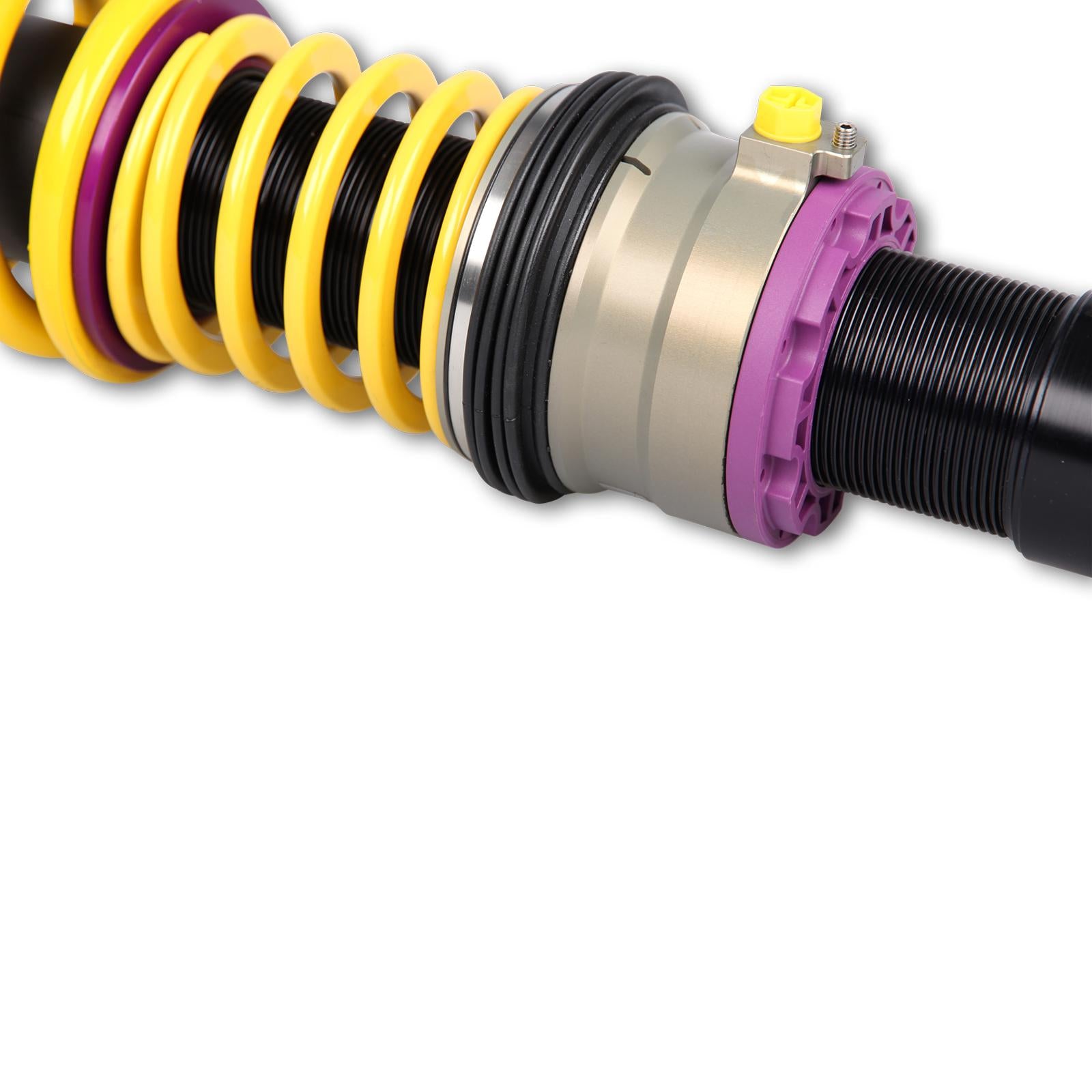

This kit combines a KW coilover suspension with KW's Hydraulic Lift System (HLS). At the push of a button the HLS raises the front axle (HLS 2) or both axles (HLS 4), depending on version, by up to 45 mm, helping the car clear speed humps, steep driveways and car park ramps without damage to splitters, underbody panels or the sump. Hydraulic lines and pump are matched to the vehicle. This kit is developed for the Audi R8 V10 / R8 Spyder V10 (42).
Key Features
- Hydraulic lift at the push of a button

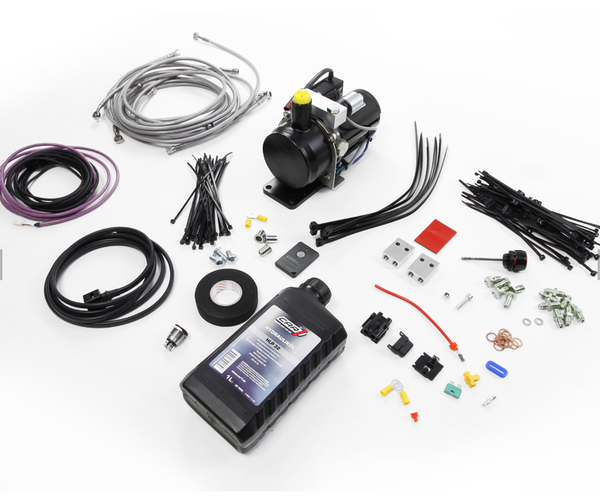

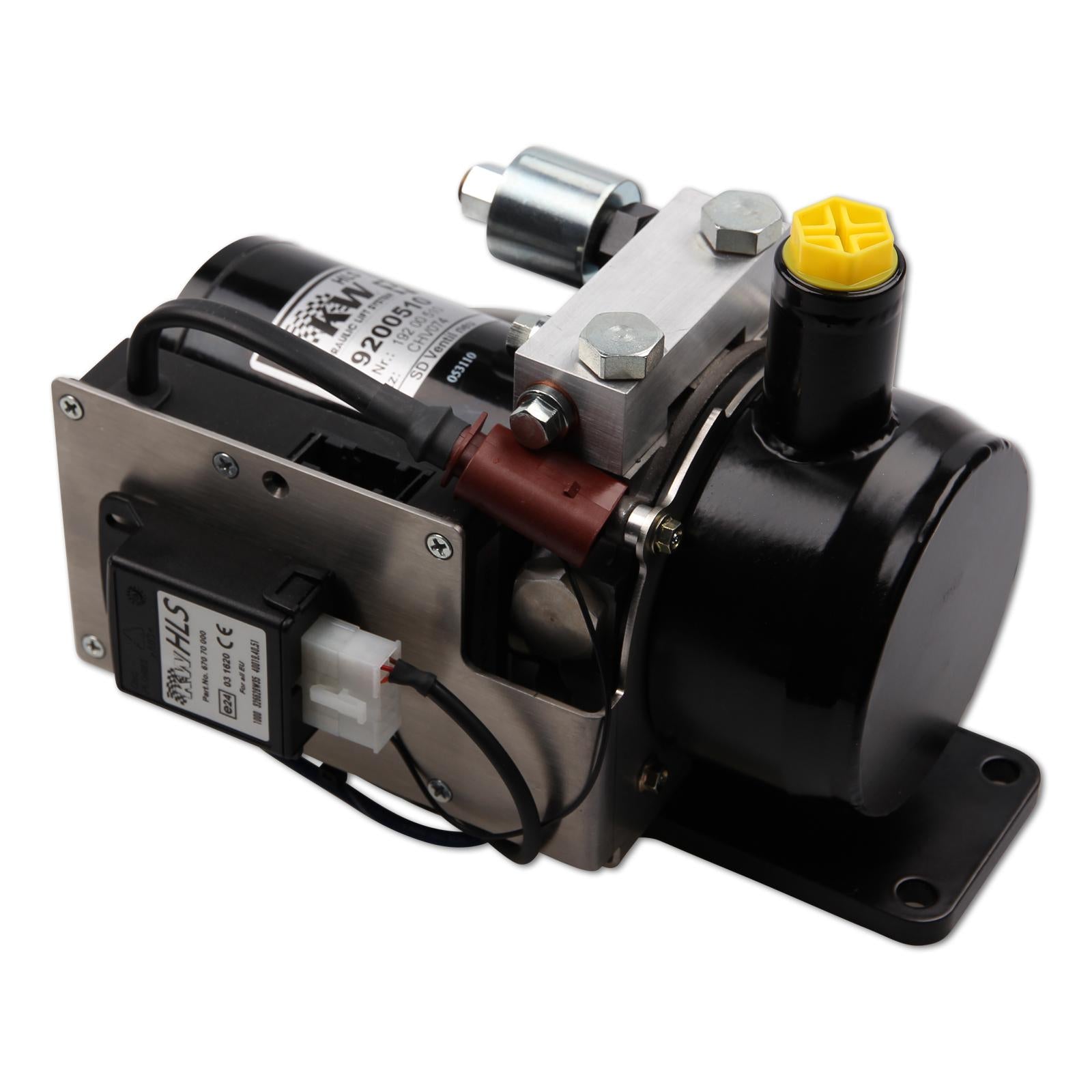

- Vehicle-specific hydraulic lines and pump
Specifications
- Version: HLS 4
- Lift axle(s): Front and rear axles
- Damping: Adjustable rebound and compression
- Material: Stainless steel
- Front lowering: 10–25 mm
- Rear lowering: 10–25 mm
- Front axle load: up to 970 kg
- Rear axle load: up to 1,160 kg

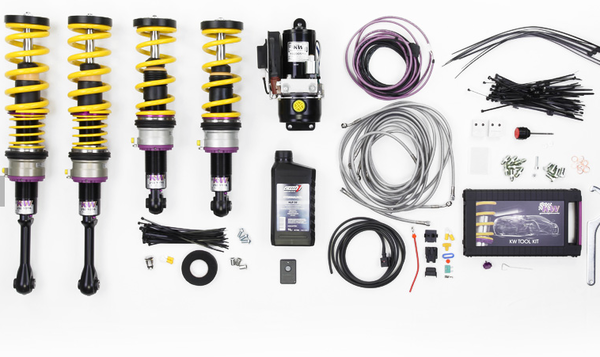

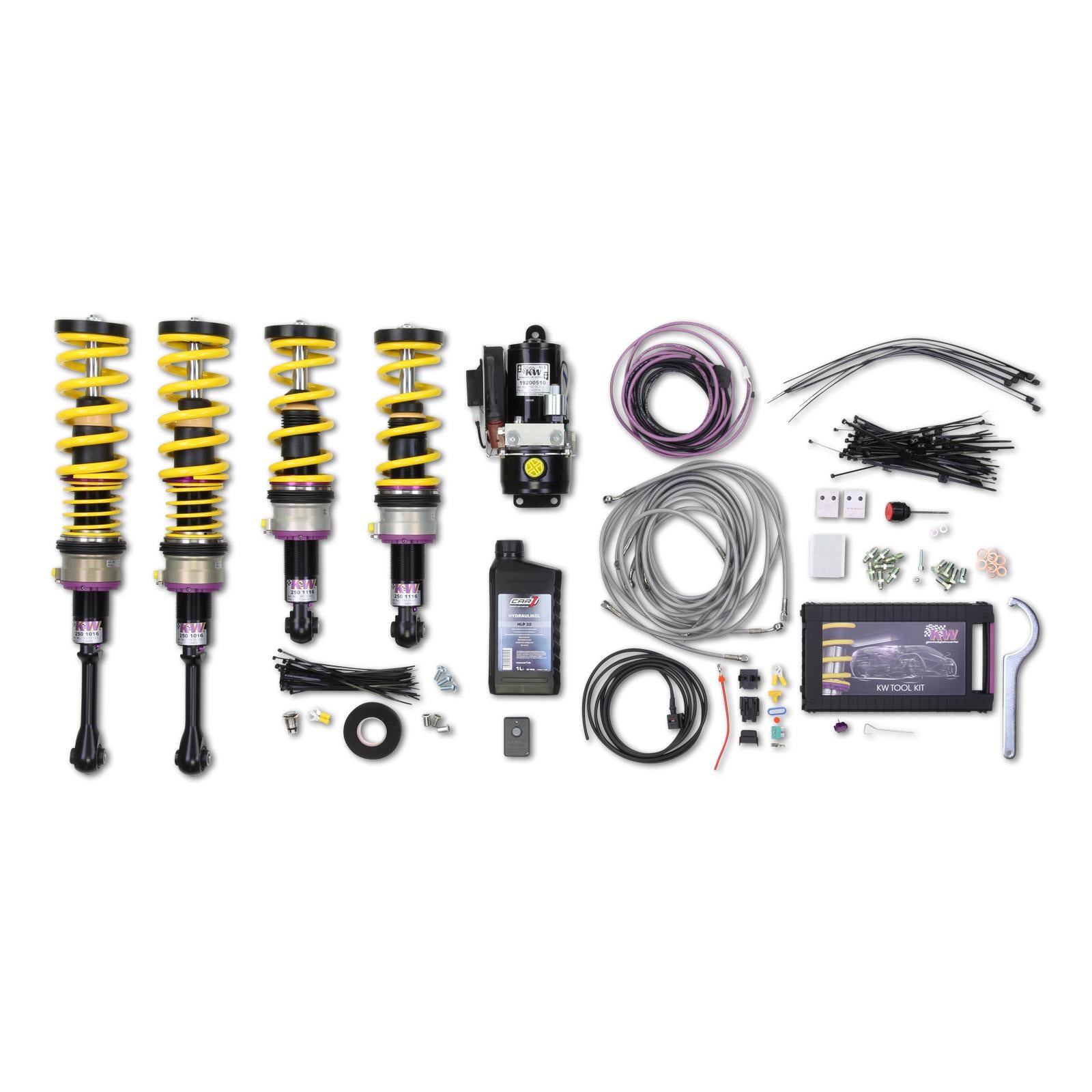

- Supplied as: Set (front + rear axle) with HLS 4
Front axle load up to 970 kg; Rear axle load up to 1,160 kg.
See the Disclaimer tab for reference notes.
| Year | Make | Model | Variant | Engine | Drive | Refs |
|---|---|---|---|---|---|---|
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI quattro | Petrol · 412 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI | Petrol · 419 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI | Petrol · 404 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 404 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2007–2016 | Audi | R8 (42) 42A, 422, 423 | 5.2 FSI quattro | Petrol · 386 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |
| 2010–2016 | Audi | R8 (42) Spyder 42A, 427, 429 | 5.2 FSI quattro | Petrol · 386 kW · 5.2L · 10-cyl | All-Wheel Drive | 1, 37, 90 |

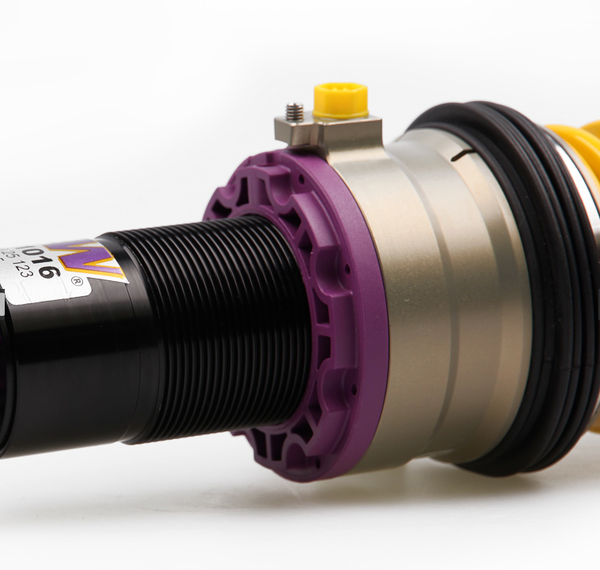

- Note 1: Height adjustable on the front and rear axles (threaded strut housings).
- Note 37: For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list.
- Note 90: Aluminium suspensions struts.
