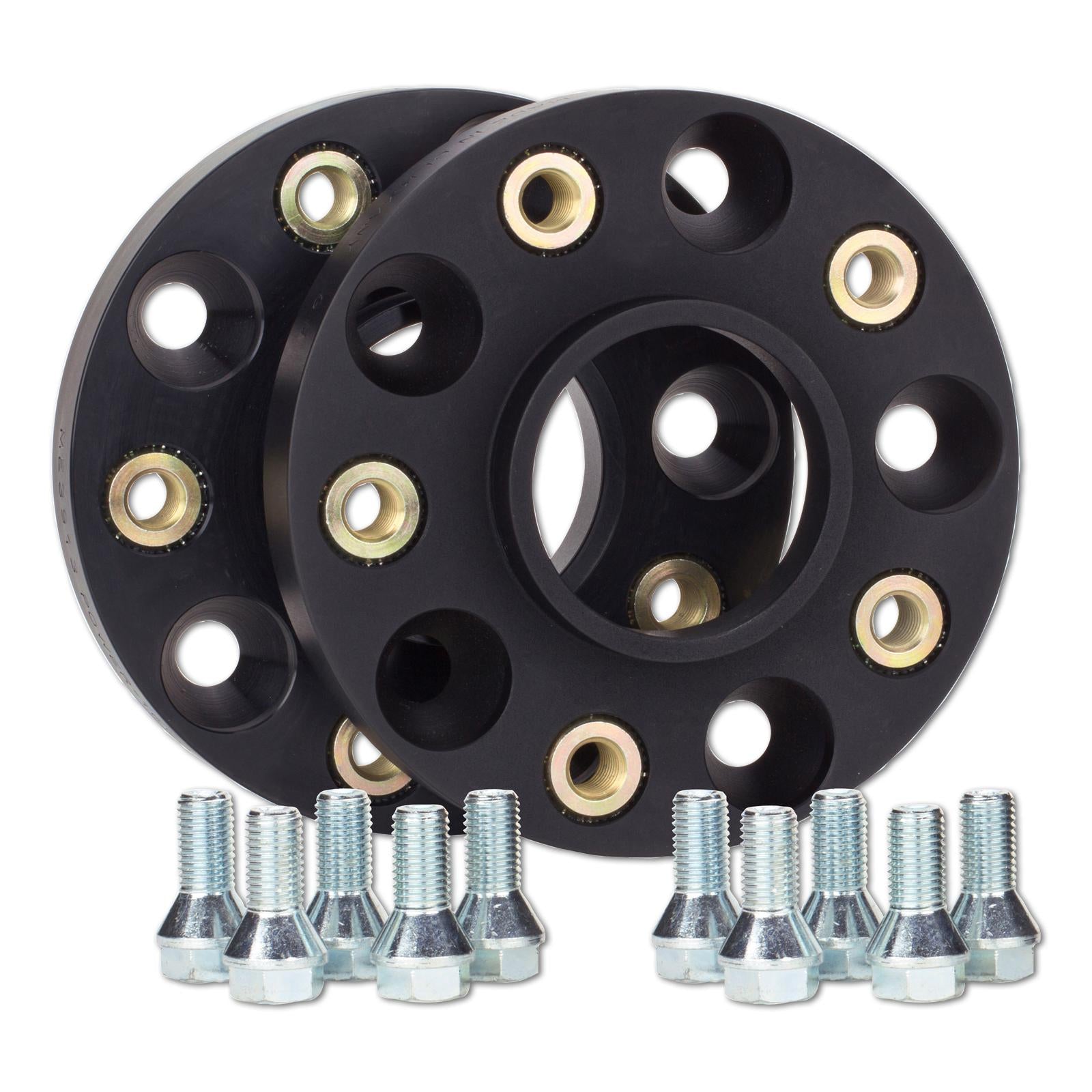

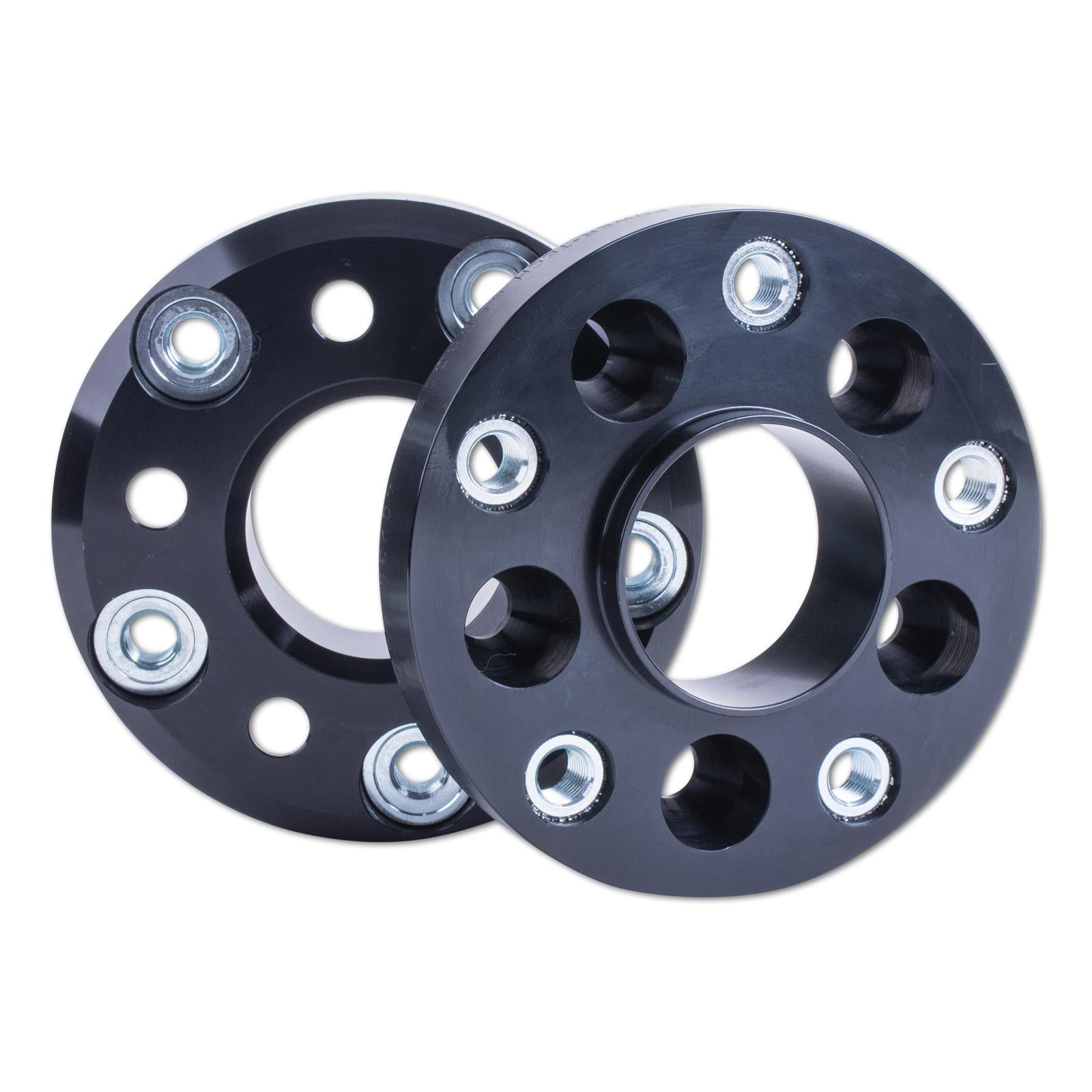

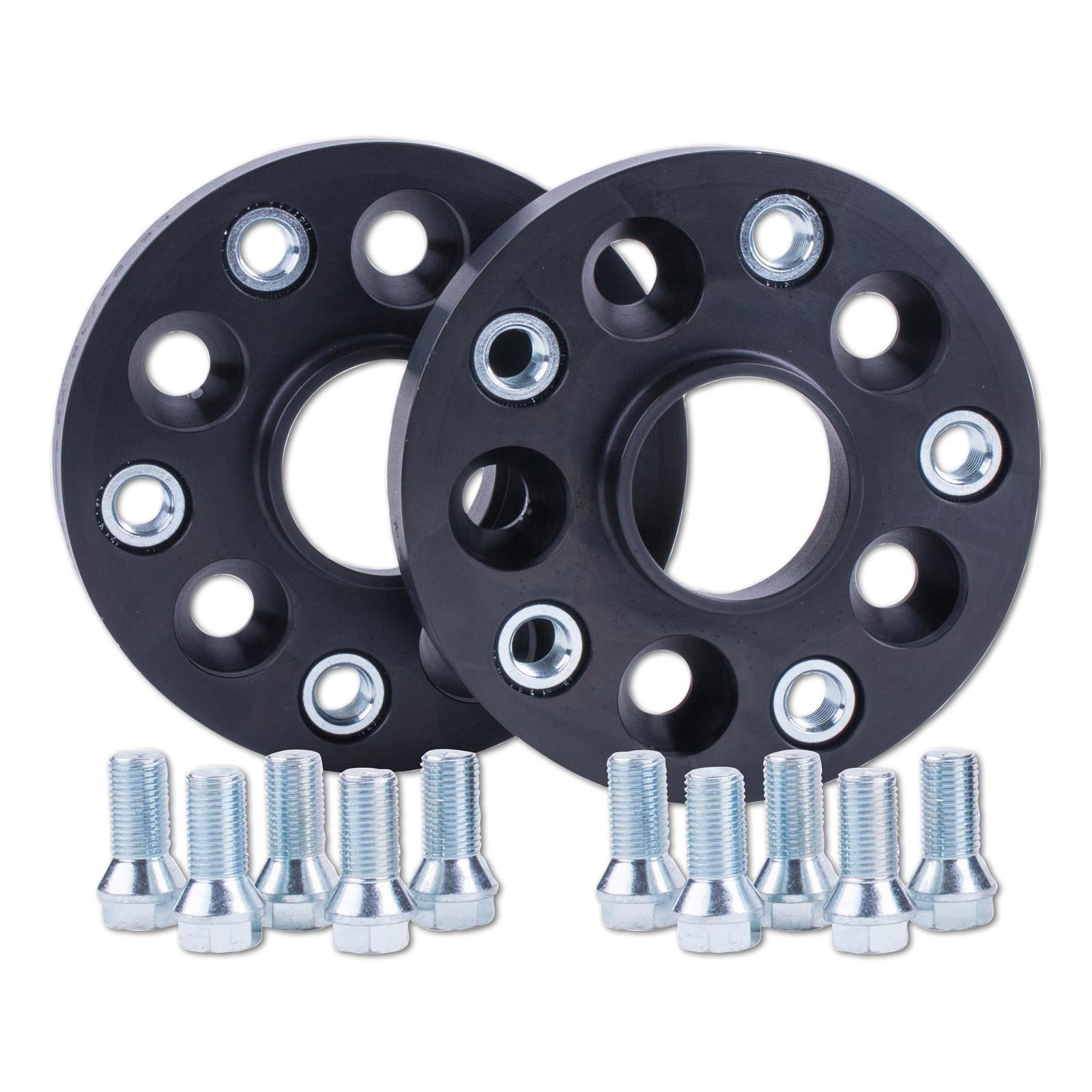

ST Wheel Spacer System A1 90mm per Axle 5x130/84.1 for Mercedes (W460/W461/W463) G-Class
Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.

ST Wheel Spacer System A1 90mm per Axle 5x130/84.1 for Mercedes (W460/W461/W463) G-Class
Sale price$740.05
Regular price$779.00 (/)
ST's A1 is a bolt-on wheel spacer system for vehicles with wheel bolts. The spacers attach to the hub with the included bolts, and the wheel is then fitted to the spacer using the original wheel bolts. This part is listed for the Mercedes G-Class (W460/W461/W463).
Key Features
- Black anodised for corrosion protection
- Wider track for a more planted stance
Specifications
- Width: 90 mm per axle (45 mm per wheel)
- Bolt pattern (PCD): 5x130
- Centre bore: 84.1 mm
- Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
- Centring collar: Yes
- Vehicle wheel fastening: Wheel bolts, M14x1.5
- Position: Front or rear axle
- Material: Aluminium
- Supplied as: Set (2 pcs including wheel bolts)
References 329. See the Disclaimer tab for reference notes.
Wheel mounting
| Bolt pattern | 5x130 |
|---|---|
| Hub bore | 84.1mm |
| Width per axle | 90mm |
| System | A1 |
| Thread | Bolt: M14x1.5x45 Ball R14, 17mm wrench size |
| Material | Aluminium |
| Supplied as | Set (2 pcs. incl. wheel bolts) |
- Note 329: Please consider the maximum total offset and all mentioned notes and restrictions in the certificate. The total offset is the result of the difference of the offset at the used wheel and the thickness of the wheel spacers (for example rim offset+35mm & wheel spacers 15mm = total offset +20mm).
