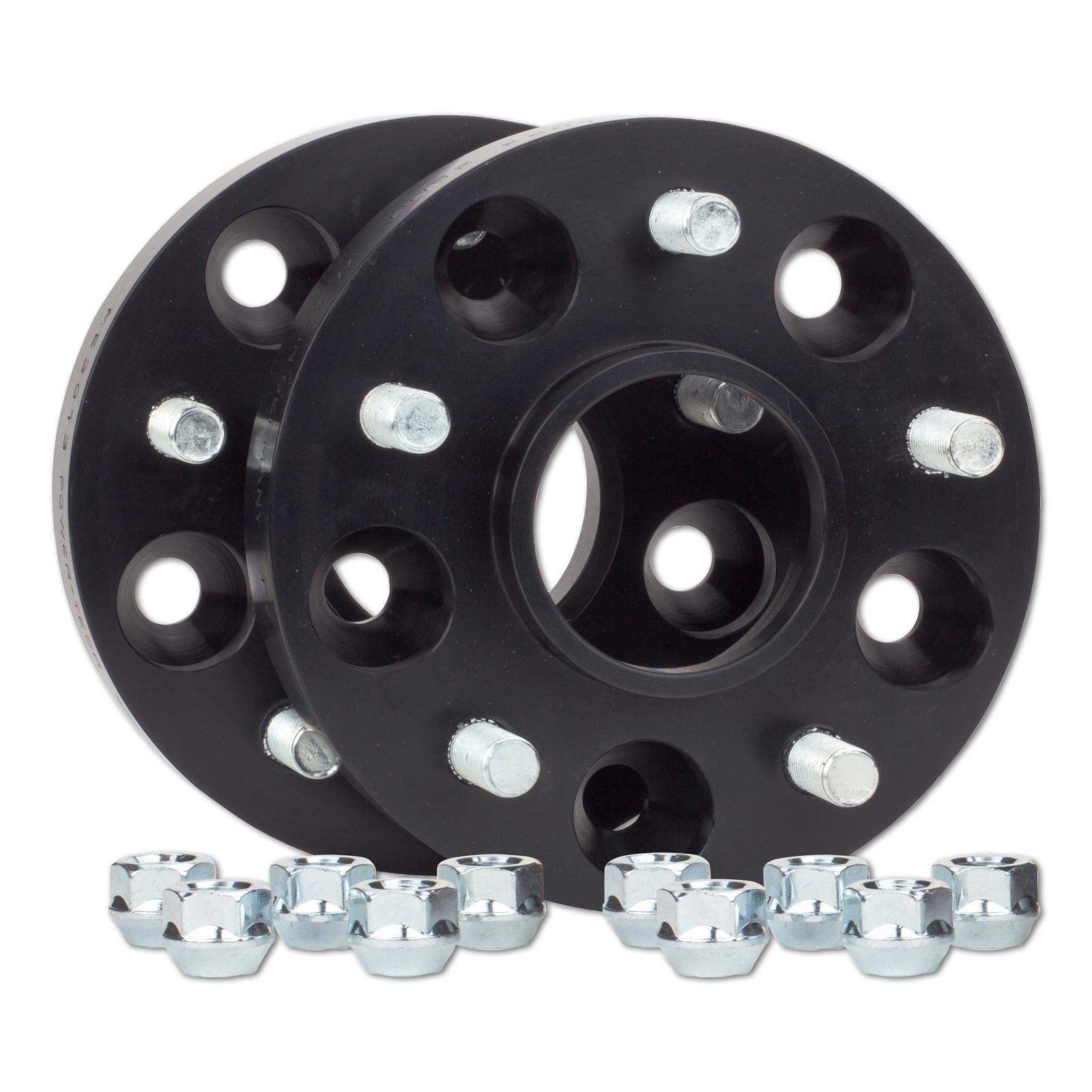

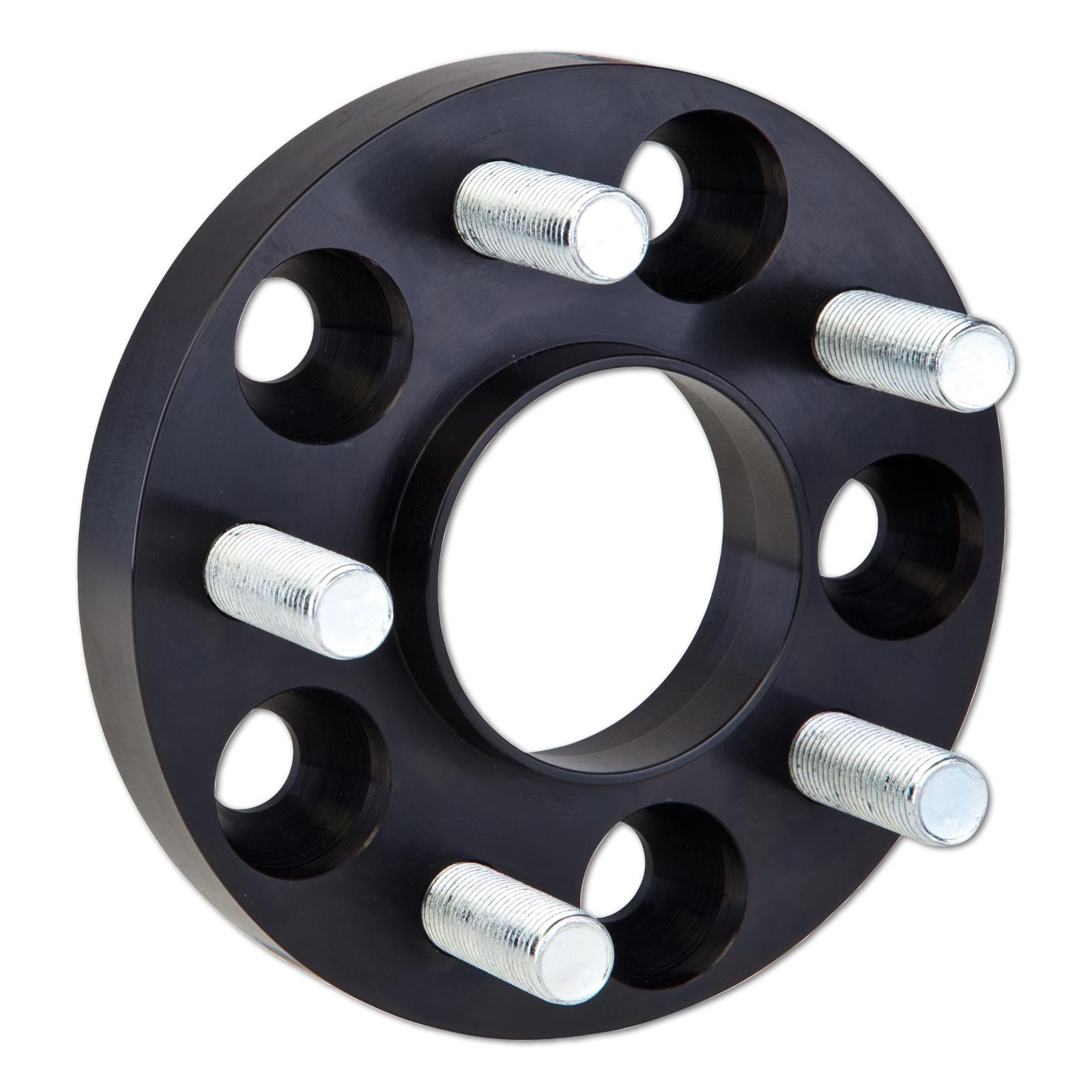

ST Wheel Spacer System A2 40mm per Axle 5x100/56.1

SKU: 56010189
Sale price$407.55 Regular price$429.00
Save $21.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's A2 is a bolt-on wheel spacer system for vehicles with wheel studs. Pressed-in threaded studs are used; the spacer attaches to the hub with the supplied nuts, and the wheel is then fitted with the original wheel nuts.

Key Features

  • Pressed-in threaded studs
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 40 mm per axle (20 mm per wheel)
  • Bolt pattern (PCD): 5x100
  • Centre bore: 56.1 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.25
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs including wheel nuts)

Wheel mounting

Bolt pattern5x100
Hub bore56.1mm
Width per axle40mm
SystemA2
ThreadNut: M12x1.25 Taper 60°, 19mm wrench size
MaterialAluminium
Supplied asSet (2 pcs. incl. wheel nuts)
  • Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
