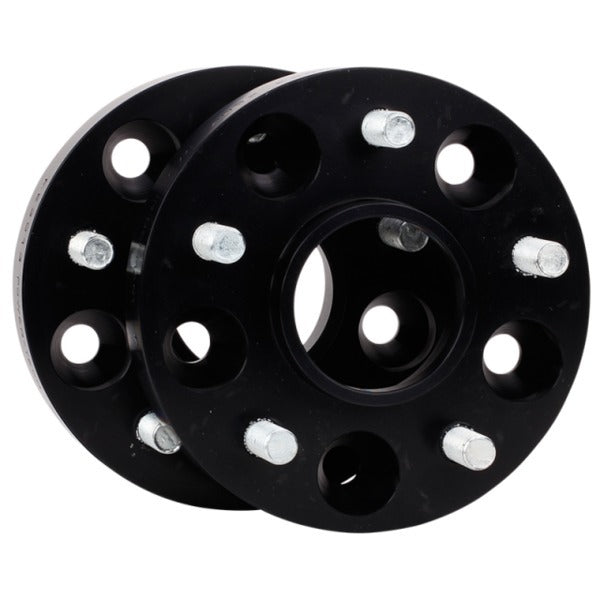

ST Wheel Spacer System A2 40mm per Axle 5x105/56.6 for Opel (J/K) Astra / (J13) Mokka

SKU: 56010241
Sale price$407.55 Regular price$429.00
Save $21.45

Please note: Not all items are kept in stock. Lead times may apply contact us to confirm availability before ordering.


ST's A2 is a bolt-on wheel spacer system for vehicles with wheel studs. Pressed-in threaded studs are used; the spacer attaches to the hub with the supplied nuts, and the wheel is then fitted with the original wheel nuts. This part is listed for the Opel Astra J/K / Mokka.

Key Features

  • Pressed-in threaded studs
  • Black anodised for corrosion protection
  • Wider track for a more planted stance

Specifications

  • Width: 40 mm per axle (20 mm per wheel)
  • Bolt pattern (PCD): 5x105
  • Centre bore: 56.6 mm
  • Mounting: Bolt-on (spacer bolts to the hub; wheel fits to the spacer)
  • Centring collar: Yes
  • Vehicle wheel fastening: Wheel nuts, M12x1.5
  • Position: Front or rear axle
  • Material: Aluminium
  • Supplied as: Set (2 pcs including wheel nuts)

References 316. See the Disclaimer tab for reference notes.

Wheel mounting

Bolt pattern5x105
Hub bore56.6mm
Width per axle40mm
SystemA2
ThreadNut: M12x1.5 Taper 60°, 19mm wrench size
Wheel offset limit22
MaterialAluminium
Supplied asSet (2 pcs. incl. wheel nuts)
  • Note 316: Original threaded wheel studs must be shortened by approxemately 12mm. This is the same like the area without thread. Minimum thread engagement is 7.5 turns.
  • Note 317: Attention: Installation only possible at rims with corresponding holes on the back. The depth of the pockets must be larger than the remaining length of the studs, which protrude from the wheel spacers after assembly.
